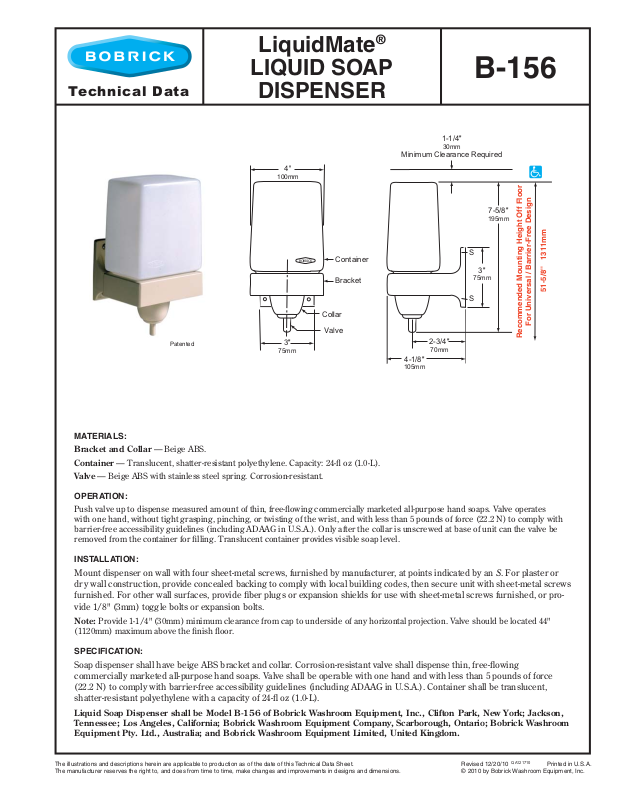

Bobrick B-156 User Manual

LiquidMate

®

Technical Data

Patented

LIQUID SOAP

DISPENSER

4''

100mm

3''

75mm

BOBRICK

Container

Bracket

Collar

Valve

B-156

1-1/4''

2-3/4''

70mm

30mm

S

75mm

S

3''

7-5/8''

195mm

Minimum Clearance Required

4-1/8''

105mm

51-5/8'' 1311mm

For Universal / Barrier-Free Design

Recommended Mounting Height Off Floor

MATERIALS:

Bracket and Collar — Beige ABS.

Container — Translucent, shatter-resistant polyethylene. Capacity: 24-fl oz (1.0-L).

Valve — Beige ABS with stainless steel spring. Corrosion-resistant.

OPERATION:

Push valve up to dispense measured amount of thin, free-flowing commercially marketed all-purpose hand soaps. Valve operates
with one hand, without tight grasping, pinching, or twisting of the wrist, and with less than 5 pounds of force (22.2 N) to comply with
barrier-free accessibility guidelines (including ADAAG in U.S.A.). Only after the collar is unscrewed at base of unit can the valve be
removed from the container for filling. Translucent container provides visible soap level.

INSTALLATION:

Mount dispenser on wall with four sheet-metal screws, furnished by manufacturer, at points indicated by an S. For plaster or
dry wall construction, provide concealed backing to comply with local building codes, then secure unit with sheet-metal screws
furnished. For other wall surfaces, provide fiber plugs or expansion shields for use with sheet-metal screws furnished, or pro­vide 1/8" (3mm) toggle bolts or expansion bolts.

Note: Provide 1-1/4" (30mm) minimum clearance from cap to underside of any horizontal projection. Valve should be located 44"
(1120mm) maximum above the finish floor.

SPECIFICATION:

Soap dispenser shall have beige ABS bracket and collar. Corrosion-resistant valve shall dispense thin, free-flowing
commercially marketed all-purpose hand soaps. Valve shall be operable with one hand and with less than 5 pounds of force
(22.2 N) to comply with barrier-free accessibility guidelines (including ADAAG in U.S.A.). Container shall be translucent,
shatter-resistant polyethylene with a capacity of 24-fl oz (1.0-L).

Liquid Soap Dispenser shall be Model B-156 of Bobrick Washroom Equipment, Inc., Clifton Park, New York; Jackson,
Tennessee; Los Angeles, California; Bobrick Washroom Equipment Company, Scarborough, Ontario; Bobrick Washroom
Equipment Pty. Ltd., Australia; and Bobrick Washroom Equipment Limited, United Kingdom.

The illustrations and descriptions herein are applicable to production as of the date of this Technical Data Sheet. Revised 12/20/10 Printed in U.S.A.
The manufacturer reserves the right to, and does from time to time, make changes and improvements in designs and dimensions. © 2010 by Bobrick Washroom Equipment, Inc.
