WHE Fan Forced Wall Insert Heaters
INSTALLATION AND OPERATING INSTRUCTIONS
PACKAGING - Unpack the heater and remove all packaging material.
LOCATION - The WHE heater is intended for the space heating of small areas that require the additional
robustness and air movement this heater is designed to provide. DO NOT COVER THE HEAT ER or restrict the
airflow in any way as this can cause overheating.

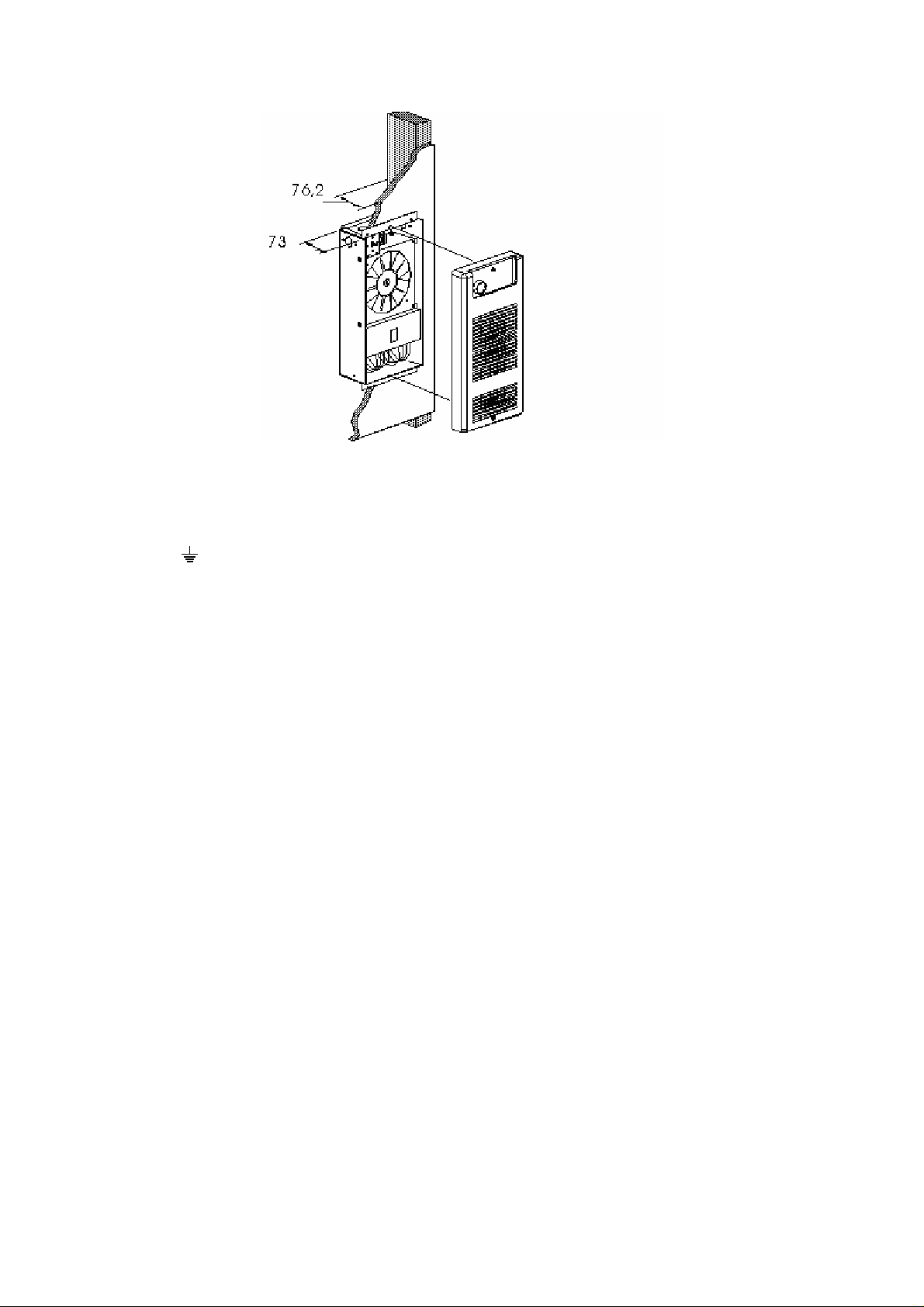

POSITIONING - The heater is intended to be vertically or ho rizontally wall mounted only. Either surface mounted,
using the WHESB or recessed. Do not obstruct the front of the heater for at least 1200mm. Optimum mounting
height is 1m from the floor. For recess mounting provide an opening in the wall 182 x 358 x 80mm.
INSTALLATION - For surface mounting fix the mounting box to the wall securely. Remove the two screws
securing the front cover and locate the incoming wiring to suit the terminal connecti on point on the he ater. Where
the wiring passes through the recess box use a knocko ut sui tably bush ed. For surface mount us ing four scre ws fit
the recess box into the surface box. For recess mount, using four screws securely fit the recess box to the wall.
CONNECTIONS - Connection to the mains should be made by way of a suitable s witch, plug or other device in
accordance with the current regulations and protected by an appropriate fuse or circuit breaker. Connect the
heater using the live cable, usually red or brown to the termi nal marked L, the neutral cable usu ally black or blue
to the terminal marked N and the earth wire usually green or green/yell ow to the terminal marked E and having
the symbol
CONTROLS- The WHE is available with and without an integral thermostat. If a thermostat (WHE-TB) is fitted it
can be made tamperproof by leaving the kn ob off and inserting the metal hole closer. A djustment is effected by
using a screwdriver on the slotted thermostat shaft (after prying out the closer). In either case set as follows: Turn the knob fully clockwise (maximum temperature). As the ar ea warms up to the desired temperature rotate
the knob anti clockwise until a 'click' is heard. The heater should now maintain that temperature setting. The
heater is fitted with an automatic reset overheat cut out.
. THIS UNIT MUST BE EARTHED.
GENERAL MAINTENANCE ON ELECTRIC HEATERS
BN Thermic Electric Heaters are factory assembled and tested and are non user serviceable.
They are designed to operate for many years, problem free.
All moving parts are factory lubricated and should require no service.
Maintenance is limited to the keeping of both inlet and exhaust areas free from any accumulation of dust and
other foreign materials. This is especially important immediatel y before a heating season. Any dust build-up can
be loosened with a brush and a vacuum cleaner applied to the airways to ensure complete removal of dust
materials. An unusual odour may be noted on the initial turn-on period as any dust particles may have been
disturbed and will be burnt off from the element.
If you are in any doubt contact your electrician for advice.
WARRANTY - Your BN Thermic product is guaranteed for five years from date of purchase. We will repair or
replace at our discretion any part found to be defective. We cannot assume any consequential liability. This
guarantee in no way prejudices your rights under common law and is offered as an addition to consu mer liability
rights.
