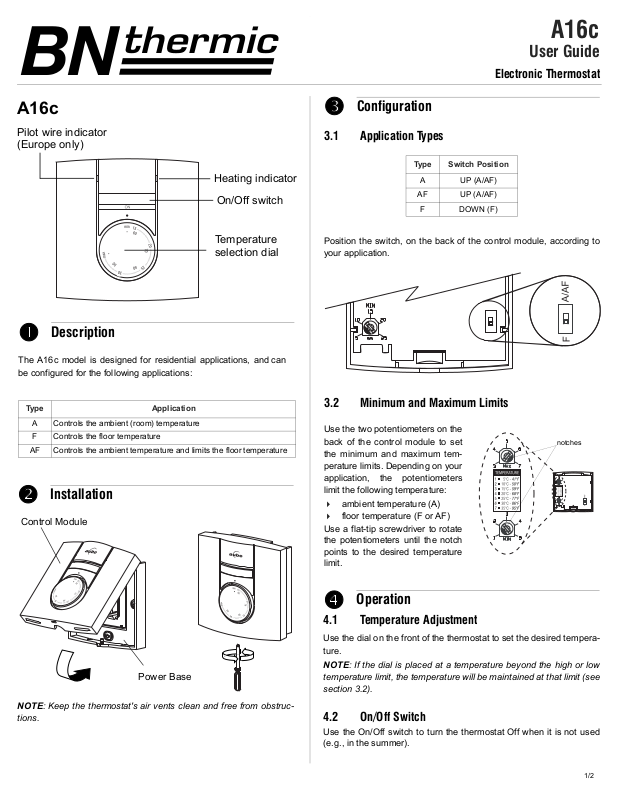

BN Thermic A16C User guide

A16c

User Guide

BN

A16c

Pilot wire indicator
(Europe only)

Heating indicator

On/Off switch

Temperature
selection dial

Description

The A16c model is designed for residential applications, and can

be configured for the following applications:

Electronic Thermostat

3.

Configuration

3.1 Application Types

Type Switch Position

A UP (A/AF)

AF UP (A/AF)

F DOWN (F)

Position the switch, on the back of the control module, according to
your application.

1.

noitacilppAepyT

A Controls the ambient (room) temperature

F Controls the floor temperature

AF Controls the ambient temperature and limits the floor temperature

Installation

Control Module

Power Base

NOTE: Keep the thermostat's air vents clean and free from obstruc­tions.

3.2 Minimum and Maximum Limits

Use the two potentiometers on the
back of the control module to set
the minimum and maximum tem­perature limits. Depending on your

2.

application, the potentiometers
limit the following temperature:

ambient temperature (A)
floor temperature (F or AF)

Use a flat-tip screwdriver to rotate
the potentiometers until the notch
points to the desired temperature
limit.

notches

4.

Operation

4.1 Temperature Adjustment

Use the dial on the front of the thermostat to set the desired tempera­ture.

NOTE: If the dial is placed at a temperature beyond the high or low
temperature limit, the temperature will be maintained at that limit (see
section 3.2).

4.2 On/Off Switch

Use the On/Off switch to turn the thermostat Off when it is not used
(e.g., in the summer).

1/2

Pilot Wire Orders (Europe only)

A16c accepts the six following pilot wire orders when installed on a
230 V power base.

ORDER SIGNAL DESCRIPTION

Comfort No signal Maintain temperature at setpoint

Reduced setpoint
(3.5k setback)

frost protection Maintain temperature at 7°C

1k setback Maintain temperature at 1°C below setpoint

Maintain temperature at 3.5°C below
setpoint

gnitaeh potSffO

5.

8.

Customer Assistance

BN Thermic Ltd

34 Stephenson Way, Three Bridges, Crawley
West Sussex RH10 1TN
England

Contact Us

For information, advice, prices or technical assistance

Tel: [phone]
Fax: [phone]
Email: [e-mail]

2k setback Maintain temperature at 2°C below setpoint

Specifications

Setpoint range: 7°C, 15°C to 35°C (45°F, 59°F to 95°F)

Minimum temperature limit: 5°C to 25°C (41°F to 77°F)

Maximum temperature limit: 15°C to 35°C (59°F to 95°F)

Accuracy: ± 0.2°C (0.36°F)

Storage: -20°C to 50°C (-4°F to 120°F)

Heating cycle length: 15 minutes

Software: Class A

Controller: Electronic

Size (H/W/D):

• 78.9 x 78.9 x 16.3 mm (3.1 x 3.1 x 0.64 in.)

BN

6.

2/2

PB130

BN

The PB130-230 power base is used to power an A16c control module.
The resistive load must not exceed 3450 watts (NI) @

Parts

One (1) PB130-230 power base

One (1) oor sensor (for AF and F control modules only)
One (1) wall plate (optional, in certain countries)

Guidelines

Turn o power to the heating system at the main power panel to avoid
electrical shock. Installation should be carried out by an electrician.

All work must conform to the applicable country standards for
electrical installations and wiring.

This thermostat should be connected on a circuit equipped with
a fuse or a circuit breaker. It must be installed on a ce ed
electrical box.

For a new installation, choose a location about 1.5 m above the

oor.

For electric baseboards, convectors and fan-forced heaters, the
thermostat must be installed facing the heating system.

The thermostat must be installed on an inside wall.
Avoid locations where there are air drafts (top of staircase, air

outlet), dead air spots (behind a door), direct sunlight or
concealed chimneys or stove pipes.

Technical

Model : PB130A-230
Supply : 230 VAC, 50 Hz
Load : 15 A maximum (resistive only)
Power : 3450 Watts (NI) @ 230 VAC
Conformity : EN60730-2-9 / EN50081-1 / EN50082-2
Storage : -20°C to 50°C
Protection : Class 2
Protection degree : IP21
Automatic action : Type 1.B
Environment : Normally polluted
Size (H • W • D) : 2.95 x 2.95 x 0.55 in. (75 x 75 x 14 mm)

NOTE: The terminals are designed to handle a cross-section of wire

measuring 0.33 to 3.1 mm

2

.

Procedure

230 VAC (15 A).

Installation Instructions

230 V Line Voltage Power Base

Before making the connections, make sure
that the base covers the electrical box

1.

2.

3.

4.

entirely. If not, install a wall plate at the
back of the base as shown.

Connect the wires:

• Power :
Terminals 1 & 5

• Load :
Terminals 2 & 4
see note 1

• Pilot Wire :
Terminal 3
see note 2

• Floor sensor :
Terminals 6 & 7
(no polarity)
see note 3

Note 1 If a contactor is used between the thermostat and the load,

install a snubber at the contactor’s coil terminal to ensure
the proper operation of the thermostat.

Note 2 This connection is required on some models only.

Note 3 For the proper operation of t he thermostat, the

must be centered between two heater wires having a
maximum temperature of 80°C. The
not cross any heater wire or be placed close to it.

Push wires into the electrical box and
secure the base to the electrical box

anchorage. The head of the screw
must be less than 2 mm thick.

BEFORE installing the control
module onto the base, set the

guration switches (if any)

con
on the control module (refer to

the user guide ).

oor sensor wire must

oor sensor

Remove the screw holding the
control module to the power base

and lift the lower part upwards.
The screw cannot be completely
removed.

PB130 1/1

WARNING : This power base must be used only with 15-minute

heating cycles. If your control m odule has a selector switch for
choosing the heating cycle, ensure that the switch is correctly set.

Return power to the heating system.
