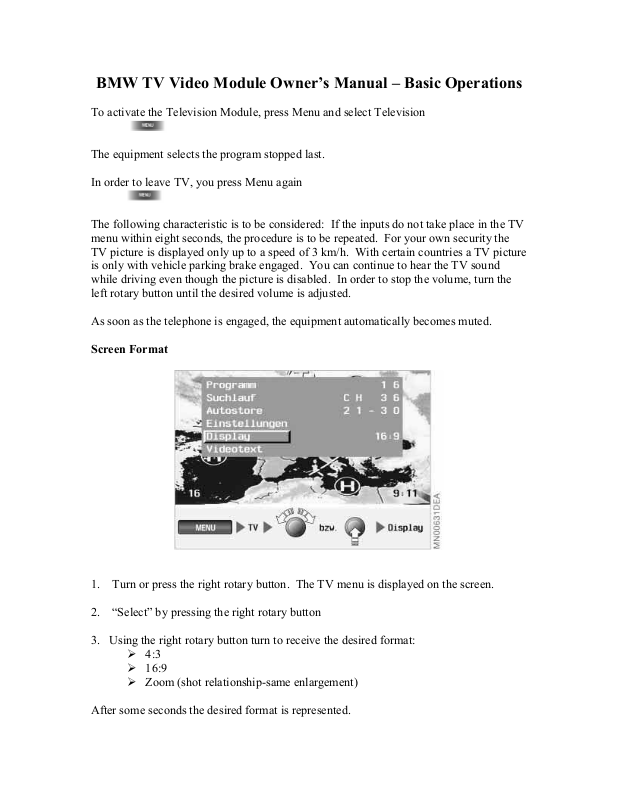

BMW TV Video Module Owner’s Manual – Basic Operations
To activate the Television Module, press Menu and select Television
The equipment selects the program stopped last.
In order to leave TV, you press Menu again
The following characteristic is to be considered: If the inputs do not take place in the TV
menu within eight seconds, the procedure is to be repeated. For your own security the
TV picture is displayed only up to a speed of 3 km/h. With certain countries a TV picture
is only with vehicle parking brake engaged. You can continue to hear the TV sound
while driving even though the picture is disabled. In order to stop the volume, turn the
left rotary button until the desired volume is adjusted.
As soon as the telephone is engaged, the equipment automatically becomes muted.
Screen Format
1. Turn or press the right rotary button. The TV menu is displayed on the screen.
2. “Select” by pressing the right rotary button
3. Using the right rotary button turn to receive the desired format:
4:3
16:9
Zoom (shot relationship-same enlargement)
After some seconds the desired format is represented.
Contrast, Brightness and Color
1. Right rotary button turn or press. The TV menu is faded in
2. Attitudes select
3. Select the desired automatic controller
4. Right rotary button turn, until the desired attitude is reached
5. Right rotary button press, in order to store the attitude.
Select TV Standard
The television can be used by the multi standard receiver (PAL, SECAM, NTSC) worldwide. The used TV standard is not alike in all countries. They can change your TV
receiver over however to all common TV standards.
1. Right rotary button turn or press. The TV menu is faded in
2. Attitudes select
3. Select TV standard. An alphabetically sorted list with country names is indicated.
4. Select the country in which you are located from the list.
