Page 1
ONON TP TP CDCD Radad Nav
BMW
Infnfo OKOK
ON TP CD Rad Nav
BMW
Info OK
F 36 0168 B

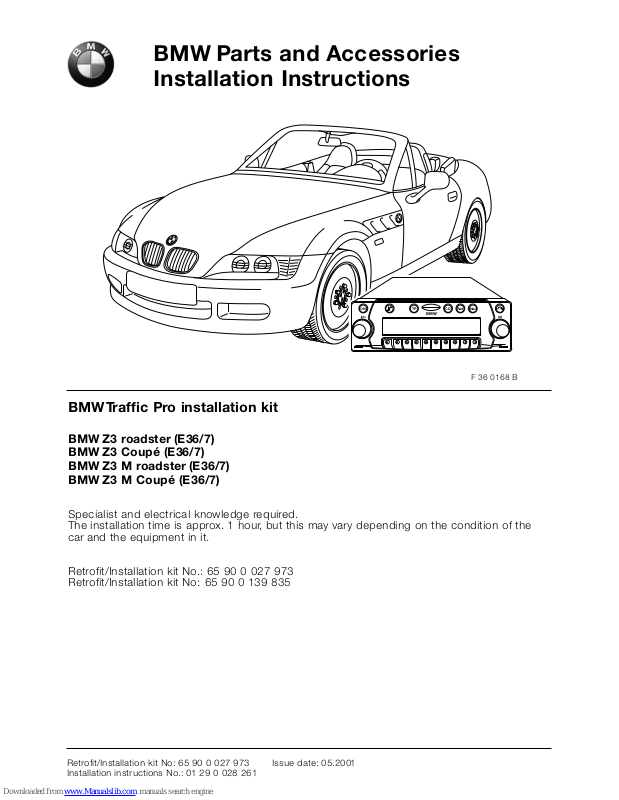

BMWTraffic Pro installation kit
BMW Z3 roadster (E36/7)
BMW Z3 Coupé (E36/7)
BMW Z3 M roadster (E36/7)
BMW Z3 M Coupé (E36/7)
Specialist and electrical knowledge required.
The installation time is approx. 1 hour, but this may vary depending on the condition of the
car and the equipment in it.
Retrofit/Installation kit No.: 65 90 0 027 973
Retrofit/Installation kit No: 65 90 0 139 835
BMW Parts and Accessories
Installation Instructions
Retrofit/Installation kit No: 65 90 0 027 973 Issue date: 05.2001
Installation instructions No.: 01 29 0 028 261
Page 2
Contents
Section Page
1. Important information for installing the navigation radio............................................1
2. Preparations ............................................................................................................2
3. Parts overview..........................................................................................................3
4. Connection overview for the adapter cable ..............................................................4
5. Connection overview for the navigation radio ..........................................................5
6.To install the GPS aerial............................................................................................6
7.To install the adapter cable and connect the navigation radio ..................................8
8. Coding ....................................................................................................................10
9. Concluding work......................................................................................................10
10. Language selection and commissioning ................................................................10
11. Operating manual ..................................................................................................10
12. Circuit diagram for the adapter wiring harness ......................................................11
Retrofit/Installation kit No: 65 90 0 027 973 Issue date: 05.2001
Installation instructions No.: 01 29 0 028 261
Page 3
1. Important information for installing the mudflaps
Only for use within the BMW dealer organisation.
The navigation radio may only be installed by a specialist workshop that has the required
special tools and manuals.
Ensure that the cables/lines are not kinked or damaged as you install them in the car.
Additional cables/lines that you install must be secured with cable ties.
Item numbers refer only to the overview drawings and to the texts next to the
appropriate figure.
The operating manual and commissioning instructions supplied with the kit must be given
to the owner of the car.
On cars with a CD changer, the owner must be told that the CD changer will no longer
work when the navigation radio has been installed.
Subject to technical modifications
Tools and equipment required
MoDIC III or DIS Set of Philips screwdrivers
Set of straight slot screwdrivers Short Philips screwdriver
1/4 inch socket set Set of Allen keys
Angle cutter Cable lamp
EN/1
Retrofit/Installation kit No: 65 90 0 027 973 Issue date: 05.2001
Installation instructions No.: 01 29 0 028 261
Page 4
Retrofit/Installation kit No: 65 90 0 027 973 Issue date: 05.2001
Installation instructions No.: 01 29 0 028 261
EN/2
2. Preparations
TIS AW-Nr.
Conduct a short test (print out the error memory)
Disconnect the battery 1200
Remove the radio (remove the installation frame if necessary) 65 11 030
Remove the centre fresh air grille 51 16 200
Remove the footwell trim on the driver’s side 51 45 180
Remove the bottom A pillar trim on the driver’s side
Page 5
c
Bedienungsanleitung
d
c
Anleitung zur
Inbetriebnahme
d
ON TP CD Ra d Nav
BMW
Info OK
1
5
67
8
14
15
9
2
A
4
10 11
12
13
3
F 36 0169 B
3. Parts overview
A Adapter cable
1 Navigation radio
2 Radio retaining pin
3 Insulation-piercing connector
4 Cable tie (10x)
5 GPS aerial with retaining plate
6 Adhesive section (double-sided)
7 Rattle guard (2x)
8 Damping strip
9 Retaining bracket (not required)
10 Installation clip (2x)
11 Stud bolt
12 Hexagonal screw with washer 4.8x13 (2x) (not required)
13 CD-ROM
14 Operating manual
15 Commissioning instructions
EN/3
Retrofit/Installation kit No: 65 90 0 027 973 Issue date: 05.2001
Installation instructions No.: 01 29 0 028 261
Page 6
A1
A3
A2
F 36 0170 B

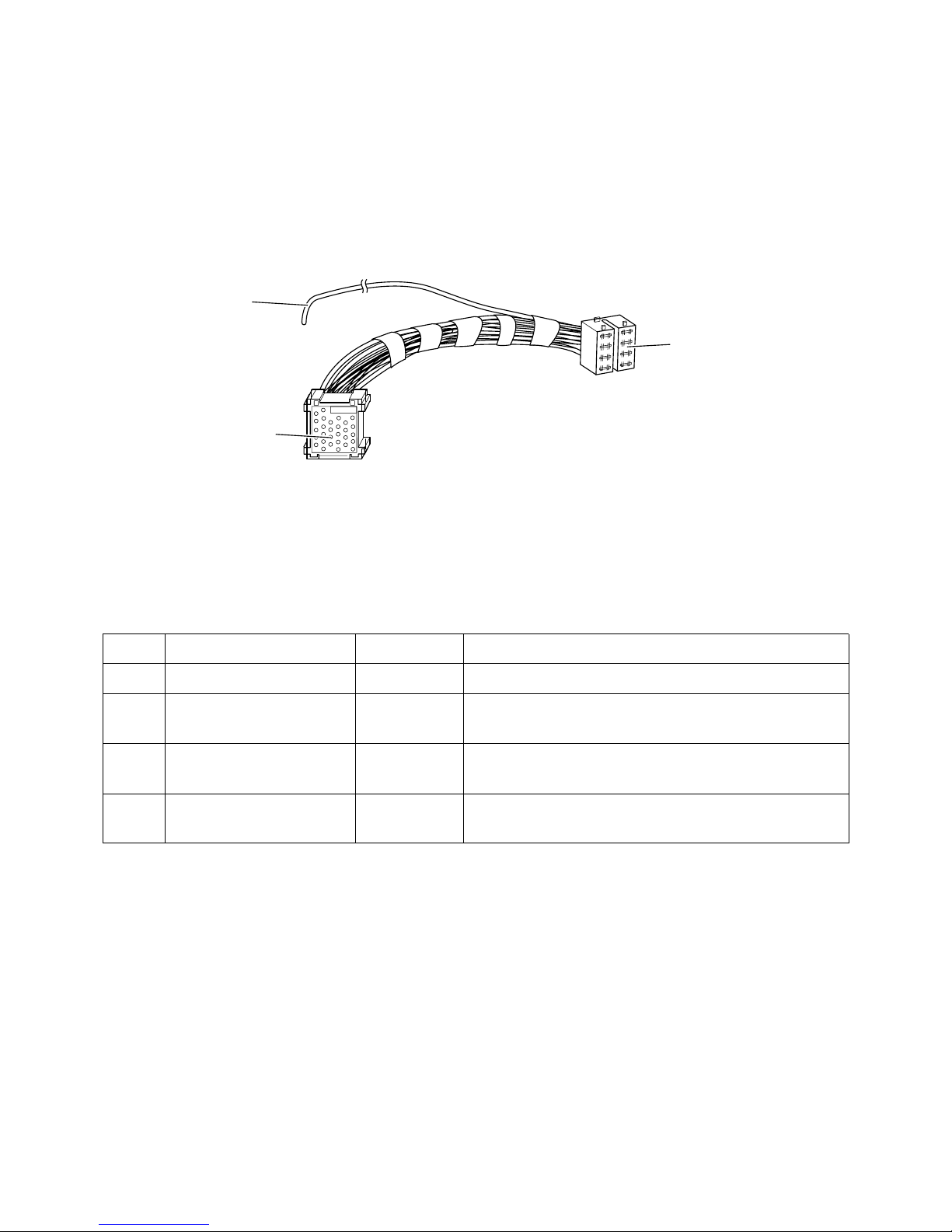

4. Connection overview for the adapter cable
EN/4
Retrofit/Installation kit No: 65 90 0 027 973 Issue date: 05.2001
Installation instructions No.: 01 29 0 028 261
Adapter cable
Black 17-pin plug casing
Black 16-pin socket casing
Exposed wire end
A
A1
A2
A3
-
-
-
blue/yellow
-
To the black 17-pin socket casing X18126 in the centre console
To the navigation radio in the centre console
To the standard wiring harness, near the door sill at the front left
using an insulation-piercing connector
Item Design / Description Cable colour Connection site in the car
Page 7
1 4 7 10 13 16 19
3 6 9 12 15 18
2 5 8 11 14 17 20
1 3 5 7
2 4 6 8
1 3 5 7
2 4 6 8
10
10
B
A
EF
C3
C2
C1
D
F 36 0171 B

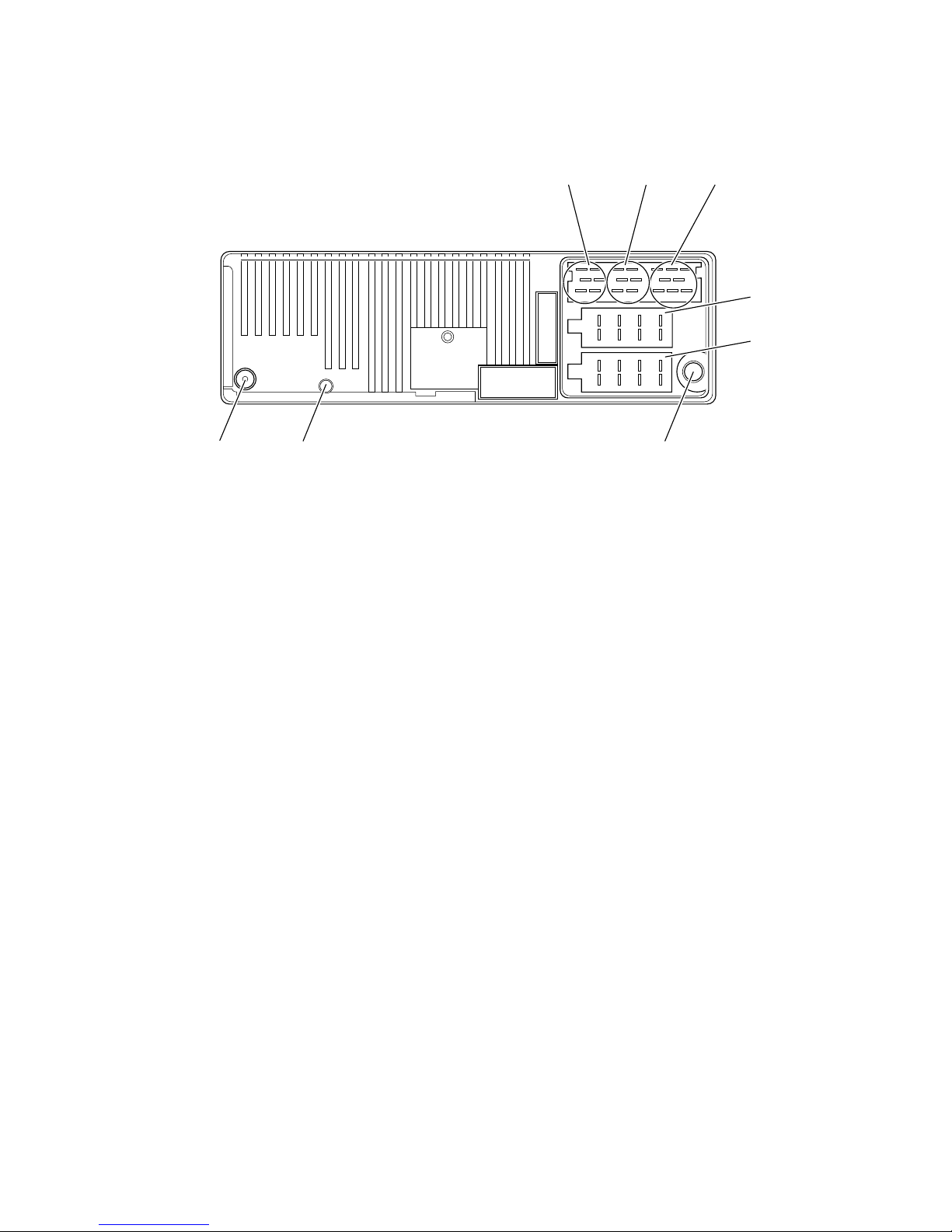

5. Connection overview for the navigation radio
Chamber A
1 Speed signal (TAA)
2 Signal from reversing light (RS)
3 Telephone mute
4 Continuous positive
5 Control output for automatic aerial / amplifier
6 Light (terminal 58G)
7 Switched positive (terminal 15)
8 Earth (terminal 31)
Chamber B
1 Speaker rear right +
2 Speaker rear right 3 Speaker front right +
4 Speaker front right 5 Speaker front left +
6 Speaker front left 7 Speaker rear left +
8 Speaker rear left -
Chamber C1
1 LineOut rear left
2 LineOut rear right
3 Low frequency earth
4 LineOut front left
5 LineOut front right
6 Subwoofer LineOut
Chamber C2
7-12 Specific connection for CD changer
Chamber C3
13 Low frequency telephone input
14 Earth telephone input
15-17 Specific connection for CD changer
18 CD low frequency earth (AUX)
19 CD low frequency left (AUX)
20 CD low frequency right (AUX)
Socket D
Radio aerial socket
Socket E
GPS aerial socket
Socket F
Aerial diversity connection
Retrofit/Installation kit No: 65 90 0 027 973 Issue date: 05.2001
Installation instructions No.: 01 29 0 028 261
EN/5
Page 8
Retrofit/Installation kit No: 65 90 0 027 973 Issue date: 05.2001
Installation instructions No.: 01 29 0 028 261

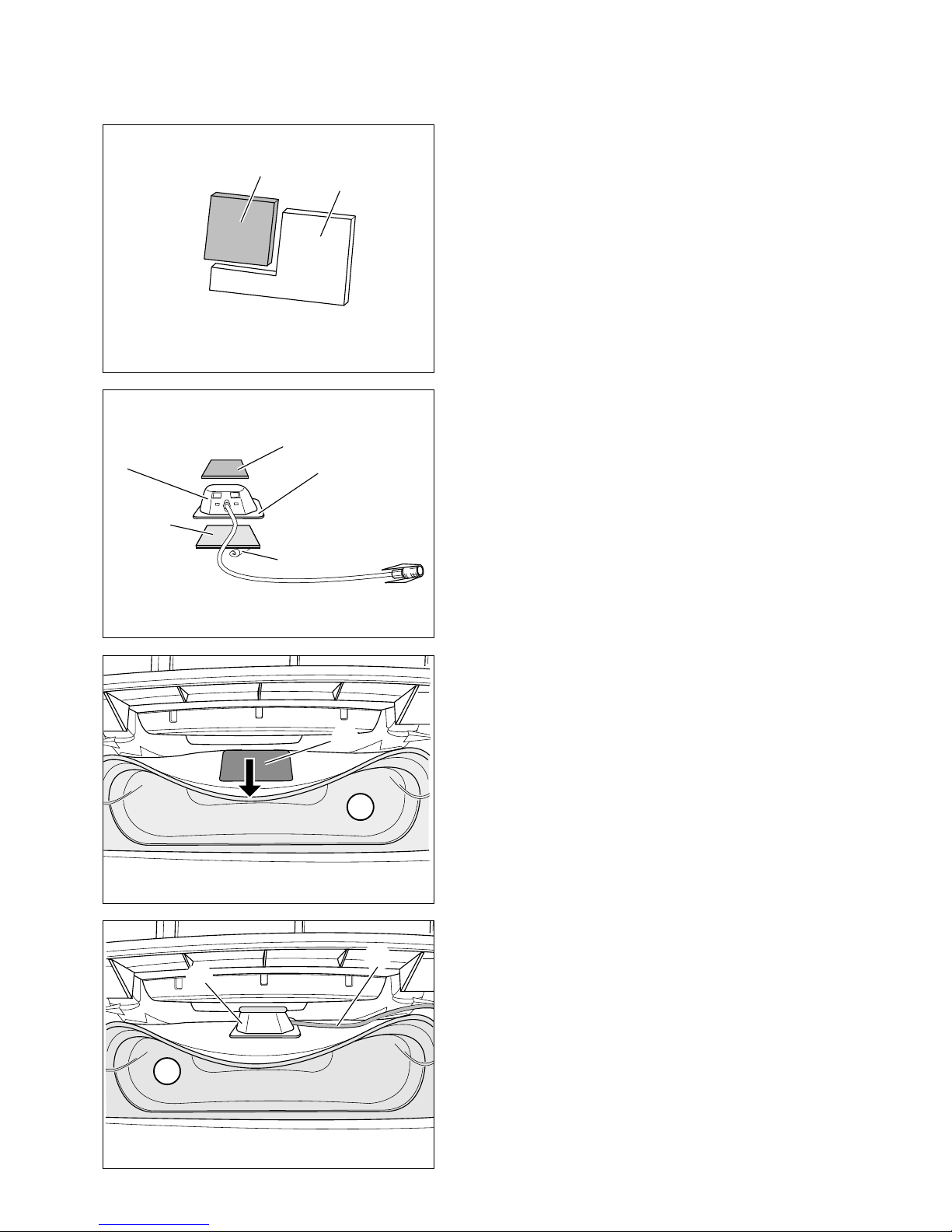

Cut a square (30) measuring 40 x 40 mm out of
the damping strip (8).
6. To install the GPS aerial
8
30
F 36 0172 B
EN/6
Affix the square (30) of damping strip to the top
of the GPS aerial (5) with the retaining plate (31).
Affix the adhesive section (6) on to the centre of
the underside of the retaining plate (31) and
remove the backing foil (32).
6
31
30
32
5
F 36 0173 B
31
30
F 36 0174 B
The figure shows the installation space behind
the centre fresh air grille.
Carefully press the air duct (30) for the centre
fresh air grille downwards.
Clean the area (31).
31
30
5
F 36 0175 B
Push the GPS aerial (5) as far to the rear as
possible and affix it to the air duct (30) so that
the cable outfeed (31) points to the right.
Page 9
Retrofit/Installation kit No: 65 90 0 027 973 Issue date: 05.2001
Installation instructions No.: 01 29 0 028 261

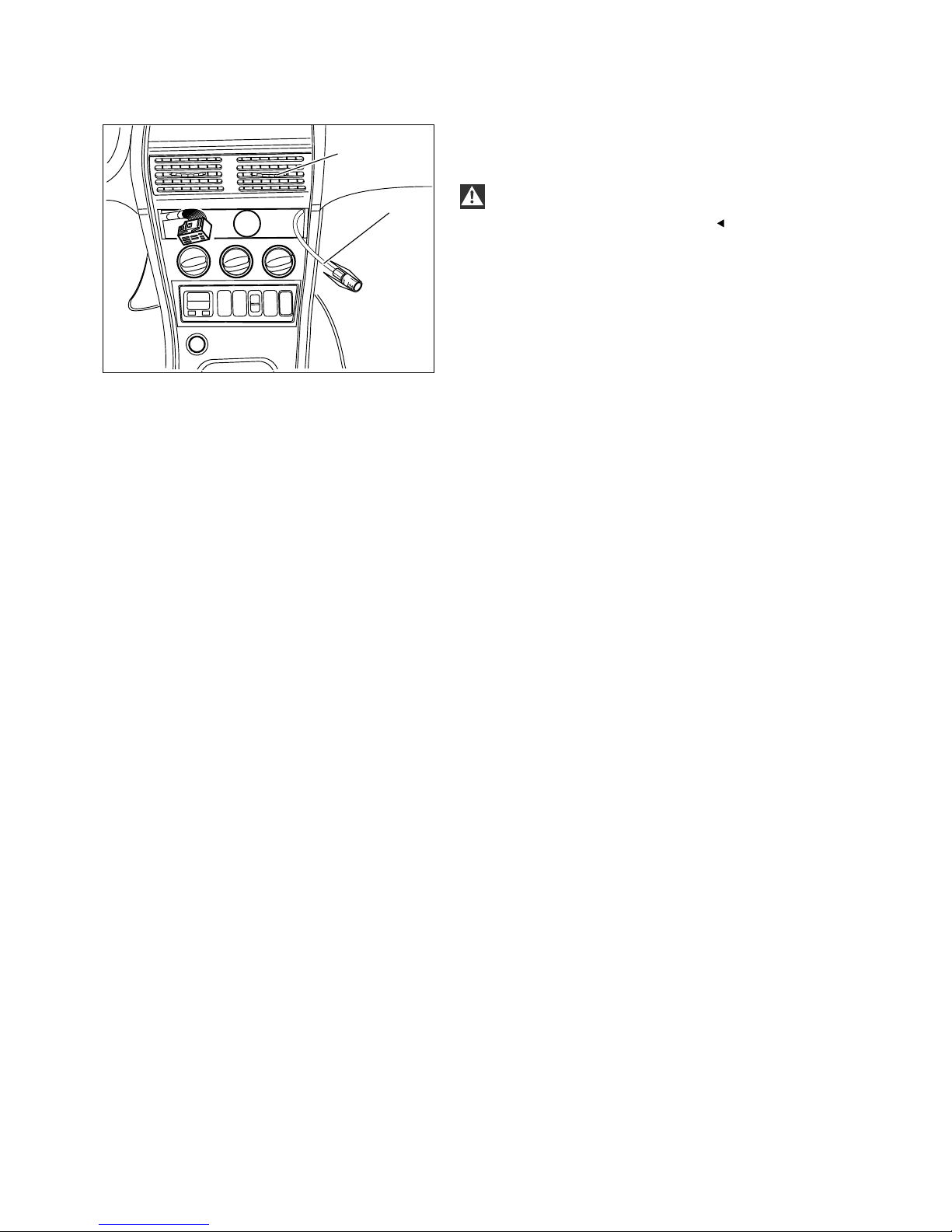

Lay the connection cable (30) for the GPS aerial
to the installation site of the radio (31) and tie it
back.
The connection cable (30) for the GPS aerial
must not be kinked or damaged.
Install the fresh air grille.
30
32
31
F 36 0182 B
EN/7
6. To install the GPS aerial
Page 10
Retrofit/Installation kit No: 65 90 0 027 973 Issue date: 05.2001
Installation instructions No.: 01 29 0 028 261

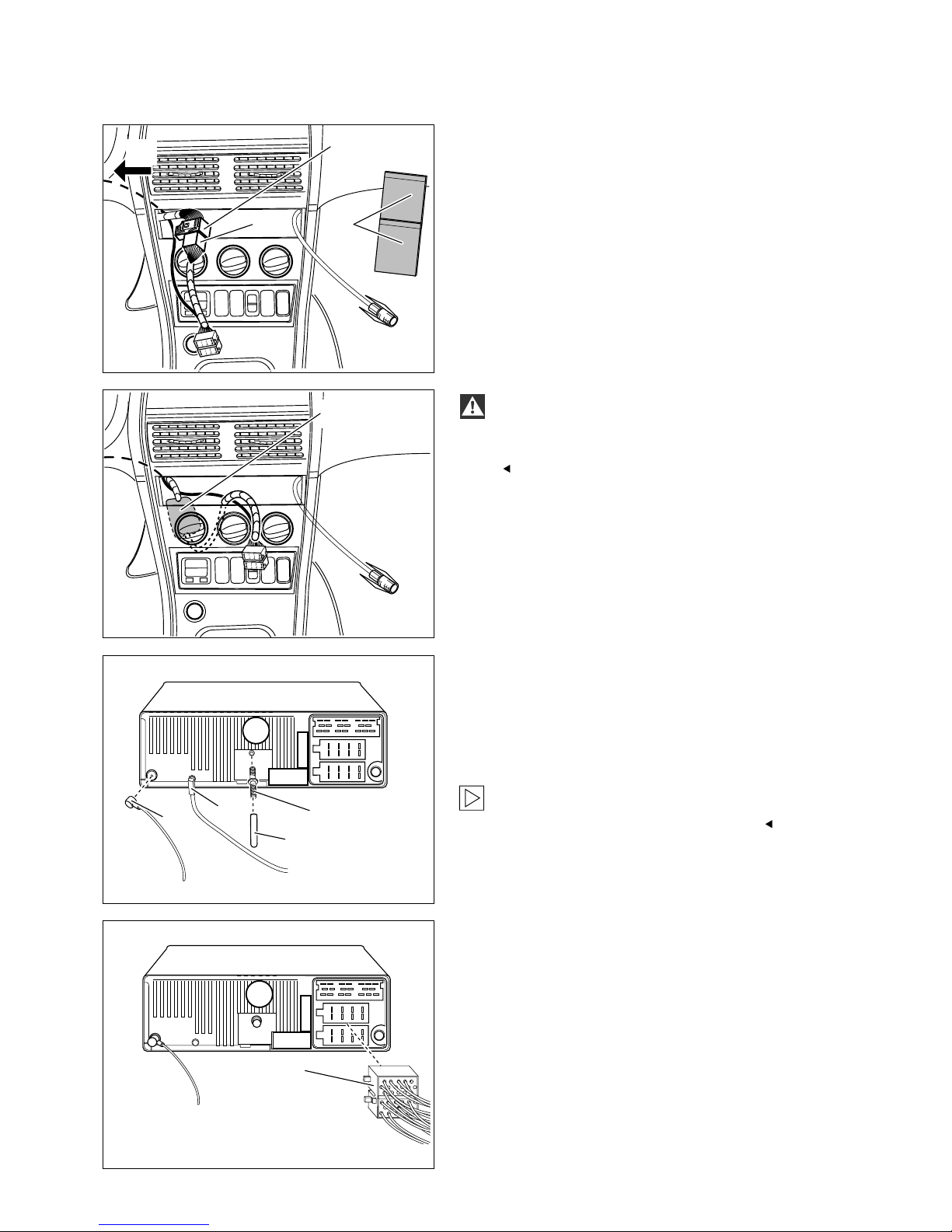

Connect branch A1, black 17-pin plug casing on
the adapter cable A to the black 17-pin socket
casing X18126 on the audio wiring harness.
Affix a rattle guard (7) to the second rattle guard
(7) and then affix them over the plug connection
A1+X18126. Lay branch A3, exposed cable end,
blue/yellow cable on the adapter cable A, along
the standard wiring harness to the A pillar on the
left-hand side and secure it with cable ties.
7. To install the adapter cable and connect the navigation radio
X18126
A1
A3
7
F 36 0176 B
A1+X18126
F 36 0177 B
Place the wrapped plug connection
A1+X18126 behind the heating control so that
the wrapped plug connection A1+X18126 cannot
rattle.
EN/8
10
10
1
11
2
30
31
F 36 0178 B
Screw the stud bolt (11) into the navigation radio
(1).
Screw the radio retaining pin (2) on to the stud
bolt (11).
Connect the existing aerial cable (30) for the
radio aerial to the navigation radio (1).
The coaxial aerial plug (31) must be
connected on cars with aerial diversity.
10
10
1
A2
F 36 0179 B
Connect branch A2, black 16-pin socket casing
on the adapter cable A, to the navigation radio
(1).
Page 11

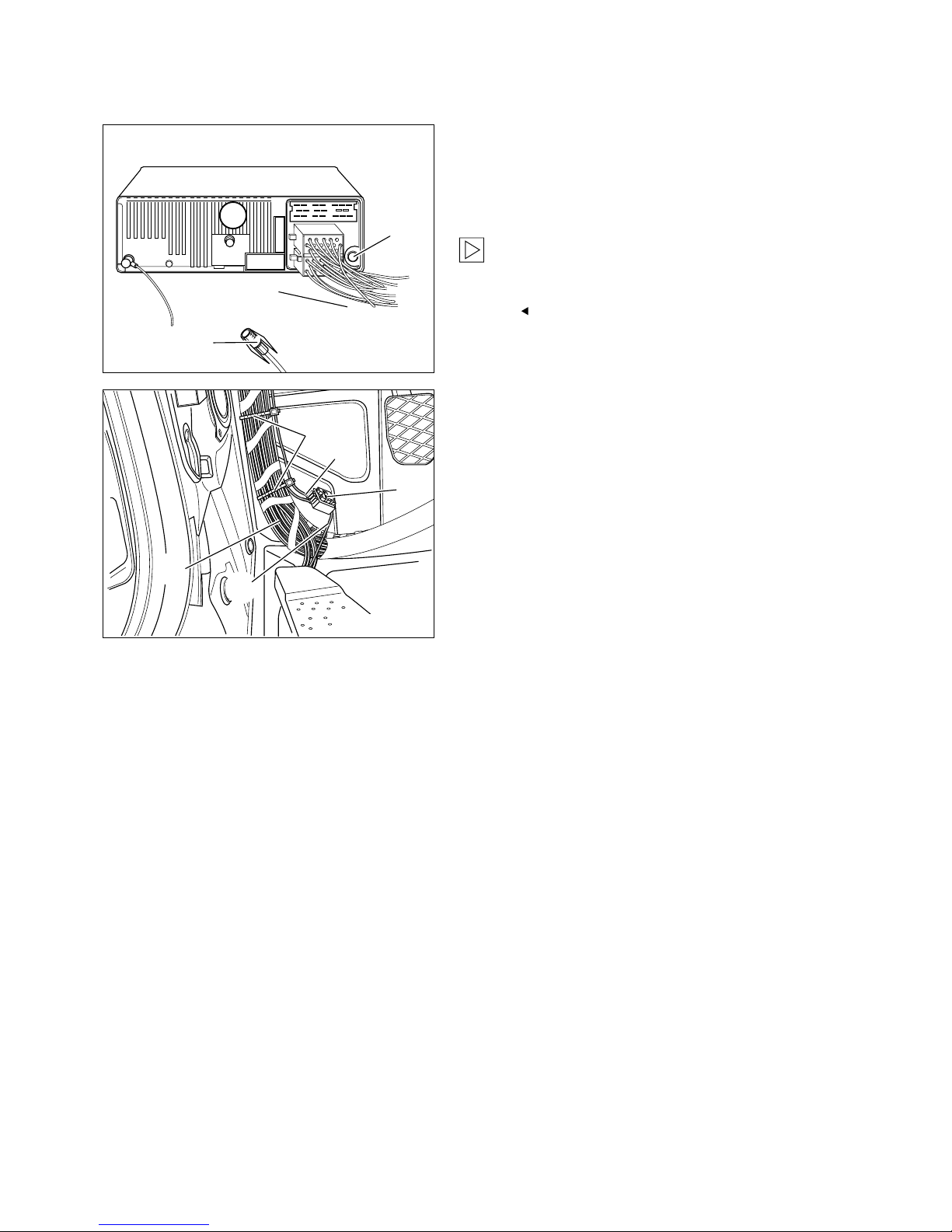

Connect the coaxial plug (30) for the GPS aerial
into the coaxial socket casing (31) in the
navigation radio (1).
Carefully slide the navigation radio (1) into the
radio shaft and secure it with the existing slides.
Refer to the information for securing the
navigation radio in the section entitled
Installation/Removal instructions in the operating
manual.
7. To install the adapter cable and connect the navigation radio
10
10
1
A2
30
31
F 36 0180 B
Retrofit/Installation kit No: 65 90 0 027 973 Issue date: 05.2001
Installation instructions No.: 01 29 0 028 261
EN/9
Connect branch A3, exposed cable end,
blue/yellow cable on the adapter cable to the
cable for the reversing light (30), blue/yellow
cable on the main wiring harness (31) with an
insulation-piercing connector (3) and secure it
with cable ties (4).
31
30
4
A3
3
F 36 0181 B
Page 12
Retrofit/Installation kit No: 65 90 0 027 973 Issue date: 05.2001
Installation instructions No.: 01 29 0 028 261
EN/10
8. Coding
This system has no diagnostics capability and does not have to be coded.
9. Concluding work
Connect the battery
Complete the commissioning process
Assemble the car again following the instructions for its dismantling in reverse order
Print out the error memory
10. Language selection and commissioning
See enclosed instructions for commissioning the BMWTraffic Pro
11. Operating manual
See enclosed operating manual for the BMWTraffic Pro.
Page 13
X001*
KAMMER B
10
TAA
4
MUTE
9
30
16
ANT
13
58g
5
R
15
31
6
RH+
14
RH-
2
RV+
11
RV-
1
BLBR
0.75
BLRT
0.75
BLGR
0.5
BLGR
0.75
BLVI
0.75
BR
2.5
VIWS
1.5
GRRT
0.5
WS
0.5
WSBR
0.35
SWWS
0.35
X002*
KAMMER A
VR-
LV+
GERT
0.75
VL+
8
LV-
GEBR
0.75
VL-
3
LH+
GEVI
0.75
HL+
12
LH-
GEGR
0.75
HL-
VR+
HR-HR+31R
6
58g
ANT30MUTETAARS
RTGN
BLBRBLRTBLGRBLVIBRVIWSGRRTWSWSBRSWWS GERT GEBR GEVI GEGRRTGN
2.5
0.750.750.750.752.51.50.50.50.350.35 0.75 0.75 0.75 0.752.5
X003*
BLGE
0.5
RS
54312
3 2187
87654
F 36 0183 B
Retrofit/Installation kit No: 65 90 0 027 973 Issue date: 05.2001
Installation instructions No.: 01 29 0 028 261

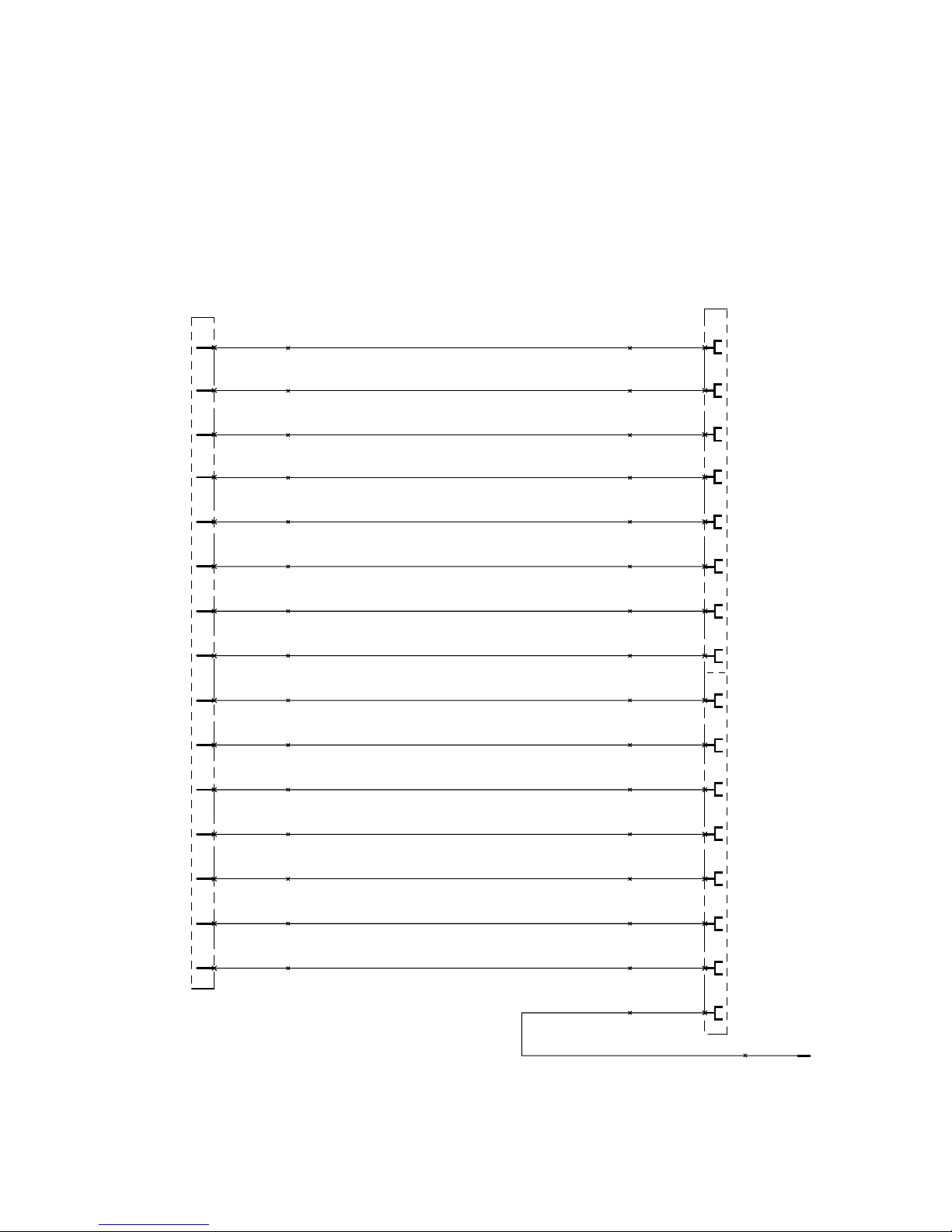

12. Circuit diagram for the adapter wiring harness
EN/11
Page 14
12. Circuit diagram for the adapter wiring harness
Legend
A1* Black 17-pin plug casing
A2* Black 16-pin socket casing
(chambers A + B)
A3* Cable end
The components marked with an asterisk (*)
are only valid for this circuit diagram.
All other components and X designations
comply with the BMW after-sales circuit
diagrams.
Colour abbreviations
BR = Brown
RD = Red
VI = Violet
WT = White
GR = Grey
BK = Black
GN = Green
YE = Yellow
BL = Blue
Retrofit/Installation kit No: 65 90 0 027 973 Issue date: 05.2001
Installation instructions No.: 01 29 0 028 261
EN/12
Loading...
