b mobile S225, S138 Users Manual

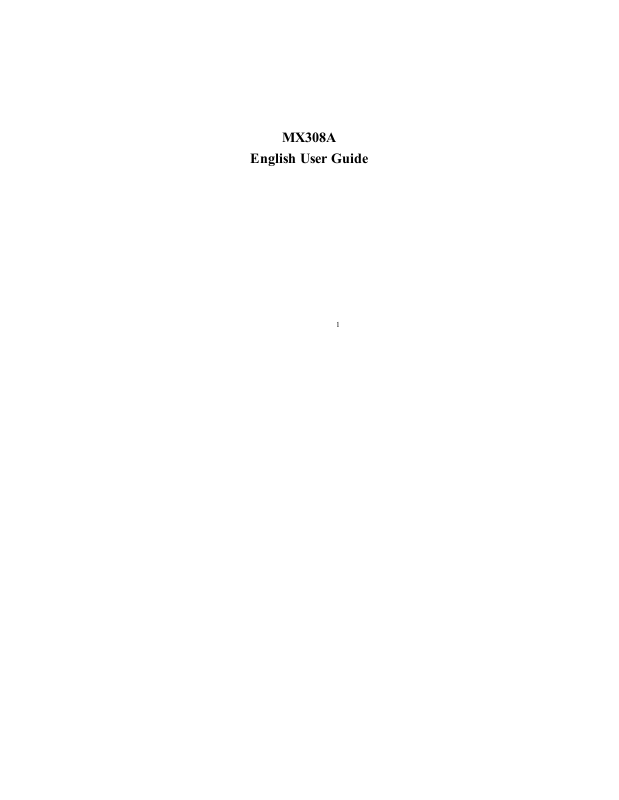

MX308A

English User Guide

1

Table of contents

Table of contents ....................................................................... 2

Foreword ................................................................................... 4

Safety ......................................................................................... 5

Glimpse of Your Phone ............................................................. 7

Knowing the Keys ..................................................................... 8

Preparing Your Phone .............................................................. 9

Installing SIM Card ............................................................... 9

Installing Memory Card ........................................................ 9

Installing Battery ................................................................... 9

Removing Battery ................................................................ 10

Charging Battery ................................................................. 10

Security Codes ..................................................................... 10

Using Your Phone ................................................................... 12

Powering on/off ................................................................... 12

Making a Call ...................................................................... 12

Receiving a Call .................................................................. 13

Emergency Service .............................................................. 13

Using the In-Call Menu ....................................................... 13

U-disk-Movable Storage ...................................................... 14

Phonebook ............................................................................. 0

Call los .................................................................................. 0

Settings .................................................................................. 1

Messages ............................................................................... 3

2

File manager ......................................................................... 5

Fun & Game.......................................................................... 5

FM radio ............................................................................... 6

Organizer .............................................................................. 6

Input Methods .......................................................................... 7

Accessories .............................................................................. 10

Caring for Battery ...................................................................11

Environment ........................................................................... 12

Technical Specifications ......................................................... 13

3

Foreword

Thank you for choosing this mobile phone – you have made a wise choice,
congratulations!
Our cellular phones are approved for GSM networks and meet stringent
European standards. Your phone may be used internationally with various
networks depending on your roaming arrangements with your service provider.
To use this phone you must subscribe to a GSM ser vice from a provider. We
have included many features in this device but their function depends on the
features available with your subscribed wireless network.
Please contact your service provider for more information.
This User Manual is published by the manufacturer without any warranty.
Revisions and improvements resulting from typographical errors, inaccuracy of
current information, and improvements to the device or software may be done
without any prior notification, but will be incorporated into newer editions.
More information and help on your phone may be available at the
manufacturer’s website. The manufacturer reserves all rights to the contents
herein.
Copyrights and trade marks mentioned in this docu ment remain with their
respective owner, Reproduction, transfer, storage, or distributi on in whole or in
part of copyrighted materials without prior written permission is expressly
prohibited. We strongly recommend you carefully read and understand this
manual before using your phone in order to keep it under best conditions for
your effective usage and utmost satisfaction.

4

Safety

Never attempt to disassemble your phone. You alone are responsible for how
you use your phone and any consequences of its use.
As a general rule, always switch off your phone wherever the use of a phone is
prohibited.
Use of your phone is subject to safety measures designed to protect users and
their environment.
Do not use your phone in damp areas (bathroom, swimming pool…). Protect it
from liquids and other moisture.
Do not expose your phone to extreme temperatures lower than - 10°C and
higher than + 55°C.
The physicochemical processes created by chargers impose temperature limits
when charging the battery. Your phone automatically protects the batteries in
extreme temperatures.
Do not leave your phone within the reach of small children (certain removable
parts may be accidentally ingested).
Electrical safety: Only use the chargers listed in the manufacturer’s catalogue.
Using any other charger may be dangerous; it would also invalidate your
warranty. Line voltage must be exactly the one indicated on the charger’s serial
plate.
Aircraft safety: When traveling by plane, yo u will need to switch your phone
off when so instructed by the cabin crew or the warning signs.
Using a mobile phone may be dangerous to the operation of the aircraft and may
disrupt the phone network.
Its use is illegal and you could be prosecuted or banned from using cellular
networks in the future if you do not abide by these regulations.
Explosive materials: Please comply with warning si gns at petrol station asking
you to switch your phone off. You will need to comply with radio equipment
usage restrictions in places such as chemical plants, fuel depots and at any
location where blasting operations are under way.
Electronic equipment: To avoid the risk of demagnetization, do not let
electronic devices close to your phone for a long time.

5

Electronic medical equipment: Your phone is a radio transmitter which may
interfere with electronic medical equipment or implants, such as hearing aids,
pacemakers, insulin pumps, etc. It is recommended that a minimum separation
of 15 cm be maintained between the phone and an implant. Your doctor or the
manufacturers of such equipment will be able to give you any advice you may
need in this area.
Hospitals: Always make sure that your phone is switched off in hospitals when
so instructed by warning signs or by medical staff.
Road safety: Do not use your phone when driving. In order to give your full
attention to driving, stop and park safely before making a call. You must comply
with any current legislation.
Distance of operation: This phone model has been tested and meets
radiofrequency exposure guidelines when used as follows:

·Against the ear: Place or receive a phone call and hold the phone as you would
a wire line telephone.

·Body worn: When transmitting, place the phone in a carry accessory that
contains no metal and positions the phone a minimum of 2.5 cm form your body.
Use of other accessories may not ensure compliance with radiofrequency
exposure guidelines. If you do not use a body worn accessory and are not
holding the phone at the ear, position the phone a minimum of 2.5 cm from your
body,

·Data operation: When using a data feature, position the phone a minimum of

2.5 cm from your body for the whole duration of the data transmission.

6

Glimpse of Your Phone

(The picture below is for reference only)

1

Knowing the Keys

1. Left soft key/Right soft key: Implement the functions shown in the lower

left/right hand corner.

2. Call/Answer key (Green key): Press after dialing to connect by SIM Card.
Press if there is an incoming call to answer. Press from standby to go to call
records list.

3. End/Power key (Red key): Long press to switch phone on/off; Press to end,
reject call; or to exit a menu.

4. OK key: Confirm or accept selection in menu access.
Press from standby to enter the selected shortcuts list function.

5. Navigator Keys: Press the up/down/left/right direction in menu to scroll,
browse or in edit page to move cursor. In idle mode, press the left/right direction
keys to select the shortcut function showed on the bottom of the screen, and
then press the OK key to confirm.

6. 0-9 alphanumeric keys: Press corresponding keys to input numbers when
dialing or numbers and characters when editing.
From Standby: Long press “2” to “9” key to dial speed dial numbers (as defined
in the menu [Contacts/Speed dial]).
Press the alphanumeric key [O] to input “+” symbol for international access in
the dialing interface.
Press the alphanumeric key [P] to input “p” symbol for the fixed extension
number.

7.＊＊＊＊(Star) Key: Press in standby to input “*” character.

8.＃＃＃＃(Pound) Key

Press in standby to input “#” character; long press from standby to activate

or deactivate forced silent mode.

Press to change input method when editing.

8

Preparing Your Phone

Installing SIM Card

Please keep your SIM card away from reach of children.

Scratches and bends can easily damage the SIM card. Please be extra

careful when installing, removing, handling or storing your SIM card.

Before installing or removing t he SIM card, make sure the phone is

switched off, and remove the back cover and battery.

Find SIM card's groove in the back of phone and slide it completely there.
During installation, please make sure that the chip is facing downwards and pay
attention to slot direction.

Installing Memory Card

This phone supports the memory card functio n. Please ensure the memory card
is inserted correctly before using.

Note that when the phone is shook, the memory card is likely to slide from

its groove, so please do not warp a nd scratch the memory card, or make it

contact static electricity, dust or immerse in water.

Find memory card's groove in the back of phone, make the chip face to back of
the phone and pay attention to the slot direction, slide the memory card until it
is entirely inserted into its groove.

Please be careful when using the memory card, especially when inserting

and removing it. Some memory cards must be formatted in PC before it is

used for the first time.

Please regularly backup information in the cards on other e quipment when

you use cards like T-flash!

Improper use or other uncertain factors may cause the damage or loss to

the content in the cards.

Installing Battery

1. Align the battery chip with the metallic salient point in battery jar, insert the
battery and press top of the battery downwards as per the arrow direction until it
is inserted into the battery jar.

9

10

2. Slide battery cover into back of the phone until it is locked.

Removing Battery

First switch off the phone and make it face downwards, push the battery cover
to top of the phone, get its top and remove it.

Note: All settings or information stored in SIM card and the phone may be

lost when the battery is removed.

Please remove t he battery when the phone is switched off, because it may

suffer from abnormity if you remove the battery when it is switched on.

Charging Battery

Unclose dustproof soft gum of attachment mode on the left side of the phone;
insert one end of the charger, i.e., the charging plug into attachment mode and
the other end into electrical outlet. If the phone is switched on and the battery
power icon stripes in right hand of the screen are rolling, then it is charging; if
the stripes are full and have stopped rolling, it is fully charged. If the phone is
switched off when charging, a large charging sign will display in screen. After
charging is finished, just pull out the plug.

Note: 1.When the battery is low; the phone display will show a warning

message. Recharge the battery as soon as possible to avoid inconvenience of

the phone shutting off during a call. Your phone will power off

automatically if the voltage becomes too low. Prolong use of battery in low

charge state will adversely affect the quality and life of the battery.

2. To ensure normal operations, please use approved chargers.

3. Do not remove the battery when charging.

4. Before you first use, please charge t he battery for at least 4 hours. It will

achieve maximum efficiency after several charge and discharge cycles.

Security Codes

- PIN Code

The PIN (Personal Identification Nu mber) code protects your SIM card against
unauthorized use. It is normally supplied with the SIM card package. Be careful
while entering PIN code, 3 wrong tries in entering PIN code will block the SIM
from use, requirin g input of PUK code to unblock. Please contact your operator
