b mobile K103, S225 Users Manual

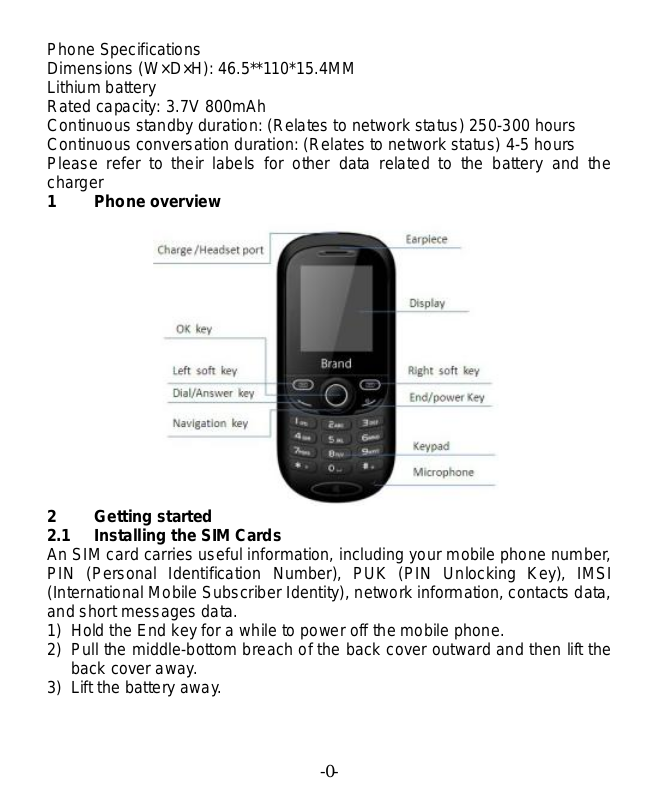

Phone Specifications
Dimensions (W×D×H): 46.5**110*15.4MM
Lithium battery
Rated capacity: 3.7V 800mAh
Continuous standby duration: (Relates to network status) 250-300 hours
Continuous conversation duration: (Relates to network status) 4-5 hours
Please refer to their labels for other data related to the battery and the
charger

1 Phone overview

2 Getting started

2.1 Installing the SIM Cards

An SIM card carries useful information, including your mobile phone number,
PIN (Personal Identification Number), PUK (PIN Unlocking Key), IMSI
(International Mobile Subscriber Identity), network information, contacts data,
and short messages data.

1) Hold the End key for a while to power off the mobile phone.

2) Pull the middle-bottom breach of the back cover outward and then lift the
back cover away.

3) Lift the battery away.

-0-

4) Insert the SIM card into the SIM card slot lightly with the corner cutting of
the card aligning to the notch of the slot and the gold plate of the card
facing download, till the SIM card cannot be further pushed in.

5) With the metallic contacts of the battery facing the metallic contacts in the
battery slot, press the battery down until it locks into place，then fix its back

cover.

2.2 Linking to the Network

After the SIM card and the mobile phone are successfully unlocked, the
mobile phone automatically searches for an available network.

3 Input method

This mobile phone provides English input mode in both upper and lower
case.

3.1 To Shift Entry Methods

Press # key to switch between input methods.

3.2 English Input

Each key is used to represent multiple characters. Quickly and continuously
press a key till the character you want appears. Input the next character after

-1-

the cursor moves.

3.3 Inserting a Symbol

Press the * key to enter the Symbol interface and select a symbol you want.

4 Using the Menus

4.1 Call logs

Through this function, you can view a list of missed calls, dialed calls and
received calls etc.

4.2 STK

STK service is the tool kit of SIM card. This phone supports the service
function .The specific items are depended by SIM card and network. Service
menu will be auto added to the phone menu when supported by network and
SIM card.

4.3 Fun & Games

One game named F1 Race is embedded in the phone. For specific operation,
please refer to ‘help’ option of the game.

4.4 Multimedia

File manager

The phone supports the memory card. You can use the file manager to
manage various directories and files on the memory card.

Audio player

Use this function to play audio files. In music player interface, you can press
up or down direction key to tune volume.

Video player

Use this function to play video files. In video player interface, you can press
up or down direction key to tune volume.

Sound recorder

You can record AMR & WAV format audio files through this function.

FM radio

Before using this function, please insert earphone into its corresponding slot.
In FM radio screen, you can press up or down direction key to tune volume,
left or right direction key to tune channels manually.

4.5 Phonebook

The mobile phone can store up to 100 telephone numbers.

4.6 Messages

You are able to create, read, send and delete messages through this
function.
Note: If the short message memory is full, a blinking message icon appears

-2-
