SECTION 1

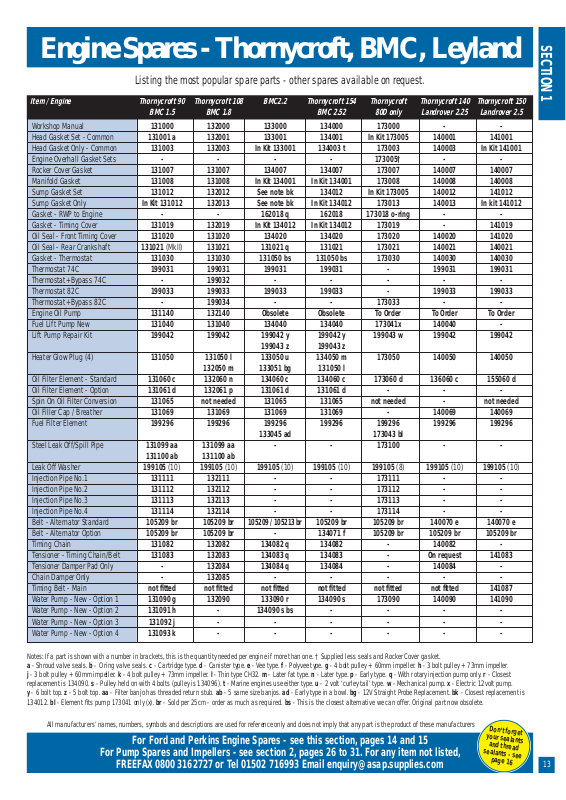

Engine Spares - Thornycroft, BMC, Leyland
For Ford and Perkins Engine Spares - see this section, pages 14 and 15
For Pump Spares and Impellers - see section 2, pages 26 to 31. For any item not listed,
FREEFAX 0800 3162727 or Tel 01502 716993 Email [email protected]
13
Item / Engine Thornycroft 90 Thornycroft 108 BMC2.2 Thornycroft 154 Thornycroft Thornycroft 140 Thornycroft 150
BMC 1.5 BMC 1.8 BMC 2.52 80D only Landrover 2.25 Landrover 2.5
Workshop Manual 131000 132000 133000 134000 173000 - Head Gasket Set - Common 131001 a 132001 133001 134001 In Kit 173005 140001 141001
Head Gasket Only - Common 131003 132003 In Kit 133001 134003 t 173003 140003 In Kit 141001
Engine Overhall Gasket Sets ----173005† - Rocker Cover Gasket 131007 131007 134007 134007 173007 140007 140007
Manifold Gasket 131008 131008 In Kit 134001 In Kit 134001 173008 140008 140008
Sump Gasket Set 131012 132012 See note bk 134012 In Kit 173005 140012 141012
Sump Gasket Only In Kit 131012 132013 See note bk In Kit 134012 173013 140013 In kit 141012
Gasket - RWP to Engine - - 162018 q 162018 173018 o-ring - Gasket - Timing Cover 131019 132019 In Kit 134012 In Kit 134012 173019 - 141019
Oil Seal - Front Timing Cover 131020 131020 134020 134020 173020 140020 141020
Oil Seal - Rear Crankshaft 131021 (MkII) 131021 131021 q 131021 173021 140021 140021
Gasket - Thermostat 131030 131030 131050 bs 131050 bs 173030 140030 140030
Thermostat 74C 199031 199031 199031 199031 - 199031 199031
Thermostat+Bypass 74C - 199032 ----Thermostat 82C 199033 199033 199033 199033 - 199033 199033
Thermostat+Bypass 82C - 199034 - - 173033 - Engine Oil Pump 131140 132140 Obsolete Obsolete To Order To Order To Order
Fuel Lift Pump New 131040 131040 134040 134040 173041x 140040 Lift Pump Repair Kit 199042 199042 199042 y 199042 y 199043 w 199042 199042
199043 z 199043 z
Heater Glow Plug (4) 131050 131050 l 133050 u 134050 m 173050 140050 140050
132050 m 133051 bg 131050 l
Oil Filter Element - Standard 131060 c 132060 n 134060 c 134060 c 173060 d 136060 c 155060 d
Oil Filter Element - Option 131061 d 132061 p 131061 d 131061 d - - -
Spin On Oil Filter Conversion 131065 not needed 131065 131065 not needed - not needed
Oil Filler Cap / Breather 131069 131069 131069 131069 - 140069 140069
Fuel Filter Element 199296 199296 199296 199296 199296 199296 199296
133045 ad 173043 bl
Steel Leak Off/Spill Pipe 131099 aa 131099 aa - - 173100 - -
131100 ab 131100 ab
Leak Off Washer 199105 (10) 199105 (10) 199105 (10) 199105 (10) 199105 (8) 199105 (10) 199105 (10)
Injection Pipe No.1 131111 132111 - - 173111 - -
Injection Pipe No.2 131112 132112 - - 173112 - -
Injection Pipe No.3 131113 132113 - - 173113 - -
Injection Pipe No.4 131114 132114 - - 173114 - -
Belt - Alternator Standard 105209 br 105209 br
105209 / 105213 br
105209 br 105209 br 140070 e 140070 e
Belt - Alternator Option 105209 br 105209 br - 134071 f 105209 br 105209 br 105209 br
Timing Chain 131082 132082 134082 q 134082 - 140082 Tensioner - Timing Chain/Belt 131083 132083 134083 q 134083 - On request 141083
Tensioner Damper Pad Only - 132084 134084 q 134084 - 140084 Chain Damper Only - 132085 ----Timing Belt - Main not fitted not fitted not fitted not fitted not fitted not fitted 141087
Water Pump - New - Option 1 131090 g 132090 133090 r 134090 s 173090 140090 141090
Water Pump - New - Option 2 131091 h - 134090 s bs - - - Water Pump - New - Option 3 131092 j -----Water Pump - New - Option 4 131093 k ------
All manufacturers’ names, numbers, symbols and descriptions are used for reference only and does not imply that any part is the product of these manufacturers
Notes: If a part is shown with a number in brackets, this is the quantity needed per engine if more than one. † Supplied less seals and Rocker Cover gasket.
a - Shroud valve seals. b- O ring valve seals. c - Cartridge type. d - Canister type. e - Vee type. f - Polyvee type. g - 4 bolt pulley + 60mm impeller. h- 3 bolt pulley + 73mm impeller.
j - 3 bolt pulley + 60mm impeller. k - 4 bolt pulley + 73mm impeller. l - Thin type CH32. m - Later fat type. n - Later type. p - Early type. q - With rotary injection pump only. r - Closest
replacement is 134090. s - Pulley held on with 4 bolts (pulley is 134096). t - Marine engines use either type. u - 2 volt ‘curley tail’ type. w - Mechanical pump. x - Electric 12volt pump.
y - 6 bolt top. z - 5 bolt top. aa - Filter banjo has threaded return stub. ab - 5 same size banjos. ad - Early type in a bowl. bg - 12V Straight Probe Replacement. bk - Closest replacement is
134012. bl - Element fits pump 173041 only (x). br - Sold per 25cm - order as much as required. bs - This is the closest alternative we can offer. Original part now obsolete.
Listing the most popular spare parts - other spares available on request.
Don’t forget
your sealants
and thread
sealants - see
page 16
