BLY1 Wireless Alarm
System - Version: 01
Getting started...
1
Getting started...
Let’s
get started...
These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference.
Getting started... 2
Introduction and Safety 3 Overview of System 4-5 Planning your Installation 6-8 Installing your System 5-15
In more detail... 16
Using the System 17-19 Maintenance 19 Extending the System 19
Specications 20-21
Troubleshooting Guide 21 Disposal and Recycling 22
Appendix 23
LED Alarm Indications 24 Zone-Location Table 25
BLY1 Wireless Alarm System
BLY1 Wireless Alarm System
Type box
2
Getting started...
Introduction and Safety 3
Overview of System 4-5
Planning your Installation 6-8
Installing your System 9-15
Getting
started...
Getting started...
3
INTRODUCTION The wireless alarm system is designed to protect your home. It is a simple to use, easy to
install unit. No special tools or training are required, all xings are included.
Control panel, adaptor, movement detector and Door/Window contact are for indoor use only. Avoid mounting location which can expose these product to splashing or dripping liquid.
SAFETY
Before proceeding with the installation, please note the following safety warnings:
DO NOT connect the mains supply directly to the products, this will cause permanent damage to the products.
Always follow the manufacturer’s advice when using any tools power tools, ladder/steps, using steps or ladders, and wear suitable protective equipment (e.g. safety goggles) when drilling holes, etc.
The use of ear defenders are advisable when working in close proximity to the External Siren or the Control Panel’s Siren when the front panel cover is removed due to the high sound level produced by it.
Before drilling holes in walls, check for hidden electricity cables and water pipes. The use of a cable/pipe locator is advisable if in doubt.
Batteries (battery pack or batteries installed) should not be exposed to excessive heat.
Danger of damage to the unit may occur if battery is incorrectly replaced.
Replace only with the same or equivalent type (Do not mix batteries type).
IE
Getting started...
Introduction & Safety
BLY1 Wireless Alarm System
IMPORTANT: Please read this manual carefully, in full, before commencing
installation. You will nd installation easier if you follow these steps in the sequence
shown.

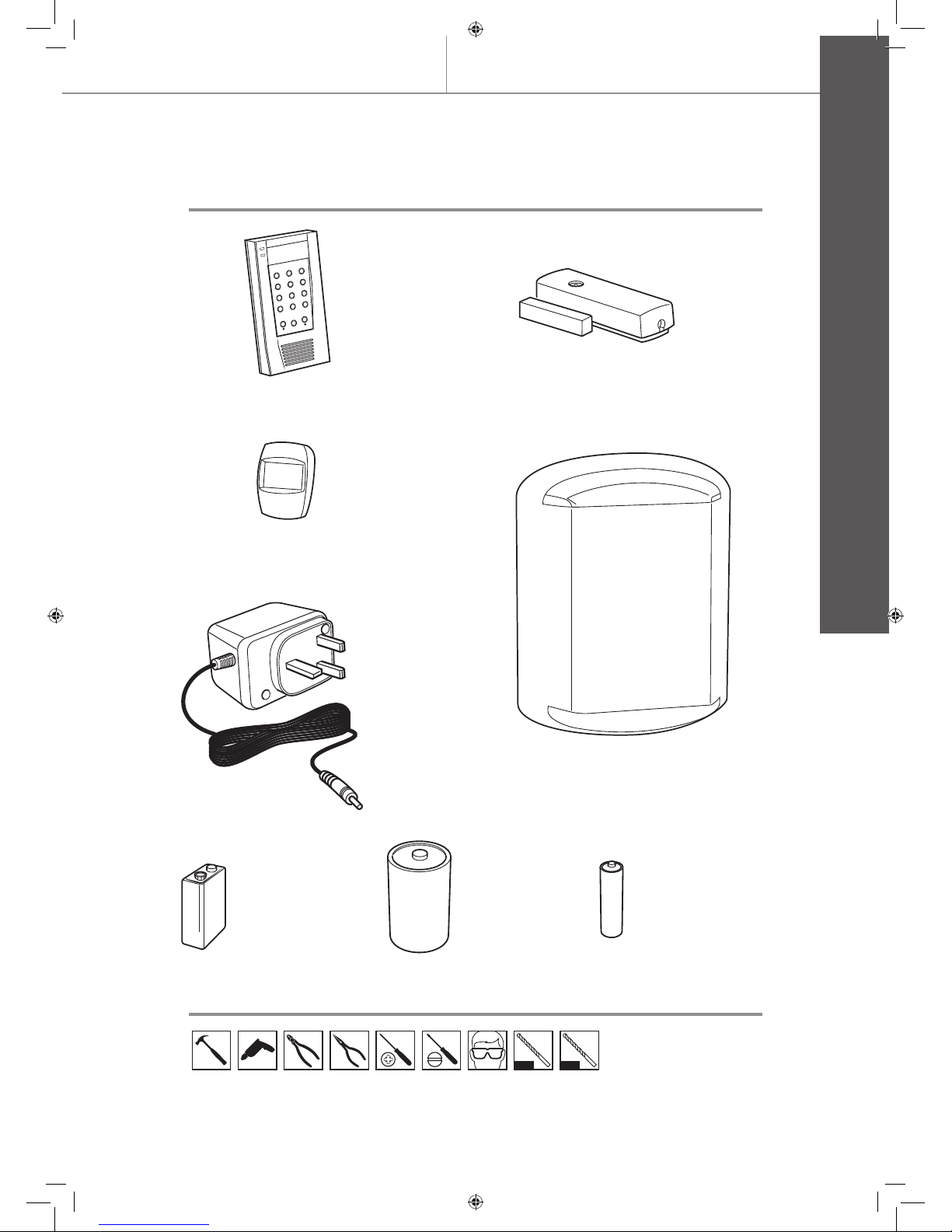

Kit Contents
You will need
This wireless alarm system is based on wireless radio technology to give exceptional levels of protection and reliability. It has the ability to control up to eight detectors, three remote keys (optional accessory) and one wireless siren.
4
Getting started...
Overview of System
BLY1 Wireless Alarm System
4mm
8mm
1
2
3
4
5
6
7
8
9
0
Learn
Part-Arm
POWER
Arm
Reset
Anti-Jam
On/Off
TAMPER
Control Unit
This is the heart of the system. It receives signals from detectors, accepts inputs from user and activates warnings such as siren and LED.
Wireless Magnetic Contact Detector (MC) (Two Pair)
Uses a magnetically operated switch to sense the opening/closing of door or window.
Wireless Movement Detector (PIR)(One Unit)
The PIR uses Infra-Red technology to sense the body heat of a moving person. One unit can cover an entire room.
Wireless External Siren
Gives audible and visual indication of an alarm condition.
External AC adaptor
1x 9V PP3 Alkaline battery for Control unit backup
6x AAA 1.5V alkaline batteries for MC and PIR
4 x D-Cell Alkaline batteries for Wireless External Siren
Overview of System
BLY1 Wireless Alarm System
5
Getting started...
• Detector /Key /External Siren learning – Every wireless device (detector, Key, External Siren) contains an unique identication code. During installation, the control unit will learn which
devices belong within your system by receiving coded radio transmissions from each detector.
• This system can control up to eight detectors (every zone can control one wireless detector.) If the system is triggered, the control unit will indicate which zone the alarm occurred.
• The wireless alarm system has three modes: OFF, Part-Arm, ARM; when entering ARM
or Part-Arm mode, the user has 30 seconds to leave the monitored areas without triggering the alarm.
Zone – A logical area that is monitored by a detector.
Disarmed – (Standby mode) – This is the normal state of the system when the house is
occupied. Enter your four-digit user PIN code to return to OFF state.
Full Alarm – (ARM state) – The control unit will sound full alarm (internal siren) when it receives alarm signals.
Part Arm – (Home state) – Arming the system so that certain zones omitted (i.e. will not trigger an alarm). It is typically used to omit the upstairs zones at night when you sleep.
Entry/Exit Zone – The control unit recognise MC zone as entry and/or exit zone.
OK Beep – Rapid double tone; it indicates correct operation.
Error Beep – Long single tone; it indicates incorrect operation.
Anti-Jamming – Detect if jamming exists or not. it can be enabled/disabled
System features
Explanation of terms
6
Getting started...
Planning your Installation
BLY1 Wireless Alarm System

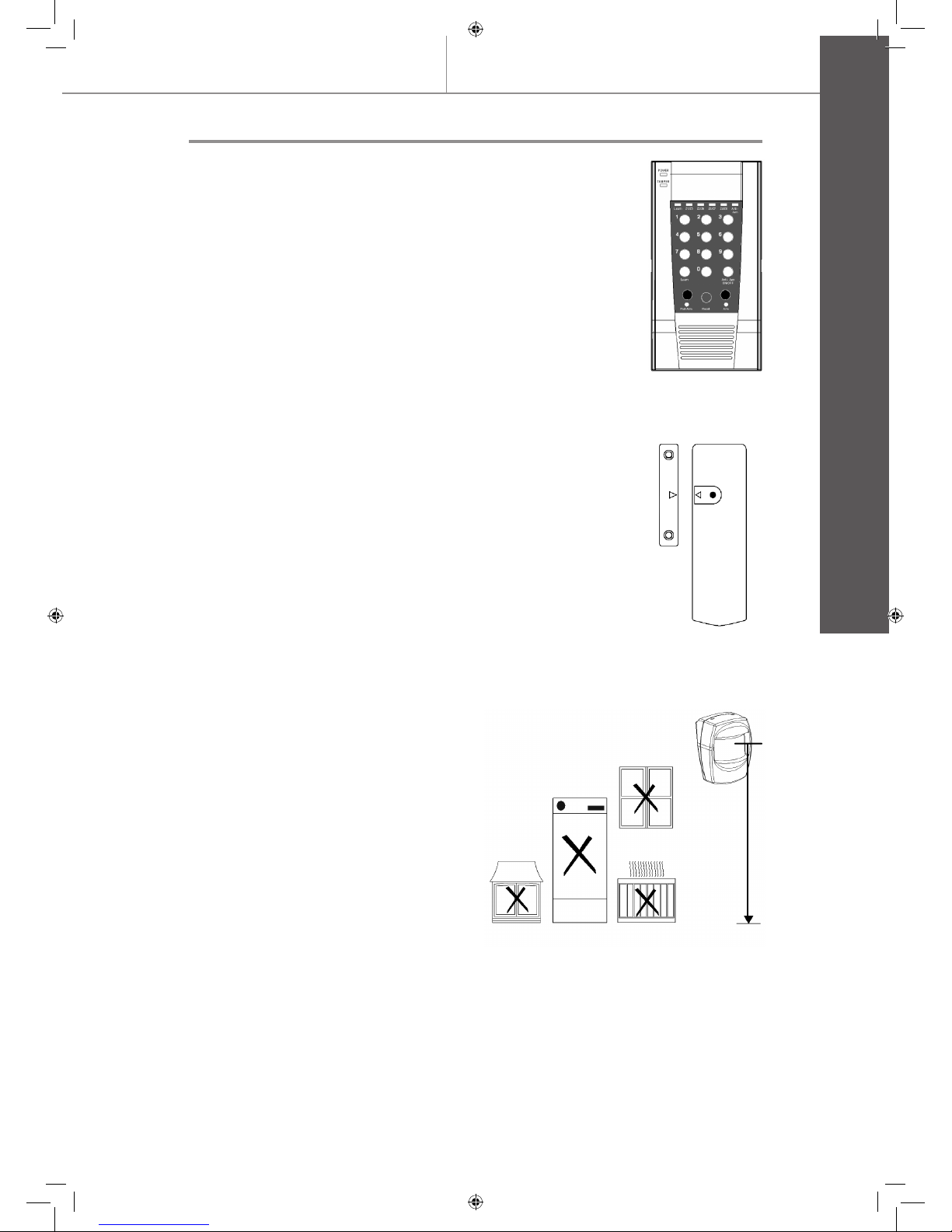

Location of components
Control unit – Location
In choosing a suitable location you should bear in mind:
• The need to reach the control unit easily, within the 30 seconds, when entering and leaving the premises, ideally passing only one detector.
• The control unit should not be visible from the exterior of the protected
premises.
• Reception of radio signals can be affected by the presence of metal
objects within a few feet of the control unit. (E.g. mirrors, central heating radiators, garage doors and cars parked in garages on the opposite side of the wall). Avoid any location which is near (within 60cm) to these or any other large metal objects.
Having chosen the location, do not mount at this stage.
Door/Window contact detector (MC) – Location
• These parts contain a radio transmitter and should not be sited near to
large metal objects.
• Contains two parts. The larger one (the actual detector) contains the
batteries and the electronics. The smaller part is simply a magnet inside.
• Designed to detect a door or window opening. The detector is usually mounted next to it on the door or window. For optimum radio range,
they should be mounted as high as possible.
• In most applications, it is tted to the front door.
Having chosen the location, do not mount at this stage.
Movement/Passive infrared detector (PIR) – Location
• The detector should not be mounted near
to large metal objects or on metal surfaces. It needs to be mounted on a wall or in corner at a height of approximately 2-2.5 meters for the best general coverage in an average room. The detector has been designed to avoid false alarms, nevertheless, it is best to avoid installing the unit where it is facing
directly at sources of heat such as res
and boilers and always try to avoid facing at the window. A PIR can look at a radiator but should not be sited above it.
• Do not site a PIR where its eld of view
may be obstructed (e.g. by curtains). Also, note that PIR works best when sensing a movement across rather than along their detection beams.
• Allowing for pets – The PIR senses moving body heat. In some cases,
the movement of pets may also be detected. To overcome this it is
recommended that the pets are kept in one specic room out of sight of a PIR when the system is armed. If required, additional MC (available
as accessories) can then be used to protect the doors and windows of the room (see section 6 – Extending the System).
Having chosen the location, do not mount at this stage.
Fire Boiler Radiator
2m to 2.5m
Window
Planning your Installation
BLY1 Wireless Alarm System
7
Getting started...
Planning the location of system components
Example of a domestic layout
The 2 sample layouts below are intended as guides only but demonstrate two examples of how a house can be protected with the system.

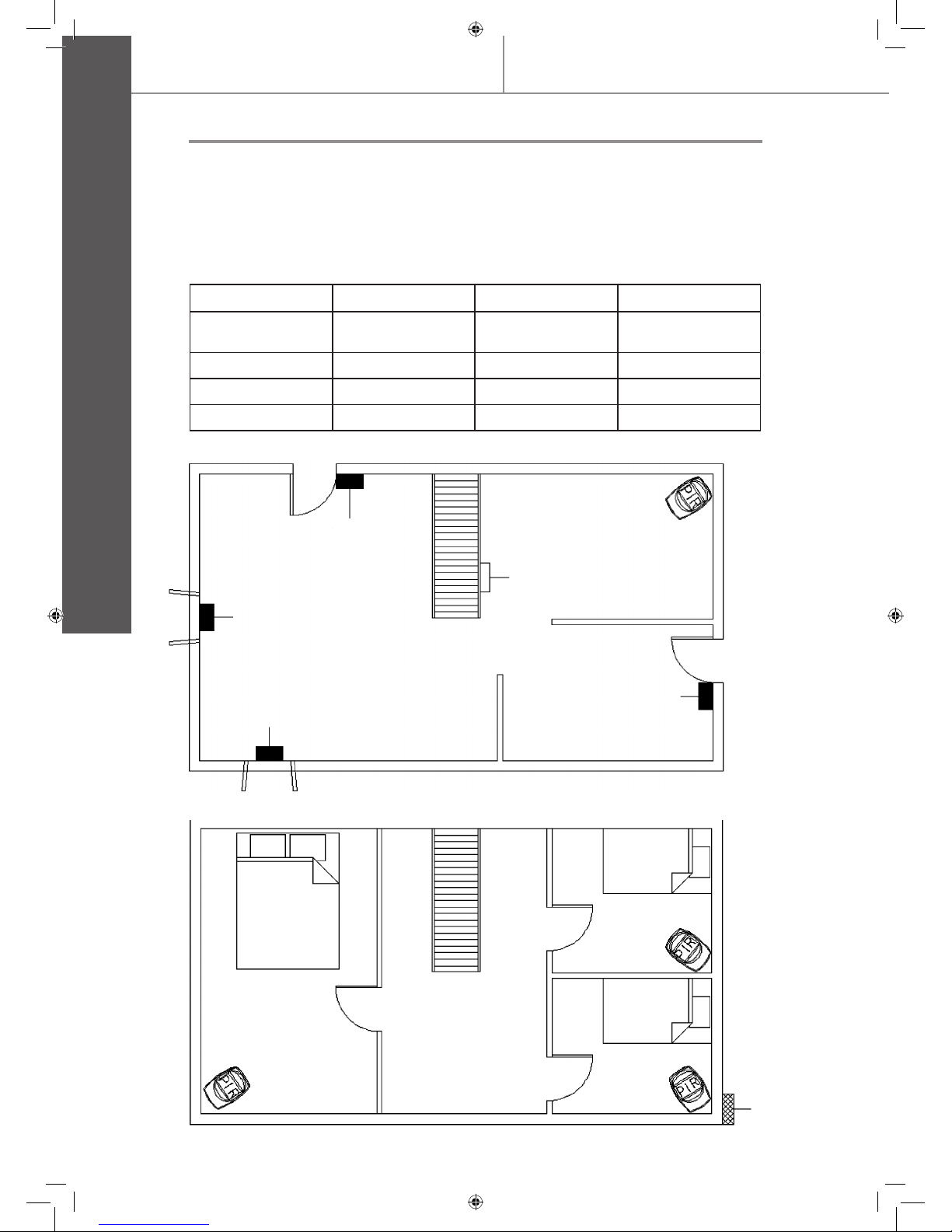

Sample 1:
Zone Number Area Zone Area
1 Front Door 5
Area of the
control panel
2 Back Door 6 Bedroom 1
3 Window 7 Bedroom 2
4 Living Room 8 Bedroom 3
Front door
ZONE 1
Window
ZONE 3
Living Room
ZONE 4
Bedroom
1
Bedroom
2
Bedroom
3
Wirefree
External Siren
ZONE 6
ZONE 8
ZONE 7
Back Door
ZONE 2
Control Unit
Dinning
Room
ZONE 5
1st Floor
2nd Floor
8
Getting started...
Planning your Installation
BLY1 Wireless Alarm System
Zone Number Area Zone Area
1 Front Door 5
Area of the
control panel
2 Back Door 6 Kitchen
3 Window 7 Bedroom 2
4 Window 8 Bedroom 3
The PIRs have been separately placed in bedroom 1, bedroom 2, bedroom 3, and the area where the control panel is installed, to protect these areas. The Door/Window contact detectors
have been positioned to protect the front door, back door and windows on the 1st oor.

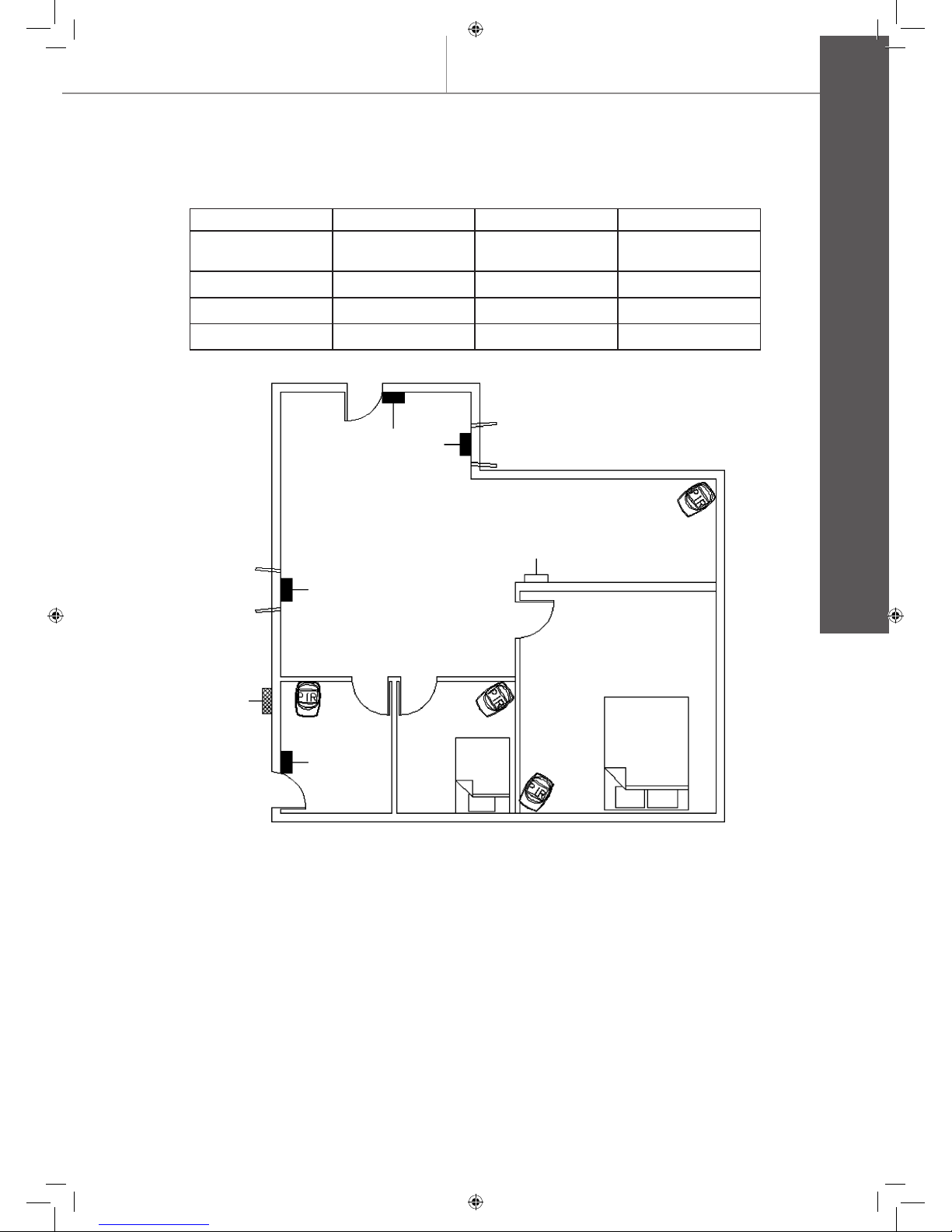

Sample 2:
Front door
ZONE 1
Window
ZONE 4
Window
ZONE 3
Living Room
Bedroom
1
Bedroom
2
Dining
Room
Wirefree
External Siren
ZONE 8
ZONE 7
Back Door
ZONE 2
Control Unit
Kitchen
ZONE 6
ZONE 5
T
he Zone 5 PIR has been placed in the dining room to protect this area where the control panel
is installed. The zone 6, 7, 8 PIRs have been separately placed in the kitchen, bedroom 1 and bedroom 2 to protect these area. Zone 6, 7 and 8 are set as “Home-Bypass zone” so that these PIRs are disabled when the system is set to “Part Arm” mode. The Door/Window contact
detectors have been positioned to protect the front door, back door and windows.
When the system is installed for the rst time or any further detectors are learned to it at any
stage, please follow sections 3.1 to 3.5 explained in this manual to prevent the tamper function from unnecessarily triggering the alarm of the control unit during installation.
Summary of the steps:
1. Install and power ON the control unit
2. Power up the wireless devices and link to the control unit
3. Power OFF the control unit
4. Install the detectors in their nal locations
5. Install the backup battery in the control unit and nally power up the control unit
Installing your System
BLY1 Wireless Alarm System
9
Getting started...

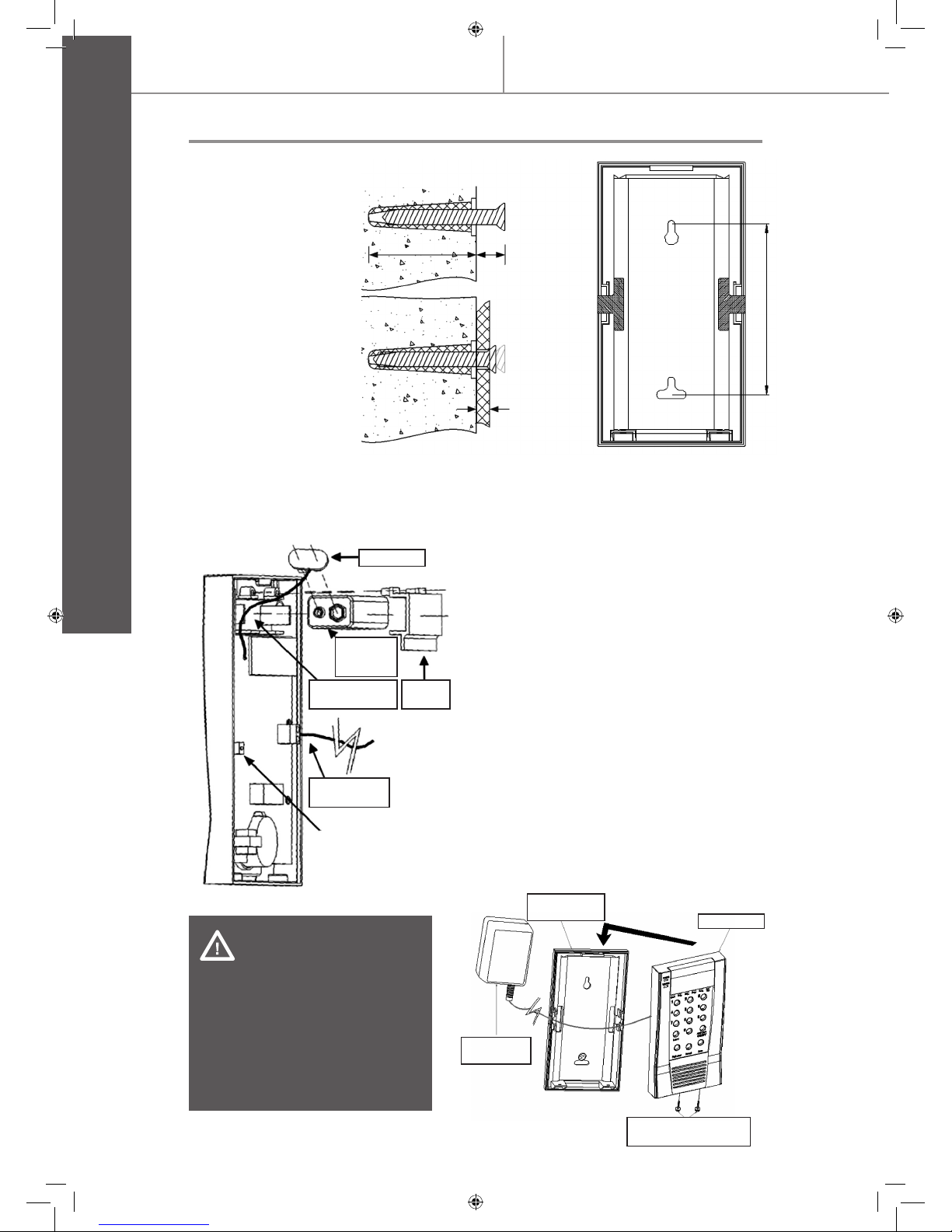

Installing the Control unit
• Remove and retain the
two holding screws from front cover of control unit and carefully hinge off the front cover.
Fitting
• Place the
control unit base mounting plate on the wall at the chosen location.
Mark and drill 4mm
holes for the two mounting screws. Insert wall plugs and have the top mounting screw screwed in to protrude by about 5 to 6mm before hanging the control unit base mounting plate on wall.
• Align the control unit base mounting plate to vertical position before nal tightening of both mounting screws.

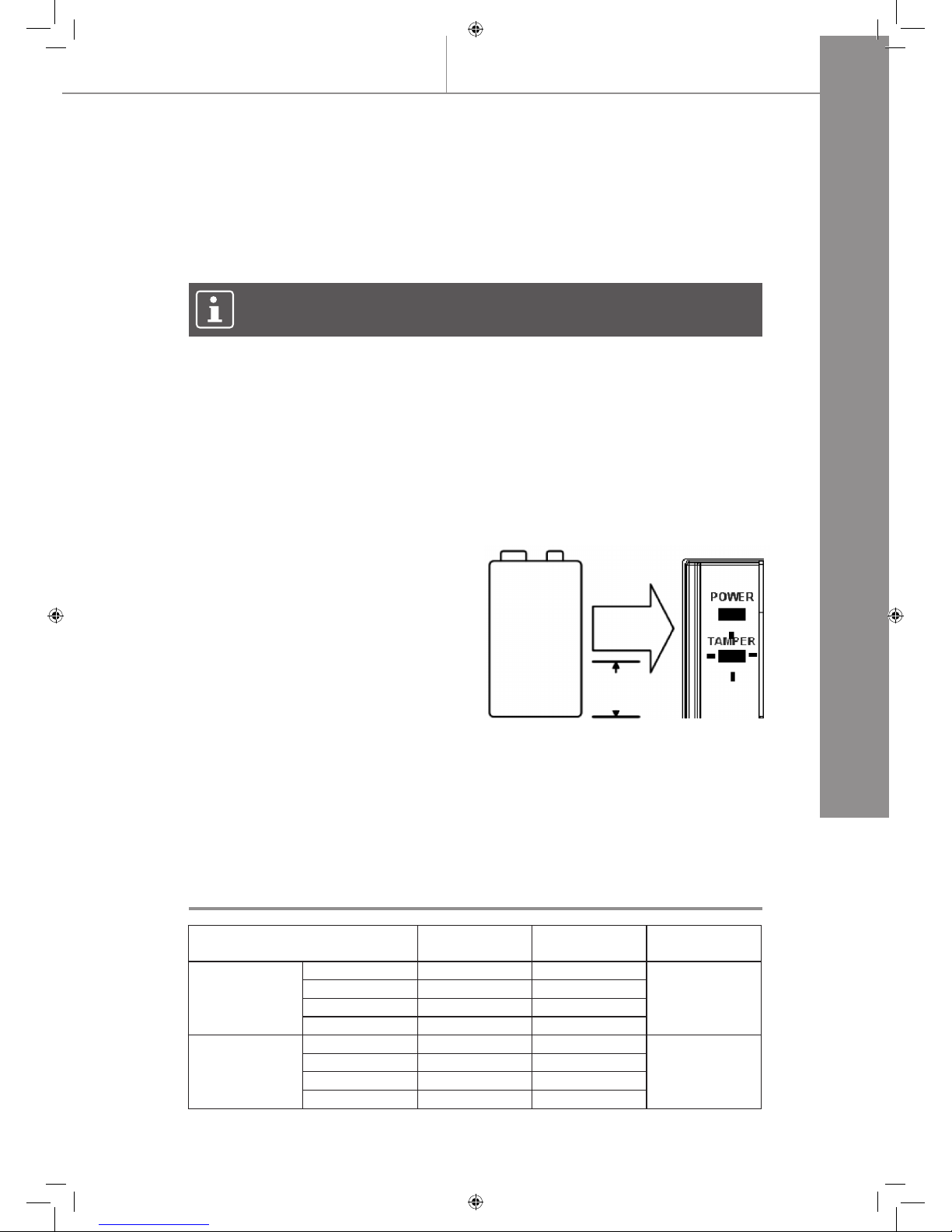

Powering the Control unit
• Wire up the Main Power Adaptor to
the control unit, but DO NOT plugs the adaptor into the main supply at this stage.
• Do not install the 9V back up battery
(provided with this kit) at this stage, but note its installation position for later.
• Put back the front cover carefully and secure it
with the two holding screws, complete with the screw covers (plugs).
• Power up the Main Power Adaptor to power the control unit. The POWER LED will light up and the TAMPER LED will ash since no
backup power is installed yet.
• If the alarm sounds then enter the factory user
PIN 1234 to silence the system.
Hole depth ˃22mm
Battery
Cover
Battery Clip
Battery
Compartment
External 15V
Adaptor
From External
15V Adaptor
Base Mounting
Plate
Control Unit
6LR61 size 9V alkaline
battery
2 Pieces of M3 x 10mm
retaining screws
WARNING: The control unit must never be operated from the mains with the front cover opened. The user PIN code is factory set to 1-2­3-4. If the system sounds during the installation, pressing the factory set code of 1-2-3-4 will silence the system.
ST3x25KA
screw
5~6mm protrude surface
Base Plate
2.6mm thick
98mm
Tighten the screw to fasten the base plate on surface
10
Getting started...
Installing your System
BLY1 Wireless Alarm System
Power up the Wireless Devices and learning to the CU
Before powering up the devices please read through this information regarding batteries:
1. An adult must carry out battery replacement and installation.
2. Remove exhausted batteries from this product.
3. Do not dispose of batteries in a re, batteries may explode or leak.
4. Do not short-circuit the battery terminals.
5. Do not mix used and new batteries.
6. Do not mix alkaline standard (carbon-zinc), lithium or rechargeable batteries.
7. Do not use rechargeable batteries in this product.
8. Do not recharge non-rechargeable batteries.
9. Do not allow any part to come in contact with heat or a direct ame.
10. Do not allow water to come into contact with the batteries or wiring.
11. Install carefully to prevent any damage to the batteries
12. When installing 2x (AAA 1.5V) batteries in the battery compartment, ensure the batteries are placed as marked (+)(-).
13. Only the recommended batteries should be used.
14. Remove batteries from product when not in use for long periods of time.
15. Keep this product out of the reach of small children.
16. Store unused batteries in their original packaging.
17. Dispose of used batteries responsibly.
The wireless alarm system uses advanced radio technology that under most circumstances
will give more than sufcient transmission range. Before xing the control unit and
detectors in their selected install position, it is recommended to learn each wireless detector to the control unit. Please follow the procedure below:

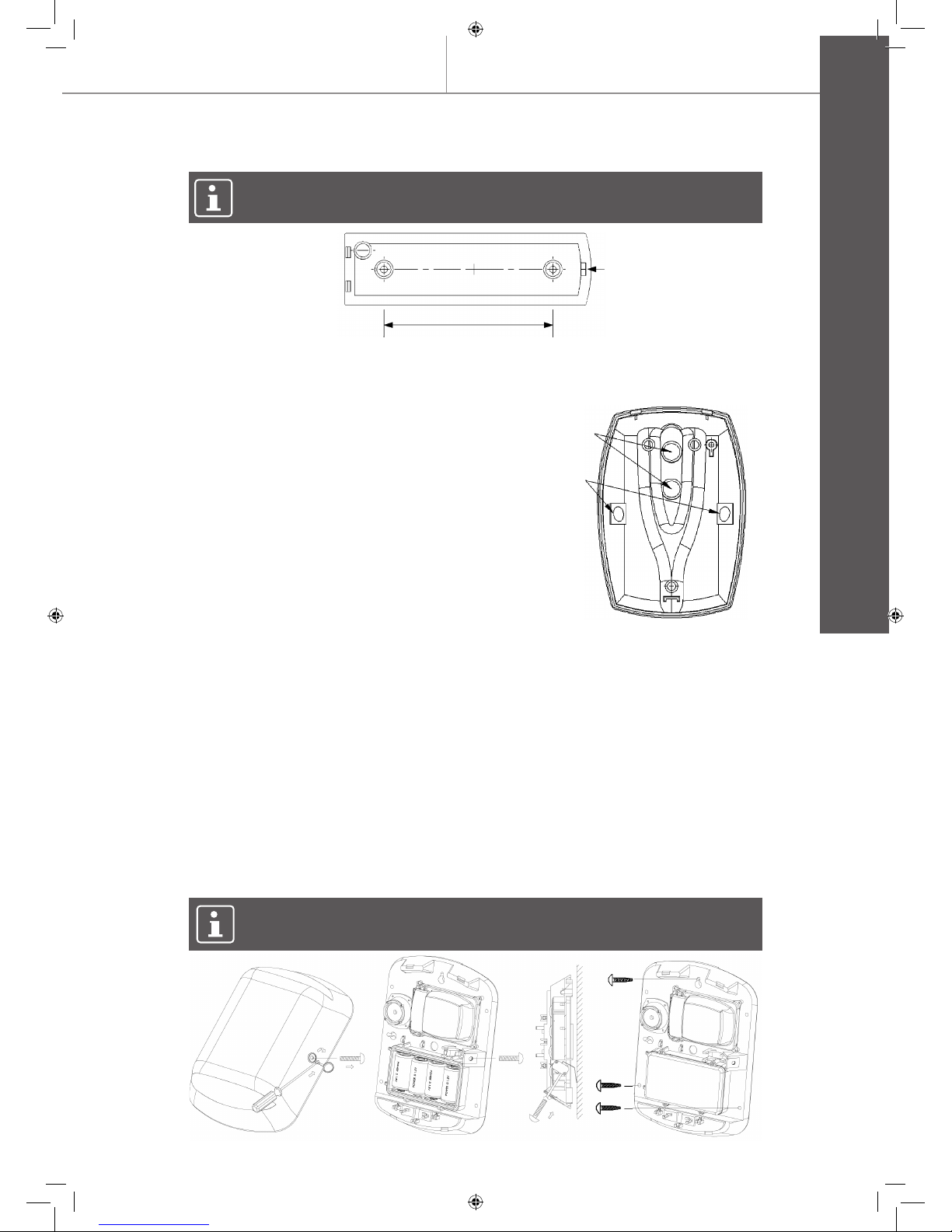

Powering up the wireless siren:
* The use of ear defenders is advisable at this stage *
1. Separate the siren’s front cover from the siren’s base to access the battery compartment.
2. Remove battery cover and insert four LR20 “D” size alkaline batteries in correct polarity as shown indicated in the battery compartment. The siren’s LED will ash to indicate powered up. Ret the battery cover taking care not to press and release the tamper switch located on
the rear of the siren’s back plate to prevent the siren from triggering an alarm.
3. If the tamper switch is accidentally press and released then move the power switch to the
‘OFF’ position as shown below to silence the alarm. However, move the switch back to ‘ON’
again ready for it to be learned by the control panel:
Battery cover
screw
“ON/OFF”
siren switch
Installing your System
BLY1 Wireless Alarm System
11
Getting started...

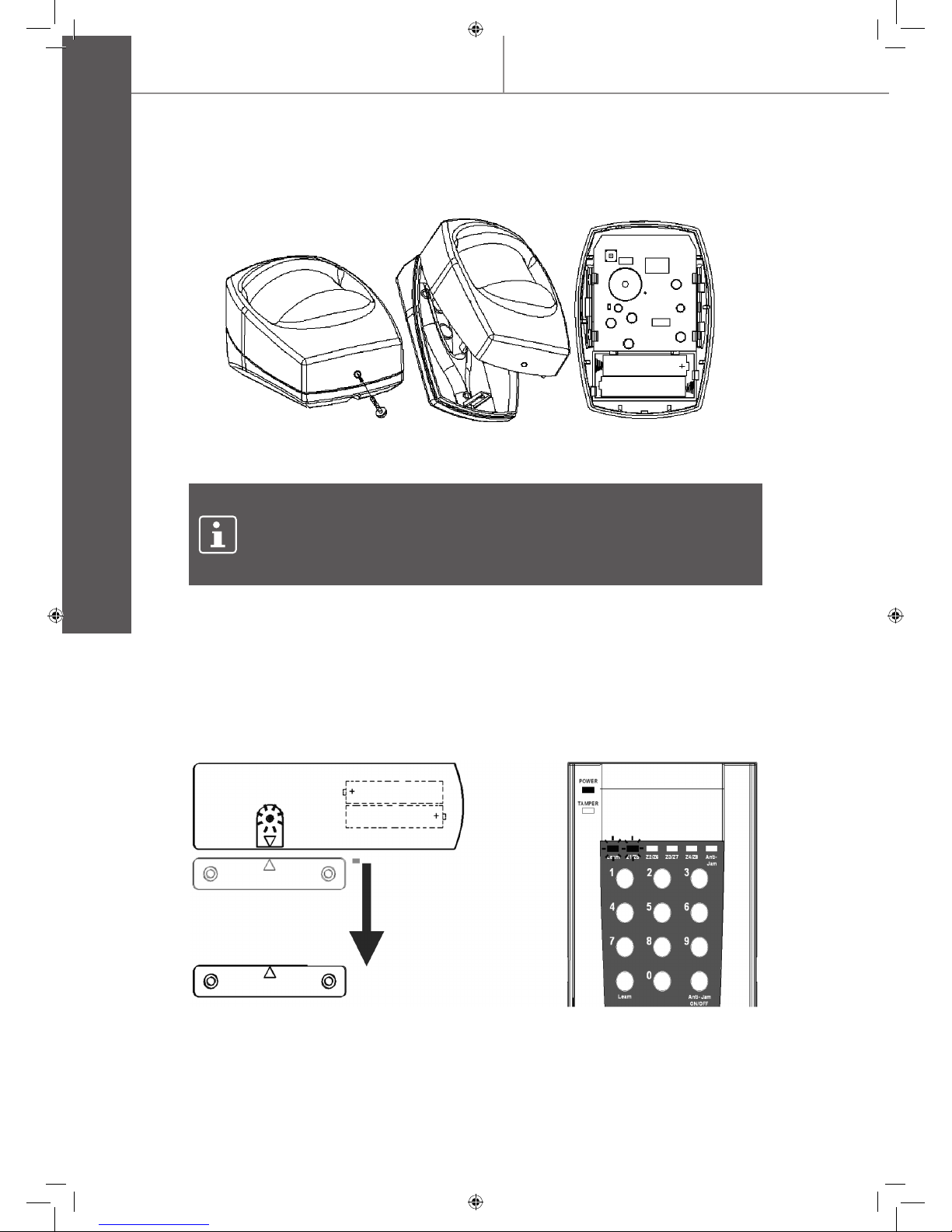

Powering up the Wireless PIR Detector(s):
1. Remove battery cover and insert two LR03 “AAA” size alkaline batteries incorrect polarity as shown.
2. Replace battery compartment cover.
When the PIR is rst powered up it will take 2 minutes for it to warm-up before it can be linked
to the control unit.
Linking the detectors to the Control unit.
1. Press and hold the “Learn” button for over 5 seconds in standby mode to enter learn mode. The control unit will beep twice to conrm and the learn LED will turn on.
2. Trigger the device within 10 seconds ensuring it is kept at least 0.5m away from the control unit. To trigger:
2.1 a magnetic contact, activate the MC detector by moving the magnet away (greater than 40mm) from the arrow near the red LED.
When a MC Detector has been learnt successfully, Z1, Z2, Z3 or Z4 zone LED (depending on which next zone is unprogrammed) will be constantly lit.
Learn MC
Greater than 40mm
NOTE: After the rst 2 minutes, the PIR will enter a test mode period for the next 15 minutes. During the test mode period, the PIR will constantly detect for movement so that it gives enough time to link it to the control unit. When this period has expired, after the PIR detects any further movement, it will go to sleep and not detect any movement for 2 minutes. This is just an energy saving feature.
AAA 1.5V
AAA 1.5V
LR03 size 1.5V
LR03 size 1.5V
12
Getting started...
Installing your System
BLY1 Wireless Alarm System

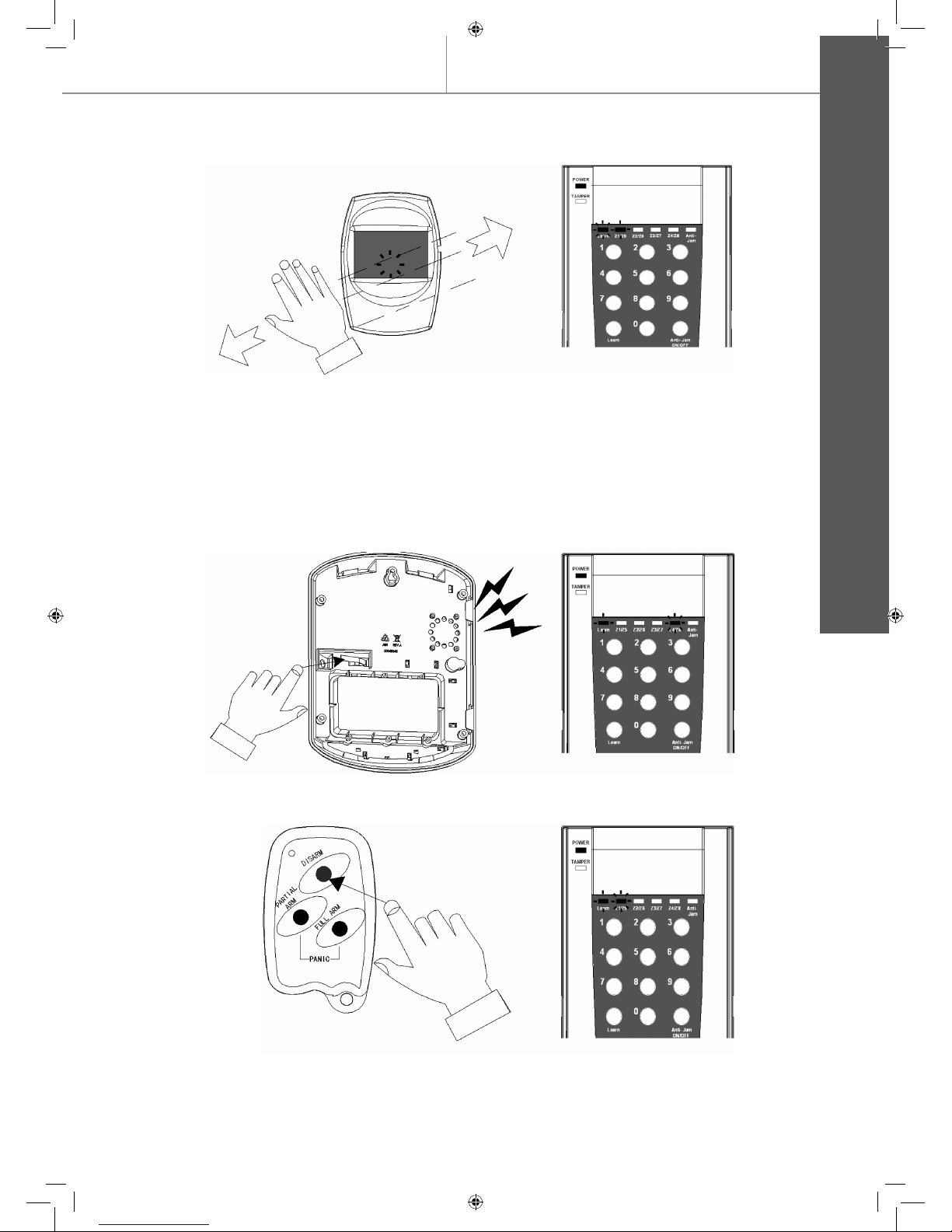

2.2 a PIR Detector, trigger the PIR detector by simply moving your hand in front of the detector.
When a PIR Detector has been learnt successfully, Z5, Z6, Z7 or Z8 zone LED depending on which next zone is unprogrammed) will ash.
* The use of ear defenders is advisable at this stage*
2.3 a siren, press and release the tamper switch once located on the rear of the siren. The
siren will trigger an alarm. After the control unit conrms the siren is linked (both ‘Learn’ and ‘Z4/Z8’ LEDs will ash together), silence the siren again by moving its power switch to ‘OFF’ again before installing it on the wall (see diagram on page 10).
2.4 a Remote Control, (Optional Accessory) press and release the disarm button once.
When the device is triggered, the rst available unprogrammed zone LED for that device will light up on the control unit. The control unit will beep twice to conrm the device has been learnt and the corresponding zone LED will light up red. (See diagrams below to show which zone LEDs correspond to which device when learnt). If the device has not been triggered in 10 seconds then re-enter programming mode again (press and hold the “Learn” button for over
5 seconds)
Learn PIR
Learn PIR
Learn remote key
Installing your System
BLY1 Wireless Alarm System
13
Getting started...
3. Trigger the next device within 10 seconds to learn it and repeat for additional devices. If the system has reached its maximum capacity and no more devices ca be added. The control unit will not beep any more.
4. When you have nished learning the devices, all zone LEDs will turn off after 10 seconds
which indicates successful programming. After this the system returns to standby mode.
Summary of the learn mode LED state
If you have any additional detectors, make sure they are programmed to the control unit before location testing and installation.
Turn OFF the Main Power Adaptor so that the POWER LED on the Control unit is OFF.
a) Wireless magnetic Door/Window contact (MC) detector

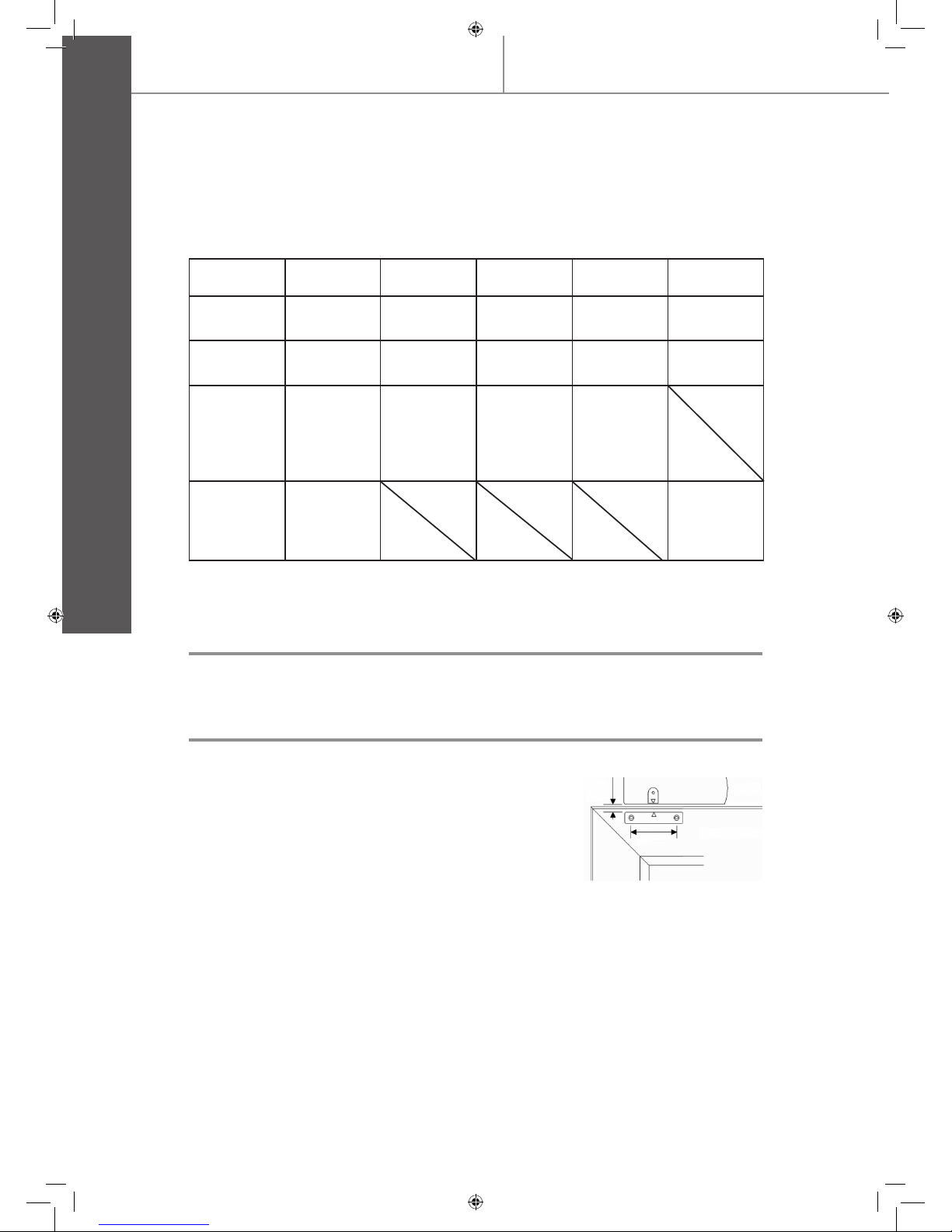

1. Choose where on the door or window you wish to locate the unit. The transmitter unit is usually mounted on the frame and should be positioned such that the red LED is close to the door or window.
2. The magnet should be tted as shown with one narrow edge level with the at top on the detector housing.
The gap between the magnet and detector should not be more than 8mm with the arrow on the magnet pointing directly towards the arrow on the detector.
3. If there is insufcient room to mount the detector on the frame, then it can be xed to the door or window instead (with the magnet xed to the frame alongside it.) For reliable operation, the front face of the magnet should be no
more than 8mm from the front face of the detector. In some cases, it may be necessary to place packing behind the magnet or detector to achieve this.
Fitting
4. Remove and retain the screw from the bottom of the detector. Use a small
drill or screw driver to make two xing holes in the back plate as a template. Use the backplate to mark and drill two 4mm xing holes 80.5mm apart. Fix the back plate in position using the screws provided.
5. If you wish add an additional wired magnetic Door/Window contact detector, then connect the wiring to the two hard wire terminals provided.
Learn mode
state
Learn
Red LED
Z1/Z5
Red LED
Z2/Z6
Red LED
Z3/Z7
Red LED
Z4/Z8
Red LED
Learn
Wireless MC
ON ON ON ON ON
Learn
Wireless PIR
ON FLASH FLASH FLASH FLASH
Learn Wireless
Remote Key
(optional
accessory)
FLASH ON ON ON
Learn
Wireless
External
Siren
FLASH ON
Powering down the control unit
Installing your detectors
Max.
8mm
Frame
52mm
Door / Window
14
Getting started...
Installing your System
BLY1 Wireless Alarm System
4. Locate the detector on the back plate and replace the retaining screw at the base of the unit.
5. Align the magnet as described above and x in position with the two screws provided.
b) Wireless Movement PIR Detector
1. Remove and retain the screw from the bottom of the PIR and lift off the cover. Fitting
2. If you are tting the PIR in a corner, use mounting points “A”. If you are tting the detector on to a at surface, use mounting points “B”. The mounting
points are shown by indentations in the plastic
molding. Use a small drill to create two xing holes
at the mounting points.
3. Hold the base of the PIR in the chosen position, ensuring that the front of PIR will face towards the centre of the protected area, and mark and drill two
4mm xing holes in the wall. DO NOT drill holes with the PIR in position – the resulting dust may
damage the PIR and prevent it from operating. Secure the PIR to the wall using two screws (25mm countersink) and the wall plugs.
4. Replace the electronic module into the retaining clips, ensuring that it is
correctly positioned and rmly seated.
c). Wireless external siren Fitting
1. Mount the siren base on to the wall using screws or xings that are appropriate for the construction of the building. Keyhole slots and slide mount are provided to assist with positioning. It is recommended that all 3 xing points are used.
2. Once mounted, move the siren’s power switch to ‘ON’ again for normal
operation at this stage (see diagram on page 10).
Tamper protection xing
3. The tamper switch will touch against the wall, but will not ‘click’ in position at
this stage, provided the wall is a at surface.
4. When the front cover is tted and the cover screw moves further in, it will push
the wall tamper switch down against the wall making it ‘click’. This screw when fully tightened, provides front cover and wall tamper protection.
A
B
NOTE: Each time this screw is removed, an alarm will be triggered by the system.
Silence the alarm by entering the user PIN code at the control panel (factory set PIN 1234).*
NOTE: If you are tting the unit to a PVC door or window, you may wish to use STRONG double-sided tape to x both detector and magnet in position.
80.5mm
Siren front cover Siren base
Wall mounting points
Siren top view of front cover screw when inserted pushes down the tamper switch
Cover screw
Front cover retaining screw
Installing your System
BLY1 Wireless Alarm System
15
Getting started...
Movement Detector/PIR nal setup

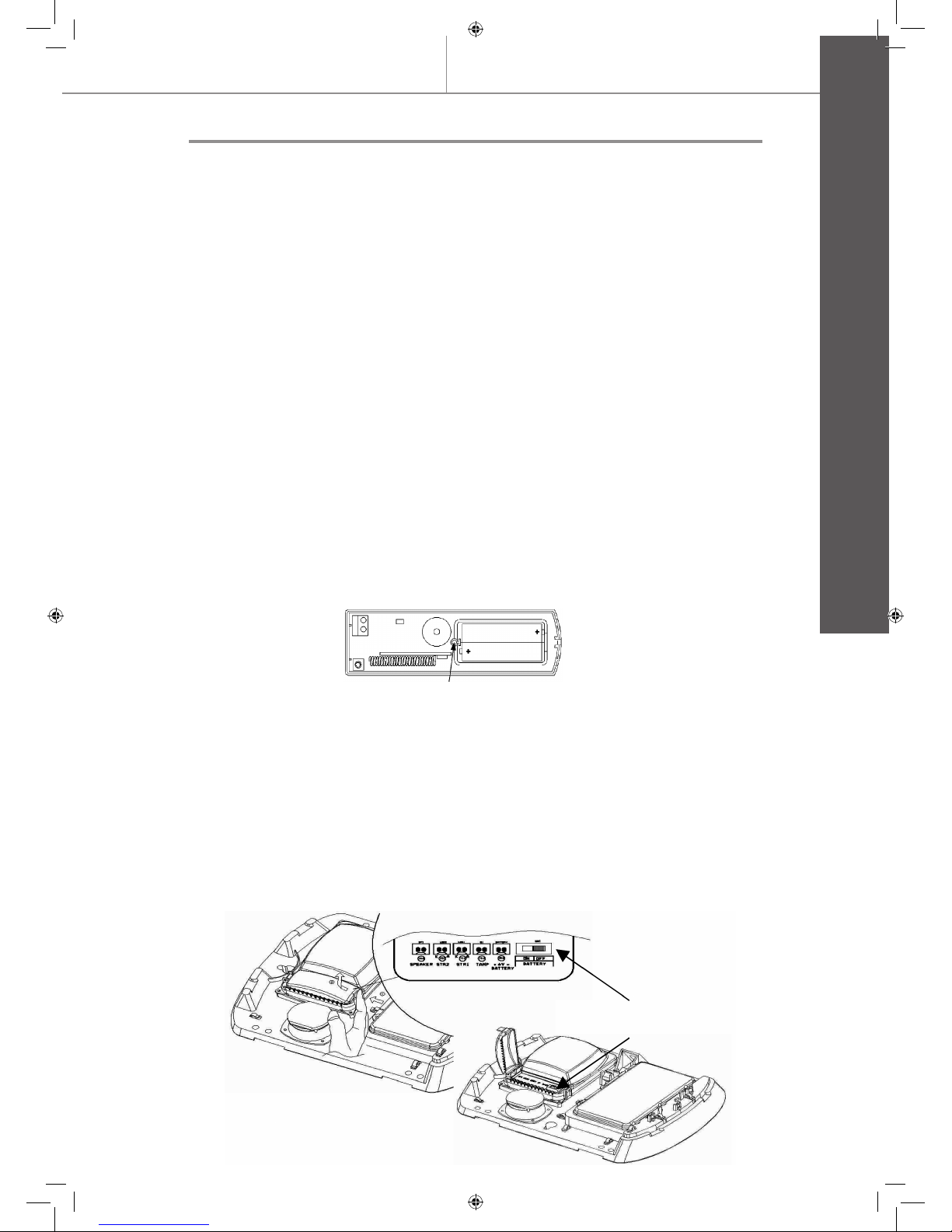

The wireless PIR detector has a jumper link, which activates/deactivates the LED. This LED can be used when performing a walk test in the chosen installation area to make sure you are happy with detection coverage. To increase battery life, pull this link off after completing the
walk test. The LED will be off when the detector is triggered during arm. Otherwise, leave the
link on, the LED will be on when triggered.
1. While the control unit is powered OFF, remove the control unit front cover again (see page 9)
2. Disconnect the battery snap connecting the battery holder. Take out the battery holder.
3. Connect the 9V Alkaline PP3 back up battery to the battery clip and place the battery into its compartment section.
4. If the alarm sounds then enter the factory User PIN 1234 to silence the system
5. Ret the battery cover. Ret the control unit cover to the base.
6. Power up the main power adaptor again.
The control unit will return to standby ready for operation and the POWER LED will remain ON.
Powering up the control unit
IMPORTANT: To extend the battery life, wireless PIR detectors are designed to
detect once only before entering a “Sleep” condition for two minutes during which the
unit will not trigger. Any movement seen by the PIR during this period would cause
“Sleep” conditions to be extended by a further two minutes. Therefore, a wireless PIR
which is constantly sensing movement, such as a person walking around a room,
may appear to be non-functional; you will nd that the PIR will detect normally again
following a two minute period with no movement present.
Getting started...
Using the System 17-19
Maintenance 19
Extending the System 19
Specications 20-21
Troubleshooting Guide 21
Disposal and Recycling 22
Getting
started...
In more detail...
16
In more detail...
BLY1 Wireless Alarm System
Using the System
BLY1 Wireless Alarm System
Control unit
When the control unit is powered up, it will remain in standby mode. The PIN code can also disarm the system and put it into standby mode.
a) Changing the user PIN code
The User PIN code is factory set to 1234. It is highly recommended to change the user PIN code immediately after completing the basic installation.
1. Set the system into “standby mode if not already set.

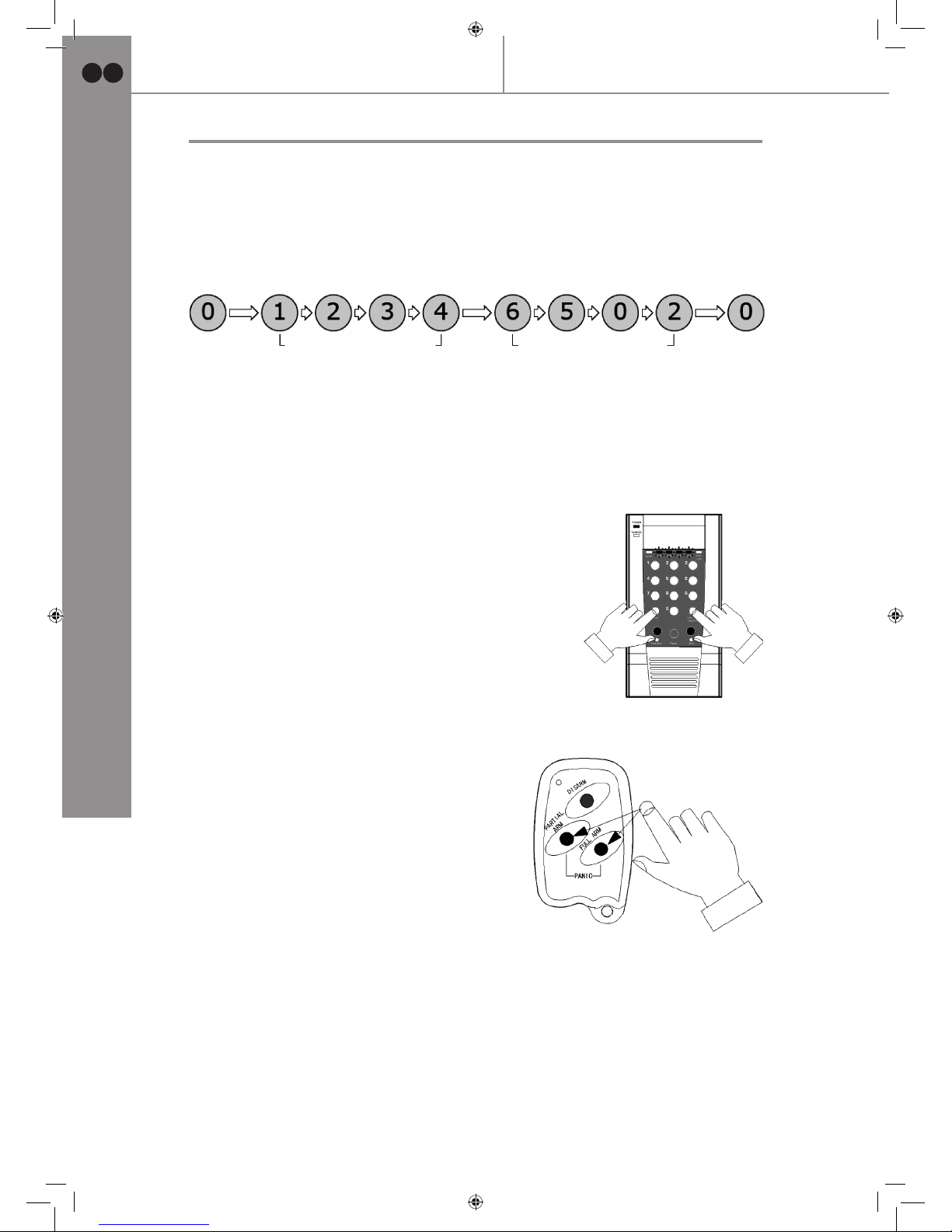

2. The following is a button sequence example of changing User PIN code to 6502:
Two short beeps from control unit conrm the operation. A long beep shows the request has not
been accepted or the waiting time between two buttons has exceeded 5 seconds.
*User PIN code of 0000 (four zeros) would lock this function. Pressing the reset switch
reverts the User PIN code to 1234 and unlocks this function.
b) Clear all programmed zones and reset User PIN code to default 1234
Pressing the reset switch inside the control unit clears all
programmed zones, keys and external siren and reverts the
user PIN code to 1234. It is necessary to open the control unit
cover by removing and retaining the two M3x10mm retaining
screws at the bottom of the control unit (please see section 3.1 for details).
c) Panic/Attack Alarm from control unit
Activated by pressing “Learn” button together with “Anti-Jam On/Off”, the system will sound the alarm immediately for the
preset siren duration (3 minutes at the factory setting). All four zone LEDs would be illuminated. Enter User PIN code to return to standby mode.
Press “Reset” button to clear the zone LEDs.
d) Panic/Attack Alarm from Remote control key (optional accessory) Activated by pressing “PARTIAL ARM” button together with
“FULL ARM”, the system will sound the alarm
immediately for the preset siren duration (3 minutes
at the factory setting.) All four zone LED would be illuminated. Pressing “Disarm” button will return it to standby mode. Press “Reset” button at the Control unit to clear the zone LEDs.
e) Silencing the system
1. When the alarm is triggered, enter the User PIN
code at the control unit or press “DISARM” button
at the remote key (optional accessory) to cancel the alarm and return to standby.
2. If the alarm has not been cancelled, the alarm sound will stop by itself after the preset siren duration time (3 minutes at the factory
setting), and the alarm hold indication (zone indicators) of the zone1 to zone 4 will be illuminated, zone 5 to zone 8 will be ashed. Enter user PIN code at the control unit to return or press “DISARM” button at the remote key (optional accessory) to return to standby mode, press “Reset” button to clear the zone LEDs.
f) Arming the alarm system while exiting the house
Press “Arm” button at the control unit or press “FULL ARM” button at the remote key (optional
accessory), close the door and leave the house within the exit delay time (30 seconds at factory setting), both PIR and magnetic contact are activated for protection after the exit delay time elapsed. Note: The control unit will suspend the exit delay (30s) count down if the door is opened or a PIR is triggered.
GB IE
17
In more detail...
Current User PIN Code New User PIN Code
18
Using the System
BLY1 Wireless Alarm System
In more detail...
g) Part Arm the alarm system while at home
Press “Part-Arm” button at the control unit or press “PARTIAL ARM” button at the remote
key, (optional accessory) close the door and leave the house within the exit delay time (30 seconds at factory setting,) both PIR and magnetic contact are activated for protection
after the exit delay time elapsed. When omitted zones (zone 6 to zone 8 at factory setting)
are triggered, they will not activate the alarm. Part-arm can also be used when you are sleeping upstairs at night and wish to protect the ground of your property provided the PIRs of Zones 6-8 are installed upstairs.
When the system is part-armed. Zone 5 PIR is used to protect the area next to the control panel with a delay period (30 seconds at factory setting).
h) Disarm the alarm system while entering the house
When you open the entrance door, the count down warning sound (entry delay time) will be
started. Enter your four-digit User PIN code at the control unit or press “DISARM” button
at the remote key (optional accessory) within the delay time (30 seconds at factory setting,) system will return to standby mode. At any time, the user PIN code can be entered to set to the standby mode.
1. Anti-Jamming detection feature
Press and hold the “Anti-Jam On/Off” button for over 10 seconds in standby mode to turn anti-jamming function ON/OFF. The corresponding “Anti-Jam” green LED will turn ON/OFF. Anti-Jam LED – Green colour (constantly on means enabled, Flashing means jamming
is detected)
Low battery detection
Control unit:
When the Control unit’s backup battery falls below 7.2V to 7.6V for over one minute,
TAMPER LED will ash to show low battery
status.
PIR Detectors:
The PIR Detectors have a built in buzzer which
wills sound in the event of a low battery status. Please replace the batteries within 2 weeks.
Magnetic Door/Window Contact Detectors:
The magnetic Door/Window contact detectors have a built in buzzer which wills sound in the
event of a low battery status. Please replace the batteries within 2 weeks.
When replacing any batteries, ensure you power OFF the control unit completely to prevent the
tamper function from triggering the alarm. After having replaced any batteries, reconnect the
Detector
Part Arm
mode
ARM mode Usage
Magnetic
Contact
Zone 1 Instant Delay
Exit/Entry
Zone
Zone 2 Instant Delay Zone 3 Instant Delay Zone 4 Instant Delay
PIR
Zone 5 Delay Delay
Protect area far
away from
Exit/Entry Zone
Zone 6 Disable Delay Zone 7 Disable Delay Zone 8 Disable Delay
Summary of the detector responses in different mode
NOTE: If a door/window where a magnetic contact detector is installed (zones 1-4) is
opened, the alarm will activate instantly.
9V Alkaline
battery
> One minute
< 7.2V ~ 7.6V
Using the System/ Maintenance/ Extending the System
BLY1 Wireless Alarm System
19
In more detail...
Maintenance
Once every 3 months:
Test all detectors.
Additionally, once every two years:
It is suggested to replace all batteries in wireless detectors and the control unit.
Replace with the same type of battery:
PIR Detector: 2 x AAA 1.5V Alkaline batteries
Magnetic Contact Detector: 2 x AAA 1.5V Alkaline batteries
Remote Control (optional accessory): 1 x CR2032 Lithium coin cell Siren: 4 x D cell Alkaline batteries Control Unit: 9V PP3 Alkaline battery
When replacing any batteries, ensure the control unit is powered OFF completely.
Extending the system
A number of accessories are available to extend your system to suit your exact requirements. When extending the system, please note the system can take up to 4 wireless magnetic Door/
Window contact detectors (in zones1-4), 4 PIR Detectors (in zones 5-8) and up to 3 wireless
remote controls.
Standard remote control (BLY4) – can be used to arm, part-arm, disarm or panic the control unit system with an operating range of about 60 meters in open eld conditions. Please contact
your supplier for more information.
Standard PIR (BLY3) – easy to install, one unit protects a large area.
Standard Door/Window contact (BLY2) – easy to t, detects opening of a door or window, can
be extended by the addition of wired magnetic contact.
Default settings
Parameter Ex-factory Value
User PIN code 1234
Entry/Exit delay 30 seconds
Siren Duration 3 minutes
Zone allocation for PIR and MC Detectors
Zone 1 to 4 Magnetic Contact
Zone 5 to 8 PIRs
REMARK: It is recommended to replace the 9V alkaline battery in the control unit after the AC power is out of service for a period of times.
20
Specications
BLY1 Wireless Alarm System
In more detail...
Type Microprocessor based wireless control unit
Housing material ABS
Zones 8 Alarm Zones–1 detector maximum per zone (8 detectors capacity)
Entry/Exit Delay 30 seconds Siren Duration 3 minutes
RF Receiver Frequency: 433MHz Power Supply 15V 500mA 50Hz AC/AC mains adaptor and 1 x 9V DC PP3
Alkaline for back-up power. Back-up battery life Up to 16 Hours on standby (@ full battery capacity) Current Consumption < 25mA (standby), <90mA (alarm)
Type Dual Pyroelectric element with hemispherical lens Housing material ABS
LED On/off selectable Mounting height 2 ~ 2.5 meters
Detection Range 12 meters @ 110º
Transmission Frequency 433MHz
Transmission Range 150 meters (open air with direct line of sight)
Power Supply 3VDC (2x 1.5V LR03 size AAA alkaline batteries are included)
Typical battery life Up to 18 months
Type Magnetically activated switch with option for external wired contact
detectors Housing material ABS LED Transmission indication
Transmission Frequency 433MHz
Transmission Range 150 meters (open air with direct line of sight)
Power Supply 3VDC (2x 1.5V LR03 size AAA alkaline batteries are included)
Typical battery Life Up to 18 months
Type Microprocessor based wireless remote control key
Housing material ABS LED Transmission indication
Transmission Frequency 433MHz
Transmission Range 60 meters (open air with direct line of sight)
Power Supply 3VDC (1 x CR2032 Lithium Coin size Battery)
Typical battery Life Up to 12 months
Type External audible and visual indication Housing material ABS
Transmission Frequency 433MHz
Transmission Range 60 meters (open air with direct line of sight)
Siren Output 100dB min @ 30cm
Siren time 3 minutes Power Supply 4 x 1.5V D Cell Alkaline batteries batteries are included Battery Life Up to 12 months
Control unit
Wireless movement detector/PIR
Wireless Door/Window contact detector
Wireless remote control (optional accessory)
Wireless external siren
21
In more detail...
Specications/
Troubleshooting
BLY1 Wireless Alarm System
Type AC/AC Adaptor with 3-pin UK style
Housing material ABS Rated Supply 230VAC 50HZ supply
Output Extra Low Voltage (AC15V max at 500mA AC)

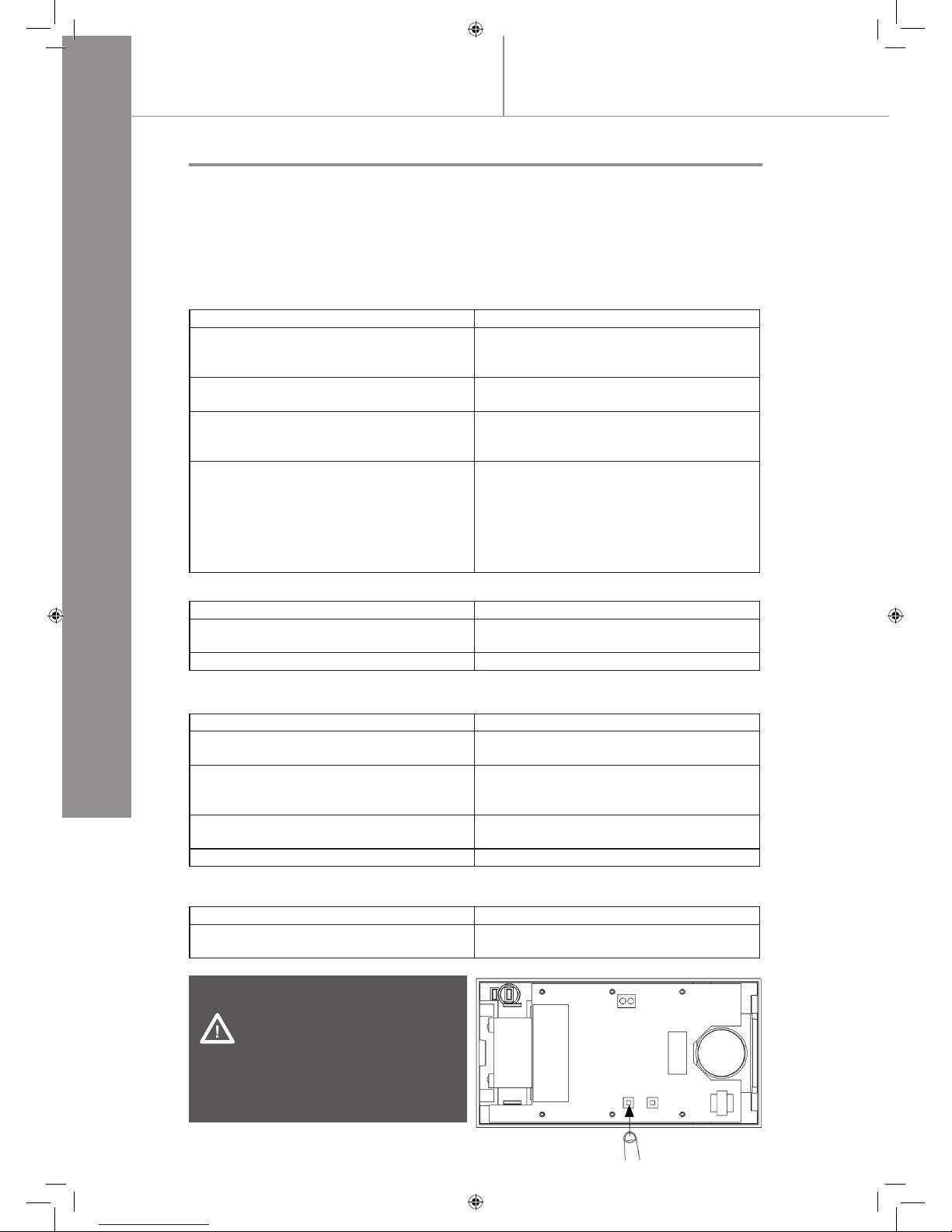

Troubleshooting
1) Control unit (CU)
2)Wireless Door/Window contact detector (MC)
3)Wireless PIR detector (PIR)
4)Wireless remote control (optional accessory)
Control Panel Power Supply Adaptor
Symptoms Possible causes and cures
Power indicator and all status LEDs are off without any response
No power supply to unit. Check connectors to mains and alkaline battery.
Power indicator does not light up but the sta-
tus LEDs or TAMPER LEDs are on.
Main supply is out. It is operating from alkaline
battery. Check power connections/adaptor.
TAMPER (Red) ashing.
Low backup battery condition;
replace 9V PP3 Alkaline battery as soon as possible.
No response to wireless detector transmissions.
Are detectors programmed correctly? Are PIR Detectors in warm up time (During
the rst 2 minutes from the batteries
installing)? Are detectors within radio range of the control unit? Control unit not armed.
Symptoms Possible causes and cures
Does not detect opening of door or window
(Red LED does not ash)
Check that batteries are correctly installed. Check that magnet is correctly positioned.
Built-in buzzer makes a sound Batteries are low. Replace batteries
Symptoms Possible causes and cures
Does not transmit
(Red LED does not ash).
Check that the battery is correctly installed. Battery low, replace battery.
Symptoms Possible causes and cures
Does not detect movement
(Red LED does not ash).
Is PIR’s LED turned off?
Is the PIR in its “sleep” condition (See Page 15).
PIR causes false “intruder” alarms.
Check that PIR is not pointed at heat sources or moving objects, and is not mounted above
a radiator or other heater. PIR will not trigger alarm when the system is set.
PIR in “sleep” condition.
Built-in buzzer makes a sound. Batteries are low. Replace batteries.
REMARK: if you have any problem with the wireless alarm system, press the RESET switch inside the control unit. The system will reset to factory default settings, but the detectors will need to be re-programmed again.
Reset Switch
22
Disposal and recycling/
Warranty
BLY1 Wireless Alarm System
In more detail...
Batteries and waste electrical products should not be disposed of with household waste. Please recycle where these facilities exist. Check with your local authority or retailer for recycling advice.
Declaration
B&Q hereby declares that this wireless product BLY1 is in compliance with the essential requirements and other relevant provisions of the Radio and Telecommunications Terminal Equipment (R&TTE) directive, 1995/5/EC.
Disposal and Recycling
LED Alarm Indication 24
Zone - Location Table 25
AppendixAppendix
BLY1 Wireless Alarm System
23
Appendix
LED Alarm Indication:
Power
(GREEN)
Tamper
(RED)
Z1/Z5
(RED)
Z2/Z6
(RED)
Z3/Z7
(RED)
Z4/Z8
(RED)
Power Ready
ON X X X X X
AC Failure X X X X X X
Low Battery ON Flashing X X X X
MC
Z1 Alarm ON X ON X X X
Z2 Alarm ON X X ON X X
Z3 Alarm ON X X X ON X
Z4 Alarm ON X X X X ON
PIR
Z5 Alarm ON X Flashing X X X
Z6 Alarm ON X X Flashing X X
Z7 Alarm ON X X X Flashing X
Z8 Alarm ON X X X X Flashing
Z1 Tamper ON ON ON X X X
Z2 Tamper ON ON X ON X X
Z3 Tamper ON ON X X ON X
Z4 Tamper ON ON X X X ON
Z5 Tamper ON ON Flashing X X X
Z6 Tamper ON ON X Flashing X X
Z7 Tamper ON ON X X Flashing X
Z8 Tamper ON ON X X X Flashing
Control panel
Tamper
ON ON X X X X
External Siren
Tamper
ON ON X X X X
PANIC Alarm ON X ON ON ON ON
LED
STATUS
GB IE
BLY1 Wireless Alarm System
Appendix
24
Appendix B
Appendix B
Zone Number Location
1
2
3
4
5
6
7
8
Zone - Location Table:
BLY1 Wireless Alarm System
25
Appendix
B&Q,
Chandlers Ford, Hants, SO53 3LE United Kingdom
www.diy.com
Customer Helpline 0844 736 9169
EAN 5397007039283
BLY1 Wireless Alarm System - Version 01
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
