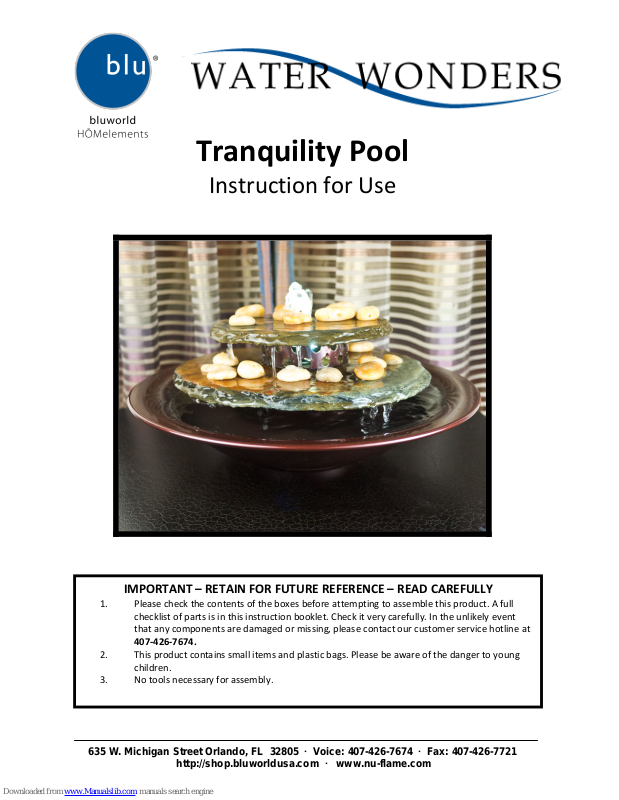

Tranquility Pool

Instruction for Use

635 W. Michigan Street Orlando, FL 32805 ∙ Voice: 407-426-7674 ∙ Fax: [phone]

http://shop.bluworldusa.com ∙ www.nu-flame.com

IMPORTANT – RETAIN FOR FUTURE REFERENCE – READ CAREFULLY

1. Please check the contents of the boxes before attempting to assemble this product. A full

checklist of parts is in this instruction booklet. Check it very carefully. In the unlikely event
that any components are damaged or missing, please contact our customer service hotline at
407-426-7674.

2. This product contains small items and plastic bags. Please be aware of the danger to young

children.

3. No tools necessary for assembly.

A. Pump with LED Light

(model may vary)

B. Top Ring

C. Bottom Ring

D. Slates

(one big & one small)

E. Acrylic Pipe

F. Acrylic Clip

G. Bowl

H. Rocks

Maintenance

The water level must remain 1” from the bottom of the bigger Slate (D) so it should be checked daily. Water
will evaporate from the fountain and adversely affect the performance of the water pump, which MUST be
completely submerged for proper operation and longevity. NEVER ALLOW
YOUR WATER PUMP TO OPERATE DRY!

Our water pumps are designed to provide exceptional pumping capacity
with minimal maintenance. Please see the instructions below for important
maintenance information:

To clean your pump, remove the intake pre-chamber (Item 1 in photo) as
shown in the picture to the right. Clean all parts thoroughly then
reassemble and reinstall in your fountain.

• Pump is noisy: Check that the pump’s output (Item 2 in photo) nozzle is securely inserted into the fountain’s
intake tube as forced water escaping the connection may cause unwanted air bubble noise. Make sure the
pump is completely submerged. You will need to remove the 2 Slates (D), LED light and Acrylic Clip (F) to
access the pump.

• Fountain splashes: The pump is adjustable and the flow may be turned up too high. See figure 2-A to
adjust the flow rate by sliding the adjuster to a lower position. Reposition rocks which will change the water
stream to minimize splashing. Make sure the acrylic Pipe (E) is securely attached to the pump.

• Water does not flow: Make sure pump output nozzle is inserted into the rubber intake tube, pump is
completely submerged in water and that the cord is plugged into a working receptacle. Also check to see
that flow adjustment control is positioned to a middle setting or above.

• Water does not flow evenly over Slate t iers (D): The Slate stones (D) are natural and are not completely
flat or level. You may need to spin/rotate the slates (D) to find a position for each that provides a level base
for the best and most even water flow.

Identification of Components

Carefully identify and count all components as shown below. Photos may slightly vary from what you receive.

1

2

NOTES ON POSITIONING YOUR FOUNTAIN

a. Try to position your fountain near an electrical outlet. If being placed outdoors, please use a Ground Fault

Circuit Interrupter (GFCI) Outlet. Position the base with the pump cord exiting on the left. See step 3 for further
information regarding this.

b. When considering the location of your fountain, please consider the making it easily accessible for maintenance

(e.g. adding water, performing regular maintenance etc.)

Step 1

Remove packing materials and parts from box and lay them out for ease of reference.

Step 2

Locate the Pump with LED Light (A) in the Bowl (G) and make sure that the pump is preset to its
lowest flow setting, see Fig. 2. A – 2.B.

Step 3

Connect the Acrylic Pipe (E) into Pump with LED Light (A), see Fig. 3. A – 3. B.

Step 4

Place the Bottom Ring (C) in the Bowl (G). Make sure the power cable of the Pump with LED Light (A)
under the cutout of the Bottom Ring (C), as shown in the illustrations below from Fig. 4. A – 4. C.

Step 5

Locate the bigger Slate (D). The LED light (A) and Acrylic Pipe (E) go through the hole of the bigger
Slate (D), see Fig. 5.

Step 6

Slide the Acrylic Clip (F) over the Acrylic Pipe (E) and put it under the LED Light (A), see Fig 6. A- 6. B.

Step 7

Place the Top Ring (B) on the bigger Slate (D), and then locate the small Slate (D) on the top of the Top
Ring (B), as shown in Fig. 7. A – 7.B.

Step 8

Put the Rocks (H) on the Slates (D) wherever you like to decorate the fountain, see Fig. 8.

Assembly

Fig 2. A - 2.B

Fig 3. A - 3.B

Fig 4. A - 4.C

Fig. 5

Fig 6. A - 6.B

Fig. 8

Fig 7. A - 7.B

Step 9

Fill the fountain Bowl (G) with water (distilled or purified is recommended) to a level 1” below the
bigger Slate (D).

Step 10

You are now ready to plug in the fountain and enjoy the soft, soothing and relaxing sounds of
nature in your home or office.

Do not attempt to move the feature once it is filled with water. Maintain the water level by filling at least 2” above the pump
about once a week. Waterfalls that are placed near air conditioning vents and intakes will evaporate at a faster rate. Do not
operate if low on water. If hard water is a problem in your area, the use of distilled water will guarantee the best results. It is
recommended to drain the reservoir about once every three months and refill with clean water. It may be necessary to wipe the
inside of the reservoir with a clean cloth to remove any buildup. Clean the inline filter, located between the pump and the red
valve, regularly to avoid loss of water pressure. The intake filter, located in the pump assembly, should be rinsed as needed to
prevent clogging. Clean the glass surface as needed with glass cleaner, being careful not to get cleaning agents into water.

Warranty

Bluworld product is warranted against defects that render it unfit for its reasonably intended use. This Warranty is
not extended to cover use of the product for a purpose other than as intended, and if the product is used
unreasonably, or for purposes other than as intended, or if it is altered, modified or repaired by a party other than
Bluworld, then the Warranty shall be null and void. The Warranty is in effect for a period of six months beginning
from the date of sale to the original retail purchaser and the rights under this Warranty are limited to the original
retail purchaser. Bluworld will, upon written notification thereof, take commercially reasonable steps to corr ect such
defects (see “manufacturers defects below”), at Bluworld’s sole option, by suitable repair, replacement, or refund.
Bluworld will not be responsible for the installation, labor or any other costs or expenses related to the re-installation
of a warranted part, and such expenses are not covered by this warranty. THIS LIMITED WARRANTY IS
EXCLUSIVE AND IN LIEU OF ANY IMPLIED WARRANTY OF MERCHANTABILITY, FITNES FOR A
PARTICULAR PUR POSE, OR OT HER W ARRANTY OF QUA LITY, W HETHER EXPR ESS OR I MPLIED , EXCEPT
FOR THE WARRANTY OF TITLE AGAINST PATENT INFRINGEMENT. Corrections of nonconformities, in the
manner and for the period of time provided above, shall constitute fulfillment of all liabilities of Bluworld to any
Dealer with respect to the goods, whether based on contract, negligence, and strict tort or otherwise. Bluworld
contract sales personnel, including but not limited to authorized Dealers and Resellers (collectively, "Sales
Personnel"), are not authorized to make warranties about Bluworld merchandise. ORAL STATEMENTS DO NOT
CONSTITUTE WARRANTIES. Oral statements made by Bluworld employees or other Sales Personnel shall not be
relied upon by a Dealer and shall not become part of any contract for sale. The entire sales contract between a
Dealer and Bluworld will be set forth in the invoice and/or accompanying or reference documents provided by
Bluworld to the Dealer or Sales Personnel. No other warranties are given beyond those set forth in those
documents. Please be aware that you may have valuable rights under the state law in which you reside. Some of
the provisions of this Warranty may be prohibited by your state law in which case your state law will govern and
control. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitation or exclusion may not apply to you. Some states do not allow limitations on how long an implied warranty
lasts, so the above limitations may not apply to you. This Warranty gives you specific l egal rights, and you may also
have other rights which vary from state to state.

Our products are warranted for a period of six months against defects in finish, pumps and other product
performance issues. Light bulbs are not warranted. Our experience has shown that in practically 100% of incidents
that any defect is apparent within a week of installation and use. Appearance defects should be noticed upon
unpacking the fountain. We have found that finishes have ‘failed’ due to poor maintenance, local water conditions
with minerals affecting the finish, attempts to clean with harsh chemicals or abrasive pads being used.
Performance of water flow, spitting, and other ‘leaks’, are usually caused by debris getting into the fountain, buildup
of minerals, algae from poor water or lack of maintenance. Pumps can also fail due to water levels not being
maintained in the reservoi r and t his i s not covered by the warranty.

Manufacturers Defect defined - A distinct and obvious flaw in the manufacturing of the product that inhibits the
product’s ability to function properly or a distinct and obvious flaw in the workmanship of the product that affects its
physical appearance. Bluworld water features are manufactured under generally accepted manufacturing
techniques as recognized by the International Organization of Standardization. Our products are hand made and
hand finished thus minor scratches in materials wit hi n accepted ranges are not considered defects.

Slate- Many of our products contain natural slate. Slate can vary to a large degree and that individuality is what is
considered to be unique and inherent to the beauty of the natural product as no two are exactly alike. Photos in our
marketing materials are representative of our slate products but should not be relied on to duplicate the photo. We
use natural mined slate in our products. Personal taste in the appearance of slate is not considered a reason for a
return.
