Bluworld BWD1177 Installation & Assembly

48” Gardenfall™

Instructions for Use

635 W. Michigan Street Orlando, FL 32805 · PH 407-426-7674 · Fax [phone]

www.bluworldusa.com · http://shop.bluworldusa.com

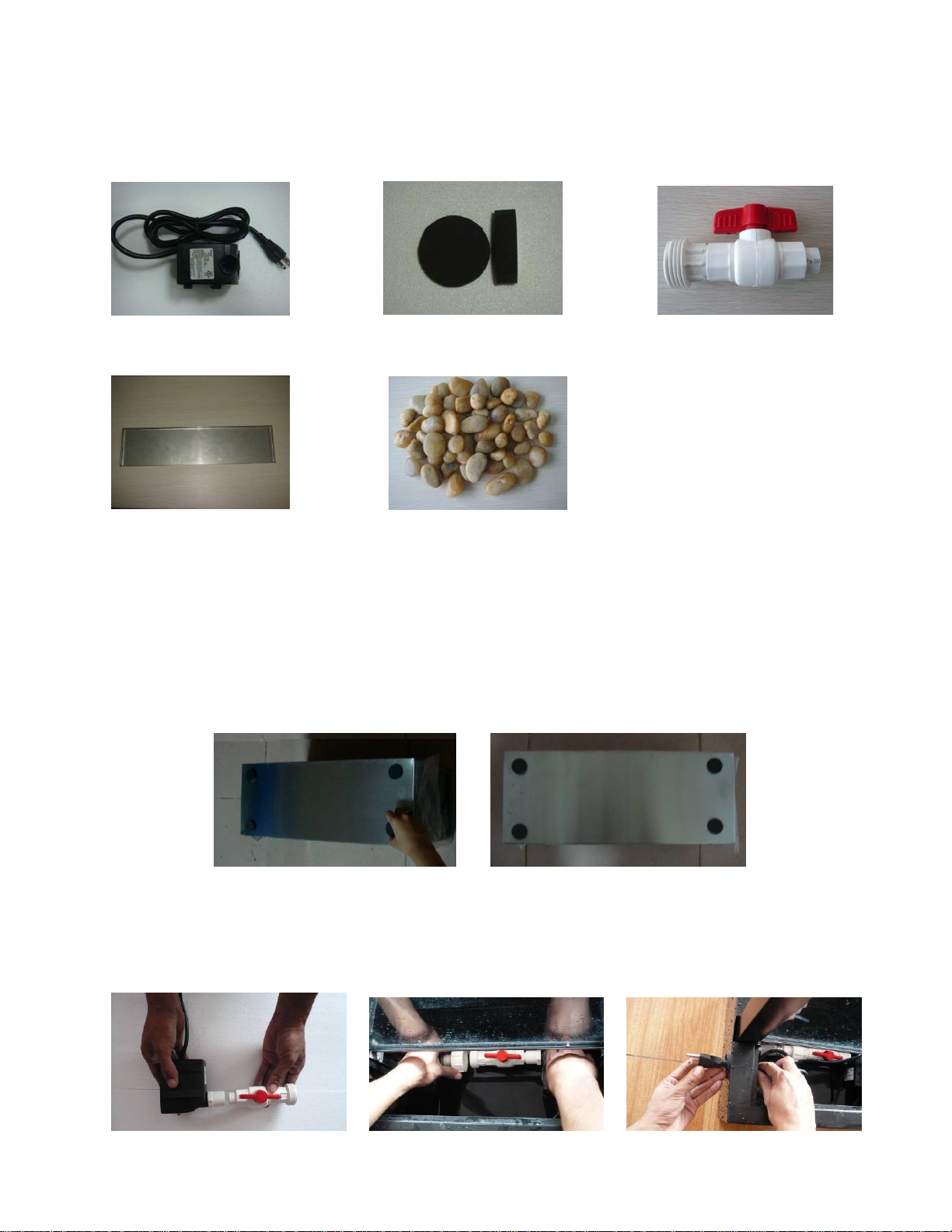

Parts List

A. Pump (1) B. EVA Pads (4) C. Flow Control Valve

D. Rock Tray(s) E. River Rocks

1 for Rear Mount
2 for Center Mount

Assembly Instructions

1. Remove the Gardenfall Panel & Base from the shipping Carton.

2. Remove all the packing material from the base. This includes the EVA Pads (B), River
Rocks (E), Rock T r ay(s) (D),Pump (A) and the Flow Control Valve (C).

3. Adhere the 4 EVA Pads (B) as shown in Fig 3.A & 3.B.

4. Take the Flow Control Valve Assembly (C ) and attach it to the threaded opening on
the pump (A) by screwing it in as shown in Fig 4.A & 4.B. Place the assembled
Pump (A) and Flow Control Valve (C) into the reservoir. Pull the cord through the
hole leaving approx 12” of the cord in the base. See Fig 4.C.

3.A 3.B

4.A 4.B 4.C

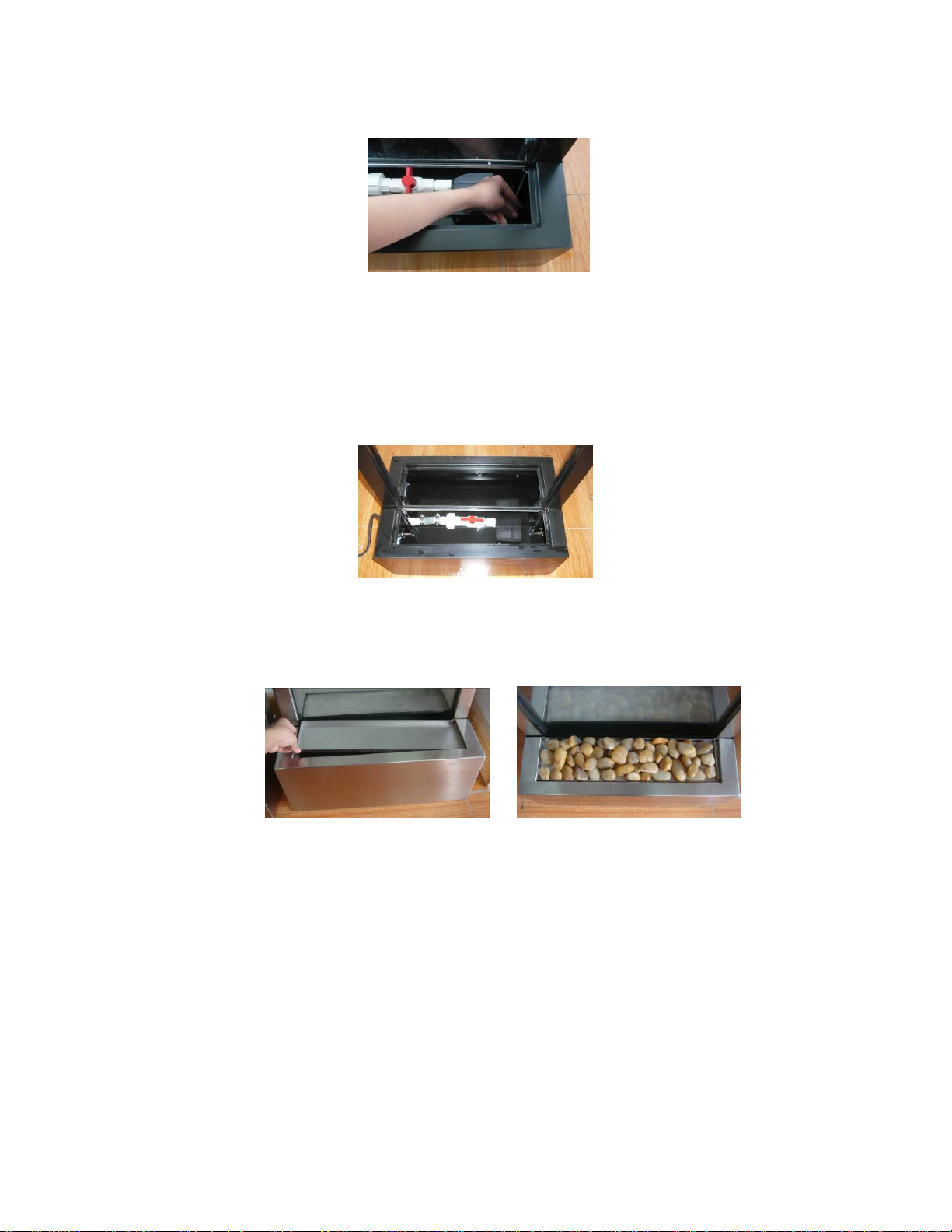

5. Turn the reservoir wing nuts as shown in Fig 5.A to secure the panel to the base.

5.A

6. Fill the reservoir with water. Please note that the water level must be maintained at
least ½” above the pump and ½” below the plug hole. If the water level drops below
the top of the pump, damage to the pump may occur. Plug in the pump and water
should begin to flow. Adjust flow if necessary by turning the red handle on the Flow
Control Valve as shown in Fig 6.A.

6.A

7. Insert the Metal Rock Trays (D) in the top of the reservoir and place rocks as shown
in Fig 7.A 7.B.

7.A 7.B

Please refer to supplementary Maintenance Guide for further information as to how to
keep your water feature clean and looking beautiful for many years.

Warranty

Bluworld’s Warranty has changed as of August 1, 2008 and supersedes all previous warranties for
product purchased after August 1, 2008. If there is printed material within this shipment it is
considered void and the Warranty as stated below is policy.

Bluworld product is warranted against defects that render it unfit for its reasonably intended use.
This Warranty is not extended to cover use of the product for a purpose other than as intended, and
if the product is used unreasonably, or for purposes other than as intended, or if it is altered,
modified or repaired by a party other than Bluworld, then the Warranty shall be null and void. The
Warranty is in effect for a period of six months beginning from the date of sale to the original retail
purchaser and the rights under this Warranty are limited to the original retail purchaser. Bluworld
will, upon written notification thereof, take commercially reasonable steps to correct such defects
(see “manufacturers defects below”), at Bluworld’s sole option, by suitable repair, replacement, or
refund. Bluworld will not be responsible for the installation, labor or any other costs or expenses
related to the re-installation of a warranted part, and such expenses are not covered by this warranty.
THIS LIMITED WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY IMPLIED WARRANTY OF
MERCHANTABILITY, FITNES FOR A PARTICULAR PURPOSE, OR OTHER WARRANTY OF
QUALITY, WHETHER EXPRESS OR IMPLIED, EXCEPT FOR THE WARRANTY OF TITLE
AGAINST PATENT INFRINGEMENT. Corrections of nonconformities, in the manner and for the
period of time provided above, shall constitute fulfillment of all liabilities of Bluworld to any Dealer
with respect to the goods, whether based on contract, negligence, and strict tort or otherwise.
Bluworld contract sales personnel, including but not limited to authorized Dealers and Resellers
(collectively, "Sales Personnel"), are not authorized to make warranties about Bluworld merchandise.
ORAL STATEMENTS DO NOT CONSTITUTE WARRANTIES. Oral statements made by Bluworld
employees or other Sales Personnel shall not be relied upon by a Dealer and shall not become part
of any contract for sale. The entire sales contract between a Dealer and Bluworld will be set forth in
the invoice and/or accompanying or reference documents provided by Bluworld to the Dealer or
Sales Personnel. No other warranties are given beyond those set forth in those documents. Please
be aware that you may have valuable rights under the state law in which you reside. Some of the
provisions of this Warranty may be prohibited by your state law in which case your state law will
govern and control. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not apply to you. Some states do
not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to
you. This Warranty gives you specific legal rights, and you may also have other rights which vary
from state to state.

Our products are warranted for a period of six months against defects in finish, pumps and other
product performance issues. Light bulbs are not warranted. Our experience has shown that in
practically 100% of incidents that any defect is apparent within a week of installation and use.
Appearance defects should be noticed upon unpacking the fountain. We have found that finishes
have ‘failed’ due to poor maintenance, local water conditions with minerals affecting the finish,
attempts to clean with harsh chemicals or abrasive pads being used. Performance of water flow,
spitting, and other ‘leaks’, are usually caused by debris getting into the fountain, buildup of minerals,
algae from poor water or lack of maintenance. Pumps can also fail due to water levels not being
maintained in the reservoir and this is not covered by the warranty.

Manufacturers Defect defined - A distinct and obvious flaw in the manufacturing of the product that
inhibits the product’s ability to function properly or a distinct and obvious flaw in the workmanship of
the product that affects its physical appearance. Bluworld water features are manufactured under
generally accepted manufacturing techniques as recognized by the International Organization of
Standardization. Our products are hand made and hand finished thus minor scratches in materials
within accepted ranges are not considered defects.

Slate- Many of our products contain natural slate. Slate can vary to a large degree and that
individuality is what is considered to be unique and inherent to the beauty of the natural product as
no two are exactly alike. Photos in our marketing materials are representative of our slate products
but should not be relied on to duplicate the photo. We use natural mined slate in our products.
Personal taste in the appearance of slate is not considered a reason for a return.
