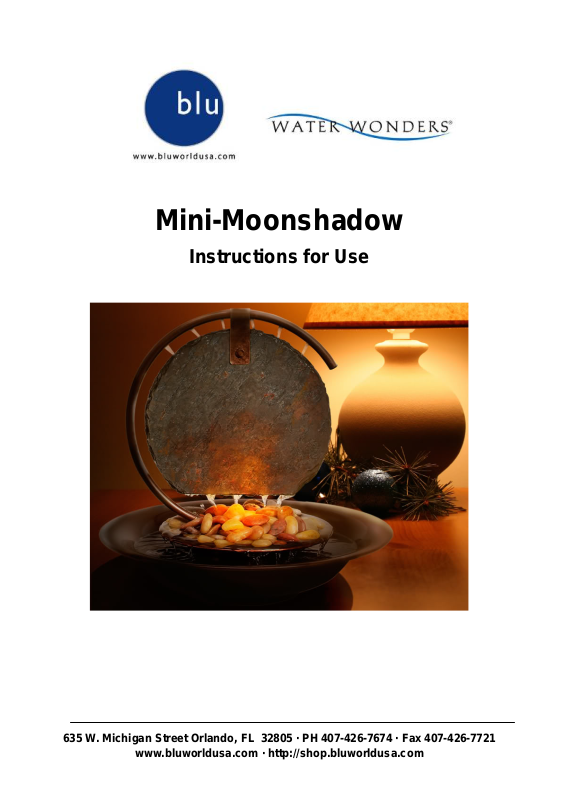

Bluworld BWD1161 Installation & Assembly

Mini-Moonshadow

Instructions for Use

635 W. Michigan Street Orlando, FL 32805 · PH 407-426-7674 · Fax [phone]

www.bluworldusa.com · http://shop.bluworldusa.com

Parts List:

A. Water Disperser

B. Washers/Hex Nut/Pump Coupling

C. Pump LED Light

D. Bowl

AttachedtoWaterDisperser(A)

E. Rock Tray

F. Slate with Support Strap

G. Rocks

No Tools Necessary

1. Remove packaging materials and parts from box and lay them out for ease of reference.

2. Locate the Water Disperser, Hex Nut, Washers, and Pump Coupling (A & B), see Fig. 2.A. Unscrew
the Pump Coupling and Hex Nut (B) from the curved Water Disperser (A) shown in Fig. 2.B and 2C.

3. Slide the Washer (C) over the threaded end of the curved Water Disperser (A), then slide the Water
Disperser (A) into the smaller hole of the Rock Tray (E). Screw on the Hex Nut (B) and finally screw on
the Pump Coupling (B) (plastic threaded part) as shown in the illustrations below from illustrations 3.A -

3.C. Please do not over tighten.

4. Locate Pump (C) and make sure that it is preset to its highest flow
setting.

2.A

3.A

2.B

3.B

2.C

3.C

4.A

5. Locate the Circular LED Light (C) and mount it under the Rock Tray (E) by pressing it through the holes
underneath the Rock Tray (E) as shown in Fig 5.A. Connect the Pump (C) to the Water Disperser (A)
as shown in Fig 5.A.and 5.B. Place the assembled unit into the center of the Bowl (D). Make sure that
the wire from the Pump (C) is placed through the notch in the Rock Tray (E) and continues outside the
Bowl (D) so that the on/off switch and transformer (C) will be outside the Bowl (D) as shown in Fig 5.C
& 5 D.

5.A

5.B

5.C

5.D

6. Locate the Slate with Support Strap (F). Slide the Slate with Support Strap (F) over the Water
Disperser (A) so it sits on top of the Velcro strip shown in figure 6.A. Now place Rocks (G) onto the
Rock Tray (E). Place smaller Rocks (G) around the larger rocks and under the Slate (F) as shown in
figure 6.B. Fill the Bowl (D) with water (distilled or purified is recommended) to a level ¼” below the
Rock Tray (E). If the water level is not maintained above the pump, water may splash erratically from
the Disperser (A).

6.A

6.B

7. You are no w ready to plug in the fountain and enjoy the soft, soothing and relaxing sounds of nature in
your home or office. Control the splashing effect and the diffusion of light produced by the circular LED
(C) by rearranging the Rocks (H) under the hanging slate slab. This fountain is also equipped with an
on/off switch(C), located just outside the Bowl (D) of the fountain.

Maintenance

The water level must remain ¼” from the bottom of the Rock Tray (E) so it should be checked daily. Water
will evaporate from the fountain and adversely affect the performance of the water pump, which MUST be
completely submerged for proper operation and longevity. NEVER ALLOW
YOUR WATER PUMP TO OPERATE DRY!

1 2

Our water pumps are designed to provide exceptional pumping capacity
with minimal maintenance. Please see the instructions below for important
maintenance information:

To clean your pump, remove the intake pre-chamber (Item 1 in photo) as
shown in the picture to the right. Clean all parts thoroughly then
reassemble and reinstall in your fountain.

• Pump is noisy: Check that the pump’s output (Item 2 in photo) nozzle is securely inserted into the
fountain’s intake tube as forced water escaping the connection may cause unwanted air bubble noise.
Make sure the pump is completely submerged. You will have to lift the Rock Tray (E) out of the Bowl (D)
to access the pump.

• Fountain splashes: Reposition rocks which will change the water stream to minimize splashing. Make
sure Water Disperser (A) and Coupling Connections (B) are secure and that the water flow adjustment
control on the Pump (C) is not positioned at its highest setting.

• Water does not flow: Make sure pump output nozzle is inserted into the rubber intake tube, pump is
completely submerged in water and that the cord is plugged into a working receptacle. Also check to see
that flow adjustment control is positioned to a middle setting or above.

• Water does not flow properly onto Slate (F): Make sure the Water Disperser (A) is not sitting at an angle
above the fountain bowl (D). Adjust and/or slide the Slate (F) along the Water Disperser (A) until it is
positioned completely under the Water Disperser (A) outlet holes so that the slate’s edges hang in line
with the pipe.

• Adjust the Pump Flow Control setting.

Warranty

Bluworld product is warranted against defects that render it unfit for its reasonably intended use. This
Warranty is not extended to cover use of the product for a purpose other than as intended, and if the product
is used unreasonably, or for purposes other than as intended, or if it is altered, modified or repaired by a
party other than Bluworld, then the Warranty shall be null and void. The Warranty is in effect for a period of
six months beginning from the date of sale to the original retail purchaser and the rights under this Warranty
are limited to the original retail purchaser. Bluworld will, upon written notification thereof, take commercially
reasonable steps to correct such defects (see “manufacturers defects below”), at Bluworld’s sole option, by
suitable repair, replacement, or refund. Bluworld will not be responsible for the installation, labor or any other
costs or expenses related to the re-installation of a warranted part, and such expenses are not covered by
this warranty. THIS LIMITED WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY IMPLIED WARRANTY OF
MERCHANTABILITY, FITNES FOR A PARTICULAR PURPOSE, OR OTHER WARRANTY OF QUALITY,
WHETHER EXPRESS OR IMPLIED, EXCEPT FOR THE WARRANTY OF TITLE AGAINST PATENT
INFRINGEMENT. Corrections of nonconformities, in the manner and for the period of time provided above,
shall constitute fulfillment of all liabilities of Bluworld to any Dealer with respect to the goods, whether based
on contract, negligence, and strict tort or otherwise. Bluworld contract sales personnel, including but not
limited to authorized Dealers and Resellers (collectively, "Sales Personnel"), are not authorized to make
warranties about Bluworld merchandise. ORAL STATEMENTS DO NOT CONSTITUTE WARRANTIES. Oral
statements made by Bluworld employees or other Sales Personnel shall not be relied upon by a Dealer and
shall not become part of any contract for sale. The entire sales contract between a Dealer and Bluworld will
be set forth in the invoice and/or accompanying or reference documents provided by Bluworld to the Dealer
or Sales Personnel. No other warranties are given beyond those set forth in those documents. Please be
aware that you may have valuable rights under the state law in which you reside. Some of the provisions of
this Warranty may be prohibited by your state law in which case your state law will govern and control.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitation or exclusion may not apply to you. Some states do not allow limitations on how long an implied
warranty lasts, so the above limitations may not apply to you. This Warranty gives you specific legal rights,
and you may also have other rights which vary from state to state.

Our products are warranted for a period of six months against defects in finish, pumps and other product
performance issues. Light bulbs are not warranted. Our experience has shown that in practically 100% of
incidents that any defect is apparent within a week of installation and use. Appearance defects should be
noticed upon unpacking the fountain. We have found that finishes have ‘failed’ due to poor maintenance,
local water conditions with minerals affecting the finish, attempts to clean with harsh chemicals or abrasive
pads being used. Performance of water flow, spitting, and other ‘leaks’, are usually caused by debris getting
into the fountain, buildup of minerals, algae from poor water or lack of maintenance. Pumps can also fail due
to water levels not being maintained in the reservoir and this is not covered by the warranty.

Manufacturers Defect defined - A distinct and obvious flaw in the manufacturing of the product that inhibits
the product’s ability to function properly or a distinct and obvious flaw in the workmanship of the product that
affects its physical appearance. Bluworld water features are manufactured under generally accepted
manufacturing techniques as recognized by the International Organization of Standardization. Our products
are hand made and hand finished thus minor scratches in materials within accepted ranges are not
considered defects.

Slate- Many of our products contain natural slate. Slate can vary to a large degree and that individuality is
what is considered to be unique and inherent to the beauty of the natural product as no two are exactly alike.
Photos in our marketing materials are representative of our slate products but should not be relied on to
duplicate the photo. We use natural mined slate in our products. Personal taste in the appearance of slate is
not considered a reason for a return.
