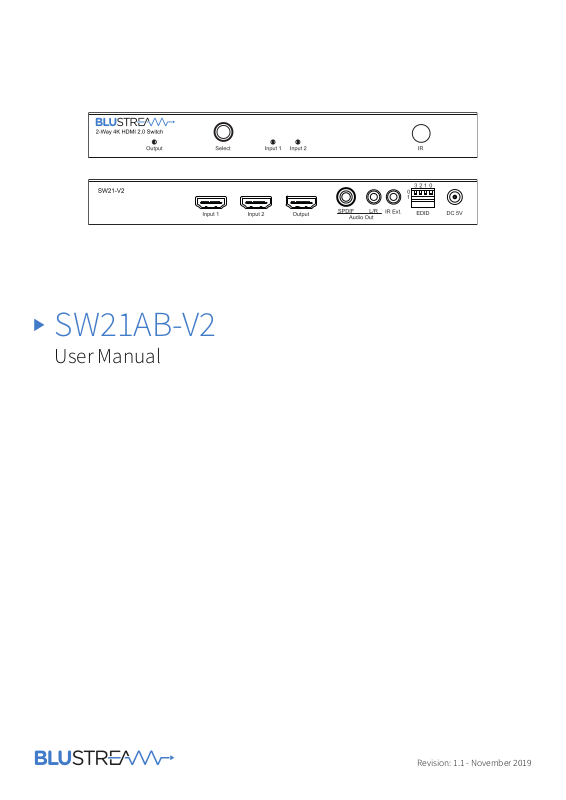

Page 1

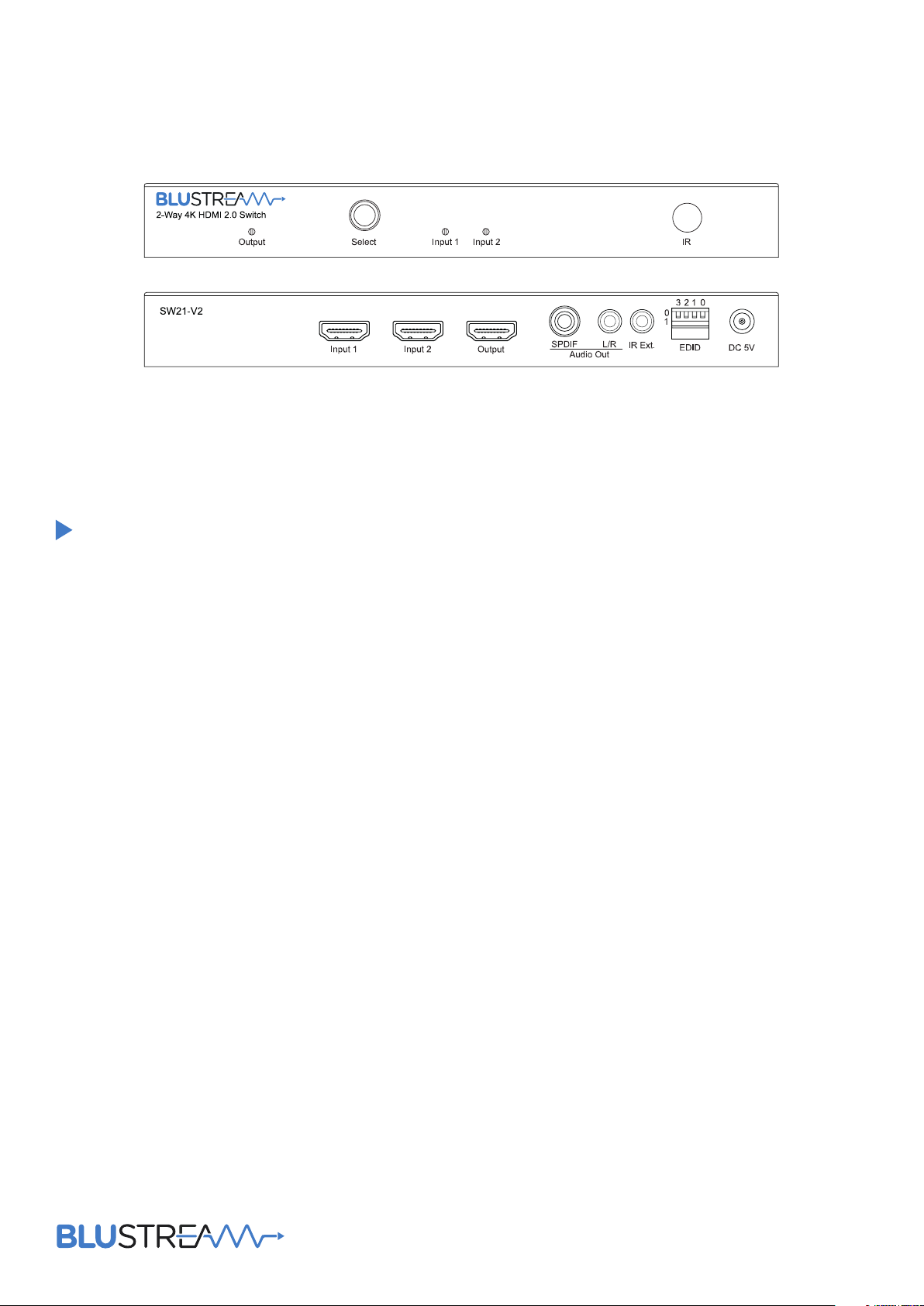

SW21AB-V2
User Manual
Revision: 1.1 - November 2019
Page 2
SW21AB-V2 USER MANUAL
Thank you for purchasing
this product.
For optimum performance and safety,
please read these instructions carefully
before connecting, operating or
adjusting this product. Please keep this
manual for future reference.
Surge protection device
recommended
This product contains sensitive electrical
components that may be damaged
by electrical spikes, surges, electric
shock, lightning strikes, etc. Use of surge
protection systems is highly recommended
in order to protect and extend the life of
your equipment.
Contents
Introduction 03
Features 03
Panel Descriptions 04
Infrared Remote Control 05
Infrared Distribution 05
EDID Control 06
Application Diagram 07
Specifications 08
Safety And
Performance Notice
Do not substitute or use any other power
supply other than the enclosed unit, or a
Blustream approved replacement.
Do not disassemble the unit for any reason.
Doing so will void the manufacturer’s
warranty.
Package Contents 08
Maintenance 08
Installer Notes 09
02
www.blustream.com.au | www.blustream.co.uk
Page 3
SW21AB-V2 USER MANUAL
The SW21AB-V2 is a 2-way HDMI switch with integrated audio breakout and the
Introduction
FEATURES:
• Features 2 x HDMI inputs which can be switched to a single HDMI output
• Supports full HDMI 2.0 specification 4K UHD video (4K @ 60Hz 4:4:4)
• HDCP 2.2 compliant
• Auto-switching capabilities*
• Supports 3D signal display
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD
Master Audio transmission
• HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently
• Control via front panel and IR
• Advanced EDID management
ability to auto-switch.
The switch supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to
and including 4K @ 60Hz 4:4:4.
* See page 4 for details of how to enable the auto-switching function on these units. Auto-switching capabilities added
to units as standard with serial number: 70522400001 or later. For units earlier than this, it is not possible to update the
firmware to enable auto-switching in the field.
contact [email protected] | [email protected]
03
Page 4

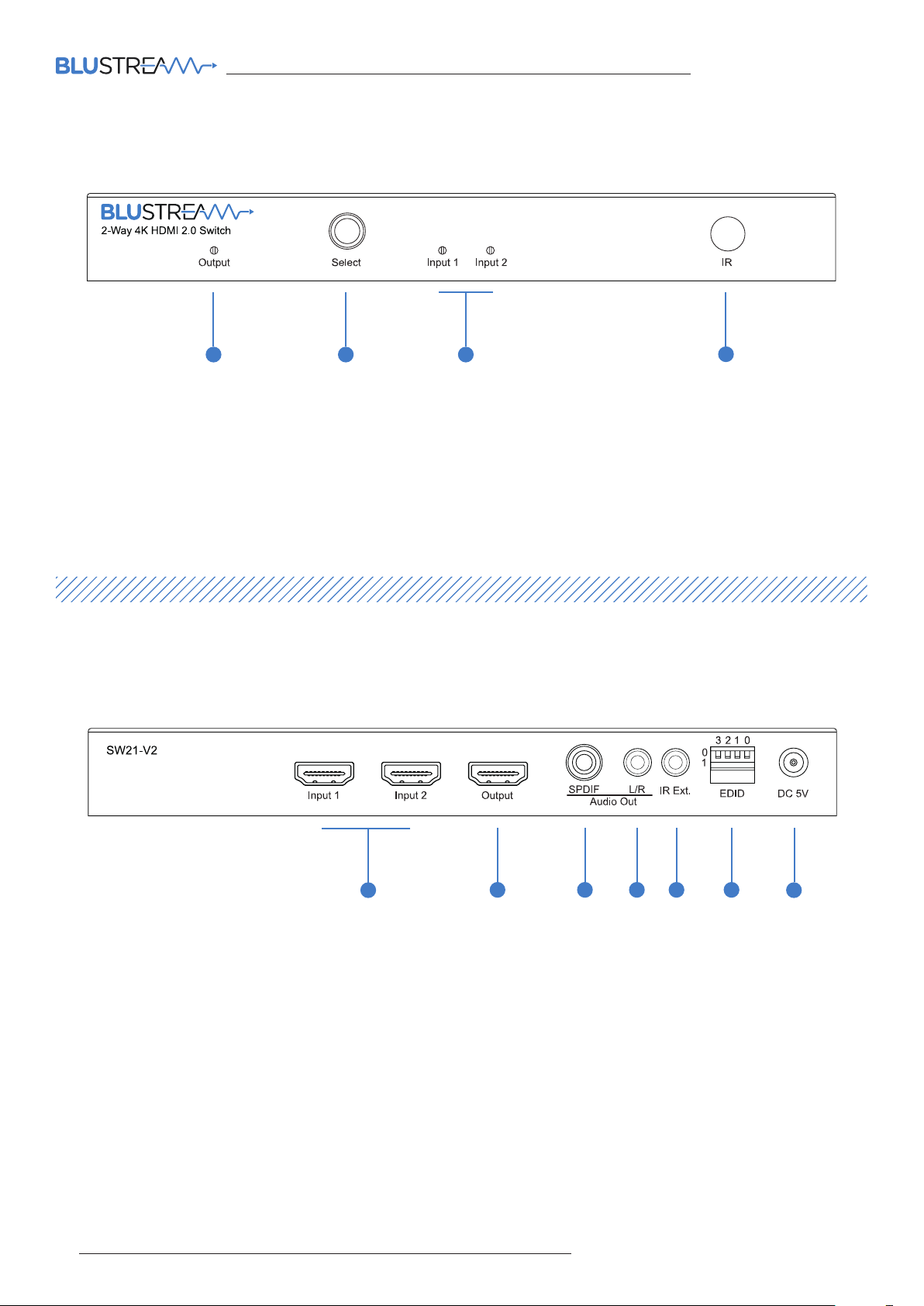

Front Panel
SW21AB-V2 USER MANUAL
1 2 3
4
1 Output LED indicator - Indicates if a display device is connected to the switches HDMI output
2 Select button - Press to toggle between HDMI inputs. Auto-switching function is enabled / disabled by pressing
and holding the Select button for 5 seconds. Output light will flash 3 times to confirm switching function enabled /
disabled
3 Input LED indicators - Displays the HDMI input currently active
4 IR receiver window
Rear Panel
1
2
3 4 5 6
7
1 HDMI Inputs - Connect to HDMI source devices
2 HDMI Output - Connect to a HDMI display device
3 Coaxial digital output (S/PDIF) - De-embedded from selected HDMI input
4 Analogue audio Le / Right output (3.5mm stereo jack) - De-embedded from the selected HDMI input. Source input
must be PCM 2 channel audio for the analogue output to work. The SW21AB-V2 doesn’t down-mix multi-channel
audio signals.
5 External IR port - Connect Blustream 5V IR receiver, or control processor to control the switcher
6 EDID DIP switches - See page 06
7 Power port - Use supplied Blustream 5V/1A DC adaptor to power the switcher
04
www.blustream.com.au | www.blustream.co.uk
Page 5

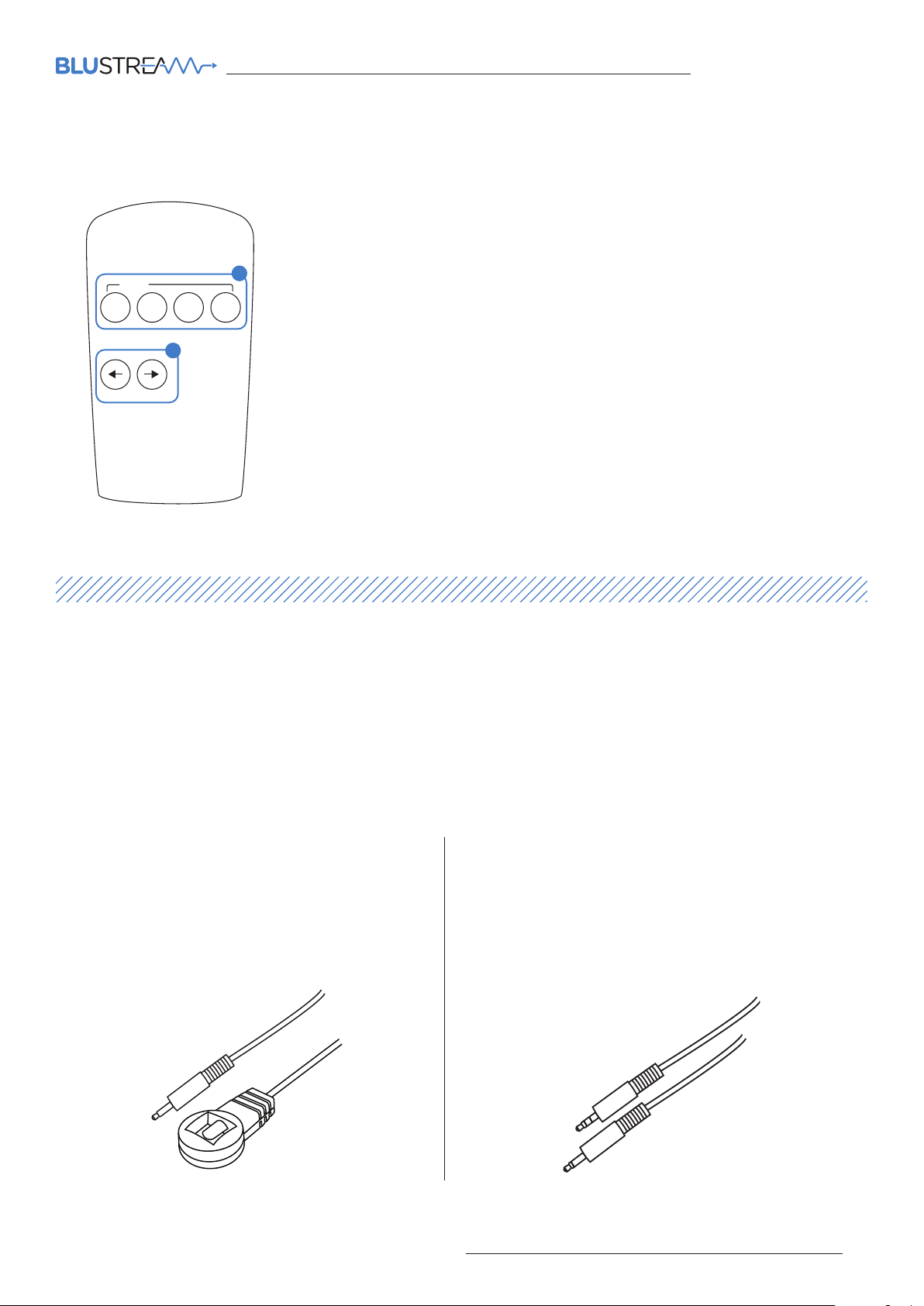

Remote Control - REMSW41
1 Direct HDMI input selection buttons (buttons 3 & 4 for use with SW41AB-V2
unit only)
SW21AB-V2 USER MANUAL
Input
1
2 Scroll through input buttons - HDMI input 1-2-1...
1 2 3 4
2
Infrared (IR) Distribution
The Blustream range of HDMI products include multiple options for control and routing of IR.
IMPORTANT: Blustream Infrared products are all 5V and NOT compatible with alternative manufacturers Infrared
solutions. When using third party 12V IR control solutions please use supplied Blustream IRCAB cable for IR conversion
(12V to 5V) - sold separately.
Each Blustream HDMI product is supplied with the necessary IR hardware required:
IR Receiver - IRR
Blustream 5V IR receiver (supplied) to receive IR signal
and control the SW21AB-V2
contact [email protected] | [email protected]
IR Control Cable - IRCAB
Blustream IR Control cable 3.5mm Mono to 3.5mm
Stereo for linking third party control solutions to
Blustream products.
Compatible with 12V IR third party products.
Note: Cable is directional as indicated - not supplied
05
Page 6
SW21AB-V2 USER MANUAL
EDID Control
EDID (Extended Display Identification Data) is a data structure that is used between a display and a source. This data is used by the
source to find out what audio and video resolutions are supported by the display, from this information the source will discover
what the best audio and video resolutions need to be outputted.
While the objective of EDID is to make connecting a digital display to a source a simple plug and play procedure, issues do arise
when multiple displays or video matrix switching is introduced because of the increased number of variables.
By pre-determining the video resolution and audio format of the sources and display device you can reduce the time needed for
EDID hand shaking thus making switching quicker and more reliable.
Configuration of extender EDID settings can be achieved using the product dip-switches on the SW21AB-V2. EDID dip-switch
settings are shown below.
Note: You must power cycle the product aer making EDID changes. For some sources it may be necessary to power cycle the
source aer EDID changes have been made for the source to update its video & audio output settings.

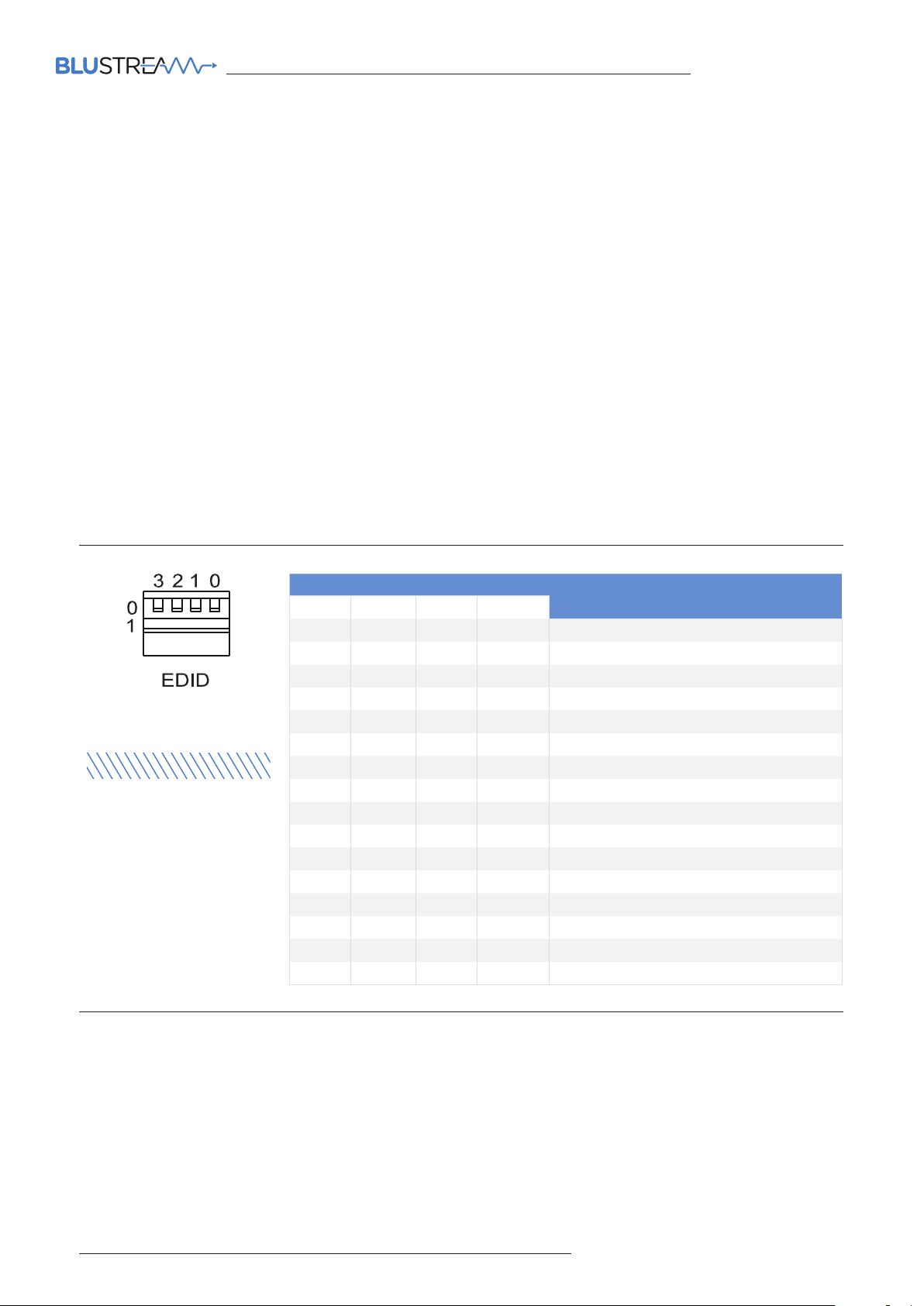

Global EDID Settings
Dip-switch position ‘0’ = O
Dip-switch position ‘1’ = On
DIP ON /OFF SWITCHING POSITIONS
3 2 1 0
OFF OFF OFF ON 1080p / 2ch PCM
OFF OFF ON OFF 1080p / 5.1ch PCM/DTS/Dolby
OFF OFF ON ON 1080p / 7.1ch PCM/DTS/Dolby/HD
OFF ON OFF OFF 1080i / 2ch PCM
OFF ON OFF ON 1080i / 5.1ch PCM/DTS/Dolby
OFF ON ON OFF 1080i / 7.1ch PCM/DTS/Dolby/HD
OFF ON ON ON 4K@60Hz 4:2:0 / 2ch PCM
ON OFF OFF OFF 4K@60Hz 4:2:0 / 5.1ch PCM/DTS/Dolby
ON OFF OFF ON 4K@60Hz 4:2:0 / 7.1ch PCM/DTS/Dolby/HD
ON OFF ON OFF 4K@60Hz 4:4:4 / 2ch PCM
ON OFF ON ON 4K@60Hz 4:4:4 / 5.1ch PCM/DTS/Dolby
ON ON OFF OFF 4K@60Hz 4:4:4 / 7.1ch PCM/DTS/Dolby/HD
ON ON OFF ON DVI 1280 x 1024 @60Hz no audio
ON ON ON OFF DVI 1920 x 1080 @60Hz no audio
ON ON ON ON DVI 1920 x 1200 @60Hz no audio
OFF OFF OFF OFF Copy EDID from Output 1
EDID TYPE
06
www.blustream.com.au | www.blustream.co.uk
Page 7
SW21AB-V2 USER MANUAL
Input
1 2 3 4
2x 4K UHD SOURCES
4K UHD DISPLAY
SW21-V2

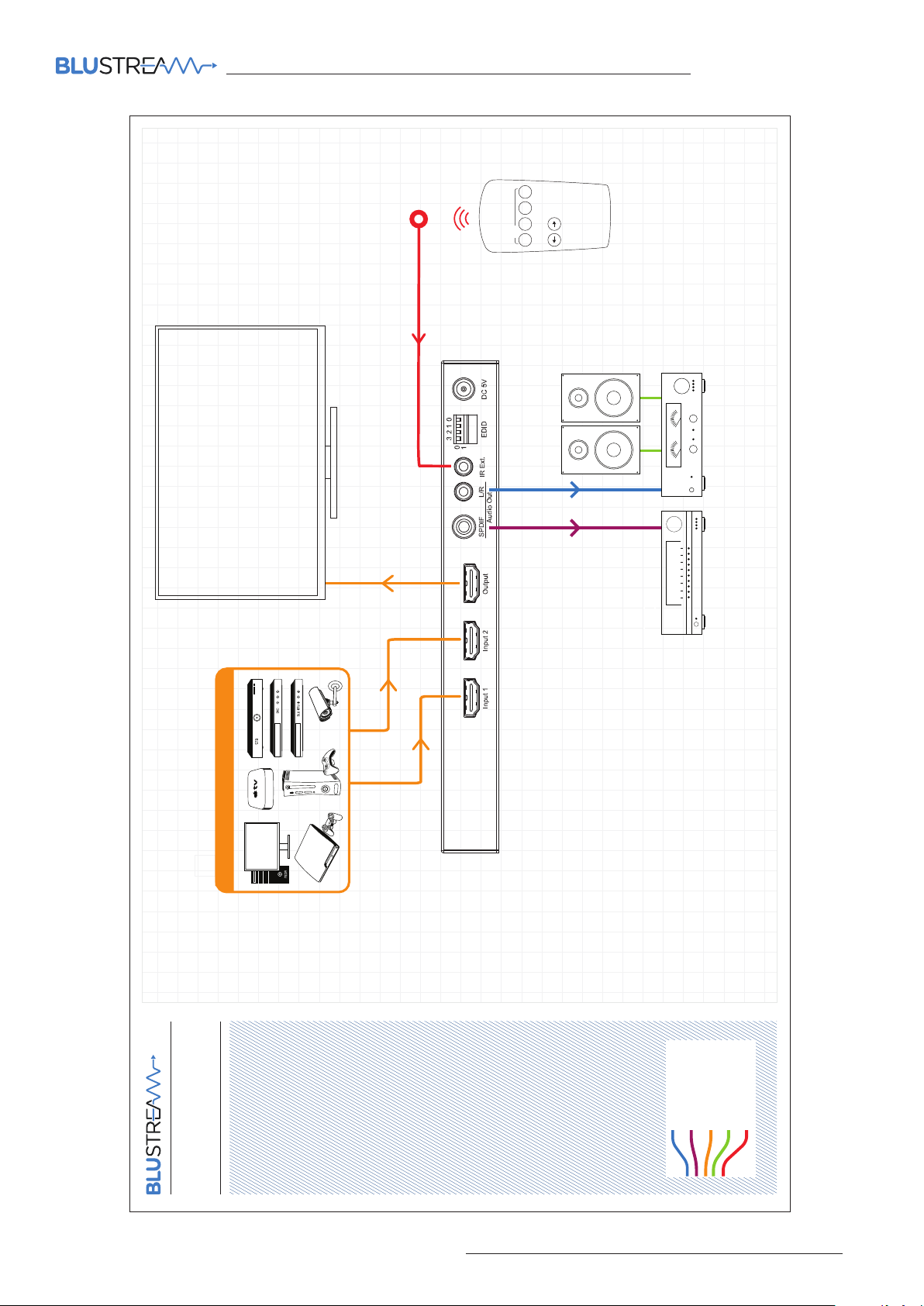

Example Schematic
SW21AB-V2
contact [email protected] | [email protected]
Analogue Audio
Digital Audio
HDMI
Speaker Cable
IR Receiver Cable
07
Page 8
Specifications
• Video Input Connectors: 2 x HDMI Type A, 19-pin, female
• Video Output Connectors: 1 x HDMI Type A, 19-pin, female
• Audio Output Connectors: 1 x RCA (S/PDIF) & 1 x Analogue audio L/R (3.5mm stereo jack)
• IR Input Ports: 1 x 3.5mm stereo jack
• Dimensions (W x D x H): 196 x 104 x 23mm, including connections, without feet (removable)
• Shipping Weight: 0.8kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Power Supply: 1 x 5V/1A DC
NOTE: Specifications are subject to change without notice. Weights and dimensions are approximate.
SW21AB-V2 USER MANUAL
Package Contents
• 1 x SW21AB-V2
• 1 x REMSW41 remote control
• 1 x 5V/1A DC power supply
• 1 x IR receiver (IRR)
• 1 x Mounting bracket set
• 1 x User manual
Maintenance
Clean this unit with a so, dry cloth. Never use alcohol, paint thinner or benzene to clean this unit.
Components inside this unit are not user serviceable. Do not remove the protective cover from the unit. Removing any
panel from this product will invalidate the manufacturers warranty.
08
