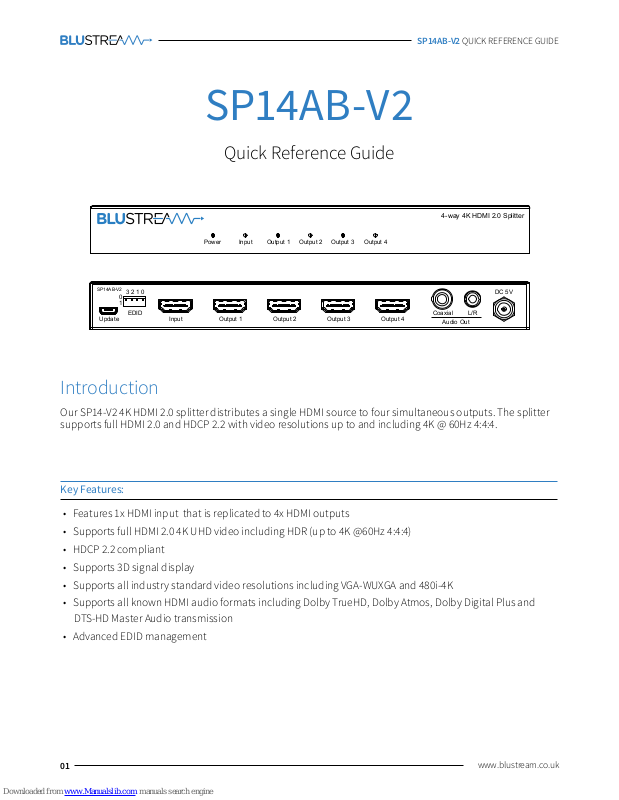

Page 1
SP14AB-V2 QUICK REFERENCE GUIDE
01
www.blustream.co.uk
Quick Reference Guide
SP14AB-V2
Our SP14-V2 4K HDMI 2.0 splitter distributes a single HDMI source to four simultaneousoutputs. The splitter
supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4.
Introduction
Key Features:
• Features 1x HDMI input that is replicated to 4x HDMI outputs
• Supports full HDMI 2.0 4K UHD video including HDR (up to 4K @60Hz 4:4:4)
• HDCP 2.2 compliant
• Supports 3D signal display
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and
DTS-HD Master Audio transmission
• Advanced EDID management
DC 5V
Coaxial
Audio Out
L/R
Input
EDID
1
0
3 2 1 0
Update
Output 1 Output 2 Output 3 Output 4
SP14AB-V2
DC 5V
Coaxial
Audio Out
L/R
Input
EDID
1
0
3 2 1 0
Update
Output 1 Output 2 Output 3 Output 4
4-way 4K HDMI 2.0 Splitter
Power Input Output 1 Output 2 Output 3 Output 4
SP14AB-V2
Page 2
SP14AB-V2 QUICK REFERENCE GUIDE
02
contact [email protected] / [email protected]

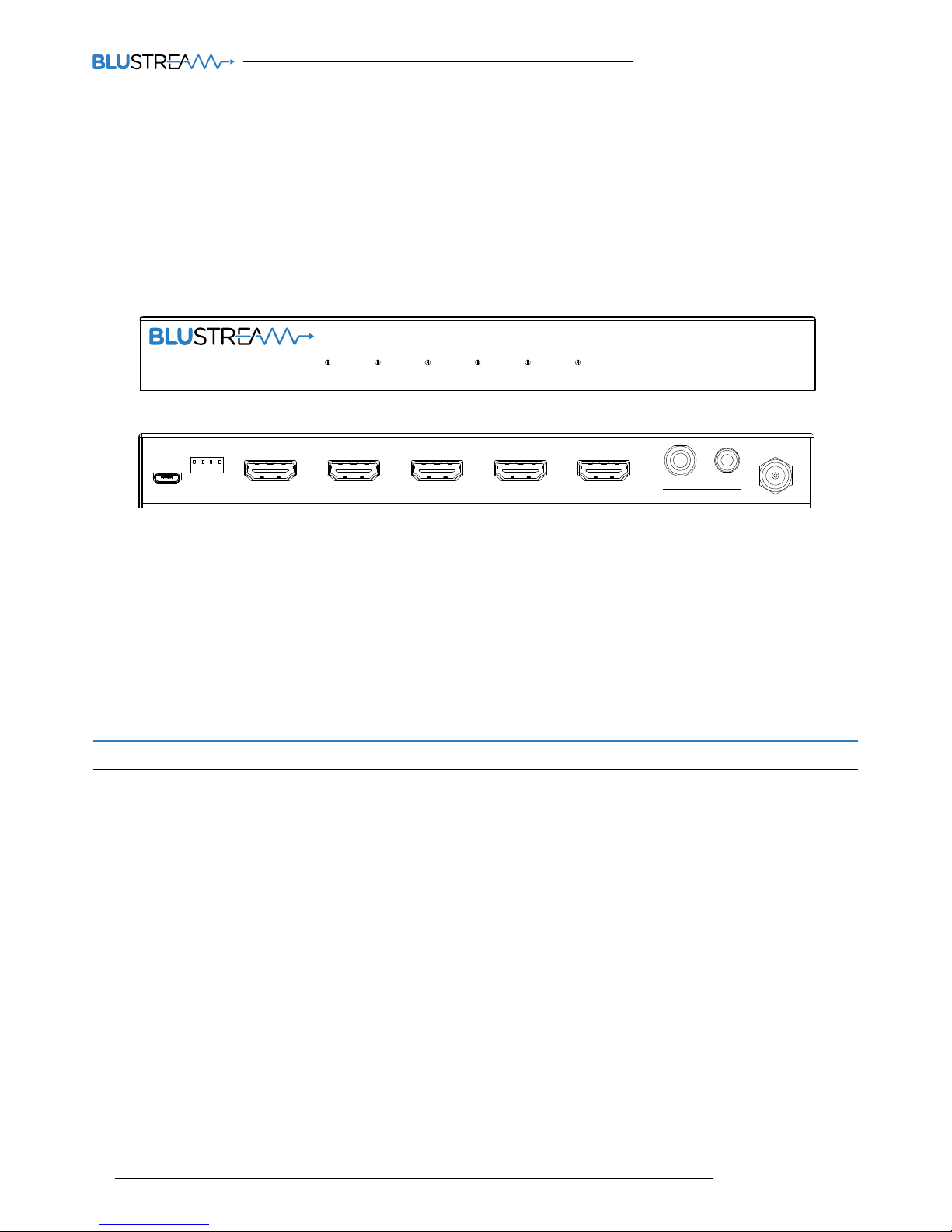

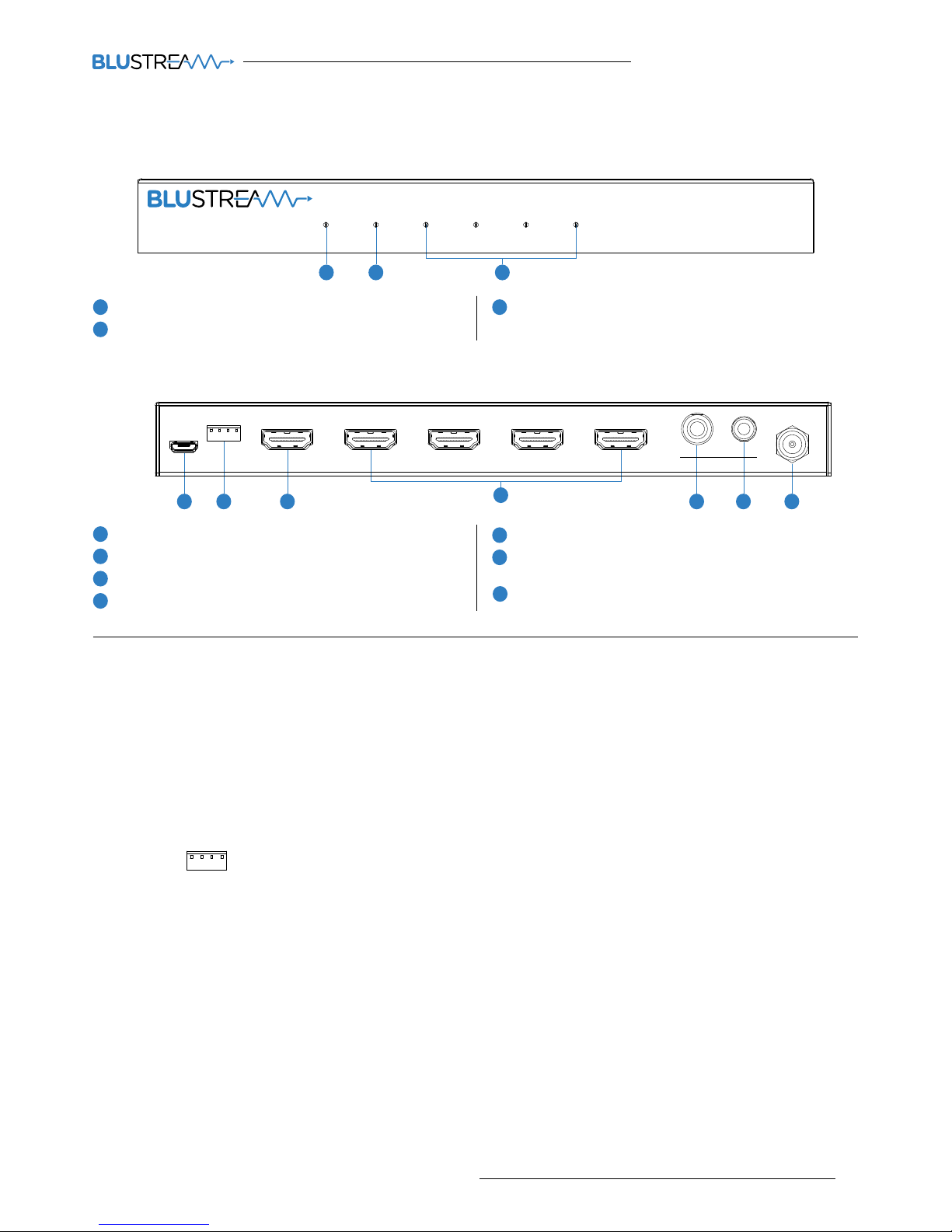

Panel Description
Front Panel:
Rear Panel:
The EDID configuration can be altered using the dip-switches located on the rear panel of the splitter.
Please see adjacent table for EDID settings.
Note: You must power-cycle the HDMI splitter aer changes have been made in order for the EDID settings to update.
Adjusting The EDID Settings
EDID Dip-switches
[DIP]=0000: HDMI 1080p@60Hz, Audio 2ch PCM
[DIP]=0001: HDMI 1080p@60Hz, Audio 5.1ch PCM/DTS/DOLBY
[DIP]=0010: HDMI 1080p@60Hz, Audio 7.1ch PCM/DTS/DOLBY/HD
[DIP]=0011: HDMI 1080i@60Hz, Audio 2ch PCM
[DIP]=0100: HDMI 1080i@60Hz, Audio 5.1ch PCM/DTS/DOLBY
[DIP]=0101: HDMI 1080i@60Hz, Audio 7.1ch PCM/DTS/DOLBY/HD
[DIP]=0110: HDMI 4K@60Hz 4:2:0+4K@30Hz 4:4:4, Audio 2ch PCM
[DIP]=0111: HDMI 4K@60Hz 4:2:0+4K@30Hz 4:4:4, Audio 5.1ch PCM/DTS/DOLBY
[DIP]=1000: HDMI 4K@60Hz 4:2:0+4K@30Hz 4:4:4, Audio 7.1ch PCM/DTS/DOLBY/HD
[DIP]=1001: HDMI 4K@60Hz 4:4:4, Audio 2ch PCM
[DIP]=1010: HDMI 4K@60Hz 4:4:4, Audio 5.1ch PCM/DTS/DOLBY
[DIP]=1011: HDMI 4K@60Hz 4:4:4, Audio 7.1ch PCM/DTS/DOLBY/HD
[DIP]=1100: DVI 1280x1024@60Hz, Audio None
[DIP]=1101: DVI 1920x1080@60Hz, Audio None
[DIP]=1110: DVI 1920x1200@60Hz, Audio None
[DIP]=1111: Soware Control EDID
EDID Dip-switches
Power LED - indicates if SP14AB-V2 is on or o
Input LED - indicates if HDMI input is active
Output LED - indicates if HDMI output is active
1
2
3
1 2
Micro USB connector - used for firmware upgrade
EDID DIP switch - used to adjust HDMI input EDID settings
HDMI input - connect to HDMI source
HDMI outputs 1-4 - connect to HDMI displays
Coaxial digital audio output
Analog L/R audio output - 3.5mm stereo audio jack,
Supports 2 channel PCM only
Power port - use included 5V/2A DC power adaptor
4
5
8
9
4 65 8 9 10
6
7
10
3
7
DC 5V
Coaxial
Audio Out
L/R
Input
EDID
1
0
3 2 1 0
Update
Output 1 Output 2 Output 3 Output 4
4-way 4K HDMI 2.0 Splitter
Power Input Output 1 Output 2 Output 3 Output 4
SP14AB-V2
DC 5V
Coaxial
Audio Out
L/R
Input
EDID
1
0
3 2 1 0
Update
Output 1 Output 2 Output 3 Output 4
SP14AB-V2
DC 5V
Coaxial
L/R
EDID
1
0
3 2 1 0
Page 3
SP14AB-V2 QUICK REFERENCE GUIDE
03
www.blustream.co.uk

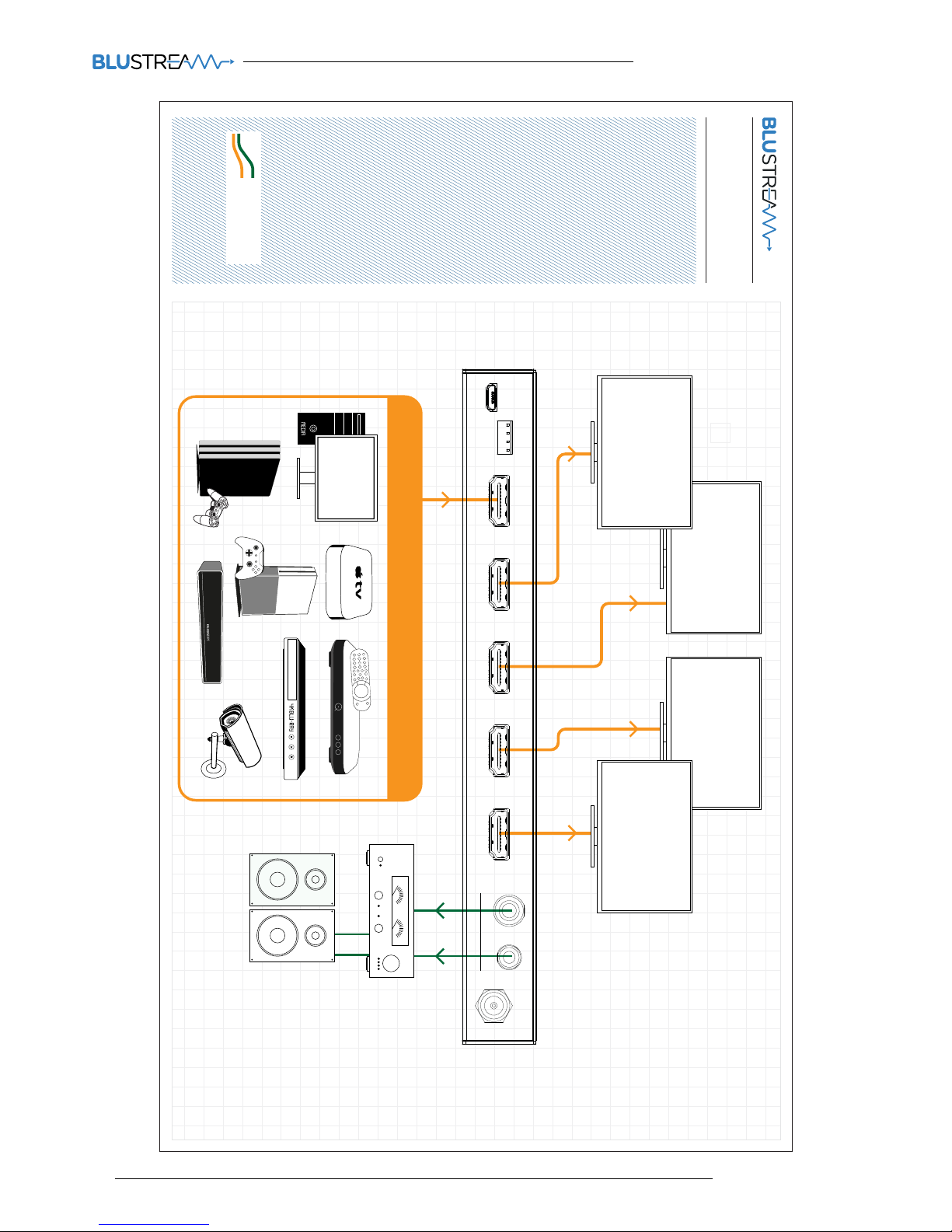

Example Schematic
SP14AB-V2
Stereo Audio
HDMI
DC 5V
Coaxial
Audio Out
L/R
Input
EDID
1
0
3 2 1 0
Update
Output 1 Output 2 Output 3 Output 4
SP14AB-V2
1 x 4K SOURCE
DISPLAY 1
4K
DISPLAY 2
4K
DISPLAY 3
4K
DISPLAY 4
4K
Page 4
SP14AB-V2 QUICK REFERENCE GUIDE
04
contact [email protected] / [email protected]
Package Contents:
Specifications:
• 1x SP14AB-V2
• 1x 5V/2A DC power supply
• 1x Mounting kit
• 1x Quick reference guide
Video Input Connectors: 1x HDMI Type A, 19-pin, female
Video Output Connectors: 4x HDMI Type A, 19-pin, female
Audio Output Connectors: 1x RCA (SPDIF), 1x 3.5mm stereo jack (L/R)
EDID: 4-Pin DIP switch
Casing Dimensions (W x D x H): 202mm x 84mm x 22mm
Dimensions Inc. Connections (W x D x H): 202mm x 71mm x 22mm
Shipping Weight: 0.6kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature : -4°F to 140°F (-20°C to 60°C)
Power Supply : 5V/2A DC

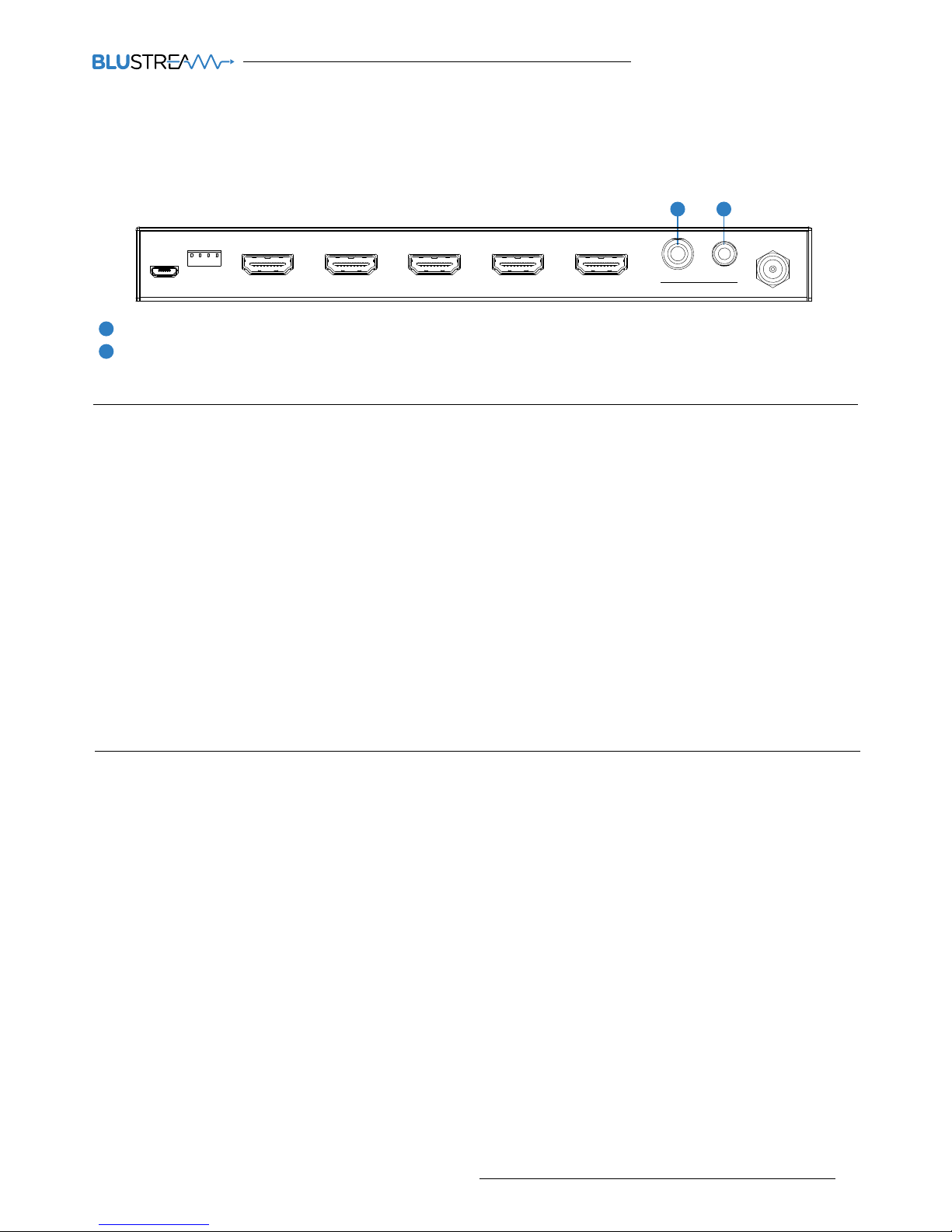

Audio Breakout
The splitter includes audio breakout from the selected HDMI input to associated analogue L/R audio and coaxial digital outputs.
Extracted audio will be concurrent with the corresponding HDMI video output. Note: Source input must be PCM 2ch audio for
analogue audio outputs to work. The splitter does not down-mix multichannel audio signals.
Coaxial digital output - Output 1
Analogue fixed line level output 3.5mm stereo jack - Output 2
1
2
1
2
DC 5V
Coaxial
Audio Out
L/R
Input
EDID
1
0
3 2 1 0
Update
Output 1 Output 2 Output 3 Output 4
SP14AB-V2
RevA3_QRG_SP14AB-V2_1800424_Web Layout
