Page 1
SP12AB
User Manual
Page 2
SP12AB User ManUal
02
contact [email protected] / [email protected]
Surge protection device
recommended
This product contains sensitive electrical components that may be damaged
by electrical spikes, surges, electric
shock, lightning strikes, etc. Use of
surge protection systems is highly
recommended in order to protect and
extend the life of your equipment.
Thank you for purchasing
this product.
For optimum performance and safety,
please read these instructions carefully before connecting, operating or
adjusting this product. Please keep this
manual for future reference.
The SP12AB HDMI 1×2 distribution amplifier splits a
single DVI or HDMI audio/video source to two identical HDMI outputs / displays. The SP12AB also supports
video resolutions of 1080p Full HD up to and including
4K@30Hz UHD as well as all 3D formats and multichannel digital audio formats including Dolby® True HD and
DTS-HD® Master Audio™. An embedded audio extractor
can also extract the HDMI audio signal and output it via
a 3.5mm L/R analogue audio output and SPDIF coaxial.
(Only two channel PCM is supported on the analogue
audio breakout)
Introduction
• Supports resolutions up to 1080p@60Hz, 4K@30Hz,
36-bit deep color
• Splits an HDMI source to 2 outputs without loss
• Extract the audio from HDMI source via analog and
digital outputs (PCM only)
• Dolby TrueHD and DTS-HD master audio pass through
HDMI output
• Advanced EDID management for rapid integration of
sources and displays
• LEDs for power-on and outputs indication
• Easy installation with rack-mounting ears
• Small compact size
• Full 3D pass- through
• HDCP compliant
FEATURES:
Page 3
SP12AB User ManUal
03
contact [email protected] / [email protected]
SP12AB

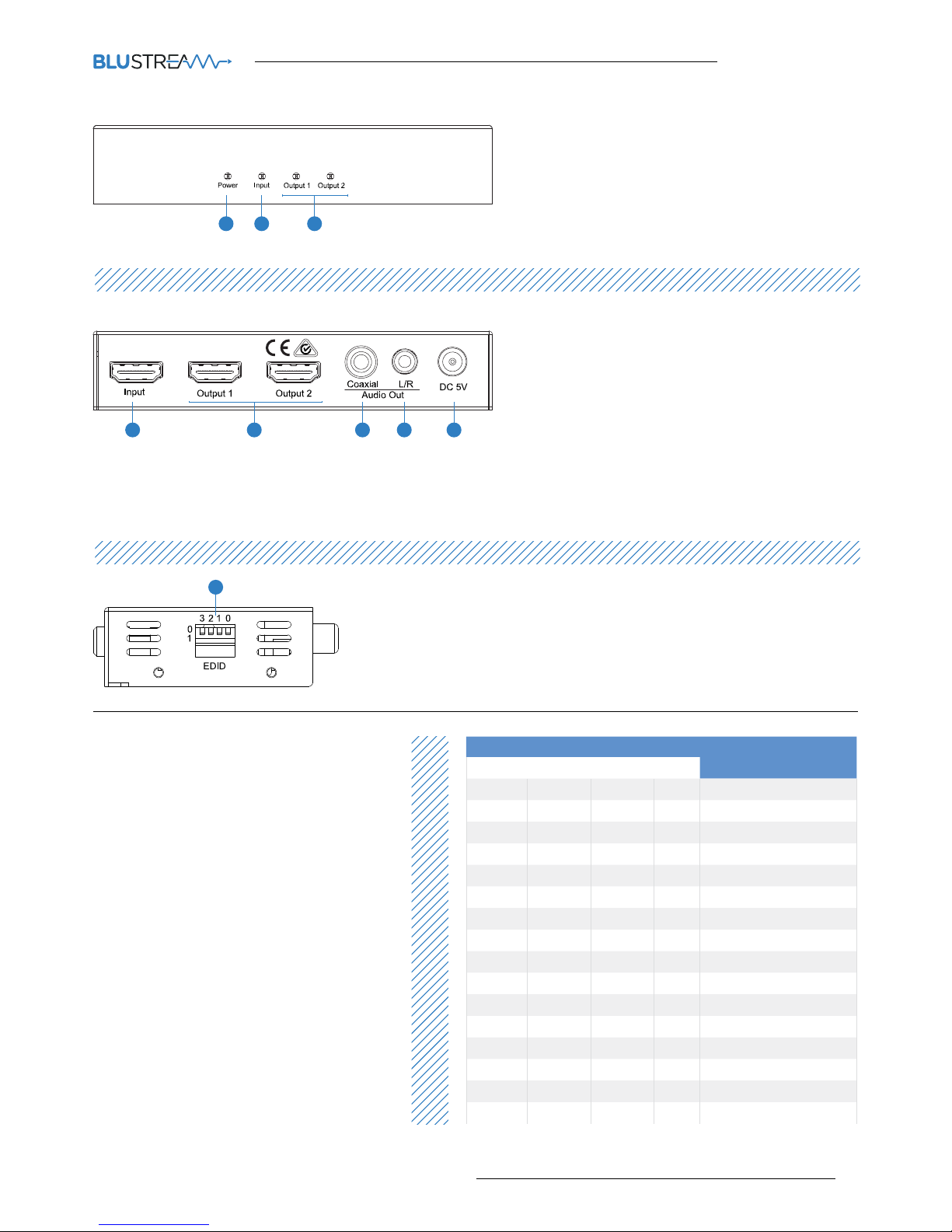

Front Panel
1 2
1
1
3 4 5
3
2
Back Panel
Side Panel
EDID Control
EDID (Extended Display Identification Data) is a
data structure that is used between a display and a
source. This data is used by the source to find out
what audio and video resolutions are supported by
the display then from this information the source
will determine what the best audio and video resolutions need to be outputted.
While the objective of EDID is to make connecting
a digital display to a source a simple plug and play
procedure issues do arise when multiple displays
or video matrix switching is introduced because of
the increased number of variables.
By pre-determining the video resolution and audio
format of the source and display device you can
reduce the time need for EDID hand shaking thus
making switching quicker and more reliable. Instructions on these setting can be found opposite.
3 2 1 0
EDID TYPE
Combination of DIP positions
0 0 0 0 Copy EDID from output1
0 0 0 1 1080P 2.0CH
0 0 1 0 1080P 5.1CH
0 0 1 1 1080P 7.1CH
0 1 0 0 1080i 2.0CH
0 1 0 1 1080i 5.1CH
0 1 1 0 1080i 7.1CH
0 1 1 1 3D 2.0CH
1 0 0 0 3D 5.1CH
1 0 0 1 3D 7.1CH
1 0 1 0 4K 2.0CH
1 0 1 1 4K 5.1CH
1 1 0 0 4K 7.1CH
1 1 0 1 DVI 1280x1024
1 1 1 0 DVI 1920x1080
1 1 1 1 DVI 1920x1200
1 Power LED indicator
Provides the current power state of the unit.
2 Input LED indicator
Indicates that the attached source is active.
3 Output LED indicator
Indicates that the status of the HDMI output ports.
1 HDMI input – Connect to HDMI source.
2 HDMI outputs 1 to 2 – Connect to displays.
3 Coaxial audio out – RCA connector, extract the digital
audio from HDMI input.
4 L/R audio out – 3.5mm stereo phone-jack, extract
audio from HDMI input. (Only supports two channel
PCM and will mute if multichannel audio is detected)
5 Power port – Use included 5V/1A DC adaptor to
power the unit.“
1 DIP switcher – EDID management.
Page 4
SP12AB User ManUal
04
contact [email protected] / [email protected]
DISPLAY 1
1 SOURCE
DISPLAY 2
SP12AB
HDMIStereo Audio

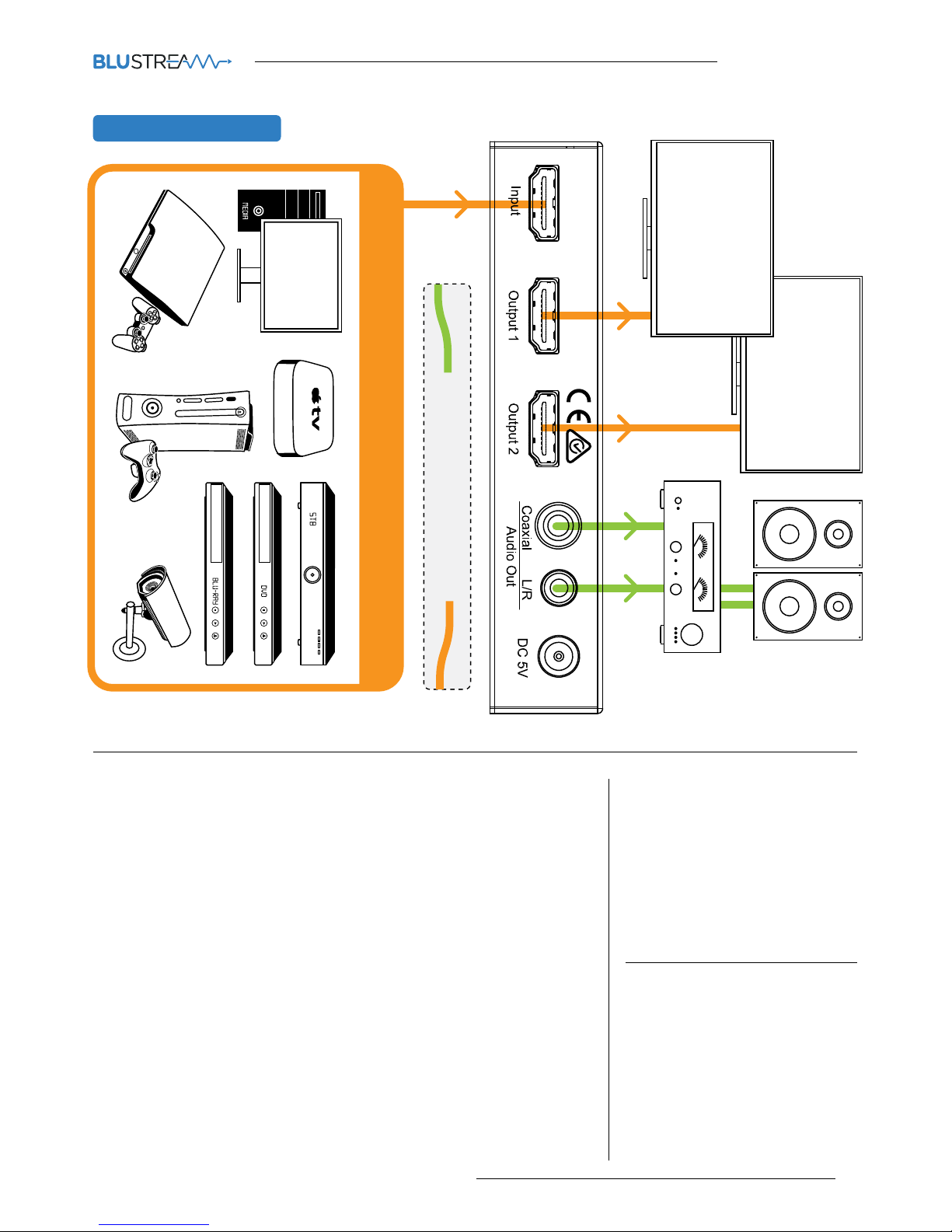

CONNECTION DIAGRAM
Specifications Package Contents:
• 1x SP12AB
• 1x 5V/1A DC power supply
• 1x mounting kit
Maintenance
Clean this unit with a so,
dry cloth. Never use alcohol,
paint thinner or benzene to
clean this unit.
NOTE: Specifications are subject to change without notice.
Weight and dimensions are approximate.
Video Input Connectors: 1x HDMI Type A, 19-pin, female
Video Output Connectors: 2x HDMI Type A, 19-pin, female
Audio Output Connectors: 1x RCA (SPDIF), 1x 3.5mm stereo jack (L/R)
EDID: 4-PIN DIP switch
Rack-Mountable: Rack ears included
Dimensions (W x H x D): 1117mm x 61mm x 22mm , without feet
Shipping Weight: 0.4kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
Power Supply: 5V/1A DC
