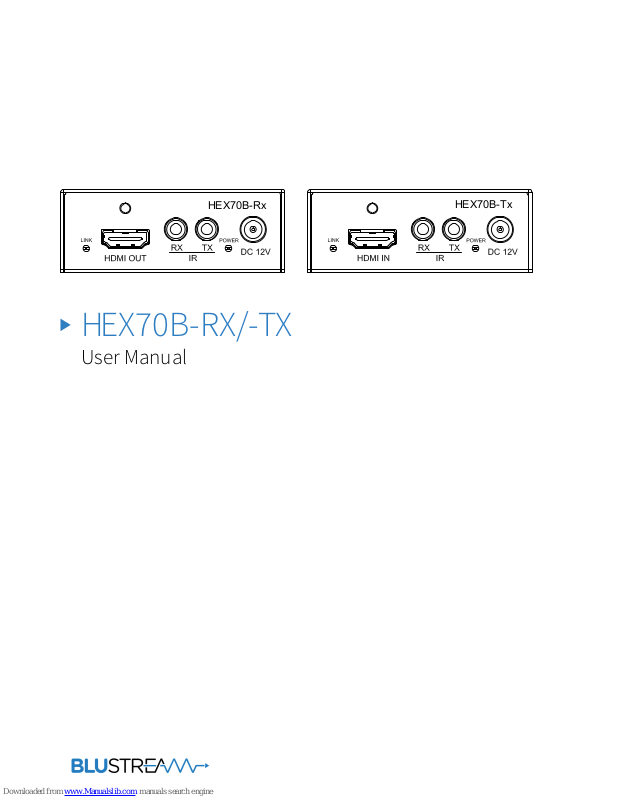

Page 1
HEX70B-RX/-TX
User Manual
HEX70B-Rx
HEX70B-Tx
Page 2
HEX70B User ManUal
02
contact s
Surge protection device
recommended
This product contains sensitive electrical components that may be damaged
by electrical spikes, surges, electric
shock, lightning strikes, etc. Use of
surge protection systems is highly
recommended in order to protect and
extend the life of your equipment.
Safety And
Performance Notice
The transmission distances of HDMI
over UTP cables are measured using TE
CONNECTIVITY 1427071-6
EIA/TIA-568-B termination (T568B) of
cables is recommended for optimal
performance.
To minimize interference of the unshielded twisted pairs in the CAT5e/6
cable do not run the HDBaseT /
Cat5e/6/6a cabling with or in close parallel proximity to mains power cables.
Do not substitute or use any other
power supply other than the enclosed
unit, or a Blustream approved replacement.
Do not disassemble either the Transmitter or Receiver units for any reason.
Doing so will void the manufacturer’s
warranty.
Introduction 03
Features 03
Panel Descriptions 04
Application Diagram 05
Specifications 06
Package Contents 06
Maintenance 06
Contents
Thank you for purchasing
this product.
For optimum performance and safety,
please read these instructions carefully before connecting, operating or
adjusting this product. Please keep this
manual for future reference.
Page 3
HEX70B USER MANUAL
The HEX70B Rx is designed as a HDbaseT receiver unit for all
Blustream HDbaseT Lite products and supports uncompressed 1080p
signal up to 70 metres. This HDbaseT receiver also supports lossless
audio and bi-directional IR signals over a single category cable.
The HEX70B Tx is designed as a HDbaseT transmitter unit for all
Blustream HDbaseT Lite products and supports uncompressed 1080p
signal up to 70 metres. This HDbaseT transmitter also supports lossless
audio and bi-directional IR signals over a single category cable.
Introduction
• Extends IR and audio/visual content
up to 70M @ 1080p over a single
CA
T5e/6 cable
• Supports 4K
x2K pass through up t
o
40M
• 3.5mm jack IR I/O ports for sending
and r
eceiving IR control signals f
or
use with IR remote controls and 3rd
party control products
• POH (Power over HDBT): This feature
r
emoves the need f
or a power supply
when c
onnected t
o a POH enabled
matrix or tr
ansmitter
• Multi-channel audio format pass
thr
ough (including Dolby T
rueHD and
D
TS-HD Master Audio)
• F
ull 3D pass through
• HDCP compliant
FEaTuREs:
Note: The POH function is designed for powering compatible transmitter or receiver units from Blustream only.
Page 4
HEX70B USER MANUAL

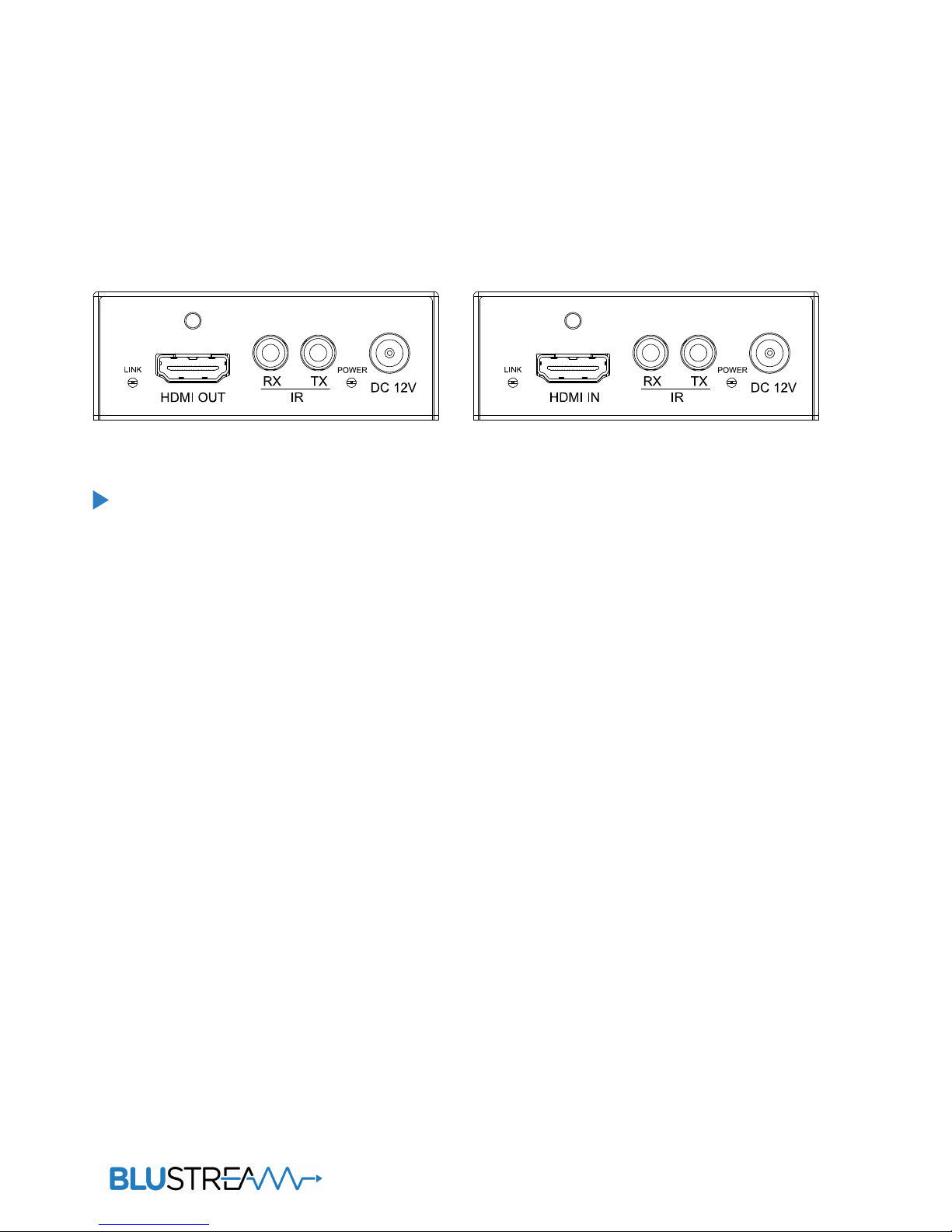

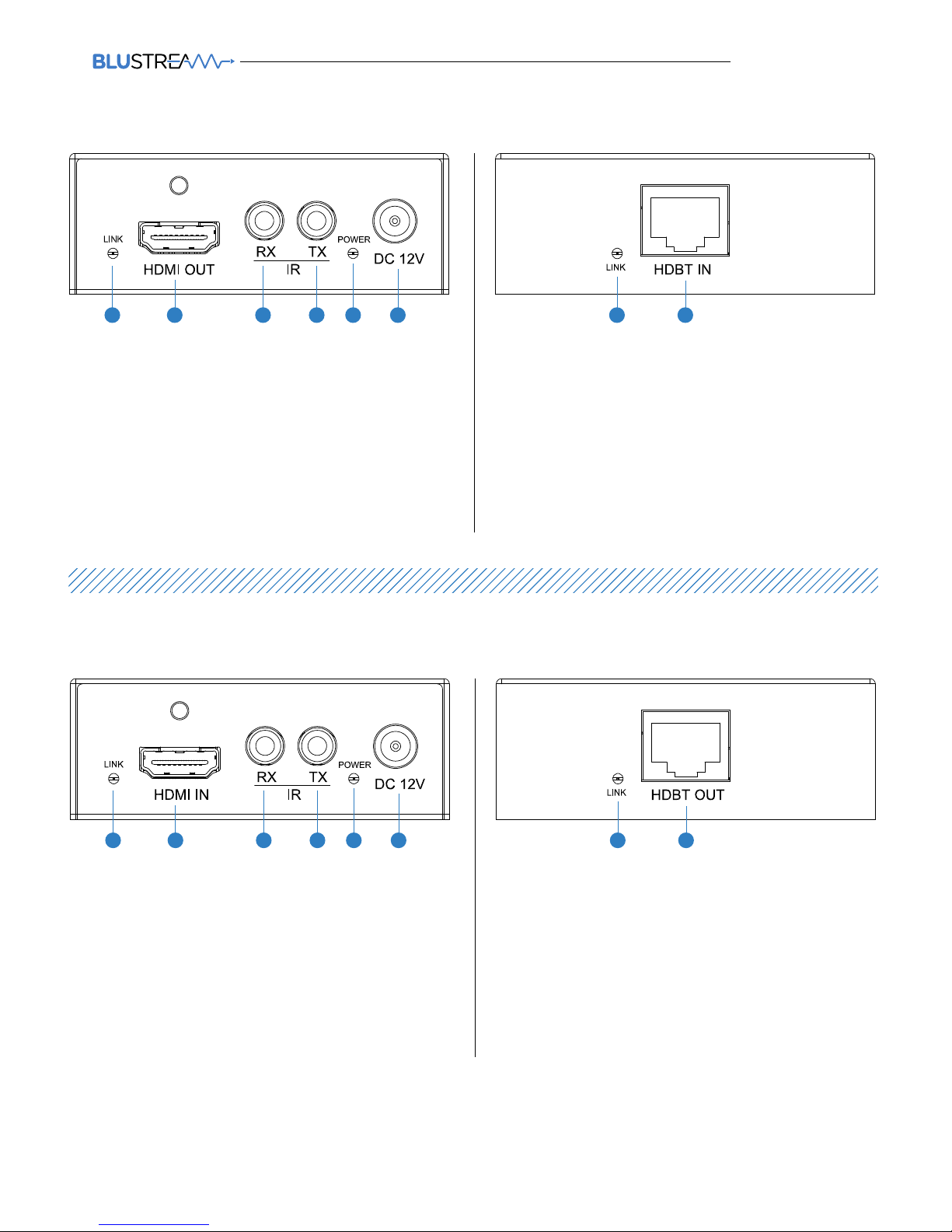

Panel Description HEX70B-TX
HEX70B-Tx
Transmitter
1 1 22 3 4 5 6
1 HDMI indicator
2 HDMI input
3 IR Receiver jack (Sensor input)
4 IR Transmitter jack (Emitter output)
5 Power indicator
6 DC power input
1 HDBaseT connection indicator
2 HDBaseT output
Panel Description HEX70B-RX
HEX70B-Rx
Receiver
1 1 22 3 4 5 6
1 HDMI indicator
2 HDMI output
3 IR Receiver jack (Sensor input)
4 IR Transmitter jack (Emitter output)
5 Power indicator
6 DC power input
1 HDBaseT connection indicator
2 HDBaseT input
Page 5
HEX70B User ManUal
05
contact s

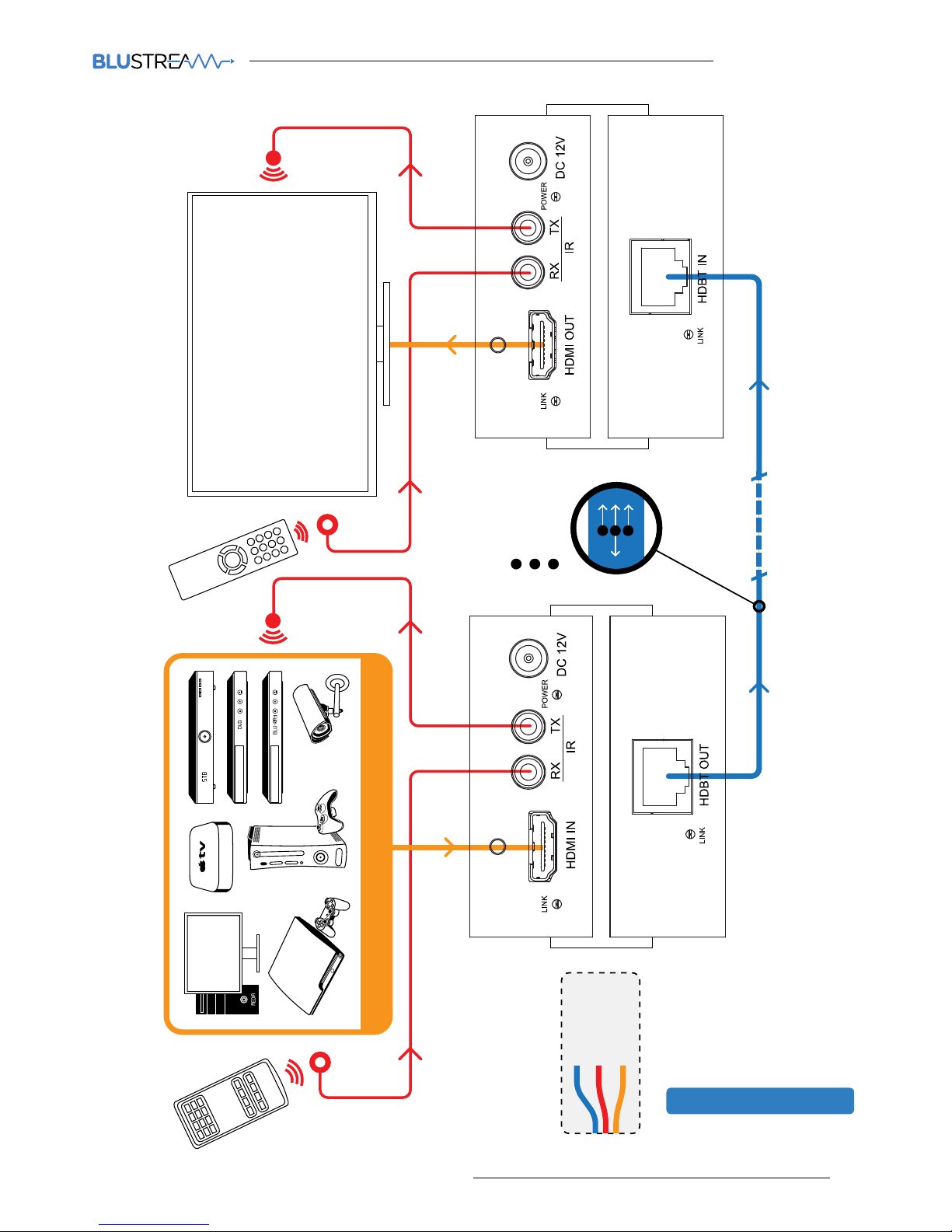

70m max
1 SOURCE
DISPLAY
HDMIIRPOH
A
B
C
A
C
B
HEX70B-Tx
Transmitter
HEX70B-Rx
Receiver
Cat 5/5e/6
HDMI
IR Cable
CONNECTION DIAgRAM
Page 6
HEX70B User ManUal
06
contact s
Specifications
Package Contents:
• HEX70B-Rx*
• 1 x 12V/2A DC power supply
• 1 x IR Emitter
• 1 x IR Sensor
• 1 x mounting brackets
• 1 x user manual
• HEX70B-Tx*
• 1 x 12V/2A DC power supply
• 1 x IR Emitter
• 1 x IR Sensor
• 1 x mounting brackets
• 1 x user manual
* HEX70B - Kit includes both Tx & Rx.
Maintenance
Clean this unit with a so, dry cloth. Never use
alcohol, paint thinner or benzene to clean this unit.
Video input HEX70B-Tx
1XHDMI Type A, 19-pin, female
HEX70B-Rx
1xRJ45
Video output HEX70B-Tx
1xRJ45
HEX70B-Rx
1XHDMI Type A, 19-pin, female
IR input 1x3.5mm stereo jack
IR output 1x3.5mm stereo jack
Power Supply 12V/2A DC, screw type connector
Power Consumption 9.5W
Audio Passes up to Dolby TrueHD or DTS-HD Master Audio
Resolution Video: up to 4Kx2K
VESA: up to 1920x1200
Distance 70M @ 1080p over CAT5e/6
40M @ 4Kx2K over CAT5e/6
Dimensions 105x73x27mm (LxWxH)
Weight 200g
Temperature Operating
0°C to 40°C
Storage
20°C to 60°C
Rack-Mountable Mounting ears included
NOTE: Specifications are subject to change without notice. Weight and dimensions are approximate.
