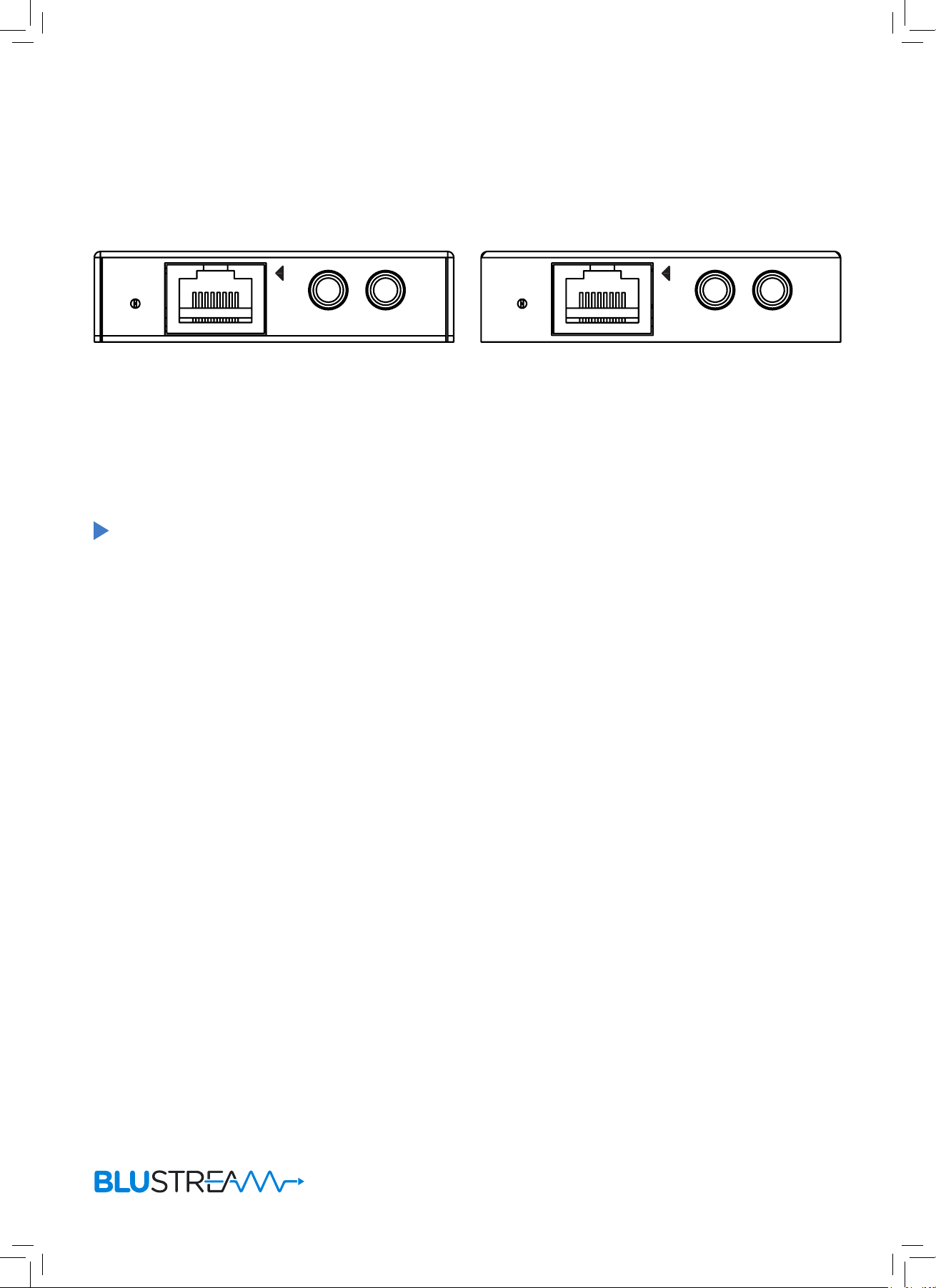

Page 1
CAT
Input
Link IR TX
IR RX
EX40B-KIT
User Manual
Link
CAT
Output
IR RX
IR TX
Page 2
EX40B-KIT USER MANUAL
www.blustream.co.uk
Thank you for purchasing
this product.
For optimum performance and safety,
please read these instructions carefully
before connecting, operating or
adjusting this product. Please keep this
manual for future reference.
Contents
Introduction 03
Features 03
Panel descriptions 04
Terminating the interconnecting CAT cable 05
Surge protection device
recommended
This product contains sensitive
electrical components that may be
damaged by electrical spikes, surges,
electric shock, lightning strikes, etc. Use
of surge protection systems is highly
recommended in order to protect and
extend the life of your equipment.
Safety And
Performance Notice
The transmission distances of HDMI
over UTP cables are measured using TE
CONNECTIVITY 1427071-6
EIA/TIA-568-B termination (T568B) of
cables is recommended for optimal
performance.
To minimise interference of the unshielded twisted pairs in the CAT5e/6
cable do not run the HDBaseT /
Cat5e/6/6a cabling with or in close parallel proximity to mains power cables.
Understanding the status lights 05
EDID Control 06
Infrared distribution 07
Application diagram 08
Specifications 09
Package contents 09
Maintenance 09
Do not substitute or use any other
power supply other than the enclosed
unit, or a Bluestream approved
replacement.
Do not disassemble either the
Transmitter or Receiver units for
any reason. Doing so will void the
manufacturer’s warranty.
02
Page 3
EX40B-KIT USER MANUAL
contact [email protected] / [email protected]
Introduction
CAT cable. The product delivers HDMI & B-directional IR up to lengths of
40m @ 1080p and 50m @ 1080i.
FEATURES:
• Extends HDMI 1080p up to distances of 40m over single CAT
cable
• Extends HDMI 1080i and lower resolutions up to distances
of 50m over single CAT cable
• Supports industry standard video resolutions 480i-1080p
and DVI formats up to 1920x1080
• Supports 3D signal extension
• Supports LPCM 7.1ch, Dolby TrueHD, Dolby Digital Plus and
DTS-HD Master Audio transmission (*Note - Audio type must
Our EX40B-KIT HDMI™ extender set oers HDMI distribution over a single
be forced by source hardware as in-built EDID management
is limited to 2ch)
• Supports bi-directional IR from input and output locations
• Smart EDID management
• Supplied with Blustream IR receiver and emitter
• Requires local power at both Transmitter and Receiver
• HDCP compliant
WARNING!
Please read these instructions carefully before connecting, operating or adjusting this product. Incorrect termination of the RJ45
connecting cable may result in damage to the Blustream hardware.
03
Page 4
EX40B-KIT USER MANUAL
www.blustream.co.uk

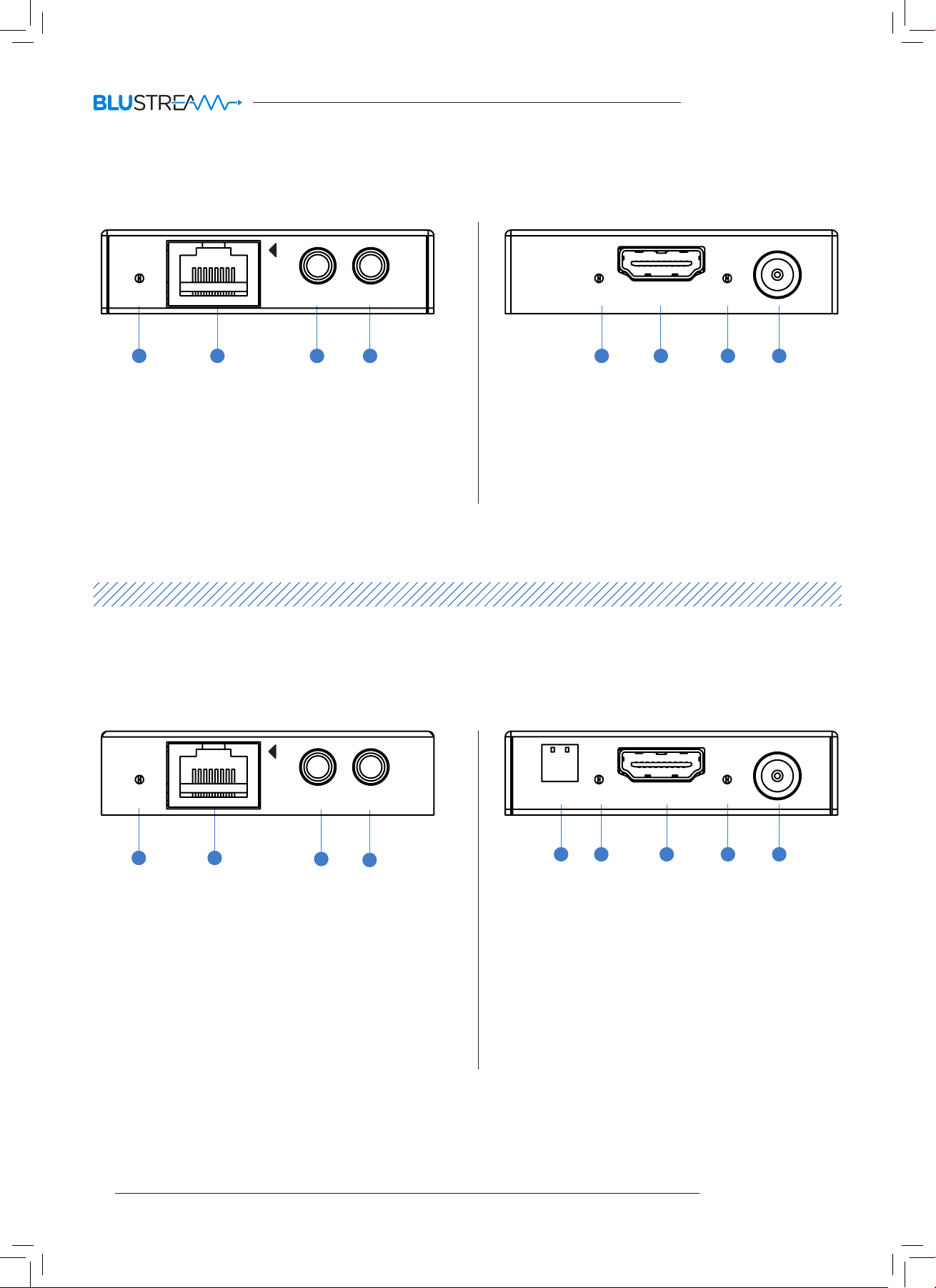

Panel Description EX40B-RX
CAT
Input
Link IR TX
IR RX
DC
5V
Link HDMI Output Power
14321 2 3 4
1 CAT link indicator
2 CAT cable input
3 IR Receiver jack (Sensor input)
4 IR Transmitter jack (Emitter output)
Panel Description EX40B-TX
CAT
Link
Output
IR RX
IR TX
1 HDMI link indicator
2 HDMI output
3 Power indicator
4 5V/1A DC power input
0
1
1 0
Link HDMI Input
DC
5V
Power
1 2
1 CAT link indicator
2 CAT cable input
3 IR Receiver jack (Sensor input)
4 IR Transmitter jack (Emitter output)
04
3
4
1 2 3 4 5
1 EDID management dip-switches
2 HDMI link indicator
3 HDMI input
4 Power indicator
5 5V/1A DC power input
Page 5
EX40B-KIT USER MANUAL
contact [email protected] / [email protected]
Terminating the interconnecting CAT cable
It is important that the interconnecting CAT cable between the Blustream Transmitter and Receiver is terminated using the correct
RJ45 pin configuration. The link CAT cable MUST be a ‘straight’ (pin-to-pin) CAT cable and it is advised that this is wired to the
T568B wiring standard as this format is less prone to EMI (Electro-Magnetic Interference).
When installing CAT cables it is advised that you use the best possible CAT cable quality possible. HDMI disitrbution products will
only work if used with CAT5e standard cable or above. Blustream recommends using a CAT6 cable for your installations.

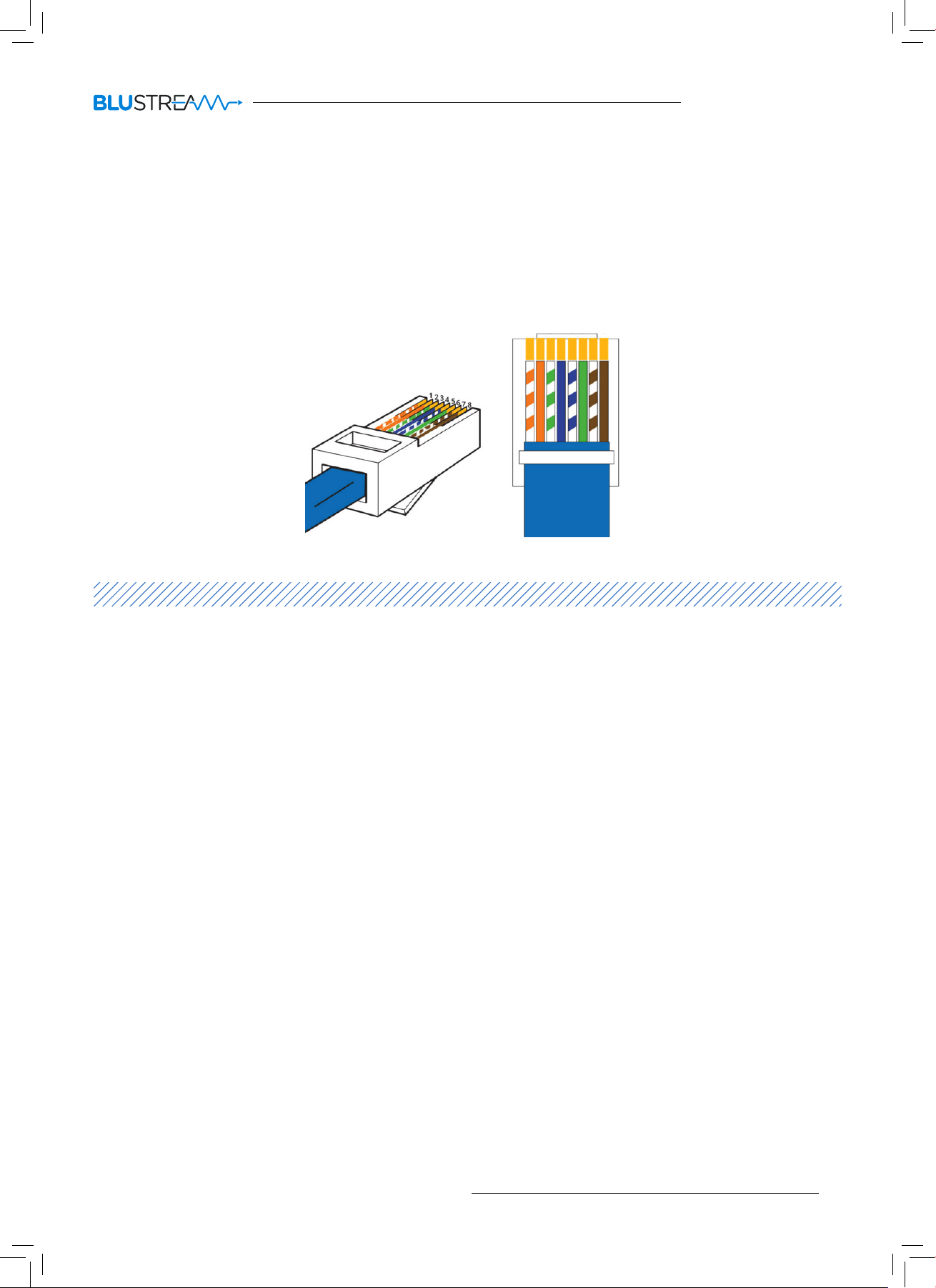

RJ45 Pin-Out
1 2 3 4 5 6 7 8
T568B
Understanding the RX/TX status lights
The Blustream HDMI extender solution includes status LED indicators on both the Transmitter and Receiver products to show all
connections are active and to help diagnose possible problems.
Understanding the status lights:-
Blustream Transmitter (TX):
• The link light will be o when there is no signal on the HDMI input (no connection with a source device)
• The link light will blink when there is a signal on the HDMI input but there is no CAT cable/Blustream Receiver connected to the
RJ45 output
• The link light will be lit when there is a signal on the HDMI input, a CAT cable is connected to the RJ45 output and an active
connection is acheived with a Blustream Receiver.
Blustream Receiver (RX):
• The link light will be o when there is no signal on the HDMI output (no connection with a display)
• The link light will blink when there is a connection on the HDMI output but there is no CAT cable/Blustream Transmitter con-
nected to the RJ45 input
• The link light will be lit when there is connection with a display, a CAT cable is connected to the RJ45 input and an active con-
nection is acheived with a Blustream Transmitter
05
Page 6
EX40B-KIT USER MANUAL
www.blustream.co.uk
EDID Control
EDID (Extended Display Identification Data) is a data structure that is used between a display and a source. This data is used by the source
to find out what audio and video resolutions are supported by the display then from this information the source will determine what the
best resolution is to output.
While the objective of EDID is to make connecting a digital display to a source a simple plug and play procedure issues do arise.
By pre-determining the video resolution and audio format of the source and display device you can potentially work around compatibility
issues associated with some display and source combinations.
The EX40B-KIT has 2x dip-switches on the Transmitter which allow you to fix the Video and Audio resolution to one of the below settings.
Note: EDID management only supports 2ch PCM audio types. Should alternate audio formats be required these must be forced from the source
hardware. The EX40B-KIT supports pass-through of LPCM 7.1ch, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmissions.

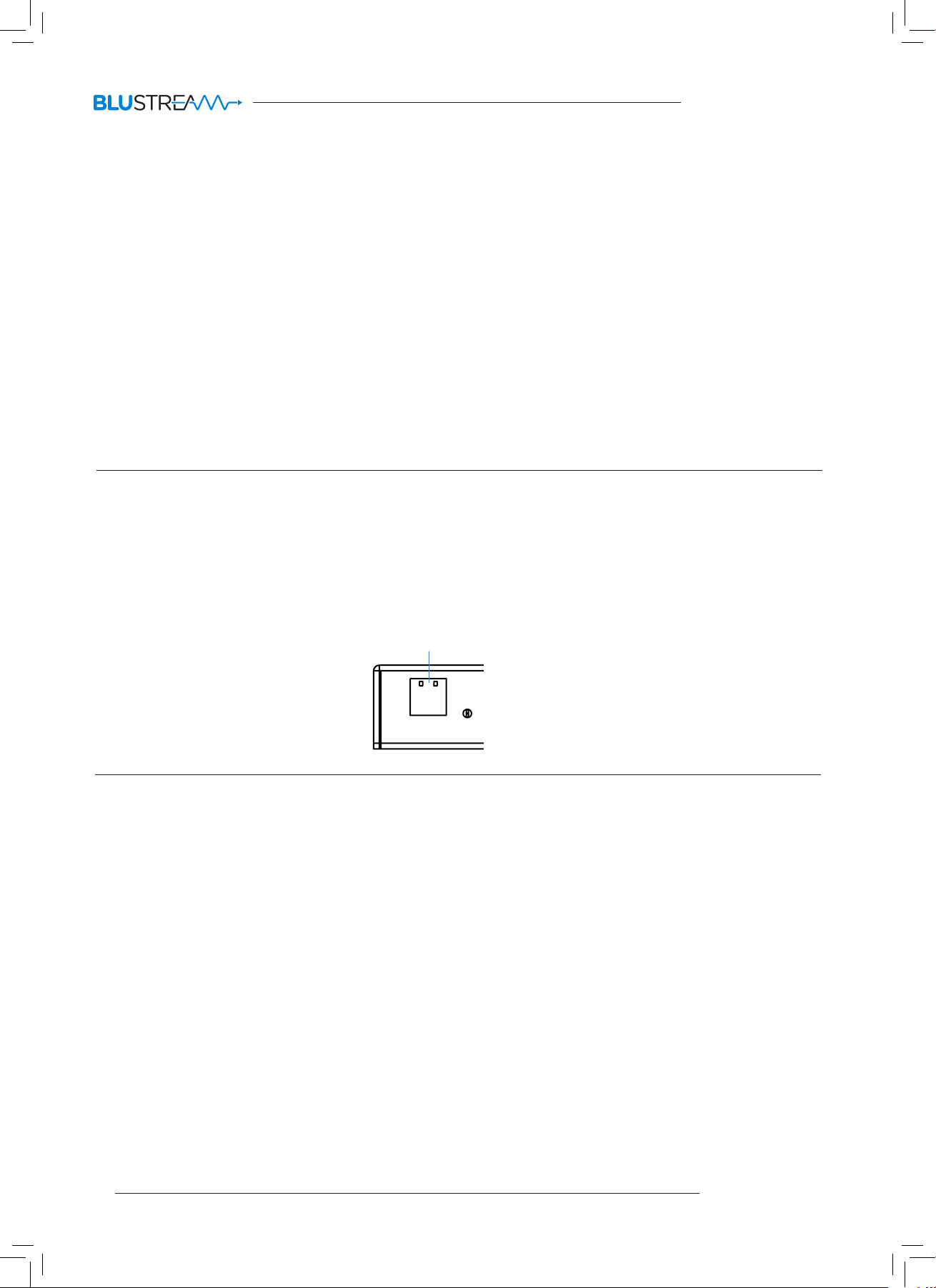

Adjusting the EDID settings
The EDID configuration can be altered using the 2x dip-switches located on the side panel of the EX40B Transmitter.
Please see table below for EDID settings.
Note: You must power-cycle the HDMI extender kit aer changes have been made in order for the EDID settings to update.
EDID Dip-switches
0
1
1 0
Link HDMI Input
Power
DC
5V
Dip-switch settings
[DIP]=00: HDMI 1080p, Audio 2ch PCM
[DIP]=01: HDMI 1080i, Audio 2ch PCM
[DIP]=10: HDMI 3D, Audio 2ch PCM
[DIP]=11: Copy EDID from display
Note: Video resolution is limited to 1080p when the EDID is copied from the display (Dip-switches both in position ‘1,1’)
06
Page 7
EX40B-KIT USER MANUAL
contact [email protected] / [email protected]

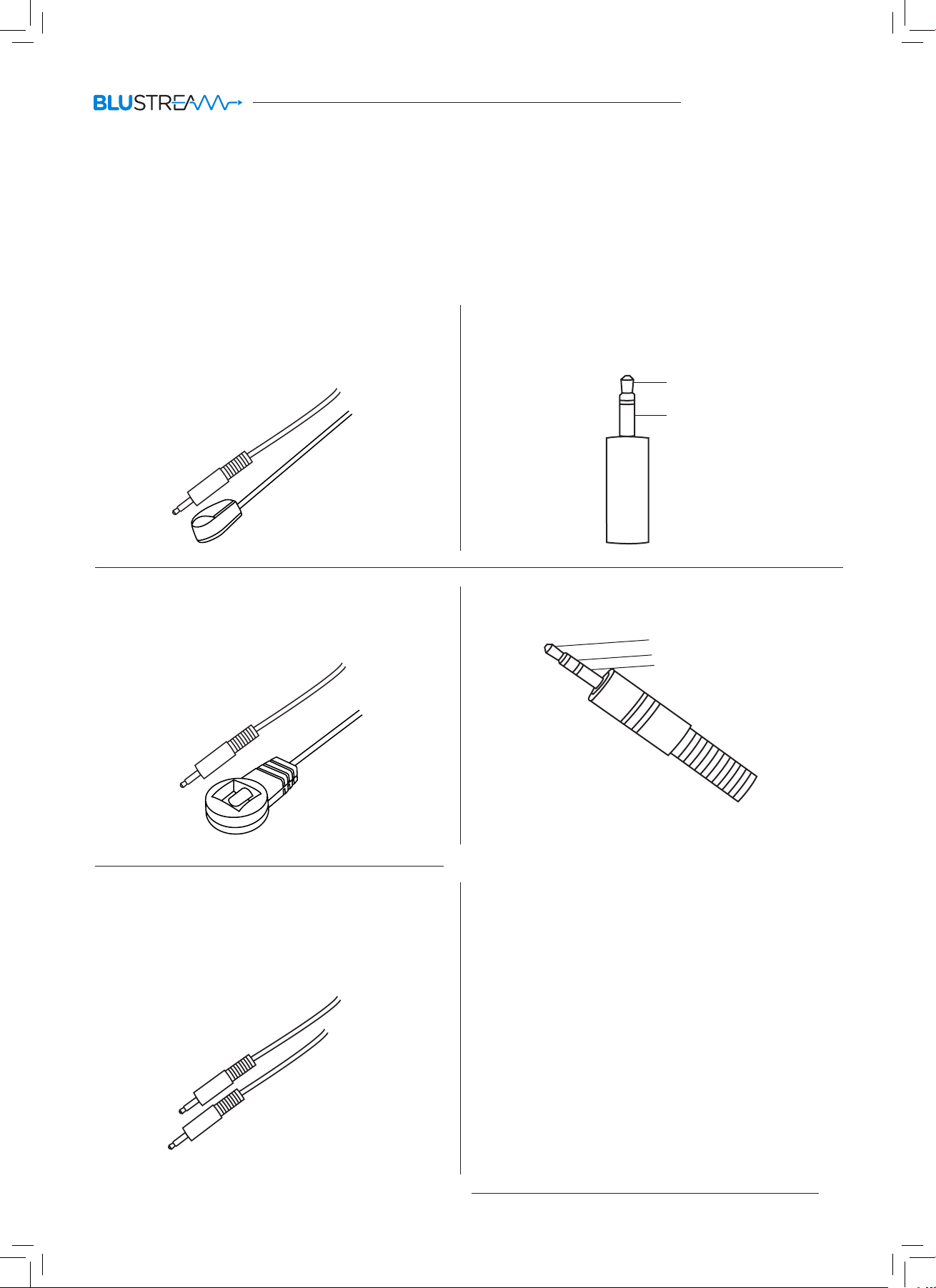

InfraRed (IR) Distribution
The Blustream range of matrix, switcher and extender products include multiple options for control and routing of IR.
IMPORTANT: Blustream InfraRed products are all 5V and NOT compatible with alternate manufacturers InfraRed solutions. When
using third party 12V IR control solutions with Blustream HDMI extender products please use the Blustream IRCAB cable for IR conversion. This is available as an optional accessory.
Each Blustream HDMI extender solution is supplied with an IR Emitter and IR Receiver.
IR Emitter
Blustream IR Emitter designed for discrete IR control of hardware. IR Emitter is connected to the IR TX port on Blustream
products
IR Receiver
Blustream IR receiver to receive IR signal and pass-through
Blustream products. IR Receiver is connected to the IR RX
port on Blustream products.
Infrared 3.5mm Pin-Out
IR Emitter - Mono 3.5mm
Signal
Ground
IR Receiver - Stereo 3.5mm
Signal
5V
Ground
IR Control Cable
Blustream IR Control cable 3.5mm Mono to 3.5mm Stereo for
linking third party control solutions to Blustream products.
Will work with 12V IR third party products.
Note: Cable is directional as indicated
07
Page 8
EX40B-KIT USER MANUAL
www.blustream.co.uk
HDMI
Cat 5/5e/6
IR Cable

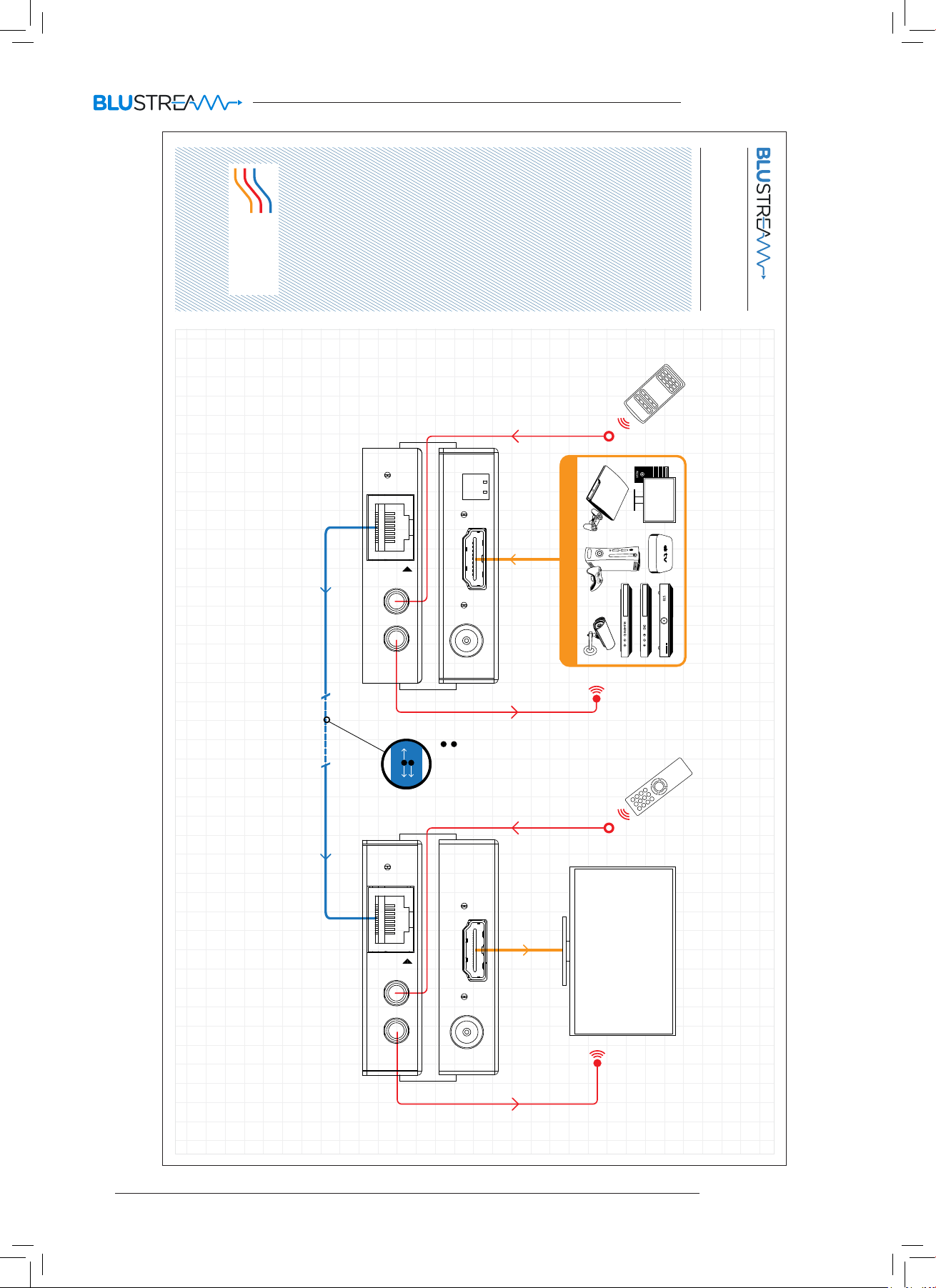

Example Schematic
EX40B-Kit
40m max
Link
Output
IR RX
IR TX
Link IR TX
0
1
1 0
Link HDMI Input
1 SOURCE
CAT
Power
DC
5V
B
A
HDMI
IR
B
A
08
Input
IR RX
Link HDMI Output Power
CAT
DC
5V
DISPLAY
Page 9
EX40B-KIT USER MANUAL
contact [email protected] / [email protected]
Specifications
Video input EX40B-TX
1x HDMI Type A, 19-pin, female
Video output EX40B-TX
1x RJ45
IR Input Ports 1x 3.5mm stereo jack (Per TX & RX)
IR Output Ports 1x 3.5mm mono jack (Per TX & RX)
Power Supply 2x 5V/1A DC, screw type connector (Power must be connected at both TX & RX)
Power Consumption 7.5W
Dimensions (WxDxH) 58 x 96 x 15mm
Shipping Weight 0.4kg
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -4°F to 140°F (-20°C to 60°C)
Rack-Mountable Mounting kits included
NOTE: Specifications are subject to change without notice. Weight and dimensions are approximate.
Package Contents:
• EX40B-TX
• EX40B-RX
EX40B-RX
1x RJ45
EX40B-RX
1x HDMI Type A, 19-pin, female
Maintenance
Clean this unit with a so, dry cloth. Never use
alcohol, paint thinner or benzene to clean this unit.
• 2 x 5V/1A DC power supply
• 1 x IR Emitter
• 1 x IR Sensor
• 2 x mounting brackets
• 1 x user manual
09
Page 10
www.blustream.co.uk
Just Projectors, Unit 7, Campbell Court, Bramley Hampshire, RG26 5EG
www.blustream.com.au
