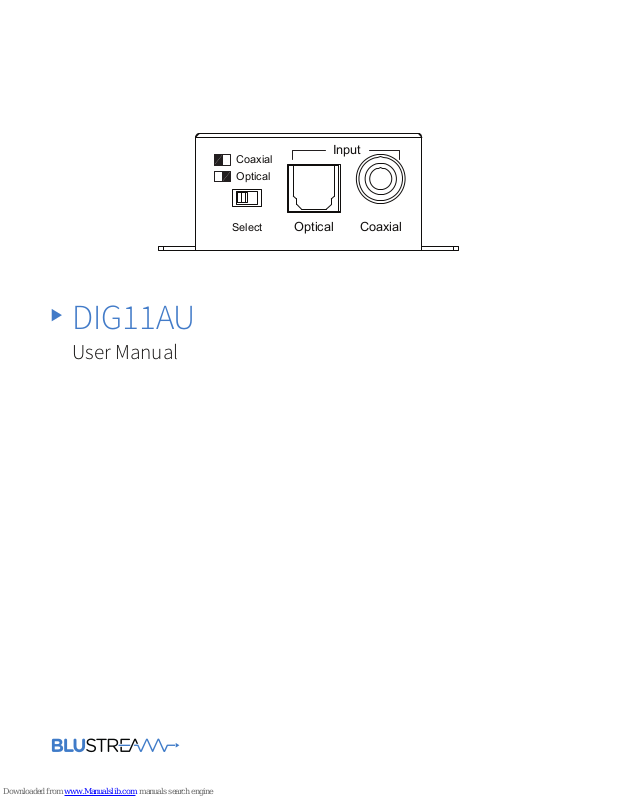

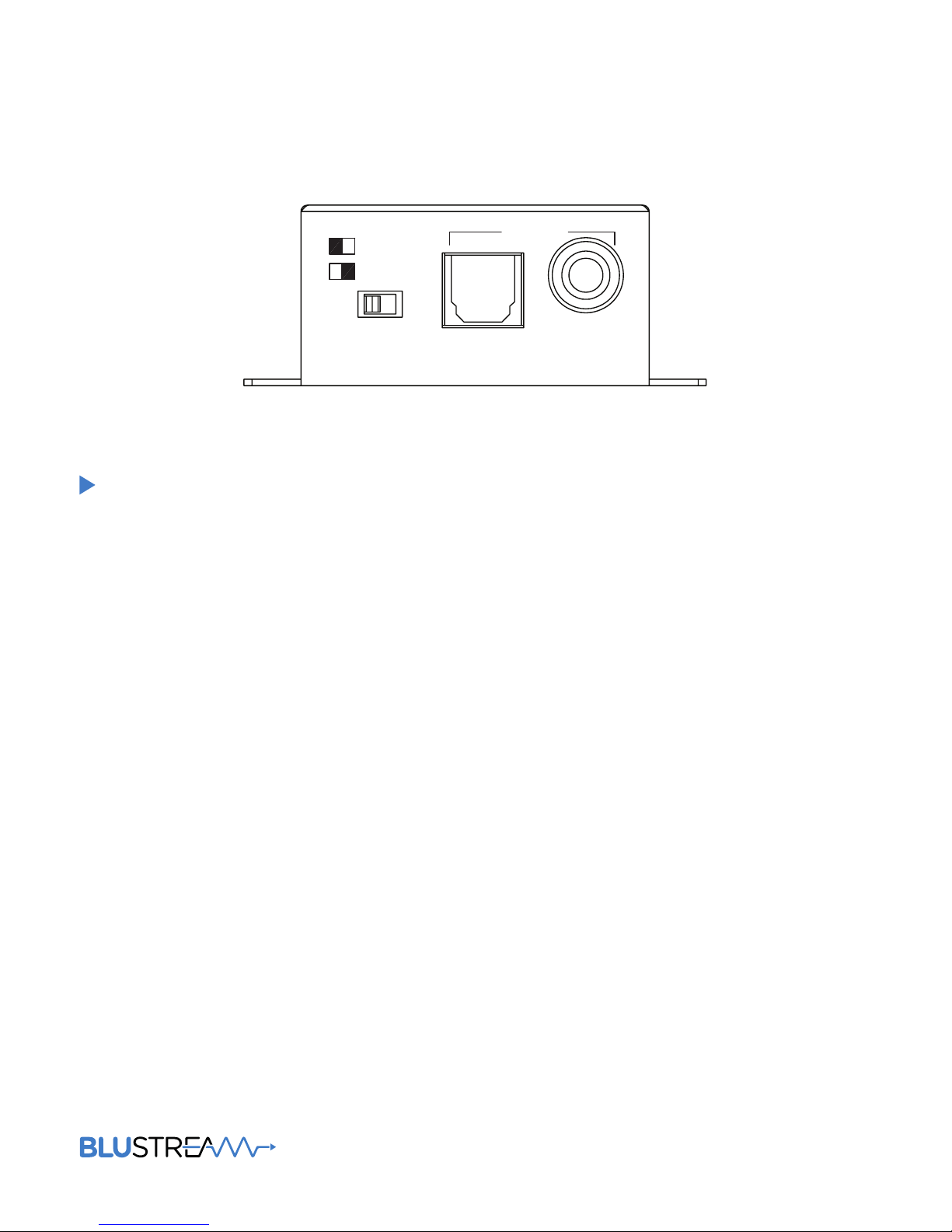

Page 1
DIG11AU
User Manual
Optical
Select
Optical Coaxial
Input
Coaxial
Page 2
DIG11AU USER MANUAL
02
www.blustream.co.uk
Surge protection device
recommended
This product contains sensitive electrical components that may be damaged
by electrical spikes, surges, electric
shock, lightning strikes, etc. Use of
surge protection systems is highly
recommended in order to protect and
extend the life of your equipment.
Introduction 03
Features 03
Panel Descriptions 03
Specifications 04
Package Contents 04
Maintenance 04
Contents
Thank you for purchasing
this product.
For optimum performance and safety,
please read these instructions carefully before connecting, operating or
adjusting this product. Please keep this
manual for future reference.
Page 3
DIG11AU USER MANUAL
03
contact [email protected] / [email protected]
The DIG11AU is a digital audio converter that converts either Optical or Digital coaxial
audio to concurrent Optical and Coaxial Digital outputs.
The DIG11AU is useful for either home or professional audio application.
Introduction
• Converts digital audio formats
• Both Optical and Coaxial digital outputs work concurrently
regardless of input type selected
• Supports sample rates 32 kHz, 44.1 kHz, 48 kHz, 96 kHz and
192 kHz up to 24-bit resolution
• Plug-and-play
• Small compact size
FEATURES:

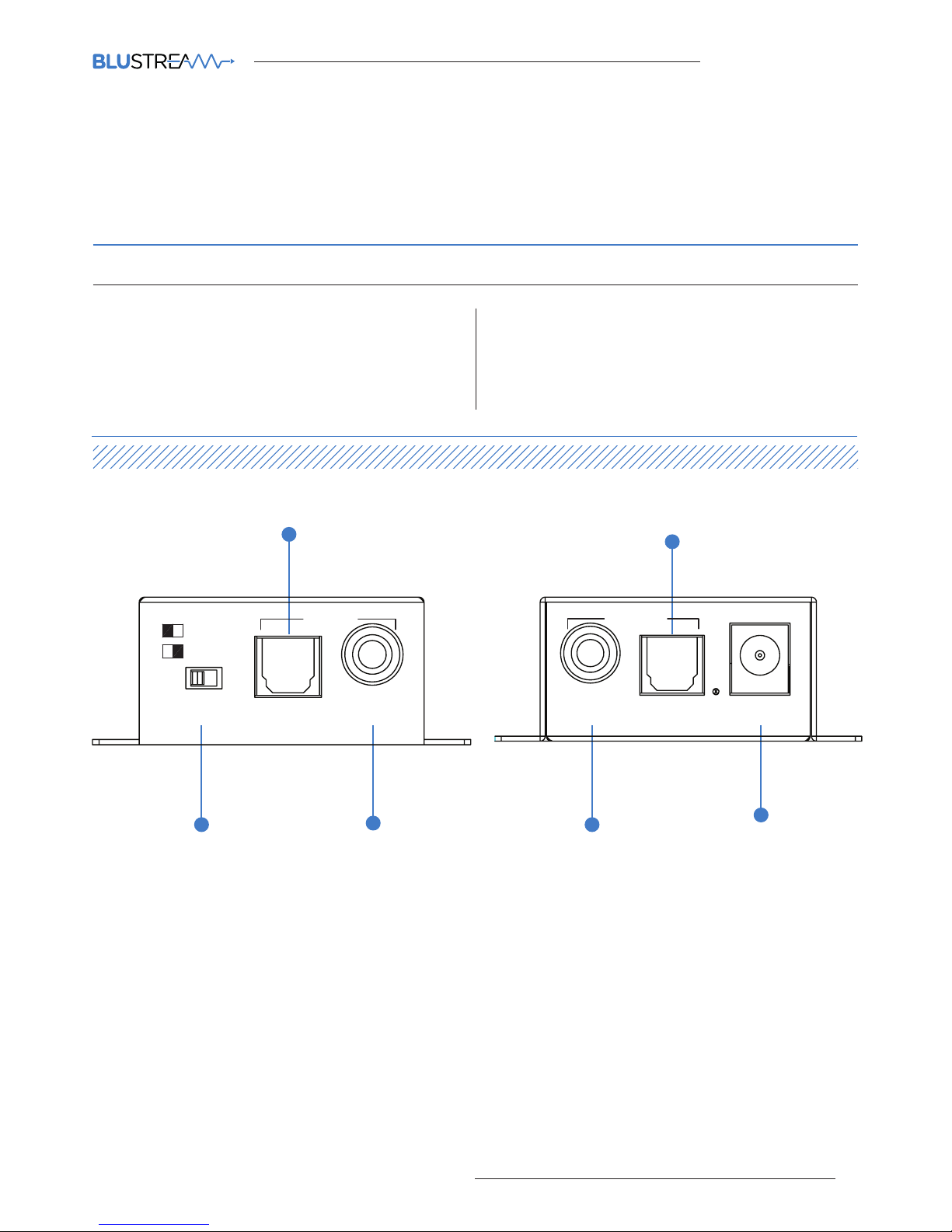

Front Panel Back Panel
1 Audio input selector (switch between Optical and Coaxial digital
inputs
2 Optical digital input
3 Coaxial digital input
4 Coaxial digital output
5 Optical digital output
6 Power port – Use supplied 5v / 1amp DC adaptor
5
1
2
3
4
6
DIG11AU
Power
Optical DC5V
Output
Coaxial
Optical
Select
Optical Coaxial
Input
Coaxial
Page 4
DIG11AU USER MANUAL
04
www.blustream.co.uk
Specifications
Package Contents:
• 1 x DIG11AU
• 1 x 5V/1A DC power supply
• 1 x Mounting kit
Maintenance:
Clean this unit with a so, dry cloth. Never use alcohol,
paint thinner or benzene to clean this unit.
Audio Input Connectors: 1x SPDIF Optical audio & 1x Coaxial digital
Output Connectors: 1x SPDIF Optical audio & 1x Coaxial digital
Casing Dimensions (W x H x D): 57mm x 47mm x 22mm
Dimensions including connections (W x H x D): 57mm x 62mm x 22mm
Shipping Weight: 0.3kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature : -4°F to 140°F (-20°C to 60°C)
Power Supply: 5V/1A DC
Page 5
DIG11AU USER MANUAL
05
contact [email protected] / [email protected]

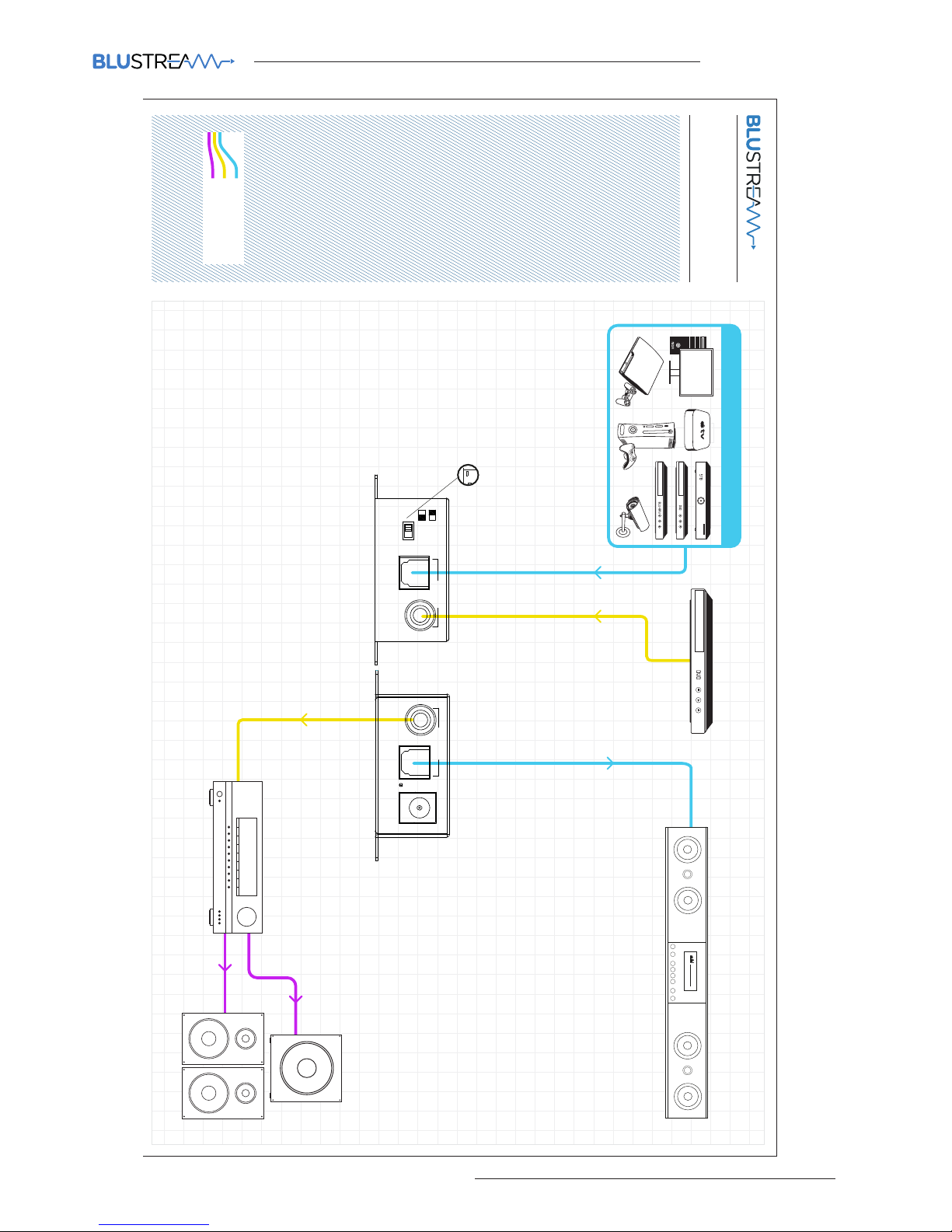

Example Schematic
DIG11AU
Optical Digital
Coaxial Digital
Speaker Cable
1 SOURCE
Optical
Select
Optical Coaxial
Input
Coaxial
DIG11AU
Power
Optical DC5V
Output
Coaxial
*Switch set to optical
Select
