Page 1
DAC11AU
User Manual
Toslink Coaxial
Power
Page 2
DAC11AU USER MANUAL
02
www.blustream.co.uk
Surge protection device
recommended
This product contains sensitive electrical components that may be damaged
by electrical spikes, surges, electric
shock, lightning strikes, etc. Use of
surge protection systems is highly
recommended in order to protect and
extend the life of your equipment.
Introduction 03
Features 03
Panel Descriptions 03
Specifications 04
Package Contents 04
Maintenance 04
Contents
Thank you for purchasing
this product.
For optimum performance and safety,
please read these instructions carefully before connecting, operating or
adjusting this product. Please keep this
manual for future reference.
Page 3
DAC11AU USER MANUAL
03
contact [email protected] / [email protected]
Our DAC11AU is designed to convert either coaxial or optical signals from a digital
signal to analogue stereo audio. This provides the perfect cost eective solution when
connecting the digital audio output from a TV display to an analogue input on an
amplifier. The DAC11AU utilises 192kHz sample rates for enhanced sound reproduction.
Introduction

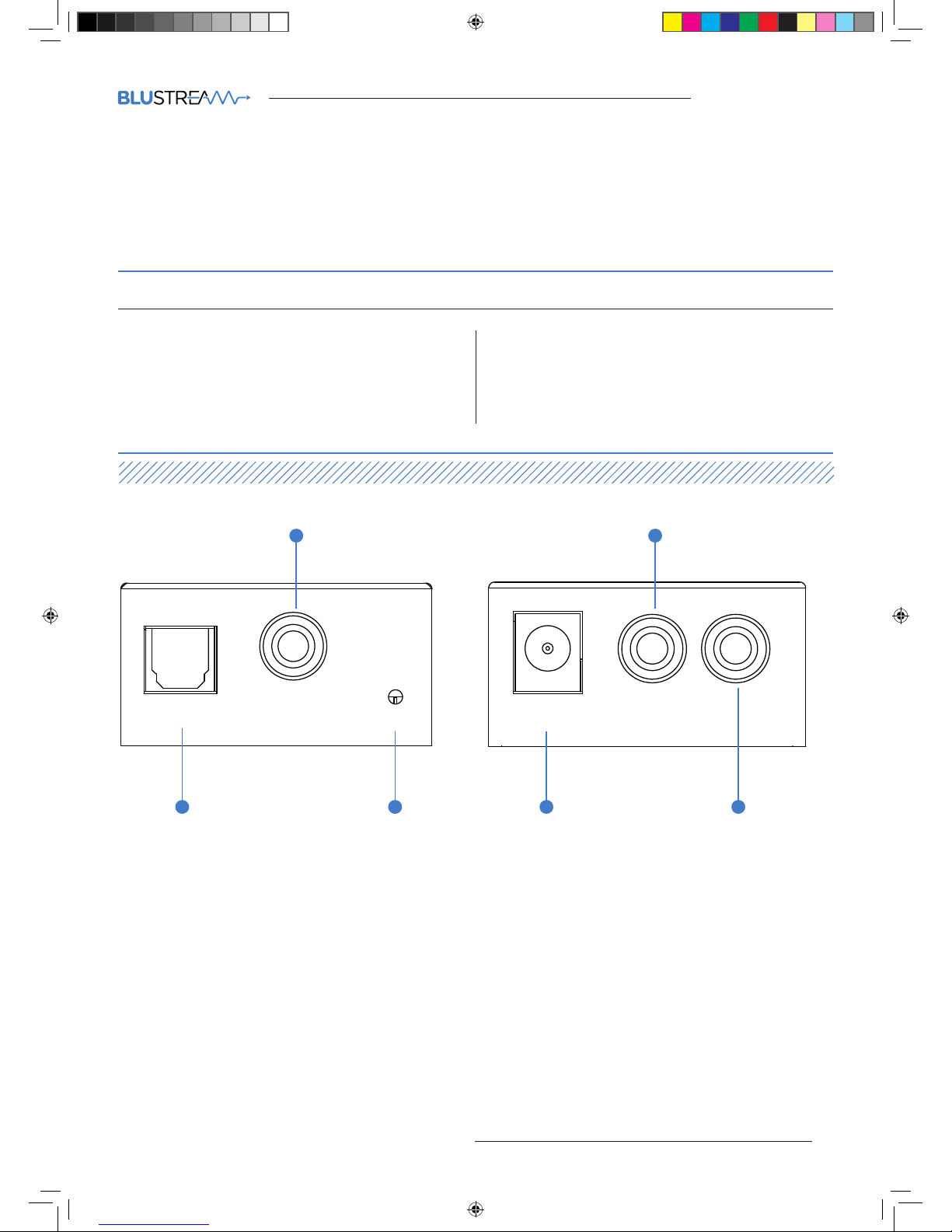

Front Panel Back Panel
• Supports sample rates 32 kHz, 44.1 kHz, 48 kHz, 96 kHz
and 192 kHz, up to 24-bit resolution
• Converts SPDIF optical or coaxial digital PCM audio to
analogue stereo le/right RCA output.
• Auto-detects digital connection in use.
• Optical digital input has priority over coaxial digital input
• Ultra low jitter and high fidelity design
• Plug-and-play
• Small compact size
FEATURES:
1 Coaxial digital input.
2 Optical digital input – Has priority over coaxial digital
input.
3 Power LED indicator – Displays the status of the
power of the unit.
4 Power port – Use supplied 5V / 1amp DC adaptor
5 Right channel analogue audio output
6 Le channel analogue audio output
DC5V R/L
DAC11AU
Toslink Coaxial
Power
1 5
2 3
64
Page 4
DAC11AU USER MANUAL
04
www.blustream.co.uk
Specifications
Package Contents:
• 1 x DAC11AU
• 1 x 5V/1A DC power supply
• 1 x Mounting kit
Maintenance:
Clean this unit with a so, dry cloth. Never use alcohol,
paint thinner or benzene to clean this unit.
Audio Input Connectors: 1x SPDIF Optical audio & 1x Coaxial digital
Audio Output Connectors: 2x Analogue stereo le/right
Dimensions (W x H x D): 50mm x 26mm x 42mm
Casing Dimensions including connections (W x H x D): 68mm x 26mm x 42mm
Shipping Weight: 0.4kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature : -4°F to 140°F (-20°C to 60°C)
Power Supply: 5V/1A DC
Page 5
DAC11AU USER MANUAL
05
contact [email protected] / [email protected]

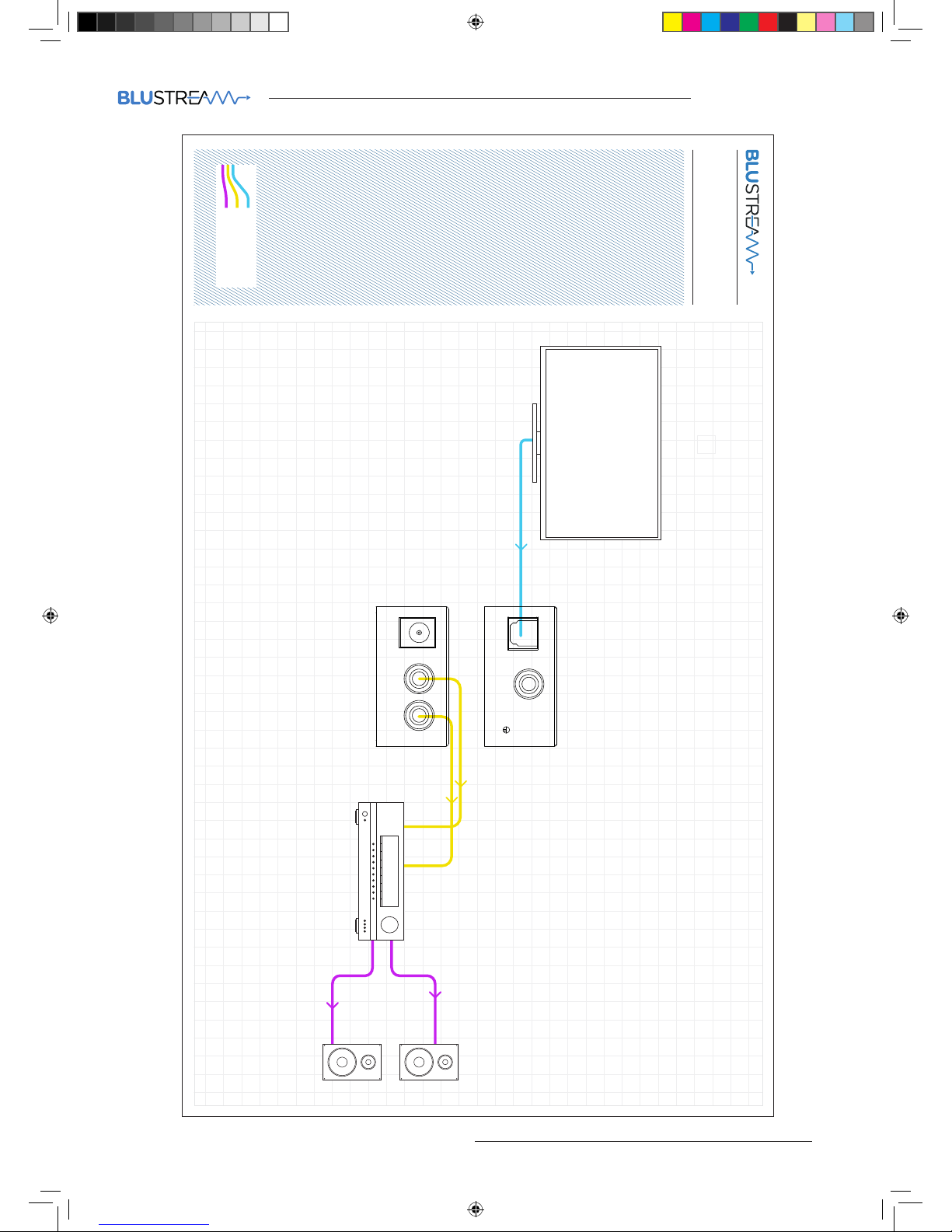

Example Schematic
DAC11AU
DC5V
Optical Digital
Coaxial Digital
Speaker Cable
Toslink
Coaxial
Power
R/L
DISPLAY
DAC11AU
