USER MANUAL
for
Table of Contents
INTRODUCTION ............................................................................................ 3
SAFETY WARNINGS ...................................................................................... 3
DISPLAY AND BUTTONS ................................................................................ 5
INSTALLING/REMOVING THE BATTERY ......................................................... 6
CHARGING ................................................................................................... 8
CONNECTING BLUMIL GO TO A WHEELCHAIR ................................................ 8
ADJUSTMENT OF THE CLAMP ..................................................................... 11
THE RIDE .................................................................................................... 11
Blumil Warranty ......................................................................................... 12
Maintenance of the battery pack ................................................................ 12
2
INTRODUCTION
Congratulations! Welcome to the BLUMIL family!
BLUMIL GO is a unique solution, that allows you to transform your manual rigid frame
wheelchair into an electric handcycle. You can do this just by pressing a button. BLUMIL
GO makes it possible for millions of people around the world to enjoy a new sense of
freedom.
Grab your helmet and let’s go for a ride, you are about to experience TRUE FREEDOM
with your BLUMIL GO!
SAFETY WARNINGS
It is your responsibility to ensure that you read and meet all of the rider
requirements listed below and are aware of all risks of riding as listed in this
manual before attempting to ride with BLUMIL GO.
• Due to the possibility of reaching high speeds, it is recommended to ride in a
helmet.
• Do not ride over curbs higher than 5 cm.
• Do not ride over puddles or water.
• The attachment should only be used to transport one person at a time. Any
other use is not permitted.
• It is recommended that BLUMIL GO is only used by people who are able to
physically and mentally meet the requirements of traffic on public roads.
• Please note that when driving on public roads, the handcycle is subject to all
road traffic regulations.
• Beginners should be especially careful when driving.
• Familiarize yourself with the braking distance for different speeds.
• You should also familiarize yourself with the general traffic regulations.
• To be able to move steadily in a straight line, avoid sudden steering
movements when driving at high speed or cornering.
• A three-wheeled vehicle is always less stable than a four-wheeled vehicle.
3
• When driving, braking and maneuvering, the handlebars must be held firmly
with both hands. Otherwise, there is risk of an accident.
• The speed should be adapted to the technical capabilities of the handbike,
the terrain characteristics and the operator's skills.
• Be careful when riding over curbs, bumps, etc., as the handbike may tip over.
• The driving style should be adapted to your skills.
• Be careful and drive slowly, especially when cornering.
• Before driving on hills, familiarize yourself with the product on a flat surface.
• Slow down reaching a curve and lean over to the inside of the bend.
• When waiting, for example at pedestrian crossings, traffic lights, on hills or
ramps, hold the rear wheels of the wheelchair.
• A set with the Blumil Go has a greater turning radius than the wheelchair
itself, therefore it can sometimes be impossible to turn in tight places, such
as corridors.
• On hills, the grip of the drive wheel is less than on flat roads, which means
less braking power. The driving style and speed must always be adapted to
the conditions so that the product can be stopped at any time without
causing any hazard.
• In order to avoid falling over, obstacles such as curbs must always be crossed
forward / perpendicular at low speed. The maximum height of obstacles is
50 mm, but it depends on the distance between the front wheels from the
surface, and therefore on the settings of the attachment and connection with
the Blumil GO.
• When moving on wet surfaces, the risk of slipping is increased due to the less
grip of the tires. In this situation, the driving style should be adjusted
accordingly.
• Riding the wheelchair with Blumil GO attached risks serious injury or death
from falls, loss of traction, loss of balance, collisions and other accidents.
• Do not ride with BLUMIL GO unless it has been properly adjusted to your
individual needs.
4
• Do not attempt to ride when the battery indicator displays no bars.
• Keep obstructions such as straps, clothing, jewelry, and bags away from the
wheels and other moving parts.
• Be aware of the foot rest at all times as it may catch on walls, steep inclines,
or other obstructions and cause instability with BLUMIL.
• Do not go onto surfaces steeper than 10%.
• Do not attempt to use any stairs to move between different levels, as it may
result in an accident.
• Avoid surfaces covered in ice, oil or other slippery substances.
• While using and servicing the Blumil, some body parts may get caught
in/squeezed in the elements of Blumil. You need to be very careful. After
regulating the Blumil, always make sure that the bolts are screwed securely.
• Please keep away from children under the age of 5 (choking hazard).
• Protect from fire and flammables.
• Do not ride over puddles or avoid getting the wheelchair wet in any other
way.
DISPLAY AND BUTTONS
Speed indicator: displays the current speed
Mileage indicator: displays the current total mileage
Power Indicator: Shows the current battery capacity with five stripes, each strip is
approximately 20% of the battery.
LED button: touch the LED light switch to turn the lights on or off.
Press and hold the LED button to switch the scooter driving mode:
• TURBO 30 km / h
• Tortoise 10 km / h
• No icon 16 km / h
5
WARNING: TURBO mode is enabled at your own risk.
INSTALLING/REMOVING THE BATTERY
1. Turn the power off
6
2. Unlock the battery and slide upwards
3. Remove the battery
4. Insert the battery carefully and LOCK
7
CHARGING
1. Turn off the power and unplug the power cord
2. Open the rubber charging port plug
3. Connect the charging cable
4. When finished, attach the rubber plug
CONNECTING BLUMIL GO TO A WHEELCHAIR
To start connecting BLUMIL GO to the wheelchair, first determine the length of
the center bracket.
8
In order to connect BLUMIL GO, it is necessary to drive the wheelchair to the
front of the bumper. The center bracket hook should be above the rear bar of
the wheelchair. If, during approaching, the central bracket gets caught, it must

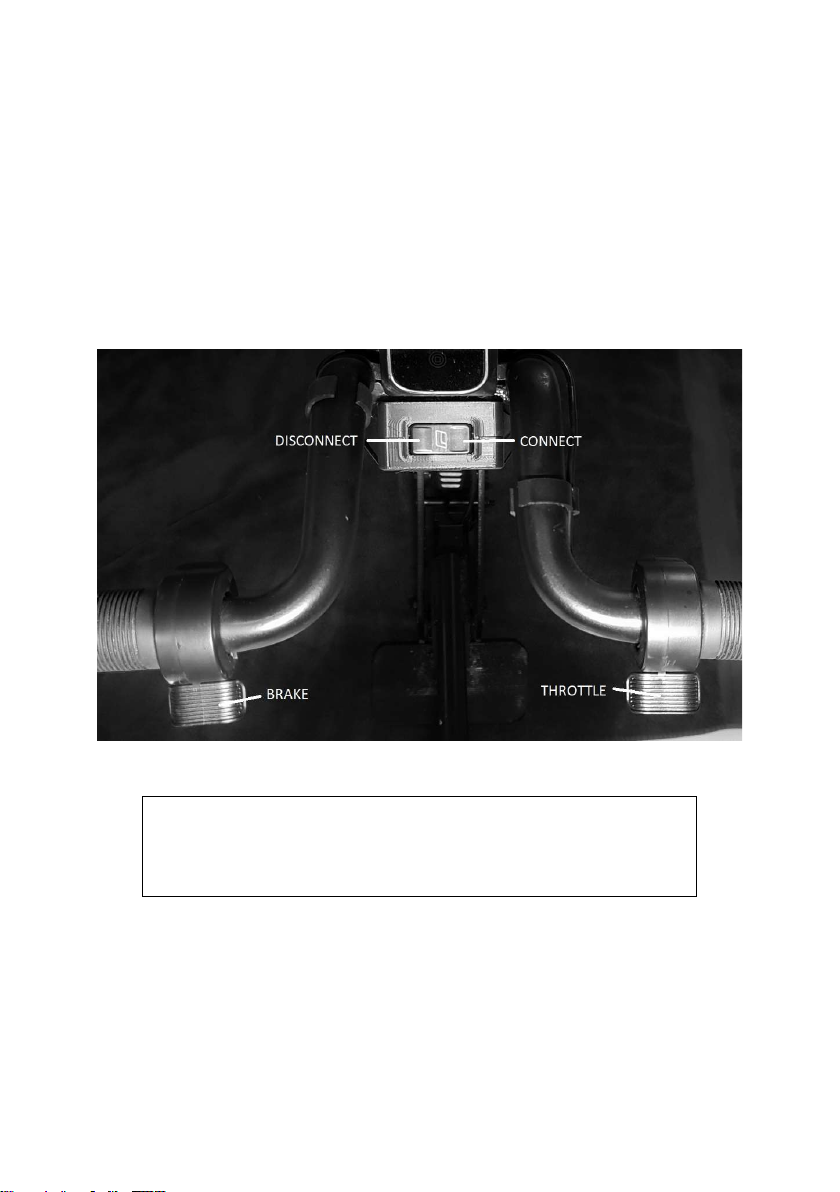

be raised or lowered using the Disconnect and Connect buttons. If the front of
the footrest is in contact with the bumper, you can press the Connect button.
The front of the wheelchair will start to raise. Keep the button pressed until the
clamp rests on the footrest of the wheelchair. After connecting, make sure that
the system is firmly connected by moving the steering handle from side to side
so that there is no movement.
WARNING: Pressing the Connect button for too long
after connecting the system may damage the
wheelchair frame.
To disconnect the system, press the Disconnect button and keep it pressed until
the front wheels of the wheelchair are lowered and the central bracket rises
above the rear bar of the wheelchair. You can then freely move out with the
wheelchair.
9
Correct position before connection
Correct connection
10
ADJUSTMENT OF THE CLAMP
The clamp after connecting the drive to the wheelchair should always press
the footrest firmly and should be above the front tube of the wheelchair's
footrest. By adjusting the position of the clamp you also change the height to
which the front wheelchair wheels are raised. You can try different setups to
find your optimal riding position and ground clearance.
The length of the clamp can be adjusted by loosening the two fixing screws
and fixing the correct height. After adjustment, tighten the screws firmly.
The clamp can be positioned also turned around 180 degrees. It is important
to choose the best fit for your wheelchair, as all the wheelchairs are different.
THE RIDE
Here are some basic rules to read before using the BLUMIL GO. It should be used
cautiously. Pay special attention to warnings and instructions in this manual.
During the first ride on BLUMIL GO, start with a flat surface with good grip, free
from obstacles.
WARNING: Before driving, make sure that the
adjustments according to the instructions have been
made.
WARNING: Do not drive in difficult terrain until you
have experience in driving.
To accelerate, press the throttle.
To slow down or stop, press the brake. To stop completely, it is necessary to catch
the rear wheels of the wheelchair with your hands.
When riding up too steep hills the Blumil GO might turn itself off to prevent
overheating and damaging the motor.
11
Maintenance of the battery pack
The battery is the most important part of the drive. To maximize battery life, follow the
steps below:
1. Carefully read the precautions on the battery label and follow the instructions
2. Please try to keep the battery at 0 ℃ - ~ 40 ℃ in a room temperature, which will
improve the battery performance. Avoid temperatures below -20 degrees or above 50
degrees.
3. Please keep the battery in a cool, dry environment. In a closed, wet environment,
the battery pack can be condensed and water can damage the battery.
4. During everyday use try to avoid the battery being completely discharged. Please
charge as soon as possible when the LCD shows only 10% ~ 20%. Leaving the battery
discharged may permanently damage the battery.
Blumil Warranty
BLUMIL Limited Warranty
BLUMIL is covered by a 1 year manufacturer’s warranty against any defects in materials
and workmanship, beginning on the date of purchase, and only for the original
purchaser under non-commercial use. Any replacement part or product that has been
installed in accordance with the seller's instructions assumes the remaining original
warranty or a maximum of 90 days from the date of repair or replacement, whichever
is longer.
Procedure for Warranty Service
Prior to returning any part or product for warranty service, you must first contact the
certified reseller from whom you purchased your BLUMIL product. If no such reseller
exists, you must contact BLUMIL via email at info@blumil.com. If the part or product in
question is found to be defective and warrantable you will be responsible for shipping
the part or product back to BLUMIL or the certified reseller from whom you purchased
your BLUMIL product. BLUMIL or the certified reseller shall be responsible for return
shipping to you. If product is not warrantable, you may purchase a replacement part
and must pay for shipping.
Warranty Exclusions
The BLUMIL warranty does not cover and shall be void for defects or damages resulting
from casualty, accident, collision, inclement weather, water damage, misuse or abuse,
neglect, alterations, improper installation, operation, or maintenance.
12
