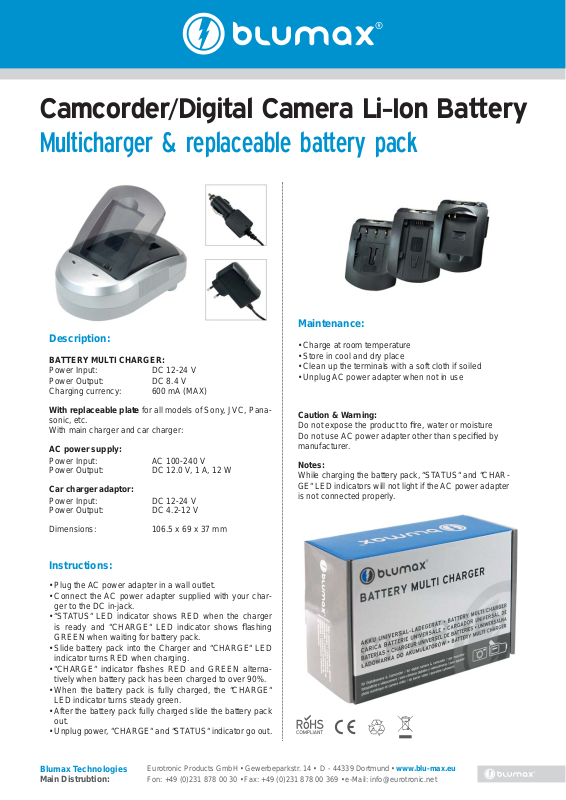

Blumax MULTICHARGER DATASHEET

Camcorder/Digital Camera Li-Ion Battery

Multicharger & replaceable battery pack

Maintenance:

Description:

BATTERY MULTI CHARGER:

Power Input: DC 12-24 V
Power Output: DC 8.4 V
Charging currency: 600 mA (MAX)

Charge at room temperature•
Store in cool and dry place•
Clean up the terminals with a soft cloth if soiled•
Unplug AC power adapter when not in use•

With replaceable plate for all models of Sony, JVC, Pana­sonic, etc.

With main charger and car charger:

AC power supply:

Power Input: AC 100-240 V
Power Output: DC 12.0 V, 1 A, 12 W

Car charger adaptor:

Power Input: DC 12-24 V
Power Output: DC 4.2-12 V

Dimensions: 106.5 x 69 x 37 mm

Instructions:

Plug the AC power adapter in a wall outlet.•
Connect the AC power adapter supplied with your char-•
ger to the DC in-jack.
“STATUS“ LED indicator shows RED when the charger •
is ready and “CHARGE“ LED indicator shows fl ashing
GREEN when waiting for battery pack.
Slide battery pack into the Charger and “CHARGE“ LED •
indicator turns RED when charging.
“CHARGE“ indicator fl ashes RED and GREEN alterna-•
tively when battery pack has been charged to over 90%.
When the battery pack is fully charged, the “CHARGE“ •
LED indicator turns steady green.
After the battery pack fully charged slide the battery pack •
out.
Unplug power, “CHARGE“ and “STATUS“ indicator go out.•

Caution & Warning:

Do not expose the product to fi re, water or moisture
Do not use AC power adapter other than specifi ed by
manufacturer.

Notes:

While charging the battery pack, “STATUS“ and “CHAR­GE“ LED indicators will not light if the AC power adapter
is not connected properly.
