The BLUMAX GPS-Tracker V1.0 is a GPS/GPRS based personal tracking device, which is compact and easy to use.
BLUMAX GPS-Tracker V1.0 has inbuilt GPS module to obtain accurate position data and utilizes its GSM capability to send the position data to a specified mobile phone or server base to allow users to monitor people or pets using the tracker.
One unique feature of BLUMAX GPS-Tracker V1.0 is the inbuilt microphone and loudspeaker that supports two way voice communications like a mobile phone and can be activated either by the guardian calling the tracker or the tracker holder activating the SOS button. The tracker can be configured to report its location to the server base or mobile phone at preset intervals.
BLUMAX GPS-Tracker V1.0 has the following functions:
ÂÂ Real time tracking via SMS or GPRS (TCP/UDP) (Protocol or GpsGate Tracker One)
ÂÂ Track on demand
ÂÂ Show location directly on mobile phone ÂÂ Track by time interval
ÂÂ Two-way audio
ÂÂ Listen (wiretapping)
ÂÂ Inbuilt motion sensor for power saving ÂÂ SOS panic button
ÂÂ Movement alarm ÂÂ Geo-fencing control ÂÂ Low battery alarm ÂÂ Overspeed alarm
ÂÂ GPS blind area alarm (in/out)
ÂÂ Three buttons for making phone call and/or sending message
- 3- |
Blumax GPS Tracker V1.0 |
Read these simple guidelines. Not following them may be dangerous or illegal. Read the full user manual for more information.
Do not switch on BLUMAX
Switch on safely GPS-Tracker V1.0 when wireless phone use is prohibited or when it
may cause interference or danger.
Follow any restrictions. Switch Switch off in hospitals BLUMAX GPS-Tracker V1.0 off near
medical equipment.
Follow any restrictions. Wireless Switch off in aircraft devices can cause interference in
aircraft.
Do not use BLUMAX GPS-Tracker V1.0 Switch off when refueling when at a refueling point. Do not use
near fuels or chemicals.
Follow any restrictions. Do not use Switch off near blasting BLUMAX GPS-Tracker V1.0 when
blasting is in progress.
Qualified service |
Only qualified personnel can repair |
|
BLUMAX GPS-Tracker V1.0. |
||
|
BLUMAX GPS-Tracker V1.0 is not Water resistance fully water resistant. Keep it dry. Use
waterproof bag if necessary.
User manual |
- 4- |
En
Items |
Specification |
|
|
|
|
||
Charging voltage |
DC 4.2-5.5 V/400 mA (mini USB port) |
||
|
|
||
Internal battery |
Rechargeable and removable |
||
950 mAh battery (3.7 V) |
|||
|
|||
|
|
||
Dimension |
78 mm × 45 mm × 21 mm |
||
|
|
|
|
Weight |
70 g (with battery) |
|
|
|
|
|
|
Operating temperature |
-20° to 55° C |
|
|
|
|
||
Humidity |
5 % to 95 % non-condensing |
||
|
|
|
|
GSM module |
Quad band GSM |
|
|
850/900/1800/1900 MHz |
|||
|
|||
|
|
||
GPS Chipset |
latest GPS SIRF-Star III chipset |
||
|
|
|
|
GPS Sensitivity |
-158 Db |
|
|
|
|
|
|
GPS Frequency |
L1, 1575.42 MHz |
|
|
|
|
|
|
C/A Code |
1.023 MHz chip rate |
|
|
|
|
||
Channels |
20 channels all-in-view tracking |
||
|
|
|
|
Position accuracy |
10 meters, 2D RMS |
|
|
|
|
|
|
Velocity accuracy |
0.1 m/s |
|
|
|
|
||
Time accuracy |
1 us synchronized to GPS time |
||
|
|
|
|
Default datum |
WGS-84 |
|
|
|
|
|
|
Reacquisition |
0.1 sec., average |
|
|
|
|
|
|
|
- 5- |
Blumax GPS Tracker V1.0 |
Hot start |
1 sec., average |
|
|
|
|
Warm start |
38 sec., average |
|
|
|
|
Cold start |
42 sec., average |
|
|
|
|
Altitude limit |
18,000 meters (60,000 feet) max. |
|
|
|
|
Velocity limit |
515 m/s (1000 knots) max. |
|
|
|
|
Acceleration limit |
Less than 4 g |
|
|
|
|
Jerk limit |
20 m/s |
|
|
|
|
Work time |
50 hours in power-saving mode and |
|
10 hours in normal working mode |
||
|
||
|
|
|
LED |
3 LEDs to show power, GPS, GSM |
|
and other status. |
||
|
||
|
|
|
Button |
3 buttons (SOS/B/C) for making phone |
|
calls and sending SMS |
||
|
||
|
|
This section will describe how to set up your BLUMAX GPS-Tracker V1.0
BLUMAX GPS-Tracker V1.0 is supplied in a box which includes:
ÂÂ 1x |
Blumax GPS Tracker V1.0 |
|
ÂÂ |
1x |
Removable battery |
ÂÂ |
1x |
Car charger, 1x main charger |
ÂÂ 1x |
USB to mini-USB cable |
|
ÂÂ 1x |
USB to serial adapter* |
|
ÂÂ 1x |
User manual |
|
ÂÂ 1x |
CD with user guide, drivers and software* |
|
* Optional |
|
|
User manual |
- 6- |
En

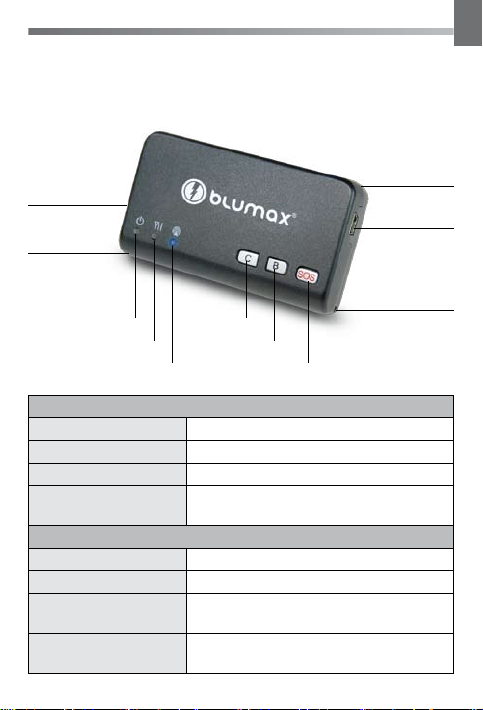

Your BLUMAX GPS-Tracker V1.0 has four buttons and three LEDs with three different colors to indicate the status of the unit.
Power On/Off |
|
|
|
|
|
|
Microphone |
||||
Button |
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
Mini USB |
Speaker |
|
|
|
|
|
|
|
|
|
|
Lanyard loop |
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|||
Battery LED |
|
|
|
C Button |
|
|
|
|
|
||
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|||
GSM LED |
|
|
B Button |
|
|
|
|
|
|||
GPS LED |
|
SOS Button |
|
|
|
|
|||||
|
|
|
|
|
|||||||
Red LED - indicating battery status |
|
|
|
||||||||
Off |
Power is off or charging is complete |
||||||||||
Flashing (every 0.1 sec.) |
Low power |
|
|
|
|||||||
On |
Charging |
|
|
|
|||||||
Flashing (1 sec. on and |
Working |
|
|
|
|||||||
2 sec. off) |
|
|
|
||||||||
|
|
|
|
|
|
|
|||||
Blue LED - indicating GPS status |
|
|
|
||||||||
On |
One button is pressed |
|
|
|
|||||||
Flashing (every 0.1 sec.) |
The unit is being Initialized |
||||||||||
Flashing (0.1 sec. on |
BLUMAX GPS-Tracker V1.0 has a |
||||||||||
and 2.9 sec. off) |
GPS fix |
|
|
|
|||||||
Flashing (1 sec. on |
BLUMAX GPS-Tracker V1.0 has no |
||||||||||
and 2 sec. off) |
GPS fix |
|
|
|
|||||||
|
|
|
|
|
- 7- |
|
|
|
Blumax GPS Tracker V1.0 |
Green LED - indicating GSM status
On |
One call is coming in/ |
|
one call is being made |
||
|
||
Flashing (every 0.1 sec.) |
The unit is being Initialized |
|
Flashing (0.1 sec. on |
BLUMAX GPS-Tracker V1.0 is connec- |
|
and 2.9 sec. off) |
ted to the GSM network |
|
Flashing (1 sec. on |
BLUMAX GPS-Tracker V1.0 is not |
|
and 2 sec. off) |
connected to the GSM network |
|
|
|
|
Buttons |
|
|
Power On/Off button |
Press and hold it for 3-5 seconds to turn |
|
on/off BLUMAX GPS-Tracker V1.0 |
||
|
||
|
To make a phone call and/or send an |
|
|
SMS to the preauthorized phone number. |
|
SOS button |
Press it to receive an incoming call. |
|
|
Press it to increase volume during |
|
|
conversation. |
|
|
To make a phone call and/or send |
|
|
an SMS to the preauthorized phone |
|
Call B |
number. |
|
|
Press it to reject a call, cancel calling or |
|
|
complete a conversation. |
|
|
To make a phone call and/or send |
|
|
an SMS to the preauthorized phone |
|
Call C |
number. |
|
|
Press it to decrease volume during |
|
|
conversation. |
|
Other Connectors |
|
|
|
Used for charging, firmware update and |
|
Mini USB |
configuration on PC. (USB to Serial |
|
Converter is required for firmware |
||
|
||
|
update and configuration) |
|
|
|
|
Lanyard loop |
For connecting lanyard. |
|
User manual |
- 8- |
En
Please read this manual before using your BLUMAX GPS-Tracker V1.0
4.3.1 Ensure that your BLUMAX GPS-Tracker V1.0 has a working SIM installed.
Check that the SIM has not run out of credit (Test the SIM in a phone to make sure it can send and receive SMS)
Check that the SIM lock code is turned off
If you require the function of sending an SMS location report to the authorized phone number when it makes a call to the BLUMAX GPS-Tracker V1.0, please make sure the SIM installed supports displaying caller ID.
4.3.2Put the battery in BLUMAX GPS-Tracker V1.0 and charge the tracker for at least 3 hours in power-off status using the wall charger or car charger. Or you can connect the tracker directly to computer by USB. Red light is on during charging and is off when charging is complete.
4.3.3Press and hold the Power On/Off button for 3-5 seconds to activate BLUMAX GPS-Tracker V1.0 and it will then enter standby mode. It is suggested that you be in an outer place where it can receive better GPS when you turn on the device.
Check that the Red LED (Battery) is flashing |
1 sec. on and 2 sec. off. |
Check that the Green LED (GSM) is flashing |
0.1 sec. on and 2.9 sec. off. |
Check that the Blue LED (GPS) is flashing |
0.1 sec. on and 2.9 sec. off. |
Command: W******,001,###### Description: Changes user’s password.
Notes:
1.****** is user’s password and the default password is 000000. The tracker will only accept commands from a user with the correct password. Commands with wrong password will be ignored.
2.###### is the new password. Password should be 6 digits.
Example: W000000,001,123456 W123456,001,999999
- 9- |
Blumax GPS Tracker V1.0 |
Command: W******,032,T
Description: Corrects time into your local time
Notes:
1.Default time of the tracker is GMT
2.This correction is applied to location reports by SMS and SMS alarms. T=0, to turn off this function.
T=[1, 65535] to set time difference in minute to GMT.
For those ahead of GMT, just input the time difference in minute directly. For example, GMT+8, W000000,032,480
‘-‘is required for those behind GMT. For example, W000000,032,-120.
Example:
W000000,032,480 W000000,032,-120
- Track on Demand - Reply with longitude, latitude, speed and date
Command: W******,000
Description: Get the current location of the tracker, send this SMS or make a telephone call directly to the tracker and it will report its longitude and latitude by SMS with format as follows:-
Latitude = 22 32 36.63N Longitude = 114 04 57.37E, Speed = 2.6854Km/h, 2008-12-24,01:50
Example: W000000,000
- Track on Demand - Reply with a Google link
Command: W******,100
Description: Send this command to the tracker and then you receive an SMS with an http link. Click on the link then the location can be shown directly on Google Map on your mobile phone. For example: http://maps.google.com/maps?f=q&hl=en&q=22.540103,114.08232 9&ie=UTF8&z=16&iwloc=addr&om=1
User manual |
- 10- |
En
Notes: Only smart phones and PDA support this function.
Example: W000000,100
Make a missed call to the tracker and it will report its longitude and latitude by SMS with format as follows:-
Latitude = 22 32 36.63N Longitude = 114 04 57.37E, Speed = 2.6854Km/h, 2008-12-24,01:50
Command: W******,002,XXX
Description: Sets an interval for the tracker to continuously return its location by SMS
Notes:
1.XXX is the interval in minute.
2.If XXX=000 to turn off tracking by time
Example: W000000,002,030
The tracker will send location data back to your mobile phone every
30minutes.
Download Google Earth from http://earth.google.com/.
Start Google Earth (For more information about Google Earth please refer to http://earth.google.com/) or go to http://maps.google.com in your Internet Explorer
Input the latitude and longitude that you receive from the tracker by SMS and click the search button. Google Earth or Google Maps will display the location for you.
Example:
When you receive:
Latitude = 49 29 18.45N; Longitude = 008 28 01.70E Type as the following picture shows:
- 11- |
Blumax GPS Tracker V1.0 |
Note: you should input the latitude and longitude as: 49 29 18.45N 008 28 01.70E
And then you can find the location of your tracker:
User manual |
- 12- |
En
Or you can use local map software on PDA or car navigation device to input the coordinates.
7.5.1 Set Tracker ID
Command: W******,010,ID
Description: Sets a digital ID for the tracker.
Notes:
Tracker ID must not over 14 digits.
Example: W000000,010,00001
7.5.2 Set APN
Command: W******,011,APN,Username,Password Description: Sets APN details for the tracker
Notes:
1.APN username and password are optional. If no APN username and password are required, just input APN only;
2.APN defaulted as ‘CMNET’;
3.APN + username + password should not over 39 characters.
Example:
W000000,011,CMNET,Blumax,6688
W000000,011,CMNET
- 13- |
Blumax GPS Tracker V1.0 |
7.5.3 Set IP and Port
Command: W******,012,IP,Port
Description: Sets IP and Port for tracker for GPRS communication.
Notes:
1.IP is your server’s IP or the domain name.
2.Port: [1,65534]
Example:
W000000,012, 220.121.7.89,8500 W000000,012,www.blu-max.eu,8500
7.5.4 Set DNS Server IP (optional)
Command: W******,009,DNS Server IP
Description: In case the domain name you set by the last command (W******,012,IP, Port) doesn’t work, which means your server IP is not properly set. You can first use this command to set DNS Server IP
(please check with your DNS server provider for the DNS Server IP) and then redo the command W******,012,IP, Port.
Example: W000000,009,220.23.4.90 7.5.5 Enable GPRS Tracking
Command: W******,013,X
Description: Enables GPRS tracking function.
Notes:
X=0, to turn off GPRS tracking (default); X=1, to enable GPRS tracking via TCP X=2, to enable GPRS tracking via UDP;
Example: W000000,013,1
7.5.6 Set GPRS Interval
Command: W******,014,XXXXX
Description: Sets time interval for sending GPRS packets.
Notes:
XXXXX should be in five digits and in unit of 10 seconds.
XXXXX=00000, to turn off this function;
XXXXX=00001~65535, time interval for sending GPRS packet and in unit of 10 seconds.
In this example, the tracker will send every 600 seconds (10 min.).
User manual |
- 14- |
En
Example: W000000,014,00060
The tracker will send every 600 seconds (10 min.).
For more information regarding GPRS tracking please refer to <GPRS Communication Protocol> on CD
Command: W******,003,F,P,T1 or W******,003,F,P,T1,T2 (optional) Description: Authorizes phone numbers for the buttons/inputs for receiving location reports or SMS alarms or phone calls
Notes:
F=0, to turn off this function; (default)
F=1, only sends SMS to the authorized phone number; F=2, only calls the authorized phone number;
F=3, both SMS and calling
P=1, set an authorized number for SOS button (Input 1) P=2, set an authorized number for B button (Input 2) P=3, set an authorized number for C button (Input 3) T1: Preset phone number. Max.16 digits
If you need to set different numbers for receiving SMS and phone call, you can then use W******,003,F,P,T1,T2, In this case T1 is the phone number for receiving SMS and T2 for receiving phone call.
Example: W000000,003,3,1,88888888 W000000,003,3,1,88888888,99999999
Based on BLUMAX GPS-Tracker V1.0’s inbuilt loudspeaker and microphone, you can use BLUMAX GPS-Tracker V1.0 to make or receive phone calls.
Use your phone or mobile phone to call the tracker, the green LED will be on and you hear beeps produced by the tracker. Press SOS button to receive the incoming call or press Call B button to reject the call.
- 15- |
Blumax GPS Tracker V1.0 |
After you have authorized phone numbers for SOS/Call B/Call C button, you can press one of these buttons to make a call to the preset phone number.
Press Call B button to cancel a calling or to end a conversation.
During a conversation, press SOS button to increase the volume or press Call C button to decrease the volume.
Command: W******,004,X
Description: When the tracker’s voltage is lower than the preset value, it will send an SMS alarm to the authorized phone number for SOS.
Notes: X is the preset value of voltage.
=0, to turn off this function |
=1, <3.3 V |
=2, <3.4 V |
=3, <3.5 V (default) |
=4, <3.6 V |
=5, <3.7 V |
Example: W000000,004,2
Command: W******,005,XX
Description: Turns on overspeed alarm. When the tracker speeds higher than the preset value, it will send an SMS to the phone number for SOS.
Notes: XX is the preset value of speed and in 2 digits. =00, to turn off this function
=[01, 20] (unit: 10 Km/h) Example: W000000,005,08
When the tracker’s speed is over 80 km/h, an SMS alarm will be sent out.
User manual |
- 16- |
En
Command: W******,006,XX
Description: When the tracker moves out of a preset square scope, it will send an SMS alarm to the authorized phone number for SOS. Notes: XX is the preset distance to the tracker’s original place =00, to turn off this function
=01, |
30 m |
=02, |
50 m |
=03, |
100 m |
=04, |
200 m |
=05, |
300 m |
=06, |
500 m |
=07, |
1000 m |
=08, |
2000 m |
Example: W000000,006,06 When tracker moves out of this square scope, it will send out an SMS alarm.
Command: W******,017,X or W******,117,X
Description: Turns on Geo-fencing alarm. When the tracker moves in/out the preset scope, it will send an SMS alarm to the authorized phone number for SOS.
Notes:
1.017 is for alarm when tracker moves out the preset scope;
2.117 is for alarm when tracker moves in.
3.X is the coordinates which include: Lower-left X,Lower-left Y,Upperright X,Upper-right Y
4.Lower-left X should be less than Upper-right X;
5.All longitudes and latitudes should be in ASCII format as follows:- Longitude: DDDFF.FFFF,E/W. 4 places of decimal. ‘0’ is needed to be stuffed if no value available.
Latitude: DDFF.FFFF,N/S. 4 places of decimal. ‘0’ is needed to be stuffed if no value available;
6.Send W******,006,00 to turn off Geo-fence function.
- 17- |
Blumax GPS Tracker V1.0 |
Example:
W000000,017,11404.0000,E,2232.0010,N,11505.1234,E,2333.5678,N
W000000,117,11404.0000,E,2232.0010,N,11505.1234,E,2333.5678,N
Remarks:
1.Only one alarm can be set in either In or Out;
2.Only one alarm can be set in either Movement Alarm or Geo-fence Alarm.
Command: W******,030,T
Description: Authorizes a phone number to make a silence call to the tracker, the track answers the call automatically and allows the caller to listen to what happens around the tracker. There is no voice indication that the call is in progress
Note:
1.T is the telephone number for wiretapping and max. 16 digits
2.Calls from unauthorized number are treated as normal incoming calls and indicated by beeps.
Example: W000000,030,88888888
Command: W******,026,XX
Description: Makes the tracker into power down mode when it is inactive or immobile for a period of time. In Power Down states, GPS stops working and GSM enters sleep and stop sending out message until it is activated by message, incoming calls or movement or triggered by three buttons.
Notes:
XX=00, to turn off this function.
XX=01~99, to turn on Power Down after a specified period of being inactive (or stationary). It is in unit of minute.
User manual |
- 18- |
En
Example: W000000,026,10
The tracker will enter power down mode after it is inactive (or stationary) for 10 minutes.
Command: W******,990,099###
Description: This is to make all settings (except for the password) back to factory default.
Notes:
Turn on the device, press the SOS button for five times continuously and the red LED will be on, and then send (within 120 seconds) this SMS to the tracker.
### is the ending character and is required in the text message.
Example: W000000,990,099###
Command: W888888,999,666
Description: This is to make the password back to factory default in case you forget your password.
Notes: turn on the tracker, press the SOS button for five times continuously and the red LED will be on, and then send this SMS (within 120 seconds) to the tracker to make the password back to factory default (000000).
Example: W888888,999,666
For more details regarding SMS commands, please go to Annex 1 Command List
- 19- |
Blumax GPS Tracker V1.0 |
1.Connect the USB-Cable and USB-Serial-Adaptor with the tracker.
2.Connect the USB-Serial-Adaptor with your PC (USB)
3.Start the Sofware and choose the right COM-PORT
4.Press start and do your settings
5.Press SOS button and hold, power on the device, when LED solid on, release SOS button and power key. (All three LED must be on and solid)
6.Click “Write” to save them.
The tracker can be configured by computer using the Parameter Editor.
Please refer to <GPS Tracker Parameter Editor> for more information.
GPS Tracker Parameter Editor V1.39
User manual |
- 20- |
En
© Blumax Technologies Ltd. All rights reserved.
The information contained herein may be changed at any time without prior notification. This manual nor any parts thereof may not be reproduced for any purpose whatsoever without the express written consent of Blumax, nor transmitted in any form either electronically or mechanically, including photocopying and recording.
In no event shall Blumax be liable for direct, indirect, special, incidental, or consequential damages (including but not limited to economic loss, such as loss of profits, loss of use of profits, loss of business or business interruption, loss of revenue, loss of goodwill or loss of anticipated savings) arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
Note: ****** is user’s password and the default password is 000000. The tracker will only accept commands from a user with the correct password. Commands with wrong password will be ignored.
Description |
SMS Command |
Example |
Track on demand |
W******,000 |
W000000,000 |
|
|
|
Remarks: To get the current location of the tracker, send this SMS or make a telephone call directly to the tracker and it will report its longitude and latitude by SMS with format as follows:-
Latitude = 22 32 36.63N Longitude = 114 04 57.37E, Speed = 2.6854Km/h, 2008-12-24,01:50
Track on demand |
W******,100 |
W000000,100 |
|
-Google Link |
|||
|
|
Remarks: Send this command to the tracker and then you receive an SMS with an http link. Click on the link then the location can be shown directly on Google Map on your mobile phone. For example: http://maps.google.com/maps?f=q&hl=en&q=22.540103,114.082329&ie=UT F8&z=16&iwloc=addr&om=1
(Note: Only smart phones and PDA support this function.)
- 21- |
Blumax GPS Tracker V1.0 |
