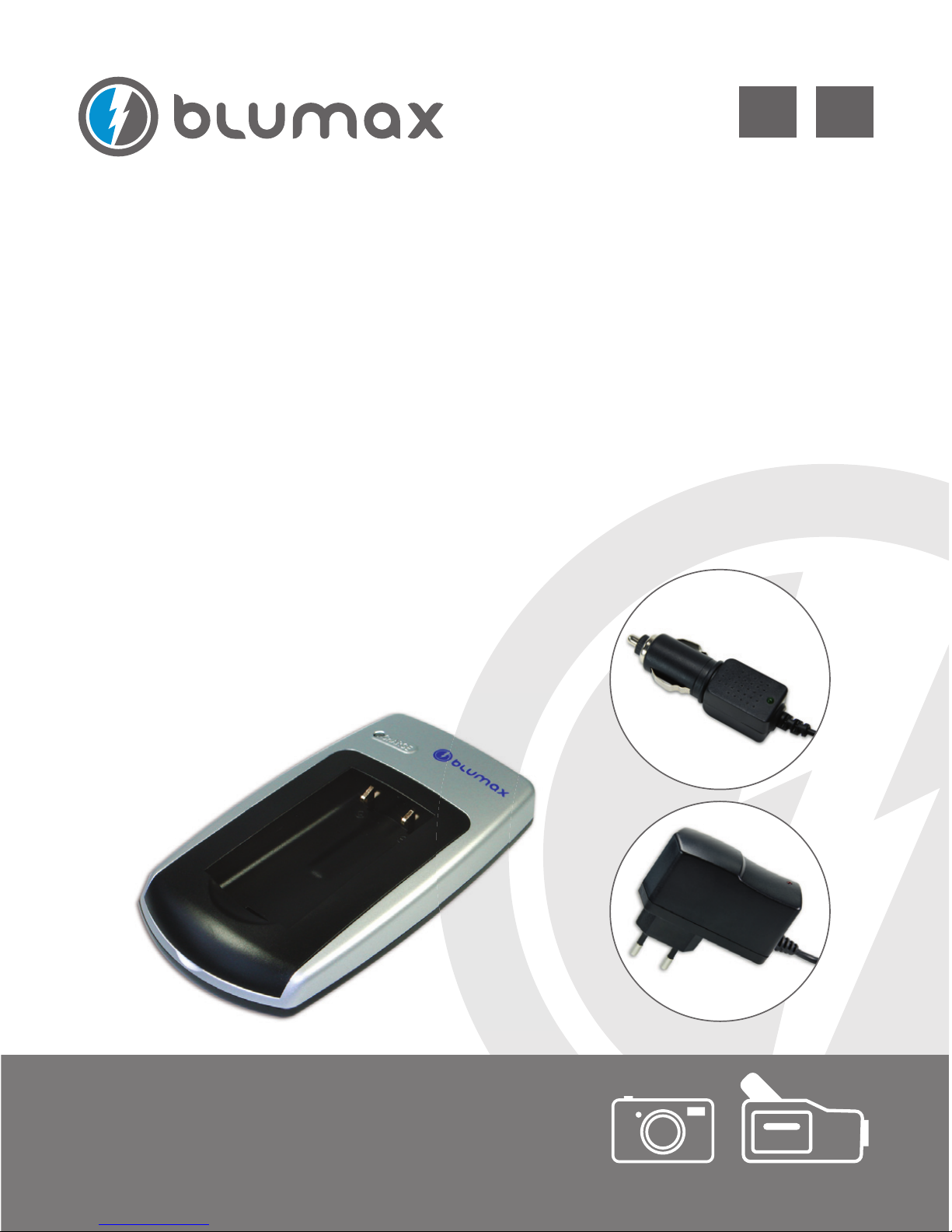

BATTERY SLIM CHARGER
User Manual
En De
Für Digitalkamera & Camcorder
For digital camera & camcoder
- 3 -
WARNING:
Before using this device for the fi rst time, please read this manual
thoroughly and use the device only in a safe surrounding.
This manual not only helps you to use the device in a correct way,
but it also helps to prevent you from accidents.
Specifi cations:
Battery charger:
Input: DC 12-24 V
Output: DC 4.2 V or DC 8.4 V
Charging rates: 1000 ± 100 mA
Measures: 105 mm x 60 mm x 15 mm
AC adapter:
Input: AC 100-240 V
Output: DC 12.0 V, 1 A, 12 W
Car adapter:
Input: DC 12-24 V
Output: DC 4.2-12 V
Weight: 190 g
Content:
1. Battery charger
2. AC adapter
3. Car adapter
4. Manual
EN
- 4 -
EN
BATTERY CAPACITY 600 mAh 800 mAh 1000 mAh
CHARGING TIME approx. 35 min approx. 45 min approx. 70 min
Charging time (approximate):
Charging:
In order to charge the battery, follow these steps:
1. Put the battery into the slot.
2. Plug the AC adapter into the socket of the charging slot.
3. Plug the power supply into the wall outlet. During charging a red light
will glow.
4. When the battery is fully charged the red light will change to green.
1.
2.
3.
4.
