12-Place Setting Dishwasher
BDW12-EFM
Code: 0120504513
User Manual
Unit 2,200 Woodpark Road, Smithfield, NSW 2164
Phone: 02 9729 3688 Fax: 02 9729 3722
Email: sales@blueway.com.au
GB
.1.
IMPORTANT
Carefully read the instructions contained in this manual, as it provides information that is essential to safe and proper installation,
use and maintenance of this appliance.
This appliance complies with following EEC
directives:
-73/23/EEC of 19/02/73(Low Voltage)and subsequent
modifications;
- 89/336/EEC of 03/05/89 (Electromagnetic
Compatibility) and subsequent modifications.
- Carefully dispose of the packing material.
- After removing the packing, check to make sure that the appli ance is not damaged. If in doubt, contact a qualified professional.
- The dishwasher must only be used by adults for the washing of
household dishes and cooking utensils.
- Fundamental rules to follow when using the appliance:
* Never touch the dishwasher with wet hands;
* We discourage the use of extension cords and multiple sockets;
* During installation, the power supply cord must not be exces sively or dangerously bent or flattened;
Safety Is Very Important
* If the appliance is not operating properly or, requires
maintenance, disconnect the appliance from the power supply.
- Keep detergents out of the reach of children. Also keep children
away from the dishwasher when it is open to reduce the risk of
injury.
- This appliance cannot be installed outdoors, not even if the
area in which it is installed is covered by a roof. It is also very
dangerous to leave it exposed to the rain and elements.
- Do not touch the heating element during or after a wash cycle.
- Do not lean or sit on the door when it is open, as this could
overturn the dishwasher.
- If the appliance malfunctions, turn off water supply to the appliance
and disconnect the plug from the wall socket. Then, consult the
section entitled, "Troubleshooting". If you cannot solve the problem,
contact a service centre.
- Only specialised personnel are authorised to make repairs.
- Appliances which are being discarded must be made
inoperable by cutting the power supply cord and removing the
door lock.
- The appliance must be positioned so that the plug is accessible.
- If installing this dishwasher on a carpeted floor, ensure the car
pet does not obstruct the opening.
- If the supply cord is damaged, it must be replaced by the manufacturer or an authorised service agent.
Close-up View (Control Panel)
A
B
C
ON-OFF Light
ON-OFF Button
Knob For Selecting Cycle
Handle For Opening Door
GB
Program Symbols
D
E
ON OFF
12345
5
1
2
3
4
BDW12-EFM
AB C D
E
.2.
Close-up View (Interior)
A
B
C
D
Upper Rack
Rack Height Adjustor
Top Spray Arm
Lower Rack
E
F
G
Washing Filter
Bottom Spraye Arm
Detergent and Rinse Aid Dispenser
Technical Characteristics
Width
60 cm
Depth
60 cm
Height
85 cm
Capacity
12 standard place settings
Mains water pressure
0.03-0.6 MPa
Power voltage
220-240V~ 50Hz
2100W
Total absorber power
GB
Detergent and Rinse Aid
Detergent
Detergent specifically intended for use with dishwashers must
be used. The dispenser must be refilled before the start of each
wash cycle following the instructions provided in the "Wash Cycle
Table." The detergent dispenser is located on the inside panel
the door.
Loading the detergent
To open the "A" cover on the dispenser, press the "B" button.
The detergent for the wash cycle should be poured into the "C"
compartment.
After the detergent has been placed in the dispenser, close the
cover and press down until it clicks in place.
NOTE: To facilitate closing the cover, remove any excess detergent on the edges of the dispenser.
Rinse Aid
This product makes dishes sparkle and helps them to dry without spotting. The dispenser is located on the inside panel of the
door and should be filled after every 80 wash cycle (or when the
rinse aid indicator light comes on for models with this feature).
Loading the Rinse Aid
To open the dispenser, turn the "C" cap in an anti-clockwise
direction and then pour in the rinse aid, making sure not to overfill.
The amount of rinse aid used for each cycle can be regulated by
turning the "F" dosage adjuster, located beneath the "C" cap,
with a screwdriver. There are 6 different settings; the normal
dosage setting is 3.
Important
Proper dosage of the rinse aid improves drying.
If drops of water remain on the dishes or spotting occurs, the
dosage adjuster should be turned to a higher setting.
If the dishes have white streaks, turn the dosage adjuster to a
lower setting.
C
B
A
C
C
F
.3.
GB
2
1
3
4
Loading the Dishwasher
Lower Rack Upper Rack
Load for 12 Standard Settings
Before placing the dishes in the dishwasher, remove larger food
particles to prevent the filter from becoming clogged, which results
in reduced performance.
If the pots and pans have baked-on food that is extremely hard to
remove, we recommend that they are soaked before washed. This
will eliminate the need for extra wash cycles.
Pull out the rack to load the dishwasher.
How to use the lower rack
We recommend that you place the most difficult to clean items on
the bottom rack: pots, pans, lids, serving dishes and bowls, as
shown in the figure to the right.
It is preferable to place serving dishes and lids on the sides of the
racks in order to avoid blocking the rotation of the top spray arm.
- Pots, serving bowls, etc. must always be placed face down.
- Deep pots should be slanted to allow the water to flow out.
- The silverware basket can not be doubled (see fig.A).
How to use the upper rack
The upper rack is designed to hold more delicate and lighter
dishware, such as glasses, cups and saucers, plates, small bowls
and shallow pans (as long as they are not too dirty).
- Position the dishes and cookware so that they do not get moved
by the spray of water.
The upper rack can be adjusted for height by using the knobs located on both sides of the rack itself (see fig.B).
Adjust the upper basket to the higher level and you have more
space to accommodate those taller pans and trays in the bottom
basket.
fig.B
fig.A
.4.
GB
Turning on the Appliance
Starting a wash cycle
- Make sure that the plug for the appliance is inserted into the wall
socket.
- Make sure that the water supply is turned on to full pressure.
- Load the dishwasher (see the section entitled, "Loading the
Dishwasher" on page 5).
- Pour in the detergent (see the section entitled, "Salt, Detergent
and Rinse Aid" on page 3 and 4).
- Turn the knob located on the right of the control panel in
clockwise direction until the number or symbol for the cycle set ting is aligned with the reference mark (see the section entitled,
"Wash Cycle Table" on page 8).
- Press the ON-OFF button, and the ON-OFF light will turn on. At
this point, the wash cycle will begin.
Cancelling or modifying a wash cycle setting
A cycle that is underway can only be modified if it has been
running for a short time. Otherwise, the detergent may have already been used, and the appliance may have already drained
the wash water. If this is the case, the detergent dispenser must
be refilled (see the paragraph entitled, "Loading the Detergent"
on page 4).
Press the ON-OFF button, and the ON light will turn off. Rotate
the knob in clockwise direction to the desired cycle setting (see
the section entitled: Starting a wash cycle?F. Then, turn the
dishwasher back on using the ON-OFF button.
If you forget to load some of the dishes
The wash cycle can be interrupted by pressing the ON-OFF button.
You can then load additional dishes and turn the appliance back
on. The cycle will start where it left off.
Wait a few minutes before unloading the dishwasher to avoid
handling the dishes and utensils while they are still hot and more
susceptible to breakage. They will also dry better.
At the end of the wash cycle
When the knob stops turning and is aligned with a STOP mark
(see figure), the cycle has finished. Turn off the appliance using
the ON-OFF button, turn off the water supply and open the door
of the dishwasher.
.5.
GB
- It is important to try and run the dishwasher when it is fully
loaded to save on energy. In order to prevent odors from form ing and food from caking onto the dishes, you can run the soak
cycle.
- Choose the right wash cycle: the choice of cycle depends on
the type of dishware, cookware and utensils being washed and
how dirty they are.
Energy Saving Tips
- Use the right amount of detergent: if you use too much detergent,
the result will not be cleaner dishes, but, rather, a greater nega tive impact on the environment.
How to Keep Your Dishwasher in Shape
After Every Wash
After every wash, turn off the water supply to the appliance and
leave the door slightly ajar so that moisture and odors are not
trapped inside.
Remove the Plug
Before cleaning or performing maintenance, always remove the
plug from the socket.
No Solvents or Abrasive Cleaning Products
To clean the exterior and rubber parts of the dishwasher, do not
use solvents or abrasive cleaning products. Use only a cloth and
warm soapy water.
To remove spots or stains from the surface of the interior, use a
cloth dampened with water and a little white vinegar, or a cleaning product made specifically for dishwasher.
When You Go on Holiday
When you go on holiday, it is recommended that you run a wash
cycle with the dishwasher empty and then remove the plug from
the socket, turn off the water supply and leave the door of the
appliance slightly ajar. This will help the seals last longer and prevent odors from forming within the appliance.
Moving the Appliance
If the appliance must be moved, try to keep it in the vertical position.
If absolutely necessary, it can be positioned on its back.
Seals
One of the factors that cause odors to form in the dishwasher is
food that remains trapped in the seals. Periodic cleaning with a
sponge will prevent this from occurring.
.6.
GB
Wash Cycle Table
Cycle
Cycle Selection
Information
Description of
Cycle
Detergent
Rinse
Aid
Intensive
Wash
Rinse
Glassware
Soak
Very dirty dishes, pots and
pans (not to be used with
delicate items).
For dishes that need to be
rinsed and dried only.
Economic, fast cycle to be
used for items which are sensitive to higher. Run immediately after dishes are used.
Pre-wash of dishes, pots and
pans while waiting for the
load to be completed after
the subsequent meal.
Pre-wash with cold water.
Rinse with cold water.
Extended wash at 50K
Rinse with hot waterK
Drying.
Rinse with hot waterK
Drying.
Wash at 50
.
Hot Rinse
KK
KK
K
Drying.
Short cold wash to prevent
food residue from drying on
the dishes K
30g
15g
Normal Wash
25g
Normally dirty dishes, pots
and pans. Standard daily
cycle.
Rinse with cold water.
Extended wash at 50K
Rinse with hot waterK
Drying.
.7.
GB
Cleaning and Special Maintenance
Filter Assembly
For best performance and results, the filter assembly must be
cleaned.
The filter efficiently removes food particles from the wash water,
allowing it to be recirculated during the cycle. For this reason, it
is a good idea to remove the larger food particles trapped in the
filter after each wash cycle by rinsing the "A" semi-circular filter
and cup under running water. To remove the filter assembly, pull
on the cup handle in an upward direction. The entire filter assembly (made up of the "A" semicircular filter and the "B" fine filter)
should be cleaned at least once a month. To clean the filter and
the fine filter, use a cleaning brush. Then, reassemble the filter
parts as shown in the figures below and inset the entire assembly in the dishwasher, positioning in its seat and pressing
downward.
The dishwasher must never be used without the filters. Improper
replacement of the filters may reduce performance of the appliance and damage dishes and utensils.
Cleaning the Spray Arms
It may happen that food particles become encrusted on the sprayer
arms and block the hole (see "Close up view [interior]" on page 1,
letters C-F ). Check the sprayer arms periodically and clean them
when needed.
It may occur that the dishwasher does not function properly or at
all. Before calling for assistance, Iet us see what can be done
first: Have you forgotten to press one of the buttons or to perform an essential operation?
The Dishwasher Does Not Start
Have you checked whether:
- the plug is pushed into the socket correctly;
- the power is on in the house;
- the door is closed properly;
- the ON-OFF switch is on "ON";
- the water supply is turned on.
The Dishwasher Does Not Load Water
Have you checked whether:
- the water is turned on and the hose is connected properly;
- the water supply to the houses on and has sufficient pressure;
- the water supply hose is crimped or bent;
- the filter for the water supply hose is clogged.
The Dishes Are Not Clean
Have you checked whether:
- the water is turned on and the hose is connected properly;
- the water supply to the house is on and has sufficient pressure;
- the water supply hose is crimped or bent;
- the filter for the water supply hose is clogged.
The Dishwasher Does Not Drain
Have you checked whether:
- the drain hose is crimped or bent.
Lime Deposits or a White Film Form on the Dishes
Have you checked whether:
- the lid to the salt container is closed properly;
- the rinse aid dosage is correct.
If, despite all these checks, the dishwasher still does not function
and/or the problem persists, contact the nearest authorised service
agent and provide them with the following information:
- the nature of the problem;
- the model type number (Mod...) and the serial number (S/N...),
which are indicated on the plate located on the side of the inner
part of the door.
Never call on unauthorised technicians and refuse to allow parts to be installed that are not original spare parts.
Troubleshooting
A
B
Cleaning the Water Inlet Filter
Periodically clean the water inlet filter located on the outlet of the
water supply tap.
After turning off the water tap, unscrew the end of the water supply
hose, remove the filter and clean it carefully under running water.
Then, return the filter to its place and tighten the water supply hose
back into position.
.8.
GB
fig.2
Installation
Positioning the Appliance
Position the appliance in the desired location. The back should
rest against the wall, and the sides along the adjacent cabinets
or wall. The dishwasher is equipped with water supply and drain
hoses that can be positioned to the right or left to facilitate proper
installation.
Levelling the Appliance
Once the appliance is positioned, adjust the feet (screwing them
in or out) of the dishwasher until it is level. In any case, the appliance should not be inclined more than 2°. If the appliance is level,
it will help ensure proper performance.
Cold Water Connection
Connect the cold water supply hose to a threaded 3/4 (gas) connector and make sure that it is fastened tightly in place (see fig.
1).
If the water pipes are new or have not been used for a prolonged
period of time, let the water run to make sure that the water is
clear and free of impurities. If this precaution is not taken, there is
a risk that the water inlet can get blocked and damage the
appliance.
Hot Water Connection
The water supply to the appliance can also be connected to the
house's hot water line (centralised system, heating system), as
long as it does not exceed a temperature of 60°C.
In this case, the wash cycle time will be shortened by about 15
minutes and the wash efficiency slightly reduced.
The connection must be made to the hot water line following the
same procedures as for the connection to the cold water line.
Attention:
The special plastic hose support must be solidly fastened to
the wall to prevent the drain hose from moving and allowing
water to spill outside the drain;
The appliance is to be connected to the water mains using
new hose-sets and that old hose-sets should not be reused;
The door should not be left in the open position since this
could present a tripping hazard;
Knives and other utentils with sharp points must be loaded in
the basket with their points down or placed in a horizontal
position.
Electrical Connection
After making sure that the voltage and frequency values for the
current in the home correspond to those on the rating plate (located
on the stainless steel inner door of the appliance) and that the
electrical system is sized for the maximum voltage on the rating
plate, insert the plug into an electrical socket which is earthed properly (the earthing of the appliance is a safety requirement mandated by law).
If the electrical socket to which the appliance must be connected
is not appropriate for the plug, replace the plug rather than using
adaptors or the like as they could cause overheating and burns.

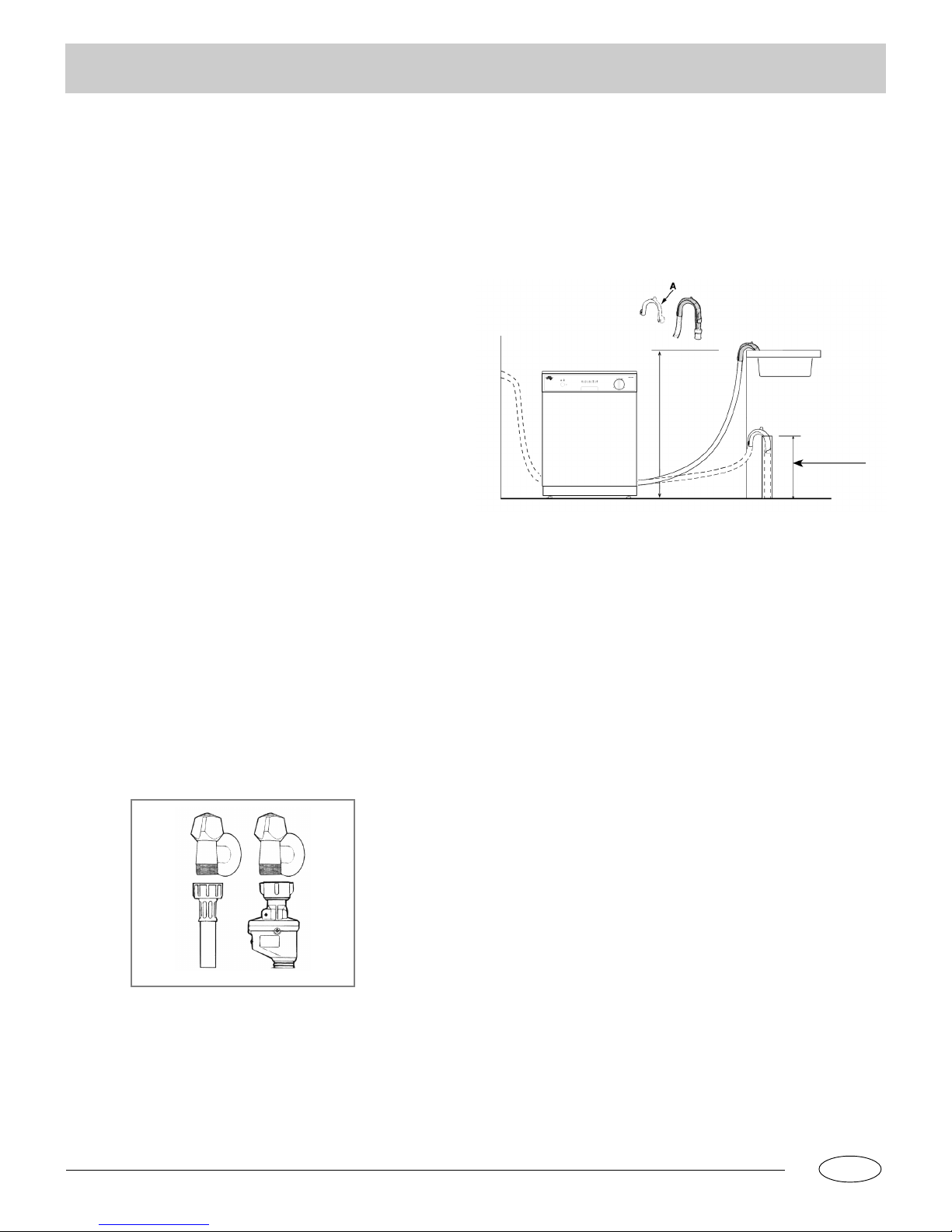

Drain Hose Connection
Insert the drain hose into a drain pipe with a minimum diameter of
4cm, or let it run into the sink, making sure to avoid bending or
crimping it. Use the special plastic support that comes with the
appliance (see fig .2). The free end of the hose must be at a height
between 40 and 100 cm and must not be immersed in water.
fig.1
.9.
GB
MAX 100
MIN 40
Installation
Diagram
WR: Wiring box IG: Power switch IS: Door switch P1: Water level switch LS: Power indicator
PS: Drain pump EV1: Inlet valve D/Ed: Dispenser TS.50: 50°C temperature controller
ITR: Temperature limiter R: Heater ML: Washing motor MT: Timer motor IAQS: overflow switch
Loading...
