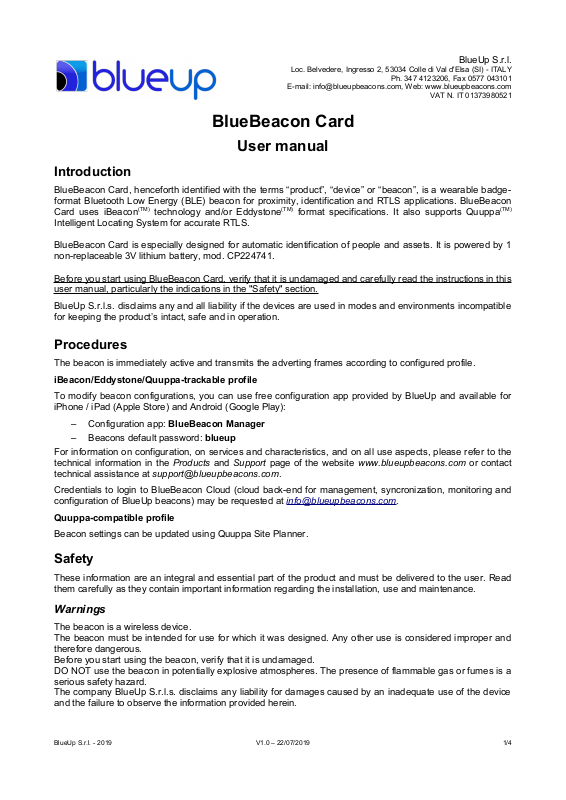

BlueBeacon Card

User manual

Introduction

BlueBeacon Card, henceforth identified with the terms “product”, “device” or “beacon”, is a wearable badge­format Bluetooth Low Energy (BLE) beacon for proximity, identification and RTLS applications. BlueBeacon
Card uses iBeacon

(TM)

technology and/or Eddystone

(TM)

format specifications. It also supports Quuppa

(TM)

Intelligent Locating System for accurate RTLS.

BlueBeacon Card is especially designed for automatic identification of people and assets. It is powered by 1
non-replaceable 3V lithium battery, mod. CP224741.

Before you start using BlueBeacon Card, verify that it is undamaged and carefully read the instructions in this
user manual, particularly the indications in the "Safety" section.

BlueUp S.r.l.s. disclaims any and all liability if the devices are used in modes and environments incompatible
for keeping the product’s intact, safe and in operation.

Procedures

The beacon is immediately active and transmits the adverting frames according to configured profile.

iBeacon/Eddystone/Quuppa-trackable profile

To modify beacon configurations, you can use free configuration app provided by BlueUp and available for
iPhone / iPad (Apple Store) and Android (Google Play):

– Configuration app: BlueBeacon Manager

– Beacons default password: blueup

For information on configuration, on services and characteristics, and on all use aspects, please refer to the
technical information in the Products and Support page of the website www.blueupbeacons.com or contact
technical assistance at [e-mail].

Credentials to login to BlueBeacon Cloud (cloud back-end for management, syncronization, monitoring and
configuration of BlueUp beacons) may be requested at [e-mail].

Quuppa-compatible profile

Beacon settings can be updated using Quuppa Site Planner.

Safety

These information are an integral and essential part of the product and must be delivered to the user. Read
them carefully as they contain important information regarding the installation, use and maintenance.

Warnings

The beacon is a wireless device.
The beacon must be intended for use for which it was designed. Any other use is considered improper and
therefore dangerous.
Before you start using the beacon, verify that it is undamaged.
DO NOT use the beacon in potentially explosive atmospheres. The presence of flammable gas or fumes is a
serious safety hazard.
The company BlueUp S.r.l.s. disclaims any liability for damages caused by an inadequate use of the device
and the failure to observe the information provided herein.

BlueUp S.r.l. - 2019 V1.0 – 22/07/2019 1/4

Battery

BlueBeacon Card is powered by an internal non-replaceable battery, according to the following table:

Batteries

Q.ty Common name IEC60086 name Type Nominal voltage

1 CP224147 CP224147 Lithium (LiMnO2) 3V

It is recommended to observe the following precautions:

• DO NOT disassemble, cut, or damage the device: battery could be damaged and can be dangerous.

• DO NOT disassemble, puncture or damage the device or the internal battery.

• DO NOT recharge the batteries.

• DO NOT short the positive and negative contacts of the batteries.

• DO NOT cause a forced depletion of the batteries.

• DO NOT throw the device or the battery in fire.

• DO NOT place the device or the battery in the following environmental conditions: in the vicinity of

heat sources, exposed to direct sunlight, high temperatures, high humidity, in contact with water.

• DO NOT put the device or the battery in your mouth. If the battery (or the liquid contained in it) is
ingested, immediately contact a doctor. The ingested battery must be immediately removed.
Swallowing the battery or the liquid contained in it cause irreversible damage to the digestive
system, within two hours, including possible death.

• The disassembled, perforated or damaged battery can lose its contents:
◦ If battery contents come into contact with eyes, rinse immediately with plenty of water for at least

30 minutes. Contact a physician immediately.

◦ If battery contents come into contact with skin, rinse immediately with plenty of water for at least

15 minutes. If irritation or pain persists, contact a physician.

◦ The content of the battery can cause respiratory irritation. Exit to fresh air immediately. If

irritation persists, contact a physician.

• Keep, under any circumstances, the battery away from children.

Waste disposal

In implementing the Directives 2011/65/EU and 2012/19/EC on the restriction of the use of hazardous
substances in electrical and electronic equipment and the disposal of waste.

The crossed bin symbol on the product, on the attached manual or on its packaging indicates that at the end
of the product’s life, it must be collected separately from other waste. The user must, therefore, take the
remote control to an authorized disposal center for collection of electronic and electrical waste, or return it to
the dealer when purchasing a new similar appliance, on a one to one basis. Appropriate separate collection
for the subsequent forwarding of the product sent for recycling, treatment and environmentally compatible
disposal helps to prevent negative environmental and health effects and promotes the reuse and/or recycling
of materials making up the equipment. Illegal dumping of the product by the user entails the application of
administrative sanctions in the current provisions of law.
For more information about the collection systems, contact your local authorities.

In implementing Directive 2006/66/EC on the reduced use of hazardous substances in batteries and
the disposal of the same.

The crossed bin symbol on the product, on the attached manual or on its packaging indicates that the
batteries must not be disposed of with the rest of the household waste, as they may contain substances that
are potentially harmful to the environment and health. Remove the old battery from the device and turn it in
at the appropriate collection points.
