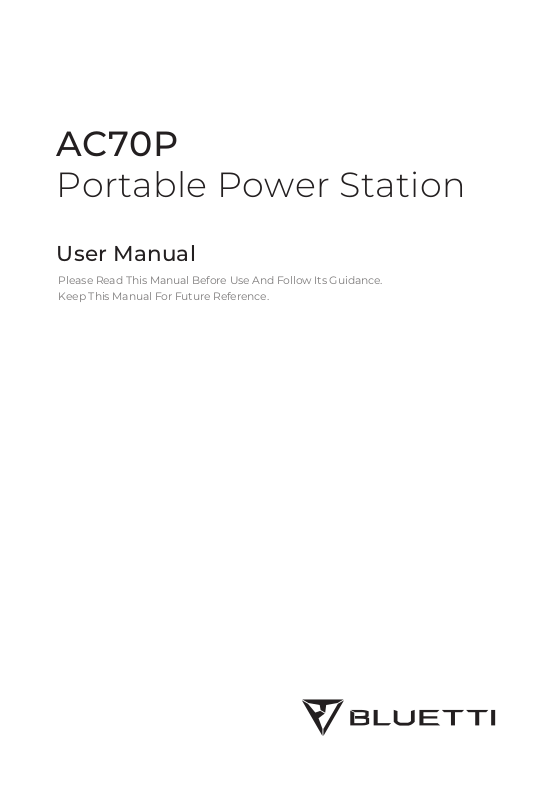

AC70P

Portable Power Station

User Manual

Please Read This Manual Before Use And Follow Its Guidance. Keep This Manual For Future Reference.

Page 2

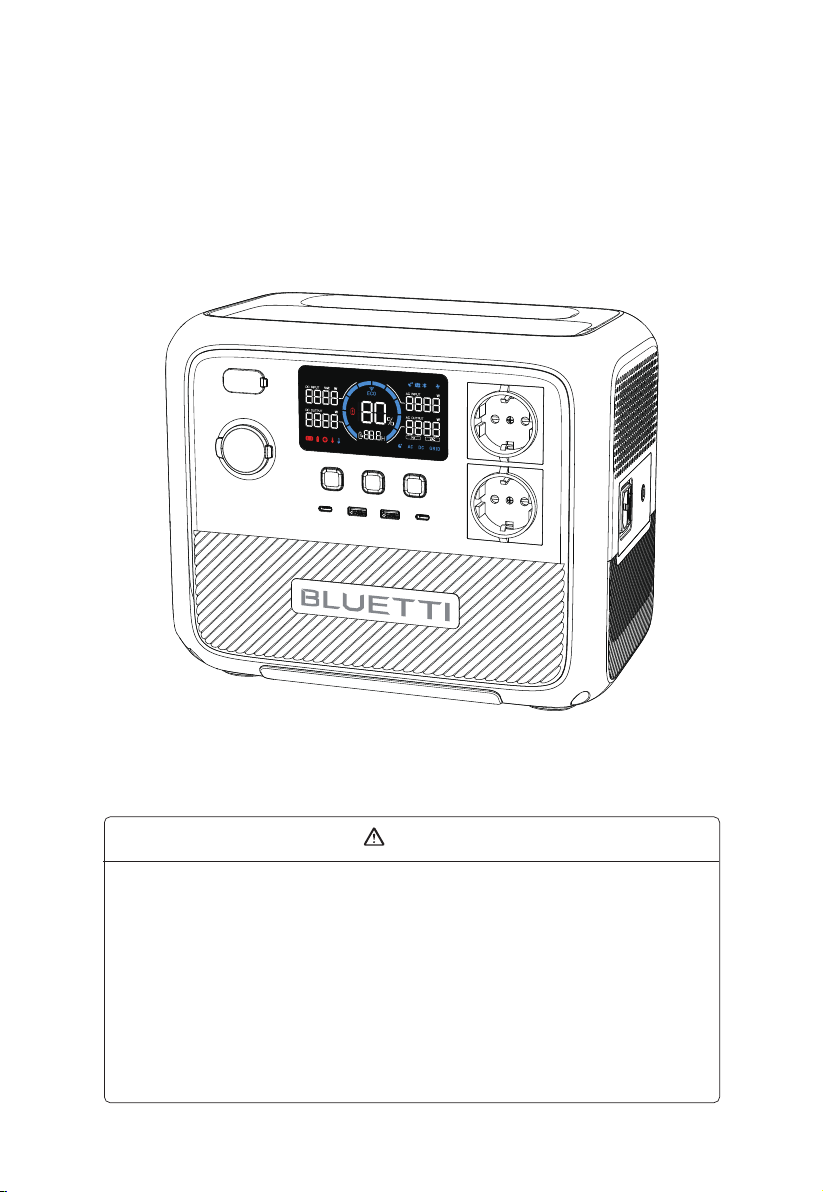

Warning

1. Charge the unit before ﬁrst use.

2. Do not use solar panels with open circuit voltage higher than 58V. Solar input voltage range for the unit is 12V-58VDC.

3. Charge the unit immediately when the SoC drops below 5%. If the SoC drops to 0, power off the unit and charge it for at least 30 minutes before restarting.

4. The unit is for off-grid use only. Do not connect its AC output to the grid.

5. If not used for more than 3 months, charge the unit to 40%-60% SoC and store it with the power off. For optimum battery life, discharge and charge the unit every 3 months.

Page 3

Thank You

Thank you for making BLUETTI a part of your family. From the very beginning, BLUETTI has tried to stay true to a sustainable future through green energy storage solutions while delivering an exceptional eco-friendly experience for our homes and our world. That's why BLUETTI makes its presence in 100+ countries and is trusted by millions of customers across the globe.

Netherlands

Germany

France

No part of this document may be reproduced or transmitted in any form or by any means without the prior written consent of ShenzhenPowerOakNewener Co., Ltd.

Notice

BLUETTI's products, services, and features are subject to the agreed-upon terms and conditions during purchase. Please note that some products, services, or features described in this manual may not be available under your purchase contract. Unless otherwise speciﬁed in the contract, BLUETTI makes no representations or warranties of any kind, express or implied, with respect to the contents of this manual.

The contents of this manual are subject to change without notice. Please get the latest version from: https://www.bluettipower.com/pages/user-guides

If you have any questions or concerns about this manual, please contact BLUETTI support for further assistance.

Page 4

Contents

Safety Instructions

Packing List

Product Overview

Power ON/OFF

LCD Screen

Charging

Discharging

Settings

BLUETTI App

Speciﬁcations

Troubleshooting

Appx. 1 Estimating Operation Time

Appx. 2 FAQs

Page 5

1. Safety Instructions

Read this manual for instructions on the proper use and safety information for the product. The safety instructions provided herein are for illustrative purposes that include but are not limited to those listed in this manual. Actual operation shall comply with all applicable safety standards. If you have any questions, feel free to contact BLUETTI support or your local BLUETTI dealers.

1.1 Statement

To ensure a safe operation, it's crucial to observe and adhere to the following conditions:

• Always operate or store the product in the conditions speciﬁed in this manual.

• Avoid unauthorized disassembly, component replacement, or modiﬁcation of software codes.

BLUETTI shall not be liable for damages resulting from the following circumstances:

•

Force majeure events such as earthquakes, ﬁres, storms, ﬂoods, or mudslides.

• Damage caused by the customer's own transportation.

• Damage resulting from inadequate storage conditions as speciﬁed in the manual.

• Damage caused by customer negligence, improper operation, or intentional actions.

• System or hardware damage caused by third parties or customers, including but not

limited to improper handling and installation not in accordance with the instructions in this manual.

• Usage of the product with devices that require a high-performance Uninterruptible

Power Supply (UPS), including but not limited to data servers, workstations, medical equipment, and other similar devices.

1.2 General Requirements

INSTRUCTIONS PERTAINING TO RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS

IMPORTANT SAFETY INSTRUCTIONS

WARNING - When using this product, basic precautions should always be followed,

including the following: a. Read all the instructions before using the product. b. To reduce the risk of injury, close supervision is necessary when the product is used near children. c. Do not put ﬁngers or hands into the product. And do not insert foreign objects into any ports of the product. d. Use of an attachment not recommended or sold by the manufacturer may result in a risk of ﬁre, electric shock, or injury to persons. e. To reduce the risk of damage to the electric plug and cord, pull the plug rather than

JUST POWER ON 05

Page 6

the cord when disconnecting the product. f. Do not use a battery pack or appliance that is damaged or modiﬁed, as they may exhibit unpredictable behavior resulting in ﬁre, explosion, or personal injury. g. Do not operate the product with a damaged cord or plug, or a damaged output cable. h. DO NOT attempt to replace the internal battery or any other component of the product by anyone other than authorized personnel. There are no end-user serviceable components. Do not disassemble the product, take it to a qualiﬁed service person when service or repair is required. Incorrect reassembly may result in a risk of ﬁre or electric shock. i. To reduce the risk of electric shock, unplug the product from the outlet before attempting any instructed servicing. j. WARNING - RISK OF EXPLOSIVE GASES. To reduce the risk of battery explosion, follow these instructions and those published by the battery manufacturer and manufacturer of any equipment you intend to use in the vicinity of the battery. Review cautionary markings on these products and engines. k. PERSONAL PRECAUTIONS

1) Wear complete eye protection and clothing protection. Avoid touching eyes while working near the battery.

2) NEVER smoke or allow a spark or ﬂame in the vicinity of the battery or engine.

3) Be extra cautious to reduce the risk of dropping a metal tool onto the battery. It might spark or short-circuit the battery or other electrical parts which may cause an explosion. l. When charging the internal battery, work in a well ventilated area and do not restrict ventilation in any way. m. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, ﬂush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. n. Do not expose the product to ﬁre or excessive temperature. Exposure to ﬁre or temperature above 130°C may cause an explosion. o. Have servicing performed by a qualiﬁed repair person using only identical replacement parts. This will ensure that safety is maintained. p. DO NOT operate in wet conditions. If the product becomes wet, please thoroughly dry it before using. q. Please ensure proper ventilation while in use and do not obstruct fan openings. Inadequate ventilation may cause permanent damage to the product. r. DO NOT stack anything on top of the product while in storage or use. DO NOT move the product while operating as vibrations and sudden impacts may lead to poor connections to the hardware inside.

JUST POWER ON

Page 7

s. In case of ﬁre, use only a dry powder ﬁre extinguisher appropriate for the product. t. WARNING - RISK OF ELECTRIC SHOCK. Never use the product to supply power tools to cut or access live parts or live wirings, or materials that may contain live parts or live wirings inside, such as building walls, etc. u. To avoid contact with any liquids, do not use this product in the rain or high humidity.

1.3 Grounding Instructions

This product must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING

Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualiﬁed electrician if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product - if it does not ﬁt the outlet, have a proper outlet installed by a qualiﬁed electrician.

1.4 Storage Instructions

a. When the SoC drops to 5%, please charge the product immediately. b. Before storing the product, charge it to 40% to 60% SoC to keep it in optimal condition. In addition, power off the unit and disconnect all electrical connections from it. c. Store the product in a cool and dry place, keeping it away from ﬂammable or combustible materials and gases. d. The product can be safely stored within a temperature range of -20℃ to 40℃ (-4℉ to 104℉). However, if the storage duration exceeds one month, it's recommended to maintain an ideal storage temperature of around 30℃ (86℉). e. Fully cycle the product every 3 months to maintain the battery's health. It's NOT recommended to store the unit for extended periods of time, as it may affect its performance and overall lifespan.

JUST POWER ON 07

Page 8

If the SoC drops to 0 (during storage or upon startup), take the following actions to safely restart the product:

• Shut down immediately.

• Charge within 48 hours.

• Keep it at an ambient temperature of 5℃ to 35℃ (41℉ to 95℉) for 24 hours before

charging. It's recommended to charge the product via an AC source. If charging via solar energy, ensure that your solar system provides an output of more than 100W.

BLUETTI shall not be liable for any equipment damage caused by the violation of the

above instructions.

SAVE THESE INSTRUCTIONS

The symbol displayed is intended to remind you to read the instructions in the literature accompanying the product before operation and maintenance.

• Connect the product to a socket-outlet that has an earthing connection using the

power cord provided.

• The socket-outlet should be installed near the product and easily accessible for safety

purposes.

• NEVER dispose of a battery by throwing it into ﬁre or a hot oven, or by mechanically

crushing or cutting it, as these may cause it to explode.

• Avoid leaving batteries in extremely high-temperature environments, as this can result

in an explosion or the leakage of ﬂammable liquid or gas.

• The battery subjected to extremely low air pressure may result in an explosion or the

leakage of ﬂammable liquid or gas.

• Attention should be drawn to the environmental aspects of battery disposal.

• Please refer to the information on the exterior bottom enclosure for electrical and safety

information before installing or operating the apparatus.

JUST POWER ON

Page 9

2. Packing List

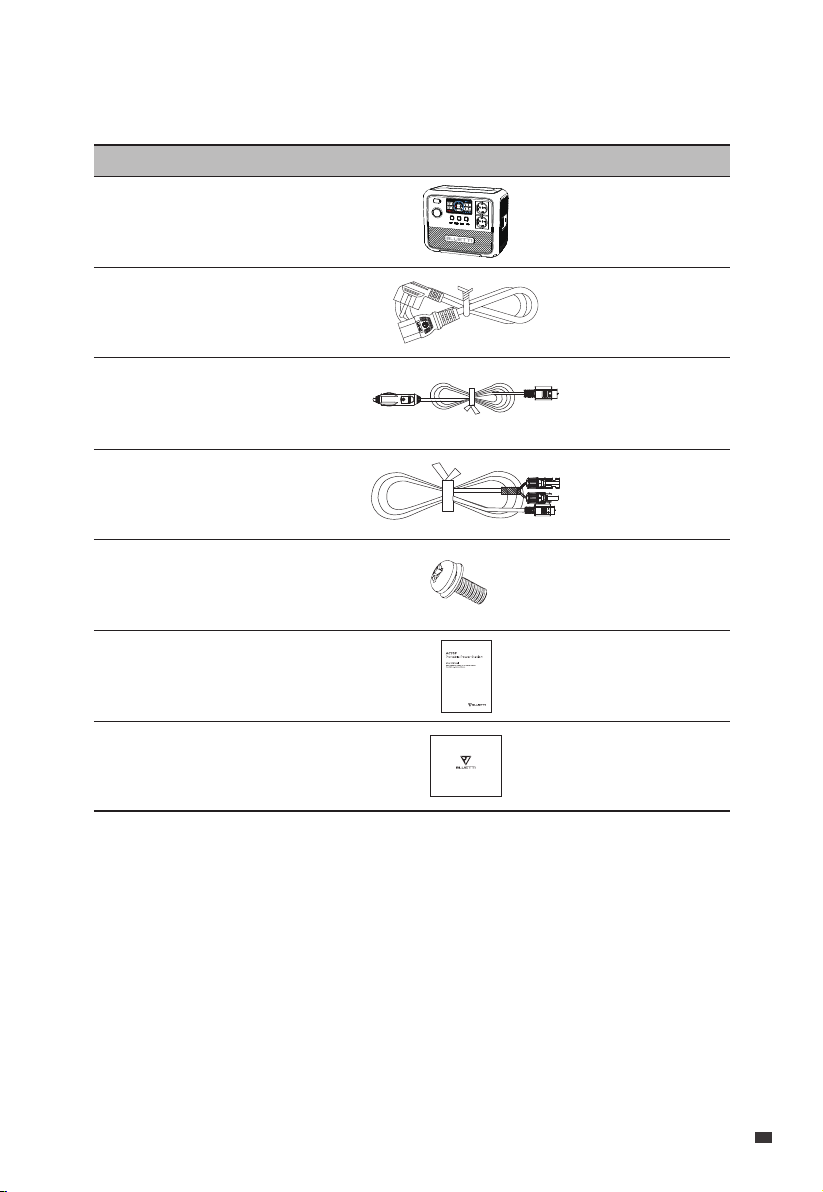

Item Picture Qty.

Standard Packaging

Portable Power Station

AC Charging Cable

Car Charging Cable

Solar Charging Cable

Grounding Screw

（M5×10）

User Manual

Warranty Card

JUST POWER ON 09

Page 10

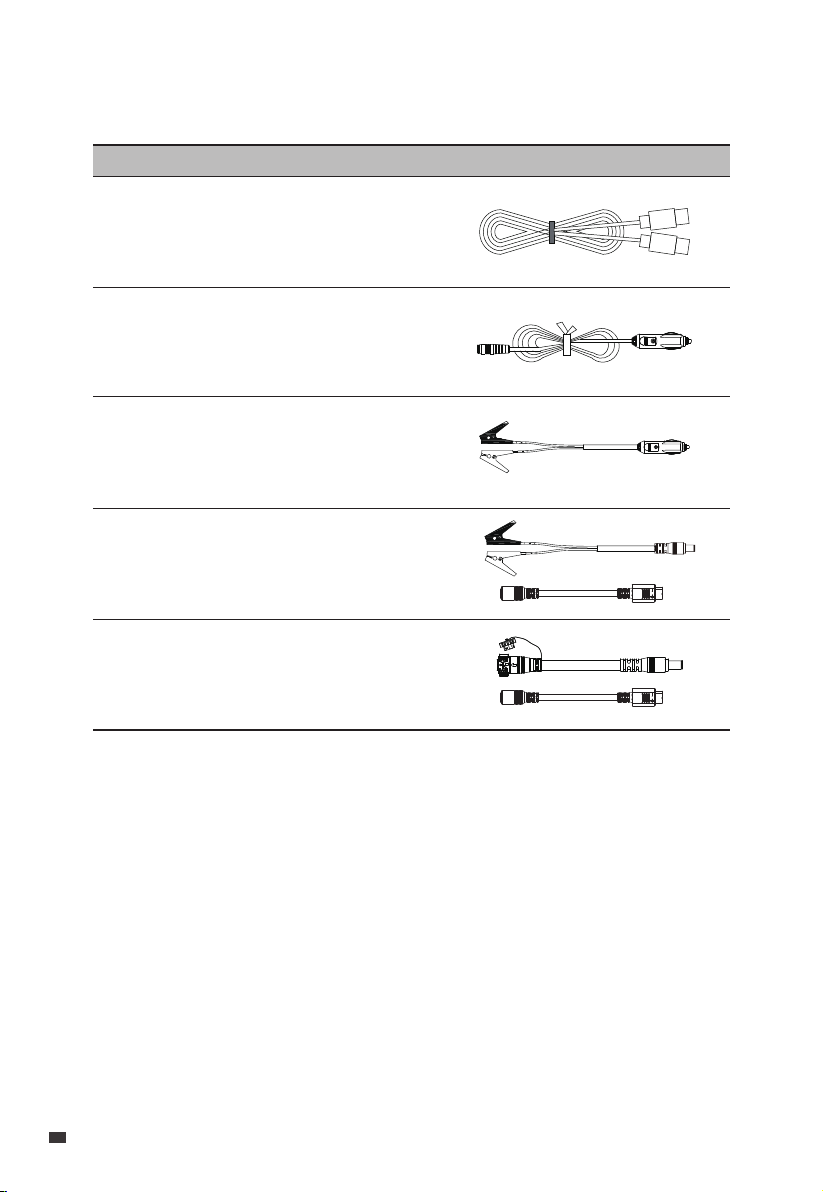

Optional Accessories

(Available on ofﬁcial BLUETTI website)

Item Picture

USB-C to USB-C Cable

(Output)

Cigarette Lighter to DC5521 Cable

(For 12V devices with DC5521 port,

such as routers, cameras, etc.)

Lead-acid Battery Charger

(Charge a 12V/10A lead-acid battery via AC70P.

For gasoline vehicle batteries only.)

Lead-acid Battery Charging Cable Kit

(Charge the AC70P via a lead-acid battery.)

Battery Connection Cable Kit

(Charge the AC70P via an expansion

battery in Power Bank mode.)

JUST POWER ON

Page 11

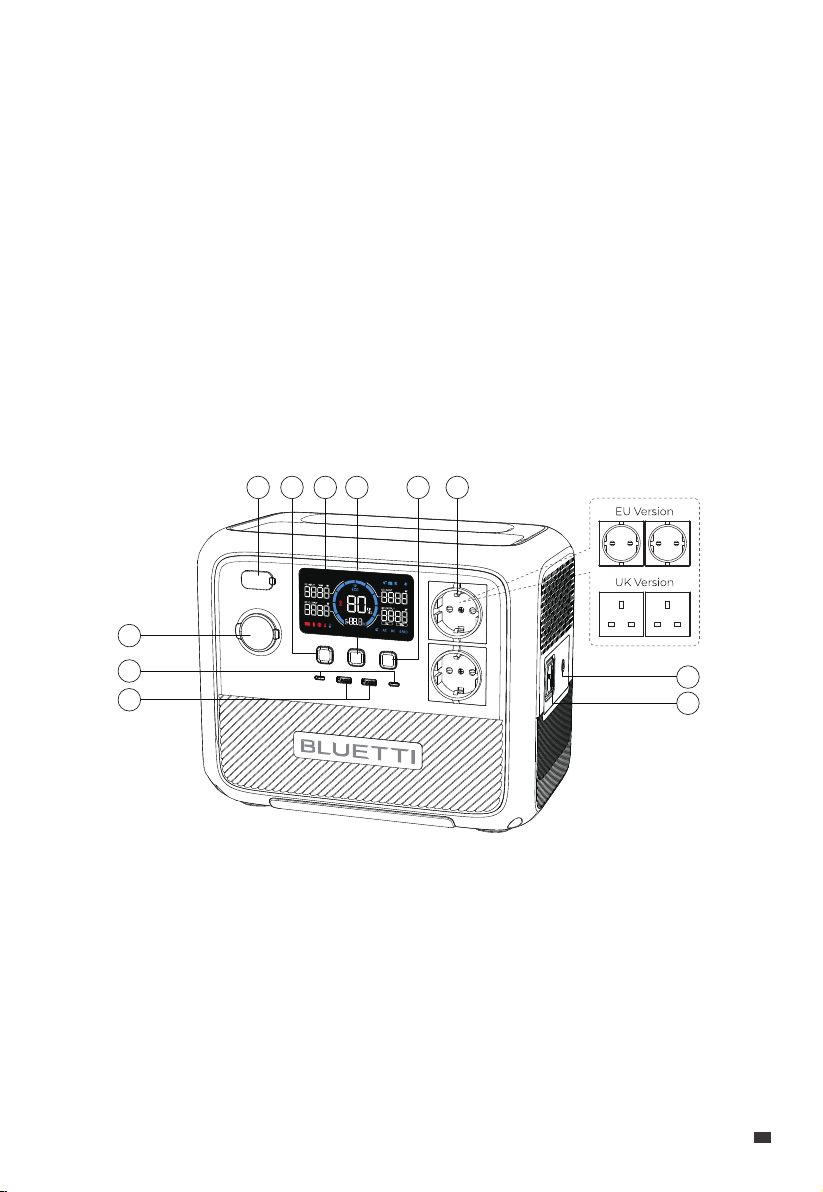

3. Product Overview

Meet the AC70P portable power station - the ultimate companion for your travel and adventure needs. With a 1000W pure sine wave inverter and 864Wh LiFePO offers ample power for all your outing gadgets like phones, laptops, car refrigerators, and air conditioners. When you require even more power, it boasts the innovative Power Lifting mode to tackle higher resistive demands of up to 2000W, perfect for hairdryers, kettles, and other heating appliances. Thanks to Turbo Charging technology, you can enjoy the convenience of an 80% charge in just 45 minutes, and a full charge in 1.5 hours.

Whether you're embarking on outdoor adventures, road trips, or camping trips with friends, the AC70P is built to accompany you every step of the way. So, go ahead and embrace your travel plans with conﬁdence, knowing that the AC70P will provide reliable power whenever you need it.

1 3 4 652

battery, it

DC Input

①

DC Power Button

②

LCD Screen

③

Power Button

④

AC Power Button

⑤

AC Output

⑥

Grounding Pole

⑦

AC Input

⑧

USB-A Port

⑨

USB-C Port

⑩

Cigarette Lighter Port

⑪

7 8

JUST POWER ON 11

Page 12

4. Power ON/OFF

• Power ON: Press and hold the for about 2 seconds to turn AC70P on.

When the AC70P is on, press the again to turn on / off the LCD screen.

• Power OFF: Press and hold the for 2 seconds to turn off the unit.

• AC ON / OFF: When the AC70P is on, press the AC power button to turn it on / off.

• DC ON / OFF: When the AC70P is on, press the DC power button to turn it on / off.

JUST POWER ON

Page 13

5. LCD Screen

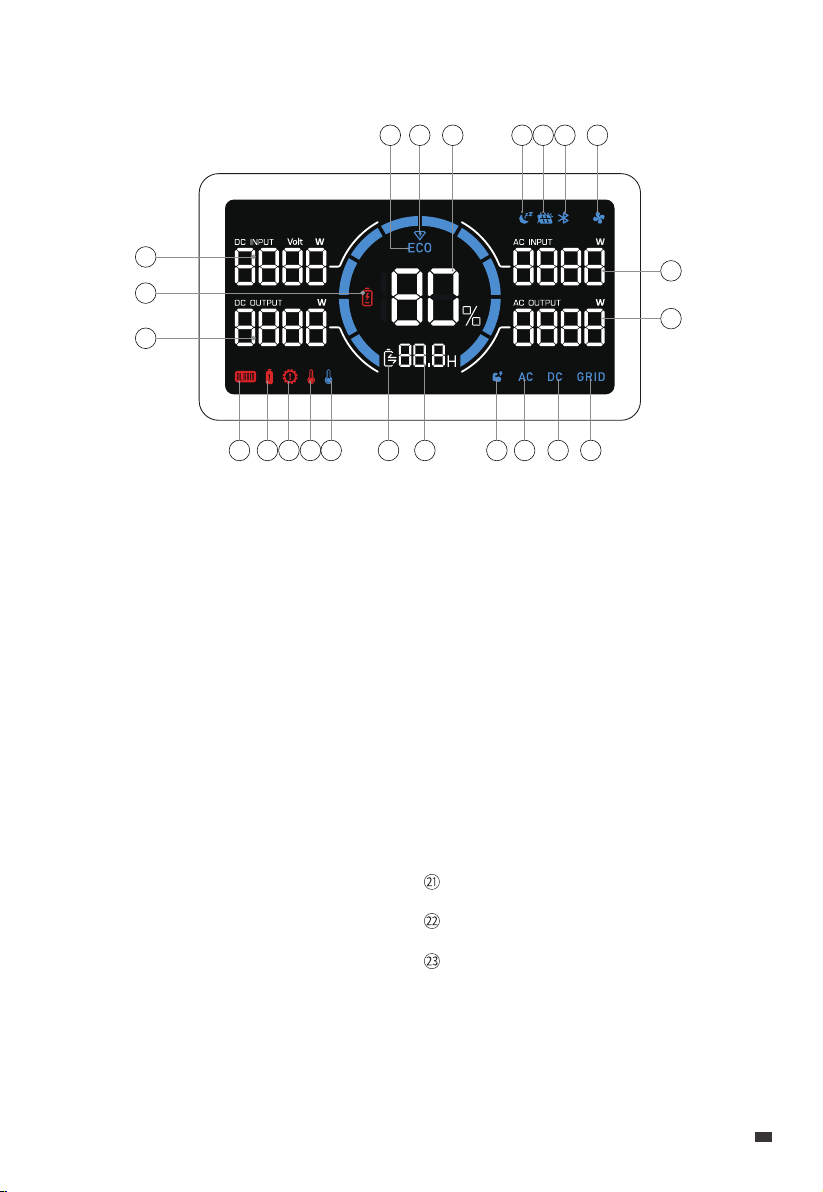

2 3 4 5 6 7

ECO Mode

①

Turbo Charging

②

Battery Capacity (SoC)

③

Silent Charging

④

DC Input

⑤

Bluetooth Connection

⑥

Fan

⑦

1011121314151617181920

Power Lifting Mode

⑬

Charge / Discharge Remaining Time

⑭

Charge / Discharge Status

⑮

Low Temperature Alert

⑯

High Temperature Alert

⑰

Overload Alert

⑱

Overcurrent Alert

⑲

AC Input Power

⑧

AC Output Power

⑨

Grid Connection

⑩

DC Output

⑪

AC Output

⑫

Fault Alert

⑳

DC Output Power

Low Voltage Alert

DC Input Power

JUST POWER ON 13

Page 14

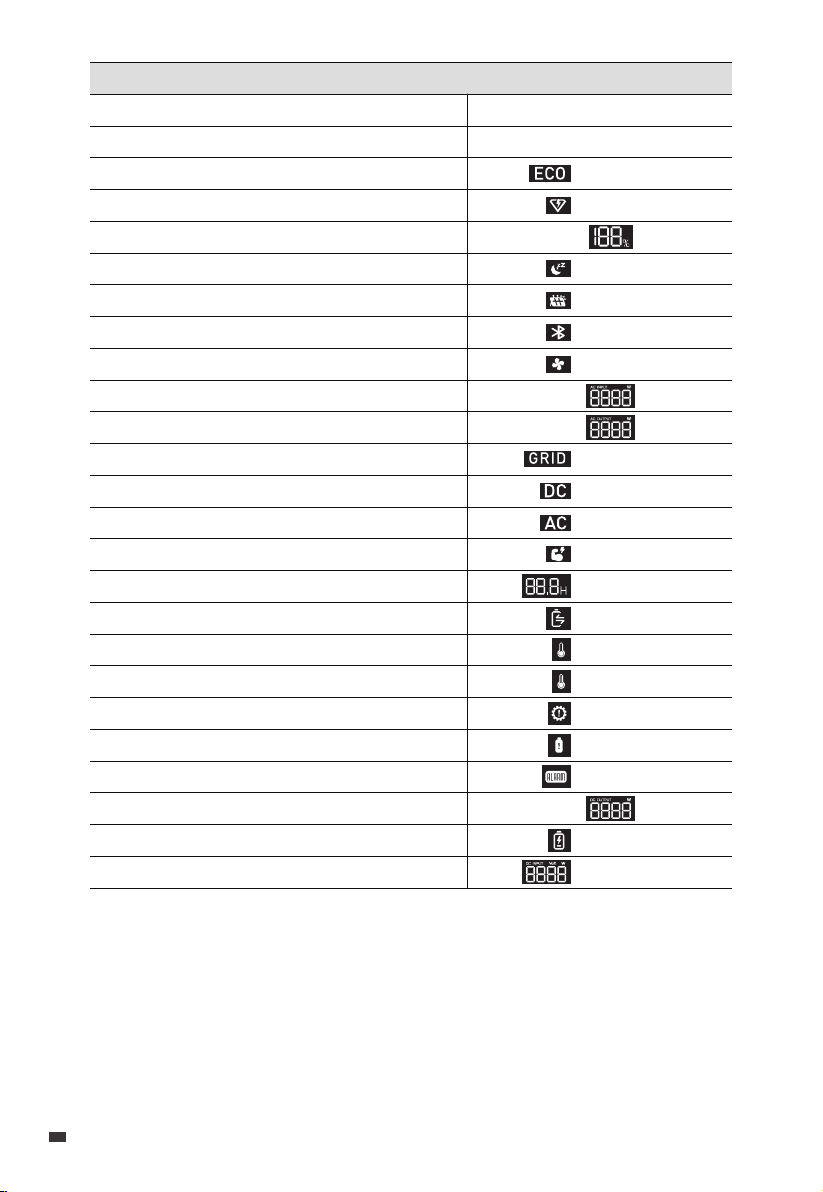

LCD Instructions

Startup

Shutdown

ECO Mode enabled

Turbo Charging enabled

State of Charge

Silent Charging enabled

DC input

Bluetooth connected

Fan on or abnormal

AC input power

AC output power

AC input

DC output enabled

AC output enabled

Power Lifting Mode enabled

Remaining charge / discharge time (hour)

Charging or discharging

Abnormal temperature

Connected device(s) overheating

Overload

Overcurrent

Error code report

DC output power

Battery low (below 5%)

DC input power

LCD lights up

LCD lights off

displays

displays or ﬂashes

displays

JUST POWER ON

Page 15

6. Charging

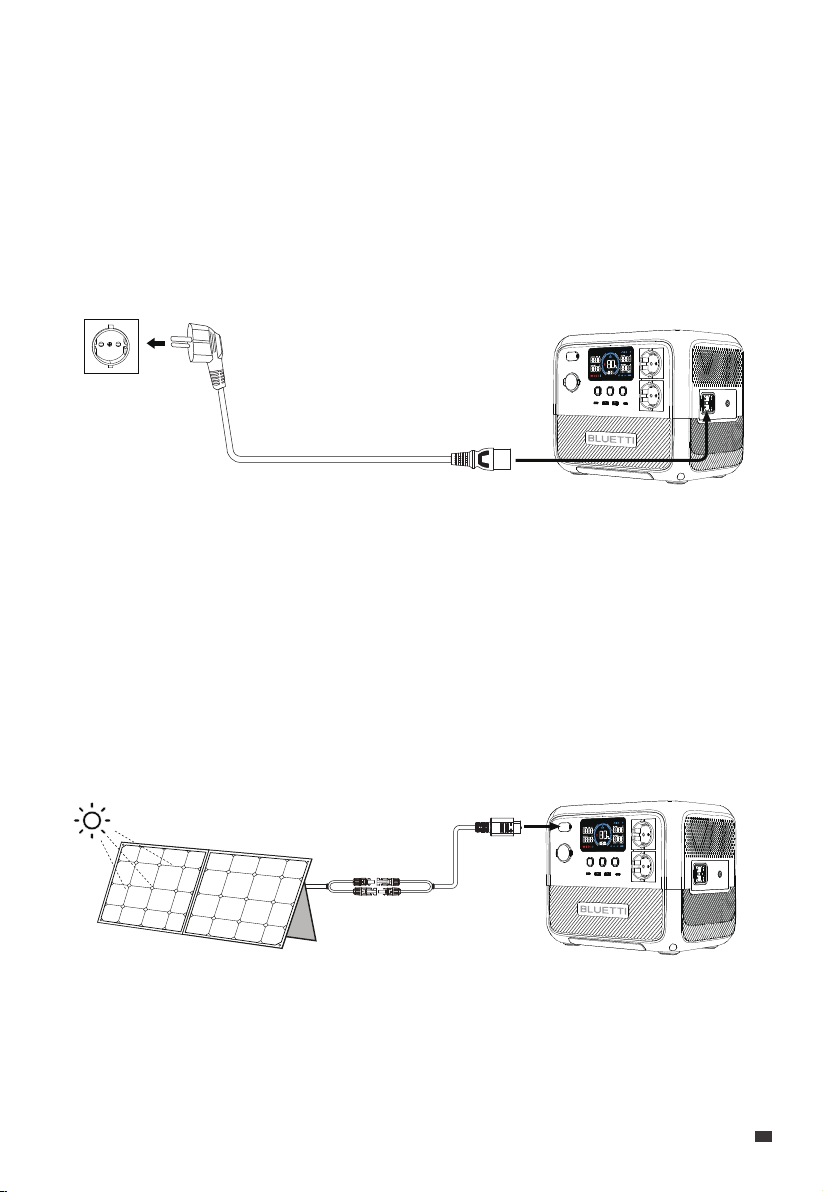

AC70P supports four charging methods: AC, solar, car, and generator.

6.1 AC Charging

Plug the AC70P into a standard wall outlet and start charging. Once it's fully charged, the AC70P automatically stops charging to prevent overcharging. For a fast charge, you can enable Turbo Charging in the BLUETTI App, which allows for an 80% capacity in just 45 minutes at an ambient temperature of 25℃ (77 ℉).

6.2 Solar Charging

Connect the solar panels (in series or parallel) to AC70P via the solar charging cable. When receiving a continuous input of 500W, the AC70P will automatically stop charging within 2 hours. However, please be aware that the charging time may vary based on weather conditions, sunlight intensity, panel orientation, and other variables.

Note: Make sure your solar panels meet the following requirements: Voc: 12V-58V Current: 10A Max. Power: 500W Max.

JUST POWER ON 15

Page 16

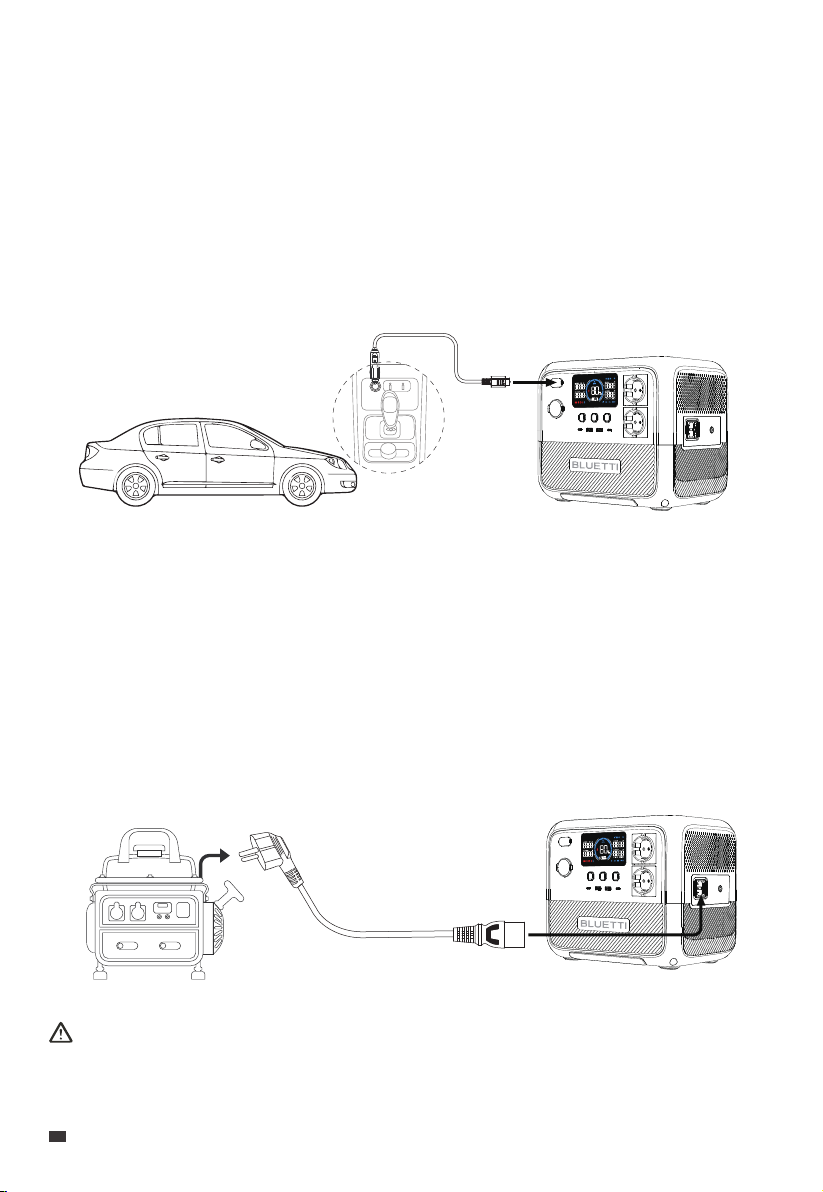

6.3 Car Charging

Connect the AC70P to the vehicle's 12V / 24V cigarette lighter port via the car charging cable. The AC70P also automatically stops charging when it's fully charged. On average, it takes about 7-9 hours to reﬁll the AC70P using a 12V port and 4-5 hours with a 24V port at an ambient temperature of 25℃ (77 ℉).

Note: Make sure your vehicle meets the following conditions for charging:

• The vehicle is capable of supplying power.

• The vehicle's engine is running during the charging process.

6.4 Generator Charging

Connect the AC70P to a generator via the AC charging cable. Under optimal conditions, it takes approximately 2 hours to reach a full charge at an ambient temperature of 25℃ (77 ℉). Note: Make sure your generator meets the following conditions for charging:

• The generator boasts a stable power output that exceeds the charging requirement of

the AC70P.

• The generator delivers a pure sine wave AC output with voltage and frequency that

meet AC70P's speciﬁcations.

For stable and efﬁcient charging, avoid using unreliable power sources like wind turbines. Also, it's not recommended to run your devices with AC70P while it's charging with a generator.

JUST POWER ON

Page 17

7. Discharging

7.1 AC Discharging

Item Speciﬁcations Compatible Loads

2 × AC Outlet

230V

50Hz / 60Hz

Appliances up to 1000W power.

e.g., air conditioners, refrigerators

Note: Do not apply AC70P to loads higher than 1000W, as this may cause damage to AC70P and

your devices.

7.2 DC Discharging

Item Speciﬁcations Compatible Loads

Cigarette

Lighter Port

2 × USB-A Port 5V / 2.4A

2 × USB-C Port

5 / 9 / 12 / 15 / 20V, 3A; 20V, 5A

12V / 10A

12V DC appliances up to 120W power.

e.g., car refrigerator, air conditioner

Mobile phones and other small loads.

Mobile phones, laptops, etc.

Note: To ensure optimal performance, avoid short-circuiting the ports and keep them dry during

use or storage. Additionally, do not block or cover the ports while ensuring proper ventilation.

8. Settings

The AC70P offers the convenience of adjusting its settings either via physical buttons or BLUETTI App. With the buttons located on the device itself, you have direct control over various settings such as ECO Mode, output frequency, charging modes, and other functionalities. Additionally, by using the BLUETTI App, you can access a user-friendly interface on your phone to conveniently monitor and control the AC70P.

8.1 Setting Mode

When the AC70P is powered on, press and hold the AC and DC power buttons for about 2 seconds till the frequency indicator ﬂashes to enter Setting Mode.

Press and hold the AC and DC power buttons at the same time to exit Setting Mode.

Note: If you do not perform any operation in 1 minute, the AC70P will automatically exit Setting Mode and no changes will be saved.

JUST POWER ON 17

Page 18

8.2 ECO Mode

ECO Mode is a power-saving mode that is enabled by default. When operating on ECO Mode, the AC / DC output will automatically turn off if the AC70P is bearing low (less than 40W or the set power) or no load for a while.

Note: When connecting a small power device, disable the ECO Mode for a successful and uninterrupted charge experience. In the Setting Mode, use the DC power button to navigate until the ECO icon starts ﬂashing on the screen. Then, press the AC power button to enable or disable the mode.

8.3 Frequency Switching

The current output frequency (50Hz / 60Hz) is displayed in the lower right corner of the screen. To change the frequency, access the Setting Mode, press the DC power button and the frequency starts ﬂashing. Then, press the AC power button to switch between the available frequency options.

8.4 Power Lifting Mode

Power Lifting Mode allows AC70P to handle high-power resistive loads up to 2000W, which is disabled by default. In the Setting Mode, use the DC power button to navigate until the icon starts ﬂashing on the screen. Then, press the AC power button to enable or disable the mode.

This mode is particularly useful when using the AC70P with demanding heating devices such as kettles, electric blankets, and hairdryers. If the screen reads "OVERLOAD" while operating such devices, activating Power Lifting mode allows the AC70P to tackle these tasks effectively.

Note: The resistive loads should have a power rating between 1000W and 2000W. Although the AC70P can handle higher power demands, its actual operating power remains at 1000W.

8.5 Bluetooth On/Off

In the Setting Mode, use the DC power button to navigate until the icon starts ﬂashing on the screen. Then, press the AC power button to turn the Bluetooth on or off.

8.6 AC Charging Mode

The AC70P supports three AC charging modes - Standard, Turbo, and Silent to ﬁt your speciﬁc needs. In the Setting Mode, use the DC power button to navigate until the or icon starts ﬂashing on the screen. Then, press the AC power button to enable or disable these two modes.

JUST POWER ON

Page 19

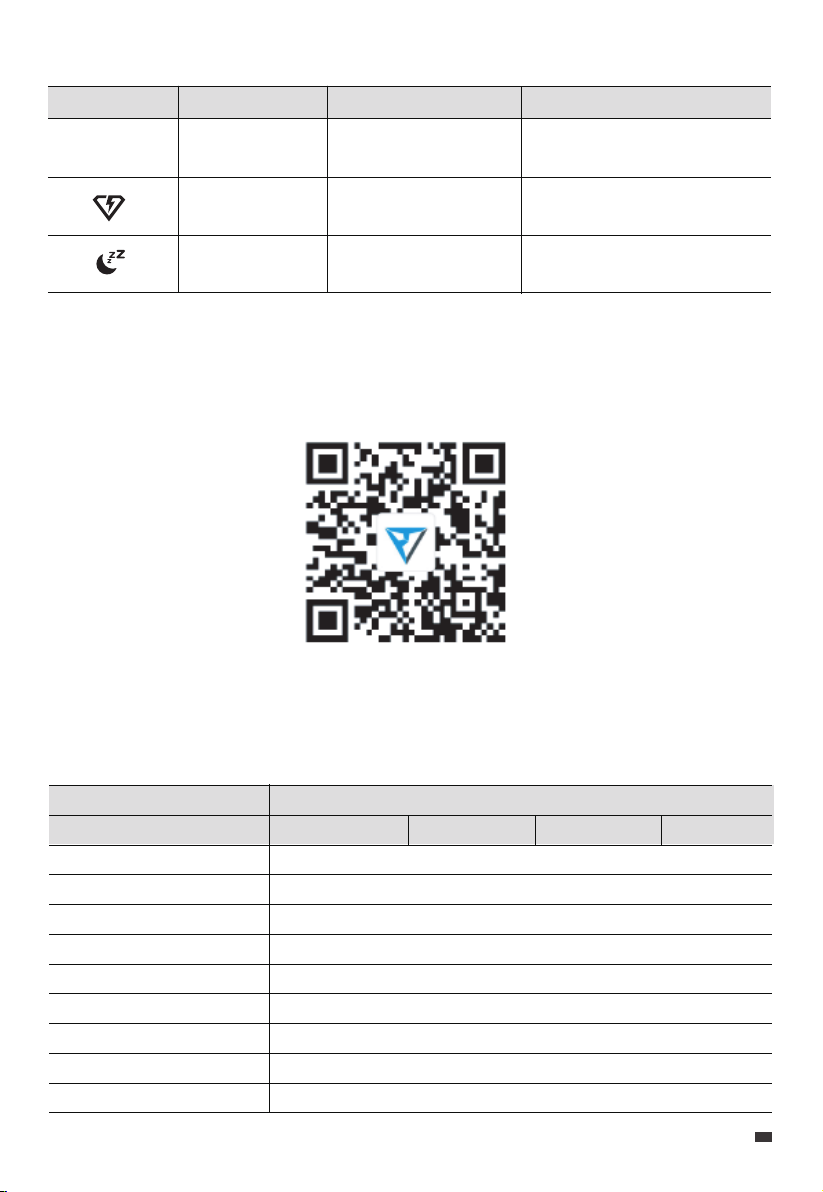

AC Charging Instructions

Icon

None

Mode

Standard

Turbo

Silent

Recharging Time

2 hours

1.5 hours

0-80% in 45 mins

4 hours

Reduces battery wear and tear

Convenient when recharging

Offers a quiet, low-power

Note

for long battery life.

time is a priority.

operation.

9. BLUETTI App

Scan the QR code below or search "BLUETTI" in the App Store or Google Play to download the BLUETTI App.

For more details, please refer to BLUETTI APP INSTRUCTIONS.

10. Speciﬁcations

Model AC70P

Country / Region

Battery Capacity

Cell Type

AC + DC Input

Net Weight

Dimensions (L*W*H)

Charging Temperature

Discharging Temperature

Storage Temperature

Working Humidity

314mm × 209.5mm × 255.8mm / 12.4in × 8.2in × 10.1in

US CN EU / UK / AU

864Wh

LiFePO

1000W Max.

10.2kg / 22.5lbs

0°C-40°C / 32°F-104°F

-20°C-40°C / -4°F-104°F

-20°C-40°C /-4°F-104°F

10%-90%

JUST POWER ON 19

Page 20

Country / Region

Power

Voltage

Current

Frequency

Cigarette Lighter Port

USB-A *2

USB-C *2

Wireless Charging

Voltage

Max. Current

Frequency

UPS

Power

Interface

Power

Current

Voltage

Max. Transmission Frequency

Max. RF Transmission Power

Receiver Sensitivity

Transmission Frequency Range

Max. RF Transmission Power

US CN EU / UK / AU

AC Output

1000W in total

100VAC

10A

120VAC

8.3A

220VAC

4.5A

230VAC

4.3A

50Hz / 60Hz

DC Output

12VDC / 10A

5VDC / 2.4A each port

5 / 9 / 12 / 15 / 20VDC, 3A; 20VDC, 5A each port

5W/7.5W/10W/15W

AC Input

100VAC

120VAC

220VAC

230VAC

50Hz / 60Hz

Switching time ≤20ms

850W Max. (0%-80% in 45 minutes @ 10℃-40℃ / 50°F-104°F)

DC Input

XT60PM-M

500W Max.

10A Max.

12V-58VDC

Bluetooth 5.0 / 5.1

125kbps

+12dBm

-99dBm / 1Mbps

Wireless Charging

110k-205kHz

15W

JUST POWER ON

Page 21

11. Troubleshooting

In the Setting Mode, press and hold the DC power button until an error code appears on the screen. Please refer to the table below for helpful guidance.

Error Code Error Description

E001

E002

E003

E004

E016

E033

E065

E068

E085

E086

E087

E088

E113

E114

E115

Discharging temperature too high

Discharging temperature too low

Inverter overload

Temperature protection

Inverter short circuit

Output failure

Fan failure

PV overvoltage

Cigarette lighter output

short circuit

Cigarette lighter output

overtemperature

Charging temperature too high

Charging temperature too low

Grid overvoltage

Grid undervoltage

Grid overfrequency

Troubleshooting

Check if the power consumption of your devices is too high. Reduce the load if necessary.

Check if any of your devices are overheating. Allow them to cool down before use.

Check if any of your electrical devices are causing a short circuit. Disconnect and resolve the issue.

The output voltage is abnormal. Inspect the machine for any malfunctions or irregularities.

Check if the fan is blocked, unplugged, or not functioning properly. Ensure proper ventilation.

Make sure the PV input voltage is within the range of 12V-58VDC.

Check if the power consumption of your devices is too high. Reduce the load if necessary.

Wait for the device connected to the cigarette lighter port to cool down.

Wait for the unit to cool down before charging.

Make sure the unit is placed in an ambient temperature of 0℃-40℃ (32°F-104°F).

Wait for the unit to cool down before discharging.

Make sure the unit is placed in an ambient temperature of 0℃-40℃ (32°F-104°F).

Check if the grid voltage is too high. Contact your local power provider if necessary.

Check if the grid voltage is too low. Contact your local power provider if necessary.

Check if the grid frequency is too high. Contact your local power provider if necessary.

E116

E117

Others

Grid underfrequency

Grid oscillation

Check if the grid frequency is too low. Contact your local power provider if necessary.

Disconnect the grid input and contact BLUETTI support for further assistance.

Please contact BLUETTI support for assistance.

JUST POWER ON 21

Page 22

Appx. 1 Estimating Operation Time

To estimate the operation time of the AC70P, consider the load you're applying:

• For high-power loads (above 300W):

Operation time = Battery Capacity (Wh) x DoD x η ÷ Load Power

• For small-power loads (below 300W):

Operation time = Battery Capacity (Wh) x DoD x η ÷ (Load Power + Self-consumption of

AC70P)

Note: DoD refers to depth of discharge. AC70P works at 90% DoD for longer battery life. η is the conversion efﬁciency of the inverter, typically over 85% for AC70P. The self-consumption of AC70P is approximately 15W.

E.g. If you have a 40W refrigerator, you can run it for about 12 hours. Operation time = 864Wh × 90% × 85% ÷ (40W + 15W) ≈ 12 hours.

Please keep in mind that the estimated operation time provided is for only purposes and may vary based on actual usage conditions. Factors such as low temperature and excessive loads can signiﬁcantly affect the battery capacity, leading to a reduction in the average operation time.

JUST POWER ON

Page 23

Appx. 2 FAQs

How do I know whether my devices will work well with this product?

Q1:

Please evaluate the total constant load of your devices. If it doesn't exceed the Max.

output power of AC70P (1000W), you can use this power station to run your devices. Note: Some devices with built-in motor or compressor may start at 2-4 times the rated power, which can easily overload the AC70P.

Q2:

Can I use third-party solar panels to charge this product?

Yes, you can. However, make sure your solar panels have an open circuit voltage of 12V-58V and are equipped with MC4 connectors. It's also important not to mix different types of solar panels.

Can it charge and discharge at the same time?

Q3:

Yes. It supports pass-through charging. The AC70P comes with the premium

LiFePO charge and discharge at the same time.

What is ECO Mode and can I turn it off?

Q4:

ECO Mode helps save power, and you can turn it on or off on the screen. When

operating on ECO Mode, the AC / DC output will automatically turn off if the AC70P is bearing low or no load for a while. You can set the power threshold of AC output and DC output to 10W-30W / 5W-10W, respectively, for 1, 2, 3, or 4 hours.

battery and proprietary Battery Management System to ensure that it can

Why is the charging power often too low?

Q5:

AC70P has a built-in intelligent BMS that automatically adjusts the charging power

in response to the battery temperature and SoC, thus protecting the battery and extending its service life.

JUST POWER ON 23

Page 24
