Bluetrek SURFACE SOUND COMPACT User Manual

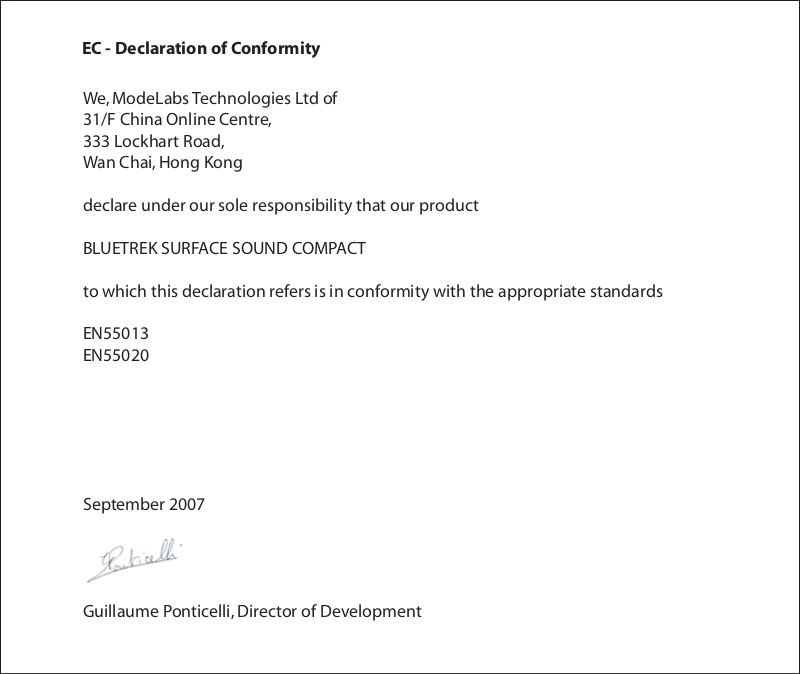

EC - Declaration of Conformity

We, ModeLabs Technologies Ltd of
31/F China Online Centre,
333 Lockhart Road,
Wan Chai, Hong Kong

declare under our sole responsibility that our product

BLUETREK SURFACE SOUND COMPACT

to which this declaration refers is in conformity with the appropriate standards

EN55013
EN55020

September 2007

Guillaume Ponticelli, Director of Development

FCC/ Industry Canada Notice

This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference. (2) This device must accept
any interference received, including interference that may cause undesired operation.

In compliance with Industry Canada regulations, technical specifications have been
provided in a declaration of conformity. This does not imply that Industry Canada approved
the equipment.

Caution: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate it.

Trademark of New Transducers LimitedTrademark of New Transducers Limited

Before using your BLUETREK® SURFACE SOUND COMPACT for the first time, you must

English

charge it continuously for approximately 10 hours, until the red indicator light turns off.
Please refer to the “Charging the BLUETREK® SURFACE SOUND COMPACT” section of this
manual.

Introduction

The BLUETREK® SURFACE SOUND COMPACT is a wireless car kit based on Bluetooth®
technology. It complies with Bluetooth® 1.2 protocol, supporting Headset and Handsfree
profile.
A built-in voice alert is an advanced feature that is now available on your car kit. A
recorded voice reminds you of the actions in your car kit, such as: reject a call, redial the
last number, redial the last incoming call, when you have a missed call, dial the missed call,
cancel the missed call, when your car kit is connected/disconnected and when your car kit
needs to be charged. The voice alert feature is activated by default. You may choose to
activate/inactivate this function by pressing both TALK button and VOL- for approximately
7 seconds, it will then restart and connect automatically.

The BLUETREK® SURFACE SOUND COMPACT has 3 buttons:

“TALK” button (main button)
“VOL+” button
“VOL-“ button

1 I BLUETREK SURFACE SOUND COMPACT

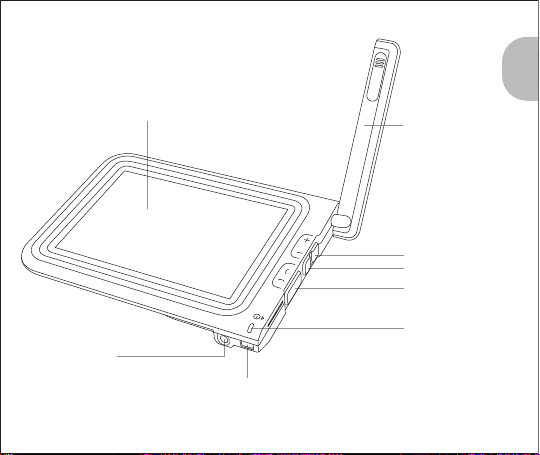

Earphone socket

Flat panel speaker

Charging Socket

Rotary microphone
arm

VOL+ button
VOL- button

TALK button

Indicator light

BLUETREK SURFACE SOUND COMPACT I 2

English

Using the BLUETREK® SURFACE SOUND COMPACT in different

English

environment

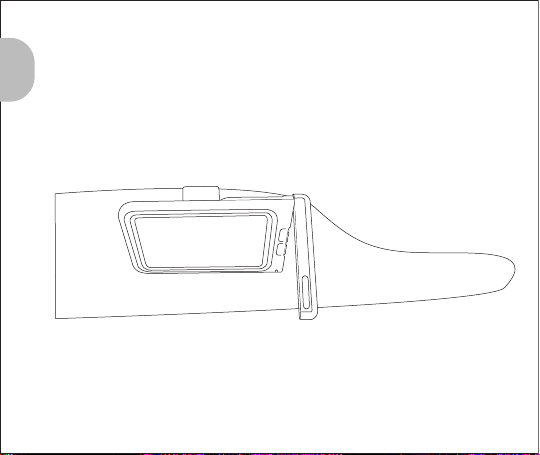

Mounting on the sun visor as a car kit

When using your BLUETREK® SURFACE SOUND COMPACT in your car, simply mount the
unit onto the visor with the clip as shown in Diagram 1.

Diagram 1

3 I BLUETREK SURFACE SOUND COMPACT

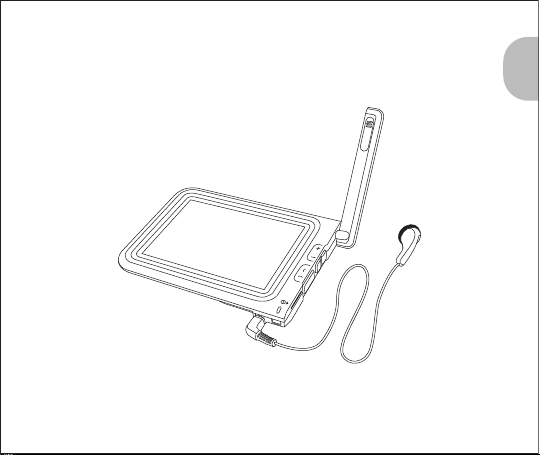

Using the earphone for private conversations

You can enjoy private conversations by plugging the supplied earphone into the
socket as shown in Diagram 2.

Diagram 2

BLUETREK SURFACE SOUND COMPACT I 4

English

English

Charging the BLUETREK® SURFACE SOUND COMPACT

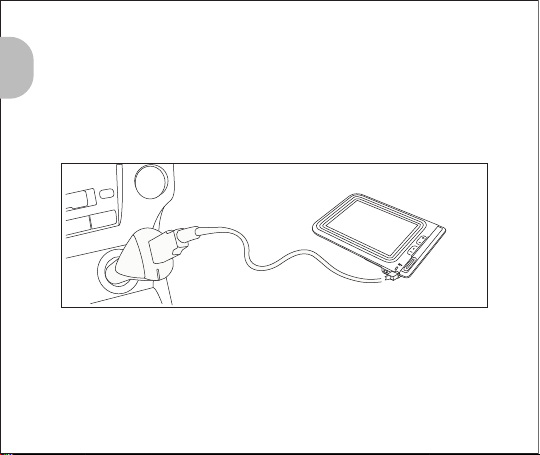

Connect the charging cable to the car charger and insert the car charger into the
cigarette lighter socket as shown in Diagram 3.

Diagram 3

5 I BLUETREK SURFACE SOUND COMPACT

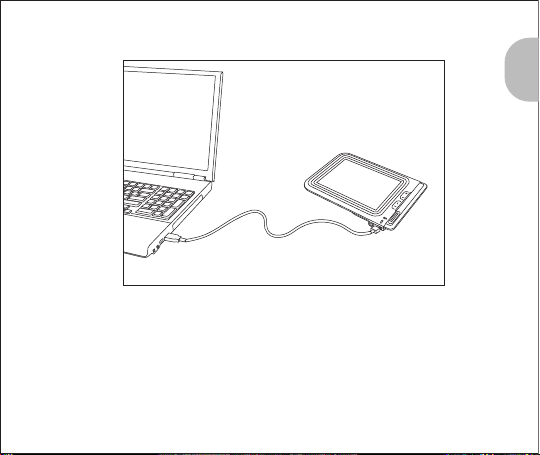

You can also connect the charging cable to a USB socket.

Diagram 4

While charging, the indicator light on the BLUETREK® SURFACE SOUND COMPACT should
be red. The indicator light will turn off when the unit is fully charged. Subsequent charges
should take approximately 4 hours.

When the indicator light on your BLUETREK® SURFACE SOUND COMPACT flashes in red at
regular intervals (or the voice alert is activated), the unit needs to be recharged.

BLUETREK SURFACE SOUND COMPACT I 6

English

Important:

English

· If your BLUETREK® SURFACE SOUND COMPACT is fully charged, the red indicator light
will not turn on when plugged into the charger.

· To maximize battery lifetime, you should recharge your BLUETREK® SURFACE SOUND
COMPACT to full capacity only when the battery is low, because the battery has a lifetime
of approximately 500 charging cycles.

· If you leave your BLUETREK® SURFACE SOUND COMPACT on with battery empty for an
extended period of time, it is recommended that you first switch off the BLUETREK®
SURFACE SOUND COMPACT before charging and charges it for 3 hours or more until it is
completely recharged. When you first charge the BLUETREK® SURFACE SOUND COMPACT
after prolonged storage, the red indicator light might not turn on until after a few
minutes.

· Do not charge your BLUETREK® SURFACE SOUND COMPACT for more than 24 hours.

· The use of any other charger will automatically void the warranty, it is strictly
forbidden and can be unsafe.

7 I BLUETREK SURFACE SOUND COMPACT

Pairing the BLUETREK® SURFACE SOUND COMPACT

Before using the BLUETREK® SURFACE SOUND COMPACT, you must pair it with your
Bluetooth® mobile phone. Pairing is the process of linking 2 Bluetooth® devices, so that
they can communicate.

To initiate pairing:

1. Place the BLUETREK® SURFACE SOUND COMPACT and your mobile phone within 0.3
meter (1 foot) from each other.

2. Switch on your phone and select its Bluetooth® discover mode (refer to the Bluetooth®
mobile phone user manual).

3. When the BLUETREK® SURFACE SOUND COMPACT is switched on, press and hold both
the TALK button and the VOL+ button for about 5 seconds until the indicator light
flashes red and blue alternately. And a sound can be heard in the speaker.

4. Once the mobile phone detects the car kit, a “BLUETREK COMPACT” message will be
displayed. Follow the phone instructions to accept the pairing. The PIN code (or
passkey) is 0000, then press “yes” or “ok”.

If pairing was successful, the indicator light will switch to blue and flashes slowly.

If you haven’t started the discovery mode within 5 minutes, it will stop. In this case, you
must start the pairing again as step 3 above.

BLUETREK SURFACE SOUND COMPACT I 8

English

Switching the BLUETREK® SURFACE SOUND COMPACT ON

English

and OFF

Switching the BLUETREK® SURFACE SOUND COMPACT ON

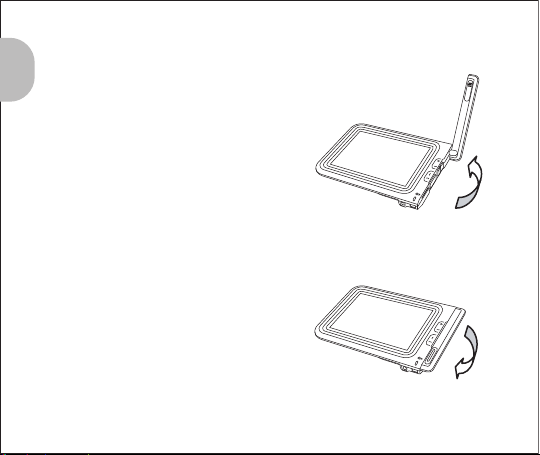

Switch on the BLUETREK® SURFACE
SOUND COMPACT by lifting up the
microphone arm as shown in Diagram 5.
You will hear a beep (2 tones) in the
speaker (and continuous connecting
beeps until it is connected to the
handset).

Switching the BLUETREK® SURFACE SOUND COMPACT OFF

Switch off the BLUETREK® SURFACE
SOUND COMPACT as shown in Diagram 6.

Diagram 5

9 I BLUETREK SURFACE SOUND COMPACT

Diagram 6

Making a call

*Mobile phone with voice recognition

. Make sure the voice recognition function on your mobile is activated and your voice tags
have been recorded with the phone. To enter these, please refer to your phone’s manual.
. When there is no incoming or active call, press once on the TALK button
. Wait for the audio signal sent by the mobile phone (generally a short tone).
. Speak the name of person you wish to call.

Mobile without voice recognition

. Make sure both the headset and the mobile phone are ON and in stand-by mode.
. Dial the number on the phone keypad, after approximately 2 seconds the audio
connection will be established.

*This function may not be available on some phones, please refer to the trouble shooting
frequent asked questions in our website: www.bluetrek.com to find out more.

Answering a call

When your BLUETREK® SURFACE SOUND COMPACT is OFF

Switch on your BLUETREK® SURFACE SOUND COMPACT. It will automatically transfer the
call from the phone to the car kit For some phones, you may need to press “Connect” on
the phone.

When your BLUETREK® SURFACE SOUND COMPACT is ON

Press once on the TALK button to take the call.

BLUETREK SURFACE SOUND COMPACT I 10

English

Ending a call

English

Press once on the TALK button to end an active call.

Adjusting the volume

To increase the volume during an active call, press the “VOL+” button on the BLUETREK®
SURFACE SOUND COMPACT.

To decrease the volume during an active call, press the “VOL-“ button on the BLUETREK®
SURFACE SOUND COMPACT.

Muting the microphone

To mute the microphone during an active call

During an active call, press and hold the VOL+ button for approximately 2 seconds. A
periodic tone can be heard in the speaker when the microphone is muted. You can still
adjust the speaker volume by pressing shortly on the VOL+ or Vol- button.

To end the mute function

When the microphone is muted, press and hold the VOL+ button for approximately 2
seconds. The periodic tone will end.

11 I BLUETREK SURFACE SOUND COMPACT

Transferring a call from the BLUETREK® SURFACE SOUND
COMPACT to the mobile phone

During an active call, double click on the TALK button
(This function only works in the Hands-Free Profile)
In Headset profile, you can simply turn off the BLUETREK® SURFACE SOUND COMPACT.

Transferring a call from the mobile phone to your
BLUETREK® SURFACE SOUND COMPACT

During an active call, double click on the TALK button. (It will take few seconds to
re-establish the connection between the mobile phone and the car kit).

Call waiting

When you hear a call waiting alert while you are on a call, press the TALK button on
the BLUETREK® SURFACE SOUND COMPACT for approximately 3 seconds to accept the
second call and place the current call on hold.

To switch between an active call and a held call, press the TALK button on the BLUETREK®
SURFACE SOUND COMPACT for approximately 3 seconds.

To end the active call and take the held call, press the TALK button once on the BLUETREK®
SURFACE SOUND COMPACT.

This function may not be available, depending on your phone. However, you can always
answer the second call via your phone keypad.

BLUETREK SURFACE SOUND COMPACT I 12

English

Alert for missed call

English

If the voice alert is activated, the BLUETREK® SURFACE SOUND COMPACT will warn you
periodically if you have a missed call.

To dial the missed call number

Press once on the TALK button on the car kit.

To cancel the missed call
Double click on the TALK button on your car kit.

Additional features with some phones

Rejecting a call

Press the TALK button on your car kit for approx. 3 seconds to reject the call.

Redial the last number

When there is no incoming or active call, press the VOL+ button on your car kit for
approx. 3 seconds.

Calling the last incoming call

When there is no incoming or active call, press the VOL- button on your car kit for
approx. 3 seconds.

13 I BLUETREK SURFACE SOUND COMPACT

Troubleshooting guide

The first thing you should do when encountering a problem that you cannot solve
with this manual is to switch off all the devices and switch them on again.

To find out more, please refer to the frequently asked questions on our website:
www.bluetrek.com.

BLUETREK SURFACE SOUND COMPACT I 14

English

Guidelines for safe use

English

Read these guidelines before using your BLUETREK® SURFACE SOUND COMPACT.

- The volume level of the BLUETREK® SURFACE SOUND COMPACT may vary, depending
on your mobile phone. Before using your car kit for the first time, adjust the volume to
the lowest level then increase it gradually until you reach an acceptable level.
High volume levels may result in hearing loss, so you should avoid using the BLUETREK®
SURFACE SOUND COMPACT continuously at high volume. If you experience ringing in
your ears or muffled speech, consult your doctor immediately and stop using the
BLUETREK® SURFACE SOUND COMPACT.

- Do not drop or try to alter the shape of your BLUETREK® SURFACE SOUND COMPACT.

- Do not expose your BLUETREK® SURFACE SOUND COMPACT to liquid or moisture.

- Do not expose your BLUETREK® SURFACE SOUND COMPACT to extreme temperatures.
Temperature range: -20 - 60 oC.

- Do not expose your BLUETREK® SURFACE SOUND COMPACT to fire or open flames.

- Do not try to disassemble your BLUETREK® SURFACE SOUND COMPACT. Service and
maintenance can only be performed by authorized BLUETREK® dealers.

- Keep your BLUETREK® SURFACE SOUND COMPACT away from dust and dirt.

- Do not let children play with your BLUETREK® SURFACE SOUND COMPACT, because it
contains small parts that could become detached and cause choking.

- Check the regulations in your area if you plan to use your BLUETREK® SURFACE SOUND
COMPACT while driving.

CAUTION : There is danger of explosion if the battery is incorrectly replaced. Dispose of
batteries according to local regulations and not as household waste.

15 I BLUETREK SURFACE SOUND COMPACT

Note on environmental protection:

GB

After the implementation of the European Directive 2002/96/EU in the national legal system, the following
applies:
Electrical and electronic devices may not be disposed of with domestic waste.
Consumers are obliged by law to return electrical and electronic devices at the end of their service lives to
the public collecting points set up for this purpose or point of sale. Details to this are defined by the
national law of the respective country. This symbol on the product, the instruction manual or the package
indicates that a product is subject to these regulations. By recycling, reusing the materials or other forms of
utilising old devices, you are making an important contribution to protecting our environment.
