Bluetechnix DEV-i.MX53, DEV-i.MX27, DEV-iMX31, SBC-i.MX51-S-C-Q24S512N2048 Hardware User Manual

Hardware User Manual

DEV-i.MX53 V1.x

Preliminary_DEV-i.MX53_HUM_V1.2.docx 2

Contact

Bluetechnix Mechatronische Systeme GmbH

Waidhausenstraße 3/19

A-1140 Vienna

AUSTRIA/EUROPE

[e-mail]

http://www.bluetechnix.com

Document No.: 100-4120-1.2

Date: 2012-02-14

Preliminary_DEV-i.MX53_HUM_V1.2.docx 3

Table of Contents

i.MX Core Modules..................................................................................................................................................................................... 6

i.MX Development Boards ...................................................................................................................................................................... 8

1 Introduction ....................................................................................................................................................................................... 9

1.1 Overview .................................................................................................................................................................................... 9

1.2 Available extensions ........................................................................................................................................................... 10

1.3 Key Features ........................................................................................................................................................................... 10

1.3.1 Core Modules ............................................................................................................................................................... 10

1.3.2 Active Components on DEV-i.MX53 .................................................................................................................... 10

1.3.3 Optional Parts on DEV-i.MX53 ............................................................................................................................... 10

1.4 Applications ............................................................................................................................................................................ 10

2 General Description ...................................................................................................................................................................... 12

2.1 Functional Description ....................................................................................................................................................... 12

2.1.1 Interface Interconnection........................................................................................................................................ 13

2.1.2 Powering ........................................................................................................................................................................ 13

2.1.3 Audio ............................................................................................................................................................................... 13

2.1.4 HDMI ................................................................................................................................................................................ 14

2.1.5 JTAG ................................................................................................................................................................................. 14

2.1.6 USB/UART Bridge ........................................................................................................................................................ 14

2.1.7 USB ................................................................................................................................................................................... 14

2.1.8 USB-OTG ......................................................................................................................................................................... 14

2.1.9 SDHC-Card..................................................................................................................................................................... 14

2.1.10 SATA ................................................................................................................................................................................ 14

2.1.11 Ethernet .......................................................................................................................................................................... 14

2.1.12 ISM Interface ................................................................................................................................................................. 14

2.1.13 CAN* ................................................................................................................................................................................ 15

2.1.14 LED Driver ...................................................................................................................................................................... 15

2.1.15 ADC .................................................................................................................................................................................. 15

2.1.16 Acceleration Sensor ................................................................................................................................................... 15

2.2 PCB Placement ...................................................................................................................................................................... 16

2.3 Mechanical Outline .............................................................................................................................................................. 16

3 Specifications ................................................................................................................................................................................... 19

3.1 Operating Conditions ......................................................................................................................................................... 19

3.2 Maximum Ratings ................................................................................................................................................................ 19

3.3 Analog Inputs......................................................................................................................................................................... 19

3.4 ESD Sensitivity ....................................................................................................................................................................... 19

4 Connector Description ................................................................................................................................................................. 20

Preliminary_DEV-i.MX53_HUM_V1.2.docx 4

4.1 Digital Video Extension Connector (X22) .................................................................................................................... 20

4.1.1 Camera Sensor Interface Port (CSI0) ................................................................................................................... 20

4.1.2 LCD Port (DISP0) .......................................................................................................................................................... 20

4.1.3 Pin Description Table ................................................................................................................................................ 20

4.2 GPIO/Automation Extension Connector (X23) ......................................................................................................... 22

4.2.1 Pin Description Table ................................................................................................................................................ 23

4.3 Image Sensor Connector X21 (BLT-ISM-Connector) ............................................................................................... 26

4.4 Reset / Power-On Connector (X10)................................................................................................................................ 26

4.5 Auxiliary Power Supply Connector (X5)....................................................................................................................... 27

5 Switches, Jumpers and LEDs ..................................................................................................................................................... 28

5.1 RGB LED (V12) ........................................................................................................................................................................ 28

5.2 Push Buttons (S4, S3) .......................................................................................................................................................... 28

5.3 Backup Battery (optional) ................................................................................................................................................. 28

5.4 Board Configuration Switches (S2, S1) ......................................................................................................................... 28

6 Support .............................................................................................................................................................................................. 30

6.1 General Support .................................................................................................................................................................... 30

6.2 Board Support Packages ................................................................................................................................................... 30

6.3 i.MX Software Support ....................................................................................................................................................... 30

6.3.1 Linux ................................................................................................................................................................................ 30

6.3.2 Win CE ............................................................................................................................................................................. 30

6.4 i.MX® Design Services .......................................................................................................................................................... 30

6.4.1 Upcoming Products and Software Releases .................................................................................................... 30

7 Ordering Information ................................................................................................................................................................... 31

7.1 Predefined mounting options for DEV-i.MX53 ......................................................................................................... 31

8 Dependability .................................................................................................................................................................................. 32

8.1 MTBF .......................................................................................................................................................................................... 32

9 Product History ............................................................................................................................................................................... 33

9.1 Version Information ............................................................................................................................................................. 33

9.2 Anomalies ................................................................................................................................................................................ 33

10 Document Revision History ................................................................................................................................................... 34

11 List of Abbreviations ................................................................................................................................................................ 35

A List of Figures and Tables ............................................................................................................................................................ 37

Preliminary_DEV-i.MX53_HUM_V1.2.docx 5

© Bluetechnix Mechatronische Systeme GmbH 2012
All Rights Reserved.

The information herein is given to describe certain components and shall not be considered as a guarantee of
characteristics.

Terms of delivery and rights of technical change reserved.

We hereby disclaim any warranties, including but not limited to warranties of non-infringement, regarding circuits,
descriptions and charts stated herein.

Bluetechnix makes and you receive no warranties or conditions, express, implied, statutory or in any
communication with you. Bluetechnix specifically disclaims any implied warranty of merchantability or fitness for a
particular purpose.

Bluetechnix takes no liability for any damages and errors causing of the usage of this board. The user of this board is
responsible by himself for the functionality of his application. He is allowed to use the board only if he has the
qualification. More information is found in the General Terms and Conditions (AGB).

Information

For further information on technology, delivery terms and conditions and prices please contact Bluetechnix
(http://www.bluetechnix.com).

Warning

Due to technical requirements components may contain dangerous substances.

Preliminary_DEV-i.MX53_HUM_V1.2.docx 6

i.MX Core Modules

The Core Module CM-i.MX27 is powered by Freescales' SoC i.MX27 (ARM 926 core, up to 400MHz). It addresses
128MB DDR-RAM, has an onboard NOR-flash of 32MByte and a NAND-flash with 512MByte at a size of 55x45mm.

CM-i.MX27-C-C-Q26S128F32N512

The Core Module CM-i.MX31 is powered by Freescales' SoC i.MX31 (ARM1136JF-S core, up to 532MHz). It
addresses 128MB DDR-RAM, has an onboard NOR-flash of 40MByte and a NAND-flash with 128MByte at a size of
55x45mm. Core module is available as connector or BGA.

CM-i.MX31-C-C-Q26S128F40N128-E

CM-i.MX53-C-I-Q24S1024F4N2048)

The Core Module CM-i.MX53 is powered by Freescales' SoC i.MX53 (ARM® Cortex™-A8, up to 1GHz). It addresses
1024MB DDR2-SDRAM, has an onboard NOR-flash of 4MByte and a NAND-flash with 2048MByte at a size of
80x45mm.

Preliminary_DEV-i.MX53_HUM_V1.2.docx 7

Core Module naming information

The idea is to put more Core Module specific technical information into the product name. New Core Module names
will have following technical information covered in their names.

• Product Family,

• CPU-Type,

• Connection-Type,

• Operating Temperature Range,

• Crystal Frequency [MHz],

• RAM [MB],

• Flash [MB],

• External Controllers

•

o Special and/or

Optional

o Former name

That expands of course the name but allows the customer to get the most important Core Module specific
information at the first sight. Have a look at the example below to get an idea of the new Core Module names.

Example CM-BF537-C-C-Q25S32F4 (CM-BF537E)

- - - - - -

Product Family Former name

CM = Cor e Mo du l e Spe cial

SBC = Singl e Board Computer Custom Core Modules or specials

CPU-Type uC = ucli nux

Equals the name of CPU Extra controllers mounted

Connection-Type E = Ether net

A = BGA U = USB

B = Bord er pa d Flash [MB]

C = Co nn ec tor F = NOR Flas h [MB]

S = S

Spec ia l N = NAND Fl as h [M B]

Operating Temperature Range RAM

A = Auto moti ve (-40° to +125°) S = SDRAM [MB]

C = Co mmer ci a l (0° to +70°)

I = Industry (-40° to +85°)

Crystal Frequency

Nota ti on : QXX[MHz]

F4

(CM- BF537E)

S32CMBF537

CCQ25

Preliminary_DEV-i.MX53_HUM_V1.2.docx 8

i.MX Development Boards

DEV-i.MX27

The DEV-i.MX27 development board is an extendable development platform for the CM-i.MX27 processor modules.
With display connector and keypad it can be used as a reference design for a low power mobile handheld device
powered by a single Lithium Ion battery. The development board provides all interfaces of the connector version on
dedicated expansion connectors. Extender boards can be plugged on top of the development board in order to
enable additional interfaces.

DEV-iMX31

The DEV-i.MX31 Development Board is an extendable development platform for the CM-i.MX31 processor module.
With display connector and keypad it can be used as a reference design for a low power mobile handheld device
powered by a single Lithium Ion battery. The development board provides all interfaces of the connector version on
dedicated expansion connectors. Extender boards can be plugged on top of the development board in order to
enable additional interfaces.

The Single-Board Computer SBC-i.MX51 is based on Freescale’s high-performance i.MX51 mobile platform,
incorporating an ARM Cortex-A8 CPU, an Image Processing Unit (IPUv3EX), a Video Processing Unit (VPU) and a
Graphical Processing Unit (GPU). The IPUv3EX provides comprehensive support for connectivity to displays and
cameras. The VPU supports hardware encoding and decoding of MPEG-4, H.263, H.264 and many more standards.
The GPU serves 3D and 2Dacceleration in hardware. The board‘s memory capabilities (NAND Flash, DDR2) and
numerous interfaces like Ethernet, HDMI,4xUSB and USB-OTG turn the SBC-i.MX51 into the ultimate development
board for future high-end embedded devices.

SBC-i.MX51-S-C-Q24S512N2048

DEV-i.MX53

The DEV-i.MX53 development board is an extendable development platform for the CM-i.MX53 processor module.
The development board provides all interfaces of the connector version (Ethernet, HDMI,4xUSB and USB-OTG) on
dedicated extender connectors. Extender boards can be plugged on top of the development board in order to
enable additional interfaces.

Extender boards

Extender boards (EXT-SBC-i.MX51-) are expanding the development board SBC-i.MX51 by several interfaces and
functionalities. Targeted application areas are: audio/video processing, security and surveillance, Ethernet access,
positioning, automation and control, experimental development and measuring.

Note! Bluetechnix is offering tailored board developments as well.

Preliminary_DEV-i.MX53_HUM_V1.2.docx 9

1 Introduction

The DEV-i.MX53 Development Board is a feature rich, low cost rapid development platform designed to decrease
time-to-market of customized applications. It supports Bluetechnix’ powerful i.MX53 based Core Module. The
development board provides all interfaces on dedicated connectors and features the latest extender socket
(bottom side) for upcoming extender boards. The form factor of the DEV-i.M5x allows easy integration of the board
into OEM products.

In combination with any of Bluetechnix’ CM-i.MX53 the DEV-i.MX53 is a future proof embedded development
platform for high sophisticated applications in all areas!

Target applications include industrial automation and control systems as well as applications making use of the
extensive video features.

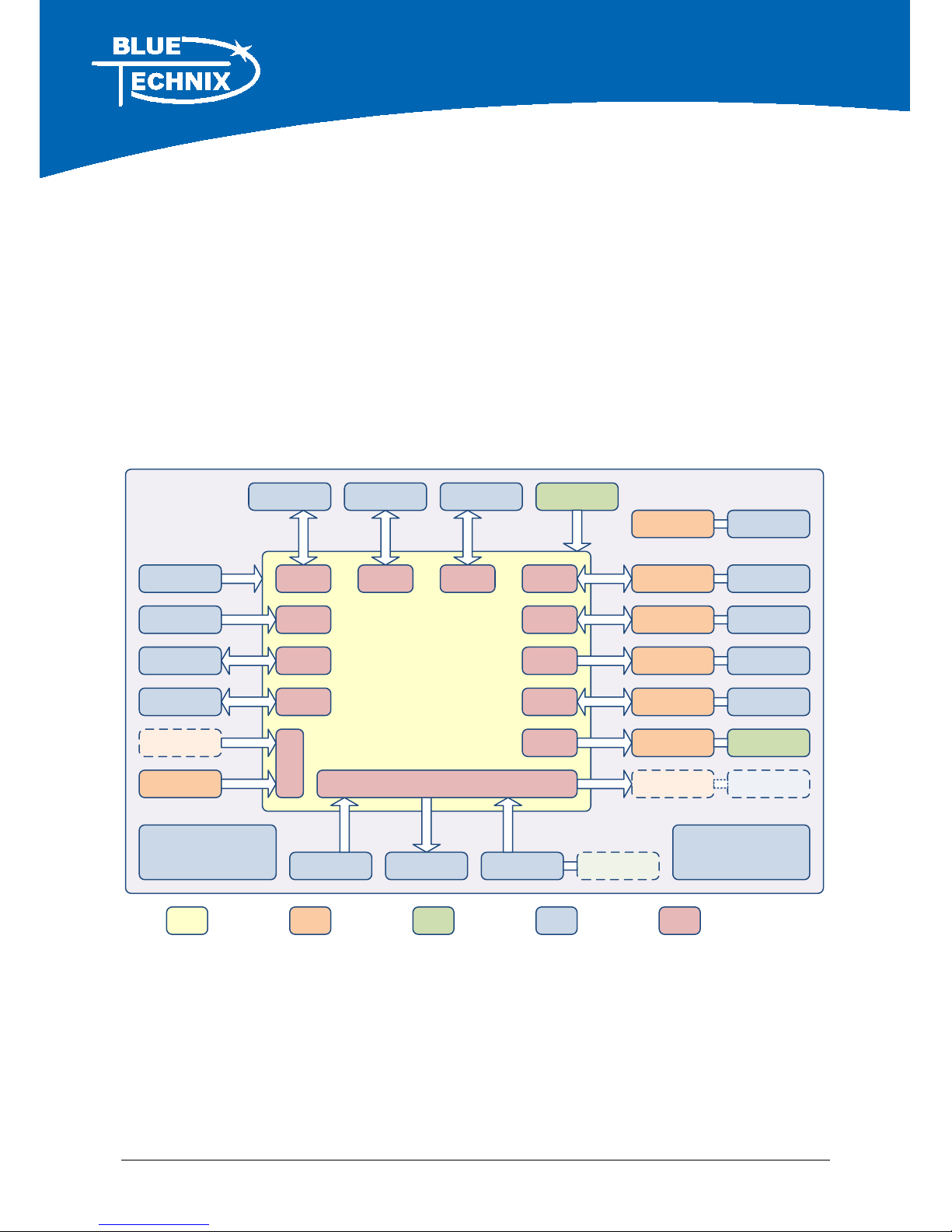

1.1 Overview

1-Wire / I

2

C

JTAG

SATA

HDMI

Line-In

Headphone-Out

4 x USB-A

Mini-USB-B

RJ45USB-HUB

CAN i/f

DC-Plug

RGB LED

Reset Button,

Power On Button

SDHC Card Slot

CM-i.MX53

On-Board Mic

3-axis

Accelerometer

Camera

Interface

Serial I/O Extender

Video Extender

USB-OTG

UART-USB

Bridge

Mic-In

HDMI

Transmitter

CAN

RGB-LED

Driver

Core Module

Active
Components

User Interfaces Connectors

Speaker-Out

Figure 1-1: Overview of the main components

Preliminary_DEV-i.MX53_HUM_V1.2.docx 10

1.2 Available extensions

In addition, different extensions boards from Bluetechnix are available. Further boards are added based on the
number of customer demands. All specifications you need to design a custom board of your own are freely available
so you can start your design right away. Bluetechnix also offers design support for your custom extensions. The
following extensions are currently planned and will be available soon.

• EXT-i.MX53-COMM

o GPS
o GSM
o UMTS
o Bluetooth/WLAN
o Display Interface for TFT Displays with RGB interface
o Two Display Interfaces for TFT Displays with LVDS interface
o Image Sensor Interface

• EXT-i.MX53-EXP

o Experimental board making every pin on the extension board available on a test point (allows for

rapid prototyping)

1.3 Key Features

1.3.1 Core Modules

The DEV-i.MX53 allows the use of i.MX Core Modules based on the i.MX53 processor family.

1.3.2 Active Components on DEV-i.MX53

• HDMI/DVI Transmitter (Analog Devices AD9889)

• 7 Port USB HUB (SMSC USB2517)

• DC-DC Converters (5.0V: LM3485; 3.3V: ADP2301; 1.8V: ADP2108)

• USB/UART Bridge (Silicon Labs CP2104)

• CAN Transceiver (TI SN65HVD232D)

• RGB-LED driver with I²C interface (Toshiba TCA62724FMG)

• 4 Channel ADC (AD7993) for voltage monitoring or resistive touch panels

1.3.3 Optional Parts on DEV-i.MX53

• On-board microphone (Knowles Acoustics SPM0208HD5)

• Acceleration sensor (Freescale MMA7660FCR1)

• 2x 2.5W Audio Amp (ON-Semi NCP2820FCT2G)

Please understand that these are only active parts and require additional connectors and passive parts as well. We
provide information regarding these parts on request.

1.4 Applications

• Automotive infotainment

• Single Board Computer

• Tablets

Preliminary_DEV-i.MX53_HUM_V1.2.docx 11

• Smart Mobile Devices

• Human-Machine-Interface

• Medical Devices

• Video Conference Systems

• Imaging and Consumer Multimedia

• Set Top Boxes

• Video Conference Applications

• Portable Media Players

• Industrial Applications

• High-end Mobile Internet Devices (MID), High-end PDAs

• Netbooks (web tablets)

• Nettops (internet desktop devices)

• High-end portable media players (PMP) with HD video capability

• Portable navigation devices (PND)

Preliminary_DEV-i.MX53_HUM_V1.2.docx 12

2 General Description

The DEV-i.MX53 is a development board for i.MX Core Modules based on the ARM Cortex A8™ core (CM-i.MX53). The
development board features a broad spread selection of available interfaces from the Core Module, like USB,
USBOTG, Ethernet, SATA, SD-Card, HDMI, CAN*, and analog audio. In addition there is the possibility to access

unused interfaces by applying an extension board to the extension connectors located on the bottom side.

* Available only for Industrial Core Modules (see chapter 7).

2.1 Functional Description

Figure 2-1 shows the on-board components and how they are connected to the Core Module. A more precise listing
including which interface is routed to which board extension connectors is shown in the interconnection tables
below.

14-pin 2.54mm

Header

SATA

HDMI

Line-In

Headphone-Out

4 x USB-A

Mini-USB-B

RJ45

USB-HUB

CAN i/f

DC-Plug

Power LED,

RGB LED

Reset Button,

Power On Button

SDHC Card Slot

CM-i.MX53

On-Board Mic

3-axis

Accelerometer

Camera

Interface

Serial I/O Extender

Video Extender

USB-OTG

UART-USB

Bridge

Mic-In

HDMI

Transmitter

CAN

RGB-LED

Driver

Core Module

Active
Components

User Interfaces Connectors

DC/DC

Regulators

Speaker-Out

2.5W Audio
Amp

Audio Interface

CSI0

I²C2

I²C2

JTAG

SD3

SATA

USBOTG

LAN

USBH2

UART1

DISP1

CAN1

CM Interfaces

Bootmode

Switches

4 Channel ADC

Figure 2-1: DEV-i.MX53 Interconnection Diagram

Preliminary_DEV-i.MX53_HUM_V1.2.docx 13

2.1.1 Interface Interconnection

The following table lists all available interfaces from the Core Module and how they are interconnected on the
Development Board.

Interface Category Pins Connected to Comment

AUDIO

Analog Audio 8 Triple 3.5mm Audio Jack

AUD5

Digital Audio 6 HDMI Transmitter

CAN1

CAN 2 CAN Transceiver

eCSPI1

SPI 5 Extension Connector SS0 + SS1

eCSPI2

SPI 5 Extension Connector SS0 + SS1

eSDHC2

SD-Card 11 Extension Connector 8-bit

eSDHC3

SD-Card 6 SD-Card 4-bit

FIRI

UART (IrDA) 2 Extension Connector 2-bit

CSI0

IPU 14 BLT-ISM interface; Extension Connector 10-bit

DI0

IPU 21 Extension Connector 18-bit

DI1

IPU 27 HDMI Transceiver 24-bit

LAN

Ethernet 6 RJ45 Socket

LVDS0

LDB 10 Extension Connector

LVDS1

LDB 10 Extension Connector

OWIRE

OWIRE 1 Extension Connector

PWM

PWM 2 Extension Connector

I²C2

I²C 2 RGB-LED Driver, Acceleration Sensor, HDMI

Transmitter, Extension Connector

Pull-Ups on Board

I²C3

I²C 2 Extension Connector No Pull-Ups

SATA

SATA 4 Serial ATA Connector Supply for 2.5” HDD

UART1

UART 2 UART-USB Bridge

UART2

UART 4 Extension Connector

UART3

UART 4 Extension Connector

USBOTG

USB 2 Mini USB-AB Connector

USBH1

USB 2 USB Hub

Table 2-1: CM-i.MX53 Interface routing

2.1.2 Powering

The DEV-i.MX53 works with a single power supply of 12V to 16V. This input voltage is also routed to the extension
connectors and can be used there, e.g. for TFT backlight etc.

If stand-alone operation is desired, an auxiliary plug provides the option to connect a Li-Ion battery pack with an
external battery charger.

2.1.3 Audio

The audio interface is used to deliver a standard PC audio interface with Microphone-In, Line-In and Line-Out.
Standard 3,5mm audio jacks are used. A Headset can be connected to the Microphone-In and Line-Out connectors.

On request there is the possibility to mount two 2.5W amps. The speakers can be applied to the screw-less terminal
connectors X18 and X19.

On request an on-board microphone can be mounted next to the audio jacks.

Preliminary_DEV-i.MX53_HUM_V1.2.docx 14

2.1.4 HDMI

The HDMI connector provides a standard interface for digital video and audio signals. The HDMI/DVI transmitter is
preprocessing the video signal from the IPU. The audio stream comes from the AUD5 interface of the i.MX53x. The
device can be accessed via the I²C1 bus with the device address 0x39.

2.1.5 JTAG

A standard ARM JTAG connector (20 pins, 2.54mm pitch) is available for processor debugging.

2.1.6 USB/UART Bridge

The UART1 is connected to a SiLabs CP210x, which implements the USB to UART Bridge. A mini USB-B connector is
connected to the device.

2.1.7 USB

The USBH1 port of the DEV-i.MX53 is connected to a seven port USB HUB (SMSC USB2517). Consequently the board
features four standard USB-A connectors, three USB lanes are routed to the IO-extension connector.

2.1.8 USB-OTG

The i.MX53’ internal USB-OTG PHY is routed to a mini USB-A/B connector.

2.1.9 SDHC-Card

The SDHC-Card signals are directly connected to the SD3 port of the CM-i.MX53. A standard SD-Card connector
mounted on the bottom side of the board supports SD and SDHC cards.

2.1.10 SATA

The DEV-i.MX53 allows connecting one SATA HDD or SSD. The 5.0V supply which is needed for most 2.5” HDDs or
SSDs is available on the screw-less terminal connector X25. If a 3.5” HDD is needed, the power supply has to be
realized externally.

The user has to make sure, that no more than 500mA will be drawn from the 5.0V terminal. A 1A fuse is populated
on the DEV-board.

2.1.11 Ethernet

As the Ethernet PHY is already integrated on the Core Module, the LAN signals are routed directly to a RJ45 LAN
connector.

2.1.12 ISM Interface

The camera sensor interface signals (CSI0) are routed to a 30 pin ZIF connector. The connector is compatible to the
Bluetechnix ISM interface and allows connecting all available

Image Sensor Modules from Bluetechnix.

Preliminary_DEV-i.MX53_HUM_V1.2.docx 15

2.1.13 CAN*

A SN65HVD232D CAN transceiver is present on the Development Board, which allows integrating the board into a
CAN bus infrastructure. A termination resistor is designed-in, but not populated. If the termination is needed, a
120Ω 0402 SMD resistor can be soldered.

* Available only for Industrial Core Modules (see chapter 7).

2.1.14 LED Driver

A RGB LED is mounted for status signaling. The LED is connected to a TCA62724FMG I²C RGB LED driver. The device
can be accessed via the I²C1 bus with the device address 0x55.

2.1.15 ADC

The AD7993 analog to digital converter has two possible functions. By default it can be used for battery supervisory
to measure battery voltage and charging current. If the battery charger won’t be used, the four channels are
available on the extension connectors and it is possible to connect them to a touch screen panel. The device can be
accessed via the I²C1 bus with the device address 0x22.

2.1.16 Acceleration Sensor

The on-board 3-axis acceleration sensor MMA7660FC is connected to the I²C2 bus and is accessible via address
0x4C.

Preliminary_DEV-i.MX53_HUM_V1.2.docx 16

2.2 PCB Placement

Figure 2-2: Top connectors placement

2.3 Mechanical Outline

This section shows the position of all connectors and mounting holes. All dimensions are given in mm.

Preliminary_DEV-i.MX53_HUM_V1.2.docx 17

Figure 2-3: DEV-i.MX53 top view

Preliminary_DEV-i.MX53_HUM_V1.2.docx 18

Figure 2-4: DEV-i.MX53 bottom view

Preliminary_DEV-i.MX53_HUM_V1.2.docx 19

3 Specifications

3.1 Operating Conditions

Symbol Parameter Min Typical Max Unit

VIN

Input supply voltage 12 12 16 V

P

Board Power Consumption

1)

TBD TBD W

VUSBx

USB Supply Voltage 4.5 5.0 5.5 V

IUSBx

USB Supply Current - - 500 mA

Table 3-1: Electrical characteristics

1)

The Power consumption refers to a CM-i.MX53 with Android running in idle state and no Extension Boards or USB-

Devices plugged in.

3.2 Maximum Ratings

Stressing the device above the rating listed in the absolute maximum ratings table may cause permanent damage
to the device. These are stress ratings only. Operation of the device at these or any other conditions greater than
those indicated in the operating sections of this specification is not implied. Exposure to absolute maximum rating
conditions for extended periods may affect device reliability.

Symbol Parameter Min Max Unit

VIO

Input or output voltage -0.5 3.6 V

VIN

Input supply voltage TBD TBD V

I

OH /IOL

Current per pin 0 10 mA

T

AMB

Ambient temperature -40 85 °C

T

STO

Storage temperature -55 150 °C

φ

AMB

Relative ambient humidity 90 %

Table 3-2: Absolute maximum ratings

3.3 Analog Inputs

The 10-bit ADC, which is integrated in the AD7993BRUZ-0, allows measuring analog voltages. These analog inputs
are mainly used for resistive touchpad sensing or voltage (battery) monitoring.

Parameter Symbol Min Typ. Max Unit

Resolution

10 Bit

Conversion Core Input Voltage

V

in

0 - 3.3 V

Conversion Time Per Channel

tc 2 µs

Table 3-3: ADC characteristics

3.4 ESD Sensitivity

ESD (electrostatic discharge) sensitive device.
Charged devices and circuit boards can discharge without detection. Although this
product features patented or proprietary protection circuitry, damage may occur on
devices subjected to high energy ESD. Therefore, proper ESD precautions should be taken
to avoid performance degradation or loss of functionality.

Preliminary_DEV-i.MX53_HUM_V1.2.docx 20

4 Connector Description

4.1 Digital Video Extension Connector (X22)

The video extension connector allows customers to design their own video extension with user-defined camera and
display components. A 100-pin-0.5mm-pitch mezzanine connector FX-10A-100S/10SV_M from Hirose (mating part is
FX10A-100P/10-SV) is used.

4.1.1 Camera Sensor Interface Port (CSI0)

A camera or an alternative video device (such as the OV2655 or the ADV7180) can be connected to the DEV-i.MX53
board using the CMOS Sensor Interface 0 (CSI0).

Width (bit) Interface Description

10

CSI0

CSI0.D0 – CSI0.D9

5

CSI0 CSI0.VSYNC, CSI0.HSYNC, CSI0.VSYNC, CSI0.PCLK, CSI0.DE

2

I2C1 I2C1.SDA, I2C1.SCL - Camera control interface

14

Power 3V3, P_SW3_2V5, 5V0, VIN, GND

Table 4-1: CSI port overview

4.1.2 LCD Port (DISP0)

The DISP0 interface is available to connect an LCD display and a touch screen to the DEV-i.MX53 board. The i.MX53
supports display resolutions up to 1680X1050 (WSXGA+).

Width (bit) Interface Description

16

DISP0 DISP0.D0 – DISP0.D17

4

DISP0 DISP0.VSYNC, DISP0.HSYNC, DISP0.CLK, DISP0.DE

1

PWM

CRTL.PWM2

10

LVDS1 LVDS1 interface

10

LVDS0 LVDS0 interface

15

Power 3V3, P_SW3_2V5, 5V0, VIN, GND

Table 4-2: LCD port overview

4.1.3 Pin Description Table

Pin No

Signal

Type

Description

1 GND PWR Power Ground
2 GND PWR Power Ground
3 GND PWR Power Ground
4 5V0 PWR Power Supply
5 5V0 PWR Power Supply
6 DISP0.D1 O Display Port 0 Data
7 DISP0.D3 O Display Port 0 Data
8 DISP0.D5 O Display Port 0 Data
9 DISP0.D7 O Display Port 0 Data
10 GND PWR Power Ground
11 DISP0.D9 O Power Ground
12 DISP0.D11 O Display Port 0 Data

13

DISP0.D13 O Display Port 0 Data

Preliminary_DEV-i.MX53_HUM_V1.2.docx 21

Pin No Signal Type Description

14 DISP0.D15 O Display Port 0 Data
15 DISP0.D17 O Display Port 0 Data
16 GND PWR Power Ground
17 DISP0.CLK O Display Port 0 Clock
18 GND PWR Power Ground
19 CSI0_D10 IO CMOS sensor interface 0 Data
20 CSI0_D10 IO CMOS sensor interface 0 Data

21

CSI0_D10 IO CMOS sensor interface 0 Data

22 CSI0_D10 IO CMOS sensor interface 0 Data
23 CSI0_D10 IO CMOS sensor interface 0 Data
24 CSI0_D10 IO CMOS sensor interface 0 Data
25 CSI0_D10 IO CMOS sensor interface 0 Data
26 CSI0_D10 IO CMOS sensor interface 0 Data
27 CSI0_D10 IO CMOS sensor interface 0 Data
28 CSI0_D10 IO CMOS sensor interface 0 Data
29 GND PWR Power Ground
30 CSI0_DE O CMOS sensor interface 0 Data Enable
31 GND PWR Power Ground
32 CSI0_PCLK I CMOS sensor interface 0 Pixel Clock
33 GND PWR Power Ground
34 CSI0_HSYNC I CMOS sensor interface 0 HSYNC
35 CSI0_VSYNC I CMOS sensor interface 0 VSYNC
36 LVDS1.CLK_N IO LVDS Clock (-)
37 LVDS1.CLK_P IO LVDS Clock (+)
38 LVDS1.TX0_N O LVDS Transmit Data0 (-)
39 LVDS1.TX0_P O LVDS Transmit Data0 (+)
40 LVDS1.TX1_N O LVDS Transmit Data1 (-)
41 LVDS1.TX1_P O LVDS Transmit Data1 (+)
42 LVDS1.TX2_N O LVDS Transmit Data2 (-)
43 LVDS1.TX2_P O LVDS Transmit Data2 (+)
44 LVDS1.TX3_N O LVDS Transmit Data3 (-)
45 LVDS1.TX3_P O LVDS Transmit Data3 (+)
46 P_SW3_2V5 PWR Power Supply
47 P_SW3_2V5 PWR Power Supply
48 GND PWR Power Ground
49 GND PWR Power Ground
50 GND PWR Power Ground
51 GND PWR Power Ground
52 GND PWR Power Ground
53 GND PWR Power Ground
54 3V3 PWR Power Supply
55 3V3 PWR Power Supply
56 LVDS0.TX3_P O LVDS Transmit Data3 (+)
57 LVDS0.TX3_N O LVDS Transmit Data3 (-)
58 LVDS0.TX2_P O LVDS Transmit Data2 (+)
59 LVDS0.TX2_N O LVDS Transmit Data2 (-)
60 LVDS0.TX1_P O LVDS Transmit Data1 (+)
61 LVDS0.TX1_N O LVDS Transmit Data1 (-)
62 LVDS0.TX0_P O LVDS Transmit Data0 (+)
63 LVDS0.TX0_N O LVDS Transmit Data0 (-)
64 LVDS0.CLK_P IO LVDS Clock (+)
65 LVDS0.CLK_N IO LVDS Clock (-)
66 GPIO4_1 IO Camera Output Enable

Preliminary_DEV-i.MX53_HUM_V1.2.docx 22

Pin No Signal Type Description

67

GPIO4_0 O Camera Trigger

68

GPIO4_2 O Global Camera Reset

69 VGAGND PWR Power Ground
70 RGB.R O AV Out Red
71 VGAGND PWR Power Ground
72 RGB.G O AV Out Green
73 VGAGND PWR Power Ground

74

RGB.B O AV Out Black

75 VGAGND PWR Power Ground
76 NC NC Not Connected
77 I2C1.SCL IO I2C Clock
78 I2C1.SDA IO I2C Data
79 NC NC Not Connected
80 CTRL.PWM2 O PWM
81 GND PWR Power Ground
82 DISP0.DE O Display Port 0 Data Enable
83 DISP0.VSYNC I Display Port 0 Data VSYNC
84 DISP0.HSYNC I Display Port 0 Data HSYNC
85 GND PWR Power Ground
86 DISP0.D16 O Display Port 0 Data
87 DISP0.D14 O Display Port 0 Data
88 DISP0.D12 O Display Port 0 Data
89 DISP0.D10 O Display Port 0 Data
90 DISP0.D8 O Display Port 0 Data
91 GND PWR Power Ground
92 DISP0.D6 O Display Port 0 Data
93 DISP0.D4 O Display Port 0 Data
94 DISP0.D2 O Display Port 0 Data
95 DISP0.D0 O Display Port 0 Data
96 VIN PWR Power Supply
97 VIN PWR Power Supply
98 GND PWR Power Ground
99 GND PWR Power Ground
100 GND PWR Power Ground

Table 4-3: Digital video extension connector (X22) pin description

4.2 GPIO/Automation Extension Connector (X23)

The GPIO / automation extension connector allow customers to design their own GPIO extension with user-defined
components. A 100-pin-0.5-pitch mezzanine connector (FX-10A-100S/10SV_M from Hirose (mating part is FX10A-
100P/10-SV) is used. Many interfaces have alternate functions and can also be used as GPIOs.

Interface Width (bit) Interface Description

1-Wire

1 OWIRE OWIRE

Analog-In

4 ADIN ADIN[1..4]

I2C

2 I2C3 I2C3.SCL, I2C3.SDA

PWM

2 PWM1, PWM2 PWM1, PWM2

SD

12 SD2 SD2.CMD, SD2.CLK, SD2.WP, SD2.CD. SD2.D0 – SD2.D7

SPI

10 ECSPI1, ECSPI2 ECSPI1.MOSI, ECSPI1.MISO,

ECSPI1.SS0, ECSPI1.SS1, ECSPI1.SCLK
ECSPI2.MOSI, ECSPI2.MISO,
ECSPI2.SS0, ECSPI2.SS1, ECSPI2.SCLK

Preliminary_DEV-i.MX53_HUM_V1.2.docx 23

Interface Width (bit) Interface Description

UART

8 UART2, UART3 UART2.TXD, UART2.RXD, UART2.RTS, UART2.CTS

UART3.TXD, UART3.RXD, , UART3.RTS, UART3.CTS

CAN

2 CAN1 CAN1.RXD, CAN1.TXD

USB

12 USBH5,

USBH6,
USBH7

USBH5.D_P, USBH5.D_N, USBH5.PWR, USBH5.OC
USBH6.D_P, USBH6.D_N, USBH6.PWR, USBH6.OC
USBH7.D_P, USBH7.D_N, USBH7.PWR, USBH7.OC

FIRI

2 FIRI FIRI.RXD, FIRI.TXD

Power

35 5V0, VIN, VUSB5, P_SW3_2V5, 3V3, P_LDO4_2V8, GND

Table 4-4: GPIO / automation extension connector (X23) port overview

4.2.1 Pin Description Table

Pin No Signal Type Description

1

GND PWR Power Ground

2

GND PWR Power Ground

3

GND PWR Power Ground

4

5V0 PWR Power Supply

5

5V0 PWR Power Supply

6

USBH7.D_P IO USB Data+

7

USBH7.D_N IO USB Data-

8

USBH7.PWR O USB Power Enable

9

USBH7.OC I USB Over Current

10

GND PWR Power Ground

11

I2C3.SCL O I2C Clock

12

I2C3.SDA IO I2C Data

13

OWIRE IO One Wire Interface

14

VUSB5 PWR 500mA Current Limited 5V Power Supply for USB Host 5

15

VUSB5 PWR 500mA Current Limited 5V Power Supply for USB Host 5

16

CAN1.RXD I CAN Receive Data / GPIO4_11

17

CAN1.TXD O CAN Transmit Data / GPIO4_10

18

P_LDO4_2V8 PWR Power Supply

19

GPIO.(2V8)_3 IO GPIO4_3

20

GPIO.(2V8)_4 IO GPIO4_4

21

GND PWR Power Ground

22

UART2.RXD I UART Receive Data

23

UART2.TXD O UART Transmit Data

24

UART2.RTS O UART Request To Send

25

UART2.CTS I UART Clear To Send

26

GND PWR Power Ground

27

UART3.RXD I UART Receive Data

28

UART3.TXD O UART Transmit Data

29

UART3.RTS O UART Request To Send

30

UART3.CTS I UART Clear To Send

31

FIRI.RXD O Fast Infrared Interface Receive Data

32

FIRI.TXD I Fast Infrared Interface Transmit Data

33

GND PWR Power Ground

34

NC NC Not Connected

35

CTRL.PWM1 O Pulse Width Modulation Output / GPIO1_9

36

CTRL.PWM2 O Pulse Width Modulation Output / GPIO1_19

Preliminary_DEV-i.MX53_HUM_V1.2.docx 24

Pin No Signal Type Description

37

P_SW3_2V5 PWR Power Supply

38

NC NC Not Connected

39

GND PWR Power Ground

40

ECSPI2.MOSI O SPI MOSI

41

ECSPI2.MISO I SPI MISO

42

ECSPI2.SS1 O SPI Select1

43

ECSPI2.SS2 O SPI Select2

44

NC NC Not Connected

45

ECSPI2.SCLK O SPI CLK

46

3V3 PWR Power Supply

47

3V3 PWR Power Supply

48

GND PWR Power Ground

49

GND PWR Power Ground

50

GND PWR Power Ground

51

GND PWR Power Ground

52

GND PWR Power Ground

53

GND PWR Power Ground

54

VIN PWR Power Supply

55

VIN PWR Power Supply

56

ECSPI1.SCLK O SPI CLK

57

NC NC Not Connected

58

ECSPI1.SS1 O SPI Select1

59

ECSPI1.SS0 O SPI Select0

60

ECSPI1.MISO I SPI MISO

61

ECSPI1.MOSI O SPI MOSI

62

GND PWR Power Ground

63

ADIN4 I Vin4 (AD7993)

64

ADIN3 I Vin3 (AD7993)

65

ADIN2 I Vin2 (AD7993)

66

ADIN1 I Vin1 (AD7993)

67

SD2.D7 IO SD Data7 / GPIO2_15

68

SD2.D6 IO SD Data6 / GPIO2_14

69

SD2.D5 IO SD Data5 / GPIO2_13

70

SD2.D4 IO SD Data4 / GPIO2_12

71

SD2.D3 IO SD Data3 / GPIO1_12

72

SD2.D2 IO SD Data2 / GPIO1_13

73

SD2.D1 IO SD Data1 / GPIO1_14

74

SD2.D0 IO SD Data0 / GPIO1_15

75

GND PWR Power Ground

76

SD2.CLK O SD Clock / GPIO1_10

77

SD2.CMD O SD Command / GPIO1_11

78

GND PWR Power Ground

79

SD2.WP I SD Card Detect / GPIO2_31

80

SD2.CD I SD Write Protect / GPIO1_2

81

P_SW3_2V5 PWR Power Supply

82

GPIO.(2V5)_3 IO GPIO5_13

83

GPIO.(2V5)_2 IO GPIO1_18

84

GPIO.(2V5)_1 IO GPIO1_17

85

GPIO.(2V5)_0 IO GPIO1_16

Preliminary_DEV-i.MX53_HUM_V1.2.docx 25

Pin No Signal Type Description

86

GND PWR Power Ground

87

USBH5_OC I USB Over Current

88

USBH5_PWR O USB Power Enable

89

USBH5_D_N IO USB Data-

90

USBH5_D_P IO USB Data+

91

GND PWR Power Ground

92

USBH6_OC I USB Over Current

93

USBH6_PWR O USB Power Enable

94

USBH6_D_N IO USB Data-

95

USBH6_D_P IO USB Data+

96

5V0 PWR Power Supply

97

5V0 PWR Power Supply

98

GND PWR Power Ground

99

GND PWR Power Ground

100

GND PWR Power Ground

Table 4-5: GPIO / automation extension connector (X23) pin description

Preliminary_DEV-i.MX53_HUM_V1.2.docx 26

4.3 Image Sensor Connector X21 (BLT-ISM-Connector)

Pin Name Type Description

1

VCAMA PWR Camera Analog Voltage Supply

2

GND PWR Power Ground

3

SADDR NC Not Connected

4

NC NC Not Connected

5

GPIO4_2 O Global Camera Reset

6

I2C1.SCL O Configuration Bus Clock Line

7

I2C1.SDA I/O Configuration Bus Data Line

8

VCAMC PWR Camera Core Voltage Supply

9

GND PWR Power Ground

10

CSI0.PCLK I Pixel Clock

11

CSI0.VSYNC I VSYNC

12

CSI0.HSYNC I HSYNC

13

GPIO4_0 O Camera Trigger

14

STROBE I Strobe Signal from Camera (available only on solder pad)

15

NC NC Not Connected

16

NC NC Not Connected

17

CSI0.D0 I Pixel Data

18

CSI0.D1

I

Pixel Data

19

VCAMIO PWR Camera IO Power Supply

20

GND PWR Power Ground

21

CSI0.D2 I Pixel Data

22

CSI0.D3 I Pixel Data

23

CSI0.D4 I Pixel Data

24

CSI0.D5 I Pixel Data

25

GND PWR Power Ground

26

CSI0.D6 I Pixel Data

27

CSI0.D7 I Pixel Data

28

CSI0.D8 I Pixel Data

29

CSI0.D9 I Pixel Data

30

CSI0.DE O Output Enable (Active Low)

Table 4-6: BLT-ISM-Connector interface description (X21)

4.4 Reset / Power-On Connector (X10)

The two signals Power-On and Reset are accessible via this connector. These signals are the same as the ones routed
to the two push buttons.

Pin No Signal Description

1

CTRL.ON Power On (internally pulled up)

2

GND Signal ground

3

CTRL.NRESET_IN Power On Reset (internally pulled up)

4

GND Signal ground

Table 4-7: Reset / power-on connector pin description

Preliminary_DEV-i.MX53_HUM_V1.2.docx 27

4.5 Auxiliary Power Supply Connector (X5)

The auxiliary Power Supply Extension Connector provides the possibility to power the board via a 12-pin Connector
(ERNI 063179). It is possible to connect a supply voltage to the Vin Pins, or to connect an external battery charger.

Pin No Signal Description Pin No Signal Description

1A

I²C1.SCL I²C1 Serial Clock

1B

GPIO5_13

Free Configurable Control IO

2A

I²C1.SDA I²C1 Serial Data

2B GPIO1_18

Free Configurable Control IO

3A

PWR_GT Power Gate (for DC Connector)

3B GPIO1_17

Free Configurable Control IO

4A GND Power Ground 4B GND Power Ground

5A

CHRG_IN

Power Supply for External Charger

5B

Vin

Dev-Board Power Supply

6A CHRG_IN Power Supply for External Charger 6B Vin Dev-Board Power Supply

Table 4-8: Auxiliary power supply extension connector pin description

Preliminary_DEV-i.MX53_HUM_V1.2.docx 28

5 Switches, Jumpers and LEDs

5.1 RGB LED (V12)

The RGB LED is connected to the TCA62724FMG RGB-LED driver and can be used for status signaling.

5.2 Push Buttons (S4, S3)

The push buttons have the following functions:

• S3: RESET

• S4: Power On/Off

5.3 Backup Battery (optional)

There is also a possibility to add a 6.8mm non-rechargeable lithium coin cell to keep the RTC running and the RAM
self-refreshing. The DEV/i.MX53 is delivered only on request with a 6.8mm coin cell holder. Bluetechnix does not
provide any batteries due to legal restrictions.

5.4 Board Configuration Switches (S2, S1)

The DEV-i.MX53 supports five different boot modes. For USB/UART boot mode, the i.MX53 is polling for activity on
both USBOTG and UART1. For a more detailed explanation please see the software documentation on
http://support.bluetechnix.at/wiki.

Preliminary_DEV-i.MX53_HUM_V1.2.docx 29

Mode Switch Boot Switch Setting Boot Media

1

S2

S1

On
Off

5 6 7 8

1 2 3 4

On
Off

5 6 7 8

1 2 3 4

SPI NOR Flash

2

S2

S1

On
Off

5 6 7 81 2 3 4

On
Off

5 6 7 81 2 3 4

NAND Flash (Consumer Core Module Version)

3

S2

S1

On
Off

5 6 7 81 2 3 4

On
Off

5 6 7 8

1 2 3 4

NAND Flash (Industrial Core Module Version)

4

S2

S1

On
Off

5 6 7 81 2 3 4

On
Off

5 6 7 8

1 2 3 4

SD card

5

S2

S1

On
Off

5 6 7 8

1 2 3 4

On
Off

5 6 7 8

1 2 3 4

SATA hard disk

6

S2

S1

On
Off

5 6 7 8

1 2 3 4

On
Off

5 6 7 8

1 2 3 4

USB/UART boot mode

Table 5-1: Supported Boot Modes

Preliminary_DEV-i.MX53_HUM_V1.2.docx 30

6 Support

6.1 General Support

General support for products can be found at Bluetechnix’ support site https://support.bluetechnix.at/wiki

6.2 Board Support Packages

Board support packages, boot loaders and further software downloads can be downloaded at the products wiki
page at

https://support.bluetechnix.at/wiki

6.3 i.MX Software Support

6.3.1 Linux

Linux BSP and images of derivates can be found at Bluetechnix’ support site https://support.bluetechnix.at/wiki at
the software section of the related product.

6.3.2 Win CE

WinCE is only supported on ARM platforms. Please contact Bluetechnix for support information.

6.4 i.MX

®

Design Services

Based on more than seven years of experience with Blackfin and i.MX, Bluetechnix offers development assistance as
well as custom design services and software development.

6.4.1 Upcoming Products and Software Releases

Stay up to date with all product changes, releases and software updates of Bluetechnix
at

http://www.bluetechnix.com.

Preliminary_DEV-i.MX53_HUM_V1.2.docx 31

7 Ordering Information

7.1 Predefined mounting options for DEV-i.MX53

Article Number Name Description

100-4120-1

i.MX53 Development Starter Package DEV-i.MX5x + CM-i.MX53-C-C-Q24S1024F4N2048

100-1470-2

CM-i.MX53-C-I-Q24S1024F4N2048 Industrial version

100-1471-2

CM-i.MX53-C-C-Q24S1024F4N2048 Commercial version

100-1472-2-TR

CM-i.MX53-C-C-Q24S512F4N256 Tape Reel (Commercial version, 50 pcs per reel)

Table 7-1: Ordering information

NOTE: Custom hard and software developments are available on request! Please contact Bluetechnix

([e-mail]) if you are interested in custom hard- and software development.

Preliminary_DEV-i.MX53_HUM_V1.2.docx 32

8 Dependability

8.1 MTBF

Please keep in mind that a part stress analysis would be the only way to obtain significant failure rate results,
because MTBF numbers just represent a statistical approximation of how long a set of devices should last before
failure. Nevertheless, we can calculate an MTBF of the development board using the bill of material. We take all the
components into account. The PCB and solder connections are excluded from this estimation. For test conditions
we assume an ambient temperature of 30°C of all development board components. We use the MTBF Calculator
from ALD (

http://www.aldservice.com/) and use the reliability prediction MIL-217F2 Part Stress standard. Please get

in touch with Bluetechnix (

[e-mail]) if you are interested in the MTBF result.

Preliminary_DEV-i.MX53_HUM_V1.2.docx 33

9 Product History

9.1 Version Information

Version Date Changes

1.2 2011 11 24 Battery charger removed.
Coin cell Holder not mounted.
Core Module mounting holes adapted for new modules (Version V2.0 or higher).
Two different extension connectors to prevent reverse connecting of extension
boards.
Optional plug to connect an external Li-Ion battery pack with charger.
Pin out of extension connector X22 changed (Pin 66 from NC to Cam_OE).

1.1 2011 08 23 First DEV-i.MX53 release

Table 9-1: Overview product changes

9.2 Anomalies

Version Date Description

1.2 2011 11 24 No anomalies reported yet.

1.1 2011 10 02 Power Supplies for USB Lane 1 and Lane 2 interchanged. Over-current detection
will not work.

Table 9-2: Overview product anomalies

Preliminary_DEV-i.MX53_HUM_V1.2.docx 34

10 Document Revision History

Version Date Document Revision

2 2011 11 24 Updates for HWR V1.2
1 2011 09 05 First draft release

Table 10-1: Revision history

Preliminary_DEV-i.MX53_HUM_V1.2.docx 35

11 List of Abbreviations

Abbreviation Description

ADC

Analog Digital Converter

ADIN

Analog Data Input

AI

Analog Input

CAN

Controller Area Network

CM

Core Module

COMM

Communication

CSI

Camera Sensor Interface

DC

Direct Current

DDR

Double Data Rate

DEV

Development Board

DI

Display Interface

DISP

Display

EBI

External Bus Interface

ESD

Electrostatic Discharge

EXP

Experimental

FIRI

Fast Infrared Interface

GPIO

General Purpose Input Output

GPS

Global Positioning System

GSM

Global System for Mobile Communications

HD

High Definition

HDD

Hard Disk Drive

HDMI

High-Definition Multimedia Interface

I

Input

I/O

Input/Output

I²C

Inter-Integrated Circuit

ISM

Image Sensor Module

JTAG

Joint Test Action Group

LAN

Local Area Network

LiPol

Lithium-Polymer

LVDS

Low Voltage Differential Signaling

MIC

Microphone

MTBF

Mean Time Between Failure

NC

Not Connected

O

Output

OEM

Original Equipment Manufacturer

OWIRE

One-Wire

PCB

Printed Circuit Board

PDA

Personal Digital Assistant

PWM

Pulse Width Modulation

PWR

Power

SATA

Serial Advanced Technology Attachment

SD

Secure Digital

SDHC

Secure Digital High Capacity

SDRAM

Synchronous Dynamic Random Access Memory

SoC

System on Chip

SPI

Serial Peripheral Interface

SSD

Solid State Disk

TFT

Thin-Film Transistor

TISM

Tiny Image Sensor Module

TSC

Touch Screen Controller

Preliminary_DEV-i.MX53_HUM_V1.2.docx 36

UART

Universal Asynchronous Receiver Transmitter

UMTS

Universal Mobile Telecommunications System

USB

Universal Serial Bus

USBH

Universal Serial Bus Host

USBOTG

USB On The Go

WLAN

Wireless Local Area Network

ZIF

Zero Insertion Force

Table 11-1: List of abbreviations

Preliminary_DEV-i.MX53_HUM_V1.2.docx 37

A List of Figures and Tables

Figures

Figure 1-1: Overview of the main components

........................................................................................................................................... 9

Figure 2-1: DEV-i.MX53 Interconnection Diagram

................................................................................................................................... 12

Figure 2-2: Top connectors placement

........................................................................................................................................................ 16

Figure 2-3: DEV-i.MX53 top view

..................................................................................................................................................................... 17

Figure 2-4: DEV-i.MX53 bottom view

............................................................................................................................................................ 18

Tables

Table 2-1: CM-i.MX53 Interface routing

....................................................................................................................................................... 13

Table 3-1: Electrical characteristics

................................................................................................................................................................ 19

Table 3-2: Absolute maximum ratings

.......................................................................................................................................................... 19

Table 3-3: ADC characteristics

.......................................................................................................................................................................... 19

Table 4-1: CSI port overview

............................................................................................................................................................................. 20

Table 4-2: LCD port overview

........................................................................................................................................................................... 20

Table 4-3: Digital video extension connector (X22) pin description

................................................................................................. 22

Table 4-4: GPIO / automation extension connector (X23) port overview

....................................................................................... 23

Table 4-5: GPIO / automation extension connector (X23) pin description

.................................................................................... 25

Table 4-6: BLT-ISM-Connector interface description (X21)

................................................................................................................... 26

Table 4-7: Reset / power-on connector pin description

........................................................................................................................ 26

Table 4-8: Auxiliary power supply extension connector pin description

....................................................................................... 27

Table 5-1: Supported Boot Modes

.................................................................................................................................................................. 29

Table 7-1: Ordering information

..................................................................................................................................................................... 31

Table 9-1: Overview product changes

.......................................................................................................................................................... 33

Table 9-2: Overview product anomalies

...................................................................................................................................................... 33

Table 10-1: Revision history .............................................................................................................................................................................. 34

Table 11-1: List of abbreviations

..................................................................................................................................................................... 36

Mouser Electronics

Authorized Distributor

Click to View Pricing, Inventory, Delivery & Lifecycle Information:

Bluetechnix:
100-4124-1 100-4120-1
