Page 1
4-Way Optical Switch
1 2 3 4On/Off Power IR Select
OPT41AU
User Manual
Page 2
OPT41AU USER MANUAL
02
www.blustream.co.uk
Surge protection device
recommended
This product contains sensitive electrical components that may be damaged
by electrical spikes, surges, electric
shock, lightning strikes, etc. Use of
surge protection systems is highly
recommended in order to protect and
extend the life of your equipment.
Introduction 03
Features 03
Panel Descriptions 04
Specifications 05
Package Contents 05
Maintenance 05
Contents
Thank you for purchasing
this product.
For optimum performance and safety,
please read these instructions carefully before connecting, operating or
adjusting this product. Please keep this
manual for future reference.
Page 3
OPT41AU USER MANUAL
03
contact [email protected] / [email protected]
Our OPT41AU is an advanced 4-Way optical audio switch, perfect for the integration of
multiple audio sources with a soundbar. The OPT41AU also has a built in DAC (Digital to
Analogue Audio Converter) and simultaneous digital and analogue stereo audio outputs.
The OPT41AU supports 192kHz sample rates and up to 24-bit resolution for enhanced
sound reproduction.
Introduction
• 4x Optical digital Toslink inputs
• Built-in DAC which converts selected optical PCM audio
input to analogue L/R audio output
• Built in digital audio converter which converts selected
optical audio input to coaxial digital output
• Outputs optical digital, coaxial digital and analogue L/R
outputs at the same time
• Each audio output can be turned On/O using supplied IR
remote control
• Supports sample rates 32 kHz, 44.1 kHz, 48 kHz, 96 kHz and
192 kHz up to 24-bit resolution
• Supports LPCM, DTS, Dolby Digital and Dolby Digital Plus
when used as straight digital in/digital out switcher
• Ultra low jitter and high fidelity design
• Input selection button on front panel to toggle between 4x
optical audio inputs
• IR receiver on front panel to switch between optical audio
inputs and turn On/O each individual audio output using
supplied IR remote control
• External IR input can be used to extend IR with optional
Blustream 5v IR receiver/cable
• Small compact size
FEATURES:
Page 4
OPT41AU USER MANUAL
04
www.blustream.co.uk

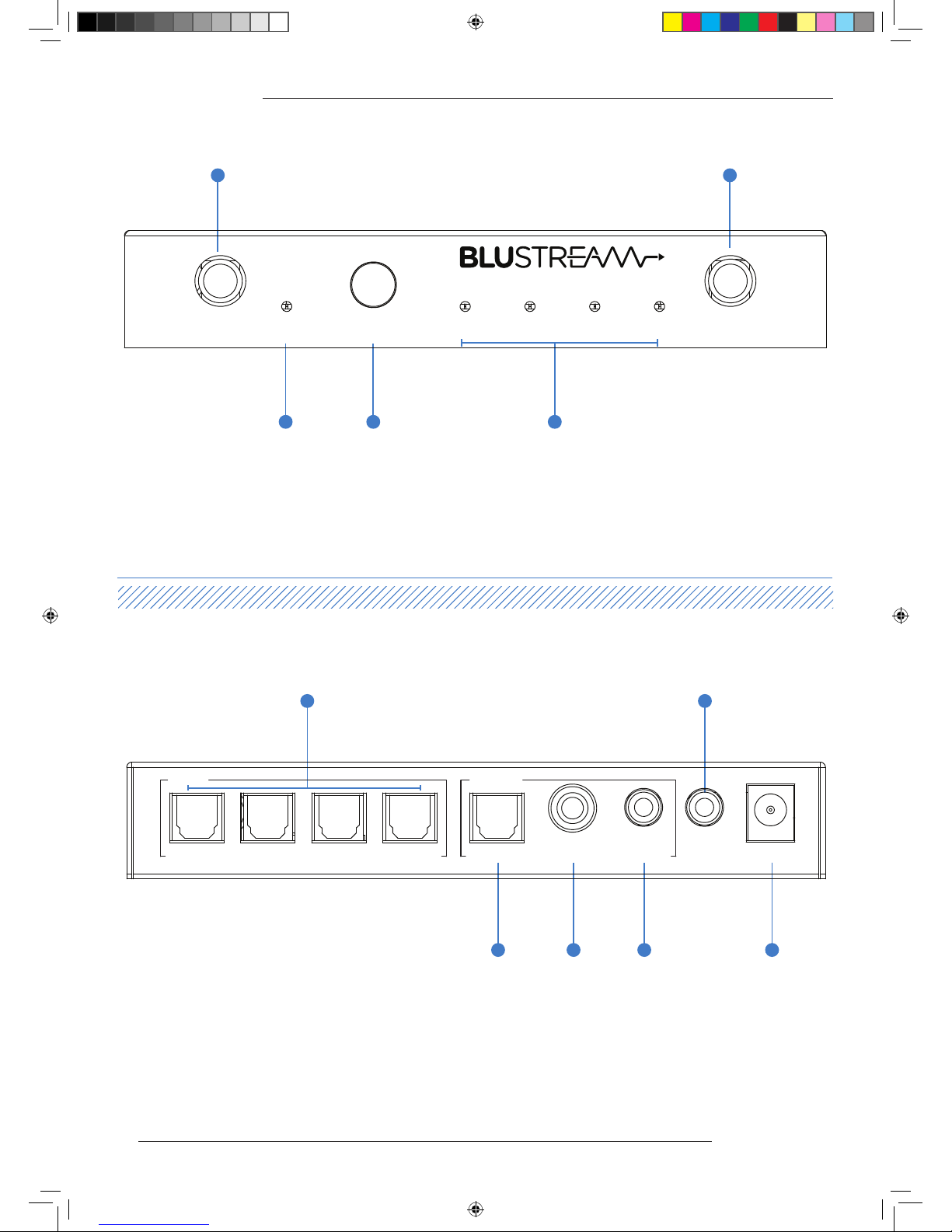

Front Panel
Back Panel
1 Power On/O button
2 Power LED indicator – Displays the status of the
power of the unit
3 IR receiver window
1 Optical digital inputs x4
2 Optical digital output
3 Coaxial digital output - Converted from selected
Optical digital input)
4 Analogue audio Le/Right output (3.5mm stereo
jack) – Converted from selected Optical digital input
(DAC)
4 Input LED indicator – Displays the Optical input
currently active.
5 Select button – press to toggle between Optical
inputs
5 External IR input -
6 Power port – Use supplied 5V/1A DC adaptor to
power switcher
1
1
5
5
2
2
3
3 6
4
4
4-Way Optical Switch
1 2 3 4On/Off Power IR Select
OPT41AU
Output
OpticalOptical 4Optical 3Optical 2Optical 1 Coaxial L/R IR EXT DC5V
Input
Page 5
OPT41AU USER MANUAL
05
contact [email protected] / [email protected]

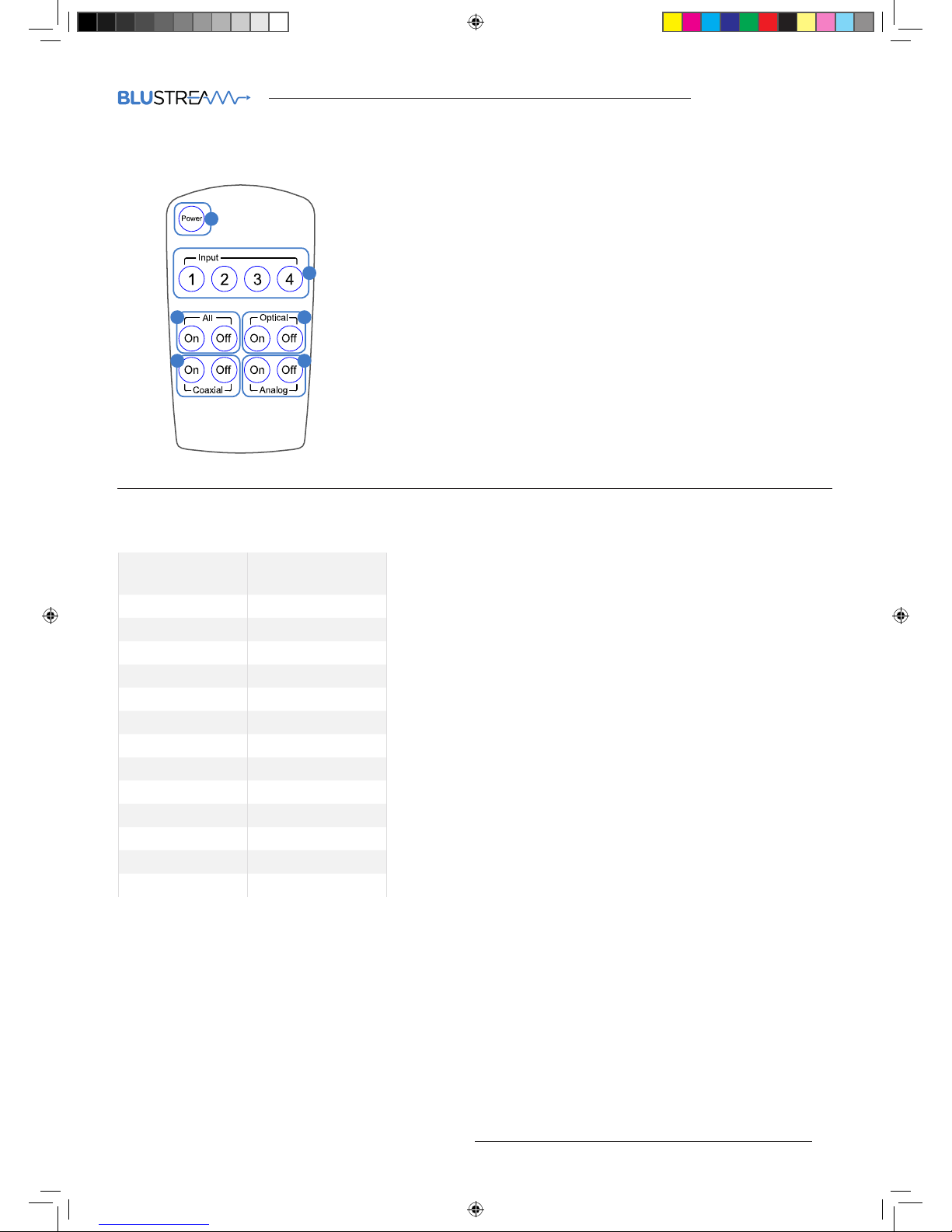

OPT41AU – Remote Control
Database of IR commands
Command
NEC
NEC Codeset: 1898
Power On/O 14
Input 1 50
Input 2 55
Input 3 48
Input 4 4A
All On 5E
All O 06
Optical On 05
Optical O 03
Coaxial On 47
Coaxial O 07
Analogue On 40
Analogue O 02
1 Power On/O button
2 Direct input selection buttons
3 All outputs On/O (Optical, Coaxial and Analogue)
4 Optical output On/O
5 Coaxial output On/O
6 Analogue output On/O (DAC)
* Please see Blustream website for full IR
database and alternate code formats
2
3 4
5 6
1
Page 6
OPT41AU USER MANUAL
06
www.blustream.co.uk
Specifications
Package Contents:
• 1 x OPT41AU
• 1x OPT41-REMOTE
• 1 x 5V/1A DC power supply
• 1 x Mounting kit
Maintenance:
Clean this unit with a so, dry cloth. Never use alcohol,
paint thinner or benzene to clean this unit.
Audio Input Connectors: 4x SPDIF Optical audio
Output Connectors: 1x SPDIF Optical audio, 1x Coaxial digital & 1x analogue audio L/R (3.5mm stereo Jack)
IR Input Ports: 1x 3.5mm stereo Jack
Casing Dimensions (W x H x D): 137mm x 24mm x 68mm
Dimensions including connections (W x H x D): 137mm x 24mm x 79mm
Shipping Weight: 0.5kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature : -4°F to 140°F (-20°C to 60°C)
Power Supply: 5V/1A DC
Page 7
OPT41AU USER MANUAL
07
contact [email protected] / [email protected]

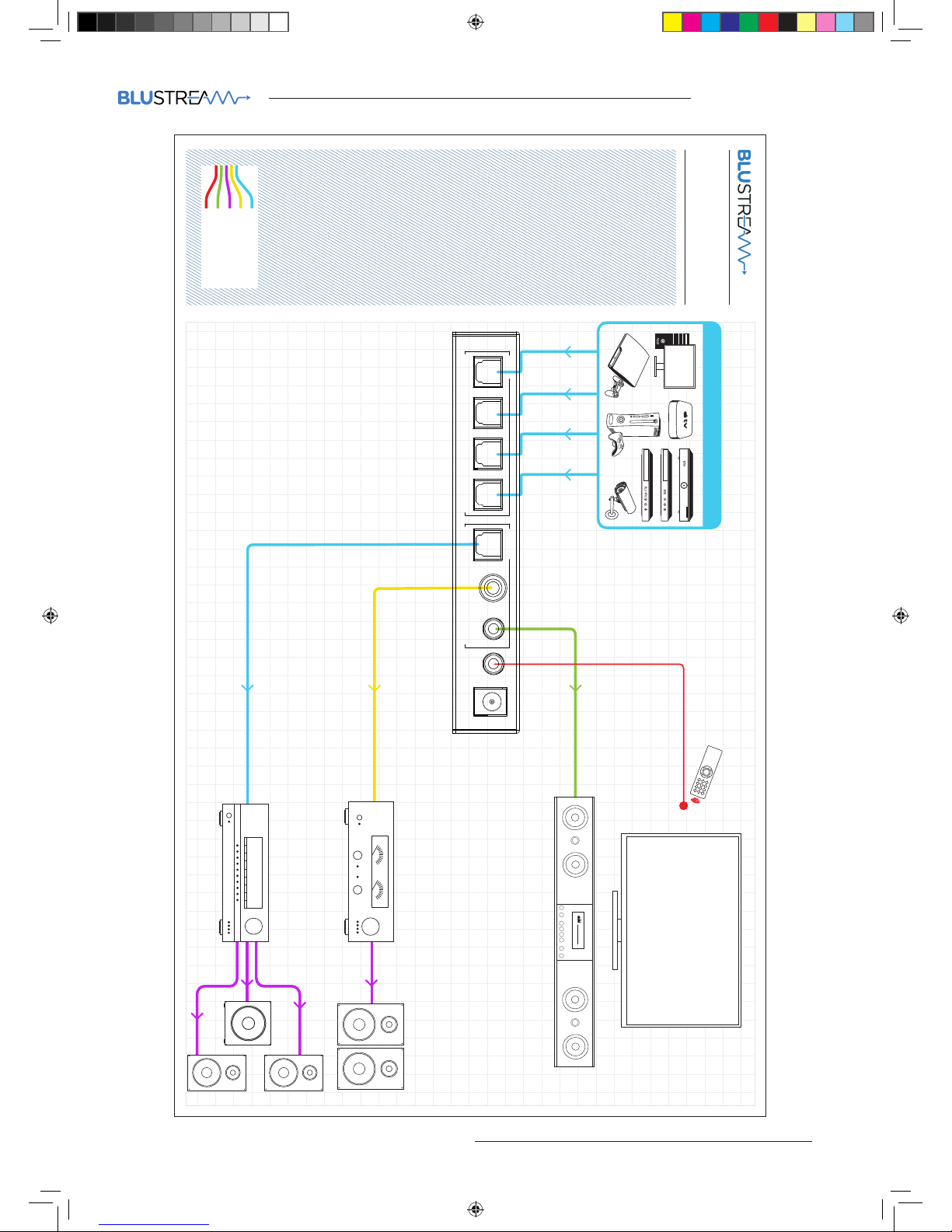

Example Schematic
OPT41AU
4 SOURCES
DISPLAY
Optical Digital
Coaxial Digital
Speaker Cable
Analogue L/R Audio
IR Cable
OPT41AU
Output
OpticalOptical 4Optical 3Optical 2Optical 1 Coaxial L/R IR EXT DC5V
Input
Page 8
