Blue Sea Systems 12 Volt Plug User Manual
Marine Electrical Prod
ucts
12 Volt Plug
PN 1010
Corrosion resistant materials to ensure solid contact
and low voltage drop
• Designed to withstand the rigors of wet environments and constant vibration
• Nickel plated copper alloy used for all current carrying components
• Plug has a sealing ring to keep out spray and make it seat rmly in the socket
Specications
Voltage Nominal 12V DC
Amperage Maximum Operating 10A DC

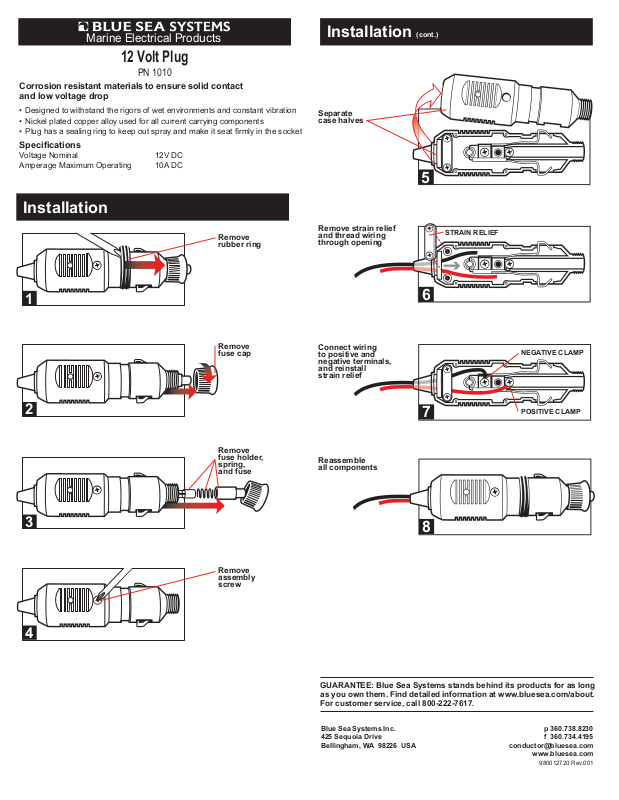

Installation
Installation (cont.)
Separate
case halves
5
1
2
Remove
rubber ring
Remove
fuse cap
Remove
fuse holder,
spring,
and fuse
Remove strain relief
and thread wiring
through opening
Connect wiring
to positive and
negative terminals,
and reinstall
strain relief
Reassemble
all components
6
7
STRAIN RELIEF
NEGATIVE CLAMP
POSITIVE CLAMP
3
4
Remove
assembly
screw
8
