Technical data sheet for
GAS COOKTOPS 1200mm
G518D-B, G518D-CB, G518D-LS, G518D-RB,
G518C-B, G518C-CB, G518C-LS, G518C-RB,
G518B-B, G518B-CB, G518B-LS, G518B-RB,
G518A-B, G518A-CB, G518A-LS, G518A-RB
Heavy-duty construction
28 MJ/hr open burners
Flame failure standard
Pilot burners optional
300mm, 600mm, and 900mm griddle
plate options
Optional simmer plates
3 models of base unit
1 model of ventilated refrigeration base
with drawer/door options
Rear rollers
Stainless steel exterior
Easy clean
Easy service
Fully modular
Overall Construction
Cooktop
• Welded hob with 1.5mm 304 s tainless steel bull nose
• Side panels 1.2mm 304 stainle ss steel
• Splashback 1.2mm 304 stainless steel
• Vitreous enamelled control panel
• Aluminised steel inter nal construction
• Cast iron 28M J/hr open burners with forged brass cap
• Vitreous enamelled cast iron potstands
• Vitreous enamelled open burner spill cover s
• Cast iron simmer plates (optional extra)
• 12mm thick mild steel griddle plate
• 2.5mm 304 stainless steel griddle splash guards
• Stainless steel spill trays
Griddle sections are standard on RH side. Available on LH side and
centres to order or by conversion.
Bench mount (supplied as –B model)
• Four 63mm dia. heavy-dut y 1.2mm 304 stainless steel bench legs
with adjustable feet
• Adjustable height 80 mm – 105mm
Cabinet base (supplied as – CB model)
• Fully modular for match suite finish
• Double skin 0.9mm 304 stainless steel interior and exterior
• Optional GN 1/1 4 position racking kit (1 or 2 cabinet bays)
• Up to eight 65mm GN 1/1 capacity
• 63mm dia. heav y-duty 1.2mm 304 stainless steel legs with two
adjustable feet at front and two rollers at rear
Leg s tand (supplied as –LS model)
• Fully modular for matched suite finish
• Framed top for connection to Cooktop
• 63mm dia. heav y-duty 1.2mm 304 stainless steel legs with two
adjustable feet at front and two rollers at rear
• Fully modular framed stand shelf with 0.9mm 304 stainless
steel finish
• Shelf to top stainless steel backstop panel for convenience
and rigidity
• Suitable for rear or through shelf gas connection to Cook top
• Quick as sembly design
Refrigerate d base (supplied as –RB model)
• Self contained suite matched modular base
• Ventilated system with R134a refrigerant
• -2° to + 8°C temperature (Tropical Climate rated)
• Two GN 1/1 drawers and one door standard
• 100mm deep pan dr awer capacity
• Heav y-duty European telescopic drawer guides
• Magnetic drawer gasket s (repl aceable without tool s)
• 50mm fully foamed CFC free insulation
• 304 stainless steel exterior and interior
• Anti-corrosion treated ev aporator
• No condensate dr ain required
• 63mm dia. heav y-duty 1.2mm 304 stainless steel legs with
adjustable feet
• Condensing unit remov able through front of unit for ser vice
• Easy clean interior
Controls
Cooktop
• Variable high to low controls to open burners
• Open bur ners flame failure standard with pilot bur ners optional
• Variable high to low controls to gr iddles
• Griddles standard with pilot, flame failure and piezo ignition
• Large easy use control knob - heat resistant reinforced
• Easy v iew control set tings on knob
Refrigerate d base
• Digital control electronic thermostat
• Automatic defrost
• Automatic evaporation of defrost water
• -2° to +8°C temperature range
Cleaning and S ervicing
• All models with easy clean stainless steel exter nal finish
• Lift off burner heads and vitreous enamelled burner spill covers
• Stainless steel spill trays under open burner and griddle sections
• Access to all par ts from front of unit
• Refrigerated Base condenser removable through front of unit
G518D-LS
4825 BS specsNZ-AUSv20B2.indd 39 28/12/06 2:32:03 PM
Page 2
Technical data sheet for
GAS COOKTOPS 1200mm
Specifications
Burners
Open Bur ners 2 8MJ/hr dual fl ame ring with
simmer r ate
Griddle Burners 20MJ/hr per 300mm section
Gas power
G518D 224 MJ/ hr, 62.2kW
G518C 188 MJ/hr, 52.2kW
G518B 152 M J/hr, 42.2kW
G518A 116 MJ/hr, 32.2kW
Griddle Plate
300mm Griddle cooking sur face
292mm x 475mm, 1387cm2
600mm Griddle cooking sur face
592mm x 475mm, 2812cm2
900mm Griddle cooking sur face
892mm x 475mm, 4237cm2
Gas conne ction
R 3/4 (BSP) male
All units supplied with Natur al and LP gas
regulator
Refrigerate d base
Type
Ventilated system
Refrigerant
R134a (160grams)
Climate classification
T – tropic al
Elec trical conne ction
220-240Vac, 50Hz, 1.8A , 1P+N+E
3 pin 10A plug cordset fitted
Dimensions
Bench models
Width 1200mm
Depth 812mm
Height 315mm
Incl. splashback 485mm
All model s (excluding Bench model)
Width 1200mm
Depth 812mm
Height 915mm
Incl. splashback 108 5mm
Packing data
Bench and Leg Stand models
0.72m3
Width 1245mm
Depth 870mm
Height 665mm
Cabinet Base and Refriger ated Base mod els
1.36m3
Width 1245mm
Depth 870mm
Height 1255mm
Gas t ypes
Available in Natural gas and LP gas, please specify
when ordering
Units supplied complete with gas type
conver sion kits
Other gas types on request
Options
Adjustable feet at rear
Simmer plates (replaces Potstand)
Ribbed griddle plates
Joining caps
Castors

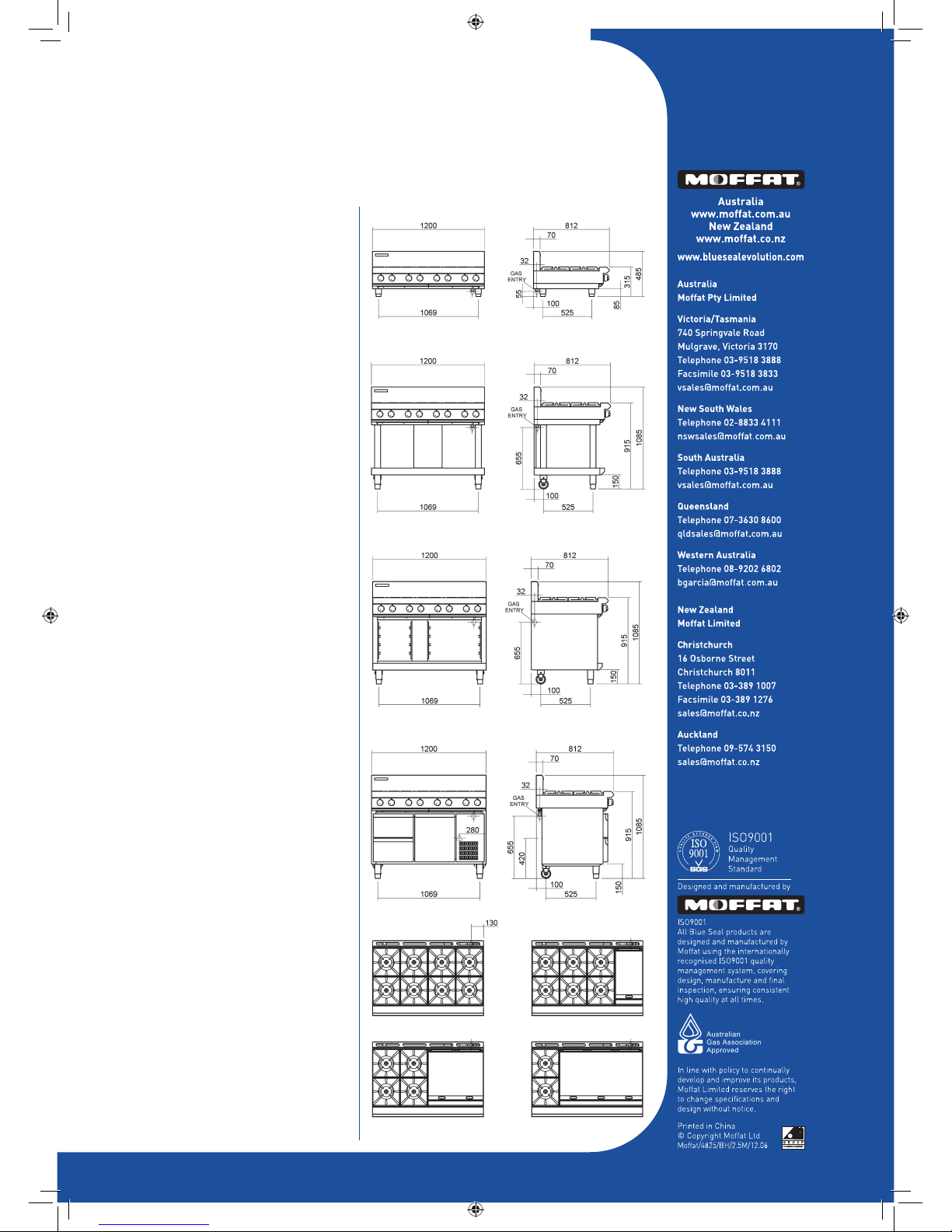

G518-B
G518D
G518C
G518B
G518A
G518-LS
G518-CB
G518-RB
