Blue Seal E25, E25B Service Manual

-1-

Revision 3/F3542

SERVICE

MANUAL

E25 CONVECTION OVEN

-2-

Revision 3/F3542

WARNING: ALL INSTALLATION AND SERVICE REPAIR WORK MUST BE CARRIED
OUT BY QUALIFIED PERSONS ONLY.

-3-

Revision 3/F3542

CONTENTS

This manual is designed to take a more in depth look at the E25 convection oven for the purpose of
making the unit more understandable to service people.

There are settings explained in this manual that should never require to be adjusted, but for
completeness and those special cases where these settings are required to change, this manual
gives a full explanation as to how, and what effects will result.

SECTION PAGE NO.

1. SPECIFICATIONS .........................................................................................................5

2. INSTALLATION .............................................................................................................7

3. OPERATION ...................................................................................................................8

3.1 Description of Controls—E25

3.2 Description of Controls—E25B

3.3 Explanation of Control System

4. MAINTENANCE .............................................................................................................12

4.1 Cleaning

4.2 Routine Procedures

5. TROUBLE SHOOTING GUIDE .....................................................................................13

6. SERVICE PROCEDURES ..............................................................................................16

6.1 Fault Diagnosis

6.2 Access

6.3 Replacement

6.4 Adjustment / Calibration

7. ELECTRICAL SCHEMATICS ........................................................................................30

7.1 E25

7.2 E25B

8. ELECTRICAL WIRING DIAGRAMS ..............................................................................32

8.1 E25

8.2 E25B

9. SPARE PART S ..............................................................................................................34

IMPORTANT: MAKING ALTERATIONS MAY VOID WARRANTIES AND APPROVALS.

-4-

Revision 3/F3542

10. ACCESSORIES / OPTIONS ..........................................................................................35

11. PARTS DIAGRAM .........................................................................................................36

11.1 Main Assembly - E25

11.2 Main Assembly - E25B

11.3 Control Panel Assembly - E25

11.4 Control Panel Assembly - E25B

12. SERVICE CONTACTS ..................................................................................................42

APPENDIX A. DOUBLE STACKING KIT ...............................................................................44

-5-

Revision 3/F3542

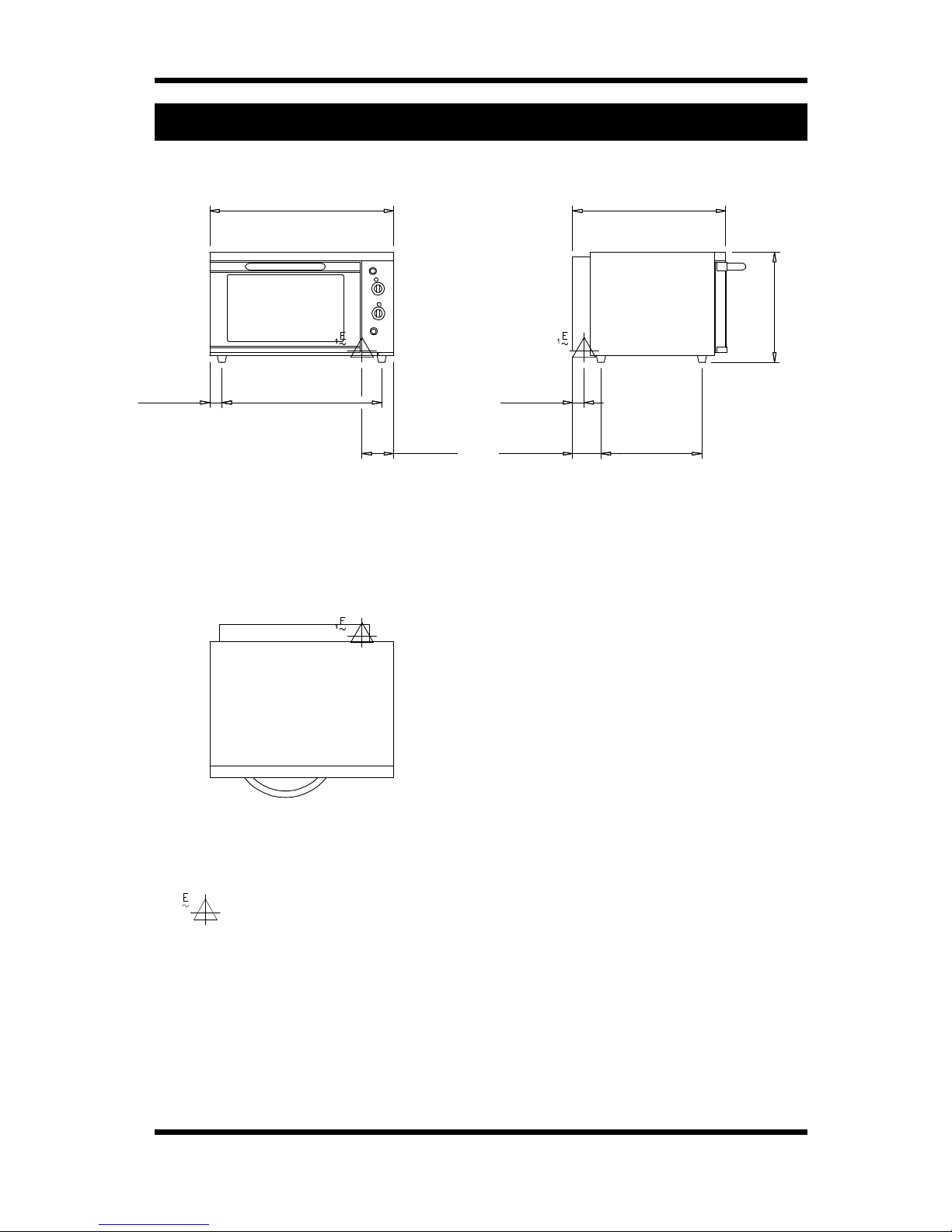

FRONT

PLAN

SIDE

1. SPECIFICATIONS

MODEL: E25 / E25B

LEGEND

- Electrical connection entry point

Dimensions shown in millimetres.
Dimensions in inches shown in brackets.

45

(1.75)

(16.9)

429

111

(4.4)

395

(15.5)

600

(23.6)

124

(4.9)

625

(24.6)

48

(1.9)

720

(28.4)

-6-

Revision 3/F3542

LOCATION
To ensure correct ventilation for the motor and
controls the following minimum installation
clearances are to be adhered to:

Rear 25mm / 1”
Left-hand side 25mm / 1”
Right-hand side 25mm / 1”

OVEN INTERNAL DIMENSIONS

Width 470 mm / 18.5”
Height 254 mm / 10.0”
Depth 420 mm / 16.5”
Oven Volume 0.05 m³ / 1.75 ft³

OVEN RACK SIZE

Width 460 mm / 18”
Depth: 370 mm / 14.5”

ELECTRICAL SUPPLY SPECIFICATION
OPTIONS

E25

100-120V ac, 60Hz, 13.3A, 1.6kW @ 120V
220-240V ac, 50/60Hz, 8.5A, 2.05kW @ 240V

E25B
100-120V ac, 60Hz, 17.1A, 2.05kW @120V

ELECTRICAL PLUG SPECIFICATION
REQUIREMENTS

E25

Australia 3-pin 250V 10A, AS/NZ 3112
Canada 3-pin 120V 15A, NEMA 6-15
New Zealand 3-pin 250V 10A, AS/NZ 3112
United Kingdom 3-pin 250V 13A fused, BS

1363A
United States 3-pin 120V 15A, NEMA 6-15
Other Countries 3-pin 250V 10A minimum,

type to meet country stan-

dards

E25B

Canada 3-pin 120V 20A, NEMA 6-20
United States 3-pin 120V 20A, NEMA 6-20

-7-

Revision 3/F3542

RATING PLATE LOCATION
The rating plate for the E25 convection oven

is located at the bottom left corner of the RH
side panel.

It is most important that the oven is installed
correctly and that the operation is correct
before use. Installation shall comply with local
electrical, health and safety requirements.

BEFORE CONNECTION TO POWER
SUPPLY

Unpack and check unit for damage and report
any damage to the carrier and dealer. Report
any deficiencies to your dealer. Check that
the available power supply is correct to that
shown on the rating plate located on the right­hand side panel.

E25

100-120V ac, 60Hz, 13.3A, 1.6kW @ 120V
220-240V ac, 50/60Hz, 8.5A, 2.05kW @ 240V

E25B
100-120V ac, 60Hz, 17.1A, 2.05kW @120V

LOCATION
To ensure correct ventilation for the motor,

and controls the following minimum
installation clearances are to be adhered to:

Rear 25mm / 1”
Left-hand side 25mm / 1”
Right-hand side 25mm / 1”

2. INSTALLATION

WARNING: THIS APPLIANCE MUST BE GROUNDED.

BEFORE USE

Operate the oven for about 1 hour at 200°C
(400°F) to remove any fumes or odours which
may be present.

ELECTRICAL CONNECTION

E25 convection ovens are supplied with
pre-fitted cords. Ensure unit is fitted with the
correct cord and plug for the installation.
Refer specifications section.
Should changing of the cord be necessary,
gain access to the electrical connection
terminal block, grounding lug, and strain relief
by removing the back panel (four screws).

Figure 2.1

WARNING: ALL INSTALLATION AND SERVICE REPAIR WORK MUST BE CARRIED
OUT BY QUALIFIED PERSONS ONLY.

Position the oven in its allocated working
position. Use a spirit level to ensure the oven
is level from side to side and front to back. (If
this is not carried out, uneven cooking could
occur). The feet used with bench mounting or
provided with stands are adjustable and will
require adjusting in levelling the unit. It should
be positioned so the operating panel and oven
shelves are easily reachable for loading and
unloading.

IMPORTANT: THE OVEN VENT

LOCATED ON THE CABINET TOP
MUST NEVER BE OBSTRUCTED.

Rating Plate

Figure 2.2

-8-

Revision 3/F3542

3.1 DESCRIPTION OF CONTROLS - E25

1. POWER

Depress to switch power on or off (switch
illuminates when power is on).

2. THERMOSTAT
Temperature range 50 - 250°C (120 - 480°F).
Indicator illuminates when elements are cycling
ON to maintain set temperature.

3. BAKE TIMER
1 Hour bake timer.
(Indicator illuminates when “time up” (0)
reached, and buzzer sounds).

4. LIGHT SWITCH
Push switch to activate light.
(Oven light illuminates while button depressed).

3. OPERATION

NOTE: A full user’s operation manual is supplied with the product and can be used for further

referencing of installation, operation and service.

4

3

2

1

-9-

Revision 3/F3542

1. POWER

Depress to switch power on or off (switch
illuminates when power is on).

2. THERMOSTAT

Temperature range 50 - 270°C (120 - 525°F).
(Indicator illuminates when elements are cycling
ON to maintain set temperature.

BROIL POSITION (E25B Only) - The BROIL
indicator will illuminate indicating that the
BROIL function has been set. The HEATING
indicator will also illuminate whenever the ele­ments are on.

3. BAKE TIMER
1 Hour bake timer.
(Indicator illuminates when “time up” (0)
reached, and buzzer sounds).

4. LIGHT SWITCH
Push switch to activate light.
(Oven light illuminates while button depressed).

3.2 DESCRIPTION OF CONTROLS - E25B

4

3

2

1

-10-

Revision 3/F3542

3.3 EXPLANATION OF CONTROL

SYSTEM

The E25 and E25B Turbofan convection
ovens feature multi-function operator controls
for which a correct understanding of their
operation is required before carrying out any
service or fault repair work. The control
device functions are explained as follows:

A power switch on the control panel isolates
power to all the controls of the oven. With the
power switch Off all functions of the oven are
inoperable.

NOTE: The supply voltage is fed to the input
side of the heating element power relay on
E25B models whenever the electrical supply
is on.

With the power switch On (illuminated) power
is directly supplied to the 60 minute bake
timer, door microswitch, temperature control
circuit, and the light switch. The light switch
will turn the oven light on when the door is
closed, but only whilst the light switch is held
in.

The door microswitch on the E25 oven
controls the oven light only. Accordingly the
light will come on when the door is opened but
the circulation fan and fan element will remain
on. The door microswitch on the E25B oven
however, controls the light, the circulation fan,
and the fan element. Hence, opening the
door on the E25B oven causes the circulation
fan and fan element to switch off, as well as
causing the oven light to come on. (The broil
function incorporated into the E25B oven
requires the fan to be inoperative when
broiling with the door open).

The 60 minute timer is a mechanical timer and
can therefore be operated with the oven’s
power switch On or Off. However, only with
the oven’s power switch On will the switch
contacts of the 60 minute timer turn on the
time-up buzzer and illuminate the time-up
indicator on the control panel. The buzzer
and time-up indicator provide indication that
the time setting has run down to zero and at
this point will remain On continuously until the
60 minute timer has been manually set back
to the Off (vertical) position. The 60 minute
timer does not control any other part of the
oven’s operating system as this timer is
independent of the temperature control and
heating system.

The temperature control of these ovens is with

a capillary type thermostat which can be set to
a required cooking temperature. The E25B
also features a Broil position to provide top
browning or broiling in the oven.

The E25 has an element coiled around the
circulation fan in the rear of the oven. Power
to the element is provided directly from the
thermostat. The control panel indicator light
above the thermostat knob cycles on and off
with the thermostat to indicate when the
element is on and the oven is heating. In the
‘Off’ position, the element relies on the
thermostatic control to prevent it switching on.
Accordingly, if the oven temperature drops
below approximately 20°C the thermostat and
element may cycle on at this setting.

The E25B features a Broil element (located in
the top of the oven) as well as the fan
element. The thermostat switch has a
separate switch assembled onto the front of
the shaft assembly. This auxiliary switch,
depending on the thermostat setting, selects
between the fan or broil elements, via a Broil
relay located at the rear of the oven. A
changeover contact on the broil relay
determines which element is provided with
power. In series with the broil relay is a
second relay which is controlled by the main
thermostat switch. This is the heating relay.
One pole of the heating relay switches power
to the fan element, the other pole switches
power to the broil element. When the
thermostat cycles, both poles are switched
open or closed at the same time. However,
since only one pole is being fed power by the
broil relay, only the selected element cycles
on.

When the E25B thermostat is set to a cooking
temperature, one set of auxiliary switch
contacts remain open. This isolates power
from the coil of the two pole broil relay. In this
state the normally closed contacts of the first
pole provide power directly from the phase
connection on the terminal block to the fan
element pole on the heating relay. (The
normally closed contact on the second pole is
unused with this thermostat setting). The
second set of auxiliary switch contacts is
closed to feed power from the door
microswitch to the main thermostat switch.
When the thermostat cycles on it in turn feeds
power to the coil of the heating relay, causing
the changeover poles to switch. This closes
the normally open contacts and provides
power to the fan element. When the
thermostat cycles Off it isolates power to the
heating relay coil. This causes the normally

-11-

Revision 3/F3542

open contacts to reset, thus switching the fan
element off. The control panel indicator light
above the thermostat knob cycles on and off
with the thermostat to indicate when the
elements are on and the oven is heating.

When the E25B thermostat is set to the Broil
position the first set of auxiliary switch
contacts close and the second set open. The
closed contacts provide power to the coil on
the Broil relay. The opened contacts isolate
power from the door microswitch to the main
thermostat switch. With the thermostat in this
setting, power to the coil of the broil relay
causes the changeover contacts on both
poles to switch. The normally closed contacts
of the first pole on the Broil relay open,
isolating power to the fan element. The
normally open contacts of this pole close
providing power instead to the broil element
(via the heating relay). Switching of the
second pole of the Broil relay closes the
normally open contacts, providing power
directly to the main thermostat switch. (This
alternate power supply to the thermostat
allows the Broil element to continue to operate
with the oven door open and fan off). When
the thermostat cycles On it provides power to
the coil of the heating relay. When the
heating relay switches, the normally open
contacts on both poles close. However, with
the thermostat in this position, power is only
being provided to the pole feeding the broil
element so only the broil element cycles On.
When the thermostat cycles Off it isolates
power to the heating relay coil. This causes
the normally open contacts to reset, thus
switching the broil element off again. With the
door closed the broil element will cycle On/Off
thermostatically at 600°F as this is the
thermostat setting in the Broil position. With
the door open the broil element will remain on
continuously and the circulation fan will be
turned off. The main heating indicator will
cycle on and off with the thermostat and broil
element, whilst the broil indicator will remain
illuminated as long as the thermostat is in the
Broil setting.

The following Troubleshooting Guide (pg 13)
should be used to identify any incorrect oven
operation. On correct identification of the
operating fault the Troubleshooting Guide will
make reference to the corrective action
required, or refer to the Fault Diagnosis
section and/or Service section to assist in
correction of the fault.

-12-

Revision 3/F3542

IMPORTANT: THIS UNIT IS NOT

WATER PROOF.
DO NOT USE A WATER JET SPRAY TO
CLEAN INTERIOR OR EXTERIOR OF
THIS UNIT.

WARNING: ALWAYS TURN THE
POWER SUPPLY OFF BEFORE
CLEANING.

EXTERIOR

Clean with a good quality stainless steel
cleaning compound. Harsh abrasive cleaners
may damage the surface.

INTERIOR
Ensure that the oven chamber is cool. Do not

use wire brushes, steel wool or other abrasive
materials. Clean the oven regularly with a
good quality oven cleaner. Take care not to
damage the fan or the tube at the right side of
the oven which controls the thermostat.

OVEN RACKS

To remove, slide out to the stop position, raise
the front edge up, and lift out.

BOTTOM BAFFLE

To remove, lift up the tray at the front finger
hole and pull forward out of the oven.

SIDE RACKS
Undo the thumbscrew (anti-clockwise rotation)

securing rack to oven wall, swing rack to­wards centre of oven to disengage location
pin at front of side, and pull rack forward to
remove. To replace, engage rack in rear
holes, swing towards side of oven to engage
in front hole, and replace thumbscrew.

FAN BAFFLE

To remove, undo thumbscrew (anti-clockwise
rotation) at top of baffle and remove. Lift baf­fle out from rear of oven by tilting forward
while lifting out of location studs at baffle
base. Replace in reverse order.

4. MAINTENANCE

OVEN SEALS

To remove, hold at their centre point and pull
forward until they unclip. Remove side seals
first, then top and bottom. The seals may be
washed in the sink, but take care not to cut or
damage them. To replace the top seal,
ensure that the lip is facing the oven opening.
The left, right and bottom seals have the lip
facing out. Fit the top and bottom seals first,
then the side seals.

OVEN DOOR GLASS

Clean with conventional glass cleaners

4.1 CLEANING

WARNING: ALL INSTALLATION AND SERVICE REPAIR WORK MUST BE CARRIED
OUT BY QUALIFIED PERSONS ONLY.

4.2 ROUTINE PROCEDURES

DOOR SEALS

Check for deterioration 12 months

ELEMENTS
Check that element resistances 12 months

are correct to their ratings (refer

6.3.9)

-13-

Revision 3/F3542

5. TROUBLE SHOOTING

FAULT POSSIBLE CAUSE REMEDY

THE OVEN DOES NOT
OPERATE / START

The mains isolating switch on
the wall, circuit breaker or fuses
are “off” at the power board.

The power switch on the oven is
off.

Incorrect electrical supply.

(Refer fault diagnosis 6.1.1)

Power switch on unit faulty.

(Refer fault diagnosis 6.1.1)

Turn on.

Depress switch. Switch will
illuminate.

Ensure electrical supply correct.

Replace.

(Refer service section 6.3.4)

FAN DOESN’T OPERATE Door not closed (E25B only).

Door microswitch out of adjust­ment (E25B only).

(Refer fault diagnosis 6.1.2)

Door microswitch faulty (E25B
only).

(Refer fault diagnosis 6.1.2)

Fan motor faulty.

(Refer fault diagnosis 6.1.2)

Wiring.

Close door.
Adjust.

(Refer service section 6.4.3)

Replace.

(Refer service section 6.3.2)

Replace.

(Refer service section 6.3.11)

Check and tighten any loose
wiring.

OVEN LIGHT NOT
ILLUMINATING - DOOR OPEN

OVEN LIGHT NOT
ILLUMINATING - DOOR
CLOSED

Blown bulb.

No power to light.

(Refer fault diagnosis 6.1.3)

Blown bulb.

Light switch faulty.

(Refer fault diagnosis 6.1.4)

Replace.

(Refer service section 6.3.1)

Correct fault.

Replace.

(Refer service section 6.3.1)

Replace.

(Refer service section 6.3.4)

60 MINUTE TIMER WILL NOT
TIME DOWN

60 MINUTE TIMER
INACCURATE BELOW 20
MINUTES

Timer faulty.

Timer not set correctly.

Zero (time up) position not set
correctly.

Replace.

(Refer service section 6.3.6)

For timer settings below 20 min­utes, always rotate past 20 min­utes, then back to desired time.

(Refer service section 6.4.4)

WARNING: ALL INSTALLATION AND SERVICE REPAIR WORK MUST BE CARRIED
OUT BY QUALIFIED PERSONS ONLY.

-14-

Revision 3/F3542

FAULT POSSIBLE CAUSE REMEDY

60 MINUTE TIMER NO TIME
UP BUZZER

60 MINUTE TIMER NO TIME
UP INDICATOR

Buzzer faulty.

(Refer fault diagnosis 6.1.5)

Timer not switching on buzzer.

(Refer fault diagnosis 6.1.5)

Indicator faulty.

(Refer fault diagnosis 6.1.6)

Replace.

(Refer service section 6.3.5)

Replace timer.

(Refer service section 6.3.6)

Replace.

(Refer service section 6.3.3)

NO HEAT No power to thermostat.

(Refer fault diagnosis 6.1.7)
Thermostat faulty.

(Refer fault diagnosis 6.1.7)

Fan element not working.

(Refer fault diagnosis 6.1.10)

Heating relay faulty - E25B only.
(Refer fault diagnosis 6.1.7)

Identify fault and correct.

Replace.

(Refer service section 6.3.7)

Correct element fault.

(Refer Fault: Fan element)

Replace.

(Refer service section 6.3.8)

NO TEMPERATURE
CONTROL

Thermostat faulty.

(Refer fault diagnosis 6.1.8)

Heating relay faulty - E25B only.
(Refer fault diagnosis 6.1.8)

Replace.

(Refer service section 6.3.7)

Replace.
(Refer service section 6.3.8)

SLOW RECOVERY Overloading of oven.

Electrical supply incorrect.

Fan not working.
Thermostat calibration.

(Refer fault diagnosis 6.1.9)

Reduce oven loading.
Check supply voltage is as per

rating plate voltage.
Check fan operation.
Correct calibration.

(Refer service section 6.4.1,

6.4.2)

FAN ELEMENT NOT
WORKING

Element faulty (blown).

(Refer fault diagnosis 6.1.10)

Faulty thermostat.

(Refer fault diagnosis 6.1.10)

Heating relay faulty - E25B only.

(Refer fault diagnosis 6.1.10)

Broil relay faulty - E25B only.

(Refer fault diagnosis 6.1.10)

Replace.

(Refer service section 6.3.9)

Replace.

(Refer service section 6.3.7)

Replace.

(Refer service section 6.3.8)

Replace.
(Refer service section 6.3.8)

NO THERMOSTAT HEATING
INDICATOR LIGHT

Indicator faulty.

(Refer fault diagnosis 6.1.11)

Replace.

(Refer service section 6.3.3)

-15-

Revision 3/F3542

FAULT POSSIBLE CAUSE REMEDY

BROIL ELEMENT NOT
WORKING (E25B ONLY)

Element faulty / blown.

(Refer fault diagnosis 6.1.12)

Faulty thermostat.

(Refer fault diagnosis 6.1.12)

Heating relay faulty

(Refer fault diagnosis 6.1.12)

Broil relay faulty

(Refer fault diagnosis 6.1.12)

Replace.

(Refer service section 6.3.9)

Replace.

(Refer service section 6.3.7)

Replace.

(Refer service section 6.3.8)

Replace.

(Refer service section 6.3.8)

NO BROIL INDICATOR LIGHT
(E25B ONLY)

Indicator faulty.

(Refer fault diagnosis 6.1.13)

Replace.
(Refer service section 6.3.3)

OVEN OVERHEATS IN BROIL
MODE—DOOR SHUT (E25B
ONLY)

Faulty heating relay.

(Refer fault diagnosis 6.1.14)

Replace.

(Refer service section 6.3.8)

DOOR DOES NOT CLOSE Tray in way of door.

Door seal obstruction.

Door hinges worn.

Door hinge counter brackets
worn.

Correctly position tray in rack.
Correctly install door seal.

(Refer service section 6.3.14)

Replace.

(Refer service section 6.3.16)

Replace.
(Refer service section 6.3.17)

DOOR SEAL LEAKS Door seal damaged.

Door seal incorrectly fitted.

Replace.
(Refer service section 6.3.14)

Correctly install door seal.
(Refer service section 6.3.14)

POWER SWITCH DOES NOT
SWITCH UNIT OFF

Power switch faulty.
(Refer fault diagnosis 6.1.15)

Broil relay faulty (E25B only).

(Refer fault diagnosis 6.1.15)

Heating relay faulty (E25B
only).

(Refer fault diagnosis 6.1.15)

Replace.

(Refer service section 6.3.4)

Replace.

(Refer service section 6.3.8)

Replace.

(Refer service section 6.3.8)

-16-

Revision 3/F3542

SECTION PAGE NO.

6.1 FAULT DIAGNOSIS ..............................................................................................................18

6.1.1 Oven Does Not Operate / Start ...........................................................................18

6.1.2 Fan Does Not Operate ........................................................................................18

6.1.3 Oven Light Not Illuminating—Door Open ............................................................18

6.1.4 Oven Light Not Illuminating—Door Closed .........................................................18

6.1.5 60 Minute Timer No Time Up Buzzer .................................................................. 18

6.1.6 60 Minute Timer No Time Up Indicator ...............................................................19

6.1.7 No Heat ...............................................................................................................19

6.1.8 No Temperature Control ...................................................................................... 19

6.1.9 Slow Recovery ..................................................................................................... 19

6.1.10 Fan Element Not Working ...................................................................................20

6.1.11 No Thermostat Heating Indicator ........................................................................20

6.1.12 Broil Element Not Working ..................................................................................20

6.1.13 Broil Indicator Not Working ..................................................................................21

6.1.14 Oven Overheats in Broil Mode ............................................................................21

6.1.15 Power Switch Does Not Turn Unit Off .................................................................21

6.2 ACCESS ................................................................................................................................ 22

6.2.1 Control Panel .......................................................................................................22

6.2.2 Service Panel (Rear Panel) .................................................................................22

6.2.3 Baffle ....................................................................................................................22

6.2.4 E25 Control Panel (Rear) ....................................................................................22

6.2.5 E25B Control Panel (Rear) .................................................................................. 22

6.3 REPLACEMENT ...................................................................................................................23

6.3.1 Light Bulb / Glass ................................................................................................23

6.3.2 Door Microswitch ................................................................................................. 23

6.3.3 Indicator Neon Light ............................................................................................23

6.3.4 Power / Lights ......................................................................................................23

6.3.5 Buzzer ..................................................................................................................23

6.3.6 Bake Timer ..........................................................................................................24

6.3.7 Thermostat ........................................................................................................... 24

6.3.8 Relay .................................................................................................................... 24

6.3.9 Element ................................................................................................................24

6.3.10 Fan ....................................................................................................................... 25

6.3.11 Motor .................................................................................................................... 25

6.3.12 Outer Glass .........................................................................................................25

6.3.13 Inner Glass ..........................................................................................................26

6.3.14 Door Seals ........................................................................................................... 26

6.3.15 Door Handle ........................................................................................................26

6.3.16 Door Hinges .........................................................................................................26

6.3.17 Hinge Counter Brackets ......................................................................................26

WARNING: ENSURE POWER SUPPLY IS SWITCHED OFF BEFORE SERVICING.

6. SERVICE PROCEDURES

WARNING: ALL INSTALLATION AND SERVICE REPAIR WORK MUST BE CARRIED
OUT BY QUALIFIED PERSONS ONLY.

-17-

Revision 3/F3542

6.4 ADJUSTMENT / CALIBRATION .......................................................................................... 28

6.4.1 Thermostat Calibration (E25) ..............................................................................28

6.4.2 Thermostat Calibration (E25B) ............................................................................28

6.4.3 Door Microswitch Adjustment ..............................................................................29

6.4.4 60 Minute Timer Zero Position Adjustment ......................................................... 29

-18-

Revision 3/F3542

6.1 FAULT DIAGNOSIS

Incorrect electrical supply

Check that the voltage across phase and
neutral (L1 and L2) terminals of terminal block
is the voltage as stated on the unit’s electrical
rating plate.

If incorrect, check electrical connection of
supply wiring and / or check electrical supply.

6.1.1 OVEN DOES NOT OPERATE / START

Power switch faulty

Check if power switch latches. If the switch
does not latch, then switch is faulty—replace.

With switch latched, check voltage across
terminal one to terminal three or four. If there
is no voltage, check for fault in wiring.

Check voltage across terminal two to terminal
three or four. If there is no voltage, then
switch is faulty—replace.

NOTE: When power switch is latched, it

should illuminate if operating
correctly.

6.1.2 FAN DOESN’T OPERATE

Microswitch out of adjustment - E25B only

Open oven door and manually depress door
microswitch actuator at top right of oven. If
this activates the fan, then the microswitch
actuator arm inside control cavity requires
adjustment.

Microswitch faulty - E25B only

Check voltage across microswitch terminals to
neutral.

With the door closed there should be power to
the com terminal and the n.o. terminal.

With the door open there should be power to
the com terminal and the n.c. terminal.

If not, microswitch is faulty—replace.

Fan motor faulty

With door closed, check the supply voltage
across motor terminals. If there is no voltage
then check the electrical connections of sup­ply wiring.

If voltage is correct then check the oven fan
for free rotation. Remove any obstruction.

If fan is free to spin and the voltage supply is
correct, then the motor is faulty—replace.

6.1.3 OVEN LIGHT NOT ILLUMINATING—
DOOR OPEN

No power to light

Check the supply voltage across lamp
housing terminals at rear of oven. If the
voltage is correct, replace the bulb (if faulty).
If the bulb is OK, check lamp housing.
Replace if faulty.

If there is no voltage, check voltage across
micro-switch terminals to neutral.

With the door closed there should be power to
the com terminal and the n.o. terminal.

With the door open there should be power to
the com terminal and the n.c. terminal.

If not, microswitch is faulty—replace.

6.1.4 OVEN LIGHT NOT ILLUMINATING—
DOOR CLOSED

Light switch faulty

Check voltage to the top terminal of the
switch. If there is no voltage, then check
wiring.

With switch depressed, check voltage at
bottom terminal. If there is no voltage, then
replace the switch.

If voltage is correct, then check wiring to light.
NOTE: Alternately, perform a continuity test

across the terminals with the light
switch depressed.

6.1.5 60 MINUTE TIMER NO TIME UP
BUZZER

Buzzer faulty

With timer in ‘zero’ position, check the buzzer
at bottom of control panel (inside) for voltage
across terminals. If voltage is correct then
buzzer is faulty—replace.

If there is no voltage, then check wiring.

Microswitch

n.o.

com

n.c.

Figure 6.1.1

-19-

Revision 3/F3542

Timer not switching on buzzer

With timer in zero position, check voltage to
input and output terminals of timer. If there is
no voltage at input terminal then check wiring.

If no voltage at output terminal then timer is
faulty—replace.

NOTE: Buzzer and time up indicator will
continue until the timer is manually switched
off (to vertical position).

6.1.7 NO HEAT
No power to thermostat - E25

Check voltage to terminal P (top terminal) on
oven thermostat. If there is no voltage then
check wiring.

No power to thermostat - E25B

Check voltage to terminal 5 of oven
thermostat. If there is no voltage then check
wiring.

With door closed, check voltage to terminal 6
of oven thermostat. If no voltage, check
voltage to terminal NO of door microswitch. If
there is no voltage then refer 6.1.2,
microswitch faulty. If there is voltage then
check wiring to thermostat.

Thermostat faulty - E25

Set thermostat to 200°C or 400°F. Check the
voltage out of terminal 1 on the thermostat. If
there is no voltage then the thermostat is
faulty—replace.

If the voltage is correct and the heating light is
on then check all wiring to elements.

6.1.6 60 MINUTE TIMER NO TIME UP
INDICATOR

Indicator faulty

With the timer in the zero position, check for
voltage across the indicator light. If correct,
then the indicator light is faulty—replace.

If there is no voltage then check wiring.

Thermostat faulty - E25B

Set thermostat to 200°C or 400°F. With door
closed, check the voltage out of terminal 2 on
the thermostat. If there is no voltage then the
thermostat is faulty—replace.

If the voltage is correct and the heating light is
on then check all wiring to elements.

Heating relay faulty—E25B

Set thermostat to 200°C or 400°F. With door
closed, check voltage to terminal A of heating
relay. If no voltage check wiring. If correct
voltage to A, heating relay is faulty—replace.

6.1.8 NO TEMPERATURE CONTROL

Thermostat faulty

With thermostat in ‘off’ position (knob vertical),
slowly turn thermostat up until heating indica­tor just comes on. Wait for heating indicator
to cycle off. If indicator has not cycled off af­ter 10 minutes then thermostat is faulty—
replace.
NOTE: E25 thermostat may cycle on and off
with the knob set to the ‘off’ position if the
oven temperature is below 20°C.

Heating relay faulty—E25B

With power switch off on control panel, check
for voltage at terminal 6 of heating relay. If
there is voltage then the heating relay is
faulty—replace.

6.1.9 SLOW RECOVERY
Thermostat out of calibration

Place an accurate digital thermometer probe
in centre of oven. Set thermostat to 180°C or
355°F. Close the oven door and allow oven
thermostat to cycle on and off twice. Record
oven centre temperature for the next
thermostat on and off cycle. The thermostat
should cycle on and off between 165°C and
195°C or 330°F and 385°F when set to the
above temperature. If oven temperature is
outside these ranges, then the thermostat
requires recalibration.

NOTE: Thermostat cycling span should be
±15°C or 27°F

Buzzer

Buzzer Terminals

Figure 6.1.2

-20-

Revision 3/F3542

6.1.10 FAN ELEMENT NOT WORKING
Element faulty (blown)

With the thermostat on and heating check
voltage across fan element terminals at rear
of oven. If the voltage is correct then check
the current draw of element. If there is no
current draw then element is faulty—replace.

NOTE: Correct fan element current draw:
E25 120 V: 12.9A ± 1.5A
E25B 120 V: 16.7A ± 1.5A
E25 240 V: 8.3A ± 1.5A

Indicator faulty

With the thermostat on and heating, check the
voltage across the indicator terminals. If the
voltage is correct then the indicator is faulty—
replace.

If there is no voltage then check wiring.

6.1.11 NO THERMOSTAT HEATING
INDICATOR

Element faulty / blown

Set thermostat to broil position (fully clock­wise). Check voltage at the broil element
terminals at rear of oven. If voltage is correct
then check current draw of element. If no
current draw then the element is faulty—
replace.

NOTE: Top element current draw:
120 V: 16.7A ± 1.5A

Thermostat faulty
With thermostat in broil position:

1) Check broil indicator control panel
indicates. If not, check voltage at terminal
5 on thermostat switch. If no voltage,
check wiring. If voltage correct, check
voltage at terminal P5. If no voltage at P5
then switch is faulty—replace thermostat
assembly.

2) Check heating indicator on control panel
indicates. If not, check voltage at terminal
2 of thermostat. If voltage correct, check
wiring. If no voltage, check voltage at
terminal 1 of thermostat. If voltage at
terminal 1 correct, thermostat is faulty—
replace.

Broil relay faulty
Check voltage at terminal A of broil relay. If

no voltage check wiring. If voltage at A
correct, check voltage at terminal 9. If no
voltage at 9 check wiring. If voltage at 9
correct then check voltage at terminal 6. If no
voltage at 6 then relay is faulty—replace. If
voltage at 6 is correct, check voltage at
terminal 7. If no voltage at 7 then check
wiring. If voltage at 7 is correct then check
voltage at terminal 4. If no voltage at 4 then
relay is faulty—replace.

Heating relay faulty

Check voltage at terminal A of heating relay.
If no voltage check wiring. If voltage at A
correct, check wiring at terminal 7. If no
voltage check wiring. If voltage is correct,
check voltage at terminal 4. If no voltage at 4
then relay is faulty—replace. If voltage at 4 is
correct then check wiring.

6.1.12 BROIL NOT WORKING (E25B ONLY)

Thermostat faulty—E25

If there is no voltage to element terminals then
check voltage is being supplied to fan element
from terminal 1 on the thermostat. If no
voltage at 1 then check for voltage at terminal
P. If power to P (and none to 1), then the
thermostat is faulty—replace.

Thermostat faulty—E25B
Check voltage at terminal 6 of thermostat. If

no voltage then check wiring. If voltage
correct, check voltage at terminal 2. If there is
no voltage then the thermostat is faulty—
replace.

Broil relay faulty—E25B

If voltage at terminal 2 of thermostat is
correct, check voltage at terminal 9 of broil
relay. If no voltage check wiring. If voltage
correct, check voltage to terminal 3. If voltage
at terminal 9, but not at terminal 3 then relay
is faulty—replace.

Heating relay faulty—E25B
If voltage at terminal 2 of thermostat and

terminal 3 of broil relay are correct, check
voltage at terminal A of heating relay. If no
voltage then check wiring. If voltage at A
correct, check voltage at terminal 9. If no
voltage at 9 check wiring. If voltage at 9
correct, check voltage at terminal 6. If no
voltage at 6 then relay is faulty—replace. If
voltage at 6 is correct then check wiring to
element.

-21-

Revision 3/F3542

Indicator faulty

With thermostat in broil position, check the
voltage across the indicator terminals. If the
voltage is correct then indicator is faulty—
replace.

If there is no voltage then check wiring.

6.1.13 BROIL INDICATOR NOT WORKING
(E25B ONLY)

Heating relay faulty

With the oven switched off, disconnect the
wires from terminals 7 and 4 of the heating
relay. Check for continuity through these
terminals. If there is continuity then the relay
is faulty—replace.

6.1.14 OVEN OVERHEATS IN BROIL MODE
(E25B ONLY)

Power switch faulty

Check if power switch latches. If the switch
does not latch, then the switch is faulty—
replace.
With switch unlatched and door open, check
voltage across terminal 2 to terminal 3 or 4. If
there is voltage then the switch is faulty—
replace.
Alternatively, perform a continuity test across
terminals 1 and 2. This should show an open
circuit when the switch is unlatched.

NOTE: When power switch is unlatched it
should not be illuminated if operating
correctly.

Broil relay faulty (E25B only)
With power switch off, check for voltage at

terminal 4 of broil relay. If there is voltage
then the relay is faulty—replace.

Heating relay faulty (E25B only)

With the oven switched off, disconnect the
wires from terminals 9 and 6 of the heating
relay. Check for continuity through these
terminals. If there is continuity then the relay
is faulty—replace.

6.1.15 POWER SWITCH DOES NOT TURN
UNIT OFF.

-22-

Revision 3/F3542

Four
Screws

6.2 ACCESS

6.2.1 CONTROL PANEL

1) Undo one screw at bottom of control
panel.

1) Undo the four screws holding the panel.

6.2.2 SERVICE (REAR) PANEL

1) Remove trays, racks and bottom tray.

2) Undo thumbscrew (top).

6.2.3 BAFFLE

2) Pull out bottom of control panel and drop
down to disengage tabs at top of control
panel.

Figure 6.2.1

2) Remove panel.

Figure 6.2.2

3) Remove baffle.

Figure 6.2.3

6.2.4 E25 CONTROL PANEL—REAR

Figure 6.2.4

6.2.5 E25B CONTROL PANEL—REAR

Buzzer

Power Switch

Heating Indicator

Broil Indicator
Thermostat

Bake Time Up
Indicator

Light Switch

Bake Timer

One Screw

Figure 6.2.5

Buzzer

Power Switch

Heating Indicator

Thermostat

Bake Time Up

Light Switch

Bake Timer

Thumbscrew

-23-

Revision 3/F3542

Two Screws

6.3 REPLACEMENT

6.3.1 LIGHT BULB / GLASS

6.3.2 DOOR MICROSWITCH

1) Unscrew lamp cover.

1) Open oven door.

2) Open control panel (refer 6.2.1).

3) Remove two screws holding microswitch
to bracket.

6.3.3 INDICATOR NEON LIGHT

1) With control panel open (refer 6.2.1)
remove the wires from the back of the
neon.

6.3.4 POWER / LIGHT SWITCHES

1) With control panel open (refer 6.2.1)
remove the wires from the back of the
switch, noting their positions.

Two Screws

6.3.5 BUZZER

1) Remove control panel (refer 6.2.1).

2) Remove two screws holding buzzer to
panel.

4) Transfer wires to new buzzer.

5) Reassemble in reverse order.

Figure 6.3.5

2) Unscrew bulb out of fitting.

3) Screw in replacement bulb.

4) Replace lamp cover.

Lamp
Cover

Figure 6.3.1

4) Transfer wires to new micro-switch and
re-assemble.

5) Adjust microswitch (refer 6.4.2).

Figure 6.3.2

2) From back push neon through front of
panel rotating clockwise.

3) Push new neon in from front of panel, and
reconnect wires.

2) From back push switch through front of
panel.

3) Push new switch in from front of panel,
and reconnect wires.

Neon
Wires

Switch
Wires

Figure 6.3.3

Figure 6.3.4

-24-

Revision 3/F3542

Two
Screws

Two
Screws

Two Screws

6.3.6 BAKE TIMER

1) Remove bake timer knob by pulling it
firmly away from control panel.

2) Open control panel (refer 6.2.1) and undo
two screws securing timer.

Fan Element
Three Screws

Top Element
Two Screws

6.3.9 ELEMENT

6.3.7 THERMOSTAT

1) Pull knob off front of thermostat

2) Open control panel (refer 6.2.1) and undo
two screws securing thermostat.

3) Transfer wires to new timer.

4) Withdraw old timer and insert new timer,
securing with screws.

5) Replace knob.

Two Screws

Figure 6.3.6

5) Withdraw old thermostat phial through
rear of oven.

6) Insert new thermostat.

7) Re-assemble in reverse order.

3) Transfer wires to new thermostat.

4) Remove service panel (refer 6.2.2) and
from inside of oven loosen two screws
holding thermostat phial bracket.

Figure 6.3.7

Figure 6.3.8

1) With service panel and baffle removed
(refer 6.2.2 and 6.2.3) remove the wires
from the element(s).

2) Unscrew the element from inside the
oven.

3) Pull element carefully to remove.

4) Replace and re-assemble in reverse
order.

Figure 6.3.10

Element Ratings
100-120V Top Element 7.2 ohms
Fan Element (E25) 9.3 ohms

220-240V Fan Element 28.8 ohms

Fan Element (E25B) 7.2 ohms

6.3.8 RELAY

1) Remove service panel (refer 6.2.2).

2) Undo two screws securing relay to oven.

Figure 6.3.9

3) Transfer wires to new relay, and secure to

oven with screws.

Broil

Relay

Heating

Relay

-25-

Revision 3/F3542

Three Screws

Centre Nut

6.3.12 OUTER GLASS

6.3.11 MOTOR

6.3.10 FAN

1) With baffle removed (refer 6.2.3) undo the
centre nut.

NOTE: LH thread - Turn clockwise to

loosen. Take care not to lose the two
washers.

1) Remove fan (refer 6.3.10), remove service

panel (refer 6.2.2) and then remove the
wires that go to the motor.

2) Undo the four screws holding the motor

bracket in place (from the outside) and
remove motor assembly.

1) Open the oven door.

2) Lock hinges into position by rotating the
hinge locking clip over the hinge locking
notch.

2) Replace and re-assemble in reverse
order.

NOTE: Reassemble with one washer behind

fan, and one washer in front.

3) Lift door away from the oven and place on
a flat surface.

4) Undo two screws and remove the trim
from the bottom of the door. Carefully
withdraw the glass.

Figure 6.3.11

Figure 6.3.12

Screws (4)

3) Remove three screws holding motor to
bracket and remove motor.

4) Replace and re-assemble in reverse order.

5) Ensure wire connections are correct (fig

6.3.12)

Figure 6.3.13

5) To replace, ensure that the two silicone
rubber seals are in place on the left hand
and right hand side of the door frame.
Clean the inside of the glass and refit it,
ensuring that the silicone rubber seals
cover the outer edges of the glass. Refit
the bottom trim, and fit the door to the
oven.

Figure 6.3.15

Two Screws

Phase
Terminal

Earth /
Ground

Neutral

Hinge Locking Clip

Hinge Locking
Notch

Figure 6.3.14

-26-

Revision 3/F3542

Two Bolts

Two Screws

3) Uncrimp the retaining lugs of the window
spacer and remove the spacer and glass.

Retaining

Lugs

Figure 6.3.17

6.3.13 INNER GLASS

1) Remove the outer glass (refer 6.3.12).

2) Undo two screws and remove the top trim
and handle assembly.

6.3.14 DOOR SEALS

1) Open oven door.

2) To remove, hold at their centre point and

pull forward until they unclip

3) Refit new seals.

Note: Fit top and bottom seals first, with

open side of seal facing
downwards. Fit side seals with
open side facing outwards.

Figure 6.3.16

4) To replace, ensure the silicone rubber seal
has not been displaced. Clean the glass
and refit it. Place the window spacer in
position and crimp the retaining lugs over
to hold the glass in place. Refit outer
glass as above.

Two Screws

6.3.15 DOOR HANDLE

1) Remove the door (refer 6.3.12).

2) Undo two screws and remove the top trim
and handle assembly, taking care not to
dislodge the outer glass.

3) Undo two bolts securing handle to top
trim. Replace handle and reassemble in
reverse order.

6.3.16 DOOR HINGES

1) Remove outer glass (refer 6.3.12).

2) Undo two screws securing hinge assembly
to oven door.

Figure 6.3.18

3) Withdraw hinge assembly and replace.
Reassemble in reverse order.

Figure 6.3.19

6.3.17 HINGE COUNTER BRACKETS

1) Remove door (refer 6.3.12).

2) Remove screws from back of oven secur­ing wrapper to oven.

Figure 6.3.20

3) Turn oven onto its back and remove three
screws at each side securing wrapper,
and two securing insulation panel.

-27-

Revision 3/F3542

Two

Screws

Two screws

Figure 6.3.21

4) Undo two screws and remove lintel cover.

5) Remove control panel (refer 6.2.1) and
microswitch bracket (refer 6.3.2). Place
inside oven.

6) Remove two screws securing lintel
support to oven and remove.

Two screws

Figure 6.3.23

9) Remove two screws securing insulation
panel to oven liner.

Two screws

Insulation

panel

Figure 6.3.25

8 screws

7) Remove wrapper.

8) Undo two screws securing left hand
counter bracket to oven and remove.
Replace, ensuring that bracket is installed
with roller to top.

Figure 6.3.22

Figure 6.3.24

10) Prise open the insulation panel to allow
access to the right hand counter bracket.
Undo two screws securing bracket, and
remove bracket.

11) Replace, ensuring roller to top of bracket.
Re-assemble in reverse order.

-28-

Revision 3/F3542

Thermostat Shaft

Broil Switch

1) Turn off power.

2) Remove thermostat knob by pulling it
firmly away from control panel.

3) Open control panel (refer 6.2.1). Remove
two screws on control panel holding
thermostat.

4) The thermostat can now be removed.

5) Carefully remove two screws holding broil
switch to thermostat.

HINT: Tape broil switch assembly to-

gether before removal to prevent it from
springing apart.

Figure 6.4.3

Calibration Nut

Thermostat

Figure 6.4.2

6.4.2 THERMOSTAT CALIBRATION - E25B

IMPORTANT: IF THE OVEN

TEMPERATURE NEEDS TO BE
INCREASED, ENSURE THAT THE
THERMOSTAT IS IN THE ‘OFF’ POSITION
BEFORE CARRYING OUT ADJUSTMENT.
IF OVEN TEMPERATURE NEEDS TO BE
DECREASED, ENSURE THERMOSTAT IS
IN THE ‘MAX’ TEMPERATURE POSITION
BEFORE CARRYING OUT ANY
ADJUSTMENT.

6.4 ADJUSTMENT / CALIBRATION

6.4.1 THERMOSTAT CALIBRATION - E25

IMPORTANT: IF THE OVEN

TEMPERATURE NEEDS TO BE
INCREASED, ENSURE THAT THE
THERMOSTAT IS IN THE ‘OFF’ POSITION
BEFORE CARRYING OUT ADJUSTMENT.
IF OVEN TEMPERATURE NEEDS TO BE
DECREASED, ENSURE THERMOSTAT IS
IN THE ‘MAX’ TEMPERATURE POSITION
BEFORE CARRYING OUT ANY
ADJUSTMENT.

1) Turn off power.

2) Remove thermostat knob by pulling it
firmly away from control panel.

3) Adjust the calibration screw located in the
centre of the thermostat shaft.

To increase oven temperature, turn

calibration screw anticlockwise.

To decrease oven temperature, turn

calibration screw clockwise.

Adjustment of the calibration screw by 1°

angular will alter oven temperature by
approximately 0.8°C (1.5°F).

Two Screws

Screws

Broil Switch

Figure 6.4.4

Calibration Screw

Figure 6.4.1

-29-

Revision 3/F3542

7) Adjust the calibration nut located at the
base of the thermostat shaft.

To increase oven temperature, turn

calibration nut anticlockwise.

To decrease oven temperature, turn

calibration nut clockwise.

Adjustment of the calibration nut by 1°

angular will alter oven temperature by
approximately 2°C (3.6°F).

8) Reassemble broil switch onto thermostat
and fit assembly back onto control panel.

9) Turn on power and recheck oven
thermostat calibration.

10) Repeat procedure if necessary.

Figure 6.4.5

Calibration Nut

6.4.3 DOOR MICROSWITCH ADJUSTMENT

1) Open oven door.

2) Open control panel (refer 6.2.1).

3) With fingers, bend actuator arm of
microswitch so that switch operates when
door is in closed position.

Actuator Arm

Figure 6.4.6

6.4.4 60 MINUTE TIMER ZERO POSITION
ADJUSTMENT

1) Remove 60 minute timer knob by pulling it
firmly away from control panel.

2) Open control panel (refer 6.2.1). Loosen
two screws on control panel holding 60
minute timer.

Figure 6.4.7

3) The timer can now be rotated as required
to ensure that the buzzer sounds at the
zero position.

Two Screws

-30-

Revision 3/F3542

7. ELECTRICAL CIRCUIT SCHEMATIC

7.1 E25

-31-

Revision 3/F3542

7.2 E25B

-32-

Revision 3/F3542

8. ELECTRICAL WIRING DIAGRAM

8.1 E25

-33-

Revision 3/F3542

8.2 E25B

-34-

Revision 3/F3542

9. SPARE PARTS

PART NO DESCRIPTION
CONTROLS

021473 Switch - Power (220-240V)
021514 Switch - Power (110V)
023211 Thermostat (E25 only)
017121 Thermostat (E25B only)
021472 Knob - Thermostat (E25 only)
020823 Knob - Thermostat (E25B only)
020823 Knob - Bake Timer
020849 Neon Indicator
023212 Bake Timer - Coupatan (To S/N 228661)
011760 Bake Timer - Diehl (From S/N 228662)
011794 Buzzer (220-240V)
015822 Buzzer (110V)
021474 Light Switch
023213 Relay (E25B only)
003004 Microswitch
013520 Oven Lamp Assembly (220-240V)
023216 Oven Lamp Assembly (110V)
013521 Oven Lamp (220-240V) 40W Miniature Edison Screw

--------- Oven Lamp (110V) 40W Edison Screw
MOTOR & ELEMENTS

023071 Oven Fan Element (E25 only) (240 volt)
023069 Oven Fan Element (E25 only) (110 volt)
023072 Oven Top Element (E25B only) (110 volt)
023070 Oven Fan Element (E25B only) (110 volt)
023215 Fan Motor c/w Fan (220-240V)
023214 Fan Motor c/w Fan (110V)

DOOR
023099 Oven Door Seal Strip Side

014226 Oven Door Seal Strip Top/Bottom
021468 Handle
023090 Handle Stiffener
023062 Door Outer Glass
023063 Door Inner Glass
023217 Door Hinge

RACKS / BAFFLES

023066 Oven Side Rack LH
023067 Oven Side Rack RH
023068 Side Rack Screw
012809 Wire Oven Rack
023382 Fan Baffle
023068 Fan Baffle Screw
004868 Bottom Baffle

-35-

Revision 3/F3542

10. ACCESSORIES

OVEN RACKS (PART NO 12809)

SCONE TRAYS (PART NO 02083)

100 MM (FOUR INCH) FOOT OPTION
(PART NO 13048)

A25 STAINLESS STEEL STAND

25 MM (ONE INCH) FOOT OPTION (PART
NO 13908)

DOUBLE STACKING KIT (PART NO 24290)

-36-

Revision 3/F3542

11. PARTS DIAGRAMS

11.1 MAIN ASSEMBLY - E25

-37-

Revision 3/F3542

Pos Part No. Description

1 012809 OVEN RACK
2 011402 PIVOT TOP COVER
3 023074 LINTEL SUPPORT
4 023087 WRAPPER
5 - - - - - - FAN
6 003016 MOTOR PLATE
7 023215 MOTOR – 240V
7 023214 MOTOR – 110V
8 004857 OVEN
9 017770 PHIAL GUARD
10 023093 MICROSWITCH MOUNTING BRACKET
11 012520 OVEN LIGHT ASSEMBLY – 240V
11 023216 OVEN LIGHT ASSEMBLY – 110V
12 013977 MICROSWITCH INSULATION
13 003004 MICROSWITCH
14 023067 SIDE RACK RH
15 023073 COVER PANEL
16 002138 CABLE CLAMP
17 002441 INSULATOR
18 013586 TERMINAL BLOCK
19 018251 CABLE ENTRY
20 023089 INSULATION PANEL
21 023088 BODY
22 013908 FOOT
23 004850 CONTROL PANEL – MOFFAT
004851 CONTROL PANEL – BAKBAR
24 023071 FAN ELEMENT – 240V
24 023069 FAN ELEMENT – 110V
25 023382 BAFFLE RA
26 023217 DOOR HINGE
27 023282 BOTTOM TRIM
28 023091 GLASS CLAMP ANGLE
29 023063 INNER GLASS
30 023062 OUTER GLASS
31 023228 INNER GLASS SEAL
32 023230 OUTER GLASS SEAL
33 004854 DOOR INNER PANEL
34 021468 DOOR HANDLE
35 023281 TOP TRIM
36 023090 HANDLE STIFFENER
37 041410 M8 X 20
38 004868 BOTTOM BAFFLE
39 023066 SIDE RACK LH
40 023095 VENT TUBE
41 044215 CAGE NUT
42 023068 SIDE RACK SCREW
43 023384 BAFFLE PIVOT WA
44 023387 BAFFLE SUPPORT
45 013610 DOOR BUSH
46 044210 SPIRE CLIP
47 021637 MICROSWITCH BUTTON
48 014226 TOP SEAL
49 023219 HINGE COUNTER BRACKET
50 023099 SIDE SEAL

-38-

Revision 3/F3542

11.2 MAIN ASSEMBLY - E25B (110V ONLY)

-39-

Revision 3/F3542

Pos Part No. Description

1 012809 OVEN RACK
2 011402 PIVOT TOP COVER
3 023074 LINTEL SUPPORT
4 023087 WRAPPER
5 - - - - - - FAN
6 003016 MOTOR PLATE
7 023214 MOTOR (110V)
8 023075 OVEN
9 017770 PHIAL GUARD
10 023093 MICROSWITCH MOUNTING BRACKET
11 023216 OVEN LIGHT ASSEMBLY (110V)
12 013977 MICROSWITCH INSULATION
13 003004 MICROSWITCH
14 023067 SIDE RACK RH
15 023073 COVER PANEL
16 002138 CABLE CLAMP
17 002441 INSULATOR
18 013586 TERMINAL BLOCK
19 023213 RELAY (110V)
20 018251 CABLE ENTRY
21 023089 INSULATION PANEL
22 023088 BODY
23 013908 FOOT
24 004849 CONTROL PANEL
25 023070 FAN ELEMENT (110V)
26 023382 BAFFLE RA
27 023389 BOTTOM BAFFLE
28 023217 DOOR HINGE
29 023282 BOTTOM TRIM
30 023091 GLASS CLAMP ANGLE
31 023063 INNER GLASS
32 023062 OUTER GLASS
33 023228 INNER GLASS SEAL
34 023230 OUTER GLASS SEAL
35 004854 DOOR INNER PANEL
36 023384 BAFFLE PIVOT WA
37 021468 DOOR HANDLE
38 023281 TOP TRIM
39 023090 HANDLE STIFFENER
40 041410 M8 X 20
41 023072 GRILL ELEMENT (110V)
42 003219 ELEMENT SUPPORT
43 023068 SIDE RACK SCREW
44 044215 CAGE NUT
45 023066 SIDE RACK LH
46 023095 VENT TUBE
47 023387 BAFFLE SUPPORT
48 013610 DOOR BUSH
49 044210 SPIRE CLIP
50 021637 MICROSWITCH BUTTON
51 014226 TOP SEAL
52 023219 HINGE COUNTER BRACKET
53 023099 SIDE SEAL

-40-

Revision 3/F3542

11.3 CONTROL PANEL ASSEMBLY - E25

Pos Part No. Description

23 004851 CONTROL PANEL - BAKBAR
004880 CONTROL PANEL - BLUE SEAL
004850 CONTROL PANEL - MOFFAT
51 021473 POWER SWITCH – 240V
51 021514 POWER SWITCH – 110V
52 020849 NEON INDICATOR - 240V
023857 NEON INDICATOR - 110V
53 021472 KNOB
54 020823 KNOB
55 021474 LIGHT SWITCH
56 011794 BUZZER – 240V
56 015822 BUZZER – 110V
57 023212 TIMER - COUPATAN (TO S/N 228661)
011760 TIMER - DIEHL (FROM S/N 228662)
58 023311 THERMOSTAT

-41-

Revision 3/F3542

11.4 CONTROL PANEL ASSEMBLY - E25B (110V ONLY)

Pos Part No. Description

24 004849 CONTROL PANEL - MOFFAT
54 021514 POWER SWITCH - 110V
55 023857 NEON - 110V
56 020823 KNOB
57 021474 LIGHT SWITCH
58 015822 BUZZER - 110V
59 023212 TIMER - COUPATAN (TO S/N 228661)
011760 TIMER - DIEHL (FROM S/N 228662)
60 017121 THERMOSTAT

-42-

Revision 3/F3542

11. SERVICE CONTACTS

AUSTRALIA

VICTORIA HEAD OFFICE AND MAIN WAREHOUSE
740 Springvale Road Tel [phone]
Mulgrave VIC 3170 Fax [phone]
Spare Parts Department Free Call 1800 337 963
Fax [phone]

NEW SOUTH WALES
Unit 8/142 James Ruse Drive
Rosehill NSW 2142
Spare Parts Free Call 1800 337 963
Fax [phone]

QUEENSLAND
30 Prosperity Place
Geebung QLD 4034
Spare Parts Free Call 1800 337 963
Fax [phone]

SOUTH AUSTRALIA
Suite 8/71 Fullarton Rd Tel [phone]
Kent Town SA 5067
Spare Parts Free Call 1800 337 963

WESTERN AUSTRALIA
PO Box 689 Tel [phone]
Joondalup Business Centre WA 6027
Spare Parts Free Call 1800 337 963

NATIONAL COVERAGE FOR 24 HOUR SERVICE OR MAINTENANCE DIAL

FREE CALL 1800 622 216 (AUSTRALIA ONLY)

CANADA

Lessard Agencies Limited Tel [phone]
PO Box 97 Fax [phone]
Stn “D” Free Call 1 888 537 7273
Toronto, ONT M6P 3J5

NEW ZEALAND

CHRISTCHURCH
16 Osborne St Free Call 0800 Moffat
PO Box 10-001 (0800 663 328)
Christchurch
Spare Parts Tel [phone]
Fax [phone]

AUCKLAND
4 Waipuna Road Tel [phone]
Mt Wellington Fax [phone]
Auckland
Spare Parts Free Call 0800 Moffat
(0800 663 328)

-43-

Revision 3/F3542

UNITED KINGDOM

BLUESEAL LTD
Units 6-7 Mount St Tel [phone]
Business Park Fax [phone]
Birmingham B7 5QU
England

UNITED STATES OF AMERICA

MOFFAT INC.
3765 Champion Blvd
Winston-Salem Tel [phone]
NC27115 Fax [phone]

NATIONAL COVERAGE FOR SERVICE OR MAINTENANCE DIAL

FREE CALL 1800 551 8795 (USA ONLY)

-44-

Revision 3/F3542

APPENDIX A. DOUBLE STACKING KIT (24290)

Kit Includes: Part No

1 x Vent Duct 24306
1 x Vent Pipe 24307
1 x Saddle Clamp 10023
1 x Double Stack Front 04907
2 x Double Stack Side 24303
1 x Double Stack Rear 24302
23 x 3/8" x 8A Pozi Pan Hd Screw 41045
2 x ½” x 8 Phillips Head Black Screw 41046
2 x Black Fibre Washer 10329

Assembly Instructions: (THE ELECTRICAL SUPPLY MUST BE DISCONNECTED)

A. Bottom Unit (Refer figure 1)

1. Position vent duct on bottom unit over oven vent. Temporarily locate double stack rear in
correct position on top of bottom unit. Centrally locate the vent duct in the cut-out. Check that
the oven vent is covered and mark the five
hole positions (two down each side of the
flue duct and one at front) on the oven
wrapper.

2. Drill five ø3.5mm holes in the oven
wrapper where marked.

3. Secure the vent duct to the wrapper with
five 3/8" x 8A Pozi screws into these
holes.

4. Undo the two screws securing the top
lintel to the bottom oven, and remove the
lintel. Remove the three screws from the
top rear of the oven wrapper.

B. Top Unit

1. Remove all trays and racks from oven.
Tip oven upside down and remove the feet screwed into the base.

2. Remove the six screws (three each side) securing the oven wrapper to the sides of the oven.
Position the double stack sides flush with the sides and front of the oven, and secure each
with three screws.

3. Remove the three screws along the front bottom edge of the oven. Position the double stack

front over these three screw holes. Flush the ends of the double stack front with the sides of
the unit and secure to the double stack sides using the two black screws (with
fibre washers). Secure to bottom of oven with three screws.

4. Secure the double stack rear to the double stack sides with two screws.

Figure A.1

Double Stack Rear

Remove Lintel

-45-

Revision 3/F3542

C. Stacking the Ovens (Refer figure A.2)

1. With two persons, lift the top oven onto the bottom oven and position slightly forward so that

the double stack front engages with the lintel support on the bottom oven, then slide the top
oven back until the double stack sides are flush with the sides and rear of the bottom oven.

2. Secure double stack rear to bottom unit with three screws. Secure the double stack front to

the lintel support of the bottom unit with two screws.

3. Remove the rear cover panel from the top unit. Fit the vent pipe to the vent duct then

secure pipe to the rear panel of the top unit using the saddle clamp and two screws.

(NOTE: for units manufactured before serial number 224323, the mounting holes for the

saddle clamp will need to be drilled. Holding the vent pipe vertical, position the saddle clamp
over the vent pipe approximately 75 mm below the top of the oven and drill two ø3.5mm
holes).

4. Using pliers or similar, knock out the notches at the top and bottom of the rear cover panel

that allow for the vent pipe. Refit the rear cover panel to the top unit.

(NOTE: For units manufactured before serial number 224323, these notches will have to be

cut. Mark a notch 30mm wide by 32mm deep in the appropriate place (refer figure 2
below) at the top and bottom of the cover panel. Hold rear cover panel against rear of top unit
and check the position of the marked notches against the vent pipe. Cut out the notches and
refit the rear panel.)

Figure A.2

55

30

32

-46-

Revision 3/F3542
