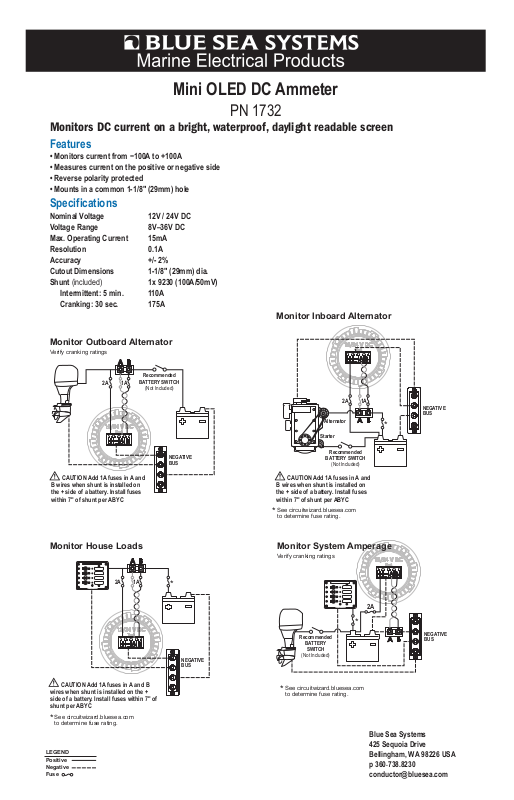

Mini OLED DC Ammeter
PN 1732
Monitors DC current on a bright, waterproof, daylight readable screen
Features
• Monitors current from −100A to +100A
• Measures current on the positive or negative side
• Reverse polarity protected
• Mounts in a common 1-1/8" (29mm) hole
Specifications
Nominal Voltage 12V / 24V DC
Voltage Range 8V–36V DC
Max. Operating Current 15mA
Resolution 0.1A
Accuracy +/- 2%
Cutout Dimensions 1-1/8" (29mm) dia.
Shunt (included) 1x 9230 (100A/50mV)
Intermittent: 5 min. 110A
Cranking: 30 sec. 175A

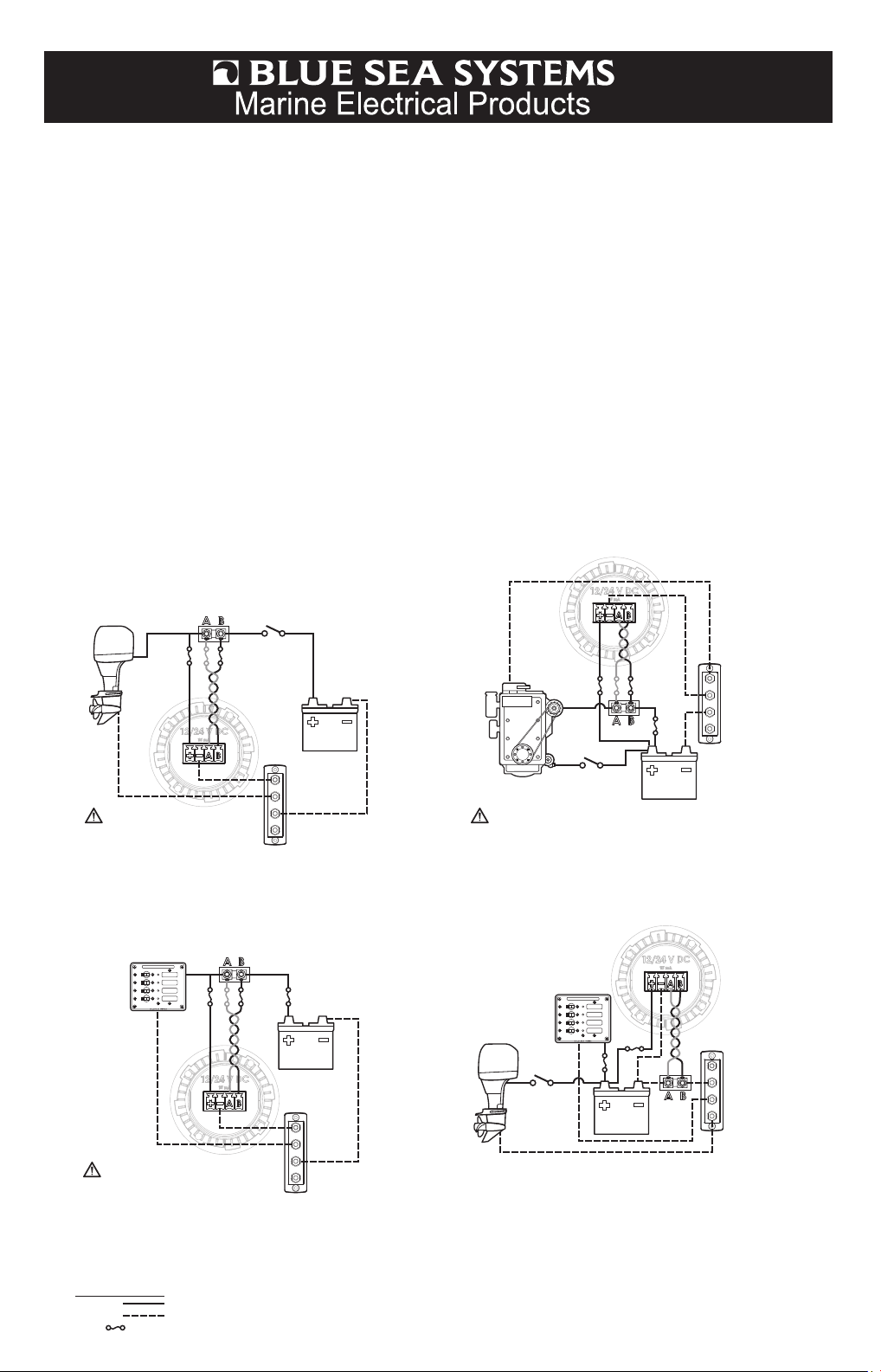

Monitor Inboard Alternator
Monitor Outboard Alternator
Verify cranking ratings
Recommended
2A 1A
CAUTION Add 1A fuses in A and
B wires when shunt is installed on
the + side of a battery. Install fuses
within 7" of shunt per ABYC
BATTERY SWITCH
(Not Included)
NEGATIVE
BUS
2A 1A
Alternator
Starter
Recommended
BATTERY SWITCH
(Not Included)
CAUTION Add 1A fuses in A and
B wires when shunt is installed on
the + side of a battery. Install fuses
within 7" of shunt per ABYC
See circuitwizard.bluesea.com
*
to determine fuse rating.
*
NEGATIVE
BUS
Monitor House Loads
2A 1A
CAUTION Add 1A fuses in A and B
wires when shunt is installed on the +
side of a battery. Install fuses within 7" of
shunt per ABYC
See circuitwizard.bluesea.com
*
to determine fuse rating.
LEGEND
Positive
Negative
Fuse
*
NEGATIVE
BUS
Monitor System Amperage
Verify cranking ratings
2A
*
Recommended
BATTERY
SWITCH
(Not Included)
See circuitwizard.bluesea.com
*
to determine fuse rating.
Blue Sea Systems
425 Sequoia Drive
Bellingham, WA 98226 USA
p 360.738.8230
[email protected]
NEGATIVE
BUS
