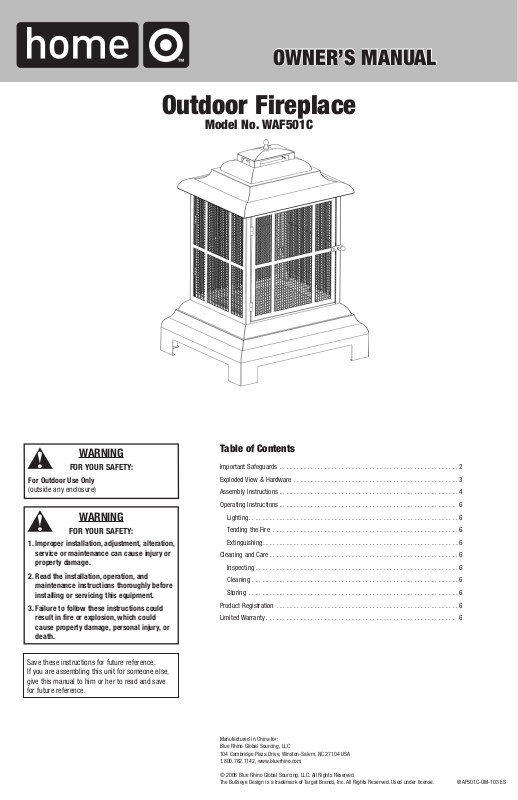

Blue Rhino WAF501C User Manual

OWNER’S MANUAL

Outdoor Fireplace

Model No. WAF501C

WARNING

FOR YOUR SAFETY:

For Outdoor Use Only

(outside any enclosure)

WARNING

FOR YOUR SAFETY:

1. Improper installation, adjustment, alteration,
service or maintenance can cause injury or
property damage.

2. Read the installation, operation, and
maintenance instructions thoroughly before
installing or servicing this equipment.

3. Failure to follow these instructions could
result in fire or explosion, which could
cause property damage, personal injury, or
death.

Table of Contents

Important Safeguards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Exploded View & Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Lighting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Tending the Fire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Extinguishing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Inspecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Storing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Product Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

6
6
6

6
6
6

Save these instructions for future reference.
If you are assembling this unit for someone else,
give this manual to him or her to read and save
for future reference.

Manufactured in China for:
Blue Rhino Global Sourcing, LLC
104 Cambridge Plaza Drive, Winston-Salem, NC 27104 USA

1.800.762.1142, www.bluerhino.com

© 2006 Blue Rhino Global Sourcing, LLC. All Rights Reserved
The Bullseye Design is a trademark of Target Brands, Inc. All Rights Reserved. Used under license. WAF501C-OM-103 ES

Outdoor Fireplace Model No. WAF501C

WARNING

FOR YOUR SAFETY

1. This appliance is for outdoor use only, and shall NOT be used in a
building, garage, or any other enclosed area.

2. Do NOT
monoxide fumes can accumulate and cause asphyxiation.

3. This outdoor fireplace is NOT for commercial use.

4. This outdoor fireplace is NOT to be operated by children.

This outdoor fireplace is NOT to be used in or on boats or recreational

5.
vehicles.

6. Always use in accordance with all applicable local, state and national
codes. Contact your local fire department for details on outdoor
burning.

7. When using this outdoor fireplace, exercise the same precautions you
would with any open fire.

8. Always use this outdoor fireplace on a hard, level non-combustible
surface such a concrete, rock or stone. An asphalt or blacktop surface
may not be acceptable for this purpose. Do NOT use on wooden decks.

9. The use of alcohol, prescription or non-prescription drugs may impair
the consumer’s ability to properly assemble or safely operate this
outdoor fireplace.

use this outdoor fireplace for indoor heating. TOXIC carbon

22. Do NOT use in windy conditions.

23. Do NOT use this outdoor fireplace unless spark guards are securely
in place.

24. Do NOT use gasoline, kerosene, diesel fuel, lighter fluid or alcohol to
light or relight fires.

25. Keep all electrical cords away from a hot fireplace.

26. All surfaces of this outdoor fireplace are hot when in operation. To
avoid burns, do NOT touch fireplace until it has completely cooled
unless you are wearing protective gear (Potholders, gloves, BBQ
mittens, hot pads & etc.). Never touch ashes or coals to see if they
are hot.

27. Do NOT leave a lit outdoor fireplace unattended, especially around
children and pets.

28. Do NOT attempt to move or store
and coals are completely extinguished.

29. Do NOT remove ashes or coals until they are completely and fully
extinguished.

Use heat-resistant gloves or hot pads when contacting handles and

30.
air vents.

this outdoor fireplace until all ashes

10. Do NOT use this outdoor fireplace without reading the entire “Owner’s
Manual”.

11. This outdoor fireplace is for use with dry, seasoned hardwood. It will
burn hotter, more completely and create less smoke.

12. Do NOT burn charcoal briquets, lump charcoal, manufactured logs,
driftwood, trash, leaves, paper, cardboard, plywood, painted or stained
or pressure treated wood. Avoid using softwoods such as pine or
cedar that can throw sparks.

13. Do NOT alter this outdoor fireplace in any manner.

14. Do NOT use this outdoor fireplace until it is COMPLETELY assembled
and all parts are securely fastened and tightened.

15. Do NOT store or use
the vicinity of this or any other appliance.

16. Do NOT store or use an LP gas cylinder within 10 feet (3.05 m) of this
outdoor fireplace while it is in operation.

17. Do NOT use this outdoor fireplace near automobiles, trucks, vans or
recreational vehicles.

18. Do NOT use in an explosive atmosphere. Keep outdoor fireplace
area clear and free from combustible materials, gasoline and other
flammable liquids.

19. Do NOT use this outdoor fireplace under any overhead or near any
unprotected combustible constructions. Avoid using near or under
overhanging trees and shrubs.

20. Always empty this outdoor fireplace before each use
layer of ash to protect the bottom.

gasoline or other flammable vapors or liquids in

. Leave a thin

31. Use long, sturdy fireplace tools when adding or moving logs.

32. Do NOT place wood directly into bottom of the outdoor fireplace. Place
wood only on the wood grate. Do NOT load firewood into the chimney.

33. Do NOT overload the fireplace. Do not add additional firewood until
the fire burns down. NOTICE: If any portion of the base, hood or spark
guards of this outdoor fireplace are glowing red it is overloaded.

34. Make sure all doors can completely close before starting a fire.

35. Do NOT lean over this outdoor fireplace when lighting or when in use.

36. Do NOT place hot fireplace tools onto combustible surfaces such as
grass, wooden deck or furniture.

37. Avoid breathing smoke from the fire and avoid getting it into
your eyes.

38. This outdoor fireplace should be thoroughly inspected and cleaned on
a regular basis.

39. After a period of storage and/or non-use, check for signs of damage
and creosote build-up. Do NOT operate until necessary repairs and/or
cleanup are executed.

40. Do NOT use pressure washer to clean.

41. Use only Blue Rhino Global Sourcing, LLC factory authorized parts. The
use of any part that is NOT factory authorized can be dangerous and
will void your warranty. Contact 1.800.762.1142.

42. Deaths, serious injury or damage to property may occur if the above
is not followed exactly.

21. Do NOT wear flammable or loose clothing when operating this outdoor
fireplace.

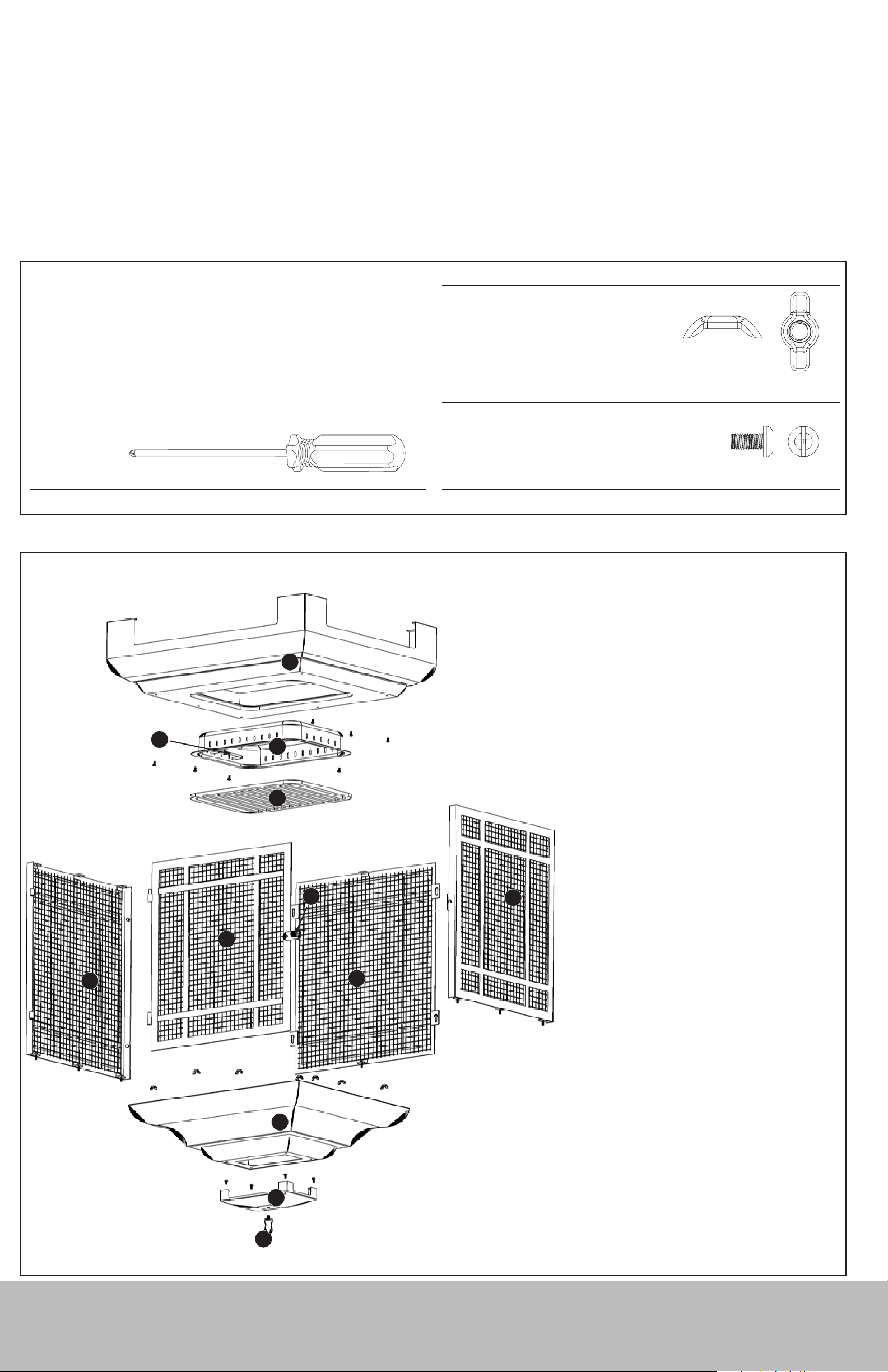

Exploded View

page no.

3

Contact 1.800.762.1142 for assistance. Do not return to place of purchase.

1. Finial

2. Top

3. Hood

4. Back Spark Guard

5. Right Spark Guard

6. Left Spark Guard

7. Spark Guard Door

8. Handle*

9. Wood Grate

10. Ash Receiver

11. Ash Receiver Handle*

12. Base

*Pre-assembled.

1

2

3

4

7

6

5

8

9

10

12

11

Hardware

A. Screw 11 pcs

M5x10 Black Nickel Plated Phillips Truss Head Screw

B. Wing Nut 7 pcs

M5 Black Nickel Plated Wing Nut

Tool Needed

C. Screwdriver** 1 pc

** Not shown at actual size.

Outdoor Fireplace Model No. WAF501C

Assembly Instructions

DO NOT RETURN PRODUCT TO STORE.
For assistance call 1.800.762.1142 toll free. Please have your owner’s manual and serial

number available for reference.

For Easiest Assembly:

• To avoid losing any small components or hardware, assemble your product on a hard level
surface that does not have cracks or openings.

• Clear an area large enough to layout all components and hardware.

• When applicable, tighten all hardware connections by hand first. Once the step is
completed, go back and fully tighten all hardware.

• Follow all steps in order to properly assemble your product.

Step

Attach left and right spark guards

A. Attach left spark guard to base using 3 screws (A).

B. Attach right spark guard to base using 3 screws (A).

1

Step

3

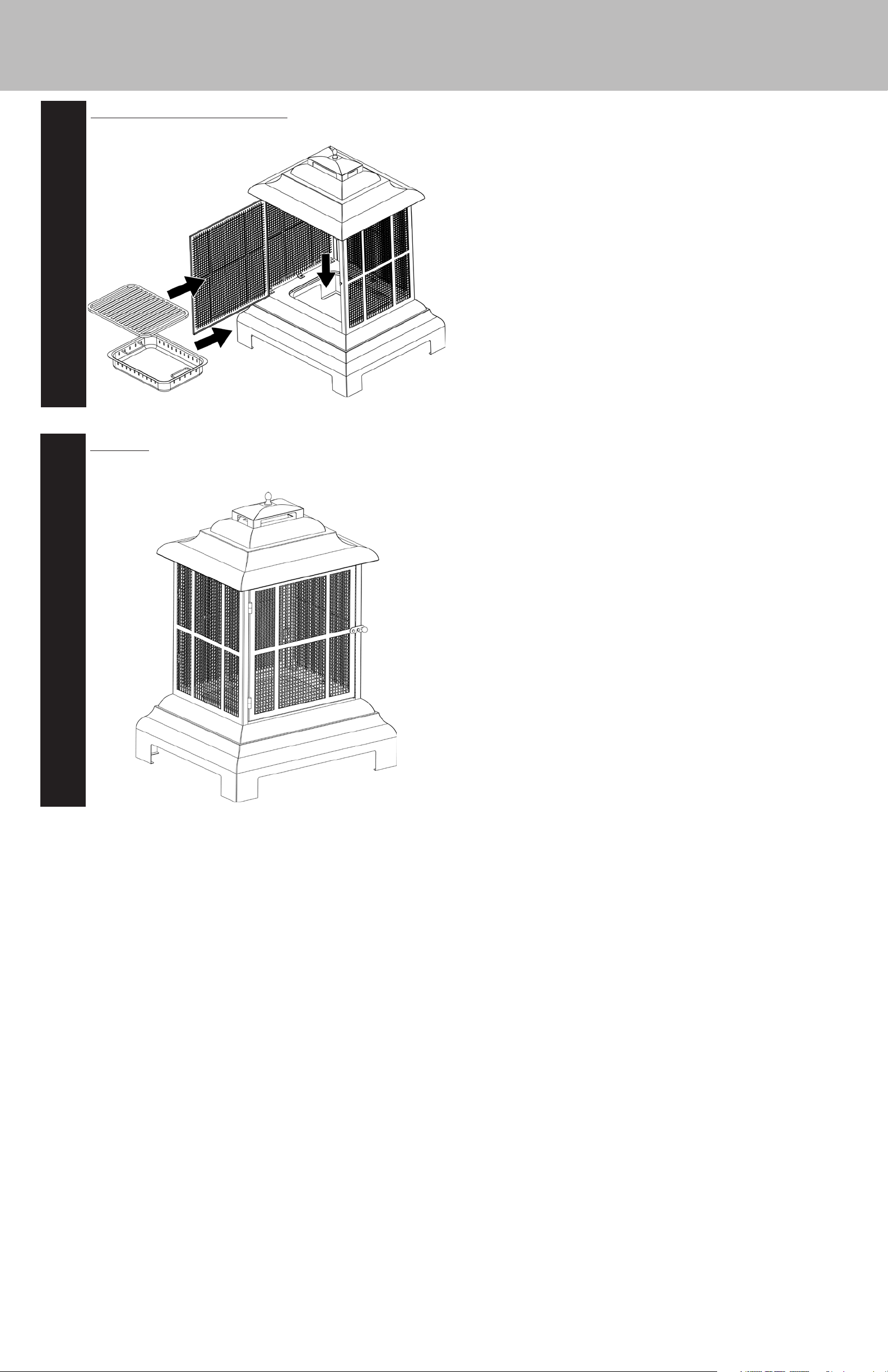

Attach spark guard door

Insert spark guard door pegs onto right spark guard.

Step

Attach back spark guard

A. Attach back spark guard to left and right spark guards by inserting side spark

guard pegs into keyholes in back spark gard.

Step

4

Assemble top

A. Screw finial into top.

B. Attach top to hood using 4 screws (A).

2

B. Slide back spark guard down.

C. Secure to base using screw (A).

Step

5

Attach hood assembly

Attach hood assembly to spark guards using 7 wing nuts (B).
