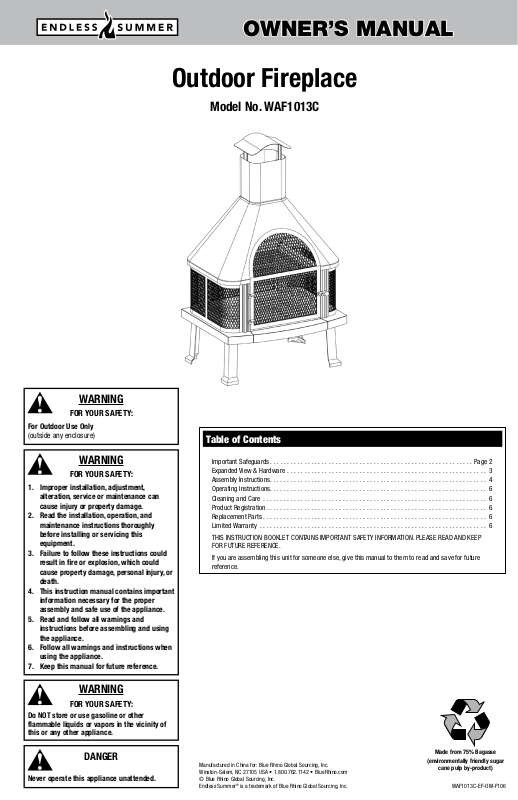

Blue Rhino WAF1013C User Manual

OWNER’S MANUAL

Outdoor Fireplace

Model No. WAF1013C

WARNING

FOR YOUR SAFETY:

For Outdoor Use Only

(outside any enclosure)

WARNING

FOR YOUR SAFETY:

1. Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage.

2. Read the installation, operation, and maintenance instructions thoroughly before installing or servicing this equipment.

3. Failure to follow these instructions could result in ﬁre or explosion, which could cause property damage, personal injury, or death.

4. This instruction manual contains important information necessary for the proper assembly and safe use of the appliance.

5. Read and follow all warnings and instructions before assembling and using the appliance.

6. Follow all warnings and instructions when using the appliance.

7. Keep this manual for future reference.

Table of Contents

Important Safeguards ...........................................................Page 2

Expanded View & Hardware .......................................................... 3

Assembly Instructions............................................................... 4

Operating Instructions............................................................... 6

Cleaning and Care ................................................................. 6

Product Registration ................................................................ 6

Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Limited Warranty .................................................................. 6

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

If you are assembling this unit for someone else, give this manual to them to read and save for future reference.

WARNING

FOR YOUR SAFETY:

Do NOT store or use gasoline or other flammable liquids or vapors in the vicinity of this or any other appliance.

DANGER

Never operate this appliance unattended.

Manufactured in China for: Blue Rhino Global Sourcing, Inc. Winston-Salem, NC 27105 USA • 1.800.762.1142 • BlueRhino.com © Blue Rhino Global Sourcing, Inc. Endless Summer

is a trademark of Blue Rhino Global Sourcing, Inc. WAF1013C-EF-OM-F106

Made from 75% Bagasse

(environmentally friendly sugar

cane pulp by-product)

Outdoor Fireplace

Model No. WAF1013C

Important Safeguards

W DANGER: Failure to follow the dangers, warnings and cautions in this manual may result in serious bodily injury or death, or in a fire or an explosion

causing damage to property.

W WARNINGS: W Do NOT use this outdoor fireplace without reading the entire owner’s

manual.

W Do NOT wear flammable or loose clothing when operating this outdoor

fireplace.

W This appliance is for outdoor use only, and should NOT be used in a

building, garage or any other enclosed area.

W Do NOT use this outdoor fireplace for indoor heating. TOXIC carbon

monoxide fumes can accumulate and cause asphyxiation. W This outdoor fireplace is NOT for commercial use. W This outdoor fireplace is safety certified for use in the United States and

Canada only. Do NOT modify for use in any other location. Modification

will result in a safety hazard and will void the warranty. W This outdoor fireplace is NOT to be operated by children. W Do NOT operate, light or use this appliance within ten (10) feet (3.05 m)

of walls, structures or buildings. W Do NOT store or use gasoline, or any other flammable vapors or liquids

within twenty-five (25) feet (7.62 m) of this or any other appliance. W Do NOT use in an explosive atmosphere. Keep outdoor fireplace

area clear and free from combustible materials, gasoline and other

flammable liquids. W Apartment dwellers: Check with management to learn the requirements

and fire codes for using an outdoor fireplace in your apartment complex.

If allowed, use outside on the ground floor with a ten (10) foot (3.05 m)

clearance from walls or rails. Do NOT use on or under balconies. W Always use in accordance with all applicable local, state and national

codes. Contact your local fire department for details on outdoor burning. W When using this outdoor fireplace, exercise the same precautions you

would with any open fire. W This outdoor fireplace is NOT to be used in or on boats or recreational

vehicles. W Do NOT use this outdoor fireplace under any overhead or near any

unprotected combustible constructions. Avoid using near or under

overhanging trees and shrubs. W This outdoor fireplace is designed for use with dry, seasoned hardwood.

It will burn hotter, more completely and create less smoke. W Do NOT burn charcoal briquettes, lump charcoal, manufactured logs,

driftwood, trash, leaves, paper, cardboard, plywood, painted, stained or

pressure-treated wood. Avoid using softwoods such as pine or cedar,

which can throw sparks. W Do NOT use gasoline, kerosene, diesel fuel, lighter fluid or alcohol to

light or relight fires. W Do NOT alter this outdoor fireplace in any manner. Any alteration will

void your warranty. W Do NOT use this outdoor fireplace until it is COMPLETELY assembled and

all parts are securely fastened and tightened. W The use of alcohol, prescription or non-prescription drugs may impair

the consumer’s ability to properly assemble and/or safely operate this

outdoor fireplace. W Do NOT use this outdoor fireplace near automobiles, trucks, vans or

recreational vehicles.

W Do NOT use in windy conditions. W Do NOT lean over this outdoor fireplace when lighting or while in use. W Do NOT use this outdoor fireplace unless spark guard(s) are securely in

place. W Keep all electrical cords away from a hot fireplace. W All surfaces of this outdoor fireplace are hot when in operation. To avoid

burns, do NOT touch fireplace until it has completely cooled (about 45

minutes) unless you are wearing protective gear (potholders, gloves,

BBQ mittens, hot pads, etc.). Never touch ashes or embers to see if they

are hot. W Do NOT leave a lit outdoor fireplace unattended, especially around

children and pets. W Always empty this outdoor fireplace before each use. W Do NOT attempt to move or store this outdoor fireplace until all ashes

and embers are completely extinguished. W Do NOT remove ashes or embers until they are completely and fully

extinguished and the outdoor fireplace has completely cooled. W Do NOT place wood directly into the bottom of the outdoor fireplace.

Place wood only on the wood grate provided. W Do NOT overload the fireplace. Do NOT add additional firewood until the

fire burns down. NOTICE: If any portion of the bowl, lid or spark guard(s)

of this outdoor fireplace are glowing red, it is overloaded. W Do NOT place a hot spark guard or hot fireplace tools onto combustible

surfaces such as grass, wooden deck or furniture. W Avoid breathing smoke from the fire and avoid getting it into your eyes. W This outdoor fireplace should be thoroughly inspected and cleaned on a

regular basis. W After a period of storage and/or non-use, check for signs of damage

and creosote build-up. Do NOT operate until necessary repairs and/or

cleanup are executed. W Do NOT use oven cleaner or other abrasive cleaners as they will damage

this product. W Do NOT clean any part of this outdoor fireplace in a self-cleaning oven

as it may damage the finish. W Use only Blue Rhino Global Sourcing, Inc. factory-authorized parts. The

use of any part that is not factory authorized can be dangerous and will

void your warranty. W Use heat-resistant gloves or hot pads when touching handles. W Use long, sturdy fireplace tools when adding or moving logs. W Use protective gloves when assembling this product. W Do NOT force parts together as this can result in personal injury or

damage to this product. W Deaths, serious injury or damage to property may occur if the above is

not followed exactly.

W Always use this outdoor fireplace on a hard, level, non-combustible

surface such as concrete, rock or stone. An asphalt or blacktop surface may not be acceptable for this purpose. Do NOT use on wooden decks.

Need help? 1.800.762.1142

Do not return to place of purchase.

Replacement Parts

parts.BlueRhino.com

1.800.762.1142

Parts List

Top

Hood

Cooking Grid Support A

Cooking Grid Support B

Cooking Grid

Back Spark Guard

Side Spark Guard (2)

Back Rail (2)

Door Rail A

Door Rail B

Spark Guard Door

Fireplace Grate

55-11-045

55-05-111

55-05-109

55-05-110

55-05-108

55-05-107

55-05-106

55-05-103

55-05-101

55-05-102

55-05-113

55-05-105

Expanded View

Spark Guard Door Handle*

Base

Ash Receiver

Leg (4)

* Pre-assembled

55-11-046

55-05-104

55-11-047

Hardware

1516

Wing Nut

ø5 Black Nickel Plated

6 pcs

Assembly Instructions

Outdoor Fireplace

Model No. WAF1013C

DO NOT RETURN TO PLACE OF PURCHASE.

For assistance, call 1.800.762.1142 toll-free. Please have your owner’s manual and model number available for reference.

For Easiest Assembly:

1. Select an area where you will assemble this product. To protect components, choose a smooth surface that’s free of cracks or openings.

2. Spread out all parts.

3. Tighten all hardware connections by hand first. Then, before completing each step, go back and fully tighten all hardware. Be careful not to overtighten. That could damage surfaces or strip threads.

4. For best results, complete each step in the order presented.

Typical assembly: approximately 30 minutes.

Attach Rails

Insert Fireplace Grate

Insert Ash Receiver
