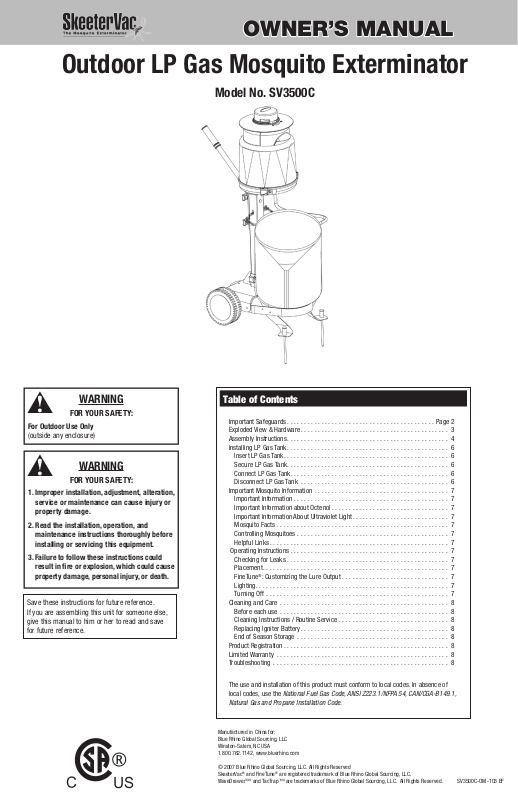

Blue Rhino SV3500C User Manual
OWNER’S MANUAL
Outdoor LP Gas Mosquito Exterminator
Model No. SV3500C
WARNING
FOR YOUR SAFETY:
For Outdoor Use Only
(outside any enclosure)
WARNING
FOR YOUR SAFETY:
1. Improper installation, adjustment, alteration,
service or maintenance can cause injury or
property damage.
2. Read the installation, operation, and
maintenance instructions thoroughly before
installing or servicing this equipment.
3. Failure to follow these instructions could
result in fire or explosion, which could cause
property damage, personal injury, or death.
Save these instructions for future reference.
If you are assembling this unit for someone else,
give this manual to him or her to read and save
for future reference.
Table of Contents
Important Safeguards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2
Exploded View & Hardware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Assembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Installing LP Gas Tank. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Insert LP Gas Tank. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Secure LP Gas Tank. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Connect LP Gas Tank. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Disconnect LP Gas Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Important Mosquito Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Important Information about Octenol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Important Information About Ultraviolet Light. . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Mosquito Facts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Controlling Mosquitoes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Helpful Links. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Checking for Leaks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Placement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
FineTune®: Customizing the Lure Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Lighting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Turning Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Before each use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Cleaning Instructions / Routine Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Replacing Igniter Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
End of Season Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Product Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
The use and installation of this product must conform to local codes. In absence of
local codes, use the National Fuel Gas Code, ANSI Z223.1/NFPA 54, CAN/CGA-B149.1,
Natural Gas and Propane Installation Code.
Manufactured in China for:
Blue Rhino Global Sourcing, LLC
Winston-Salem, NC USA
1.800.762.1142, www.bluerhino.com
© 2007 Blue Rhino Global Sourcing, LLC. All Rights Reserved
SkeeterVac® and FineTune® are registered trademark of Blue Rhino Global Sourcing, LLC.
WaveDrawer™ and TacTrap™ are trademarks of Blue Rhino Global Sourcing, LLC. All Rights Reserved. SV3500C-OM-103 EF
Outdoor LP Gas Mosquito Exterminator Model No. SV3500C
DANGER
If you smell gas -
1. Shut off gas to appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance immediately and call
your gas supplier or your fire department.
Safety First
DANGERS and Cautions
1. This SkeeterVac® is for outdoor use only, and shall not be used in a
building, garage, or any other enclosed area.
2. Do NOT operate, light or use this appliance within 8 feet of walls,
structures, buildings or combustible materials.
3. It is a violation of Federal law to use this product in a manner
inconsistent with its labeling.
4. This SkeeterVac® is NOT for commercial use.
5. This SkeeterVac® is for use with liquid propane (LP) gas only.
The conversion to or attempted use of natural gas in this LP gas
SkeeterVac® is dangerous and will void your warranty.
6. LP gas Characteristics:
a. LP gas is flammable and hazardous if handled improperly. Become
aware of the characteristics before using any LP gas product.
b. LP gas is explosive under pressure, heavier than air, and settles and
pools in low areas.
c. LP gas in its natural state has no odor. For your safety, an odorant is
added that smells like rotten cabbage.
d. Contact with LP gas can cause freeze burns to skin.
7. LP gas tank needed to operate. Only tanks marked “propane” may be
used.
a. The LP gas supply tank must be constructed and marked in
accordance with the Specifications for LP gas Cylinders of the
U.S. Department of Transportation (DOT) or the National Standard
of Canada, CAN/CSA-B339, Cylinders, Spheres and Tubes for the
Transportation of Dangerous Goods; and Commission.
b. LP gas tank must be arranged for vapor withdrawal.
c. The LP gas tank must have a listed overfilling prevention device
(OPD).
d. Only use 20-pound cylinders equipped with a cylinder connection
device compatible with the connection for outdoor cooking
appliances.
e. The LP gas tank must have a tank collar to protect the tank valve.
f. Never use an LP gas tank with a damaged body, valve, collar, or
footing.
g. Dented or rusted LP gas tanks may be hazardous and should be
checked by your LP gas supplier prior to use.
h. The LP gas tank should not be dropped or handled roughly.
i. Tanks must be stored outdoors out of the reach of children and must
not be stored in a building, garage, or any other enclosed area. Your
tank must never be stored where temperatures can reach over 125°F.
j. Never keep a filled LP gas tank in a hot car or car trunk. Heat will
cause the gas pressure to increase, which may open the relief valve
and allow gas to escape.
k. Place dust cap on cylinder valve outlet whenever the cylinder is not
in use. Only install the type of dust cap on the cylinder valve outlet
that is provided with the cylinder valve. Other types of caps or plugs
may result in leakage of propane.
l. Do not store a spare LP gas tank under or near this appliance.
m. Never fill the tank beyond 80 percent full.
n. A fire causing, serious injury or damage to property may occur if the
above is not followed exactly.
o. Always transport your tank in a secure, well-ventilated location in
your vehicle. LP gas tank should be upright with valve turned off. LP
gas tank should be taken directly to and from place of use.
8. Never attempt to attach this SkeeterVac® to the self-contained LP gas
system of a camper trailer, motor home, or house.
9. The use of alcohol, or prescription or non-prescription drugs may
impair the consumer’s ability to properly assemble or safely operate the
appliance.
10. Your SkeeterVac® has been checked at all factory connections for
leaks. Recheck all connections, as movement in shipping can loosen
connections.
11. Check for leaks even if your unit was assembled for you by someone
else.
WARNING
FOR YOUR SAFETY
1. Do not store or use gasoline or other flammable liquids or vapors in the
vicinity of this or any other appliance.
2. An LP cylinder not connected for use shall not be stored in the vicinity
of this or any other appliance.
12. Do not operate if gas leak is present. Gas leaks may cause a fire or
explosion.
13. You must follow all leak-checking procedures before operating. To
prevent fire or explosion hazard when testing for a leak:
a. Always perform leak test before lighting the SkeeterVac® and each
time the tank is connected for use.
b. No smoking. Do not use or permit sources of ignition in the area
while conducting a leak test.
c. Conduct the leak test outdoors in a well-ventilated area.
d. Do not use matches, lighters, or a flame to check for leaks.
e. Do not use SkeeterVac® until any and all leaks are corrected.
If you are unable to stop a leak, disconnect the LP gas supply. Call
a gas appliance serviceman or your local LP gas supplier.
14. Do not store or use gasoline or other flammable liquids or vapors
within 25 feet (7.62 m) of this appliance.
15. Do not use in an explosive atmosphere. Keep SkeeterVac® area clear
and free from combustible materials, gasoline and other flammable
vapors and liquids.
16. Minimum clearance from sides and back of unit to combustible
construction, 21 inches from side and 21 inches from back. Do not use
this appliance under overhead combustible surfaces.
17. It is essential to keep the SkeeterVac®’s valve compartment, burners,
and circulating air passages clean. Inspect SkeeterVac® before each
use.
18. Do not alter SkeeterVac® in any manner.
19. Do not use the SkeeterVac® unless it is COMPLETELY assembled and
all parts are securely fastened and tightened.
20. This SkeeterVac® should be thoroughly cleaned and inspected on
a regular basis. Clean and inspect the hose before each use of the
appliance. If there is evidence of abrasion, wear, cuts, or leaks, the
hose must be replaced prior to the appliance being put into operation.
21. Use only the regulator and hose assembly provided. The replacement
regulator and hose assembly shall be that specified by the
manufacturer.
22. Use only Blue Rhino Global Sourcing, LLC. factory authorized parts.
The use of any part that is not factory authorized can be dangerous.
This will also void your warranty.
23. Do not use this appliance without reading “Operating Instructions” in
this manual.
24. Do not install or use in or on boats or recreational vehicles.
25. Product performance can vary due to weather, wind and other
environmental conditions.
26. Never lean over the SkeeterVac® when lighting.
27. Do not attempt to move SkeeterVac® when in use. Allow the
SkeeterVac® to cool before moving or storing.
28. Storage of SkeeterVac® indoors is permissible only if the tank is
disconnected, removed from the SkeeterVac® and properly stored
outdoors.
29. Do not attempt to disconnect the gas regulator from the tank or any
gas fitting while the SkeeterVac® is in use.
30. Do not use SkeeterVac® for indoor cooking or heating. TOXIC fumes
can accumulate and cause asphyxiation.
31. After a period of storage and/or nonuse, check for leaks, burner
obstructions and inspect for any abrasion, wear, cuts to the hose.
32. If SkeeterVac® is not in use, the gas must be turned off at the supply
tank.
33. Keep air intake areas clear of dust, dirt and debris
34. Do not allow children to operate or play near a SkeeterVac® device
when it is in use.
35. Inspect for damage and wear during each maintenance cycle.
36. It is recommended to use only FineTune® mosquito attractant in your
SkeeterVac®. The use of other attractants has not been tested with
your product, and void your warranty.
37. Maximum inlet gas supply pressure is 11 inch water column
38. Deaths, serious injury or damage to property may occur if the above is
not followed exactly.
Contact 1.800.762.1142 for assistance. Do not return to place of purchase.
page no.
3
Parts List
1
Lure Cover
2
FineTune® Lure
3
TacTrap™
4
Engine Assembly
5
WaveDrawer™
6
Regulator/Hose Assembly
7
Handle
8
Battery Cover
9
LP Gas Tank Cover
10
Post
11
LP Gas Tank (Not Included)
12
LP Gas Tank Retainer Chain
Exploded View
1
2
3
5
4
13
Wheel (2)
14
Hub Cap (2)
15
Base Assembly
7
6
8
10
9
11
12
Hardware
A
B
Bolt
Bolt
M8x63 Nickel Plated
M8x83 Nickel Plated
1 pc
2 pcs
14
13
15
13
14
C
D
E
F
Stake
Wing Nut 3 pcs
Washer
AA Battery 1 pc
ø8x180 Nickel Plated
ø8 Steel
2 pcs
3 pcs
Assembly Instructions
Outdoor LP Gas Mosquito Exterminator Model No. SV3500C
DO NOT RETURN PRODUCT TO STORE.
For assistance call 1.800.762.1142 toll free. Please have your owner’s manual and serial
number available for reference.
Attach Pole
1
For Easiest Assembly:
• To avoid losing any small components or hardware, assemble your product on a hard level
surface that does not have cracks or openings.
Attach Handle
2
5
A
B
Insert FinueTune® Lure and Attach Lure Cover
x 1
x 1
6
A
B
Insert WaveDrawer™
x 2
E
x 2
x 2
Contact 1.800.762.1142 for assistance. Do not return to place of purchase.
page no.
5
• Clear an area large enough to layout all components and hardware.
• When applicable, tighten all hardware connections by hand first. Once the step is completed,
go back and fully tighten all hardware.
Insert Battery
3
• Follow all steps in order to properly assemble your product.
Attach Engine Assembly
4
7
F
Attach TacTrap™
x 1
Insert Stakes
Note: Move SkeeterVac® to the final location before inserting stakes into ground.
8
C
x 2
Loading...
