Blue Max 52623 Operating Instructions Manual

*Actual product may vary slightly

Please carefully read and save these instructions before attempting to assemble, maintain, install, or operate this product.

Observe all safety information to protect yourself and others. Failure to observe the instructions may result in property

damage and/or personal injury. Please keep instructions for future reference.

For warranty purchases, please keep your dated proof of purchase. File or attach to the manual for safe keeping.

For Customer Service, Call 1-800-348-5004
or e-mail [e-mail]

52623 03/2017

2-IN-1 BRUSH CUTTER/
STRING TRIMMER

Important Operating Instructions

2

CALIFORNIA PROPOSITION 65

WARNING: You can create dust
when you cut, sand, drill or
grind materials such as wood,
paint, metal, concrete, cement,
or other masonry. This dust
often contains chemicals known
to cause cancer, birth defects,
or other reproductive harm.
Wear protective gear.

WARNING: This product or its
power cord may contain
chemicals, including lead,
known to the State of California
to cause cancer and birth
defects or other reproductive
harm. Wash hands after
handling.

Important!

When using equipment, a few
safety precautions must be
observed to avoid injuries and
damage. Please read the complete
operating manual with due care.
Keep this manual in a safe place,
so that the information is available
at all times. If you give the
equipment to any other person,
give them these operating
instructions as well. We accept no
liability for damage or accidents
which arise due to non-observance
of these instructions and the safety
information herein.

CAUTION:

FOR YOUR OWN SAFETY READ
INSTRUCTION MANUAL
COMPLETELY AND
CAREFULLY BEFORE
OPER
CUTTER/STRING TRIMMER.

ATING THIS BRUSH

SPECIFICATIONS

Fuel: Oil Ratio: 40:1

Attachments: String Trimmer,

Cutting Blade

Engine Type: Air cooled 2-stroke

Displacement: 42.6cc

Engine Speed: 9000 RPM

Blade Speed: 6800 RPM

Torque: 1.1 ft./lb.

Line Coil Cutting Diameter:

14.96”

Any failures made in following
the safety regulations and and
instructions may result in an
electric shock, fire and/or
serious injury.

UNPACK

1. Unpack all parts and lay them
on a flat, stable surface.

2. Remove all packing materials
and shipping devices if applicable.

3. Make sure the contents are
complete and free of damage. If

you find that parts are missing or
damaged, contact your dealer.
Using an incomplete or damaged
product may cause damage to
people or property.

4. Ensure you have all the
accessories and tools needed for
assembly and operation. This
also includes suitable personal
protective equipment.

SAFETY WARNINGS

1. This product is not intended for
use by persons (including
children) with reduced physical,
sensory, or mental capabilities, or
lack of experience or knowledge,
unless they have been given
supervision or instruction
concerning use of the product by
a person responsible fo
safety.

2. Children should be supervised
to ensure that they do not play
with the product.

TRAINING

1. Read the following instructions
carefully. Become familiar with
the owner’s manual before
attempting to operate this product.

r their

[e-mail]

1-800-348-5004

2. Never allow children or people
unfamiliar with these instructions to
use the product. Local regulations
can restrict the age of the operator.

3. Never operate while people,
especially children, or pets are
nearby.

4. Keep in mind that the operator
or user is responsible for accidents
or hazards occurring to other
people or their property.

5.Allow the rope to return slowly
and in a controlled manner each
time it is pulled! Do not pull out
the recoil starter beyond the red
colour band at the end of the
recoil starter. Do not start the
engine while handling the
product with one hand!

6. The product must not be used
by persons under the influence of
alcohol or drugs.

7. Do not operate the product
without guards or if it is damaged.

8. Never use this product indoors.

9. This product produces toxic
exhaust fumes when the engine
is started.

10. During operation, this product
may generate dust, fumes, and
smoke containing chemicals that
affect your health.

11. Be careful when using this
product and protect yourself
properly.

12. Avoid breathing exhaust fumes
voluntarily, always hold the product
properly during operation.

13. Wear gloves and keep hands
warm.

14. Prolonged use of the product
exposes the user to vibrations that
can cause a range of conditions
collectively known as hand-arm
vibration syndrome (HAVS) e.g.
fingers going white; as well as
specific diseases such as carpal
tunnel syndrome.

15. To reduce the risk of HAVS,
always wear protective gloves and
keep your hands warm.

15. The symptoms of HAVS
include any combination of the
following:

Tingling and numbness in the

fingers,

Not being able to feel things

properly,

Loss of strength in the hands,

Fingers going white (blanching)
and becoming red and painful on
recovery (particularly in the cold
and wet, and probably only in the
tips at first).

Seek medical advice immediately if
such symptoms are experienced.

PREPARATION

1. This product can cause serious
injuries. Read the instructions
carefully for proper handling,
preparation, maintenance, starting,
and stopping of the product.
Become familiar with all controls
and the proper use of the product.

2. Beware of power lines.

3. Avoid operating while people,
especially children, are nearby.

4. Dress properly. Do not wear
loose clothing or jewelry, which
can get caught in moving parts.
Use of sturdy gloves, non-skid
footwear, and safety glasses is
recommended.

5. Use extra care when handling
fuels. They are flammable and the
vapors are explosive. Observe the
following care:

Use only an approved container.

Never remove fuel cap or add
fuel with the power source running.
Allow engine and exhaust
components to cool down before
refueling.

Do not smoke. Never refuel
indoors.

Never store the product or fuel
container inside where there is an
open flame, such as near a water
heater.

If fuel is spilled, do not attempt to
start, but move the product away
from the spillage before starting.

Always replace and securely
tighten the fuel cap after refueling.

If the fuel tank is drained, this
should be done outdoors.

6. Store the product in a clean, dry
place protected from direct sunlight
only after the fuel tank has been
emptied and the product is cleaned.
The product may only be stored
inside under these conditions.

7. If the cutting mechanism strikes
any foreign object or the product
starts making unusual noises or
vibrations, shut off the power
source and allow the product to
stop. Disconnect the spark plug
wire from the spark plug and take
the following steps:

Inspect for damage,

Check for, and tighten, any loose
parts,

Have any damaged parts
replaced or repaired with parts
having equivalent specifications.

OPERATION

1. This product should not be used
for any other purpose than
described.

2. While operating, always wear
non-skid footwear, and long pants.
Do not operate this product when
barefoot or wearing sandals. Wear
protective glasses or goggles.

3. Thoroughly inspect the area
where the product is to be used
and remove all objects which can
be thrown by the product.

[e-mail]

3

1-800-348-5004

4. Before using this product and after
any impact, check for signs of wear or
damage and repair as necessary.

5.

Never operate this product with damaged

guards or without the guards in place.

6. Keep hands and feet away from the
cutting implement at all times, especially
when switching on the motor.

7.

Never allow children or people unfamiliar

with the instructions to use this product.

8. Stop using this product while people,
especially children, or pets are nearby.

9. Only use the product in daylight or in
good artificial light.

10. Stop the engine before:

• Cleaning or when clearing a blockage

• Checking, carrying out maintenance,
or working on the product

• Adjusting the working position of the
cutting device

• Switching blades

• Leaving the product unattended

11. Ensure that the product is placed in
a proper working position before starting
the engine.

12. While operating this product, ensure
that the position is safe and secure.

13. Do not operate this product with a
damaged or excessively worn cutting
device.

14. To reduce fire hazards, keep the
engine and silencer free of debris,
leaves, and excessive lubricants.

15. Always ensure that all handles and
guards are fitted when using this product.
Never attempt to use an incomplete
product or one fitted with an unauthorized
modification.

16. Always use two hands to operate a
product fitted with two handles.

17.

Always be aware of your surroundings
and stay alert for possible hazards of
which you may not be aware due to the
noise of the product.

18.

Be careful when handling any cutting
device/sharp edge fitted for trimming the
filament line length. Ensure a new filament
trimming line is installed correctly before
turning the product on.

19.

Always ensure that air vents are kept
clear of debris.

MAINTENANCE & STORAGE

1. When the product is stopped for
servicing, inspection, or storage, shut
off power source, disconnect the spark
plug wire from the spark plug and make
sure all moving parts have come to a
stop. Allow the product to cool before
making any inspections, adjustments,
etc.

2. Store the product where the fuel
vapors will not reach any open flames
or sparks. Always allow the product to
cool down before storing.

3. When not in use, store the product
out of the reach of children.

4. Use only manufacturer’s
recommended replacement parts and
accessories.

5. When transporting or storing this
product, always fit the cutter transport
guard.

LONGER TIME UNUSED MACHINE
RESTARTING

Unused machine be in storage for
longer than 90days, the ignition coil
be not damaged, it’s only carburetor
issue. Please follow these Instructions
to restart the machine.

1. Check either the fuel pipe aging or
cracking, if any, easy to buy new one
for replacement at local store

2. Check either the fuel pipe joint of
carburetor loosening or aging, if any,
cut the pipe joint a little bit to rejoin
as well

Please pull the starting rope 5-8 times

3.
before fuel refilling to the carburetor is
in an operating state

4. Refilling the fuel and then restart the
machine according to the cold start mode

FUEL HANDLING

1. Follow the maintenance and repair
instructions on this product. Never
carry out any modifications of the
product. Never change the preset
rotary speed or the engine and
product settings. Information about
maintenance and repair is provided
in this user manual.

2. Never carelessly touch the product,
doing so may cause serious injury.
While the product is in operation
or shortly thereafter, its parts,
such as the exhaust pipe, engine,
and other surfaces are extremely
hot! Pay attention to the markings
on the product.

3. Make sure that the air intake of
the combustion engine is clear.
Keep the air intake free of dust,
dirt particles, gases, and fumes.

4. Make sure that air circulation is
adequate. The product must be
easily accessible from all sides.

5. Always switch the product off
and let it cool down, before refueling
it. Gas is highly flammable. Never
smoke when you are refueling the
product. Do not refuel the product,
if there is an open fire in the vicinity.

6. Always use suitable aids such
as funnels and filler necks. Do
not spill any fuel on the product or
its exhaust system. There is a
risk of ignition. However, if fuel
should be spilled, then you must
remove it carefully from all parts
of the product. Any residue which
may be present must be
completely removed, before the
product is operated.

7. Exhaust gases and fuel fumes
are noxious. Fuel fumes can ignite.
Never use the product in environments
where there is a risk of explosion.

8. Never breathe in any fuel fumes
when you are refueling the product.
Never fill the tank in enclosed spaces,
such as basements or sheds. There
is a risk of poisoning and explosion.

9. Avoid skin contact with the fuel.

10. Do not eat or drink while refueling
the product. If you have swallowed
gas or oil, or if the gas or oil has got
into your eyes, then seek medical
advice immediately.

[e-mail]

4

1-800-348-5004

11. Close the tank lid immediately
after filling the tank. Make sure that it
is properly closed.

12. Never use the product without an
air filter.

EMERGENCY

Familiarize yourself with the use of
this product by means of this
instruction manual. Memorize the
safety directions and follow them
to the letter. This will help to
prevent risks and hazards.

1. Always be alert when using this
product, so that you can recognize
and handle risks early. Fast
intervention can prevent serious
injury and damage to property.

2. Stop the engine and unplug the
spark plug connector if there are
malfunctions. Have the garden
power tool checked by a qualified
professional and repaired, if
necessary, before you operate it
again.

3. In case of fire, stop the engine
and unplug the spark plug
connector. Take fire-extinguishing
measures immediately if the garden
power tool switch is no longer
accessible.

WARNING: Never use water to
extinguish a product on fire.
Burning fuel must be extinguished
with special extinguishing agents.
It is recommended that you keep a
suitable fire extinguisher within
reach in your work area.

RESIDUAL RISKS

Even if you

are operating this
product in accordance with all the
safety requirements, potential
risks of injury, and damage remain.
The following dangers may arise
in connection with the structure
and design of this product:

1. Health defects resulting from
vibration emission if the product is

FIG. 1

FIG. 2

FIG. 3

FIG. 4

FIG. 5

FIG. 6

17

12

A

23

17

11

22

22

25

15

16

12

23

23

being used over long periods of time
or not adequately managed and
properly maintained.

2. Injuries and damage to properly
due to broken accessories or the
sudden impact of hidden objects
during use.

3. Danger of injury and property
damage caused by flying objects.

4. CAUTION: You may be burned if
you touch hot surfaces.

WARNING: This product
produces an electromagnetic field
during operation. This field may
under some circumstances
interfere with active or passive
medical implants. To reduce the
risk of serious or fatal injury, it is
recommended that persons with
medical implants to consult their
doctor and the medical implant
manufacturer before operating
this product.

ASSEMBLY

1. Remove all packing and shipping
materials.

2. Disconnect the spark plug
connector (2) from the spark plug.

WARNING: The product must be
fully assembled before operation.
Do not use a product that is only
partly assembled or assembled
with damaged parts.

AUXILIARY HANDLE

1. Remove the pre-assembled bolts
on the bracket of the auxiliary
handle (12).

Note: Pay attention to the bolts.
Keep them in a secure location.

2. Locate the handle (12) to the
upper side of the upper shaft (23)
and secure in place with the bolts
(Fig. 1).

3. Insert the handle grip (25) to the
end of the auxiliary handle (12) (Fig.

2).

4. Strain and fix the control cable (11)
with the cable ties (24) (Fig. 3).

[e-mail]

5

1-800-348-5004

SHAFT

1. Remove the protection cap from the
lower shaft (22) (Fig.4).

2. Align the lower shaft (22) with the
clamp (15) so that the slot is
orientated to the slot in the clamp (15)
(Fig. 5).

3. Press the locking lever (17) and
insert the lower shaft (22) into the
upper shaft (23). The locking lever
must engage in the slot of the lower
shaft (Fig. 6).

4. Secure the connection by tightening
the locking knob (16) (Fig. 6).

SAFETY GUARDS

1. Loosen the bolts with the hex
key 6 mm (18) and remove them

together with the washers ,
spring washer .

2. Please the safety guard (19) to
bracket (19A). Secure the safety
guard (19) with the hex
key 6 mm. (Fig.7)

CUTTING OPTIONS

You will be required to assemble the

relevant cutting head to suit the
intended use of the product.

BRUSH CUTTER BLADE

1. Ensure that the safety guard (19) is
attached.

2. Locate the backing flange (32) on
the spindle (31).

3. Rotate the backing flange until its
hole is aligned with the notch in the
gear head.

4. Loosen the nut (36) and remove the
washer (35) and locking flange (34).

5. Fit the cutter blade (33) onto the
spindle (31) ensuring that the
directional arrows on the guard and
the cutter blade match. Ensure that
the cutter blade sits flush on the
extruded ring on the backing flange.

18

FIG. 7

FIG. 8

19

FIG. 9

FIG. 10

FIG. 10

19

19A

6. Place the locking flange (34) and

19

the washer onto the cutter

blade

(33).

7. Secure the cutter blade (33) with
the nut (36) (Fig. 8).

TRIMMER HEAD

1. Make sure that the safety guard
(19) has been attached properly.

2. Locate the backing flange (32) on

31

32

33

34

35

36

the spindle (31).

3. Rotate the backing flange until its
hole is aligned with the notch in the
gear head.

4. Screw the trimmer head (37) on
the spindle (31) (Fig. 9).

WARNING: Do not attach the

locking flange (34) when using
the trimmer head.

FUEL

31

32

1. This product is equipped with a 2­stroke engine (1).

2. Mix a regular-grade unleaded gas
and a quality 2-cycle motor oil for

37

air cooled 2-stroke engines.

3. Do not use BIA or TWC (2-stroke
water-cooling type) mixed oil.

4. The recommended mixing ratio
for fuel:oil is 40:1 (Fig.10)

Note: Never mix fuel and oil directly

in the tank of the product.

WARNING: This product is not

supplied with fuel in the engine.
Before operating this product it
is essential to fill with fuel.

WARNING: Ensure that there are

no open flames around the
product. Do not smoke while
filling with fuel and oil.

[e-mail]

FIG. 11

6

1-800-348-5004

1. Unscrew and remove the fuel tank
cap (7) (Fig. 11).

2. Only use correctly mixed fuel/oil.
Do not overfill. Leave a minimum
5mm of space between the top of the
fuel and the inside edge of the tank
(6) to allow for expansion (Fig. 12).

3. Use a fuel funnel fitted with a filter
to avoid debris entering the tank.

4. Wipe up spi

lled fuel with a soft

cloth and refit the fuel tank cap (7).

5. Always dispose of fuel, used oil,
and soiled objects according to local
regulations.

BEFORE STARTING, MAKE SURE
YOU HAVE NOTED THE
FOLLOWING INSTRUCTIONS:

Make sure you have read and
understood the entire instruction
manual.

Working with this product is
demanding, therefore ensure you are
physically and mentally fit to
complete the job safely.

Ensure that you have all the
accessories and tools needed for
assembly and operation.

Make sure that you wear suitable
personal protective equipment.

Ensure that no unauthorized people,
especially children, and pets are
nearby or could enter the working
area.

Make sure no explosive or

flammable materials are present.

Ensure that the product is free from

damage and that it is not worn.

Ensure that the tank is filled with the

correct fuel/oil mixture.

Make sure that safety devices and

accessories are correctly fixed.

Double check that all assembly tools
have been removed from the product
before use.

OPERATING CONTROLS

Starter aid buttonStarter aid buttonStarter aid buttonStarter aid button

Starter aid button

Undertake periodic structural checks
of this product, do not use if you have
any doubts about its suitability for its
intended purpose.

WARNING: For your own and the

safety of other people you must
read and follow the safety
instructions in this manual.

INTENDED USE

This brush cutter/string trimmer is

designated with a maximum power
output of maximum 42.6cc.

With the cutter blade attached, this

product is intended to cut small types
of weeds, lawn grass, or similar soft
vegetation.

This product should not be used to

cut unusually thick grass or
vegetation, wet grass, or to shred
leaves, etc.

This product is intended for private

domestic use only. Not for
commercial trade or use. It must not
be used for any purposes other than
those described.

[e-mail]

7

1-800-348-5004

PRIMER

Use the primer (8) when starting the

product with a cold engine (Fig. 13).

RECOIL STARTER

1. The recoil starter handle (5) is
positioned at the back side of the
engine unit.

2. Pull on the recoil starter handle (5)
to start the engine (Fig. 14).

WARNING: Do not suddenly release

the recoil starter handle. Always
allow it to return under controlled
tension. Do not pull out the recoil
starter BEYOND THE RED COLOR
BAND at the end of the recoil
starter (Fig. 14).

HAND GRIP CONTROLS

There are four controls at the hand

grip with the following functions (Fig.

15).

1. Adjust the engine speed with the
throttle control (27).

2. Use the )82(

starter aid button
for temporarily setting the throttle in a
partially open position, to aid starting.

3. The ignition switch (29) electrically
starts or stops the engine.

4. The throttle interlock (30) prevents
unintentional activation of the throttle
trigger until manually released.

HARNESS

1. The harness (14) helps the operator
to carry the product.

2. To remove the harness from the
loop (26), open the securing clip.

3. Place the harness so that it runs
over the left shoulder, crossing the
chest and back. The securing clip
must be located

at the right hip (Fig.

16).

4. Adjust the length of the harness (14)
so that the hook is approximately 6 in.
below your waist; locate the product
to the harness by using the securing
clip ensuring that the angle of the
cutting head is parallel to the surface
being cut.

FIG. 12

FIG. 13

FIG. 14

FIG. 15

FIG. 16

WARNING: Always attach the

product to the harness. Do not
carry it only with your hands.

5. In case of emergency, release the
product from the harness by opening
the securing clip.

AUXILIARY HANDLE

Adjust the position and angle of the

auxiliary handle (12) on the upper
shaft (23).

1. Loosen the bolts on the bracket (13)
and adjust the position and angle
(Fig. 17).

2. Afterward, tighten the bolts.

CUTTING HEADS

Blade

The cutter blade (33) is used to cut

heavier weeds, brush, and similar
vegetation with a thickness of up to
20mm.

Trimmer Head

1. The trimmer head (37) is used to
cut smaller types of weed, lawn grass,
or similar soft vegetation.

2. The trimmer head is equipped with
a bumper (38) helping to cut the
trimming line (39) while operating.
Simply tap the bumper on a firm
surface and the spool will release
fresh trimming line (Fig. 18).

3. A knife (20) is integrated with the
safety guard

(19) and this will cut the

line to the necessary length.

WARNING: The cut line will be

thrown out. Danger of injury
especially for bystanders.

SAFETY GUARD

1. The safety guard protects the
operator against thrown objects
during operation.

2. The safety guard (19) is equipped
with a knife (20) that cuts the
trimming line (39) if required (Fig.19).

Note: Always remove the knife

protection before use and replace
when work is completed.

[e-mail]

8

1-800-348-5004

CARBURETOR

If the cutting heads fail to operate at

operational speed the carburetor may
need to be adjusted. Please contact
an authorized service center or
qualified person to adjust it.

OPERATION

PREPARATION

1. Prior to use, first check the product
for damage or any signs of wear,
particularly if the product has not
been used for a long time,

2. Check the fuel level and refill with
correctly mixed fuel/oil if necessary.

3. Wear correct personal protective
equipment to protect yourself from
hidden objects that may be thrown
from the cutting heads.

4. Ensure that the area to be worked
is clear of stones, sticks, wires, or
other products that could damage the
product.

1

COLD START

1. Set ignition switch to “I”.

2. Press primer until fuel is visible.

3. Turn chock lever to “ START”.

4. Press throttle control and interlock.

5. Pull recoil starter until the engine started.

6. Turn chock lever to “RUN”.

7. Press throttle control to release starter

aid button.

8. Warm up the engine a few minutes

on idling speed.

9. Operate. (Fig.20)

WARM START

1. Set ignition switch to “I”.

2. Turn chock lever to “RUN”.

3. Press Primer until fuel visible.

4. Pull recoil starter until engine started.

5.Operate.(Fig.21)

FIG. 17

FIG. 18

FIG. 19

2 3

65

RUN

8 9

FIG. 20

1

4 5

FIG. 21

1 2 3

2 3

RUN

START

7

654

STOPPING

1. Release throttle control and
interlock.

2. Run idle.

3. Set ignition switch to “O”.

4.Empty fuel tank.

5.Maintain.

6.Store.(Fig.22)

WARNING: Always attach the

product to the harness. Do not
carry it only with your hands.

CUTTING

1. Use the cutter blade (33) to cut
heavier weeds, brush, and similar
vegetation with a thickness of up to
20mm.

WARNING: To avoid hazards,

never cut heavier weeds, brush,

19

and similar vegetation with a
thickness of over 20mm.

Avoid

contact with stones, wires, glass,

4

etc. that may cause injury to the
user. Inspect the blade regularly
for damage, cracks, or breaks.
Always replace a damaged blade.

WARNING: When working with the

cutter blade, there is always a risk
of kickback if the cutting head
comes into contact with a hard
object. Kickback will cause the
sudden stalling of the cutting
head, which in turn results in the
cutting head being forced in the
opposite direction to the rotation
of the cutter blade. Ensure that
you retain a firm grip with both
hands at any sign of such
kickback. Pay attention and retain
a

firm stance to avoid injuries.

2. Hold the product firmly so that
it sits with a gap between the
product and your right side.

[e-mail]

FIG. 22

9

1-800-348-5004

3. Stand upright, do not lean
for ward and pay attention t o
posture. Keep both feet apart to
help retain y our balance.

4. Never hold the cutting head
higher than your hip; the higher
you hold the cutting head, the
greater the risk for obj ects being
thrown.

5. Carefully plunge the bl ade from
above when cutting long
unde rgrowth.

6. Move the cutting head towards
the base of young trees or thicker
vegetation.

FIG. 23

7. Trim longer grass in stages.
DO NOT cut long grass in one
cut (Fig. 23).

8. Feed the trimming line if it i s
worn-out or ripped by tapping
the bumpe r (38) on stable
ground.

TIPS

1. For best results, do not cut
wet grass because it tends to
stick to the cutting hea ds and
guard, prevent s proper
discharge of gr ass trimmings,
and could cause you to slip and
fall.

TRIMMING

1. Use the trimmer head (37) to cut
smaller types of weed, lawn grass,
or similar soft veget ation.

2. Hold the product firmly so th at it
sits with a gap between the
product and your right side.

3. Stand upright . Do not lean
for ward and pay attenti on to
posture. Keep both feet apart to
help retain your balance.

4. Hold the trimmer head just
above the ground at

an angle of

appro ximately 30

5. Move the product with a slow
and regular arc from the left t o right
before moving back to the starting
position before trimming the next
area.

6. Ensure the cutting head remains
clean and free from off-cuts that
may cause it to jam. Check
regularly. Stop the engine, switch
the ignition s witch (2 9) to STOP
and remove the spark plug
connect or (2) befor e checking.

FIG. 24

FIG. 25

FIG. 26

2. Pay special attention when
performi ng the work close t

o
trees and bushes. The cutting
heads could damage sensitive
bark, and damage fence posts
(Fig. 24).

STOPPING

1. Rel ease the throttle interlock
(30) and thro ttle co ntrol (27) and
let the product run at its idle
speed for 10-15 seconds (Fig.

25).

2. Set the ignition switch (29) to
position “O”.

WARNING: The cutting heads
will continue to rotate for
some time after the engine
has been swit ched off. Wait
until the head has come to a
complete stop before placing
the product on the ground.

AFTER USE

1. Switch th e product OFF,
disconnect the spark plug
connector, and let it cool down.

2. Check, clean, and store the
product as described.

[e-mail]

10

1-800-348-5004

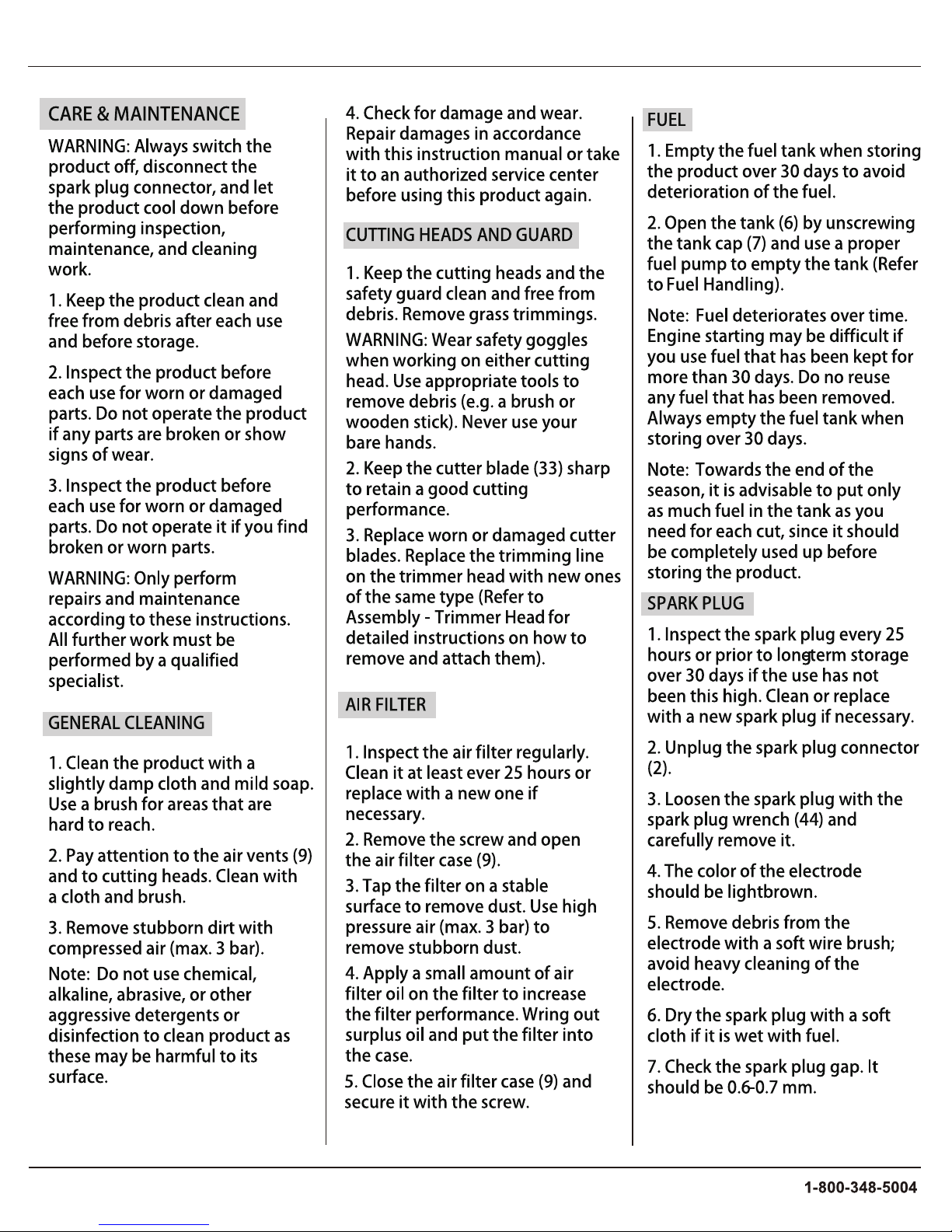

[e-mail]

11

SPOOL

WARNING: Before replacing the nylon

line, stop the engine of the brush cutter

and check whether the cutting head

stops rotating.

1. If the line is used up, the spool must

either be replaced by one of the

same type, or the trimming line (39)

must be refilled.

We recommend to use the nylon line

which has good elasticity but contains

no metal wire.

2. To refill the trimming line, lay the

product on a flat, stable surface

with its trimmer head facing upwards.

3. Rotate the backing flange until one

of the notches is aligned with the

hole in the gear head.

4. Replacement of nylon line.

Step (1): Press the stop claw in from

both sides and remove the cover.

Then remove the parts one by one.

Step (2): Remove the roll.

Step (3): When almost the whole nylon

line on the roll is pulled out, remove the

residual nylon line, and wind a new

nylon line according to Step (4). If the

nylon line on the roll is “molten and

bonded”, remove the whole nylon line,

strip the molten and bonded part, and

rewind the residual line according to

Step (4). Step (4): Bend the nylon line

at 12cm away from the end. Then

insert the bent part into the nylon line

hole of the intermediate split plate.

Step (5) : Tightly wind the line leftwards

into the roll groove.

Step (6): After winding, bend both ends

into the hook shape and respectively

insert them into the corresponding

holes. Reserve about 10cm outside

the holes.

Step (7) : Align the holes
of the roll and the small holes of the
groove and install the cover.
Step (8) : Pull the line out of the cover.
(A): Pull out one end of the line out of
the corresponding hole of the roll.
(B): Install the line through the
corresponding hole of the groove.
Step (9): Assemble the cover and shell.
(C): Align the hole of the cover and the
groove of the shell.
(D): Press the fixing claw of the shell
into the corresponding groove fo the
cover until the claw is fixed in the
groove of the cover.

5. Wind the 2 parts of the trimming
line in a clockwise direction firmly
around each part in the guide on
the spool.

6. Insert each end of the threads in
respective holes.The threads should
stick out 1/2 in.on each side.

7. Screw the bumper (38) anti-clockwise
until it is completely and safely locked.

WARNING:

After changing the trimming line, run
the product under no load for at least
the line and the product are opreating
correctly.

WARNING: Never use steel thread.
Always use cutting means in perfect
condition, free of damage.

1. Threaded knob of roll

2. Shell

3. Cover

4. Roll

4

3

1

Step (2)

2

Step (1) Step (3)

5. Intermediate split plate

6. Bending part

7. Nylon line hole

8. Winding direction

9. If winding is not performed tightly,
the line will not be neat after winding.

10. Wind the line into the groove.

12cm

6

7

5

10

9

8

Step (7)

Step (6)

Step (8)

(A)

(B)

Step (9)

(C)

(D)

[e-mail]

12

[e-mail]

13

Troubleshooting Guide

Problem Possible Cause(s) Corrective Action

Primer has not been pressed at cold start Press the primer and restart

Not enough fuel in fuel tank Add fuel

Engine does not start

Engine stops

Poor cutting

Excessive

vibration/noise or

exhaust

Primer has been pressed at warm start Dry spark plug

Spark plug is wet Dry spark plug

Spark plug is damaged Replace spark plug

Not enough fuel in fuel tank Add fuel

Cutting head is blocked Remove blockage

Cutting head is not sharp enough Replace cutting head

Cutting head is not fitted correctly Fit cutting head correctly

Cutting height is wrong Adjust cutting height

Guard is clogged Clean guard

Cutting head is damaged Replace cutting head

Flanges on cutting head are loose Tighten flanges

Flanges on cutting head are broken Replace flanges

Fuel/oil mixture is incorrect or the wrong

[e-mail]

oil has been used

14

Empty out unused fuel and refill with the

correct ratio fuel/oil mixture

1-800-348-5004

Troubleshooting Guide

Set unit on the ground with the on/off switch set to on

Set the choke lever fully open

Engine is flooded

Carburetor

adjustments

Trimmer does not

want to start

Trimmer wants to bog

down during
acceleration

Squeeze the throttle lever all the way down

In quick short pulls try starting the unit until you hear a "pop" then let go of the throttle lever.

Follow start up procedure

An alternative to the above steps is to remove the spark plug and allow the cylinder and spark plug to "dry out".

The factory setting for this unit is at 1 - 1 1/2 turns out counter clockwise.

This unit it equipped with only one carburetor adjuster.

The proper tool for adjusting the carburetor is a pacman carburetor adjusting tool.

Depending on the area you live or the length of time the unit has been used will depend on where the carburetor
needs to be set.

Possible spark plug failure (see no spark)

Turn the carburetor adjuster clockwise until you feel it stop. DO NOT over tighten as damage can occur.

Turn the adjuster counter clockwise one quarter of a turn and try starting the unit (follow start up procedure. If unit
does not start repeat step until unit starts.

Allow unit to run and warm up. If idle is rough use 1/16th turns to fine tune the carburetor setting.

NOTE: The following steps can also be used if unit only runs with choke set half way.

Gas oil mixture has too much oil in mix. Remove gas from unit and remix to proper fuel gas ratio.

With a proper fuel mix if unit still wants to bog down or requires choke to be set half way the carburetor will need
adjustments.

Turn the carburetor adjuster clockwise until you feel it stop. DO NOT over tighten as damage can occur.

Turn the adjuster counter clockwise one quarter of a turn and try starting the unit (follow start up procedure. If unit
does not start repeat step until unit starts.

noitcA evitcerroC)s(esuaC elbissoPmotpmyS

No spark

Allow unit to run and warm up. If idle is rough use 1/16th turns to fine tune the carburetor setting.

Possible faulty spark plug

Bad ignition coil or on/off switch

Replace spark plug

Proper gap is 0.030

Test with the following steps：

1. Remove air filter cover.

2. Remove the spark plug wire from the spark plug carefully as to not
separate the contactor inside from the wire.

3. Remove the spark plug from the engine and place it back into the spark
plug wire.

4. Set the spark plug onto a metal surface of the unit in a position to see the
gap between the center and ground diode.
NOTE: Do not do the following steps in direct sunlight or other bright light
sources as it could affect your visibility of the test.

5. With the on/off switch set to on slowly pull the starter rope while maintaining
a visual of the two diodes to see if there is an arc.

6. If there is no arc the spark plug may be faulty. If spark plug has already
been replaced go tot he next step.

7. Disconnect the two small wires that come out of the loom of the spark plug
wire. There are two red and two black wires connected with quick connectors.

8. Repeat steps 4 & 5. If the spark plug arcs the on/off switch is bad and
needs replaced. If there is still no arc then the ignition coil has failed and
needs replaced.

9. When replacing the ignition coil the proper gap between the coil and flywheel
is 0.4mm (0.0157 inch)

[e-mail]

15

1-800-348-5004

Parts List

Brush Cutter

Model: 52623

19A

For Customer Service, please call 1-800-348-5004 or
email [e-mail]

18

1-800-348-5004

16

07/15

40

41

42

43

44

40

41

42

43

44

1-800-348-5004

For Customer Service, please call 1-800-348-5004 or
email [e-mail]

1-800-348-5004

17

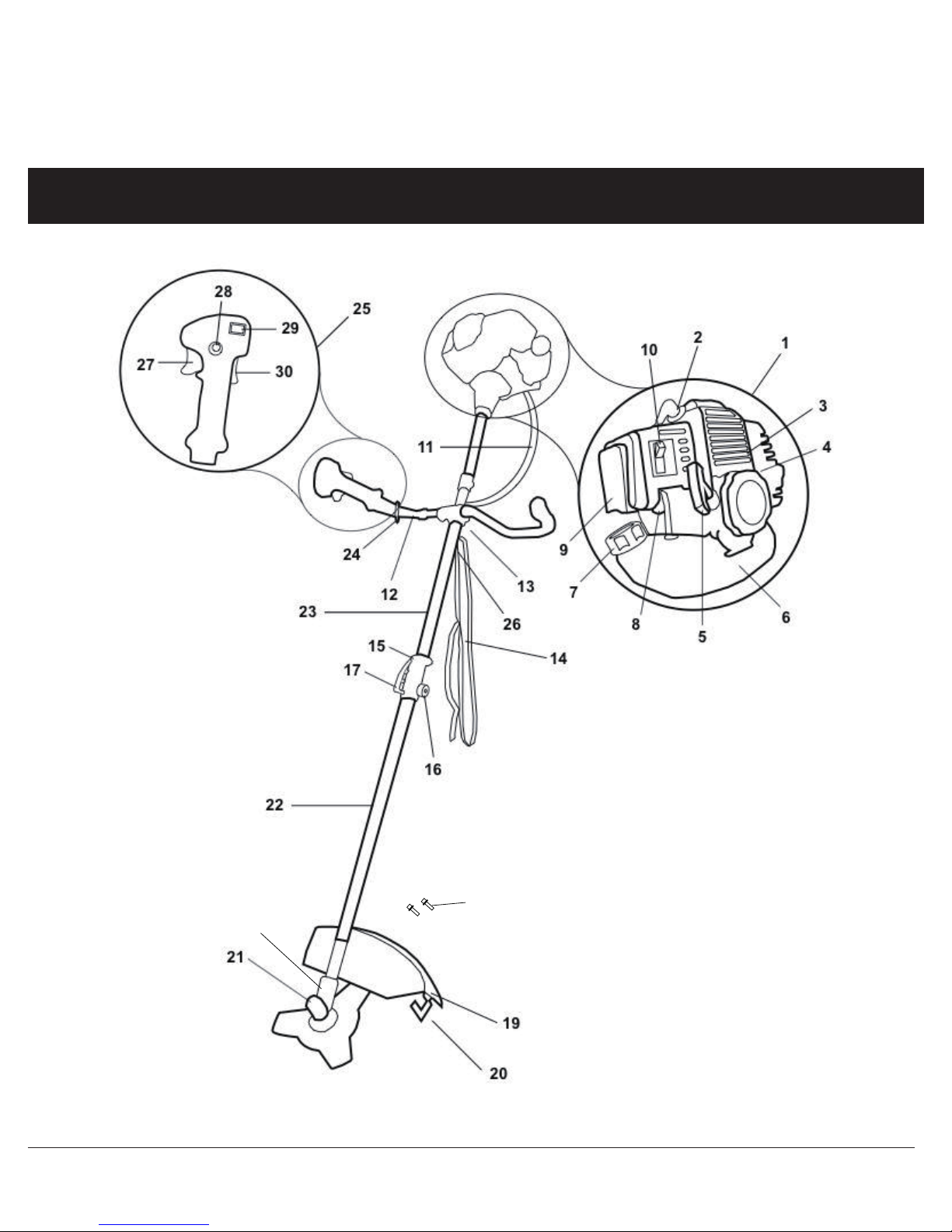

Parts List

Parts List

# Description # Description

2 Spark Plug Connector 22 Lower Shaft

5 Recoil Starter Handle 25 Hand Grip

7 Fuel Tank Cap 27 Throttle Control

9 Air Filter Case 29 Ignition Swith(ON/OFF)

12 Auxiliary Handle 32 Backing Flange

daeH raeG12enignE1

tfahS reppU32stneV riA3

)2x(eiT elbaC42recneliS4

pooL62knaT leuF6

nottuB diA retratS82remirP8

kcolretnI elttorhT03reveL ekohC01

eldnipS13elbaC lortnoC11

edalB rettuC33tekcarB31

rehsaW53pmalC51

tuN63bonK gnikcoL61

17 Locking Lever 37 Trimmer Head

repmuB834x(teS gnitnuoM81

18B Spring Washer 40 Screwdriver

yeK xeH24tuND81

rauG ytefaS91

efinK02

yeK xeH34d

egnalF gnikcoL43ssenraH41

eniL remmirT93tloBA81

reniatnoC gnixiM leuF14rehsaWC81

hcnerW gulP krapS44tekcarBA91

For Customer Service, please call 1-800-348-5004 or
email [e-mail]

1-800-348-5004

18

Limited Manufacturer Warranty

FOT makes every effort to ensure that this product meets high quality and durability

standards. FOT warrants to the original retail consumer a 1-year limited warranty

from the date the product was purchased at retail and each product is free from

defects in materials. Warranty does not apply to defects due directly or indirectly

to misuse, abuse, negligence or accidents, repairs or alterations, or a lack of

maintenance. FOT shall in no event be liable for death, injuries to persons or

property, or for incidental, special or consequential damages arising from the

use of our products. To receive service under warranty, the original manufacturer

part must be returned for examination by an authorized service center. Shipping

and handling charges may apply. If a defect is found, FOT will either repair or

replace the product at its discretion.

DO NOT RETURN TO STORE

For Customer Service:

Email: [e-mail] or Call 1-800-348-5004

For Customer Service, please call 1-800-348-5004 or
email [e-mail]

1-800-348-5004

19
