BLUE LINE FLATBOX HANDLE
Page 2
BLUE LINE FLATBOX HANDLE
The Blue Line Flatbox Handle range is designed for use with the Blue Line Flatboxes. The
handles feature a locking cam system to control the angle of the Flatbox.
The Blue Line Flatbox Handle range includes:
> 3 ft Blue Line Flatbox Handle
> 42” Blue Line Flatbox Handle
> 4 ft Blue Line Flatbox Handle
> 5 ft Blue Line Flatbox Handle
> 6 ft Blue Line Flatbox Handle
> 2 ft Blue Line Handle Extension
> 4 ft Blue Line Handle Extension
USING THE BLUE LINE FLATBOX HANDLE
1. Attach your Blue Line Flatbox Handle to your Blue Line Flatbox by sliding the
handle onto the box and tightening the two wing nuts.
2. For extra height, attach a Blue Line Handle Extension to your Blue Line Flatbox
Handle by screwing the threaded end of the extension into the end of the handle.
(FH-2)
(FH-1)
FH-1
FH-2

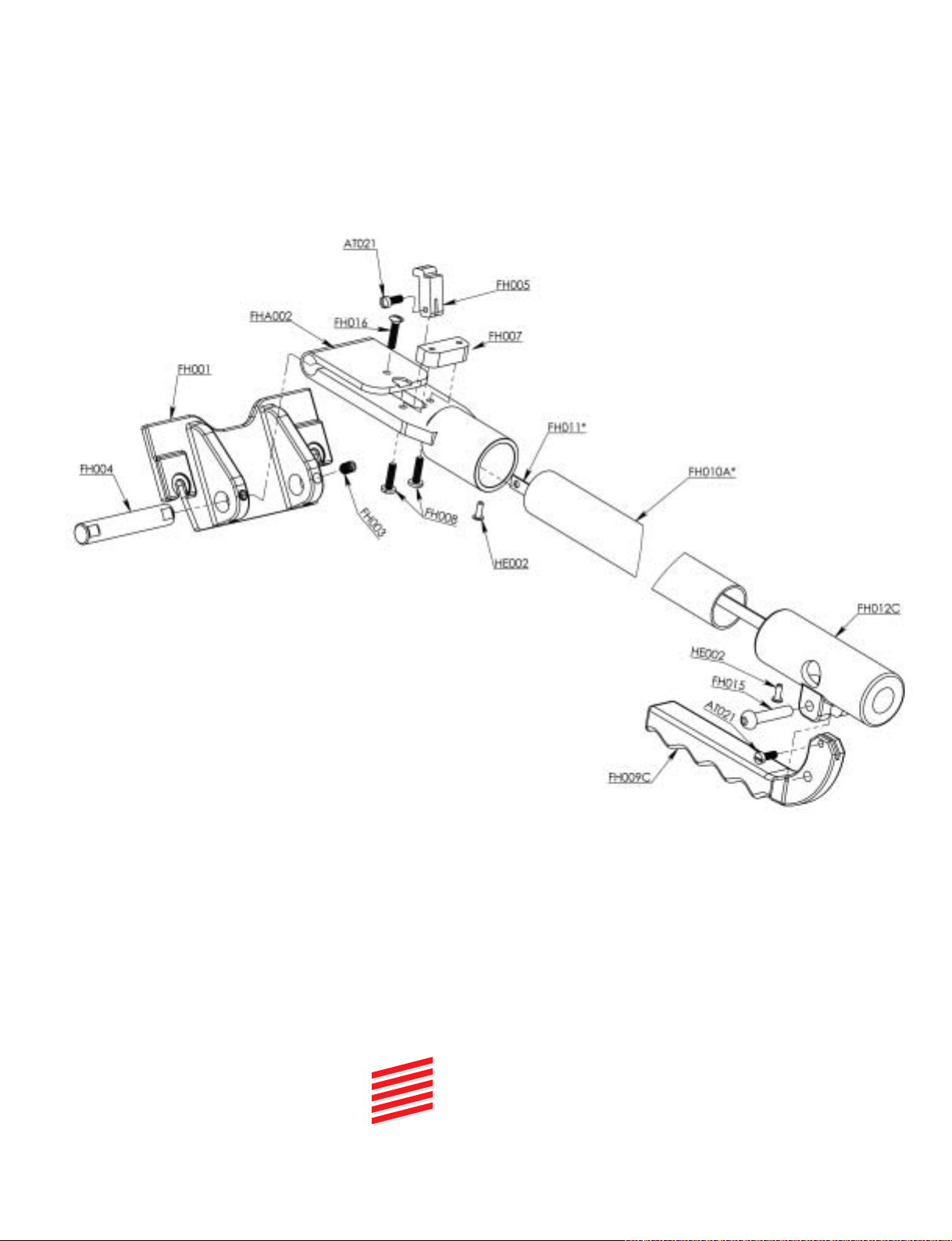

3. To lock the handle at a disired angle simply tighten the FH016 screw to engage the
locking cam.
Tip: The 3 ft handle is best for use in tight spaces like toilets and hallways and can be
easily fitted with a Blue Line Handle Extension to put ceilings in easy reach.
CLEANING
Your Blue Line Flatbox Handle should be cleaned after every use to maximize lifespan.
Remove traces of compound from your Blue Line Flatbox Handle with a hose and stiff
brush.
Page 3
BLUE LINE
BLUE LINE
USA
USA
WARRANTY REPAIRS
We have established a network of authorized warranty repair facilities in the western,
central and eastern United States as well as Canada.
SERVICING
Your Blue Line Drywall Tools LLC authorized warranty repair facility has a professional
workshop with trained staff to carry out all your servicing needs.
SPARE PARTS
Easy to install maintenance kits are available from your Blue Line Drywall Tools LLC
distributor. All parts are available, some may require ordering.
CARE OF YOUR TOOLS
FH-3
FH-4
We recommend Readymix Jointing Compounds. Chemically fast setting compounds may
only be used in the Blue Line Drywall Tools Pump, Flat Boxes, Nail Spotters, and Corner
Box. Chemically fast setting compounds must not be used in the Automatic Taper. Always
clean and lubricate your Blue Line Drywall Tools to maintain maximum efficiency.
Page 4
BLUE LINE
BLUE LINE
USA
USA
For more information, call the order desk at (800) 423-1806
www.bluelineusa.com
1250 South Wilson Way, Suite B-10 • Stockton, California 95205 • (800) 423-1806 • (209) 942-1351 • Fax (209) 942-2817
