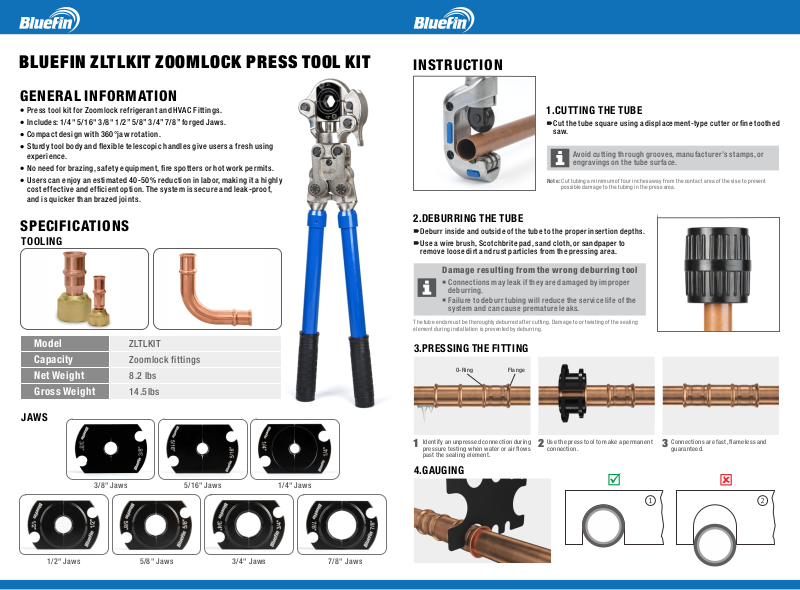

BLUEFIN ZLTLKIT ZOOMLOCK PRESS TOOL KIT
GENERAL INFORMATION
Press t ool kit for Z oomlock refrig erant and HVAC Fittin gs.
Inclu des: 1/4" 5/16 " 3/8" 1/2” 5/8” 3/ 4” 7/ 8” forged Ja ws.
Compa ct design w ith 360°j aw rotati on.
Sturd y tool body and flexi ble teles copic handles gi ve users a fr esh using
exper ience.
No need f or brazin g, safet y equipme nt, fire spotters or hot wor k permits.
Users c an enjoy an e stimate d 40-50% reducti on in labor, makin g it a highly
cost ef fective a nd efficie nt option . The s ystem is se cure an d leak-pr oof,
and is qu icker than braze d joints.
INSTRUCTION
1. CUTTING THE TUBE
Cut the t ube squ are using a displa cemen t-type cutter or fi ne toot hed
saw.
Avo id cutting throu gh grooves, manuf acturer ’s stam ps, or
engra vings o n the tube surface.
Not e: Cut tu bing a mi nimum o f four in ches aw ay from t he cont act are a of the vi se to pre vent
pos sible d amage t o the tub ing in th e press a rea.
SPECIFICATIONS
TOOLING
Model
Capacity
Net Weight
Gross Weight
JAWS
3/8" Ja ws 5/16" J aws 1/4" Jaws
ZLTLKIT
Zoomlock fittings
8.2 lbs
14.5lbs
2. DEBURRING THE TUBE
Debur r insid e and outsi de of the t ube to the proper in serti on depths.
Use a wir e brush , Sco tchbr ite pad , sand cloth , or sandpap er to
remove loose d irt and r ust particles fr om the pr essin g area.
Damage resulting from the wro ng deburring tool
Conne ction s may leak if t hey are d amage d by impr oper
debur ring.
Failu re to deb urr tubing will reduce th e service l ife of th e
syste m and can c ause premature leaks.
The t ube end s must be t horou ghly de burre d after c uttin g. Dama ge to or t wisti ng of the s ealin g
ele ment du ring in stall ation i s preve nted by d eburr ing.
3. PRESSING THE FITTING
O-R ing
Ide ntify a n unpre ssed co nnect ion d uri ng
pre ssure t est ing w hen w ate r or ai r flows
pas t the sea ling el ement .
Fla nge
Use t he pres s tool to m ake a per manen t
con necti on.
4. GAUGING
Con necti ons are f ast, flam eless a nd
321
gua rante ed.
1/2" Ja ws 3/4" Ja ws5/8" Ja ws 7/8" Ja ws
