Page 1

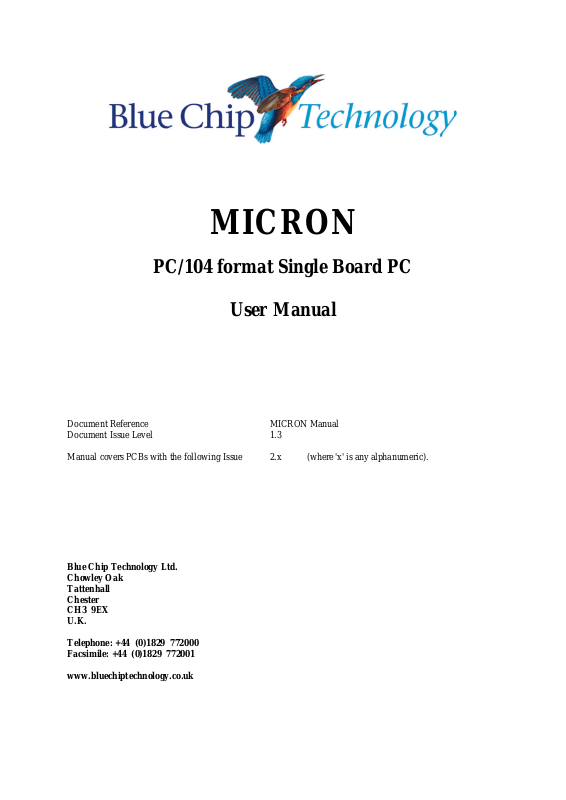

MICRON
PC/104 format Single Board PC
User Manual
Document Reference MICRON Manual
Document Issue Level 1.3
Manual covers PCBs with the following Issue 2.x (where 'x' is any alphanumeric).
Blue Chip Technology Ltd.
Chowley Oak
Tattenhall
Chester
CH3 9EX
U.K.
Telephone: +44 (0)1829 772000
Facsimile: +44 (0)1829 772001
www.bluechiptechnology.co.uk
Page 2
MICRON SINGLE BOARD COMPUTER CONTENTS
CONTENTS
CONTENTS................................................................................................................ 2
INTRODUCTION ........................................................................................................ 4
COMPANY PROFILE .....................................................................................................................4
COPYRIGHT .................................................................................................................................4
LIMITATIONS OF LIABILITY ..........................................................................................................4
RELATED PUBLICATIONS............................................................................................................5
TRADEMARKS..............................................................................................................................5
PRECAUTIONS.............................................................................................................................6
Electro-Static Discharges .......................................................................................................................6
On-Board Battery...................................................................................................................................6
BIOS & CMOS RAM...............................................................................................................................6
Electromagnetic Compatibility................................................................................................................6
USER GUIDE.............................................................................................................. 8
MANUAL ORGANISATION............................................................................................................8
OVERVIEW ...................................................................................................................................8
BOARD LEVEL FEATURES.........................................................................................................10
CPU.....................................................................................................................................................10
Chip Set................................................................................................................................................11
System Memory.....................................................................................................................................11
BUS Expansion Facilities......................................................................................................................11
User EEPROM.....................................................................................................................................11
Watchdog facility..................................................................................................................................11
General Purpose Digital Input/Output ..................................................................................................11
SPECIFICATION..........................................................................................................................12

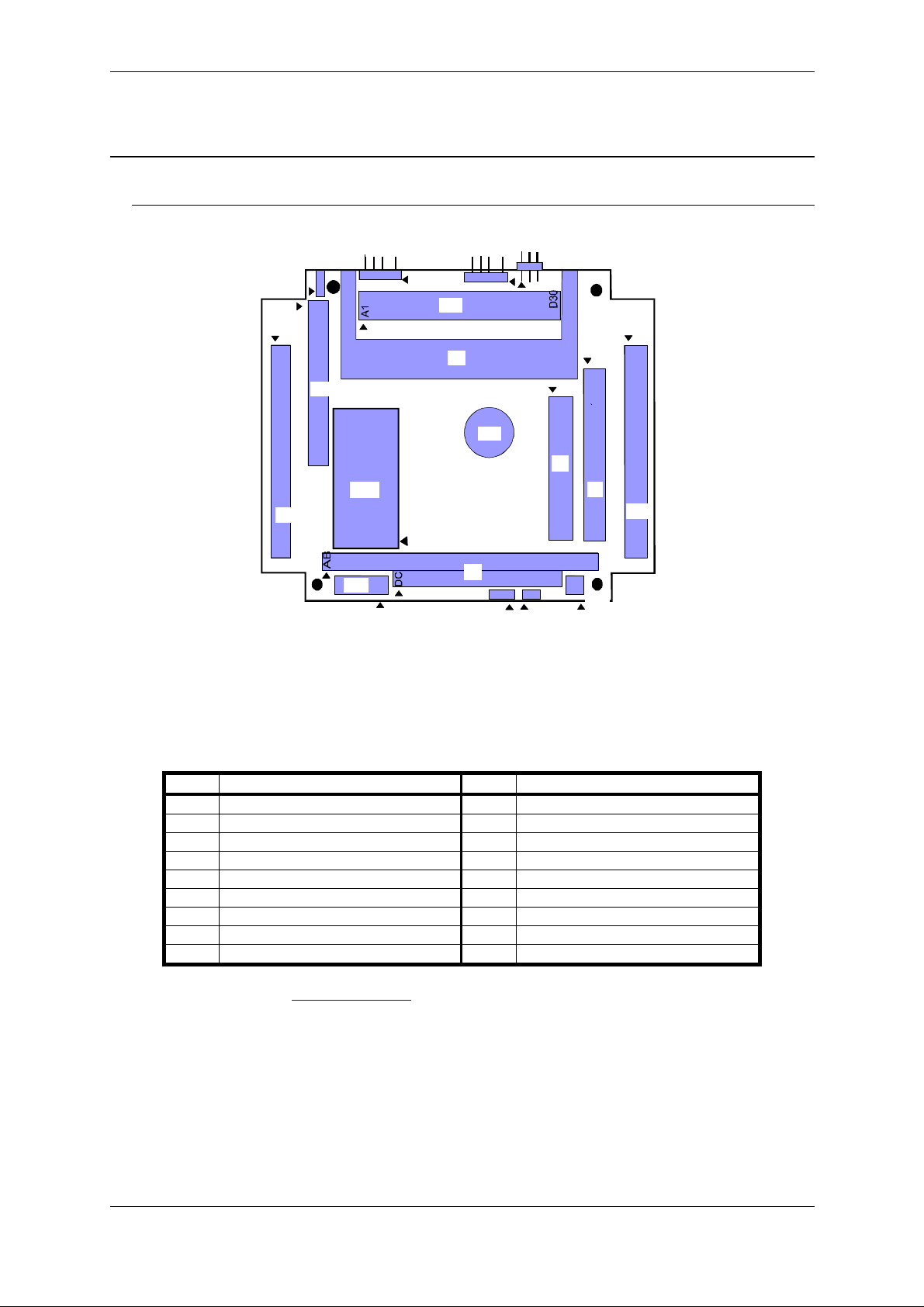

BOARD LAYOUT......................................................................................................................... 13
Top Surface of the PCB.........................................................................................................................13
Lower Surface of the PCB.....................................................................................................................14
INSTALLATION ........................................................................................................ 15
MOUNTING.................................................................................................................................15
COOLING....................................................................................................................................16
CABLING.....................................................................................................................................16
EMC ISSUES............................................................................................................................... 17
USING THE BOARD................................................................................................. 18
BIOS SETTINGS..........................................................................................................................18
JUMPERS....................................................................................................................................18
LOADING OPERATING SYSTEMS & DRIVERS..........................................................................18
Blue Chip Technology Limited Page 2
Page 3
MICRON SINGLE BOARD COMPUTER CONTENTS
PROGRAMMING THE BOARD.................................................................................................... 19
User EEPROM.....................................................................................................................................19
Watchdog facility..................................................................................................................................19
General Purpose I/O Lines....................................................................................................................20
Accessing Software 'INT 50h' Functions................................................................................................21
MAINTENANCE...........................................................................................................................22
Replacing the On-board Battery............................................................................................................22
TROUBLESHOOTING GUIDE.................................................................................. 23
MICRON CONNECTORS.........................................................................................24
POWER CONNECTIONS ............................................................................................................ 24
Power Supply Input Terminals ..............................................................................................................24
12V Power Input Terminals for Add-on Boards.....................................................................................24
5V Output Connector To Fan................................................................................................................24
Battery Holder......................................................................................................................................24
JUMPERS....................................................................................................................................25
CMOS Clear.........................................................................................................................................25
LCD Panel Supply Voltage....................................................................................................................25
INPUT/OUTPUT CONNECTORS .................................................................................................26
Combined VGA, KeyboarD, Mouse, Ethernet, USB, GPIO, Audio Connector.........................................26
Combined Serial Ports 1 & 2, Parallel Port, Utilities Connector ...........................................................27
LCD Panel Connector...........................................................................................................................28
Panel Vee generator connector.............................................................................................................28
IrDA interface ......................................................................................................................................29
Floppy Disk Header..............................................................................................................................29
Primary IDE Header ............................................................................................................................29
ATA Flash Disk Socket..........................................................................................................................29
Remote Thermistor for Temperature Sense............................................................................................29
SODIMM Socket...................................................................................................................................29
PC/104 Connector................................................................................................................................29
PC/104Plus Connector .........................................................................................................................30
MICRON I/O CABLE................................................................................................. 31
Parallel................................................................................................................................................31
Serial 1.................................................................................................................................................31
Serial 2.................................................................................................................................................31
Utilities ................................................................................................................................................31
MICRON CONNECT................................................................................................. 32
Multi-Function Interconnect ................................................................................................................33
Keyboard & Mouse...............................................................................................................................34
General Purpose I/O.............................................................................................................................34
CD-ROM Audio Input...........................................................................................................................34
Ethernet Connector...............................................................................................................................35
VGA Connector ....................................................................................................................................35
Dual USB Connector ............................................................................................................................35
Audio Microphone Input.......................................................................................................................35
Audio Line Input...................................................................................................................................35
Audio Line Output ................................................................................................................................35
STANDARD CONNECTORS .................................................................................... 36
AMENDMENT HISTORY.......................................................................................... 37
Blue Chip Technology Limited Page 3
Page 4
MICRON SINGLE BOARD COMPUTER INTRODUCTION
INTRODUCTION
COMPANY PROFILE
Blue Chip Technology is a leading specialist PC product manufacturer in Europe, providing innovation with
quality design and manufacturing from a single source.
Based in the North West of England, our purpose built complex contains both advanced research and
development facilities, and manufacturing facilities.
Specialising in the provision of industrial computing and electronic solutions for a wide range of UK and
European organisations, Blue Chip Technology has one of the UK's largest portfolios of industrial PCs,
peripherals and data acquisition cards. This extensive range of products, coupled with our experience and
expertise, enables Blue Chip Technology to offer an industrial processing solution for any application. This is
one of the products from our portfolio, providing you with a cost effective product development and volume
production tool.
A unique customisation and specialised system integration service is also available, delivering innovative
solutions to customers problems. The company's success and reputation in this area has led to a number of
large design and manufacturing projects for major companies.
British Standards Institute approval (BS EN 9001) means that all of Blue Chip Technology's design and
manufacturing procedures are strictly controlled, ensuring the highest levels of quality, reliability and
performance.
Blue Chip Technology are committed to the single European market, and continue to invest in the latest
technology and skills to provide high performance computer and electronic solutions for a world-wide
customer base.
COPYRIGHT
All rights reserved. No part of this publication may be reproduced, stored in any retrieval system, or
transmitted, in any form or by any means, electronic, mechanical, photocopied, recorded or otherwise, without
the prior permission, in writing, from the publisher. For permission in the UK please contact Blue Chip
Technology.
Information offered in this manual is believed to be correct at the time of printing. Blue Chip Technology
accepts no responsibility for any inaccuracies. The information contained herein is subject to change without
notice. There are no express or implied licences granted herein to any intellectual property rights of Blue
Chip Technology Ltd.
LIMITATIONS OF LIABILITY
In no event shall Blue Chip Technology be held liable for any loss, expenses or damages of any kind
whatsoever, whether direct, indirect, incidental or consequential, arising from the design or use of this product
or the support materials supplied with this product. If this product proves to be defective, Blue Chip
Technology is only obliged to replace or refund the purchase price at Blue Chip Technology's discretion
according to their Terms and Conditions of Sale.
Blue Chip Technology Limited Page 4
Page 5
MICRON SINGLE BOARD COMPUTER INTRODUCTION
RELATED PUBLICATIONS
The following publications will provide useful information related to the Standard Personal Computer and can
be used in conjunction with this manual.
• IBM Personal Computer AT Technical Reference, 1502494, IBM, 1984.
• IBM Personal System/2 and Personal Computer BIOS Interface Technical Reference, 15F0306, IBM,
1987.
• The Programmers PC Sourcebook, Microsoft
• The Winn L. Rosch Hardware Bible, Brady
TRADEMARKS
All trademarks and registered names acknowledged.
IBM, PC, AT and PS/2 are trademarks of International Business Machines Corporation (IBM).
PhoenixPICO BIOS is a trademark of Phoenix Technologies Ltd.
Intel is a registered trademark of the Intel Corporation.
All 80x86 and Pentium processors are registered trademarks of Intel Corporation.
MSDOS and WINDOWS are registered trademarks of the Microsoft Corporation.
CyberBlade i7 is a trademark of Trident Microsystems, Inc.
VIA is a trademark of VIA Technologies, Inc.
iDragon and mP6 are trademarks of Rise Technology Company.
Blue Chip Technology Limited Page 5
Page 6
MICRON SINGLE BOARD COMPUTER INTRODUCTION
PRECAUTIONS
Certain precautions are necessary when designing with, handling, and using circuit boards. It is imperative
that precautions are taken at all stages to avoid Electro-static discharges, which will damage boards.
Those boards fitted with an on-board lithium battery must be handled carefully to avoid maltreatment of
the battery that could create a hazard.
ELECTRO-STATIC DISCHARGES
The devices on this card can be totally destroyed by static electricity. Also bear in mind that the damage
caused by static electricity may be partial and not immediately obvious. This could have an effect on your
product's reliability and warranty. Ensure that you take necessary static precautions, ideally you should
wear an approved wrist strap or if that is not possible, touch a suitable ground to discharge any static build
up. This should be repeated if the handling is for any length of time.
When carrying the board around, please place it into the anti-static bag in which it came. This will prevent
any static electricity build up. Do not use black anti-static bags because these tend to be conductive and
will discharge any on-board battery.
ON-BOARD BATTERY
This applies to boards fitted with a Lithium battery (most single board computer boards). If the battery is
mistreated in any way there is a very real possibility of fire, explosion, and harm. Great care should be
taken with this type of battery. Under NO circumstances should it be:
• short-circuited
• exposed to temperatures in excess of 100 ºC or burnt
• immersed in water
• unsoldered
• recharged
• disassembled
Expired batteries remain hazardous and must be disposed of in a safe manner.
BIOS & CMOS RAM
Please be aware that on single board computer products, it is possible to create configurations within the
CMOS RAM that make booting impossible. If this should happen, clear the CMOS settings, (see the
description of the Jumper Settings for details).
ELECTROMAGNETIC COMPATIBILITY
This product meets the requirements of the European EMC Directive (89/336/EEC) and is eligible to bear
the CE mark.
It has been assessed operating in a Blue Chip Technology housing. However, because the board can be
installed in a wide variety of chassis, certain conditions have to be applied to ensure that the compatibility is
maintained. Subject to those conditions, it meets the requirements for an industrial environment (ITE
Class A product).
Blue Chip Technology Limited Page 6
Page 7
MICRON SINGLE BOARD COMPUTER INTRODUCTION
• The board must be installed in a computer system chassis that provides screening suitable for an
industrial environment.
• Any recommendations made by the computer system manufacturer/supplier must be complied with
regarding earthing and the installation of boards.
• Any metal back plate must be securely screwed to the chassis of the computer to ensure good metal-to-
metal (i.e. earth) contact.
• Connector bodies must be securely connected to the enclosure.
• The external cabling to boards causes most EMC problems. It is imperative that any external cabling to
the board is totally screened, and that the screen of the cable connects to the metal end bracket of the
board or the enclosure and hence to earth. It is recommended that round, screened cables with a braided
wire screen are used in preference to those with a foil screen and drain wire. Use metal connector shells
that connect around the full circumference of the cable screen: they are far superior to those that earth
the screen by a simple “pig-tail”.
• The keyboard and mouse will play an important part in the compatibility of the processor card since
they are ports into the board. Similarly, they will affect the compatibility of the complete system. Fully
compatible peripherals must be used otherwise the complete system could be degraded. They may
radiate or behave as if keys/buttons are pressed when subject to interference. Under these circumstances
it may be beneficial to add a ferrite clamp on the leads as close as possible to the connector. A suitable
type is the Chomerics type H8FE-1004-AS.
• USB cables should be high quality screened types.
• Ensure that the screens of any external cables are bonded to a good RF earth at the remote end of the
cable.
Failure to observe these recommendations may invalidate the EMC compliance.
Warning
This is a Class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
Blue Chip Technology Limited Page 7
Page 8
MICRON SINGLE BOARD COMPUTER USER GUIDE
USER GUIDE
MANUAL ORGANISATION
This manual describes in detail the Blue Chip Technology MICRON Single Board processor card.
We have tried to include as much information as possible but we have not duplicated information that is
provided in the standard IBM Technical References, unless it proved to be necessary to aid in the
understanding of the MICRON.
The manual is sectioned as follows:
Overview, listing the board's features and specification;
Layout, showing where the various items are located;
Installation, and associated issues;
Using the board, including the peripherals;
Troubleshooting guide;
Connector Pin-Out details.
We strongly recommend that you study this manual carefully before attempting to interface with MICRON or
change the standard configurations. Whilst all the necessary information is available in this manual we would
recommend that unless you are confident, you contact your supplier for guidance. IT IS PARTICULARLY
IMPORTANT THAT YOU READ THE SECTION 'PRECAUTIONS' BEFORE HANDLING THE
BOARD.
If you have any suggestions or find any errors concerning this manual and want to inform us of these, please
contact our Technical Services department with the relevant details.
OVERVIEW
The Blue Chip Technology MICRON Single Board PC integrates the latest advances in low power processor,
memory, and I/O technologies to provide an ideal platform for embedded applications. The MICRON
complies with the PC/104Plus standard providing ISA and PCI bus interfaces on a single card.
The board is available with CPU build options operating at 200 and 250MHz. The memory interface supports
up to 256MB of 3.3V PC100 SDRAM, in a standard 144-pin SO-DIMM socket.
The MICRON utilises Trident CyberBlade i7 and VIA VT82C686B chipset to integrate many peripherals.
These include: VGA, UDMA IDE interface, ATA solid state disk, floppy disk interface, USB support, serial
ports, parallel port, real-time clock, keyboard and mouse (PS/2) controller. Three GPIO (general purpose
input-output) pins plus one output are available, and a serial AC’97 audio interface. Due to the high level of
integration, most off-board facilities are available in multifunction connectors.
The MICRON will also drive up to two external PC/104, four PC/104Plus expansion modules and built-in
10/100 base-T LAN connection. The LAN connection requires an external isolation transformer-socket.
Facilities are provided for connection to an LCD panel if required.
An optional board, the MICRON CONNECT, is available to provide standard VGA, UTP, Keyboard, Mouse
and USB connections, enabling an easy product development route. An audio codec is included on the board.
An optional cable is also available to provide the serial ports, parallel port and standard utilities (Reset, Power
switches, HD LED, speaker and External SMI) at standard format connectors.
A full set of software drivers and utilities are available to allow advanced operating systems such as
Windows™ 9x, ME, NT, and 2000 to take full advantage of all the hardware capabilities.
Blue Chip Technology Limited Page 8
Page 9
MICRON SINGLE BOARD COMPUTER USER GUIDE

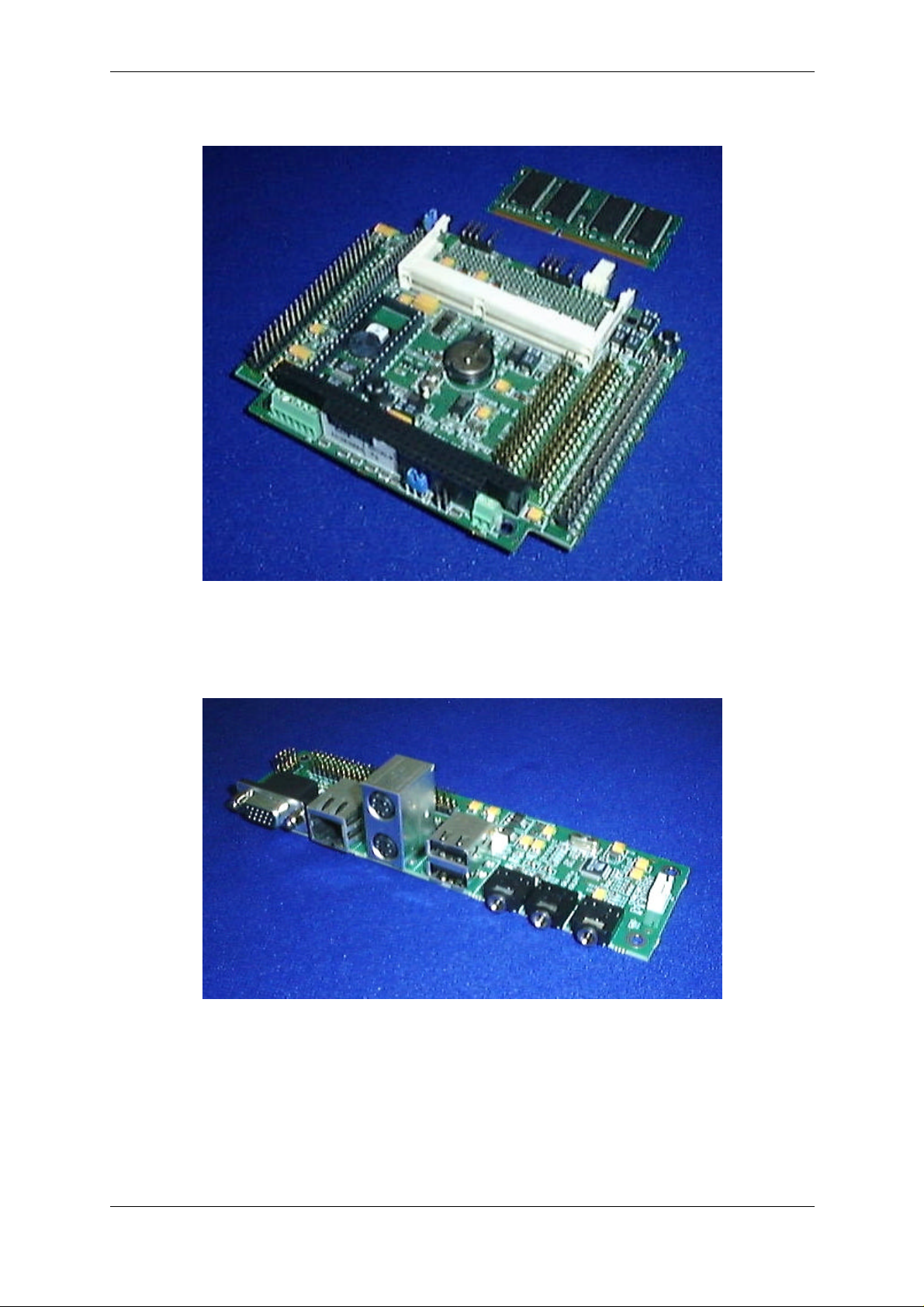

MICRON Processor Board
MICRON CONNECT Development Board
Blue Chip Technology Limited Page 9
Page 10
MICRON SINGLE BOARD COMPUTER USER GUIDE
BOARD LEVEL FEATURES
• 200/250 MHz CPU operation (equivalent to a Pentium Rating of PR266/366)
• 100MHz FSB
• 5V-only operation. Note that LCD panels or plug-in PCBs may require 12V supplies.
• On-board 3.3/2.0V CPU voltage regulators
• Trident CyberBlade i7 and VIA VT 82686B chipset.
• One SO-DIMM socket for up to 256MByte of PC100 SDRAM
• Built-in CRT/LCD graphics controller
• PCI and ISA expansion busses via PC/104 and PC/104Plus connectors
• Dual floppy interface.
• PCI UDMA IDE interface for two devices.
• EPP/ECP bi-directional parallel interface.
• PCI 100/10 base-T Ethernet LAN controller.
• Dual USB ports.
• Stereo sound (SoundBlaster™ compatible) available.
• Dual RS232 serial ports. IRDA port setup option on the second serial port.
• Real-time clock with on-board battery
• PS/2 mouse and keyboard controller
• Plug-in ATA Flash module.
• Drive for 2 ISA and 4 PCI modules
• Four General Purpose I/O signals.
• 128byte user EEPROM available.
• Watchdog facility.
CPU
The MICRON single board PC comes with Pentium-class Rise Technology iDragon mP6 Processors
running at 2.0/3.3Volts. On-board voltage regulator circuits provide the required voltages for the processor
from the incoming 5 volt power supply. This device gives a high performance/ power ratio.
The processor maintains full backward compatibility with the 8086, 80286, i386 and Intel486
processors. It supports both read and write burst mode bus cycles, and includes separate on-chip code and
data caches which employ a write-back policy. Also integrated into the processor is an advanced numeric
co-processor which significantly increases the speed of floating point operations, whilst maintaining
backward compatibility with Intel486 math co-processor and complying with ANSI/IEEE standard 754-
1985.
Blue Chip Technology Limited Page 10
Page 11
MICRON SINGLE BOARD COMPUTER USER GUIDE
CHIP SET
The MICRON board uses the Trident CyberBlade i7 and VIA VT82C686B chipset. This is well known and
widely used in the general purpose PC marketplace. It offers a high level of integration of standard
functions, and with the latest iteration, UDMA-100 gives a high performance solution.
SYSTEM MEMORY
The MICRON single board PC is fitted with one 144-pin 3.3V SDRAM SO-DIMM memory socket. This
supports SO-DIMM SDRAM modules up to 256 MB in size. The Front-Side Bus, which is fixed at
100MHz requires PC100 speed memory, or faster. There are no jumper settings required for the memory
size, this is automatically detected by the system BIOS through the SPD/SMBus.
Only 14 address lines are available from the chipset for the bank, row and column addresses. Some
256Mbit technology SO-DIMMs require 15 address lines to achieve 256Mbytes and will not be fully
addressable.
ECC memory is not supported.
BUS EXPANSION FACILITIES
The MICRON is designed for use in an embedded application and provides for expansion cards with
PC/104 and PC/104Plus stacked connectors. This board has to be mounted at the ‘top’ of a stack. This is
to allow cable access and because the PC/104Plus connector is not available on the upper side, being
obstructed by the memory.
USER EEPROM
The EEPROM on the MICRON unit is a NM93C46 serially programmed device. It comprises 128 bytes of
user programmable memory, organised as 64 x 16 bit words. The EEPROM does not have to be completely
erased before writing to a single location. Software functions are provided to use the facility.
WATCHDOG FACILITY
MICRON includes a watchdog timer circuit, which may be used to monitor software or processor hardware
failure. The time-out period of the watchdog is fixed and the timer is enabled or disabled by using a
software interrupt.
GENERAL PURPOSE DIGITAL INPUT/OUTPUT
MICRON provides three LVTTL-compatible programmable digital input/output lines and one output. BIOS
functions are available to control this facility, which must be enabled in the BIOS setup.
Blue Chip Technology Limited Page 11
Page 12
MICRON SINGLE BOARD COMPUTER USER GUIDE
SPECIFICATION
MICRON Power
Requirement +5 V ± 5% Required for processor operation.
+12 V ± 5% Not required for board operation.
-12 V ± 5% Not required for board operation.
+3.3 V ± 5% Not required for board operation.
+5V
5-Volt Power
Consumption 1.7 A typical, 2.0 A peak 250 MHz CPU, 128 MB SDRAM
1.6 A typical, 1.9 A peak 200 MHz CPU, 128 MB SDRAM
1.6 A typical, 1.8 A peak 200 MHz CPU, 64 MB SDRAM
Temperature Non-Operating -40 ºC to +70 ºC
Operating +0 ºC to +55 ºC
STBY
Required for board operation – may be linked from +5V
Note that those supply rails that are not required for operation of the
MICRON may be required by other plug-in boards or LCDs.
(Heatsinks and airflow may be required for the higher limits)
EMC Emissions EN 55022 (A)
Immunity EN 55024
MTBF Calculated >100,000 Hrs
Dimensions Board only 96 x 106 mm – making use of the allowed connector space in PC/104
{large memory modules, overhanging connectors and a large heatsink
may increase these dimensions.}
Temperature Limits mP6 85ºC case
686B 85ºC case
82559ER 85ºC case
EL7564 70ºC ambient (no airflow)
Ci7 70ºC ambient
ICS9248 115ºC case 70ºC ambient
Power Consumption figures given are for typical configurations.
This information is provided only as a guide to calculating approximate total system power usage when
additional resources are added.
Blue Chip Technology Limited Page 12
Page 13
MICRON SINGLE BOARD COMPUTER USER GUIDE
P9P6BT1
P18
BOARD LAYOUT
TOP SURFACE OF THE PCB
P10
P11 P1
P8
P3
P2
P22
P20J1
P26
P23
J2
P5
IC15
Figure 1. MICRON PCB - Top View Showing Connector Positions.
Pin 1 of each connector is indicated by an arrow.
Connectors
Ident Description Ident Description
BT1 12mm Battery holder for RTC P8 PC/104 connectors
IC15 Socket for ATA Disk (Flash) P9 SODIMM connector
J1 CMOS/RTC clear P10 PC/104Plus connector (below PCB)
J2 Panel supply voltage P11 IRDA connector
P1 5V fan connector P18 Power supply terminals
P2 Primary EIDE connector P20 Remote 10K Thermistor
P3 Floppy disk connector P22 Serial, Parallel, Utilities
P5 Panel Vee connector P23 VGA, PS/2, LAN, USB, etc.
P6 LCD panel connector P26 +/-12V pass-through
See the section "Micron Connectors " for details of individual signals on the connectors.
Blue Chip Technology Limited Page 13
Page 14
MICRON SINGLE BOARD COMPUTER USER GUIDE

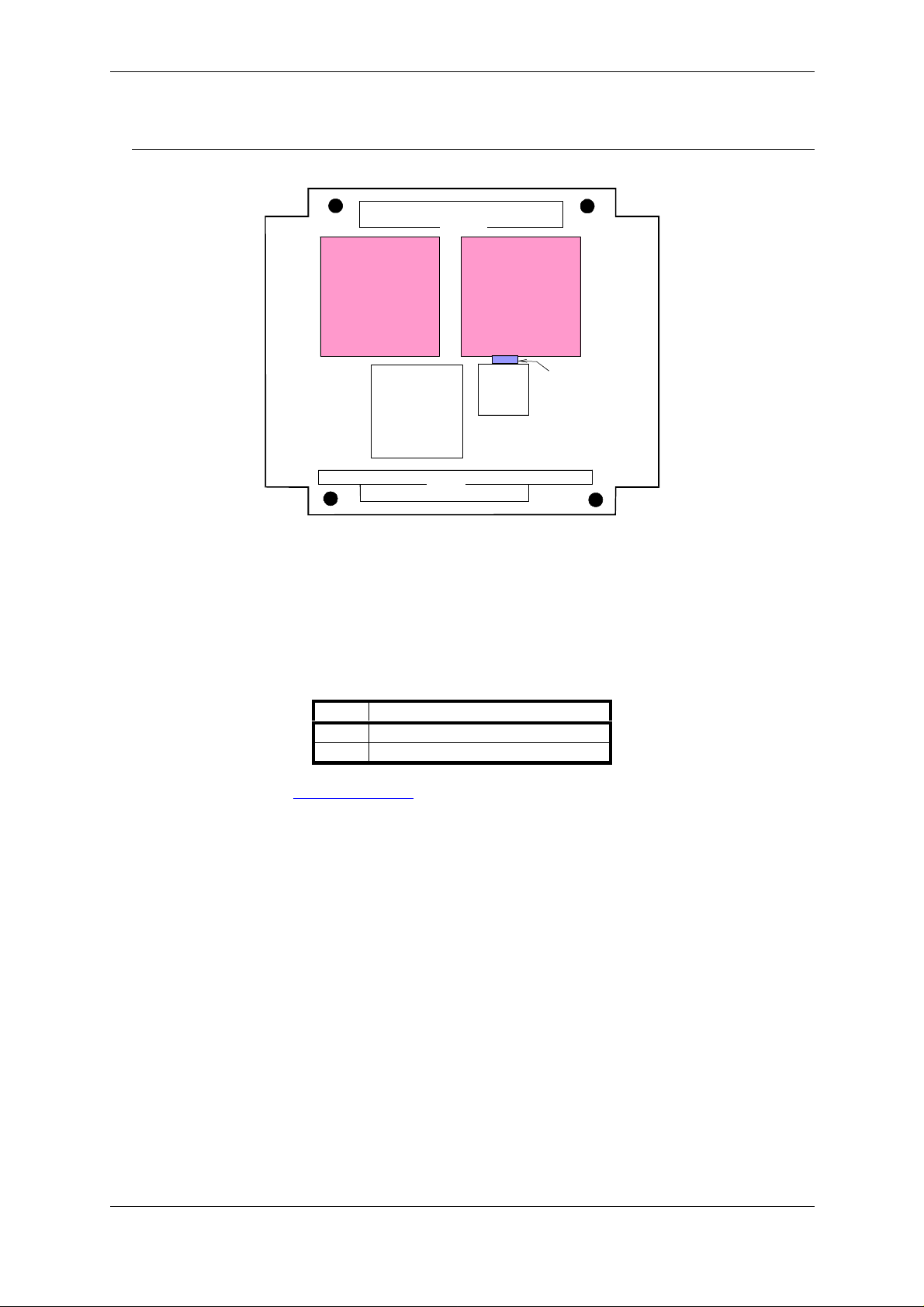

LOWER SURFACE OF THE PCB
P10
CPU
P8
NORTH
BRIDGE
Thermistor
Figure 2. MICRON PCB - Underside View
Showing Hot Devices and Temperature Sensor.
Connectors
Ident Description
P8 PC/104 connectors (both surfaces)
P10 PC/104Plus connector
See the section "Micron Connectors" for details of individual signals on the connectors.
Blue Chip Technology Limited Page 14
Page 15
MICRON SINGLE BOARD COMPUTER INSTALLATION
95.8
INSTALLATION

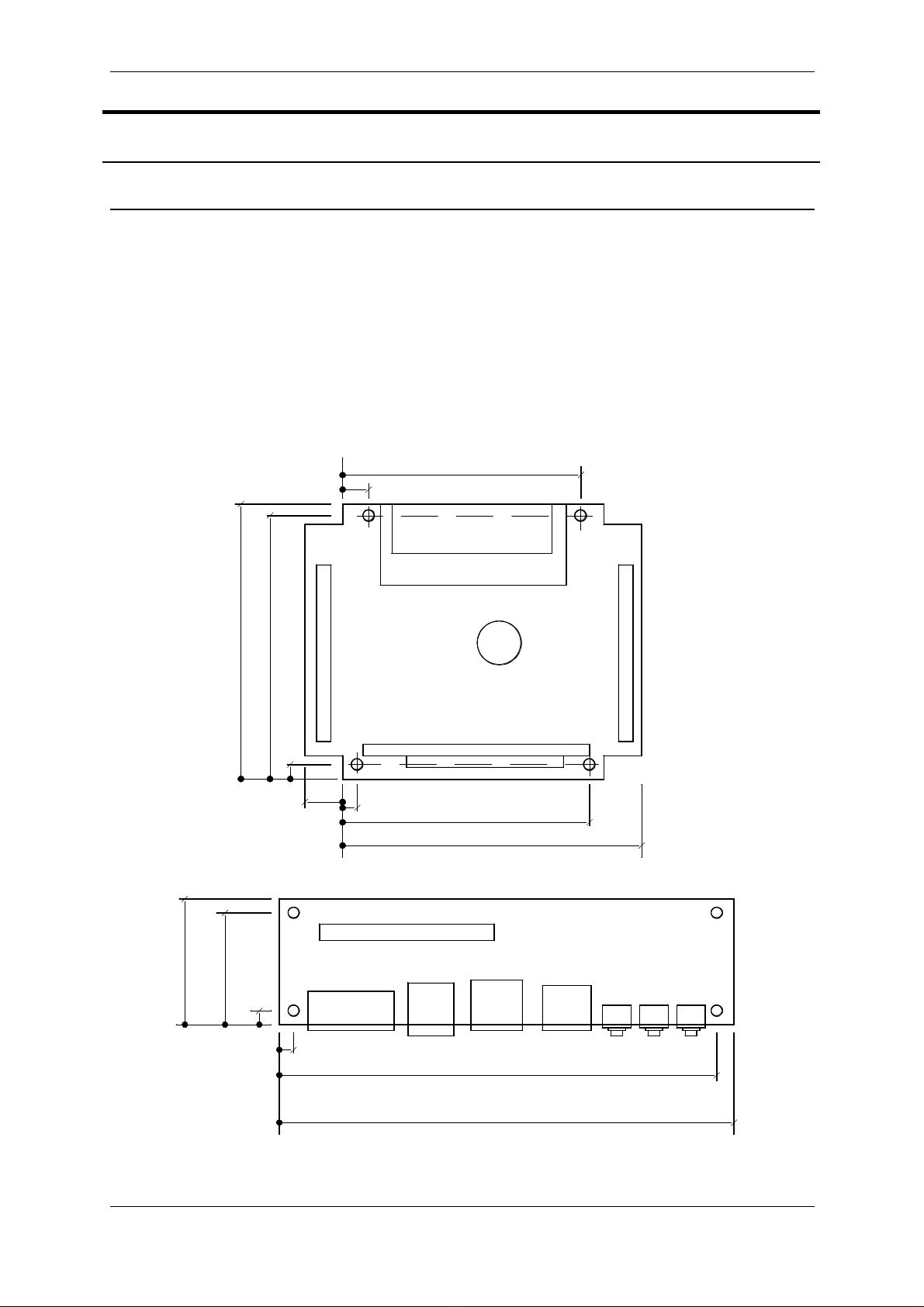

MOUNTING
The PC104 specification details 4 mounting holes of 1/8” diameter. Because of the size of the standard SODIMM two of these are partially obscured by the socket for the SDRAM. Small headed fixings are best here,
preferably plastic to avoid any possible short circuits.
Care should be taken on the underside of the board to not cause any mechanical damage to the components
adjacent to the mounting holes.
The MICRON CPU has to be installed at the top of a PC/104Plus stack because of its’ interconnect
restrictions. It is also difficult to mount any PC/104 boards on top of MICRON because of the two obscured
mounting holes not being available to take standard pillars.
82.6
8.9
44.5
40.0
90.8
5.1
5.1
12.7
5.1
5.1
85.1
102.9
153.0
158.8
Blue Chip Technology Limited Page 15
Page 16
MICRON SINGLE BOARD COMPUTER INSTALLATION
COOLING
Efficient cooling is essential for long and reliable operation of any electronic equipment. The CPU and the
Trident CyberBlade i7 IC (commonly termed the 'North Bridge') do get hot in normal operation, and in an
elevated ambient temperature will require additional cooling. Cooling requirements will vary with
application, desired operating temperature, CPU load, memory size and board orientation.
Mounting the PCB vertically will aid natural convection and create a chimney effect. Passive heatsinks are
available for the CPU and the Trident CyberBlade i7 IC. In addition, a 5-Volt fan connector is provided on
the board edge. A fan, whilst not always desirable, will provide a high degree of cooling even for a
relatively slow airflow.
Further options that may be considered are sinking heat to the chassis or enclosure, and in extreme
situations the use of a heatpipe.
A thermistor is available to monitor the temperature of the two hottest devices on the board. A connector is
also provided for the user to connect a second thermistor. The thermistor should be a Negative
Temperature Coefficient type of nominally 10K resistance at 25ºC, with a ß=3988. Software to monitor the
thermistor is available for download on the Via website (see the section Loading Operating Systems and
Drivers).
When designing an enclosure, bear in mind that the greater the volume of air that can flow through the
enclosure, the greater the cooling effect and the lower the temperature rise above the ambient air
temperature. However, the volume produced by any fan will vary with the pressure against which it has to
work. The resistance to airflow (the back-pressure on the fan) will depend upon the enclosure, the
mounting and restrictions. Therefore, when mounting and cabling the board, it is essential that the free
circulation of the cooling airflow is not impeded.
The calculation of airflow through an enclosure is not straightforward, and depends on many factors. The
method of meeting the cooling requirements will be specific for each system. Consequently, the system
builder is responsible for ensuring adequate cooling. However, interpreting airflow volumes is not
intuitive. As an aid to selecting suitable cooling, the following example is offered. A 60 mm axial fan
(such as a Papst type 612NGH) blowing over the board can supply up to 46 m3/hour when unrestricted.
Restrictions to the airflow will reduce this volume.
CABLING
Careless routing of connecting cables can affect the cooling dramatically. It will also have a bearing on
EMC. Lengths should be limited to the necessary minimum.
Connections may be made to the MICRON board directly, using custom cables to suit the application.
Alternatively, connections may be made via the optional MICRON I/O cable, or the optional MICRON
CONNECT board. The MICRON I/O cable and the MICRON CONNECT board provide a 'translation' of
the MICRON board connections to industry-standard connections. Cables are available to connect the
MICRON to the MICRON CONNECT board, and for breaking out to standard connectors, UDMA disks
and floppy disks. The actual cabling required will vary for each application, with some functions not being
required.
Please note that to achieve higher IDE throughput than UDMA33 requires the use of a special 80-conductor
IDE cable. Using a standard 40-conductor IDE cable will force the interface to work at a lower speed.
All applications will require a power connection. The MICRON board requires only a +5V supply for
stand-alone operation. However, other plug-in boards or LCDs may require other supplies. MICRON
provides facilities to route the power through the interconnections to these other items. See the Connector
Pin-Out section for details of the power connections.
Power wiring should be of an adequate gauge for the PC/104 stack to ensure that the voltage does not fall
below the watchdog trip point (nominally 4.75V at the watchdog). Note that two terminals are provided for
each of the +5V and 0V connections to reduce the impedance when supplying a stack of cards. The current
limit per terminal is 6A, but it is not envisaged that a PC/104 stack would be constructed requiring so much
Blue Chip Technology Limited Page 16
Page 17
MICRON SINGLE BOARD COMPUTER INSTALLATION
current. As a rule-of-thumb it is recommended to keep to below 3A per terminal.
An ATX power supply may be used, in which case a 5V standby supply line would be available. This
should be connected to 5V
terminal. The ATX PSU may be switched on and off by the power switch
STBY
on the Utilities connector controlling the PSU PSON# line.
If a 5V standby supply is not available, the terminal should be linked to +5V supply. The Ethernet
controller and much of the power-sequencing blocks in the chipset are powered from this terminal.
Take care to identify cables, and be aware that some connectors could be transposed.
EMC ISSUES
The enclosure in which the board is mounted will have a significant effect on the electro-magnetic
compatibility of the final system. For best effect it should be electrically conducting and provide a
complete screen around the electronics. Apertures should be kept to a minimum and as small as possible.
For ventilation purposes, many small holes are far more preferable to a few large holes.
It is the maximum dimension of an aperture that governs the lowest frequency that can pass through the
enclosure (either in or out). This is irrespective of the width of the aperture. Even a narrow gap between
two sections of an enclosure can leak radio interference. Large apertures will significantly reduce the
electro-magnetic compatibility of the system.
The major contributor to EMC problems will be cables entering and leaving the enclosure. To minimise
these effects ensure that any external cables are fully screened, and that the screen is electrically connected
to the chassis. Full wire-screened cables are much more effective than those with a foil screen and drain
wire. Use metal connector shells/covers, and do not allow the external screen to pass into the enclosure.
Blue Chip Technology Limited Page 17
Page 18
MICRON SINGLE BOARD COMPUTER USING THE BOARD
USING THE BOARD
BIOS SETTINGS
The board contains a custom implementation of the Phoenix BIOS 4, Revision 6.1 to suit the specific
hardware features.
Certain combinations of BIOS settings may prevent the MICRON from working correctly. If problems or
lock-ups are experienced on boot-up, clear the CMOS memory and restart. The default settings will usually
work in most instances. The CMOS memory is cleared using the jumper block J1. To clear the CMOS,
switch off the power to the board, then move the jumper at J1 to the "Clear CMOS" position for a few
seconds, and then return it to its original position. The power may then be restored.
Press the keyboard <F2> key during the boot-up operation to enter the BIOS set-up screen. Various
information is available on the set-up and interpretation of the BIOS in the following files:
User Manual
BIOS-Setup
BIOS-POST
JUMPERS
Only two jumper blocks are used on the board: one to clear the CMOS memory, and the other to select the
LCD panel supply voltage. This latter jumper may be ignored if a LCD panel is not fitted. No other jumpers
are available, all other features are controlled from BIOS setup or operating system options.
Care should be taken to set the LCD voltage selector to the appropriate voltage if using an LCD panel.
Please bear in mind that the board will not function if the CMOS clear is left in the "Clear" position.
LOADING OPERATING SYSTEMS & DRIVERS
Some operating systems provide in-built support for the chipset used on this board. It is variously known as
Trident CyberBlade i7 (8420B) and VIA Technologies VT686[B] with Rise mP6 CPU, Intel 82559ER
Ethernet controller and VT1611 audio codec when used with the MICRON CONNECT option.
A CD-ROM is supplied with each board, containing some common operating system drivers. Bear in mind
that suppliers continually update their drivers, so it is always a good idea to check on the Internet for later
ones. The following websites are good starting points:
www.via.com.tw
www.viatech.com
www.intel.com
Note:- When installing Windows 2000 it has been found to fail if this operation is attempted with the on-board
audio enabled. Disable the audio using Setup, complete the installation, and then enable it. Windows will see
the Multimedia Audio Device on the next boot and prompt for the drivers.
Blue Chip Technology Limited Page 18
Page 19
MICRON SINGLE BOARD COMPUTER USING THE BOARD
PROGRAMMING THE BOARD
The board includes an EEPROM, a Watchdog and General Purpose I/O, all of which are accessible by using a
special BIOS function.
The EEPROM and the General Purpose I/O are not available together. One or the other is first enabled in the
BIOS set-up program, and then controlled by software using the software interrupt INT 50h.
USER EEPROM
The EEPROM on the MICRON unit is a NM93C46 serially programmed device. It comprises 128 bytes of
user programmable memory, organised as 64 x 16 bit words. The EEPROM does not have to be completely
erased before writing to a single location.
Before it can be used, the EEPROM must be enabled within the BIOS. The BIOS provides two functions to
simplify user access to the EEPROM memory, available through a software interrupt (INT 50h):
Write to Single EEPROM Location
Calling Registers: AH = 03
BL = Location (0 – 63)
DX = Write data (16-bit value)
Perform INT 50h
Return Registers: AH = 00, and Carry flag is clear if successful
AH = 02, and Carry flag is set if function valid but disabled
AH = FF, and Carry flag set if function failed
READ Single EEPROM Location
Calling Registers: AH = 04
BL = Location (0 – 63)
Perform INT 50h
Return Registers: DX = EEPROM Data
AH = 00, and Carry flag is clear if successful
AH = 02, and Carry flag is set if function valid but disabled
AH = FF, and Carry flag set if function failed
Please note that the pins driving this device are shared with the general-purpose I/O lines. It is therefore not
possible to use the EEPROM and GPIO lines simultaneously.
WATCHDOG FACILITY
MICRON includes a watchdog timer circuit, which may be used to monitor software or processor hardware
failure. The time-out period of the watchdog is fixed at 1200 milliseconds (± 60%). The timer is enabled
or disabled by using the software interrupt at INT 50h.
The following code demonstrates the control of the watchdog timer.
Enable/Disable Watchdog
Calling Registers: AH = 05
AL = 01 to enable, 00 to disable
Blue Chip Technology Limited Page 19
Page 20
MICRON SINGLE BOARD COMPUTER USING THE BOARD
Perform INT 50h.
Return Registers: AH = 00, and Carry flag is clear if successful
AH = 02, and Carry flag is set if function valid but disabled
AH = FF, and Carry flag set if function failed
Refresh Watchdog
Calling Registers: AH = 06
Perform INT 50h
Return Registers: Carry flag clear
GENERAL PURPOSE I/O LINES
MICRON provides four LVTTL-compatible programmable digital input/output lines. Before the lines can
be used, the GPIO function has to be enabled within the BIOS Set-up program. Once enabled, BIOS
functions are available to control this facility.
As inputs, the lines are non-inverting, and are pulled high by on-board resistors. Excepting GPIO2, the
default settings for all lines are as inputs. GPIO2 can only operate as an output and it defaults to a high
state. The direction control and data may be handled using the software interrupt function (INT 50h):-
Set User IO Line Control
Calling Registers: AH = 17 (hex)
DL (bits 2-0) = IO Line Mask (0=input, 1=output)
Perform INT 50h
Return Registers: Carry Flag is clear, and AH=00 if successful
Carry flag is set, and AH=02 if not enabled in BIOS setup.
Write User IO Lines
Calling Registers: AH = 16 (hex)
DL (bits 2-0) = IO Line data
Perform INT 50h
Return Registers: Carry Flag is clear, and AH=00 if successful
Carry flag is set, and AH=02 if not enabled in BIOS setup.
Read User IO Lines
Calling Registers: AH = 15 (hex)
Perform INT 50h
Return Registers: DL (bits 2-0) = IO Line data (bits 7-3 = 0)
Carry Flag is clear, and AH=00 if successful
Carry flag is set, and AH=02 if not enabled in BIOS setup.
Please note that the pins driving the User EEPROM are shared with the general-purpose I/O lines. It is
therefore not possible to use both functions simultaneously.
Blue Chip Technology Limited Page 20
Page 21
MICRON SINGLE BOARD COMPUTER USING THE BOARD
ACCESSING SOFTWARE 'INT 50H' FUNCTIONS
Most high level languages allow access to software interrupts through a particular function call. The user
loads a particular function code into the AH register followed by a specific set of parameters in the other
registers before executing the interrupt.
For example, in C :-
#include <stdio.h>
#include <dos.h>
#define MICRON 0x50
void main(void)
{
union REGS regs;
regs.x.ax = 0x0400; /* read eeprom data */
regs.x.bx = 0x31; /* from address 0x31 */
int86(MICRON, ®s, ®s);
printf("EEPROM Address 0x31 contains % x\n",regs.x.dx);
}
and similarly in Quick Basic
'Read EEPROM Data via interrupt 50 call
$include:'QB.BI'
DIM INARY%(7), OUTARY%(7)
CONST AX=0,BX=1,CX=2,DX=3,BP=4,SI=5,DI=6,FL=7
INARY%(AX) = &H0400 ' Read e2 data
INARY%(BX) = &H31 ' address &H31
CALL INT86OLD(&H50,INARY%(),OUTARY%()) ' Call the Int50h service
PRINT "EEPROM ADDRESS &H31 CONTAINS: " ;OUTARY%(DX)
Note that only the functions listed in the sections above are valid. On return, the contents of register AH
may contain a value indicating the status:
AH = 00h - Function successful, Carry flag cleared
AH = 01h - Function invalid, Carry flag set
AH = 02h - Function valid but disabled, Carry flag set
AH = 03h - Function failed, Carry flag set
Blue Chip Technology Limited Page 21
Page 22
MICRON SINGLE BOARD COMPUTER USING THE BOARD
MAINTENANCE
The only regular maintenance required is to ensure that the cooling airflow remains unrestricted. Generally
the enclosure design and the wiring layout will ensure that the cooling is stable. However, bear in mind that
any air filters may become clogged thereby reducing the cooling.
After a period of time, it may be necessary to replace the on-board battery, if it cannot maintain the CMOS
memory.
REPLACING THE ON-BOARD BATTERY
Before attempting to replace the battery, please read the precautions detailed in the introductory section.
Remember that even discharged batteries can present a real personnel hazard if mistreated.
The battery is held in place by the spring-clip on the top of the plastic carrier. To remove the battery, insert
a non-conductive tool, or fingernail under the battery to lift it above the lip of the holder against the
retaining spring. Then slide the battery out.
Replacing the battery is the reverse procedure, ensuring that the new battery is placed with the positive face
up (visible).
Blue Chip Technology Limited Page 22
Page 23
MICRON SINGLE BOARD COMPUTER TROUBLESHOOTING GUIDE
TROUBLESHOOTING GUIDE
This is not intended as an extensive faultfinding procedure, rather it is intended to indicate the more likely
causes of failure with this product. Ensure that the power is switched off before making any hardware changes.
Bear in mind that it is possible to set combinations of parameters within the BIOS that will prevent proper
operation of the board. See the BIOS section for details. If in doubt, set default values or clear the CMOS
memory and start again. Default values will generally provide a working but limited system.
SYMPTOM Fail to boot
Possible Cause Power supply incorrect
Action Check +5V supply
Possible Cause Check that the 5Vstandby terminal is connected
Action Link to +5V if not powered from an ATX 5Vstandby supply
Possible Cause CMOS memory corrupt/invalid
Action Power off, set CMOS clear jumper to 'Clear', then return jumper to operational position
Possible Cause CMOS Clear jumper in wrong position
Action Set to operational position, NOT 'Clear'
Possible Cause Extended System Configuration Data (ESCD) memory corrupt/invalid
Action Use BIOS Setup to clear and re-write the ESCD memory
Possible Cause Memory not fully seated in socket
Action Remove and refit memory
Possible Cause Add-in board requires other voltage rails (MICRON requires only 5V)
Action Check power requirements of expansion board, and power supplies
SYMPTOM Time and Date incorrect, loss of CMOS memory contents
Possible Cause Flat or displaced battery
Action Power off, replace battery (ensure correct orientation), reset CMOS values
SYMPTOM No display on monitor
Possible Cause Incorrect BIOS setting, LCD display selected rather than Monitor or Both
Action Clear CMOS memory, reset correct values
SYMPTOM User EEPROM contents corrupt or inaccessible
Possible Cause EEPROM not enabled within BIOS Set-up
Action Enable EEPROM within BIOS
SYMPTOM Incorrect operation of GPIO or inaccessible
Possible Cause GPIO not enable within BIOS Set-up
Action Enable GPIO in BIOS
SYMPTOM System crashes during intensive operation or after prolonged use
Possible Cause Inadequate cooling allowing CPU/chipset to overheat
Action Improve heatsink and / or cooling airflow
SYMPTOM Solid-state Disk Unreliable
Possible Cause Solid-state Disk chip not fully seated, or pin damaged.
Action Check alignment and seating of chip
Blue Chip Technology Limited Page 23
Page 24
MICRON SINGLE BOARD COMPUTER MICRON CONNECTORS
MICRON CONNECTORS
POWER CONNECTIONS
POWER SUPPLY INPUT TERMINALS
P18 - Screw Terminals
Terminal Description
1
2 +5V
3 +5V
4 0V
5 0V
6 PSON#
+5V
STBY
Note: The terminal 5V
available.
12V POWER INPUT TERMINALS FOR ADD-ON BOARDS
P26 - Screw Terminals
Note: Neither of these supplies are required for operation of the MICRON board, the terminals provide
power to other PCBs.
5V OUTPUT CONNECTOR TO FAN
P1 - Connector: Molex 0.1” KK 3-way pin header
Mating Connector: Molex 0.1” KK 3-way plug
must be connected to a +5V supply. Link to +5V if no Standby power
STBY
Terminal Description
1 -12V
2 +12V
Pin Function
1 0V
2 +5V Output
3 Tacho Sense Input
BATTERY HOLDER
Battery type CR1220 (35mAh standard).
Fit battery with the positive terminal visible on top.
Blue Chip Technology Limited Page 24
Page 25
MICRON SINGLE BOARD COMPUTER MICRON CONNECTORS
JUMPERS
CMOS CLEAR
J1 Jumper
Link Operation
1-2 Normal
2-3 Clear CMOS
LCD PANEL SUPPLY VOLTAGE
J2 Jumper
Link Operation
1-2 3V3
2-3 5V
Blue Chip Technology Limited Page 25
Page 26
MICRON SINGLE BOARD COMPUTER MICRON CONNECTORS
INPUT/OUTPUT CONNECTORS
COMBINED VGA, KEYBOARD, MOUSE, ETHERNET, USB, GPIO, AUDIO CONNECTOR
P23 - Connector: 50-way 0.1" pitch pin header
Mating Connector: 50-way 0.1" pitch IDC socket
Combination connector P23 may optionally connect to the "MICRON CONNECT" I/O board. A cable is
available for this purpose.
Pin 2
Pin 1
View on Connecting Pins
Signal Pin Pin Signal Function
Digital Ground 1 2 DDC Data
DDC Clock 3 4 DDC +5V
Vertical Sync 5 6 Horizontal Sync VGA
Analogue BLUE 7 8 Analogue Ground
Analogue GREEN 9 10 Analogue Ground
Analogue RED 11 12 Analogue Ground
Link Active LED+ 13 14 Link Active LED-
Tx Data+ 15 16 Centre-tap Tx Winding
Tx Data- 17 18 Ground Ethernet
Rx Data+ 19 20 Centre-tap Rx Winding
Rx Data- 21 22 100 Mb Operation LED+
100 Mb Operation LED- 23 24 +5V
Keyboard Data 25 26 Keyboard Clock Mouse & Keyboard
Mouse Data 27 28 Mouse Clock
Ground 29 30 USB0 Data-
+5V 31 32 USB0 Data+ USB
USB1 Data- 33 34 Ground
USB1 Data+ 35 36 GPIO line 0
GPIO line 2 37 38 GPIO line 1 General Purpose IO
GPIO line 3 39 40 Ground
Reset 41 42 Data IN
Ground 43 44 Data OUT
Ground 45 46 Clock AC97 Audio
Ground 47 48 Sync
KEY
49 50 Audio +5V
Pin 50
Pin 49
Resettable thermal fuses protect all 5V supplies.
Blue Chip Technology Limited Page 26
Page 27
MICRON SINGLE BOARD COMPUTER MICRON CONNECTORS
COMBINED SERIAL PORTS 1 & 2, PARALLEL PORT, UTILITIES CONNECTOR
P22 - Connector: 50-way 0.1" pitch pin header
Mating Connector: 50-way 0.1" pitch IDC socket
A cable is available as an option, which separates the functions at this combination connector (P22) to
standard connectors (serials and parallel).
Pin 2
Pin 1
Pin 50
Pin 49
View on Connecting Pins
Signal Pin Pin Signal Function
Ground 1 2 RI
DTR 3 4 CTS Serial COM1
TXD 5 6 RTS
RXD 7 8 DSR
DCD 9 10 DCD
DSR 11 12 RXD
RTS 13 14 TXD Serial COM2
CTS 15 16 DTR
RI 17 18 Ground
Ground 19 20 D0
D1 21 22 D2
D3 23 24 D4
D5 25 26 D6
D7 27 28 Ground Parallel LPT1
Data Strobe# 29 30 Auto Feed#
Printer Error# 31 32 INIT#
Select In# 33 34 ACK#
Ground 35 36 Busy
PE 37 38 Select
Ground 39 40
KEY
Speaker - 41 42 Speaker +
HD Activity LED Cathode 43 44 HD Activity LED Anode
Reset Switch (to Ground) 45 46 Ground Utilities
Power Switch (to Ground) 47 48 Ground
External SMI (to Ground) 49 50 External +3V (to Ground)
External SMI: External Systems Management Interrupt. Pull to ground to interrupt.
Blue Chip Technology Limited Page 27
Page 28
MICRON SINGLE BOARD COMPUTER MICRON CONNECTORS
LCD PANEL CONNECTOR
P6 - Connector: 50-way 2mm pitch pin header
Mating Connector: 50-way 2mm pitch IDC or crimp socket
Pin 2
Pin 1
View on Connecting Pins
Signal Pin Pin Signal
Panel Supply – see J2 1 2 Vertical SYNC
Switched 12V 3 4 Ground
Switched Vee – from P5 5 6 Horizontal SYNC
Switched version of Pin1 7 8 Ground
Switched version of Pin1 9 10 Enable Backlight
Shift Clock 11 12 Ground
Line Pulse 13 14 N/C
Display Enable 15 16 Ground
First Line Marker 17 18 Ground
Data D0 19 20 Ground
Data D1 21 22 Data D23
Data D2 23 24 Ground
Data D3 25 26 Data D22
Data D4 27 28 Ground
Data D5 29 30 Data D21
Data D6 31 32 Ground
Data D7 33 34 Data D20
Data D8 35 36 Ground
Data D9 37 38 Data D19
Data D10 39 40 Ground
Data D11 41 42 Data D18
Data D12 43 44 Ground
Data D13 45 46 Data D17
Data D14 47 48 Ground
Data D15 49 50 Data D16
Pin 50
Pin 49
See the document "LCD Connectivity" for details on individual LCD Panel types.
PANEL VEE GENERATOR CONNECTOR
P5 - Connector: 5-way 0.1” pitch right-angled pin header
Mating Connector: 5-way SIL 0.1” socket
Pin Signal
1 5V
2
KEY
3 EN
4 Vee IN
5 0V
Blue Chip Technology Limited Page 28
Page 29
MICRON SINGLE BOARD COMPUTER MICRON CONNECTORS
The 5V output is NOT protected. Link 3 and 4 to pass the "Enable" signal to the LCD connector.
IRDA INTERFACE
P11 - Connector: 5-way 0.1” pitch right-angled pin header
Mating Connector: 5-way SIL 0.1” socket
Pin Signal
1 5V
2
KEY
3 IR RX
4 0V
5 IR TX
The 5V output is NOT protected.
FLOPPY DISK HEADER
P3 - Connector: 34-way 0.1" pitch header
Mating Connector: 34-way 0.1" pitch IDC socket
Standard Pin Out
PRIMARY IDE HEADER
P2 - Connector: 40-way 0.1" pitch header
Mating Connector: 40-way 0.1" pitch IDC socket
Standard Pin Out.
ATA FLASH DISK SOCKET
IC15 - Connector: 32-pin 0.1" x 0.6" DIL socket
Mating Connector: ATA Flash Disk IC
Standard Pin Out.
REMOTE THERMISTOR FOR TEMPERATURE SENSE
P20 - Connector: 2-way 0.1” pin header
Mating Connector: 2-way 0.1” socket
An external NTC thermistor (10 Kohm at 25ºC, ß= 3988) may be connected here. (Pin 2 is 0V)
SODIMM SOCKET
P9 - Connector: JEDEC standard
Standard Pin Out.
PC/104 CONNECTOR
P8 - Connector: 104-pin PC/104 standard plug/socket
Standard Pin Out.
Blue Chip Technology Limited Page 29
Page 30
MICRON SINGLE BOARD COMPUTER MICRON CONNECTORS
PC/104PLUS CONNECTOR
P10 - Connector: 120-pin PC/104Plus standard plug
Standard Pin Out.
Blue Chip Technology Limited Page 30
Page 31
MICRON SINGLE BOARD COMPUTER MICRON I/O CABLE
MICRON I/O CABLE
This cable is available as an optional extra. It breaks out the cable from the Combined Serial, Parallel and
Utilities ports to standard connections.
PARALLEL
Connector: 25-way D-type socket
Standard Pin Out.
SERIAL 1
Connector: 9-way D-type plug
Standard Pin Out.
SERIAL 2
Connector: 9-way D-type plug
Standard Pin Out.

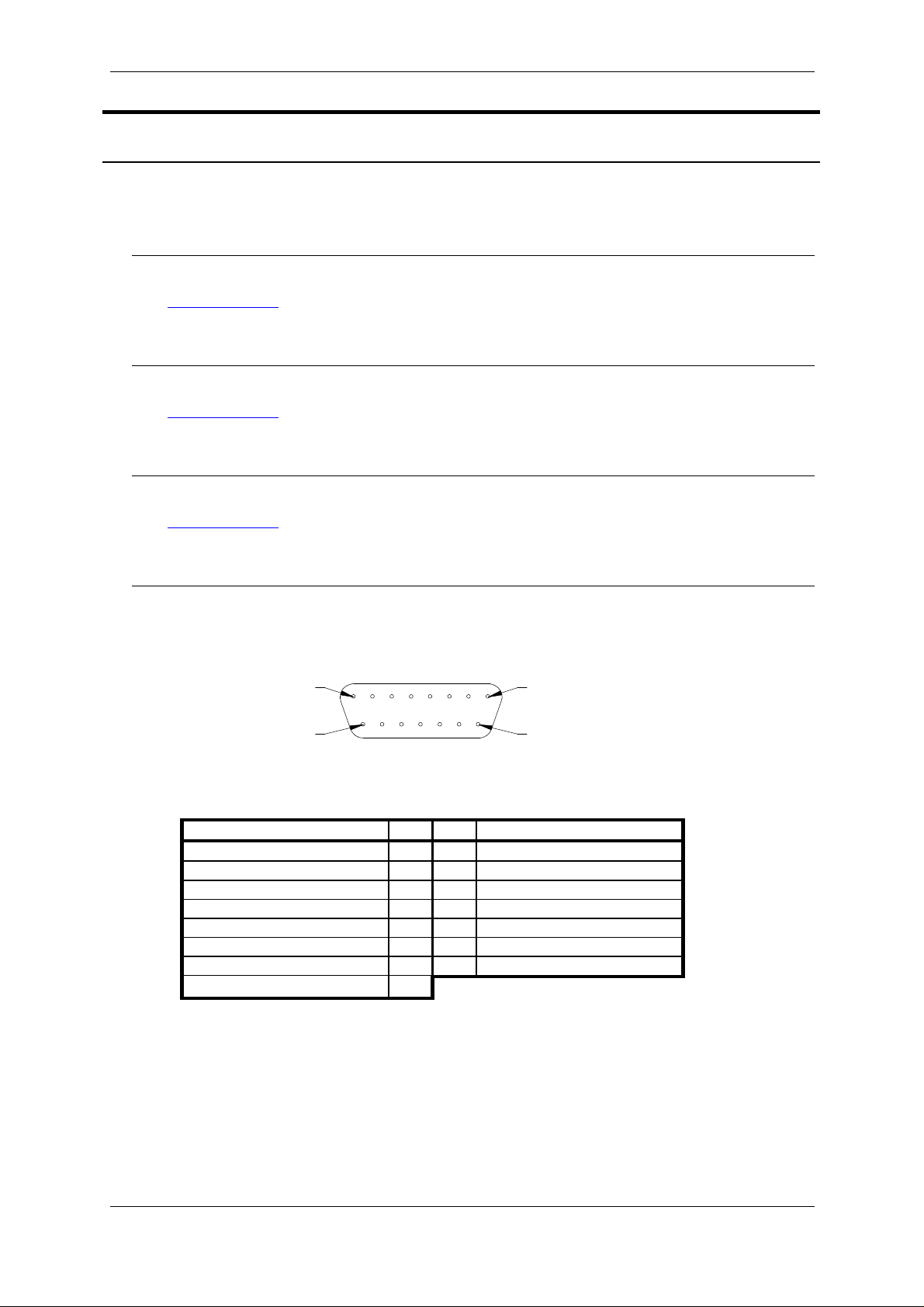

UTILITIES
Connector: 15-way D-type plug
Mating Connector: 15-way D-type socket
Pin 1 Pin 8
View on Connecting Pins
Signal Pin Pin Signal
Speaker - 1 9 Speaker +
HD Activity LED Cathode 2 10 HD Activity LED Anode
Reset Switch (to Ground) 3 11 Ground
Power Switch (to Ground) 4 12 Ground
External SMI (to Ground) 5 13 External +3V Battery
N/C 6 14 N/C
N/C 7 15 N/C
N/C 8
Pin 15Pin 9
Blue Chip Technology Limited Page 31
Page 32
MICRON SINGLE BOARD COMPUTER MICRON CONNECT
MICRON CONNECT
The MICRON CONNECT board is an optional board producing standard connectors for a number of the
input/output functions of the MICRON board. It is generally employed as a development tool prior to
application-specific enclosure and interconnecting cable design work. There is no requirement to use the
CONNECT board, other than for analogue audio signals. The required signals may be taken from the connector
on the MICRON board itself.
P1
P8
P4
P5 P2

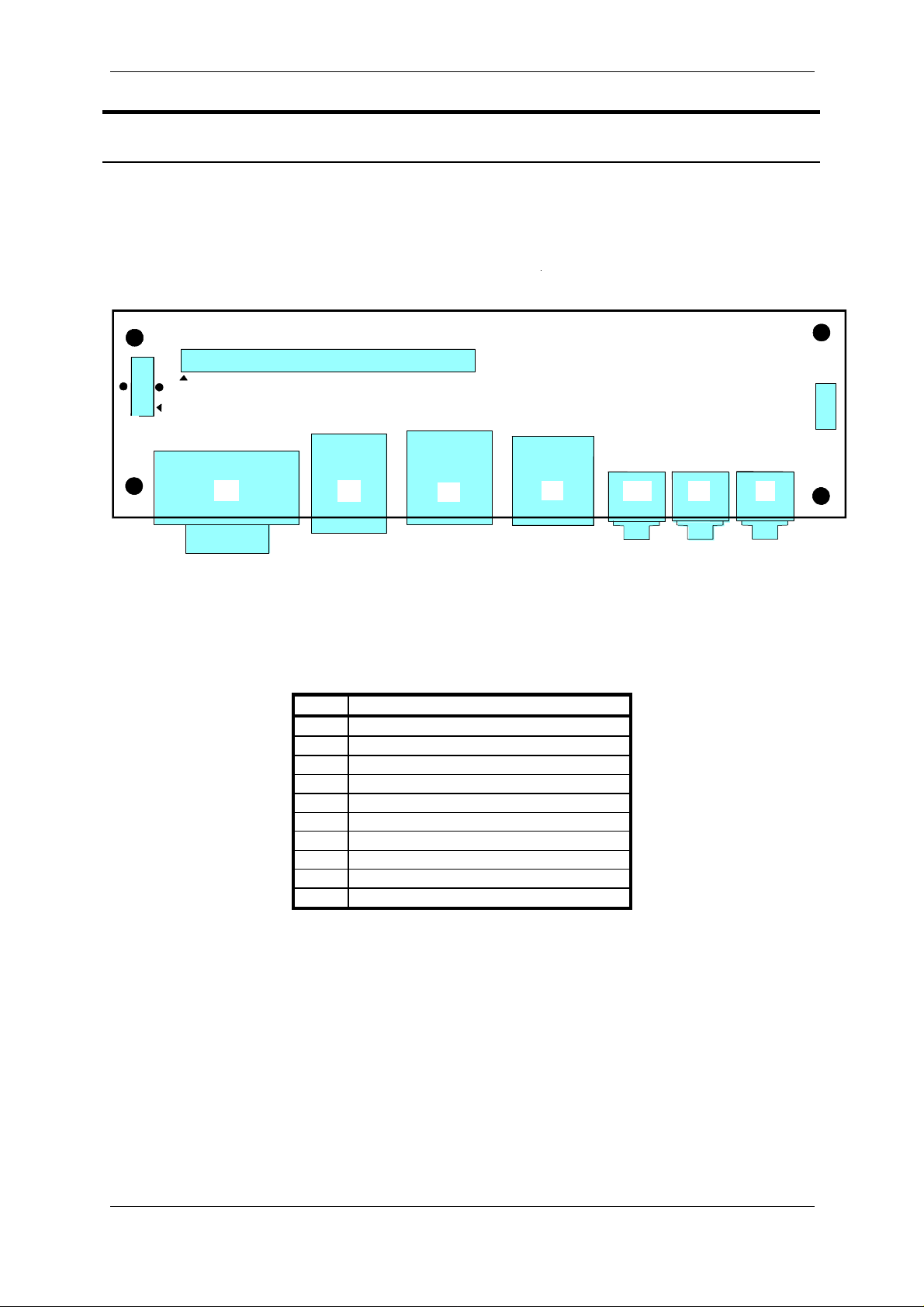

Figure 3. MICRON CONNECT PCB - Top View
Ident Description
P1 Multi-function Connection to MICRON
P2 10/100 Ethernet connector
P3 Keyboard & Mouse connectors
P4 GPIO header with tie-wrap holes
P5 VGA high density 15 pin
P6 Dual USB connector
P7 Audio "Microphone In" Jack-socket
P8 CD Audio In
P9 Audio "Line In" Jack-socket
P10 Audio "Line Out" Jack-socket
P3
Connectors
P6
P10 P9 P7
Blue Chip Technology Limited Page 32
Page 33
MICRON SINGLE BOARD COMPUTER MICRON CONNECT
MULTI-FUNCTION INTERCONNECT
P1 - Connector: 50-way 0.1" pitch pin header
Mating Connector: 50-way 0.1" pitch IDC socket
KEY
Pin 2
Pin 1
Pin 50
Pin 49
View on Connecting Pins
Signal Pin Pin Signal Function
Digital Ground 1 2 DDC Data
DDC Clock 3 4 DDC +5V
Vertical Sync 5 6 Horizontal Sync VGA
Analogue BLUE 7 8 Analogue Ground
Analogue GREEN 9 10 Analogue Ground
Analogue RED 11 12 Analogue Ground
LED0+ 13 14 LED LINK

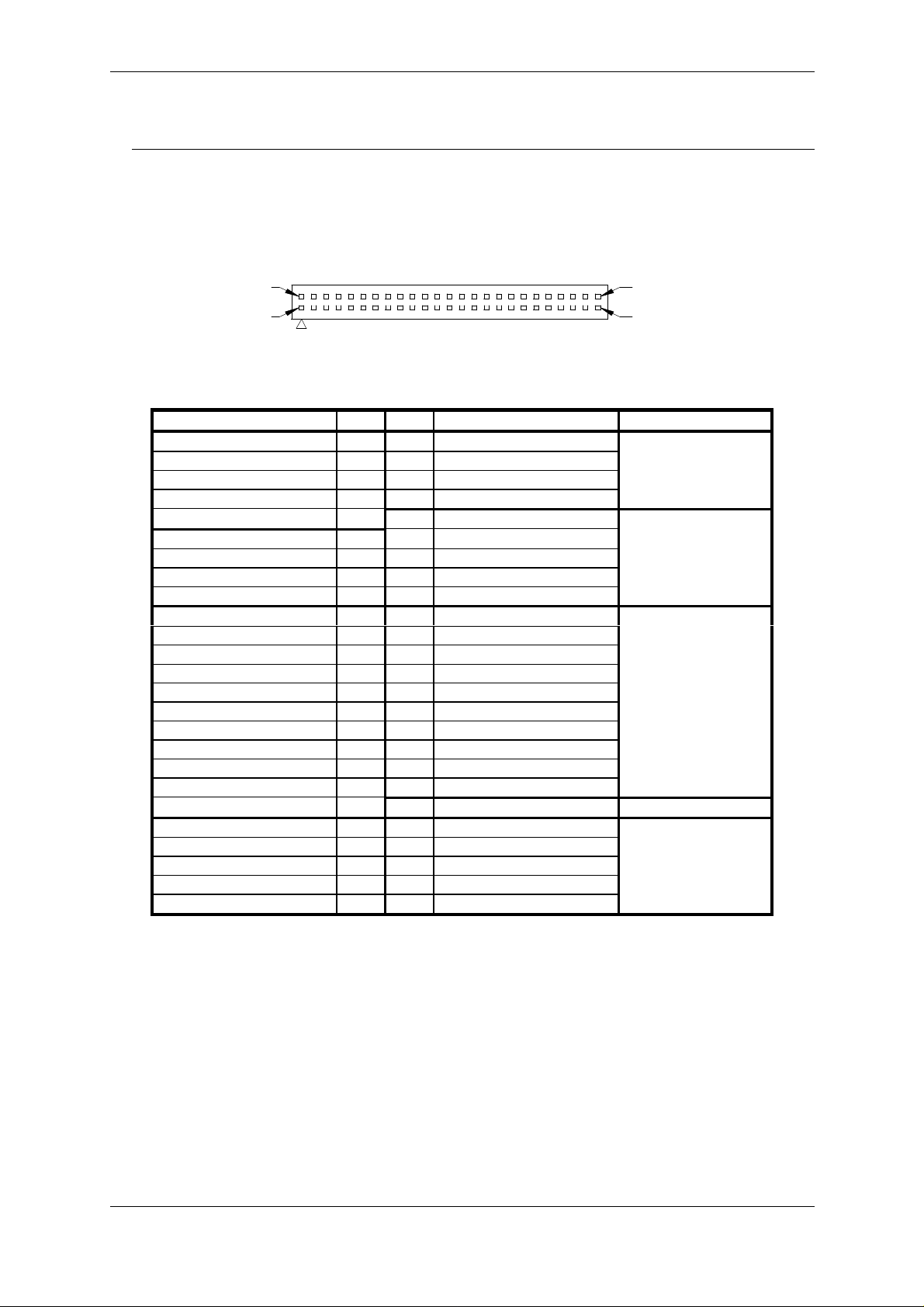

Tx Data+ 15 16 Centre-tap TX Winding
Tx Data- 17 18 Ground Ethernet
Rx Data+ 19 20 Centre-tap Rx Winding
Rx Data- 21 22 LED1+
LED100 23 24 +5V
Keyboard Data 25 26 Keyboard Clock Mouse & Keyboard
Mouse Data 27 28 Mouse Clock
Ground 29 30 USB0 Data-
+5V 31 32 USB0 Data+ USB
USB1 Data- 33 34 Ground
USB1 Data+ 35 36 GPIO0
GPIO2 37 38 GPIO1 General Purpose IO
GPIO3 39 40 Ground
Reset 41 42 Data IN
Ground 43 44 Data OUT
Ground 45 46 Clock AC97 Audio
Ground 47 48 Sync
49 50 Audio +5V
Blue Chip Technology Limited Page 33
Page 34
MICRON SINGLE BOARD COMPUTER MICRON CONNECT
View on Connecting Pins

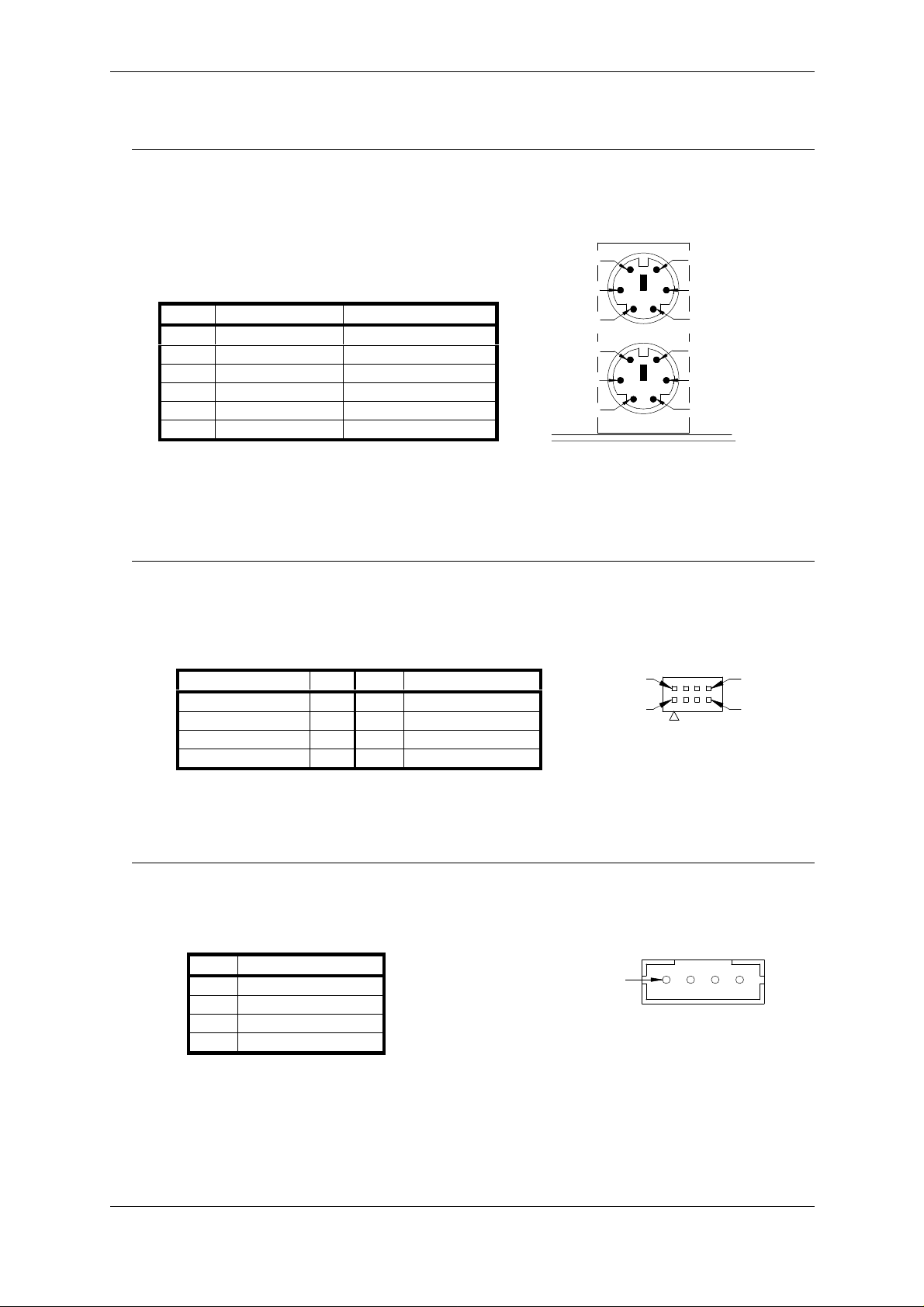

KEYBOARD & MOUSE
P3 - Connector: PS/2 6-pin mini-DIN socket.
Mating Connector: PS/2 keyboard or mouse connector.
Note that whilst the lower socket includes both mouse and keyboard signals, the signal pin-out is
compatible with a standard PS/2 keyboard.
Pin 5
Pin 3
Pin 1
Mouse
Pin Lower Upper
Pin 6
Pin 4
Pin 2
1 Keyboard Data Mouse Data
2 Mouse Data N/C
3 Ground Ground
4 +5V +5V
5 Keyboard Clock Mouse Clock
Pin 6
Pin 4
Pin 2
Pin 5
Pin 3
Pin 1
Keyboard
6 Mouse Clock N/C
View on Connecting Sockets
Issue 1 Micron Connect had upper and lower sockets reversed
GENERAL PURPOSE I/O
P4 - Connector: 8-way 0.1" pin header
Mating Connector: 8-way 0.1" crimp and shell
Signal Pin Pin Signal
GPIO line 0 1 2 GPIO Ground
GPIO line 1 3 4 GPIO Ground
Pin 2
Pin 1
GPIO line 2 5 6 GPIO Ground
GPIO line 3 7 8 GPIO Ground
CD-ROM AUDIO INPUT
P8 - Connector: JST 2mm 4-way boxed pin header B 4B-PH-K/Tactpro WD.03/2
Mating Connector: JST PHR4 & SPH crimps
Pin Signal
1 CD Right Channel
Pin 1
2 CD Ground
3 CD Left Channel
4 CD Ground
View on Connecting Pins
Pin 8
Pin 7
Blue Chip Technology Limited Page 34
Page 35
MICRON SINGLE BOARD COMPUTER MICRON CONNECT
ETHERNET CONNECTOR
P2 - Connector: RJ-45 8-pin socket.
Mating Connector: RJ-45 8-pin plug.
Standard Pin Out.
VGA CONNECTOR
P5 - Connector: High-density 15-pin D-type socket.
Mating Connector: High-density 15-pin D-type plug.
Standard Pin Out.
DUAL USB CONNECTOR
P6 - Connector: TACT 402-008-001-102
Mating Connectors: Series A USB connector
Standard Pin out.
AUDIO MICROPHONE INPUT
P7 - Connector: 3.5mm Jack-socket
Mating Connector: 3.5mm Jack-plug
Tip is microphone input.
AUDIO LINE INPUT
P9 - Connector: 3.5mm Jack-socket
Mating Connector: 3.5mm Jack-plug
Tip is right channel.
AUDIO LINE OUTPUT
P10 - Connector: 3.5mm Jack-socket
Mating Connector: 3.5mm Jack-plug
Tip is right channel.
Blue Chip Technology Limited Page 35
Page 36
MICRON SINGLE BOARD COMPUTER STANDARD CONNECTORS
STANDARD CONNECTORS
The attached guide is a general reference point for the following standard pin-outs.
Standard Pin Out
Blue Chip Technology Limited Page 36
Page 37
MICRON SINGLE BOARD COMPUTER AMENDMENT HISTORY
AMENDMENT HISTORY
Issue Level Issue Date Author Amendment Details
0.1 13/09/01 TGH First Draft Issue
1.0 19/10/01 KDL/EGW Released
1.1 27/02/02 KDL Up-Issued
1.2 29/04/02 KDL Up-Issued
1.3 28/11/02 TGH Micron Connect Iss 2 changes
Blue Chip Technology Limited Page 37
