PE3M Small Form Factor PC Introduction
Page 4
INTRODUCTION
Copyright
All rights reserved. No part of this publication may be reproduced, stored in any retrieval system, or
transmitted, in any form or by any means, electronic, mechanical, photocopied, recorded or otherwise, without
the prior permission, in writing, from the publisher. For permission in the UK please contact Blue Chip
Technology.
Information offered in this manual is believed to be correct at the time of printing. Blue Chip Technology
accepts no responsibility for any inaccuracies. The information contained herein is subject to change without
notice. There are no express or implied licences granted herein to any intellectual property rights of Blue Chip
Technology Ltd.
Limitations of Liability
In no event shall Blue Chip Technology be held liable for any loss, expenses or damages of any kind
whatsoever, whether direct, indirect, incidental or consequential, arising from the design or use of this product
or the support materials supplied with this product. If this product proves to be defective, Blue Chip
Technology is only obliged to replace or refund the purchase price at Blue Chip Technology's discretion
according to their Terms and Conditions of Sale.
Trademarks
All trademarks and registered names acknowledged.
IBM, PC, AT and PS/2 are trademarks of International Business Machines Corporation (IBM).
Intel is a registered trademark of the Intel Corporation.
All 80x86, Celeron and Pentium processors are registered trademarks of Intel Corporation.
Extreme Graphics is a registered trademark of the Intel Corporation.
Realtek is a registered trademark of Realtek Semiconductor Corporation.
Award is a registered trademark of Award Software, Inc.
MSDOS and WINDOWS are registered trademarks of the Microsoft Corporation.
PE3M Small Form Factor PC Introduction
Page 5
Regulatory Statements
CE
This product meets the essential protection requirements of the European EMC Directive (89/336/EEC) and
its amending Directives, and the Low Voltage Directive 73/23/EEC, and is eligible to bear the CE mark.
Warning
This is a Class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
FCC
NOTE:
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
WARNING:
Changes or modifications not expressly approved by the manufacturer could void the user's authority to
operate the equipment.
Safety Warning for North America
If the power lead (cord) is not supplied with the computer, select a power lead according to your local electrical
regulations. In the USA use a 'UL listed' lead. In Canada use a CSA approved or 'cUL listed' lead.
Si le cordon secteur n'est pas livré avec l'ordinateur, utiliser un cordon secteur en accord avec votre code
electrique nationale. En l'Etat Unis utiliser un cordon secteur 'UL listed'. En Canada utiliser un cordon secteur
certifié CSA, ou 'cUL listed'.
PE3M Small Form Factor PC User Guide - Organisation
Page 6
USER GUIDE
Manual Organisation
This manual describes in detail the PE3M range of Small Form-Factor PCs.
We have tried to include as much information as possible but we have not duplicated information that is
provided in the standard IBM Technical References, unless it proved to be necessary to aid in the understanding
of the product.
The manual is sectioned as follows:
Introduction;
Overview, listing the unit's features and specification;
Installation;
Layout, showing where the various connectors are located, and their pin-out details;
How to upgrade the system;
Maintenance details.
We strongly recommend that you study this manual carefully before attempting to interface with the PE3M or
change the standard configurations. Whilst all the necessary information is available in this manual we would
recommend that unless you are confident, you contact your supplier for guidance. IT IS PARTICULARLY
IMPORTANT THAT YOU READ THE SECTION 'PRECAUTIONS' BEFORE HANDLING THE BOARD.
If you have any suggestions or find any errors concerning this manual and want to inform us of these, please
contact our Technical Services department with the relevant details.
PE3M Small Form Factor PC User Guide - Overview
Page 7
Overview
The PE3M is a powerful slim-line Intel Pentium P4-based Personal Computer (PC) specifically designed to drive
large plasma and other large displays panels. The unit is self-contained requiring as a minimum, only a power
connection and a display. The applications are not limited to display applications: it may be used as a general
purpose PC.
The basic unit comprises a highly integrated computer board employing Intel’s latest 845G chipset that supports
Intel Pentium 4 processors up to 3GHz with 400 MHz and 533MHz front side bus (FSB). Memory options
allow up to 2GB of ultra fast PC1600/PC2100 DDR SDRAM. Storage is provided by a single 2½-inch ATA100 hard disk drive.
The on-board Intel Extreme Graphics features Dynamic Video Technology and Zone Rendering Technology to
deliver unrivalled 2D and 3D 16:9 performance with a wide range of resolutions. Displays may be driven in
landscape or portrait modes. Options allow for the addition of an AGP graphics expansion card for specialist
applications. A single short 32-bit PCI (2.2) expansion card may be fitted to expand the range of applications.
Removable media options include a slim-line CD-ROM, CD-RW or DVD-ROM IDE drive. A removable
section facilitates fitting the expansion options.
The on-board audio system may be configured from simple stereo to a full 5.1 surround system. The addition of
a programmable hardware watchdog provides security against an application.
The unit is housed in a strong sheet-steel enclosure providing both mechanical and EMC protection. Fans draw
cooling air into the unit and direct it through the chassis to ensure a wide operating temperature range. The unit
may be mounted on the plasma display, or separately to suit the particular installation. Mounting kits are
available for specific plasma displays, wall or desktop.
All connectors are on the front face of the chassis. There are connectors for a PS/2 mouse and keyboard, a
standard analogue VGA display, two serial ports, a parallel port, two USB (2.0) ports, an Ethernet (10/100) LAN
port, and three audio connectors. The front face of the chassis also includes the AC power inlet connector. The
power supply unit is auto-ranging to cover most markets.
Indicators and controls are limited to a hard drive activity LED, a power on LED and a power standby
pushbutton switch. The LAN connector also includes LEDs indicating a connection and data rate. A recessed
reset switch is fitted but this is only accessible using a simple tool such as a paperclip or similar, to prevent
inadvertent operation.
The available models are:
? PE3M-HDxx Basic PC with hard drive, and without a removable-media drive.
? PE3M-DVxx PC fitted with hard drive and DVD-ROM drive.
? PE3M-CDxx PC fitted with hard drive and CD-ROM drive.
where the characters 'xx' denote the hard disk drive capacity in GBytes.
PE3M Small Form Factor PC User Guide - Specification
Page 8
Specification
CPU: Intel Pentium and Celeron P4 mPGA478 processors auto-detected from 1.7 GHz
to 3 GHz, with 400 or 533 MHz FSB.
CPU Voltage: Auto-detection, providing voltages from 1.05V to 1.825V.
Chipset: Uses the Intel 845GE/845GV Chipset. Selects FSB speed from within the BIOS.
Graphics Controller: Integrated Intel Extreme Graphics controller with AGP 2.0 4x 2D & 3D graphics
accelerator. The following wide-screen resolutions are supported by the
software drivers:
848x480, 1280x720, 1280x768, 1368x768, 1024x512, 1024x1024
Picture rotation 0, 90, 180, 270 degrees without degradation, as standard.
BIOS: 2 Mbit Flash upgradeable Award AGP/PCI BIOS
Memory: Two 184-pin DIMM sockets for 128, 256, 512MB or 1GB of PC1600 or PC2100
compliant 2.5V single or double side buffered DDR SDRAM. Provides up to
2GB of system memory.
LAN: On-board Realtek RTL8100B supports 10/100 Mb/s rate, supports ACPI power
management and WOL function.
System Management: CPU and system voltage detection.
CPU and secondary fan speed detection.
Audio: On-board Realtek ALC650 provides AC'97 2.2 Sound interface.
Expansion Slots: One 32-bit PCI v2.2 slot riser card for short PCI expansion card. Maximum card
length 190 mm to front face of connector bracket.
One AGP 2.0, 1.5V only, x4 slot riser card for short AGP expansion card.
Maximum card length 190 mm to front face of connector bracket.
Primary Storage: One 2½-inch IDE UDMA ATA33/66/100 hard disk drive.
Secondary Storage: Single slim-line drive bay supports optional IDE slim-line CD-ROM, CD-RW or
slim-line DVD-ROM drive.
External I/O Interface: PS/2 Mouse connector.
PS/2 Keyboard connector.
Standard VGA connector.
Two 9-way Serial connectors (16550 compatible).
25-way Parallel port connector (SPP, EPP, and ECP).
Two USB 2.0 connectors.
RJ-45 10/100Base-T Ethernet LAN connector.
Audio Microphone In, Line In and Line Out sockets.
Indicators: Power On LED, Hard drive activity LED
Control: Power standby pushbutton switch,
Recessed processor Reset switch.
Watchdog: Programmable timer, 2.4 to 37 seconds.
PE3M Small Form Factor PC User Guide - Specification
Page 9
System Management: CPU temperature monitoring, system temperature monitoring, CPU fan speed
monitoring and voltage monitoring of Vcore, +3.3V, +5V, +12V, -12V and Vbat
are all available to the application for monitoring and reporting.
Power Requirements: Auto-ranging 115 - 230V / 4 – 2A / 60 - 50Hz, with IEC320 power inlet.
Environmental Conditions: Operating temperature range +5 ºC to +40 ºC in free air.
Storage temperature range -20 ºC to +70 ºC
Relative Humidity 10-85% non-condensing.
Shock and vibration compatible with light industrial usage.
Construction: Painted zinc-plated sheet steel, welded and riveted construction.
Dimensions: 425 x 245 x 62 mm, excluding the earth (ground) stud and the mounting
brackets.
Note that an additional 130 mm will be required in front of the CD/DVD for the
tray to eject, and at least 60 mm to allow easy access to the cable connectors.
Air vents must not be obstructed. A minimum gap of 25 mm between vents and
any adjacent items is recommended.
PE3M Small Form Factor PC User Guide - Precautions
Page 10
Precautions
General Precautions
Before attempting any modification to, or internal adjustment of the PE3M PC, please read the following
sections carefully. Certain precautions are necessary when handling circuit boards and equipment
containing them. Failure to observe the precautions could result in being unable to operate the equipment,
damage to the product, or in extreme cases, personal injury. It is imperative that precautions are taken at all
stages to avoid electro-static discharges, which will damage boards. Boards fitted with an on-board lithium
battery must be handled carefully to avoid maltreatment of the battery that could create a hazard.
Under no circumstances should the power supply unit be disassembled. Dangerous voltages exist within the
power supply enclosure. Note that the IEC-320 AC supply connector is the AC supply disconnect device.
Mounting
The unit is supplied with M3 x 6 fixing screws to fix brackets to the ends of the chassis, or to fix directly to
the underside of the chassis. If alternative screws are used, please ensure that they do not enter the chassis
by more than 5 mm, otherwise internal damage may result.
PS/2 Devices
It is important that PS/2 devices (mouse and keyboard) are not connected or disconnected with the unit
powered on. Damage or data corruption may occur if this precaution is not observed.
Electro-Static Discharges
If you are going to open up the unit, it is important to realise that the devices on the cards within this unit
can be damaged by static electricity. Bear in mind that the damage caused by static electricity may vary
from total destruction to partial damage, which may not be immediately obvious. This could have an effect
on the product's reliability and warranty. Before opening the chassis, ensure that you take necessary static
precautions. Ideally you should work at an anti-static bench and wear an approved wrist strap or if that is
not possible, touch a suitable ground to discharge any static build up before touching the electronics. This
should be repeated if the handling continues for any length of time.
If it is necessary to remove a board or electronic assembly, place it into an anti-static bag. This will prevent
any static electricity build up damaging the board. Metallised bags are preferred. Do not use black antistatic bags for any item containing a battery because these tend to be conductive and will discharge the
battery.
On-Board Battery
The processor board is fitted with a Lithium battery. Great care should be taken with this type of battery. If
the battery is mistreated in any way there is a very real possibility of fire, explosion, and personal harm.
Under NO circumstances should it be short-circuited, exposed to temperatures in excess of 100 ºC or burnt,
immersed in water, recharged or disassembled.
Expired batteries remain hazardous and must be disposed of in a safe manner, according to local regulations.
Le panneau de processeur est équipé d’une batterie de lithium. Le grand soin devrait être pris avec ce type
de batterie. Si la batterie est mistreated il y a de dans de toute façon un possibility très vrai du feu,
d’expolosion et de mal personnel. Dans au cunes circonstances il est sous peu circuité, exposé aux
températures au dessus de 100 degrés de centrigrade ou brûlé, immergé dans l’eau, rechargée ou
dissassambled.
Les batteries expirées restent dazaedous et doivent être reejetées d’une façon sûre, selon des règlements
locaux.
PE3M Small Form Factor PC User Guide - Precautions
Page 11
BIOS & CMOS Memory
Please be aware that with personal computer products, it is possible to create configurations within the
CMOS memory that make booting impossible. If this should happen, clear the CMOS settings; (see the
description of the Jumper Settings for details).
Electromagnetic Compatibility
This product meets the requirements of the European EMC Directive (89/336/EEC) and its amending
Directives, and the Low Voltage Directive 73/23/EEC. It is eligible to bear the CE mark. However,
because the unit can be installed in a wide variety of situations, certain conditions have to be applied to
ensure that the compatibility is maintained. Subject to those conditions, it meets the requirements for an
ITE Class A product.
? The PE3M PC must be supplied with a clean AC supply, and the chassis should be connected to a
sound earth (ground). As a minimum the power cord must be connected to an earthed (grounded)
supply or outlet. Additionally, an earthing stud is provided on the chassis. It is good practice to
connect this independently to a suitable earth in fixed installations.
? When installing additional items, any recommendations made by the component
manufacturer/supplier must be complied with regarding earthing and the installation.
? The metal back plate of any expansion card must be securely screwed to the chassis of the computer
to ensure good metal-to-metal (i.e. earth) contact.
? All connector bodies must be securely connected to the enclosure.
? Most EMC problems are attributable to the external cabling. It is imperative that any external cabling
to the unit is totally screened, and that the screen of the cable connects to the metal end bracket of the
board or the enclosure and hence to earth. It is recommended that round, screened cables with a
braided wire screen be used in preference to those with a foil screen and drain wire. Use metal
connector shells that connect around the full circumference of the cable screen: they are far superior
to those that earth the screen by a simple “pig-tail” connection. This method attempts to extend the
enclosure around the connecting cables, thereby trying to surround the whole of the internal
equipment and external cabling.
? The keyboard and mouse will play an important part in the compatibility of the processor card since
they are ports into the board. Similarly, they will affect the compatibility of the complete system.
Fully compatible peripherals must be used otherwise the complete system could be degraded. They
may radiate or behave as if keys/buttons are pressed when subject to interference. Under these
circumstances it may be beneficial to add a ferrite clamp on the leads as close as possible to the
connector.
? USB cables must be high quality screened types suitable for USB 2.0, and peripherals must be
approved to equivalent EMC standards.
? Where possible ensure that the screens of any external cables are also bonded to a good RF earth at
the remote end of the cable.
Failure to observe these recommendations may invalidate the EMC compliance.
PE3M Small Form Factor PC Quick Start Guide
Page 12
QUICK START GUIDE
First ensure that you are familiar with the contents of the section "Precautions". It contains important
information to avoid damage to the unit.
The unit may be used freestanding, but it is recommended that it be securely mounted to avoid accidental
damage. The actual mounting details will vary depending upon the application.
There are four M3 tapped holes on each end of the chassis for mounting brackets, etc. Alternatively there are
four M3 tapped holes on the underside of the chassis for direct mounting. Do not use screws longer than those
supplied to mount the unit, otherwise internal damage may result. If alternative screws are used, please ensure
that they do not enter the chassis by more than 5mm, otherwise internal damage may result.
Particular mounting arrangements exist for NEC plasma displays (these are detailed in the section
"Installation"). Others will be available.
If the unit is to be used freestanding fit the adhesive synthetic rubber feet to the base. These will prevent the
unit slipping on a smooth surface.
Connect the display to the VGA connector, and connect any other signals, e.g. LAN. Connect a PS/2 mouse
and keyboard to the unit.
Connect the power lead to a suitable AC power source. It is recommended that the supply be fused at 5A.
Press the 'Power On' button and check that the unit boots up.
If your system was not supplied with an operating system pre-installed, load an operating system and drivers.
The section "Software Configuration" contains details for the common operating systems.
Set up the required video display parameters.
The system is now ready to have the applications software loaded.
If the mouse and keyboard are to be removed for normal operation, shut down the computer and switch off the
power before removing them.
PE3M Small Form Factor PC Software Configuration
Page 13
SOFTWARE CONFIGURATION
Installing Operating Systems
Your PE3M Small Form-Factor PC may have been supplied complete with a software operating system, in
which case the appropriate drivers will have been loaded.
If it has been supplied without an operating system, one must be loaded following the instructions supplied
with the software. It is then necessary to add driver programs for the specific hardware of the motherboard
and any additional expansion cards. The manner in which the drivers are loaded will vary depending upon the
actual operating system used. Details follow for Microsoft XP and Windows 2000.
Microsoft XP
INFUpdate
This update must be applied before installing any other drivers.
To install, go to the following directory on the Support CD
\Drivers\INFUpdate\
Run infinst_enu.exe
Video Drivers
The Video drivers are located on the Support CD at
\Drivers\Video\
Run win2k_xp145.exe
and follow prompts
LAN Drivers
The LAN drivers are located on the Support CD at
\Drivers\Lan
From this directory, run the Setup.exe program and follow the on-screen instructions.
Audio Drivers
The Audio Drivers are located on the CD at
\Drivers\Audio\
Run Setup.exe and follow instructions to install the "AC97" Driver.
Windows XP will prompt with a warning about the driver not being digitally signed. This is normal and
must be accepted to continue the installation.
USB2
The USB2 Drivers are installed from Device Manager.
From Device manager, double click on the USB2 device.
PE3M Small Form Factor PC Software Configuration
Page 14
Select “Update Driver” and then “Install from a Specific Location”. Browse to the following directory on
the CD
\Drivers\USB2
and follow the on-screen instructions to install.
Windows XP will prompt with a warning about the driver not being digitally signed. This is normal and
must be accepted to continue the installation.
PE3M Small Form Factor PC Software Configuration
Page 15
Microsoft Windows 2000
INFUpdate
This update must be applied before installing any other drivers.
To install, go to the following directory on the Support CD
\Drivers\INFUpdate\
Run infinst_enu.exe
Video Drivers
The Video drivers are located on the Support CD at
\Drivers\Video\
Run win2k_xp145.exe
and follow prompts
LAN Drivers
The LAN drivers are located on the Support CD at
\Drivers\Lan
From this directory, run the Setup.exe program and follow the on-screen instructions.
Audio Drivers
The Audio Drivers are located on the CD at
\Drivers\Audio\
Run Setup.exe and follow instructions to install the "AC97" Driver.
Windows 2000 will prompt with a warning about the driver not being digitally signed. This is normal and
must be accepted to continue the installation.
USB2
The USB2 Drivers are installed from Device Manager.
From Device manager, double click on the USB2 device.
Select “Update Driver” and then “Install from a Specific Location”. Browse to the following directory on
the CD
\Drivers\USB2
and follow the on-screen instructions to install.
Windows 2000 will prompt with a warning about the driver not being digitally signed. This is normal and
must be accepted to continue the installation.
PE3M Small Form Factor PC Installation - Mounting
Page 16
INSTALLATION
Mounting
The unit may be mounted in any orientation, but care must be taken to ensure easy access to any removable
media drive (e.g. DVD or CD-ROM drive). This includes the installation of cables.
It is imperative that the areas around the cooling fan inlets and the venting holes are not obscured. Because of
the small size of the fans, a cable passing in front of the fan inlet could present a significant obstruction to the
airflow. Any restriction will lower the maximum ambient temperature at which the unit will operate. Always
use the fixing screws provided. Using longer screws could cause internal damage.
The chassis is fitted with a number of M3 tapped holes to facilitate mounting. On the underside there is one
hole at each corner. There are a total of four on each end. These may be used in pairs to fix a bracket in two
possible positions on each end. M3 x 6 screws are provided with the unit. If using screws other than those
supplied, please ensure that the screws do not enter the chassis by more than 5mm, otherwise internal damage
may occur.
Specific mounting brackets are available for some types of plasma displays.
NEC Plasma Display Panels
Fixing kits are available comprising two brackets and fixing screws suitable for models 42PD3 and
42VP4D.
The preferred orientation for the chassis on these units is mounted vertically with the front connector face
upward and the ventilated surface facing away from the body of the display.
The following sections indicate the mounting procedure.
NEC 42PD3 Display
The NEC 42PD3 display has a recess in the rear face into which the PE3M PC is fitted.
Fit the two mounting brackets to the PC as shown in the diagram using four M3 x 6mm fixing screws. Note
the orientation of the brackets to avoid any restriction of the side vents.
PE3M Small Form Factor PC Installation - Mounting
Page 17
Fit the right-angle AC power connector to the PC. DO NOT CONNECT THE AC POWER AT THIS STAGE.
Assemble the PE3M to the display using four M3 x 6mm screws.
Fit the graphics output cable between the graphics output connector on the PC and the input connector of the
display.
Fit any peripheral cables as required.
Connect the AC power lead to a suitably fused source and an earth (ground) point.
PE3M Small Form Factor PC Installation - Mounting
Page 18
NEC 42VP4D Display
The NEC 42VP4D display has a flat ventilated rear face onto which the PC is mounted. Because of the
ventilation holes, the PC must be mounted with at least a 10mm clearance from the rear of the display.
Fit the two mounting brackets as shown in the diagram using four M3 x 6mm fixing screws. Note the
orientation of the brackets to avoid any restriction of the side vents.
PE3M Small Form Factor PC Installation - Mounting
Page 19
Assemble the PE3M to the display using four M4 x 6mm screws.
Fit the graphics output cable between the graphics output connector on the PC and the input connector of the
display.
Fit any peripheral cables as required.
Fit the AC power connector to the PE3M.
Connect the AC power lead to a suitably fused source and an earth (ground) point.
PE3M Small Form Factor PC Installation - External Connections
Page 20
External Connections
The external connectors on the front face are shown on the following diagram: -
Mouse
Keyboard
Parallel Port
VGA Port
Power On LED
Power On Switch
Reset Switch (recesssed)
Hard Drive Activity LED
Serial 1
Serial 2
Mic In
Line In
Line Out
LAN
USB1 & 2
AGP Expansion
Slot
PCI Expansion
Slot
CD or DVD Drive
AC Power Inlet
PS/2 Mouse Port
PS/2 6-pin mini-DIN socket. Mating Connector: PS/2 mouse connector.
Standard Pin Out
PS/2 Keyboard Port
PS/2 6-pin mini-DIN socket. Mating Connector: PS/2 keyboard connector.
Standard Pin Out
Standard VGA Port
High-density 15-pin D-type socket. Mating Connector: High-density 15-pin D-type plug.
Standard Pin Out
Serial Port (EIA-232)
9-way D-type plug. Mating Connector: 9-pin D-type socket.
Standard Pin Out
Parallel Port
25-way D-type socket. Mating Connector: 25-pin D-type plug.
Standard Pin Out
USB Ports
Series A USB socket. Mating Connector: Series A USB connector
Standard Pin Out
PE3M Small Form Factor PC Installation - External Connections
Page 21
Ethernet Port
RJ-45 8-pin shielded socket. Mating Connector: RJ-45 8-pin plug.
Standard Pin Out
Audio – Microphone In
3.5mm Jack-socket. Mating Connector: 3.5mm Jack-plug
Tip is microphone input suitable for dynamic microphone of not greater than 600 Ohms impedance.
Audio – Line In (Stereo)
3.5mm Jack-socket. Mating Connector: 3.5mm Jack-plug
Tip is right channel.
Audio – Line Out (Stereo)
3.5mm Jack-socket. Mating Connector: 3.5mm Jack-plug
Tip is right channel.
PE3M Small Form Factor PC Internal Connections
Page 22
Internal Connections

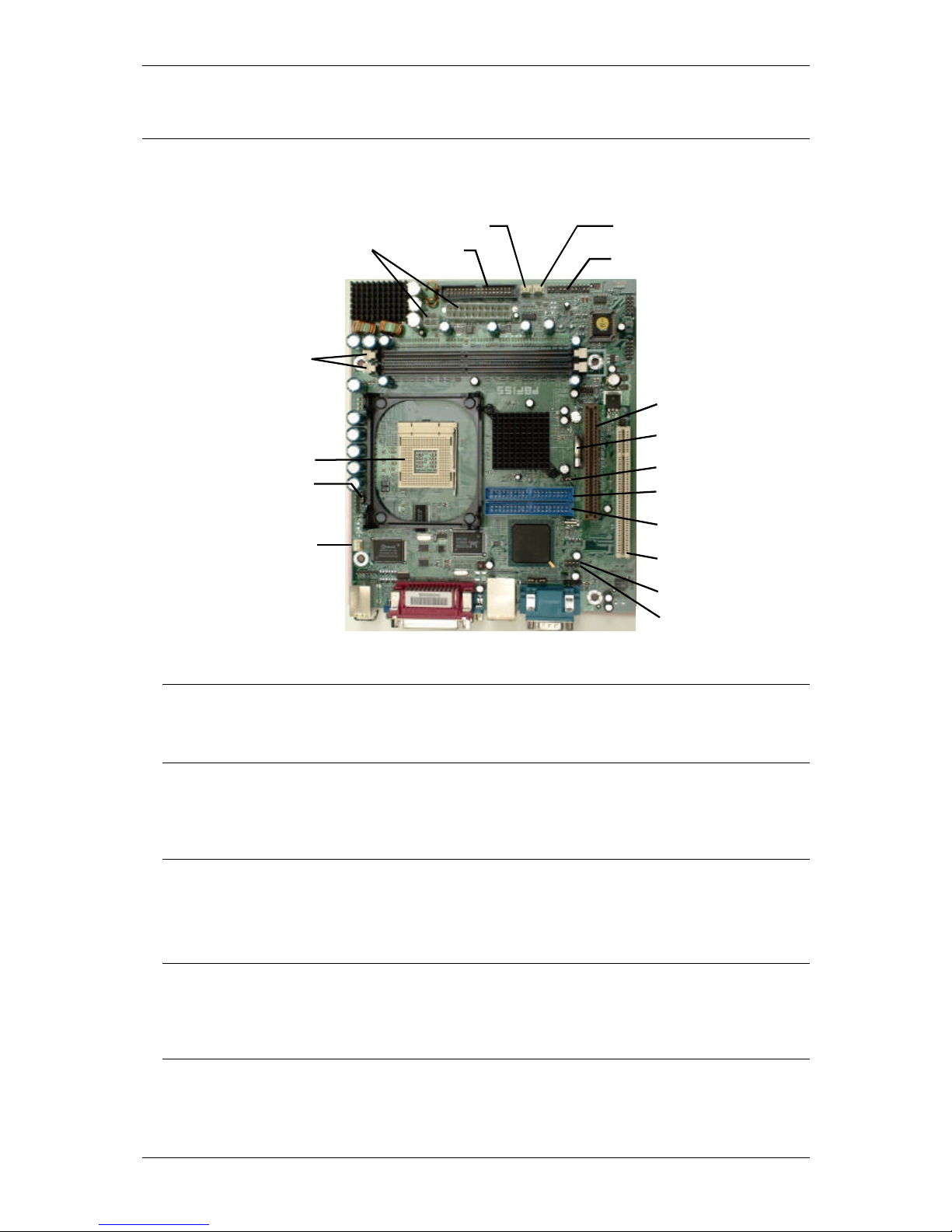

There are connectors on the main processor board for the CPU, memory, power and various additional
peripherals. For the location of these items please see the photograph below. Your board may vary slightly from
that shown.
CPU Socket
CPU Fan Connector
DIMM Sockets
Power Connectors
Front Panel
Connectors
Auxiliary FanSystem Fan
RTC Battery
AGP Socket
PCI Socket
Audio Aux In
Audio CD In
CMOS Jumper
Secondary IDE
Primary IDE
CPU FSB
Floppy Disk
Connector
CPU Socket
Standard Socket mPGA478 Intel Pentium & Celeron P4 processors.
Memory Sockets
Two 184-pin DIMM sockets for 128, 256, 512MB or 1GB of PC1600 or PC2100 compliant 2.5V DDR
SDRAM. Provides up to 2GB of system memory.
Power
Standard 20-pin ATX Power connector (PW).
Standard 4-pin ATX-12V Power Connector (PW1).
PCI Expansion Slot
The motherboard includes one 32-bit PCI v2.2 expansion slot (PCI 1). Into this is plugged a short riser
card. The riser card will accept a short 32-bit PCI expansion card.
AGP Graphics Slot
The motherboard includes one x4 AGP 2.0 graphics expansion slot (AGP 1) that supports only 1.5V
AGP cards. Into this is plugged a short riser card. The riser card will accept a short single slot-width
AGP graphics expansion card.
PE3M Small Form Factor PC Internal Jumpers
Page 23
Jumpers
The processor board used in the PE3M PC is largely free of selection jumpers. Most settings are controlled from
the BIOS, and stored in the CMOS memory.
Only two jumpers are significant. One jumper block is used on the board, to clear the CMOS memory. This
would become necessary if the BIOS settings, which are held in the CMOS memory, became corrupted. The
second selects the front side bus (FSB) speed to match the CPU and the memory.
CMOS Clear
To clear the CMOS memory, first switch off the PC power, then locate the 3-pin header labelled ‘JP4’
on the processor board between the IDE2 connector and the battery. Remove the link shorting pins 1
and 2, and place it on pins 2 and 3 for about five seconds. Remove the link and replace it in its original
position. The CMOS has now been cleared and the BIOS will be reset to the default settings.
Please remember that the board will not function correctly if the CMOS clear link is left in the "Clear"
position.
Having no link fitted is an invalid option.
Set FSB Speed
This will have been set to suit the CPU fitted to the motherboard. If the CPU is changed, check the
position of the jumper on the 3-pin header labelled ‘JP3’. This is located between the CPU and the
edge of the board adjacent to the power supply unit.
Three possible options exist:
For Automatic Selection of the FSB speed, link pins 1 and 2.
For CPUs with 100 (400) MHz FSB, set the jumper to link pins 2 and 3.
For CPUs with 133 (533) MHz FSB do not fit the jumper.
Automatic Selection (link 1-2) is the default option.
PE3M Small Form Factor PC Upgrading the System Hardware
Page 24
UPGRADING THE SYSTEM HARDWARE
Warning
Before attempting any upgrade to the PE3M computer, please read the section "Precautions".
For your personal safety it is important that you ensure that the unit is switched off, and the AC supply is
disconnected. Remember that the unit incorporates an ATX-type of power supply unit. Switching the power off
using the front panel switch does not isolate the AC supply, and under these conditions the +5V DC standby
power is still connected to the motherboard.
For the safety of the equipment, it is important that you observe electrostatic discharge precautions. Do not
remove items from anti-static bags until necessary.
When making any internal changes to the computer, it is imperative that the internal cables follow the original
routes and additional cables are installed as described. Failure to observe this requirement could restrict the
airflow through the unit and cause overheating problems.
Upgrade Options
The user may upgrade the unit by adding more memory to the unit, or by adding a PCI or an AGP expansion
card.
The addition of removable-media drives (CD or DVD) is normally a build option, because it requires the
appropriate upgrade kit, and requires a measure of disassembly. It should not be undertaken without the correct
items.
Upgrading the CPU is possible but requires disassembly of the unit.
Unauthorised upgrades may invalidate the warranty.
Adding Memory
The PE3M motherboard incorporates two 184-pin DIMM sockets for memory. Each can accommodate a
module of 128, 256, 512MB or 1GB of PC1600 or PC2100 compliant 2.5V DDR SDRAM. This provides for up
to 2GB of system memory. Note that whilst the memory modules need not be the same size, they should be of
the same speed (either PC1600 or PC2100). Generally the memory speed should match the Front Side Bus
speed of the processor. If in doubt, fit PC2100 memory.
Installing additional memory involves removing the top cover and the hard drive assembly, plugging the
memory modules into the sockets, and finally reassembling the unit.
Remove the screws on the top surface of the cover and then lift the cover off.
PE3M Small Form Factor PC Upgrading the System Hardware
Page 25
DIMM Sockets
Hard Drive Assembly
Fixing Screws
Hard Drive Assembly
Locating Tabs
Remove the hard drive assembly as follows:
Remove two screws from the rear top face of the chassis.
Lift the rear end of the hard drive bracket a little, and slide the bracket towards the rear to disengage the two
tabs at the front end.
Lift the drive assembly and disconnect the hard drive power lead connector.
Remove the hard drive UDMA ribbon cable from the Primary IDE connector (IDE1, blue) on the
motherboard.
Disconnect the CD/DVD ribbon cable from the Secondary IDE connector (IDE2) on the motherboard.
The two DIMM sockets are then accessible.
Plug in the memory making sure that it is fully seated and that the end clips are located into the notches in the
memory circuit boards.
Re-install the CD/DVD ribbon connector to connector IDE2.
Refit the hard drive UDMA cable to the motherboard connector IDE1.
Refit the hard drive power cable connector.
Refit the hard drive assembly.
Replace the top cover.
When the unit is powered up, the memory will be automatically detected and reported.
PE3M Small Form Factor PC Upgrading the System Hardware
Page 26
Adding an Expansion Card
Selection
The PE3M chassis can accommodate one short 32-bit PCI expansion card and one short single-width, 1.5V
AGP graphics card. There is insufficient space to accommodate a double-width AGP card.
The maximum length of the PCI and AGP cards that can be accommodated by the chassis is 190 mm,
measured from the rear edge of the PCB to the front face of the connector bracket.
It is important that in selecting cards to suit particular applications that the cards not only meet the user
requirements, but are also compliant with the regulatory requirements of the territory in which it is to be
used. For example, for the European market cards must be compliant with the EMC Directive and the
Safety requirements.
Installation
To install an expansion card, remove the screws on the top cover and lift the cover off.
Refer to the following diagram:
Card Bracket
Fixing Screws
AGP
PCI Slot
Remove the two M3 countersunk-head screws on the front face of the chassis (in line with the upper [AGP]
card bracket).
Lift the AGP/PCI Riser card sub-chassis vertically out of the chassis to disengage the riser cards from the
motherboard sockets. It is important that the sub-chassis is removed evenly, disengaging the rear locating
slot, and the front section.
Lift the sub-chassis clear of the main chassis.
Remove the screw(s) and the expansion card blanking plate(s).
Fit the expansion card(s) and firmly screw the card bracket(s) into place.
PE3M Small Form Factor PC Upgrading the System Hardware
Page 27
Ensure that the CD/DVD IDE cable will not foul the PCI card.
Replace the AGP/PCI Riser card sub-chassis. Take care lining up the two riser cards into their sockets, and
apply pressure evenly to fully seat the cards in the motherboard. This may require a little practise if both
expansion cards are fitted.
Secure the sub-chassis using the countersunk-head M3 fixing screws removed earlier.
Replace the top cover.
Follow the instructions provided with the expansion board(s) to install any software drivers and application
software. Note that the installation may vary depending upon the operating system in use.
PE3M Small Form Factor PC Upgrading the System Hardware
Page 28
Adding a CD-ROM or DVD Drive
The chassis will accommodate a single removable media drive. This may be a CD-ROM drive or a DVD-ROM
drive.
The CD or DVD drive must be a slim-line unit of the type commonly fitted in laptop computers. It is important
when selecting a drive, that it is compliant with the regulatory requirements of the territory in which it is to be
used. For example, for the European market the unit must be compliant with the EMC Directive and the Safety
requirements.
Cables for this option are supplied with the drive.
The procedures for installing the CD and the DVD drives are the same, and require a CD/DVD fixing kit. Note
that fixing screws must not be longer than those defined in this procedure, otherwise damage to the drive will
result.
Procedure
This procedure assumes that the system is not fitted with a removable media drive.
First remove the screws on the top cover and lift the cover off.
The AGP and PCI expansion card section must be removed to give access to the drive bay. Refer to the
diagram in the previous section:
Remove the two M3 countersunk-head screws on the front face of the chassis (in line with the upper
[AGP] card bracket).
Lift the AGP/PCI Riser card sub-chassis, complete with any expansion cards, vertically out of the
chassis to disengage the riser cards from the motherboard sockets. It is important that the sub-chassis
is removed evenly, disengaging the rear locating slot, and the front section.
Lift the sub-chassis clear of the main chassis.
Remove the two M3 x 6mm screws holding the Removable-Drive Baseplate (see diagram) and slide it
towards the rear of the chassis to disengage the clip mountings.
Lift the baseplate out of the chassis.
Remove the drive bay blanking plate from the baseplate (two screws). This will not be required again
unless the drive is to be removed at some point in the future.
Place the Removable-Drive Baseplate to one side.
PE3M Small Form Factor PC Upgrading the System Hardware
Page 29
Using two M2 x 3mm cap-head screws, fix the CD/DVD Mounting Bracket to the cut away side of the
drive (see diagram).
Fit the CD/DVD Interface PCB to the drive connector and secure it using two M2 x 6mm screws through
the plastic bushes into the drive body (see diagram).
CD/DVD
IInterface
Board
Fit the drive and PCB assembly to the Removable-Drive Baseplate, so that the tab on the CD/DVD
Mounting Bracket engages with that on the Baseplate.
Assemble the drive to the Baseplate using two M2 x 3mm and one M3 x 6mm cap-head screws.
PE3M Small Form Factor PC Upgrading the System Hardware
Page 30
Re-install the Drive Baseplate into the chassis taking care not to trap any of the wiring, and secure using
the two M3 x 6mm screws removed earlier. Check that the drive door is clear of the chassis and tighten
the screws.
Connect the free 3½" drive connector from the power supply unit to the 4-pin connector on the CD/DVD
Interface PCB.
Connect the 40-way secondary IDE ribbon cable to the 40-pin connector on the CD/DVD Interface PCB.
Note the pin 1 identifiers. Connect the other end to the Secondary IDE connector on the motherboard.
Take care with the routing of the ribbon cable. It is important that it does not restrict the airflow across
the heatsink on the motherboard.
Ensure that the CD/DVD IDE cable will not foul the PCI card.
Replace the AGP/PCI Riser card sub-chassis. Take care lining up the two riser cards into their sockets,
and apply pressure evenly to fully seat the cards in the motherboard. This may require a little practise if
both expansion cards are fitted.
Secure the sub-chassis using the countersunk-head M3 fixing screws removed earlier.
Replace the top cover.
Power up the unit. As the unit boots up, the BIOS will detect the new drive.
If any software is required, now is the point at which to load it. Follow the instructions supplied with the
software.
PE3M Small Form Factor PC Upgrading the System Hardware
Page 31
Upgrading the CPU
The CPU fan and heatsink must be removed to gain access to the CPU. While it is not necessary to remove the
HDD assembly as indicated in the section on Upgrading Memory, it may be easier to gain access to all the
screws retaining the CPU Fansink.
Removal Procedure
Switch off the AC supply to the unit. Unplug the AC input connector from the power supply unit.
Remove the top cover.
Remove the hard disk drive assembly if required.
Disconnect the CPU heatsink fan connector from the motherboard.
Remove the plastic air-guide from the CPU heatsink fan.
The heatsink is secured to the motherboard by the four outer screws and nylon spacers at the corners of
the heatsink.
Remove the four screws and withdraw the fan & heatsink assembly.
Ease the lever on the CPU socket away from the socket and lift it to release the CPU pins.
Lift the CPU from the socket.
Replacement Procedure
Replacement is essentially the reverse of the removal procedure, with the following notable points.
When fitting the CPU to the socket, care must be taken to align and avoid bending the pins.
Once the CPU is fitted to the socket, the top of the CPU and the heatsink should be wiped clean. Apply a
very thin smear of heatsink compound to the top surface of the CPU and spread it over the whole of the
contact area. It is important that the minimum amount of compound is used, and it is spread as thinly as
possible.
Loosely fit the heatsink & fan assembly to the motherboard using the nylon locking nuts. Using the play
in the heatsink, slide the heatsink on the top of the CPU to spread the heatsink as evenly as possible.
Then centralising the heatsink, tighten the fixings. The heatsink must be in firm contact with the CPU,
but not so tight that the motherboard is distorted.
The remainder of the refitting procedure is the reverse of the removal procedure.
Before finally fitting the top cover, apply the AC supply, switch the unit on and confirm that the fans are
rotating correctly.
Switch off and replace the top cover.
PE3M Small Form Factor PC Maintenance
Page 32
MAINTENANCE
On a regular basis the inside of the PE3M unit should be cleaned out to prevent dust build up which could
eventually clog the fans and prevent efficient operation. Generally the enclosure design and the wiring layout
will ensure that the cooling is stable. However, bear in mind that any modifications to the installation may cause
a restriction of the air vents.
After a period of several years, it may be necessary to replace the battery on the processor board, if it cannot
maintain the CMOS memory whilst the AC power is disconnected.
Replacing the Processor Battery
The processor board includes a small 3V lithium battery (type CR-2032) to retain the BIOS settings in the
CMOS memory. Before attempting to replace the battery, please read the precautions detailed in the
introductory section. Remember that even discharged batteries can present a real personnel hazard if
mistreated.
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer.
Dispose of used batteries according to the manufacturer's instruction.
ATTENTION
Il y a danger d'explosion s'il y a remplacement incorrect de la batterie.
Remplacer uniquement avec une batterie du même type ou d'un type
recommandé par le constructeur.
Mettre au rébut les batteries usagées conformément aus instructions du
fabricant.
The battery is located on the motherboard adjacent to the AGP (brown) socket, underneath the hard disk
drive mounting plate.
Remove the hard drive assembly as follows:
Remove two screws from the rear top face of the chassis.
Lift the rear end of the hard drive bracket a little, and slide the bracket towards the rear to disengage the
two tabs at the front end.
Lift the drive assembly and disconnect the hard drive power lead connector.
Remove the hard drive UDMA ribbon cable from the Primary IDE connector (IDE1, blue) on the
motherboard.
Lift the hard drive assembly clear.
Disconnect the CD/DVD ribbon cable from the Secondary IDE connector on the motherboard (IDE2).
The battery is mounted vertically in the holder held in place by the clip in the top.
Do NOT under any circumstances try to remove the battery with metallic tools (pliers, tweezers etc.).
They will short out the battery with possible disastrous results.
PE3M Small Form Factor PC Maintenance
Page 33
To remove the battery, push the top of the retaining clip away from the AGP connector to force it away from
the battery, then lift the battery clear of the holder.
Replace the battery by one of the same type, ensuring that it is fitted with the positive terminal facing the
CPU, and that the clip is fully engaged. When the battery has been replaced, the BIOS settings will revert to
their default settings. Reset them as necessary to suit your application.
Fuses
There are no user-serviceable or replaceable fuses within the unit.
PE3M Small Form Factor PC History
Page 34
AMENDMENT HISTORY
Issue Level Issue Date Author Amendment Details
1.0 25/04/2003 EGW First Release
1.1 31/10/03 TMK Updated info on AGP Support
1.3 17/11/04 TMK updated CPU removal and maintenance of fans
Blue Chip Technology Ltd.
Chowley Oak
Tattenhall
Chester
CH3 9EX
U.K.
Telephone: +44 (0)1829 772000
Facsimile: +44 (0)1829 772001
www.bluechiptechnology.co.uk
Loading...
