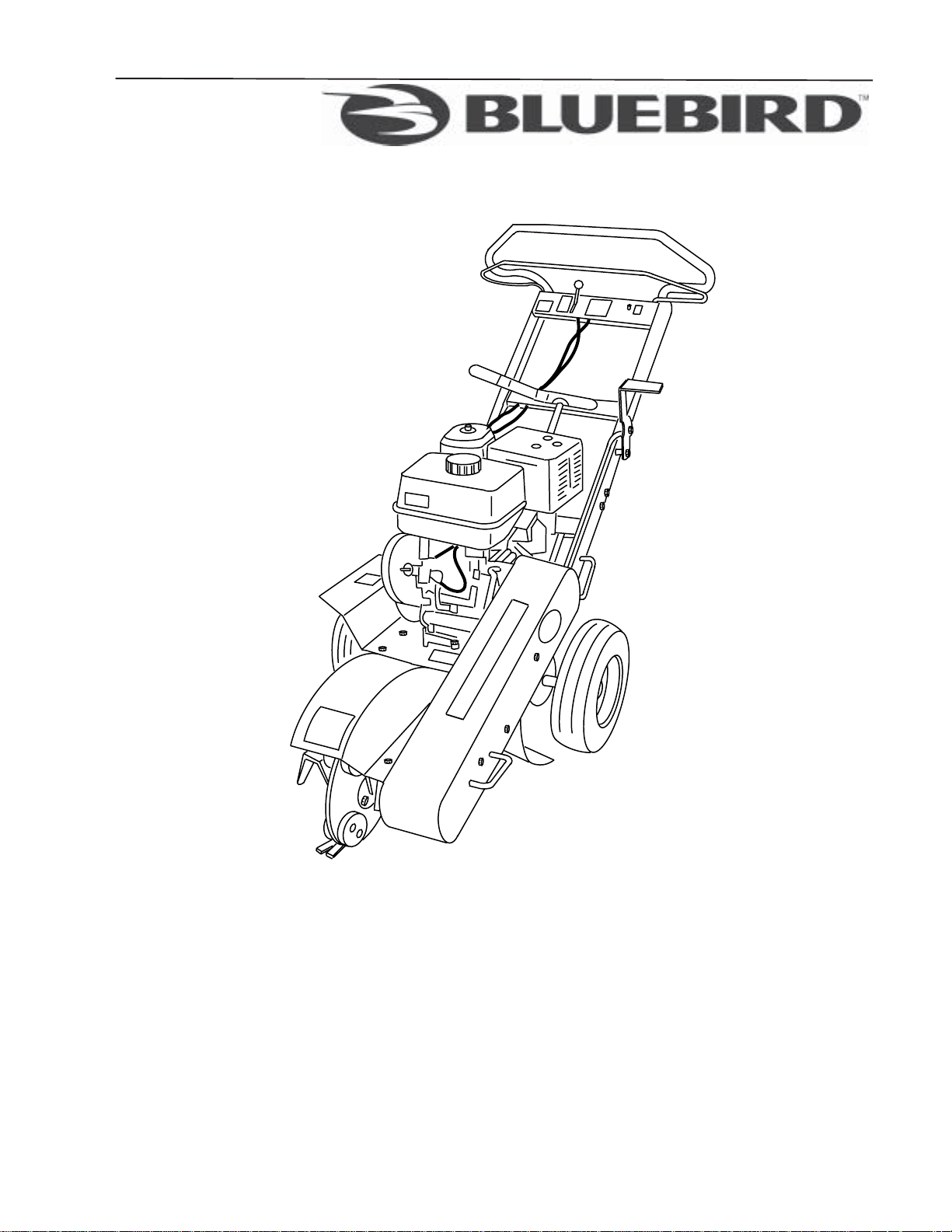

Operator ’s Manual
MANUAL NO. 109277 REV. 02 (06/08/05)
Model:
SG1314A
©2005 BlueBird International.
All Rights Reserved.
Printed Beatrice, Nebraska
2
TABLE OF CONTENTS
Stump Grinder SG1314A
Introduction ................................................ 4
Congratulations ..................................... 4
Use ........................................................ 4
Insure your machine .............................. 4
Good service .........................................4
Serial number ........................................ 4
Symbols and decals ................................... 5
Location of decals.................................. 6
Translation of instructions...................... 6
Safety instructions..................................... 7
General use ........................................... 7
Controls ................................................. 9
Operation...............................................10
Movement/Transport.............................. 11
Storage .................................................. 11
Children .................................................11
Fuel System ..........................................12
Maintenance .......................................... 13
Protective Equipment ...............................14

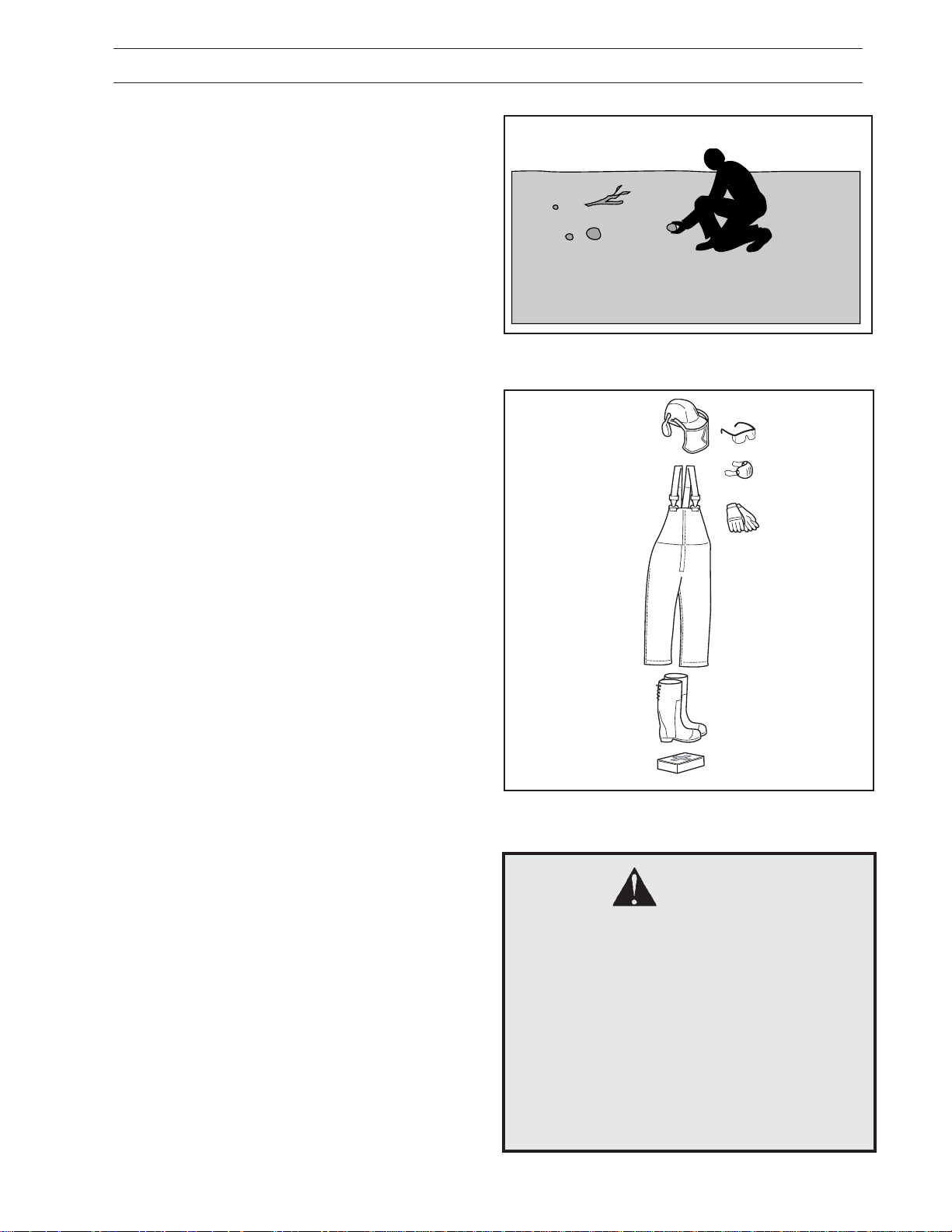

Personal Equipment .............................. 14
Set-Up ......................................................... 15
Equipment set-up .................................. 15
Controls ...................................................... 18
Presentation ..........................................18
Main Components and
Operating Instructions ...........................18
Engine ................................................... 19
Cutting Unit ............................................ 22
Operation.................................................... 24

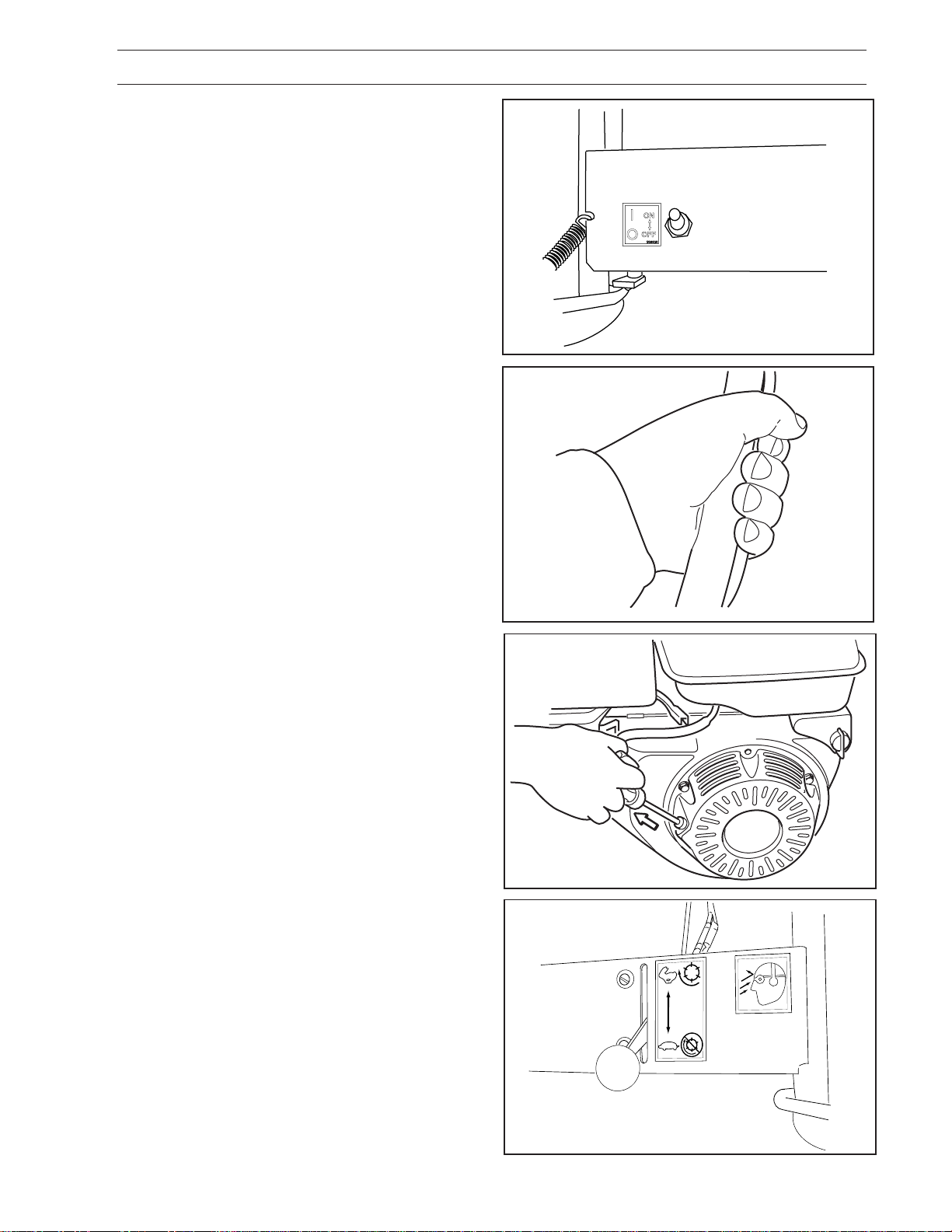

Starting the Engine................................. 24
Normal Shutdown .................................. 26
Shutdown in Emergency Situations....... 26
Before You Start..................................... 27
Using Y our S tump Grinder ..................... 28
Operating on Hills .................................. 30
Transport ............................................... 30
Maintenance............................................... 31
Maintenance Schedule ........................... 31
Cleaning the Cyclone Filter .................... 32
Replacing the Air Filter............................33
Cleaning the Sludge Reservoir............... 34
Idle Adjustment ....................................... 34

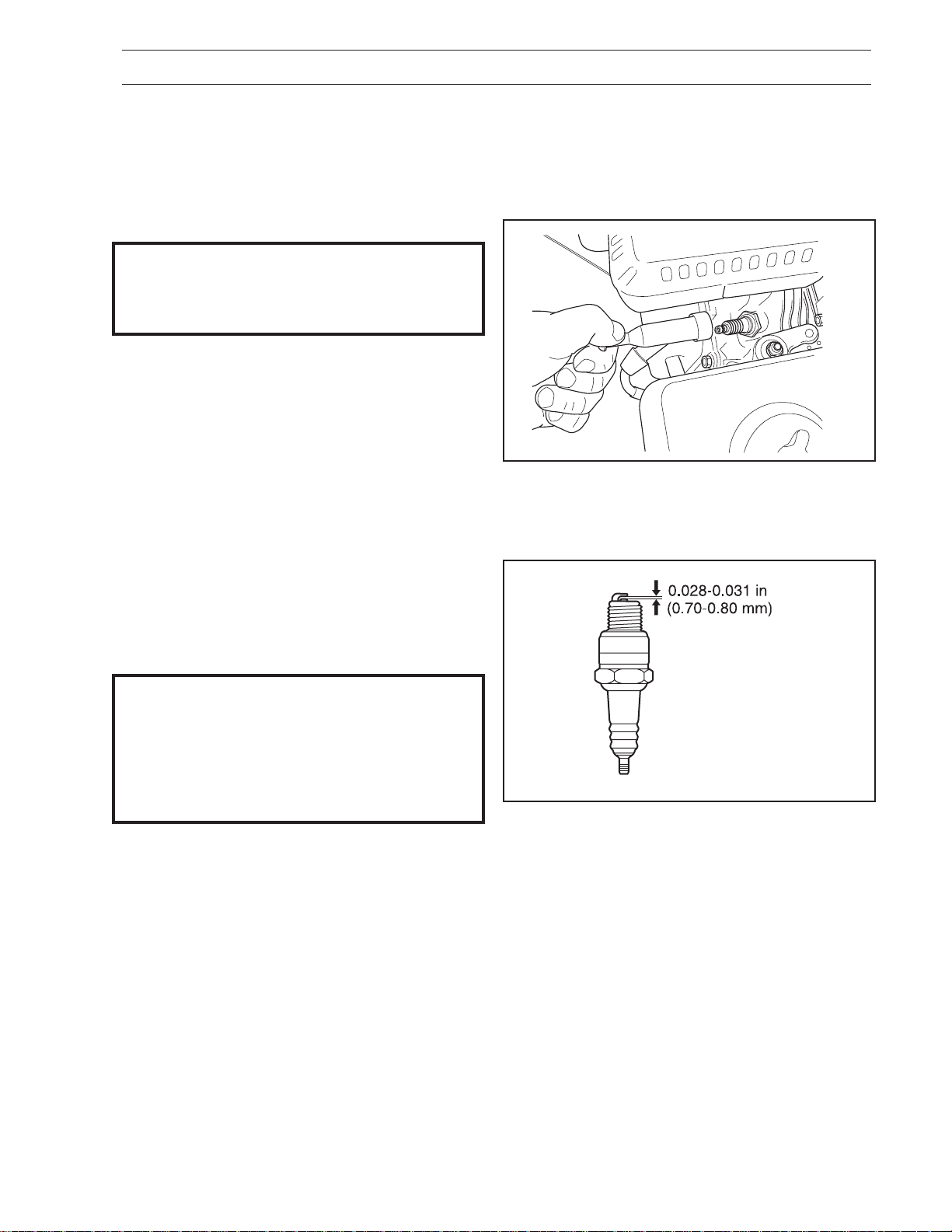

Ignition System....................................... 35
Adjusting the Drive Belt ..........................36

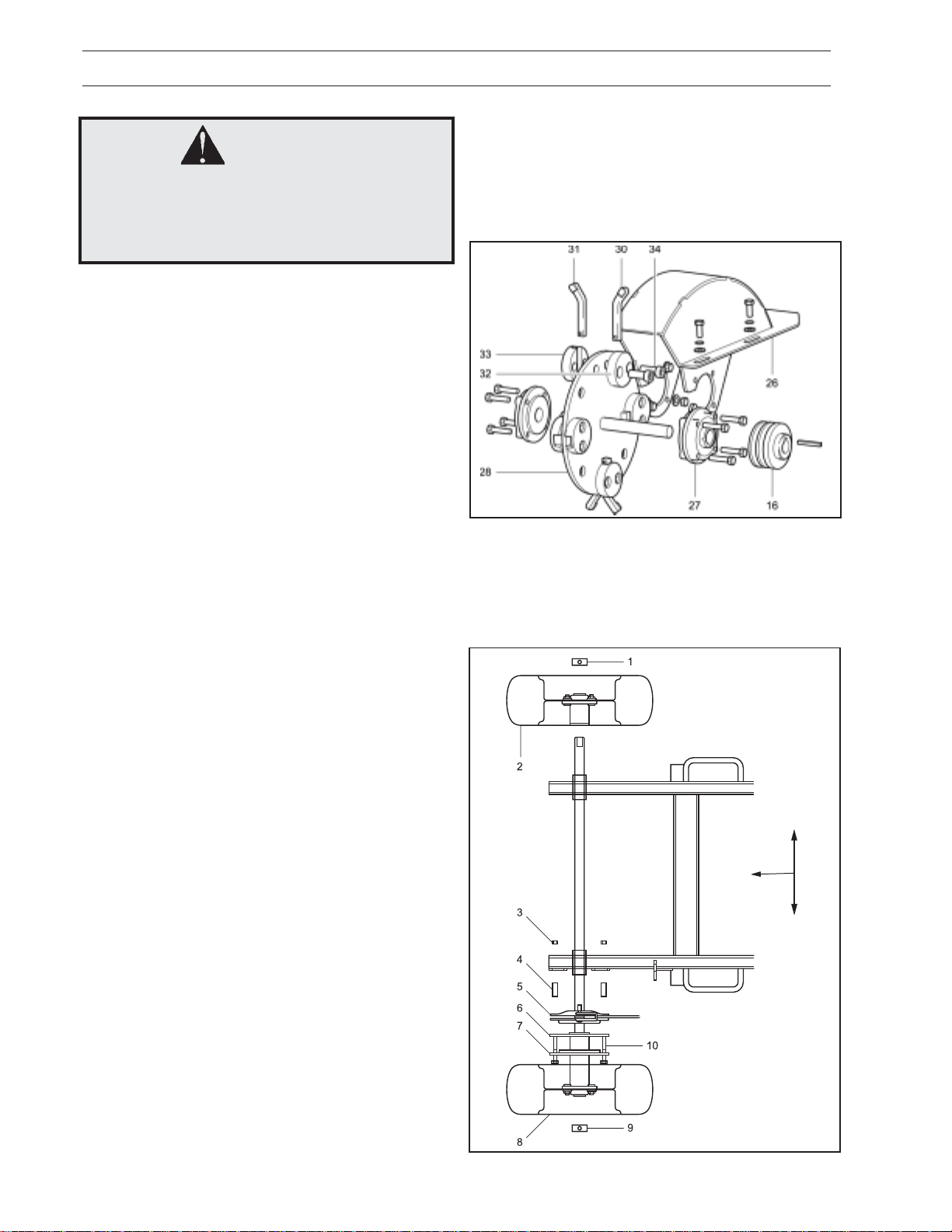

Disassembling & Reassembling
the Blade, Pockets & Teeth .................... 37
Removing & Refitting the Wheels ..........38
Adjusting the Brake................................. 38
Two Minute Rule..................................... 39
Cleaning & Washing............................... 39
Lubrication ................................................. 40

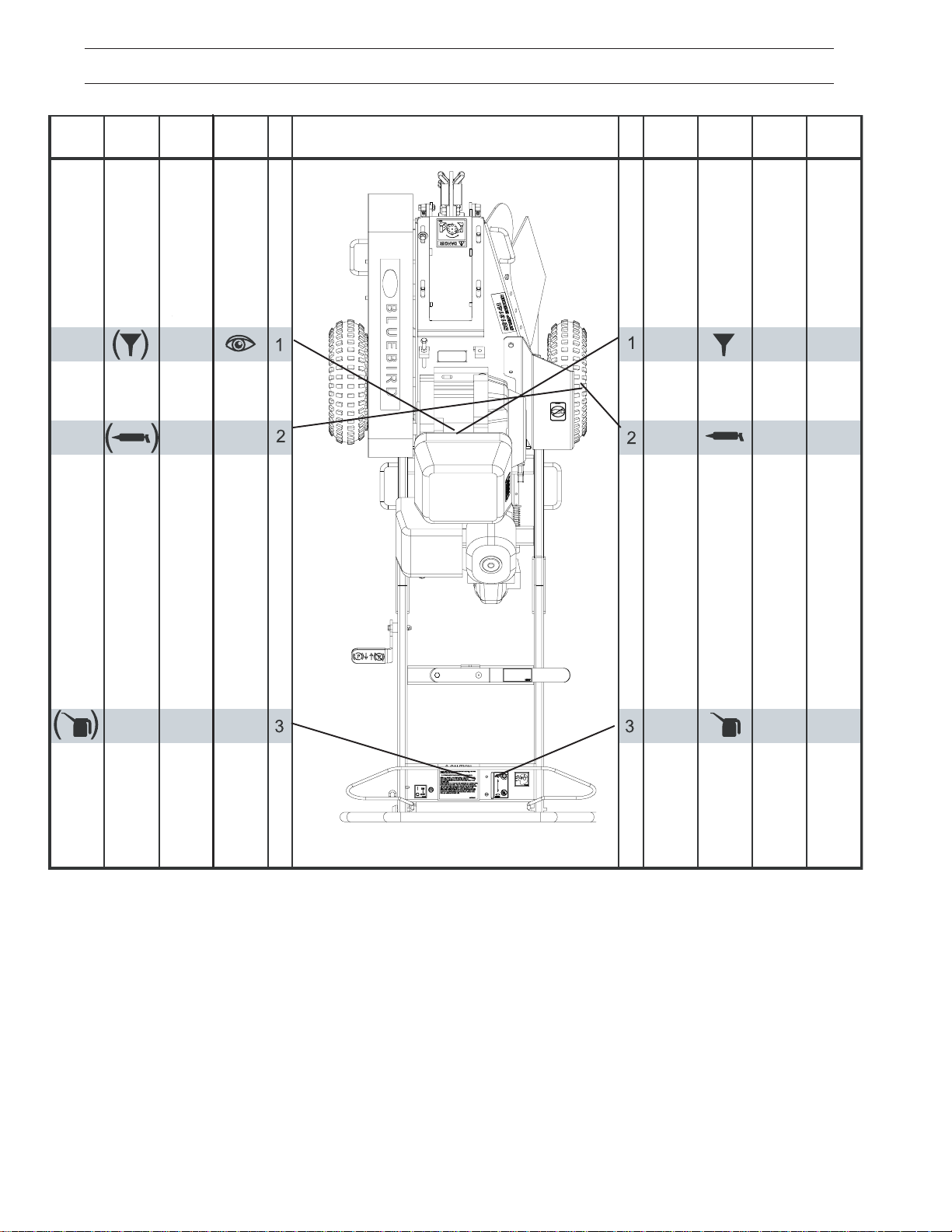

Lubrication Schedule.............................. 40
Lubricating the Cables............................ 42
Troubleshooting ........................................ 43
Storage ....................................................... 45
Winter Storage .......................................45
Service ................................................... 45
Technical Data ............................................ 46
Wiring Diagram........................................... 47
Service Journal....................................... 48
Delivery Service ..................................... 48
After the First 20 Hours ..........................48
3
INTRODUCTION
Congratulations
Thank you for purchasing a BlueBird stump grinder. Through your confidence in us, you have chosen an exceptionally high quality product.
This manual is a valuable document. It describes your new BlueBird machine. Read the manual
carefully before attempting to use the machine. Following the instructions (use, service, maintenance, etc.) can considerably increase the life-span of your machine and even increase its resale
value. Please contact your dealer for more information.
If you sell your BlueBird machine, make sure to give the operator’s manual to the new owner.
Use
The stump grinder is used to remove tree stumps. By moving the blade in sweeping movements
laterally over the top and front of the stump, you can gradually grind it away . Read the chapter
“Safety instructions” before you use the machine for the first time.
Insure your machine
Contact your insurance company to check on insurance coverage for your new machine. You
should have all-inclusive insurance for liability , fire, damage and theft.
Good service
BlueBird’s products are sold all over the world and only in specialized retail trade with complete
service. This ensures that you as a customer receive only the best support and service. Before the
machine was delivered it underwent inspection and was adjusted by your dealer. When you need
spare parts or support in service questions, guarantee issues, etc., please consult the following
professional:
This Operator’s Manual belongs to machine with
serial number:
Engine number:
Serial number
The serial number can be found on the printed plate attached to the frame in front of engine. The
plate includes the following information:
• The machine’s type designation (MODEL).
• The machine’s serial number (S/N).
Please state the type designation and serial number when ordering spare parts.
The engine’s serial number is punched in the crankcase under the oil level guard.
The engine type is specified on the crankcase to the right of the oil level guard but also appears on
the decal on the starter .
Please state these when ordering spare engine parts.
4
SYMBOLS AND DECALS
WARNING!
Xxxx xxx xxxx xx xxxx x xxxx.
IMPORT ANT INFORMA TION
Xxxx xxx xxxx xx xxxx x xxxx.
Used in this publication to notify the reader of a risk
of personal injury, p articularly if the reader DOES
NOT follow the instructions given in the manual.
Decals and machine-bound instructions
6
Used in this publication to notify the reader of a risk
of material damage, particularly if the reader DOES
NOT follow the instructions given in the manual.
Used also when there is a potential for misuse or
misassembly.
5
9
10
8
3
2
4
Decals that are missing or illegible shall be aquired/
replaced before using the machine.
1. BlueBird logo
2. BlueBird logo
3. General precautions
4. Exhaust warnings
5. Use ear and eye protection
11
7
1
6. DANGER risk for injury from cutter blade
7. Model designation SG1314A
8. Engine switch on the handle
9. Throttle
10. Handle adjustment
1 1 . No step
5

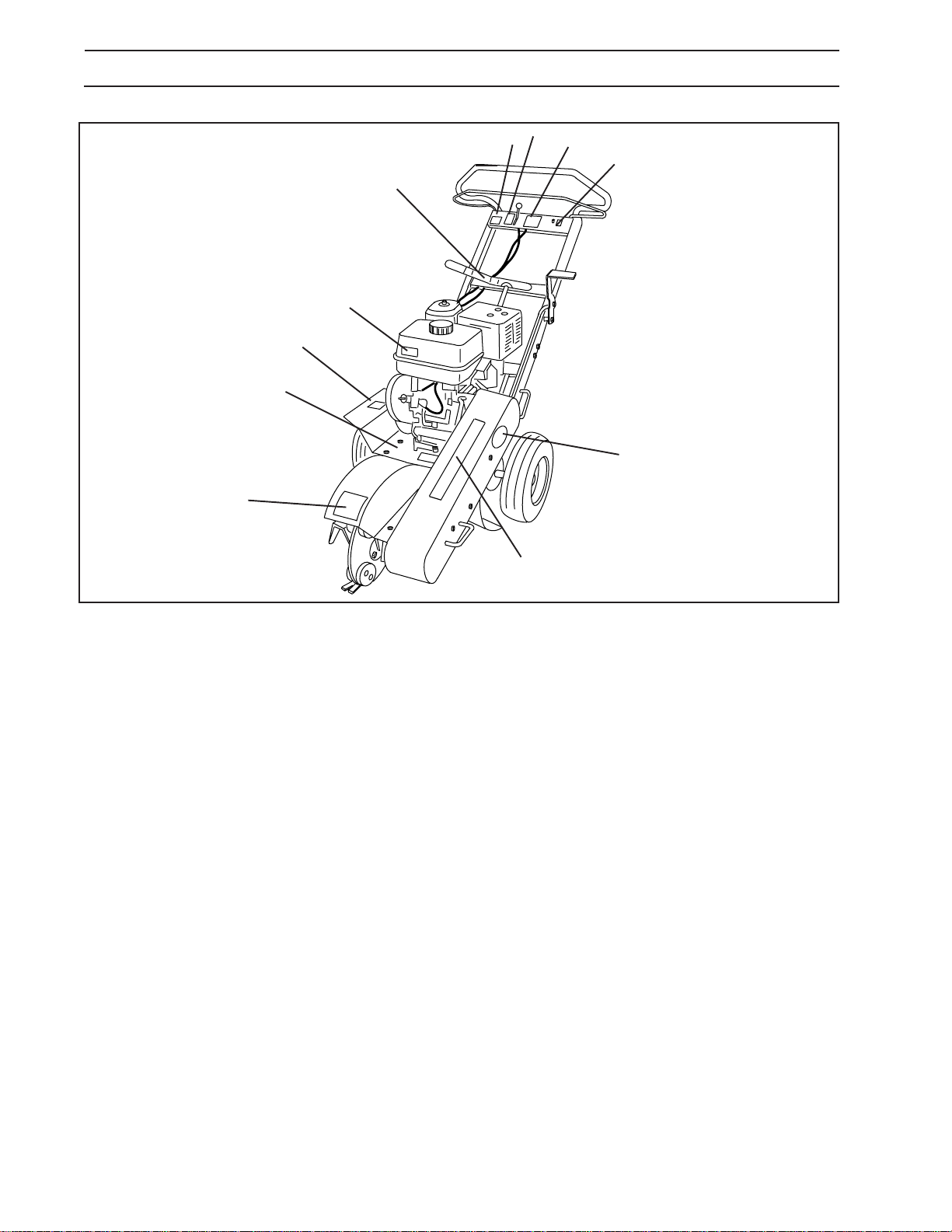

Location of decals
SYMBOLS AND DECALS
9
5
10
4
11
7
6
3
8
2
Translation of instructions
Decal 3
Important information
Read and make sure you understand the
Operator’s Manual before use or maintenance.
To obtain a replacement manual, please contact
your dealer .
Observe all safety instructions; otherwise you may
injure yourself or others around you.
Make sure that the machine is in serviceable condition prior to use.
Stop the engine and wait until all machine movement comes to a standstill before service, adjustment or cleaning.
Do not run the engine in poorly ventilated spaces.
Make sure nobody is in the vicinity of the machine
before starting and during use.
1
Decal 4
Warning
Engine exhaust, some of its constituents and certain vehicle components contain or emit chemicals
considered by the Sate of California to cause cancer, birth defects or other reproductive harm. The
engine emits carbon monoxide, which is a colorless, poisonous gas. DO NOT use the machine in
enclosed spaces.
Decal 5
Wear goggles or safety glasses and ear protections when using the unit.
Decal 6
There is DANGER to your feet from the cutting
blades.
Decal 8
O = off, I = on
Decal 9
Rabbit = Fast engage clutch.
Turtle = Slow disengage clutch.
Avoid slopes that are too steep to use the machine safely .
Clear any debris prior to use.
6
Decal 10
Handle adjustment.
Decal 11
No step.
SAFETY INSTRUCTIONS
General use
The object of this manual is to help you use your
BlueBird machine safely and to give you information
about how to maintain your machine. Please read
the manual carefully before attempting to use the
machine.
If after reading the operator’s manual you are still
unsure about the safety risks associated with use
of the machine, you should not use the machine.
Please contact your dealer for more information.
These safety instructions only address the basics
for safe use. It would be impossible in the safety
instructions to describe all possible risk situations
that could arise when using the machine. Y ou can,
however, prevent accidents by always using
common sense.
To obtain extra copies of the operator’s manual,
please contact your dealer .
WARNING!
Under no circumstances may the original
design of the machine be modified
without written approval from the
manufacturer. Such modifications not
only affect the performance and
durability of the machine but may even
pose a safety risk for users and those in
the vicinity. Unauthorized modifications
to the design of the machine may
absolve the manufacturer from liability
for any resulting personal injury or
property damage. Modifying the machine
without written approval from the
manufacturer may void the guarantee.
IMPORTANT INFORMATION
Do not use the machine until you have
read the operator’s manual carefully and
understand the instructions given. All
maintenance work or adjustments not
described in this manual must be
performed by an authorized BlueBird
service workshop.
WARNING!
The stump grinder can be dangerous if
used improperly or with out due care and
can lead to serious accidents, in the
worst cases even fatal accidents. It is
very important that you read this
operator’s manual and understand the
instructions before you attempt to use
the machine.
• Read this manual carefully and make sure you
understand it before using the machine or
performing any maintenance. If the user cannot
read this manual, it is the responsibility of the
machine owner to explain the contents to the
user.
8011-208chg
Read this manual carefully before starting the machine.
7
SAFETY INSTRUCTIONS
• Follow all safety instructions. Failure to do so
may result in injury to yourself or others.
• Accident prevention regulations, other general
safety regulations, occupational safety rules
and traffic regulations must be followed without
fail.
• All users shall be trained in use of the machine.
The owner is responsible for training users.
• Engage an authorized BlueBird workshop for
all service and repairs not described in this
manual.
• BlueBird original spare parts are designed and
specified to maintain high quality and correct fit
for optimal durability and life-span. From a
safety point of view, you should only use
BlueBird original spare parts.
• Learn how to use the machine and its controls
safely and learn to recognize the safety decals.
• Only use the machine for removing tree stumps.
It is not intended for any other use.
• Check that the machine is in serviceable
condition prior to use; see the chapter
”Maintenance/Maintenance schedule”.
WARNING!
The engine can become very hot. To
avoid being burned, you must turn off the
engine and wait until all parts have
cooled before touching the engine.
WARNING!
Overexposure to vibration may lead to
circulatory or nerve damage, particularly
in people who have impaired circulation.
Contact your doctor if you experience
symptoms that could have been caused
by overexposure to vibration. Examples
of common symptoms include numbness,
pain, muscle weakness, change of skin
color or an uncomfortable feeling of
tingling. These symptoms appear most
frequently in the fingers, hands or wrists.
• Only use the machine in daylight or in other welllit conditions. Keep the machine a safe distance
from holes or other irregularities in the ground.
Pay attention to other possible risks.
• Only allow the machine to be used by adults
who are familiar with its use.
• Never allow children or persons not trained in
the use of the machine to use or service it.
Local laws may regulate the age of the user.
• People and animals can distract you causing
you to lose control of the machine. For this
reason, you should always concentrate and
focus on the task at hand.
• Never leave the machine unsupervised with the
engine running.
• Make sure that other people are nearby when
you are using the machine so that you can call
for help should an emergency arise.
• The machine is tested and approved only with
the equipment originally provided or
recommended by the manufacturer.
IMPORTANT INFORMATION
Never use a stump grinder that is
damaged or incorrectly adjusted. Never
use the stump grinder if any component
is missing or if it is not properly
assembled. Check that the cutting tools
stop rotating when you reduce the throttle.
If you find yourself in a situation where you
are not sure what to do, always seek
expert assistance. DO NOT try to attack
any problem you are not qualified to
resolve.
8
SAFETY INSTRUCTIONS
Preparations
• Make sure that you always have first aid
equipment at hand when using the machine.
• Make sure nobody else is in the vicinity of the
machine when you start the engine, engage the
drive or run the machine.
• Make sure animals and people maintain a safe
distance from the machine.
• Clear the area of objects such as stones, toys,
steel wire, etc. that could become caught in
moving machine parts and thrown out.
• Find and locate all fixed objects in the ground,
such as sprinkler systems, poles, water valves,
bases for washing lines, etc. Be certain to
check for hidden electrical cables or similar in
the surface of the lawn. Always run the machine
around these objects. Never intentionally run
the machine over foreign objects.
• Check that the dead man’s grip and all guards
are fitted and functioning. DO NOT use the
machine if it is not working properly .
• Makes sure no clothing, long hair or jewelry can
catch in moving machine parts.
• Check that all safety decals are in place. See
the chapter “Location of decals”.
• Use mouth protection, protective gloves with
good grip and protective clothing which you can
move unrestricted. Also use leg protection to
protect your legs from sparks and the cutting
tools.
8011-198
Clear the work area before beginning work.
8011-189
Use appropriate equipment.
• Never use the machine when barefoot. Always
wear protective shoes or protective boots with
anti-slip and preferably with steel toes.
• Use a helmet with a full face visor or a mesh
visor and protective glasses. Wear approved
ear-protection when running the machine. Ask
your dealer about approved protective glasses,
ear protection and recommended helmets.
WARNING!
Always use approved protective clothing
and approved protective equipment when
using the machine. Protective clothing and
protective equipment cannot eliminate
the risk of accidents, but wearing proper
clothing and the correct equipment will
reduce the degree of injury should an
accident occur. Ask your dealer about
approved protective clothing and
approved protective equipment
recommended by BlueBird.
9
SAFETY INSTRUCTIONS
Operating
• DO NOT use the machine on grades of more
than 10°.
• DO NOT use the machine if you are tired, if
you have consumed alcohol, or if you are taking
other drugs or medication that can affect your
vision, judgment or coordination.
• Never use the machine indoors or in spaces
lacking proper ventilation.
• Make sure you have a proper foothold when
using the machine, particularly when backing.
Walk, don’t run. Never work on wet grass. Poor
traction may cause you to slip.
• Keep your hands and feet away from moving
parts.
• Keep your hands and feet away from the work
tools.
• DO NOT use your feet or other parts of your
body to gain greater bearing pressure against
the stump.
8011-209chg
The engine exhaust is poisonous. Never run the engine indoors.
• Smoking, open flames or sparks in the vicinity
of the machine are strictly forbidden. Gasoline
is extremely flammable and carelessness in
handling can result in personal injury or fire.
• Never use a machine with a defective muffler.
• In very warm and dry climates, stump grinder
operation poses a risk of forest fires.
• Stop and inspect the equipment if you run over
or into anything. If necessary, make repairs
before beginning again.
• Whatever happens, you should always park the
machine on even ground, disengage the drive,
activate the parking, turn off the engine and
wait until all moving parts have stopped before
leaving the operating position behind the
machine.
8011-091
Make sure you keep your hands and feet away from moving
parts.
8011-291chg
Smoking near the machine is strictly prohibited.
WARNING!
Engine exhaust, some of its constituents and certain vehicle components contain or emit
chemicals considered to cause cancer, birth defects or other reproductive harm. The
engine emits carbon monoxide, which is a colorless, poisonous gas. Do not use the
machine in enclosed spaces.
10
SAFETY INSTRUCTIONS
Movement/Transport
• To turn and steer the machine, press down on
the handle and turn on the back wheels.
• Turn off the engine and allow it to cool at least 2
minutes before transport.
• Collapse the handle if the machine is equipped
with a collapsible handle.
• Be careful and use safe lifting and moving
techniques when loading/unloading the
machine.
• We recommend having two people to lift the
machine.
8011-278chg
• Activate the parking brake during transport.
• Fasten the machine properly in place with
approved fasteners, such as tension belts,
chains or rope. Always check that you are in
compliance with applicable traffic regulations
before transporting the machine.
Storage
• Allow the engine to cool before storing the
machine. Never store the machine near a open
flame.
• Store the machine with the fuel valve closed.
• Store the machine and fuel in such a way that
there is no risk that leaking fuel or fumes can
come in contact with flames or sparks from
electrical machines, electric engines, relays,
switches, boilers or similar.
• Store the machine in a locked space away from
children and adults untrained in use of the
machine.
We recommend having two people lift the machine.
8011-207chg
Keep children away from the machine.
Children
Serious accidents can occur if you fail to be on
guard for children in the vicinity of the machine.
Never assume that children will stay put where you
last saw them.
• Keep children away from the machine.
• Keep children away from the work area and
under close supervision by another adult.
• Keep an eye out and shut off the machine if
children enter the work area.
• Never allow children to operate the machine.
• Be particularly careful near corners, bushes,
trees or other objects that block your view .
8011-206chg
Never allow children to operate the machine.
11
SAFETY INSTRUCTIONS
Fuel system
W ARNING!
Gasoline and gasoline fumes are
poisonous and extremely flammable.
Be especially careful when handling
gasoline, as carelessness can result
in personal injury or fire.
• Only store fuel in containers approved for that
purpose.
• Never remove the fuel cap and fill the fuel tank
when the engine is running.
• Always stop the engine when refueling.
• Do not smoke when filling the gasoline tank and
do not pour gasoline in the vicinity of sparks or
open flame.
• Never fill the fuel tank indoors.
• Before starting the machine after refueling, it
should be moved at least 10 feet (3 M) from
the location where it was filled.
• Turn off the fuel supply for storage or transport.
• If leaks arise in the fuel system, the engine must
not be started until the problem has been
resolved.
8011-205chg
Never fill the fuel tank indoors.
FUEL VALVE
8011-186
Close the fuel valve.
• Check the fuel level before each use and leave
space for the fuel to expand, because the heat
from the engine and the sun can otherwise
cause the fuel to expand and overflow .
• Avoid overfilling. If you spill gasoline on the
machine, wipe up the spill and wait until it has
evaporated before starting the engine. If you
spill gasoline on your clothing, change your
clothing.
12
8011-222chg
Fueling always poses an element of risk.
SAFETY INSTRUCTIONS
Maintenance
• Never make adjustments with the engine
running.
• Disengage the drive units, shut off the engine
and wait until all moving parts come to a
complete stop before making adjustments,
performing maintenance or cleaning the
machine.
• Disconnect the spark plug cable before
beginning repair work.
• Keep all components in serviceable condition
and make sure all nuts, bolts, etc. are tight.
Replace worn or damaged decals.
• Be careful when checking work tools. Use
gloves when performing maintenance work.
• Never allow persons not trained in the use of
the machine to perform service on it.
• Always park the machine on even ground before
performing maintenance or making
adjustments.
8011-027
Remove the spark plug cable.
W ARNING!
Wait until all moving part s are completely
still before performing maintenance on
the machine.
• Do not disassemble the engine. This can
invalidate your engine warranty. Contact your
dealer if you have any questions regarding
service or guarantee matters. Follow all
maintenance instructions.
• Do not change the setting of governors and
avoid running the engine with overly high RPM.
If you run the engine too fast, you risk damaging
the machine components.
• Do not modify safety equipment. Check
regularly to be sure it works properly. The
machine must not be run with defective or
disassembled safety equipment.
• The muffler is designed to maintain sound levels
at an approved level and keep direct exhaust
away from the user. Exhaust gases from the
engine are extremely hot and may contain
sparks that can cause fires or burn the user.
• Never use a machine with a defective muffler .
• Reduce the risk of fire by removing grass,
leaves and other debris that may have caught
in the machine.
Turn off the engine and remove the
spark plug cable.
8011-210chg
Keep the machine clean.
13
PROTECTIVE EQUIPMENT
Personal equipment
Consult your BlueBird dealer when selecting
protective equipment. Our dealers have a broad
assortment of equipment for professionals such
as forestry workers and knowledge about
occupational environment requirements and
protective levels.
Before using the stump grinder, you may in many
cases need to cut back the object with a power
saw. Hence, it is appropriate to use personal
protective equipment that fulfils requirements for
working with both stump grinders and power
saws.
The main difference is that you should wear
protective glasses when operating the stump
grinder while the wire mesh visor gives sufficient
protection when using a power saw. Thus when
using the stump grinder, we recommend using
both a wire mesh visor to protect your face and
protective glasses. Alternatively, you can use a
Plexiglas face guard, but it scratches more easily
and is more susceptible to soiling and fogging.
You require the following personal protective
equipment:
1. Protective helmet (hard hat)
2. Ear protection
3. Face guard
4. Protective trousers
5. Protective glasses
6. Breathing protection (risk of dusty work
environment)
7. Protective gloves
8. First aid kit
9. Protective boots or steel-toed shoes
14
8011-027
SET-UP
Equipment set-up
1. Remove crate top and sides.
2. Remove upper handle bar assembly and lay
aside.
3. Open bag containing loose hardware.
4. Using four (4) screws, flat washers and nuts
attach the upper handle bar assembly to lower
handle bar assembly. See Figure 1.
NOTE: Handle fit is tight. When aligning holes use
a tapered type pilot to help align holes (i.e.
punch or phillips style screw driver).
HARDWARE
WASHERS
(2)
COTTER PINS
(2)
UPPER HANDLE BAR
ADJUSTING
ROD
COTTER PIN
(1)
5. Attach the position adjusting rod to bracket on
the lower and upper handle bar assemblies.
See Figure 1.
6. Assemble the compression spring, two (2) flat
washers and yoke to brake rod assembly . See
Figure 2. Screw yoke onto the rod assembly
till rod is even or thru threaded portion of yoke
about 1/4” (6.35 mm).
BRAKE ROD
ASSEMBLY
LOWER HANDLE BAR
FIGURE 1
WASHERS
YOKE
SPRING
FIGURE 2
7. Attach brake rod assembly to brake handle on
the upper handle bar assembly . See Figure 3.
WASHER
(1)
COTTER PIN
(1)
BRAKE
HANDLE
BRAKE ROD
ASSEMBLY
FIGURE 3
15
SET-UP

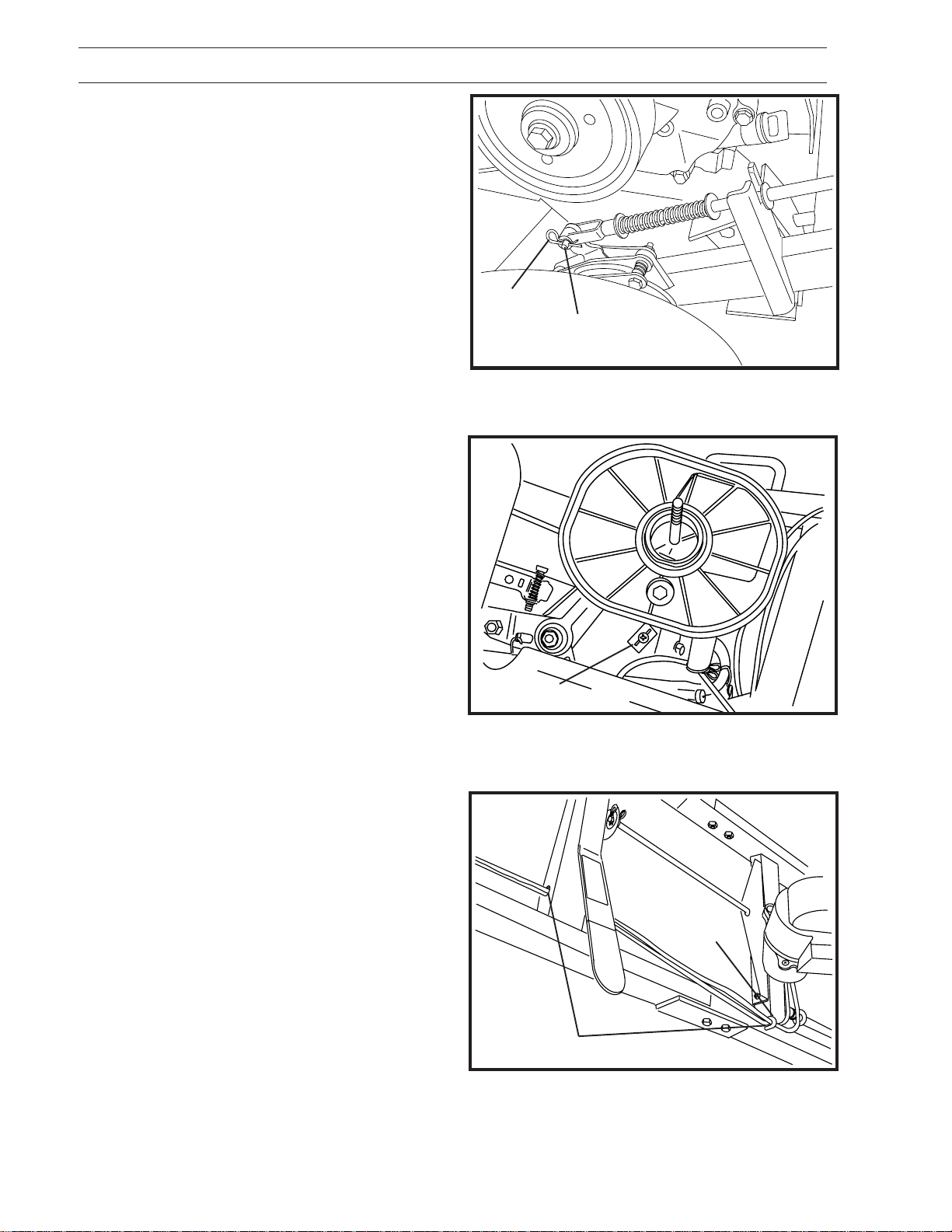

8. Attach the yoke to the brake’s top mounting hole
using the clevis pin and cotter pin. Make sure
the rod is positioned in the bracket as shown in
Figure 4.
NOTE: Adjust the brake before inserting hair pin.
To engage brake, pull back on handle until brake
rod assembly goes “over center” and locks the
brake ON. Turning the yoke clockwise shortens the
rod tightening the grip on the brake disc by the brake
pads. counterclockwise loosens the clamping
force. Proper brake adjustment is such that the
wheel will not turn, but slide, when handle is over
center.
HAIR PIN (1)
CLEVIS PIN (1)
FIGURE 4
9. Remove air cleaner and double wire clamp from
engine. Figure 5.
10. Route the wire harness from engine through
guide and handle crossmember. Figure 6.
1 1. Route the throttle cable through guide on lower
handle assembly . Figure 6.
12. Connect upper and lower wire harness together.
Y ellow to yellow and black to black.
CLAMP
FIGURE 5
GUIDE
13. Push throttle control lever on console forward
to full extent. Pull throttle control lever on engine
back as far as possible. See Figure 7.
16
THREAD WIRE HARNESSES
AND THROTTLE CABLE
FIGURE 6
SET-UP
14. Insert “L” end of throttle cable into the outside hole
of the engine throttle control lever. Figure 7.
ENGINE
THROTTLE
CONTROL
LEVER
THROTTLE
CABLE
FORW ARD
FIGURE 7
15. Attach the throttle cable to the engine using the
double wire clamp removed in step nine. Figure 8.
16. Test throttle control by pulling back throttle
handle on console. Throttle arm on engine
should be pushed completely forward. Cable
should not slip in clamp when doing this test.
17. T est proper wire length by pulling on the handle
adjustment lever and raising and lowering the
handle to maximum position without any pull
on harness.
18. Reattach air cleaner to engine.
19. Unit is now ready to be removed from pallet.
THROTTLE
CABLE
FIGURE 8
17
CONTROLS
Presentation
Congratulations on your choice of an exceptionally
high quality product. This operator’s manual
describes the BlueBird stump grinder.
The machine is equipped with a 13 hp Honda fourcycle engine.
Main components and operating controls
5
6
4
5
1. Handle
8
8
3
7
9
10
11
2
1
7. Engine
2. Dead man’s grip bar
3. Brake lever
4. Belt guard for the cutter drive
5. Front lifting handle
6. Cutting wheel
18
8. Rear lifting handle
9. Adjustment bar for the handle
10. Throttle
11. Engine switch
Engine
Exterior engine components and controls.
1. Throttle
2. Starter
3. St arter handle
4. Fuel valve
5. Choke control
6. Air filter
7. Sp ark plug
8. Muffler
9. Oil dipstick
10. Oil drainage
CONTROLS
10
8011-126
1 1. Oil level guard
12. Engine switch - disconnected use switch on
handle bar
13. Fuel tank
14. Fuel filler cap
Throttle
The lever on the engine is normally not used. It is
connected to the throttle on the handle. If the cable
should bind or break, you can reduce the throttle
with the lever on the engine as an emergency
measure to slow the engine speed to an idle and
stop the cutting wheel.
13
14
12
911
8011-273chg
THROTTLE
LEVER
8011-034
19
CONTROLS

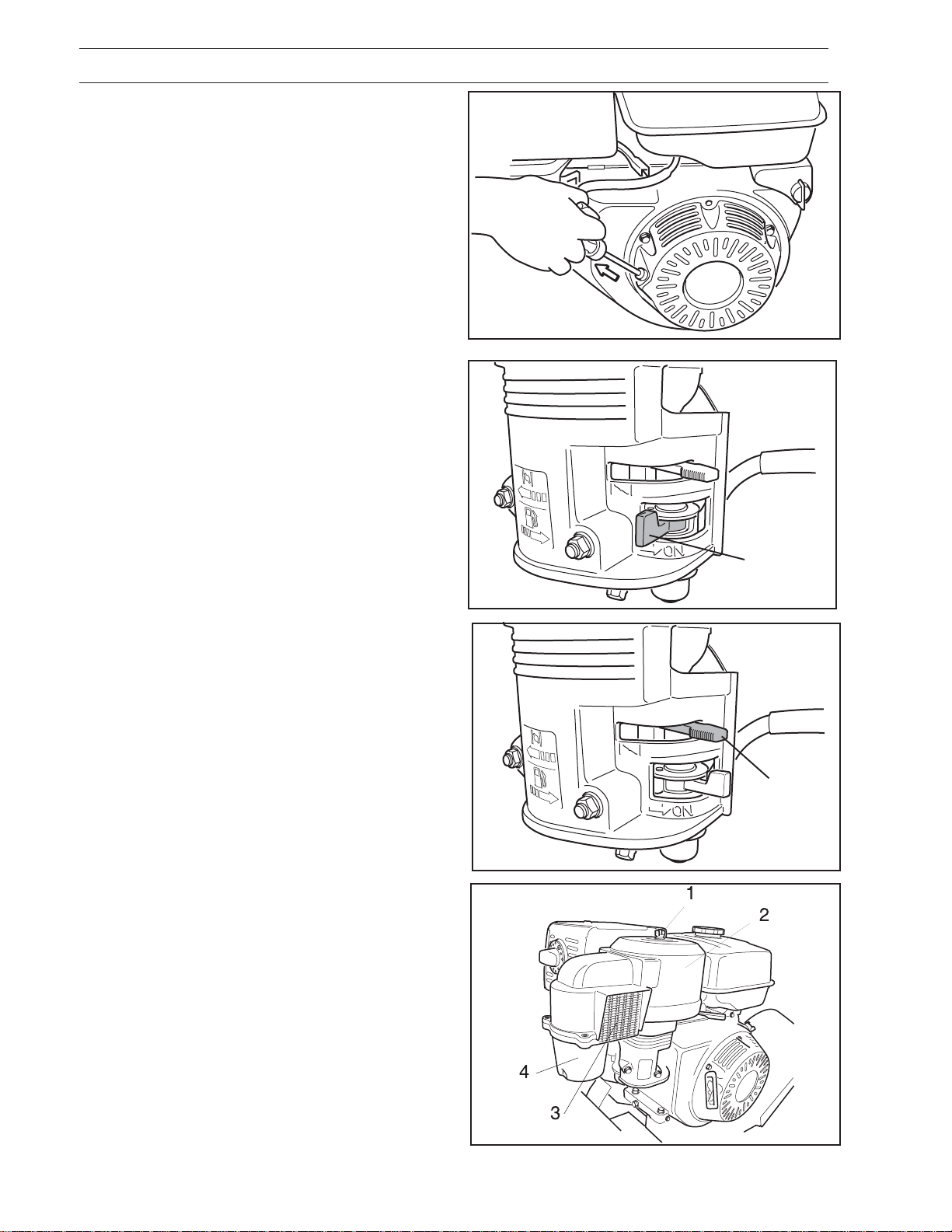

Starter
The starter is of the magnapull type with spring
return. To replace the return spring or starter cord,
contact an authorized service workshop.
Starter handle
Misuse of the starter handle can damage the starter .
Do not twist the starter cord around your hand.
Pull out the handle slowly until the gears mesh. Do
not pull out the starter cord completely and do not
let go of the starter handle when extended.

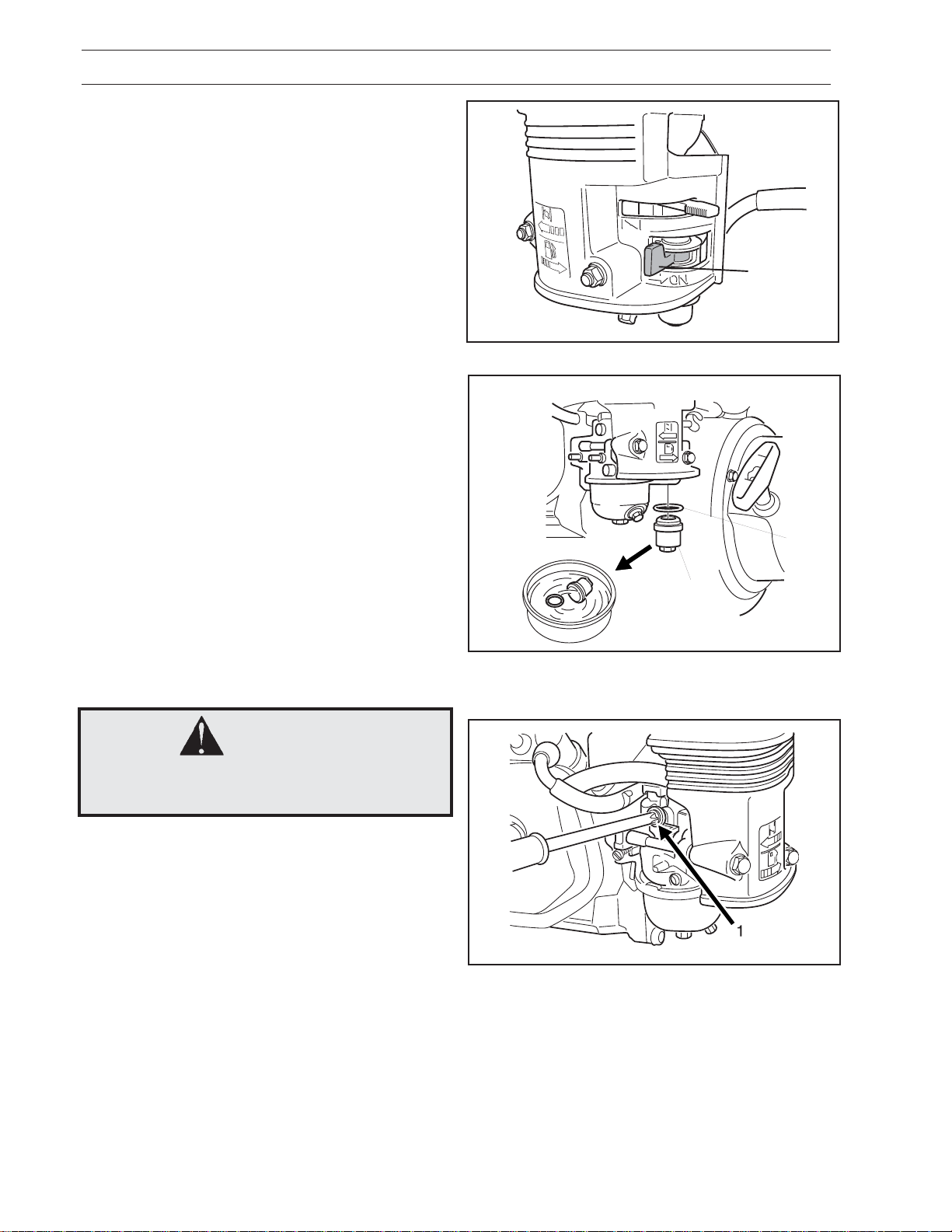

Fuel valve
The fuel valve opens and closes the connection
between the tank and the carburetor .
The illustration shows the tank valve closed; to
open, turn the lever completely to the right. There
is no middle position.
Turn off the valve when the machine is not in use
to avoid flooding the carburetor.
The fuel valve is combined with a sludge reservoir .
8011-127
Choke control
The choke control opens and closes the choke
valve in the carburetor. This is only used to st art a
cold engine.
The image shows the choke valve open; to close,
move the lever to the left. The midway positions
can be used. When the engine starts, the lever can
be moved gradually to the right as long as it
continues to run smoothly . Forgetting the choke is
evident as the engine runs roughly and produces
black smoke.
This also results in increased fuel consumption.

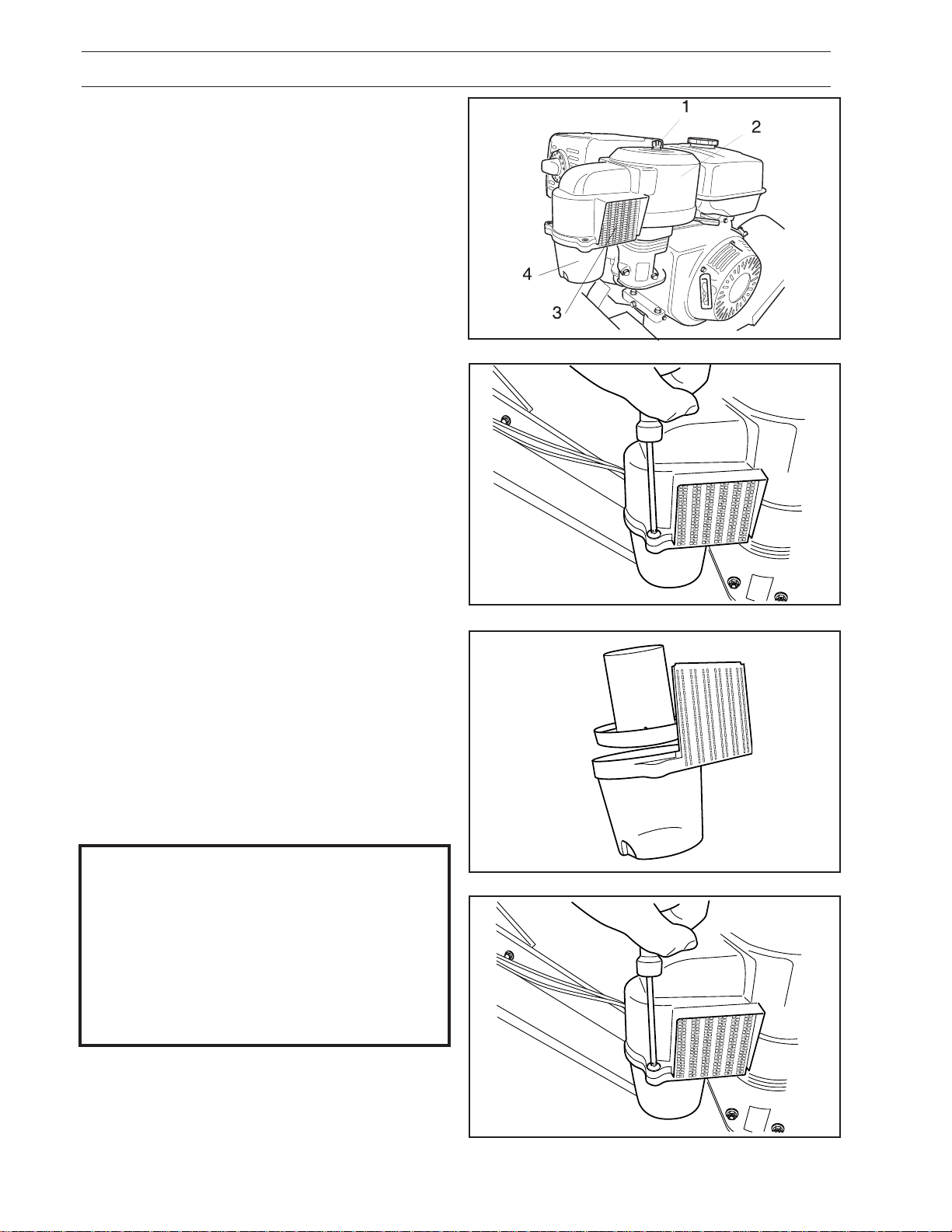

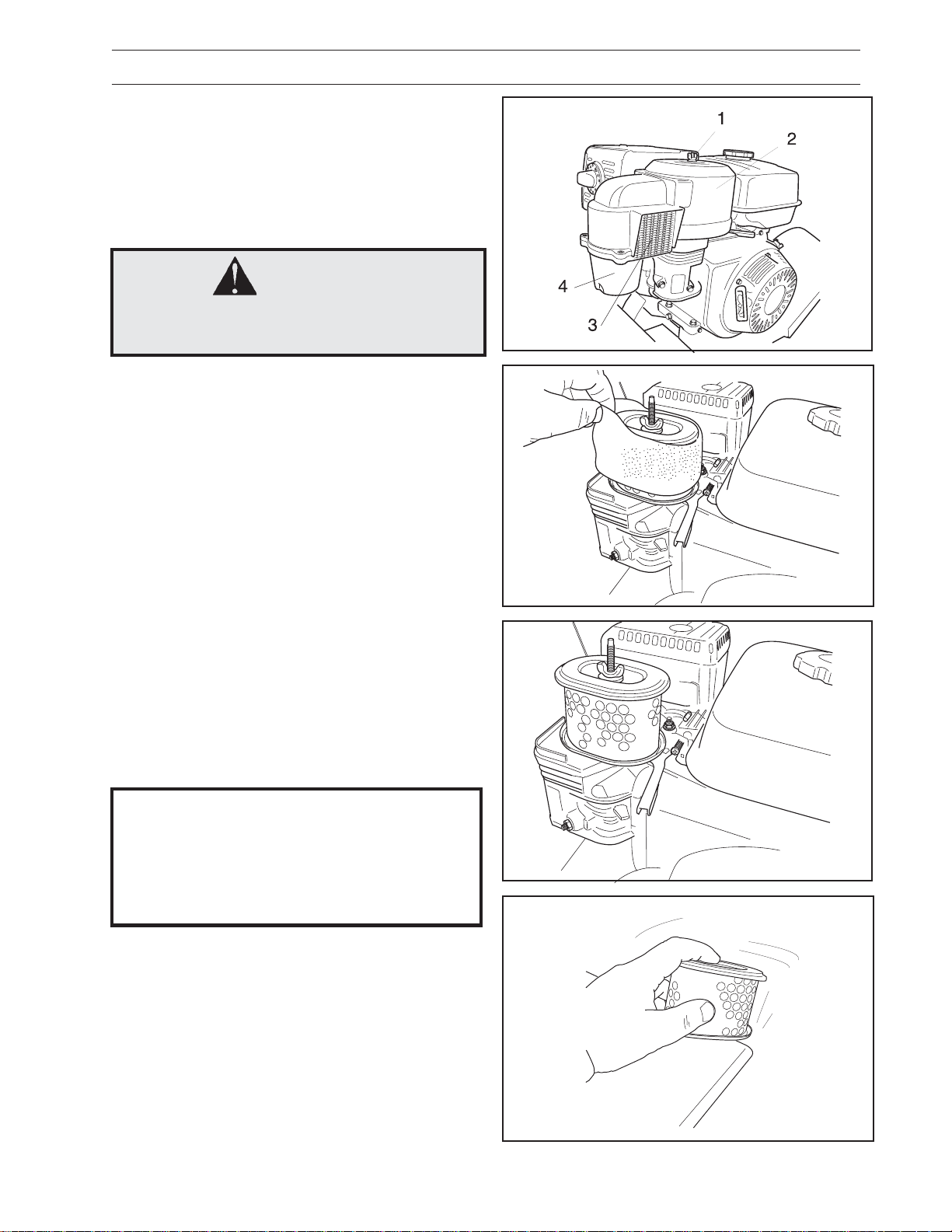

Air filter
The engine air filter consists of a cyclone filter and
a fine filter.
Air is drawn in through the screen (3) on the cyclone
filter and coarser pollutants collect in the container
(4).
The fine filter, which consist s of a foam rubber prefilter and a paper filter cartridge, is located under
the cowling (2). The cowling and the cyclone filter
can be removed by removing the wing nut (1).
FUEL
VALVE
8011-186
CHOKE
CONTROL
8011-183
See the chapter “Maintenance/Cleaning the
cyclone filter and Replacing the air filter” for cleaning
instructions.
Running the machine with a dirty air filter will cause
the engine to run on partial choke and show the
same symptoms as a forgotten choke described
above. It can also be difficult to start.
20
8011-188
CONTROLS

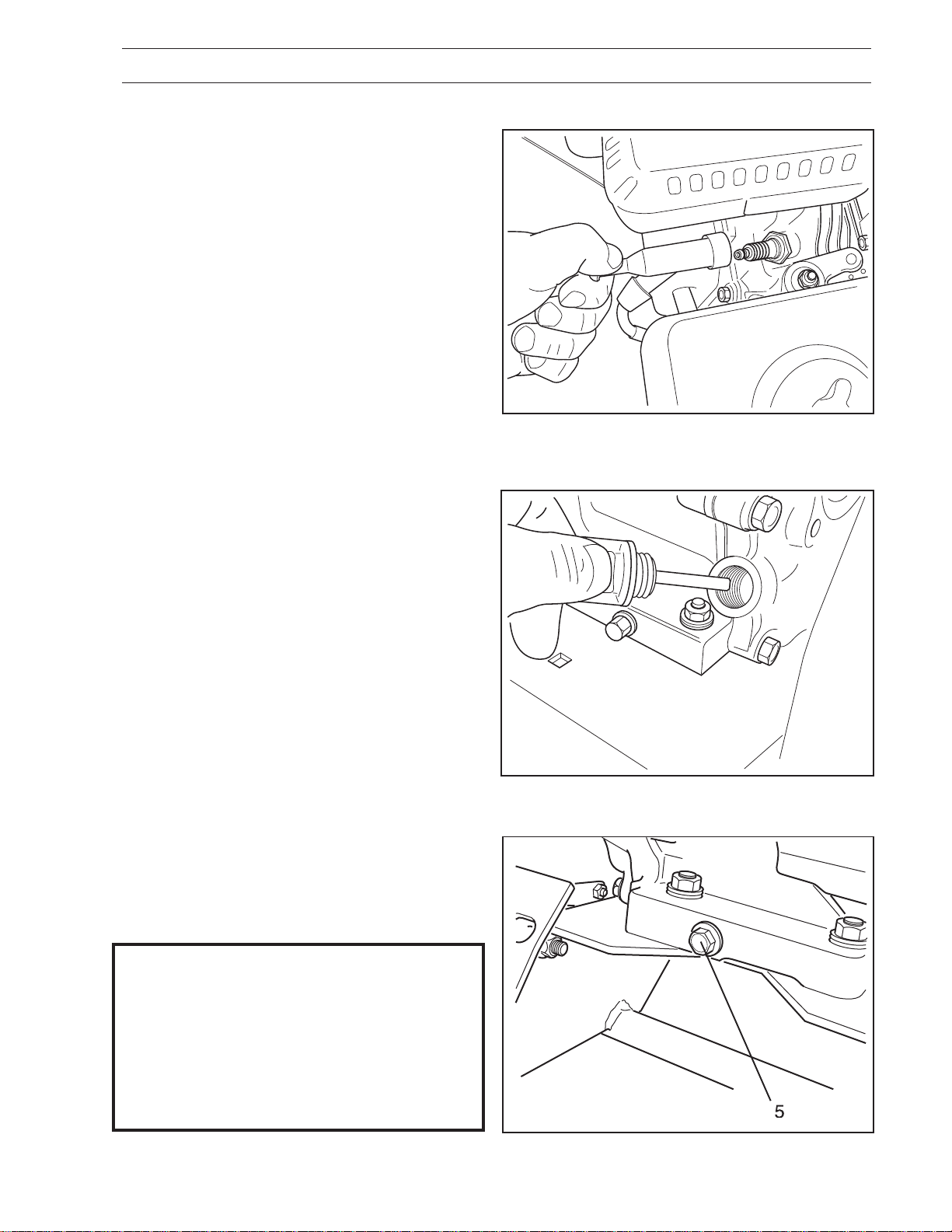

Spark plug
The engine spark plug is hidden under the ignition
cable shoe. When performing service, it is
important that the engine cannot start accidentally .
For this reason, always remove the ignition cable
shoe from the spark plug. To avoid pulling the cable,
the cable shoe is equipped with a special handle;
see the illustration.
Type of sp ark plug, see “Technical data”.
Service instructions, see “Maintenance/Electrical
system”.
Muffler
The engine muffler is equipped with a heat
protective cowling. Nonetheless, it still becomes
hot when the engine is running. A void touching the
muffler when it is warm. Risk for burns.
Oil dipstick
The dipstick for the crankcase oil reservoir is
located on the front of the engine. Refill the engine
oil in the hole where the dipstick fits.
When checking the oil level, the dipstick should not
be screwed in. The machine should be parked on
even ground with the engine stopped. Never run
the engine without the dipstick in place. The engine
has an electronic oil level guard. It stops and cannot
be started if the level becomes too low. Yet you
should not rely entirely on the level guard; rather
you should check the oil using the dipstick.
For normal use, we recommend SAE 10W-30
weight engine oil service SF-SG; see also the
chapter “Lubrication/Engine oil”.
8011-027
8011-020

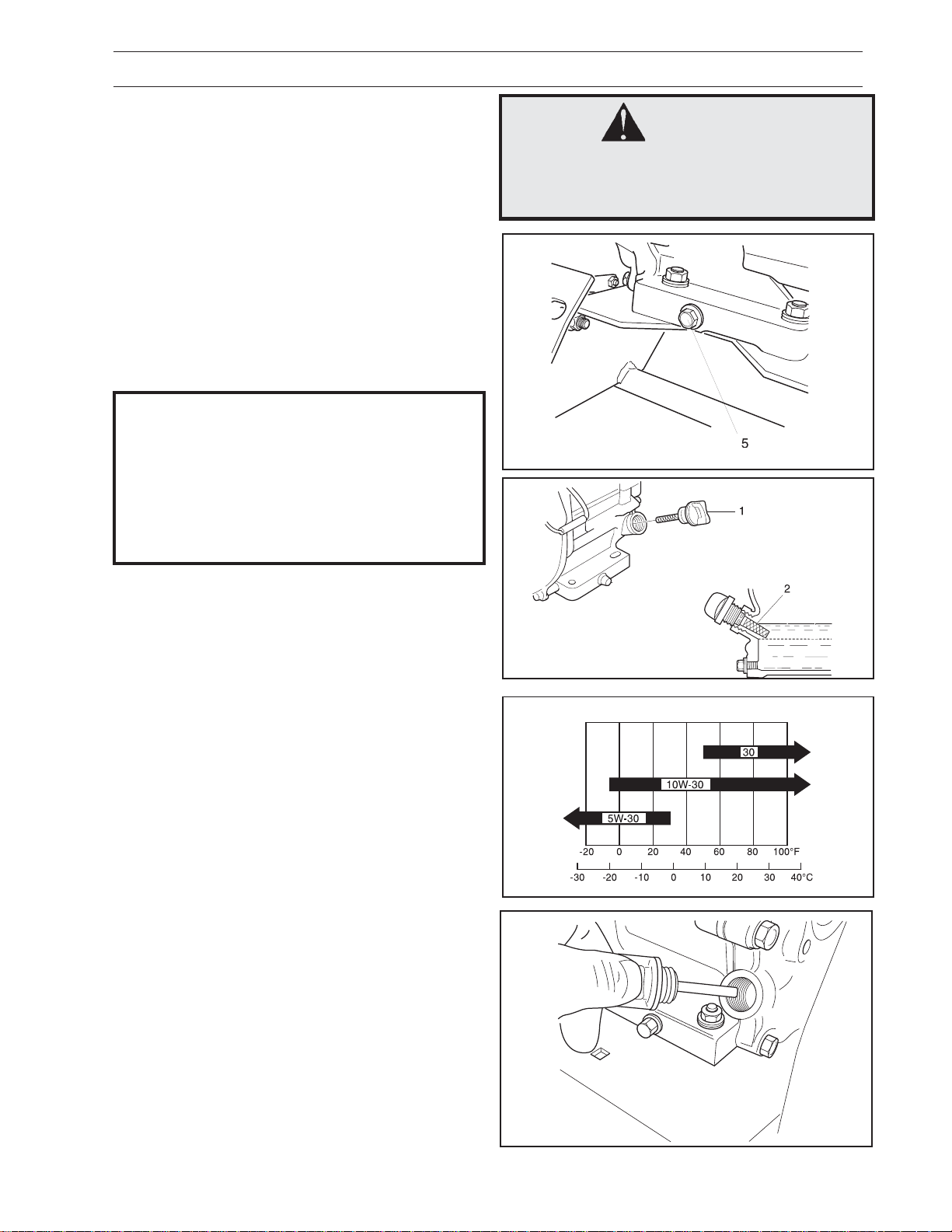

Oil drainage
The drainage screw (5) for the crankcase oil
reservoir is located on the back of the engine.
IMPORTANT INFORMATION
Used engine oil is a health hazard and
legislation prohibits disposal on the
ground or in nature; it should always be
disposed of at a workshop or appropriate
disposal location. Avoid skin cont act; wash
with soap and water in case of spills.
8011-187
21
CONTROLS

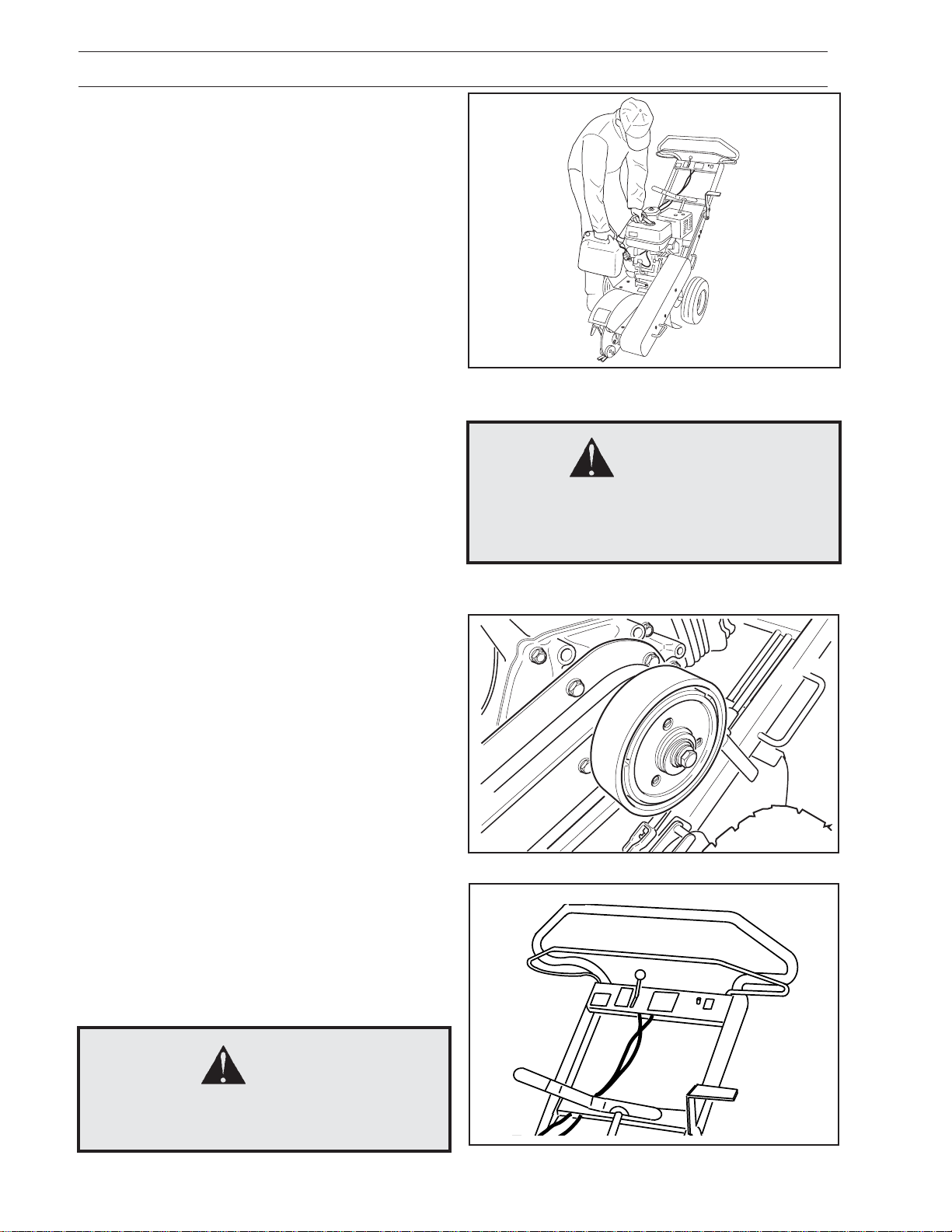

Fuel tank
Underneath the tank, there is a fuel filter combined
with the fuel valve. The tank volume is 1.72 Gal.
(6.5 liters)
Fueling
Read the safety instructions before fueling.
Keep the fuel and fuel tank clean. Avoid filling the
machine with dirty fuel. Make sure the fuel cap is
properly tightened and the gasket is not damaged,
particularly before washing the machine.
Use unleaded gasoline with minimum 86 octane
rating. Never use gasoline mixed with two-cycle
oil. For ethanol and methanol fuel, the following
applies:
Maximum allowable ethanol 10% (volume).
Maximum allowable methanol 5% (volume).
Maximum allowable MTBE (Methyl Tertiary Butyl
Ether) 15% (volume).
If the engine “bolts” at normal load it can be
damaged. Change the fuel. If this does not help,
contact an authorized service workshop.
Do not fill the tank completely; leave space for the
fuel to expand as it warms up.
Centrifugal clutch
The engine is equipped with a centrifugal clutch
that is connected to the crankshaft. When the
engine speed increases, the drive for the cutting
wheel engages automatically . The centrifugal clutch
is maintenance-free; it is not possible for the user
to make adjustments.
8011-222chg
WARNING!
Gasoline is highly flammable. Observe
caution and fill the tank outdoors. (See
the safety instructions.)
Cutting unit

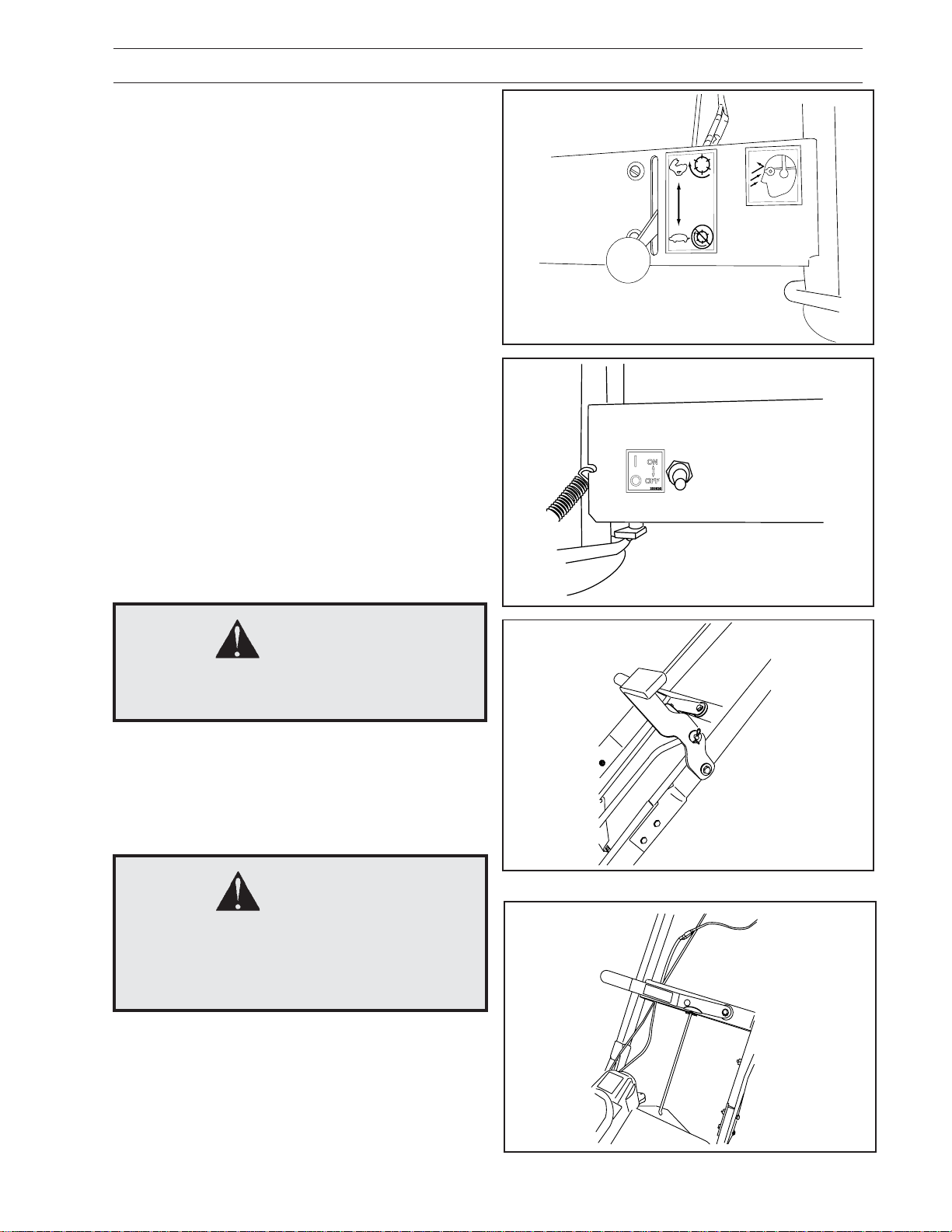

Dead man’s grip bar
The bar must be held against the handle for the
engine to run. If you release the grip, the ignition
system short-circuits and the engine stops.
WARNING!
Do not bind the bar to the handle.
It is there for your safety.
22
8011-247chg
CONTROLS
Throttle
The lever controls engine speed.
With the lever down, the engine runs at idle and
functions as start position.
When the engine speed increases, the centrifugal
clutch drive automatically engages the cutting
wheel.
On/Off Engine switch on the panel
The ON/OFF engine switch can be used to stop
the engine. The illustration shows the toggle switch
in the OFF position (short circuited electrical
system). There is another switch with the same
function:
• The micro switch that is affected by the dead
man’s grip bar.
To start the engine, the switch must be first set to
the ON position and the dead man’s grip must be
held in.
.
Brake
WARNING!
NEVER operate a machine with a
defective brake.
The lever activates a disk brake on the left wheel
when it is pulled backwards. The brake should
always be activated when operating the grinder,
when it is parked and when it is being transported.
Adjustment bar for the handle
WARNING!
DO NOT pull out the adjustment bar
when the cutting wheel is rotating. There
is a great risk that you will lose control of
the machine.
As the tree stump is ground away, the handle
position will need to be adjusted. Pull the handle
backwards and set the handle at a suitable working
height. Engagement rods are spring loaded to
insure positive locking when released, but always
make sure bolts are locked into place after you
make adjustments.
23
OPERATION
Starting the engine
Check that all daily maintenance as described in
the maintenance schedule has been performed.
Check that there is sufficient fuel in the tank.
Fuel valve
Open the fuel valve. Place the lever all the way to
the right.
Choke control
When starting the engine warm, the lever should
be in the right position; see the illustration.
When starting the engine cold or partially warm,
place the lever completely or partly to the left.
Move the lever back to the right once the engine
starts. When the engine is cold, it may be best to
move the lever back in several stages. Find the
position where the engine runs smoothly.
FUEL V AL VE
8011-182
CHOKE
CONTROL
8011-183
Throttle
Set the throttle on the handle to the SLOW(ST ART)/
DISENGAGE position.
Engine switch on the engine
Swtich on engine is disconnected, use engine
switch on handlebar.
.
OFF
ON
8011-071
24
OPERATION
Engine switch on the handle
Set the toggle switch to ON.
Dead man’s grip bar
Hold in the bar for the dead man’s grip against the
handle.
Starter handle
The dead man’s grip must be pressed in when
starting the engine.
Misuse of the starter handle can damage the starter.
DO NOT twist the starter cord around your hand.
Pull out the handle slowly until the gears mesh.
Then give a sharp pull on the starter handle. DO
NOT pull out the starter cord completely and DO
NOT let go of the starter handle when extended.
Throttle
Keep the throttle at idle. When the throttle is
increased, the cutting wheel will begin rotating.
8011-185
8011-127
.
25
Normal shutdown
Throttle
OPERATION
Set the throttle to SLOW/DISENGAGE.
If the engine has been running full out, let it run
easily for about 30 seconds to 1 minute at low
speed.
DO NOT let front of unit touch ground until you are
sure cutting wheel has stopped turning.
Engine switch
Wait at least 20 seconds, until the blade has
stopped.
Set the toggle switch to OFF.
Make sure that the blade is resting against the
ground and has stopped completely before doing
anything.
.
Brake
Activate the brake by pulling the lever backwards.
Fuel valve
Close the fuel valve. Turn the lever all the way to
the left (see illustration).
Shutdown in emergency situations
Release the dead man’s grip.
Wait until the blade stops.
Make sure that the blade is resting against the
ground and has stopped completely before doing
anything.
8011-186
26
OPERATION
Before you start
Dig away the earth and remove any stones near
the tree stump that may interfere with your work.
Check that the ground is free of foreign objects,
such as electrical cables, barbed wire, etc.
Cut or trim the stump as necessary using a power
saw.
• Review all of the machine’s safety decals.
• Use a hard hat, ear and eye protection. A mesh
visor alone does not provide sufficient eye
protection; supplement with protective glasses.
8011-141
• Make sure that you are familiar with safety
regulations and shutdown procedures
described previously in the operator’s manual.
• Make sure that all guards are in place and in
good condition.
• Make sure that the blades and cutters are in
place and in good condition.
• Make sure that the work area and cutter in
particular and free from metallic objects such
as wire, nails, etc. that could be thrown out and
injure persons in the vicinity and damage the
equipment.
• Make sure that everyone, including children and
animals, maintains a distance of at least 50 feet
(15 M) from the machine. Debris can be thrown
out and injure people and animals.
8011-191
8011-193
8011-192chg
27
OPERATION
Using your stump grinder
WARNING!
NEVER allow the blade to touch the
ground until it has stopped turning.
1. Place the cutting blade near the top front edge
of the tree stump.
2. Set the brake to lock position.
8011-201-chg
3. Set the throttle to SLOW (START)
DISENGAGE.
4. Set engine switch on handlebar to ON.
.
28
OPERATION
5. T ilt the machine on its wheels, lifting the cutting
wheel off the ground.
6. Hold in the dead man’s grip bar and start the
engine.
7. Allow the engine to warm up for two minutes at
idle before grinding.
8011-202chg
8. Set the throttle to FAST to ENGAGE clutch.
IMPORTANT INFORMATION
If the cutting wheel is too low, the machine
may start to “climb” over the stump and
become unstable.
9. Place the middle of the cutting wheel
approximately one inch (2.5 cm) above and
3/4 to 1 1/2 inches (2-4 cm) into the stump.
8011-127
8011-185
.
10. Place the cutting wheel in the upper front edge
of the stump. Swing the cutting wheel from side
to side while lowering it about one inch (2.5 cm)
after each pass until the front edge of the stump
is gone.
8011-203
29
OPERATION
11. Before moving the machine forwards, you
should ensure that the cutting wheel is above
the ground and located on either side of the
stump. Move the machine forward by releasing
the brake, pushing it forward, activating the
brake again and repeating steps 9 and 10.
12. Repeat steps 9 through 11 until the upper
portion of the stump has been removed. DO
NOT cut deeper than ground level at this stage.
13.Set the throttle to SLOW/(START)
DISENGAGE and wait until the cutting wheel
stops rotating.
14. Release the brake and pull the machine away
from the stump.
15. It may be necessary to clear wood chips from
the area around the stump.
16. If you want to grind below the ground level, it
may become necessary to adjust the handle
position to achieve a better hand and arm work
position. Pull the handle control lever and adjust
the handle to the desired position.
17. Repeat steps 6 through 10 until you reach the
desired depth.
18. Shut off the machine when you are done.
Operating on hills
Be very careful when operating the stump grinder
on hills because the machine can slip or move
unexpectedly .
NEVER use the machine on grades of 10° or
steeper.
Transport
The BlueBird stump grinder can be transported in
a truck, trailer, van or a large SUV (Sport Utility
Vehicle). The stump grinder is equipped with two
lifting handles on each side so that two people can
lift the machine if necessary.
DO NOT attempt to lift the machine alone. Use safe
lifting techniques and DO NOT exceed your
physical limitations.
4 inches
8011-142
8011-278chg
Secure the machine with tensioning belts, chains
or other approved materials.
30
The lifting handles can also be used to secure the machine for
transport.
MAINTENANCE
Maintenance schedule
The following is a list of maintenance procedures that MUST be performed on the machine. For those
points not described in this manual, visit an authorized service workshop.
Maintenanceinterval months/hours
Maintenance Daily -/10 1/25 3/50 6/100 12/300
Check the engine oil level X
Change engine oil
Check the air filter X
Clean the air filter
Replace air filter cartridge
Clean sludge reservoir for fuel system X
Check and clean the spark plug X
Replace the spark plug X
Check engine switch function
Check idle speed X
Check and adjust play in valves
Clean fuel tank
Check, replace fuel lines as necessary
Check throttle and cable
Check blade and cutter
Check decals and warning signs
Check wear and tension on the belts
Check the chassis, bolts and set screws X
Grease the blade bearings (use high tempera- X
ture grease such as Mobilith SHC 220 or equal)
Grease the wheels (standard lithium base) X
Check tire air pressure (25 psi max) X
1)
2)
2)
3)
4)
4)
4, 5)
3)
3)
3)
3)
X
X
X
X
X
6)
X
X
X
X
X
1)
First change after 20 hours. 2)In dusty conditions maintenance is required at shorter intervals.
3)
Before each use. 4)Performed by authorized service workshop. 5)Performed every second year.
6)
Grease every 4 hours.
WARNING!
No service operations may be performed on the engine or unit unless:
• The engine is stopped.
• The ignition cable has been removed from the spark plug.
• The machine is securely parked where it will not tip or begin rolling.
31
MAINTENANCE
Cleaning the cyclone filter
The cyclone filter collects the largest contaminant
particles, which collect in the container . When you
can see a layer of dirt at the bottom of the container ,
the cyclone housing (4), air channels and air intake
screen (3) must be cleaned.
Remove the three screw holding the cyclone
housing. Remove the housing with the air intake
screen and remove the air channels.
The air channels may remain in the upper portion
or follow along with the housing when removed.
8011-188
Clean the components. Use water, detergent and
a washing-up brush. Dry carefully.
IMPORTANT INFORMATION
Exercise care when reassembling to avoid
damaging anything.
Make sure when mounting that the air
intake screen fits exactly in its guide in
the upper portion.
Make sure the air channel ends up in the
proper position.
8011-213
8011-212
Refit the components. Place the air channels in
the cyclone housing. Insert cyclone housing into
position and make sure it fits in the upper portion.
DO NOT use force; rather coax it into place before
fitting the screws.
32
8011-213
MAINTENANCE
Replacing the air filter
If the engine seems weak, produces black smoke
or runs unevenly , the air filter may be clogged. For
this reason, it is important to clean and replace the
air filter regularly (see the maintenance schedule
for the proper service interval).
W ARNING!
Allow the exhaust system to cool before
performing service. Risk for burns.
Cleaning/replacement of the air filter is carried out
as follows:
1. Undo the wing nut (1) and lift off the cyclone
filter with the air filter cowling (2).
2. Remove the foam rubber pre-filter and clean
using a mild detergent.
8011-188
Squeeze it dry with a clean cloth.
Soak it with new engine oil. Wind the filter in an
absorbent cloth and squeeze out excess oil.
3. Remove the wing nut in the air filter and remove
the paper filter. Tap the paper filter against a
fixed surface to remove dust. If the paper filter
is still dirty or damaged, it MUST be replaced.
IMPORTANT INFORMATION
DO NOT use compressed air over 2 bar/
30 PSI to clean the paper filter.
DO NOT wash the paper filter.
DO NOT oil the paper filter.
4. Refit the air filter as follows:
Mount the paper filter in the air filter housing
and tighten the wing nut.
8011-030
8011-031
5. Refit the pre-filter on the paper filter .
6. Refit the cyclone filter with the air filter cowling.
8011-032
33
MAINTENANCE
1
Cleaning the sludge reservoir
1. Close the fuel valve.
2. Unscrew the sludge reservoir (2). Make sure
not to misplace the o-ring (1).
3. Clean the reservoir and the o-ring using a
cleaning solvent and dry carefully .
4. Put the o-ring in place in its track and replace
the sludge reservoir. Tighten it moderately to
avoid damaging the threads.
FUEL V AL VE
8011-186
5. Turn the fuel valve to ON and check for leaks. If
it leaks, replace the o-ring.
Idle adjustment
WARNING!
Risk for carbon monoxide poisoning.
Perform the adjustment outdoors.
1. Start the engine and run it until it reaches normal
working temperature.
2. Adjust the throttle to idle position or so that the
engine runs at the lowest possible speed.
3. Turn the idle screw (1) so that the engine idles
at 1250-1550 RPM.
4. Increase the idle speed with the throttle and
move it right back to idle position. Check engine
speed again.
2
8011-128
8011-129
34
MAINTENANCE
Ignition system
The engine is equipped with an electronic ignition
system. Only the spark plug requires maintenance.
For recommended spark plug, see “Technical
data”.
IMPORTANT INFORMATION
Fitting the wrong spark plug type can
damage the engine.
1. Remove the ignition cable shoe and clean
around the spark plug.
2. Remove the spark plug with a 13/16” (21 mm)
spark plug socket wrench.
3. Check the spark plug. Replace the spark plug
if the electrodes are burned or if the insulation
is cracked or damaged. Clean the spark plug
with a steel brush if it is to be reused.
8011-027
4. Measure the electrode gap with a gapping tool.
The gap should be 0.7-0.8 mm/0.028-0.031”.
Adjust as necessary by bending the side
electrode.
5. Reinsert the spark plug, turning by hand to avoid
damaging the threads.
IMPORTANT INFORMATION
Inadequately tightened spark plugs can
cause overheating and damage the
engine. Tightening the spark plug too
much can damage the threads in the
cylinder head.
6. After the spark plug is seated, tighten it using a
spark plug wrench so that the washer is
compressed. A used spark plug should be
turned 1/8-1/4 of a turn from the seated position.
A new spark plug should be turned 1/2 a turn
from the seated position.
7. Replace the ignition cable shoe.
8011-054
35
MAINTENANCE

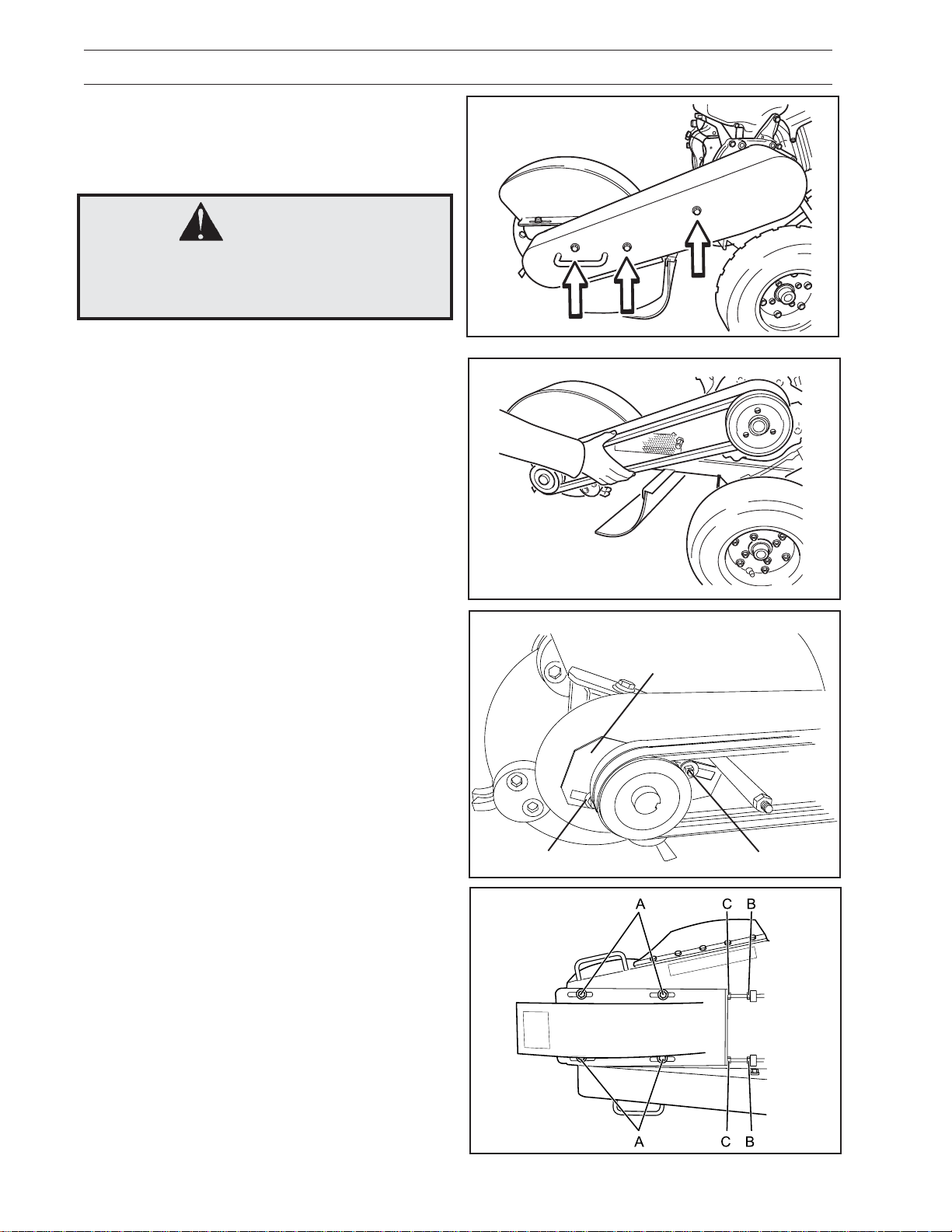

Adjusting the drive belt
1. Remove the belt guard by removing the three
acorn nuts and lockwashers on the front of the
belt guard.
WARNING!
Prevent the engine from being started by
removing the ignition cable from the spark
plug.
2. Check that the belt is properly tensioned by
squeezing the belt together. It should be possible
to squeeze the belt down about 1/4 - 3/8” (6 10 mm) from the original position.
8011-226chg
3. Loosen screws holding cover plate to belt guard
backing plate.
4. Undo the four screws (A) on the cutting shroud.
5. Loosen the locking nuts (B) on the tension bolts.
6. Turn the tension bolts (C) counter-clockwise
to loosen the belt or clockwise to tighten it.
SCREW
8011-227
COVER PLATE
SCREW
36
8011-228

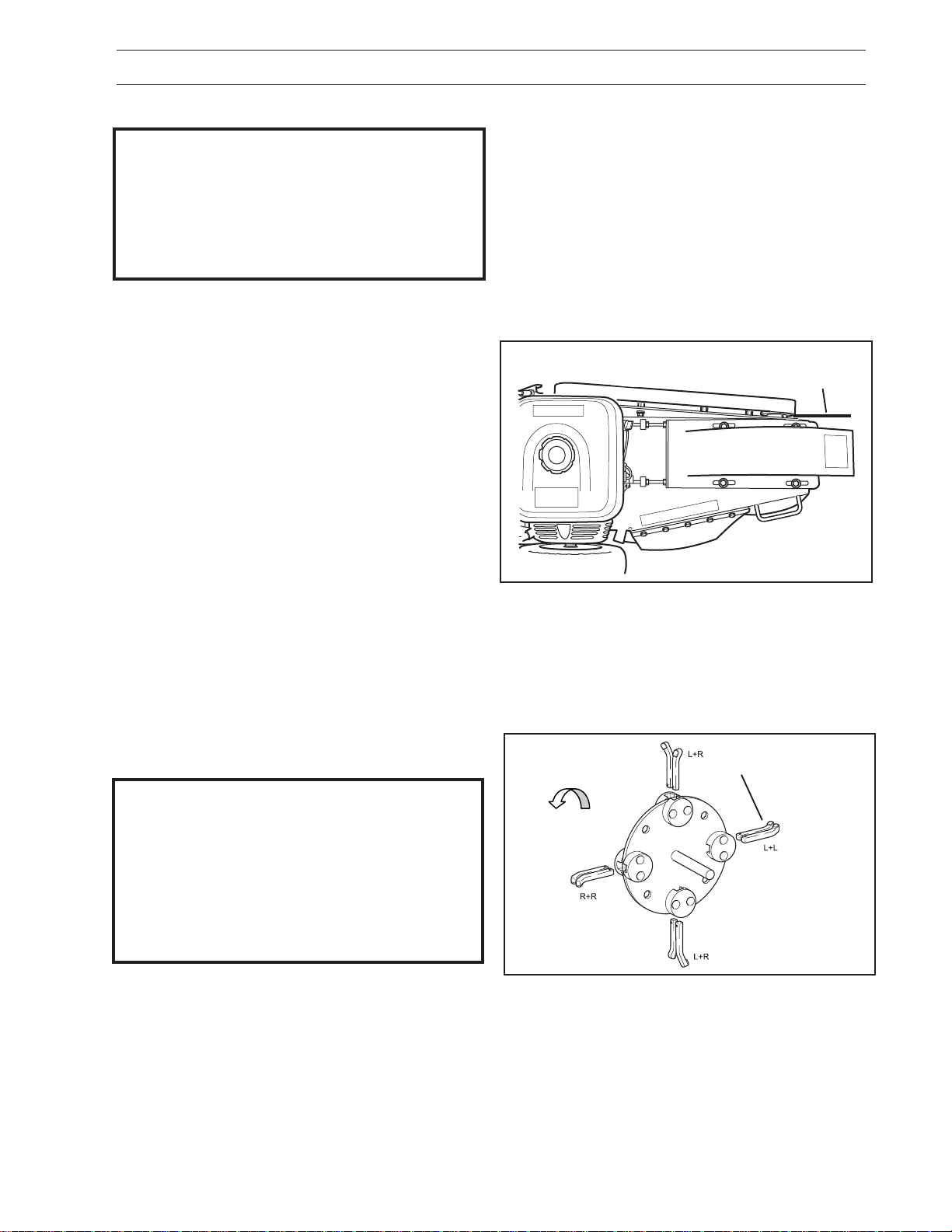

MAINTENANCE
IMPORTANT INFORMATION
If pulley on cutter head shaft must be
moved, the set screws MUST be fully
removed, fresh “Loctite 242” put on
threads and re-torqued to 100 - 110 in./lbs.
(17513 / 19264 N
7. Check that the pulleys are aligned using a
staright edge along the inside face of the clutch
and pulley .
Pulleys must be inline. Maximum gap or misalignment is 1/16” (.062) or 15.7 mm.
Adjust using the tension bolts as necessary.
Check belt tension again.
•m).
CHECK CLUTCH &
PULLEY ALIGN
USING INSIDE FACE
8. Tighten all screws and nuts when the
adjustment is complete. Be certain cover plate
is not rubbing against cutter wheel shaft.
9. Refit the belt guard.
Disassembling and reassembling
the blade, pockets and teeth
IMPORTANT INFORMATION
The cutters and pockets are mounted on
the cutting wheel as illustrated.
L = Left mounting
R = Right mounting
Ensure that the tooth cutters are turned
in the cutting direction.
CUTTING DIRECTION
8011-229chg
TOOTH CUTTER
(CARBIDE FACE)
8011-215
37
MAINTENANCE
W ARNING!
The cutters can come loose from the
cutting wheel if the screws are not
sufficiently tight. Comply with the
recommended torque settings.
Hold the teeth (30-31) in place as in the upper
diagram when mounting the pockets (32-33). Risk
for incorrect assembly.
Insert the screw (34) in one pocket (32), through
the blade section (28) and out though the pocket
(33) on the other side.
Make sure that the roll pins in the back edge of the
teeth are seated against the back of the pockets.
This provides the correct gauging of the cutter edge.
Tighten the screws 120 - 150 ft/lbs. (162-203 Nm).
Insert a bar through the extra holes in the cutting
wheel to act as a stop when removing and
attaching the cutting teeth and bearings.
Removing and refitting the wheels
T o remove the left wheel (8) from the stump grinder ,
remove the locking collar (9), the 1/4” screws (10),
the 1/4” hex nuts (3), the springs (4) and the brake
pad (7). The wheel can now be removed from the
axle.
To remove the right wheel (2), remove the locking
collar (1) and slide the wheel off the axle.
8011-216
RIGHT
FRONT
LEFT
38
8011-217chg
MAINTENANCE
Adjusting the brake
Overcentering type handle activites brakes.
Undo clevis pin from brake and turn clockwise to
tighten brake or counter clockwise to loosen.
Tighten so handle snaps down when locked but
unlocks easily when handle is moved forward.
Brake is properly adjusted when wheel will not turn
when you try to push or pull unit.
T wo minute rule
The machine may be tipped backward or on its
side to facilitate access for cleaning or service, but
no longer than 2 minutes.
HAIR PIN
CLEVIS PIN
If the machine is held in this position for too long,
the engine can be damaged by gasoline draining
into the crankcase. Should this happen, perform
an extra oil change on the engine. Remove the
spark plug and turn the engine over a few
revolutions with the starter handle before starting
the engine again.
Cleaning and washing
Regular cleaning and washing will increase the
machine’s lifespan. Make it a habit to clean the
machine directly after use, before the dirt sticks.
Check before rinsing that the fuel tank lid is properly
in place to avoid getting water in the tank.
Use caution when using high-pressure spray
because warning decals, instruction signs and the
engine can be damaged. Do not exceed 70 bar/
1000 PSI water pressure when cleaning.
Lubricate the machine after cleaning. This is
particularly important if the machine is to be stored.
8011-210chg
39
LUBRICATION
Yearly6Months Weekly Daily
4
Hours50Hours
100
Hours
300
Hours
40
8011-276chg
LUBRICATION
1. Engine oil
The engine should be warm (but not hot) when
changing the oil. Warm oil flows out faster and
leaves a smaller quantity of old oil inside the engine.
1. Place a suitable vessel underneath the oil
drainage screw. Remove the oil dipstick and
the oil drainage screw (5) on the back surface
of the engine.
Tip: Make a channel using a piece of cardboard to
lead the oil directly into the vessel and avoid soiling
the machine chassis.
2. Allow the engine oil to drain into the vessel; then
replace the drainage screw. Tighten it
moderately.
IMPORTANT INFORMATION
Used engine oil is a health hazard and
legislation prohibits disposal on the
ground or in nature; it should always be
disposed of at a workshop or appropriate
disposal location. A void skin contact; wash
with soap and water in case of spills.
WARNING!
Engine oil can be very hot if it is drained
directly after stopping the machine. Allow
the engine to cool somewhat.
8011-187
3. Make sure the machine is parked on flat ground.
Fill with new oil using the appropriate viscosity
according to the diagram, API Service SF-SG,
to the upper level mark on the dipstick = threads
on the oil dipstick (2). The engine takes 1.16 qts.
(1.1 liters) of oil. When checking the oil level, the
dipstick should not be screwed in.
4. Check that the rubber gasket is in position and
screw the dipstick back into place. DO NOT
thighten it askew or too hard or you may
damage the threads.
5. Wipe up any spilled oil.
Checking the engine’s oil level.
Make sure that the machine is parked on flat ground
with the engine stopped when checking the oil level.
1. Unscrew the dipstick and wipe it using paper
towel or a lint-free rag.
2. Replace the dipstick without screwing it in.
Remove and check the level on the dipstick.
3. Fill oil as necessary to the lip of the dipstick
hole. Oil type, see above.
8011-045chg
8011-046
4. Check that the rubber gasket is in position and
screw the dipstick back into place. DO NOT
tighten it askew or too hard or you may damage
the threads.
8011-020
41
LUBRICATION
2. Right wheel
Lubricate using a grease gun until the grease
squeezes out, 1 nipple.
Use good quality MP grease. Grease from wellknown brand names (petrochemical companies,
etc.) usually maintains a good quality .
3. Throttle cable
Peel back the rubber covers at both of the cable
mountings. Grease both ends of the throttle cable
and move the controls to end stop positions when
lubricating. Refit the rubber covers on the cable
after lubrication. Cables with sheaths will bind if
they are not lubricated regularly . Binding in a cable
may cause malfunction.
8011-231
If the cable binds, remove the cable and hang it
vertically. Lubricate it with thin engine oil until the
oil begins to escape from the bottom.
Tip: Fill a small plastic bag with oil and tape it so
that it seals against the casing and allow the cable
to hang vertically from the bag overnight. If you do
not succeed in lubricating the cable, it must be
replaced.
8011-234
8011-233
42
TROUBLESHOOTING
Symptom Cause Action
The engine will not start
• User error Fuel valve closed. Open the fuel valve.
Choke valve open. Close the choke with cold engine.
Engine switch in OFF position. Turn engine switch to ON.
• Fuel system Fuel tank empty. Fill with fuel.
Machine stored without Clean tank, sludge reservoir and
observing proper procedure empty carburetor.
from chapter “Storage/Winter Fill the tank with fresh fuel.
storage”.
Contamination, water or ice in Clean tank, sludge reservoir,
fuel system fuel lines and carburetor.
Fill the tank with fresh fuel.
Carburetor problems. Contact an authorized service
workshop.
• S park plug Wrong spark plug type. Replace the spark plug.
Buildup on electrodes. Check electrode gap and clean or
Short circuit. replace spark plug.
Gasoline or oil on the spark plug. Clean the spark plug. Air the
engine out. St art with full throttle.
• No spark after Faulty engine switch, cable Contact an authorized service
checking spark plug or ignition. workshop.
• Low compression Serious interior engine Contact an authorized service
damage or faulty valves. workshop.
Engine is gutless or runs unevenly
• Air filter Clogged air filter. Clean or replace the air filter.
• Fuel system Machine stored without observ- Clean tank, sludge reservoir and
ing proper procedure from empty carburetor.
chapter “Storage/Winter storage”. Fill the tank with proper fuel.
(Blue exhaust) Tank filled with 2-cycle mixed oil. Fill the tank with proper fuel.
(V oluminous blue-white Tank filled with diesel. Clean tank, sludge reservoir
exhaust) and empty carburetor.
Fill the tank with proper fuel.
(Black exhaust) Choke left on. Open choke valve.
Clogged air filter. Clean or replace the air filter.
Carburetor problems Contact an authorized service
workshop.
• Ignition system Wrong spark plug type. Replace the spark plug.
Buildup on electrodes. Check electrode gap and clean or
Short circuit. replace spark plug.
Faulty ignition unit. Contact an authorized service
workshop.
• Low compression Serious interior engine damage Contact an authorized service
(possible blue or faulty valve. workshop.
exhaust)
43
TROUBLESHOOTING
Problem Possible solutions
Belt coming off. 1. Pulleys not aligned.
2. Belt tension is insufficient. Adjust belt tension.
Belt engages late 1. Tighten the belt as described in the operator’s manual.
or slips. 2 . Reduce cutting depth.
Belt not staying tight 1. Check for damage on the axle, pulley or key . Make sure
after adjustment. that the setscrews are properly tightened.
2. Replace damaged parts.
The cutting wheel 1. Engine speed is insufficient to activate the centrifugal clutch.
does not rotate. Make sure the throttle cable is working properly .
2. Belt tension is insufficient. Adjust belt tension.
3. Clutch is worn - replace shoes and springs, and/or clutch bearings.
The cutting wheel 1. Check that the throttle is disconnected.
continues to rotate. 2. Check for damage on the throttle cable.
3. Check that the throttle cable is properly mounted on the throttle
valve.
4. The engine speed is not under 1000 rpm, which is required
to disengage the centrifugal clutch.
5. Inspect springs on clutch shoes. If tension on clutch shoes is not
enough to pull shoes back, replace springs and clutch shoes.
The parking brake is 1. Adjust the brake tension in the manner described in the
slipping. operator’s manual.
2. Check for damage on the brake rod or lever .
3. Check for wear on the brake pads. Replace as necessary.
44
STORAGE
Winter storage
At the end of the season, the machine should be
readied for storage (or if it will not be in use for
longer than 30 days). Fuel allowed to stand for long
periods of time (30 days or more) can leave sticky
residues that can plug the carburetor and disrupt
engine function.
Fuel stabilizers are an acceptable option as regards
sticky residues during storage. If alkylate gasoline
(Aspen) is used, stabilizers are unnecessary
because this fuel is stable. However, you should
avoid switching between regular and alkylate
gasoline as sensitive rubber components can
harden. Add stabilizer to the fuel in the tank or in
the storage container . Always use the mixing ratios
specified by the manufacturer of the stabilizer. Run
the engine for at least 10 minutes after adding the
stabilizer so that it reaches the carburetor . DO NOT
empty the fuel tank and the carburetor if you have
added stabilizer .
To ready the machine for storage, follow these
steps:
1. Clean the machine carefully, particularly the
chassis and working equipment. Touch up
damage to the paint to prevent rust.
2. Inspect the machine for worn or damaged parts
and tighten any nuts or screws that may have
become loose.
3. Change the engine oil; dispose of properly .
4. Open the fuel valve. Empty the fuel tank (1) and
the carburetor (2).
NEVER store an engine with fuel in the
tank indoors or in poorly ventilated
spaces where fuel vapor can come in
contact with open flame, sparks or a pilot
light such as in a boiler, hot water tank,
clothing drier, etc. Handle the fuel with
caution. It is very flammable and careless
use can cause serious damage to person
and property. Drain the fuel into an
approved container outdoors and far
away from open flame. NEVER use
gasoline for cleaning. Use a de-greaser
and warm water instead.
Service
When ordering spare parts, please specify the
puschase year, model, type, and serial number.
8011-130
5. Close the fuel valve.
6. Remove the spark plug and pour about a
tablespoon of engine oil in the cylinder. Turn
over the engine so that the oil is evenly
distributed and then refit the spark plug. Put the
engine in the compression phase where the
triangle mark on the sleeve of the starter is
aligned with the upper hole in the starter . Note:
Compression phase occurs every second
revolution.
8011-131
Always use genuine BlueBird parts.
An annual check-up at an authorized service
workshop is a good way to ensure that your
machine performs its best the following season.
7. Lubricate all grease nipples, joints and cables
as described in the chapter “Lubrication/
Lubrication schedule”.
8. Store the machine in a clean, dry place and
cover it for extra protection.
9. Cover the blade and cutters with a thin coat of
oil to avoid rust.
45
SPECIFICATIONS:
Model SG1314A
Engine Honda GX390
Cylinder volume 389 cm3 (23.7 cu in)
Power 13 hp (9.6 kW) at 3600 RPM
Torque 26.5 Nm at 2500 RPM
Idling speed 1250-1550 RPM
Sp ark plug NK BPR6ES
Fuel tank volume 6.5 liters/1.72 US Gal
Tires 4.10-6 (12” pneumatic)
TECHNICAL DATA
DENSO W20EPR-U
Brake Disk - Lever activated
Drive Direct
Belt Gates HiPower double V-belt BP54
Clutch Noram centrifugal clutch
Cutting wheel 14” dia. x 3/8” thick disc (157.5 mm x 9.5 mm)
Cutters 8 cutters with tungsten carbide tips
including pocket
Cutting depth Approx 12” (30.48 cm)
Length 62” - 73” (157- 185 cm) depending
on handle position
Width 27” (69 cm)
Height 24” - 43” (61 - 109 cm) depending
on handle position
Weight 249 lb. (1 12.9 kg)
46
WIRING DIAGRAM
SAFETY
SWITCH
ENGINE ON/OFF
SWITCH
(DISCONNECTED)
TRANSISTOR
IGNITION
OIL LEVEL
GUARD
ENGINE ON/OFF
SWITCH
(DISCONNECTED)
ENGINE HARNESS
109299
TRANSISTOR
IGNITION
ON/OFF
SWITCH
SP ARK
PLUG
COLOR CODE:
Y - YELLOW
B - BLACK
MODULE
SP ARK
PLUG
Y
B
B
Y
B
Y
B
B
OIL LEVEL
GUARD
CONSOLE HARNESS
109298
ON/OFF
SWITCH
B
Y
B
Y
SAFETY
SWITCH
47
SERVICE JOURNAL
Action Date, stamp, signature
Delivery service
1. Break the packaging and make sure the machine has not been
damaged in transport.
2. Where applicable, assembly accompanying components.
3. Check that the machine design corresponds to the
customer order.
4. Check that the right amount of oil is in the engine and
transmission.
5. Check and adjust air pressure in the tires. (25 psi max.)
6. Check that the working equipment is properly set.
7. Check that the drive pulleys and sprockets are aligned.
8. Check that belts and chains are properly adjusted.
9. Lubricate the machine as described in the lubrication schedule.
10. Fill the fuel tank and start the engine.
11. Check that the machine and working equipment do not
move in neutral.
12. Check all operating instruments.
13. Check decals and information attached to the unit.
14. Check the engine speed (RPM), see Technical Data.
15. Check for leakage.
16. Inform the customer about:
The need and advantages of following the service schedule.
The need and advantages of leaving the machine for service
every 300 hours.
The effects of service and maintaining a service journal on the
machine’s resale value.
17. Fill in the sales papers, etc.
Delivery service has
been carried out.
No remaining notes.
Certified:
After the first 20 hours
1. Change engine oil.
2. Change oil in reduction gear, where applicable.
3. Check that belts and chains are properly adjusted.
4. Tighten screws and nuts.
48
SERVICE JOURNAL
Action Date, stamp, signature
49
SERVICE JOURNAL
Action Date, stamp, signature
P.O. Box 8
Beatrice, Nebraska 68310
Loading...
