QUICK START GUIDE
x30
Page 2
1
INDEX
Features 2
What's in the box? 3
Remote Control 4
Rear Panel 5
NFC Pairing 6
Bluetooth Pairing 7
Other Ways To Connect 8
Transmitter And Receiver Option 9
Important Safety Instructions 10
FCC Compliance 13
FCC RF Exposure Requirements (MPE) 14
Specications / Blue Aura Worldwide Guarantee 15
Page 3
2
Features:
+ Powered stereo speaker system with Bluetooth® 4.0
+ NFC Bluetooth pairing function
+ Use with any source with Line-in or optical input
+ aptX® audio coding delivers CD-quality sound
wirelessly over Bluetooth
®
+ Pair & Play
x30
Page 4
3
What's in the box?
2 x Bluetooth Speaker
1 x Power Cords / Power supplies
1 x Remote Control
1 x Blue Aura Quick Connect Cable
1 x Audio Cable- (Mini Jack – RCA)
?
Page 5
4
Remote Control
POWER ON/OFF
BLUETOOTH PAIRING
INPUT SELECTION
MUTE
VOL+
VOL-
Page 6
5
Rear Panel
WB29 (OPTIONAL)
WALL BRACKET
AUX IN
(AUDIO INPUT)
SUB OUT
BLUETOOTH
PAIRING
BUTTON
OPTICAL
INPUT
USB FOR BLUE AURA
WIRELESS RECEIVER
ONLY
BLUE AURA QUICK
CONNECTION
POWER
INPUT
Page 7
6
Step 1
ON
OFF
Step 2
Step 3
Step 4

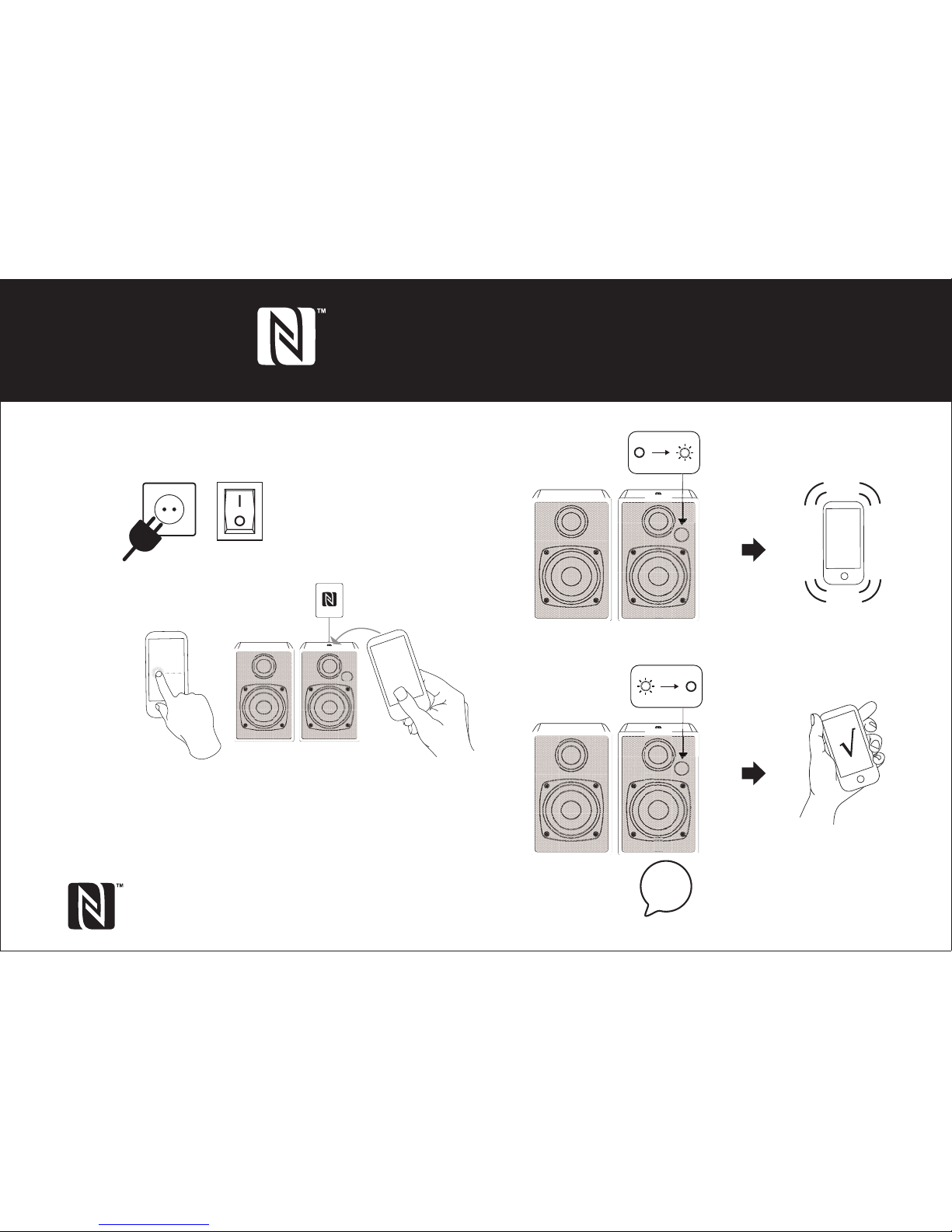

NFC Pairing
(where available)
Hint: Ensure NFC function is enabled in your
Bluetooth device, refer to your device manual
for further information.
Near Field Communication A contactless
way to pair Bluetooth enabled devices
www.blueaura/information
Red→Blue
!
Blue
Page 8
7
www.blueaura/information
Blue
Step 1
Step 3
Step 2 Step 4
Bluetooth
BLUE AURA X30
......
Bluetooth Pairing
SETTINGS
1 M
!
Page 9
8
Other Ways To Connect
Optical InOptical Out
Line Out Line In
Red
Green
Page 10
9

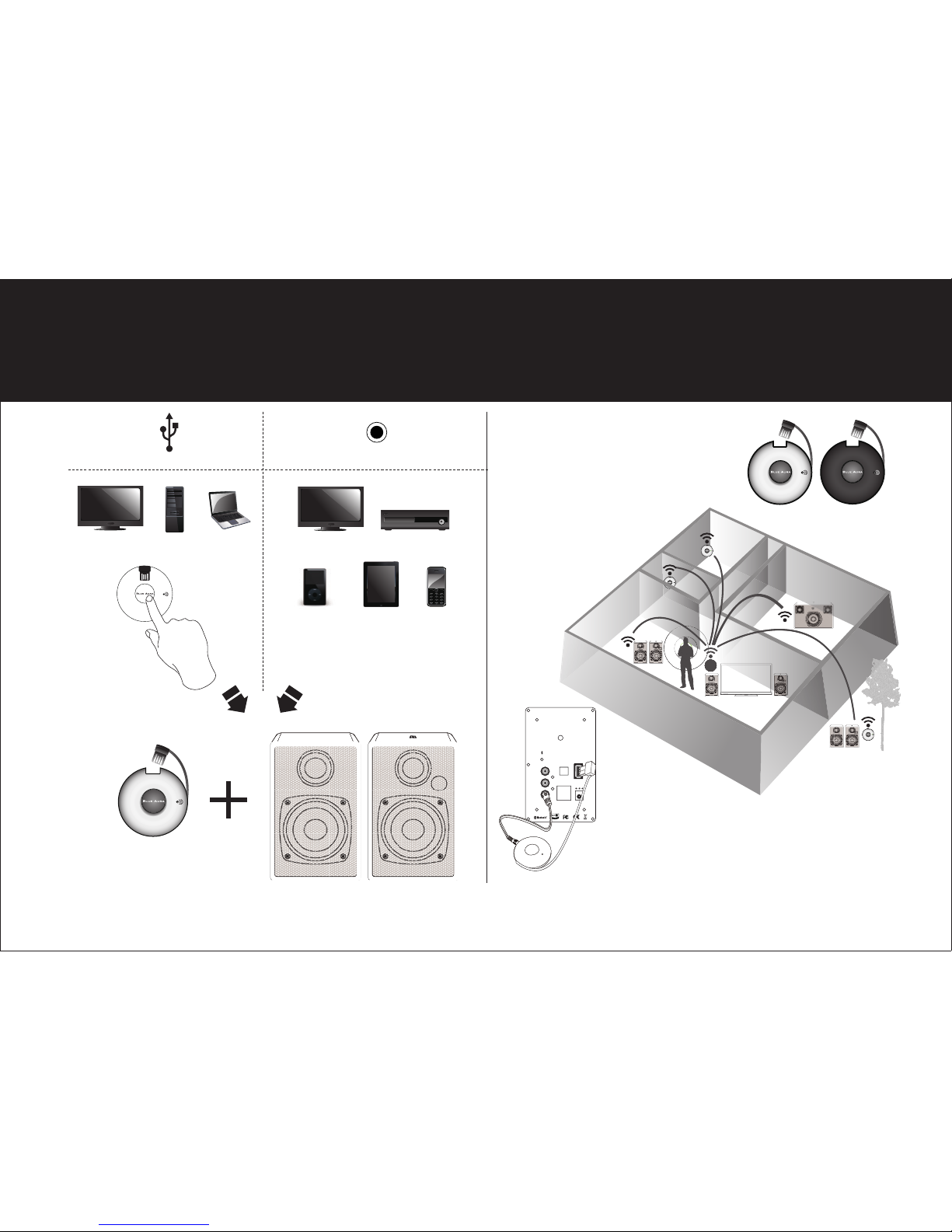

Transmitter And Receiver Option
Benets
+ increased range
+ use multiple source devices
Wireless dongle
X30
OPTICAL
INPUT
SPEAKER
OUT TO LEFT
ONLY FOR WSr
WIRELESS
RECEIVER
pair
AUX IN
SUB OUT
LCH
RCH
DC OUT
5V 250ma
DC IN
24V / 2A
FCC ID: OSY-X30
IC:10515A-X30
Page 11
10
Important Safety Instructions
This symbol indicates that there are important operating and maintenance instructions in the literature
accompanying this unit.
This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit.
Warning: The AC Input connector (see page 5) is used as a safety disconnect device. It must be easily
accessible after installation.
This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it
does not require a safety connection to electrical earth.
Correct disposal of this product:
This marking indicates that this product should not be disposed of with other household wastes throughout the
EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle
it responsibly to promote the sustainable reuse of material resources. To return your used device, please use
the return and collection systems or contact the retailer where the product was purchased. They can take this
product for environmentally safe recycling.
The loudspeaker is covered with a soft faux leather
material. Please take care when unpacking the
loudspeaker to avoid scratching or indenting the
material.
Page 12
11
01. Read these instructions.
02. Keep these instructions.
03. Heed all warnings.
04. Follow all instructions.
05. Do not use apparatus near water.
06. Clean only with a dry cloth.
07. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
08. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers)
that produce heat.
09. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
10. Only use attachments/accessories specied by the manufacturer.
11. Unplug this apparatus during lightning storms or when unused for long periods of time.
12. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
13. Damage Requiring Service
Unplug the apparatus from the wall outlet and refer servicing to qualified service personnel under the following
conditions:
A. When the power-supply cord or plug is damaged,
B. If liquid has been spilled, or objects have fallen into the apparatus,
Page 13
12
C. If the apparatus has been exposed to rain or water,
D. If the apparatus does not operate normally by following the operating instructions. Adjust only those controls that
are covered by the operating instructions as an improper adjustment of other controls may result in damage and will
often require extensive work by a qualied technician to restore the apparatus to its normal operation.
E. If the apparatus has been dropped or damaged in any way, and.
F. When the apparatus exhibits a distinct change in performance this indicates a need for service.
14. Object and Liquid Entry.
Never push objects of any kind into the apparatus through openings as they may touch dangerous voltage points or
short-out parts that could result in a re or electric shock. The apparatus shall not be exposed to dripping or splashing
and no objects lled with liquids, such as vases shall be placed on the apparatus. Don’t put candles or other burning
objects on top of this unit.
Always consider the environmental issues and follow local regulations when disposing of batteries.
15 Always consider the environmental issues and follow local regulations when disposing of batteries.
16. If you install the apparatus in a built-in installation, such as a bookcase or rack, ensure that there is adequate ventilation.
Leave 20 cm (8”) of free space at the top and sides and 10cm (4”) at the rear. The rear edge of the shelf or board
above the apparatus shall be set 10 cm (4”) away from the rear panel or wall, creating a ue-like gap for warm air to
escape.
17. The power supply and power cord for this apparatus is intended for indoor use only.
18. Only use the enclosed AC adaptor.
Designed, engineered and supported in the UK
www.blueaura.co.uk
Page 14
13
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
The transmitter of this device has been designed to operate with the attached antennas, and having a maximum
gain of 1.5dBi. Antennas not identical as that or having a gain greater than 1.5dBi are strictly prohibited for use with
this device. The required antenna impedance is 50 ohms. To reduce potential radio interference to other users, the
antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more
than that permitted for successful communication
FCC Compliance
Page 15
14
To satisfy FCC RF exposure requirements, a separation distance of 20 cm or more should be maintained between the
antenna of this device and persons during device operation.
To ensure compliance, operations at closer than this distance is not recommended.
Les antennes installées doivent être situées de facon à ce que la population ne puisse y être exposée à
une distance de moin de 20 cm. Installer les antennes de facon à ce que le personnel ne puisse
approcher à 20 cm ou moins de la position centrale de l’ antenne.
La FCC des États-Unis stipule que cet appareil doit être en tout temps éloigné d’au moins 20 cm des
personnes pendant son functionnement.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and
maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to
other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.)
is not more than that necessary for successful communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut
fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie
Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut
choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse
pas l'intensité nécessaire à l'établissement d'une communication satisfaisante.
FCC RF Exposure Requirements (MPE)
Page 16
15
This entitles you to have the unit repaired free of charge, during the rst two years after purchase, at any authorised
Blue Aura distributor provided that it was originally purchased from an authorised Blue Aura dealer or distributor. The
manufacturer can take no responsibility for defects arising from accident, misuse, abuse, wear and tear, neglect or
through unauthorised adjustment and/or repair, neither can they accept responsibility for damage or
loss occurring during transit to or from the person claiming under the guarantee.
The warranty covers:
Parts and labour costs for two years from the purchase date. After two years you must pay for both parts and labour
costs, the warranty does not cover transportation costs at any time.
Claims under guarantee
This equipment should be packed in the original packing and returned to the dealer from whom it was purchased,
or failing this, directly to the Blue Aura distributor in the country of residence.It should be sent carriage prepaid by
a reputable carrier. No responsibility can be accepted for the unit whilst in transit to the dealer or distributor and
customers are therefore advised to insure the unit against loss or damage whilst in transit.
For further details contact Blue Aura at:
Blue Aura Customer Support, 01480 477738 or email [email protected].
If your Blue Aura dealer is unable to answer any query regarding this or any other Blue Aura product please contact
Blue Aura Customer Support at the above address and we will do our best to help you.
Please register your new product at http://www.blueaura.co.uk/register
Blue Aura reserves the right to change all specications without notice. (E & OE)
Blue Aura Worldwide Guarantee
Page 17
16
The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by BLUE AURA is under license. © 2013
CSR plc and its group companies. The aptX® mark and the aptX logo are trade marks of CSR plc or one of its group companies and may be registered in one
or more jurisdictions. Other trademarks and trade names are those of their respective owners.The"N-Mark" logo is a trademark or registered trademark of NFC
Forum, Inc.Product specications may change without prior notice.
EC DECLARATION OF CONFORMITY
This product conforms with the following EEC Directives, their supporting Statutory
Instruments and relevant Standards, where applicable as follows:
EC Council Directive on electromagnetic compatibility 2004/108/EC,
Applicable standards with amendments: EN5013:2001 + A1:2003 + A2:2006
EN55020:2007
EN 55022
EN 55024
IEC 60950-1:2005
EN61000-3-2:2006 + A1:2009 + A2:2009
EN61000-3-3:2008
EC Low Voltage Directive 2006/95/EEC,
Applicable standard with amendments: EN60065:2002 + A1:2006 + A11:2008 +
A2:2012
EN 300 328: (Bluetooth) Electromagnetic compatiblitity and Radio spectrum
Matters (ERM); Wideband Transmission systems: Data transmission equipment
operating in the 2.4 GHz ISM band and using spread spectrum modulation
techniques; Harmonized EN covering essential requirements under article 3.2 of
the R&TTE Directive.
Stage 1 of annex II of Commission regulation (ErP) EC no. 1275/2008
Specications:
Speakers
Tweeter: 20mm Soft Dome
Woofer: 3.5” Paper Cone, Ferrite Magnet
Amplier
Maximum power output (RMS):
15W*4 1% THD limited 11Wu*4
Harmonic distortion: 0.15% 1W 0.2% 10W
Signal/Noise ratio: 82dB
Separation: 75dB 1KHZ
Input/Out put
Speaker output on right channel speaker: RJ-45
Speaker input on left channel speaker: RJ-45
Analog input: RCA jacks
USB Charger Port: 5V, 250mA (for Blue Aura wireless
dongle use only)
Bluetooth wireless connection: Bluetooth® 4.0 with
aptX, SBC; A2DP and AVRCP proles.
Page 18
www.blueaura.co.uk
x30manv.01
