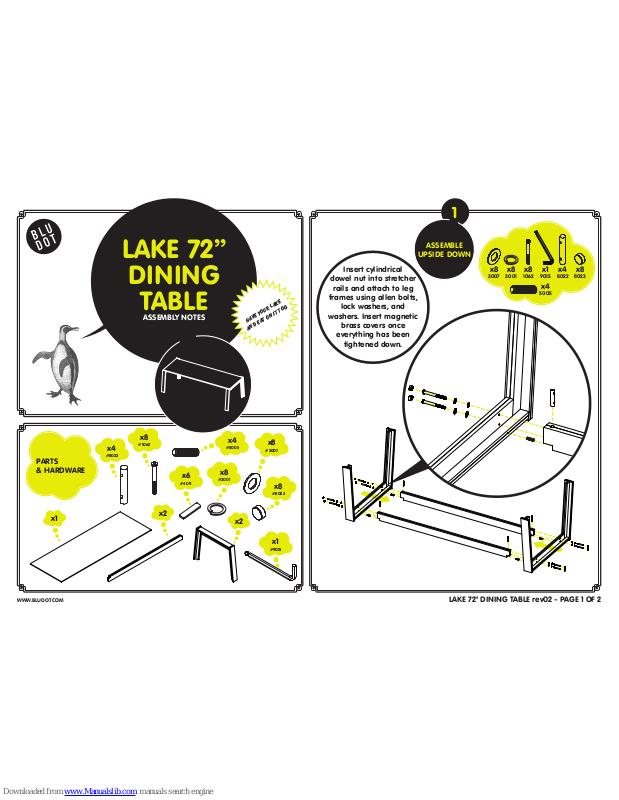

WWW.BLUDOT.COM LAKE 72'' DINING TABLE rev02 - PAGE 1 OF 2
LAKE 72’’
DINING
TABLE
ASSEMBLY NOTES
have your lake
and eat on it too.
PARTS
& HARDWARE
x2
x1
x2
Insert cylindrical
dowel nut into stretcher
rails and attach to leg
frames using allen bolts,
lock washers, and
washers. Insert magnetic
brass covers once
everything has been
tightened down.
x4
#8022
x6
#4011
x8
#3001
x8
#3007
x4
#5005
x8
#8023
x1
#9015
x8
#1062
x4
8022
x8
1062
x8
3001
x8
3007
x8
8023
x1
9015
ASSEMBLE
UPSIDE DOWN
x4
5005
1
WWW.BLUDOT.COM LAKE 72'' DINING TABLE rev02 - PAGE 2 OF 2
Space rubber
bumpers evenly
and on center of
rails as shown.
Gently place
glass top on
rubber bumpers.
2
Use 2 or more
persons to set
glass on frame.
CARE
INSTRUCTIONS
GLASS
WOOD FRAME
Clean with a slightly
damp, soft cloth. To remove
dirt and fingerprints, use a
quality cleaner formulated
for wood furniture. Wipe
completely dry with a soft
cloth in the direction of
the wood grain.
First, remove dirt or debris
from surface of glass with a
slightly damp, soft cloth. To remove
fingerprints or streaks, use a
quality glass cleaner. Don’t
forget about the underside of
the glass, for the perfect clean.
