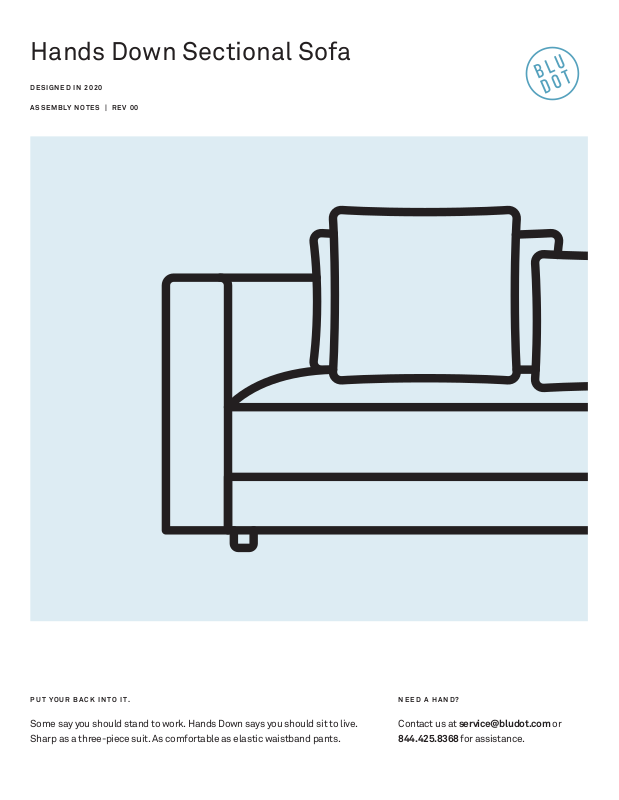

Page 1
Hands Down Sectional Sofa
DESIGNED IN 2020
ASSEMBLY NOTES | REV 00
PUT YOUR BACK INTO IT.
Some say you should stand to work. Hands Down says you should sit to live.
Sharp as a three-piece suit. As comfortable as elastic waistband pants.
NEED A HAND?
844.425.8368 for assistance.
Page 2
Parts & Hardware
16 QTYQTY
Pt. 8034Pt. 1216
2*2* QTYQTY
Large PillowBack Cushion
Foot
Small Pillow
4QTY
1*QTY
1QTY
Sectional
*Cushion quantity varys based on product. Refer to page 2 for part breakdown.
1 | 844.425.8368 HANDS DOWN SECTIONAL SOFA
Page 3
Armless Sofa
Chaise
Back Cushion
Large Pillow Small Pillow
2 2 1
1 1 1
Half Back Sofa
One Arm Sofa
2 2 2
2 2 1
[email protected] | 2ASSEMBLY NOTES
Page 4

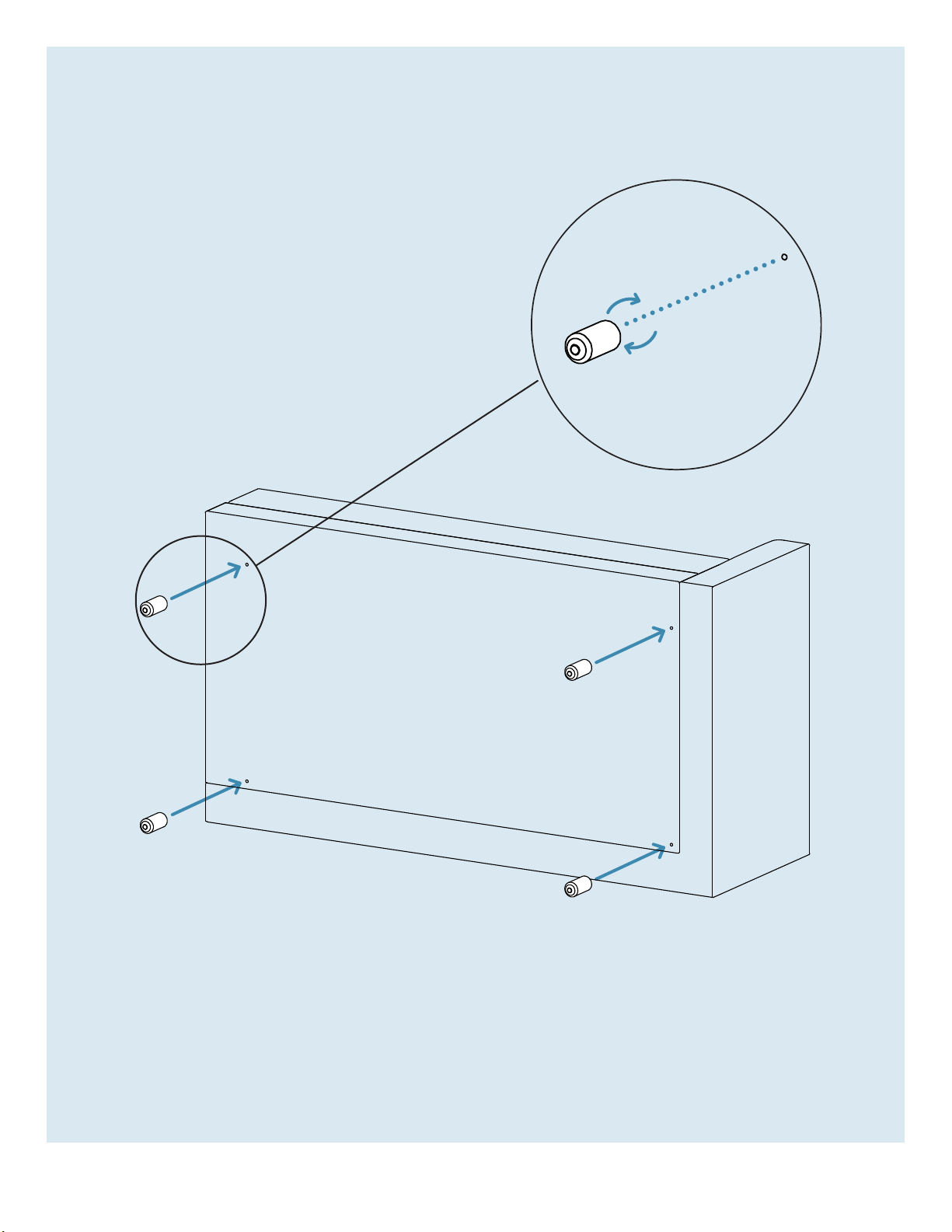

Step 01
ATTACH FEET.
Attach feet as shown.
Note: After the feet have been attached, have
a second person help lift and bring the sofa
upright in order to prevent foot damage.
3 | 844.425.8368 HANDS DOWN SECTIONAL SOFA
Page 5

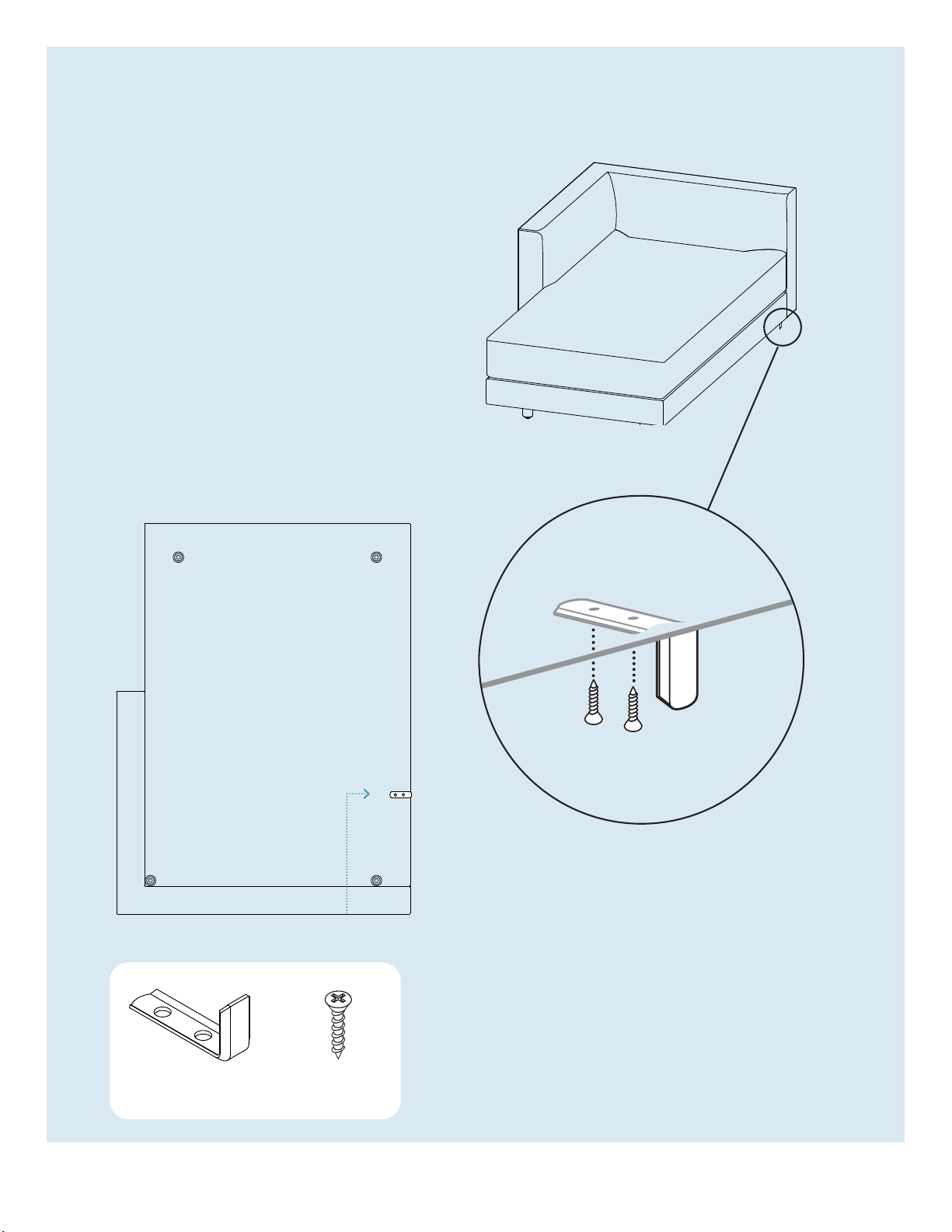

Step 02
ATTACH MALE SECTIONAL CONNECTOR.
This hardware allows proper alignment
of the sectional sofas and holds them
in place during use.
Underside of Chaise
20” (50.8cm)
from back edge
SLIPCOVER x 1
PT. 1216 x 2Pt. 8034 x 1
[email protected] | 4ASSEMBLY NOTES
Page 6

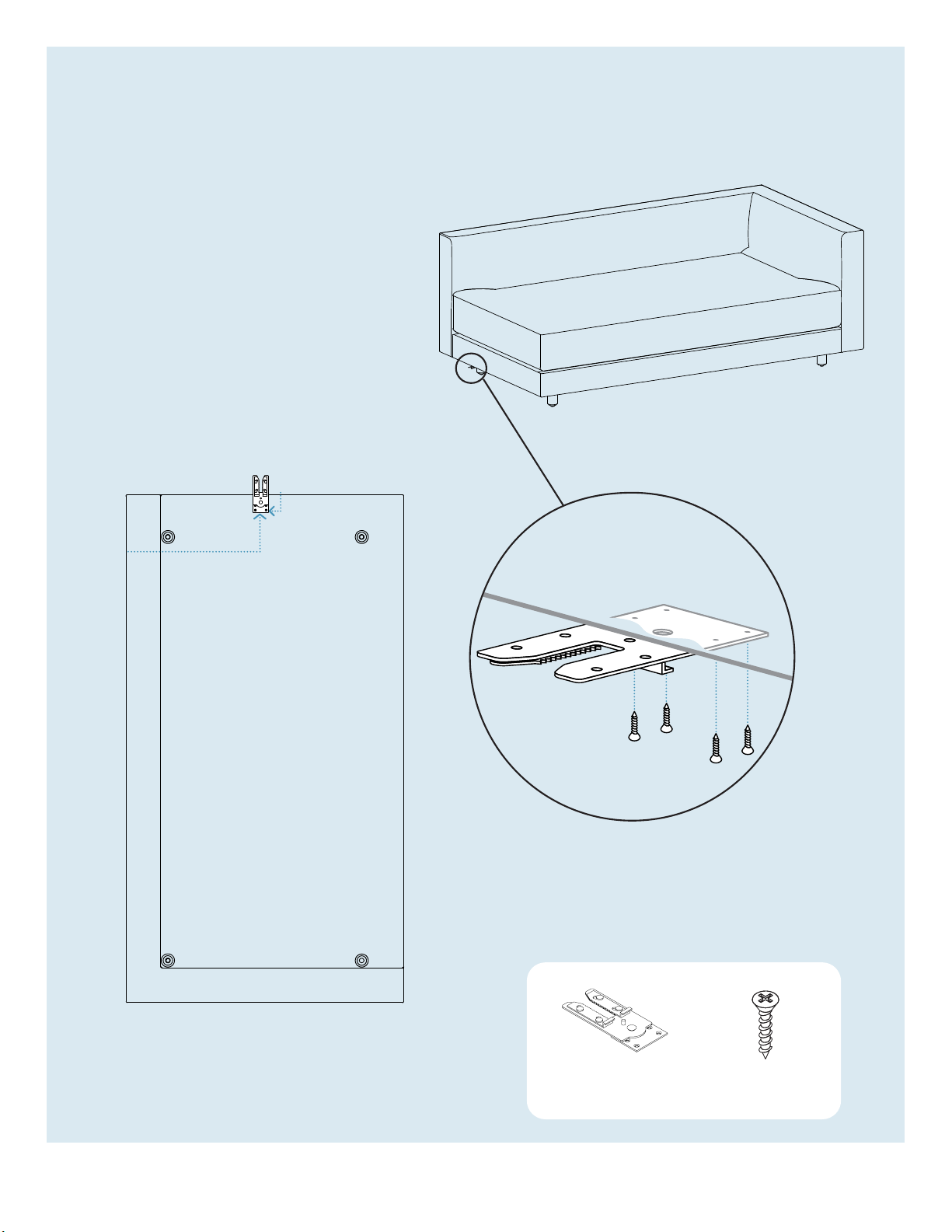

Step 03
ATTACH FEMALE SECTIONAL CONNECTOR.
This hardware allows proper alignment
of the sectional sofas and holds them in
place during use.
Underside of One Arm Sofa
2.75” (7cm)from
armless edge
20” (50.8cm)
from back
edge
PT. 1216 x 4Pt. 8034 x 1
5 | 844.425.8368 HANDS DOWN SECTIONAL SOFA
Page 7

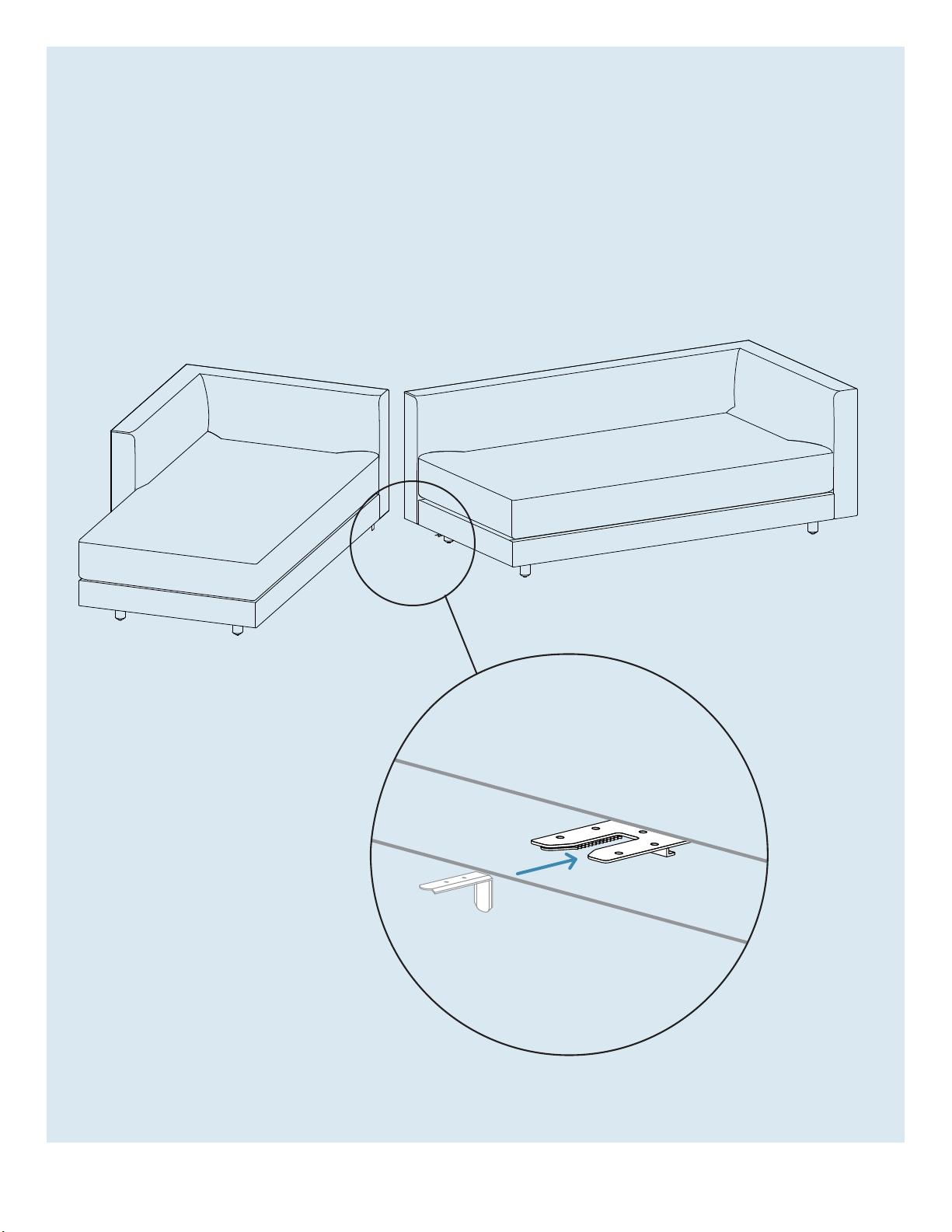

Step 04
CONNECT SECTIONAL SOFAS.
With back sides aligned, carefully slide
sectional sofas together. Make sure sectional
connector latches for a secure placement.
[email protected] | 6ASSEMBLY NOTES
Page 8
Additional Information
CLEAN
Vacuum your upholstery regularly.
SPILLS
Act quickly with spills. Absorb the spill with a clean white
cloth or paper towel. Never rub the surface. Do not use water or other
liquids to clean, as they may stain the fabric. Consult a commercial
cleaning specialist for removal of stubborn stains.
AVOID
Keep upholstery & felt furniture out of direct sunlight and away
from heat sources; excessive exposure to sunlight may fade the
color of the upholstery. Avoid placing heavy or sharp objects on
the furniture surface for long periods of time; this can cause
permanent indentations in the fabric. For snags in the fabric,
tuck loose threads into fabric or carefully push to reverse side.
Never pull out or cut off loose threads.
BLU DOT DESIGN & MANUFACTURING, INC. DESIGNED IN MINNEAPOLIS, MN
