Page 1

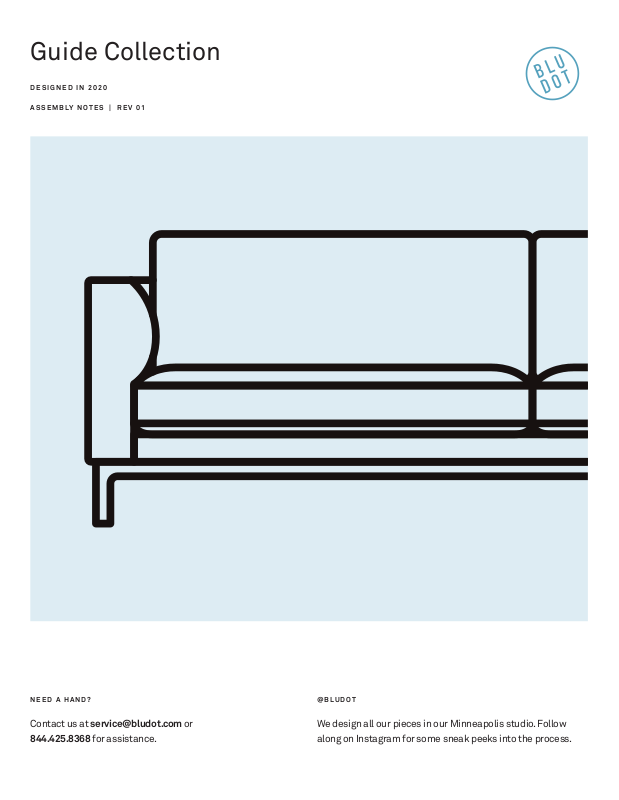

Guide Collection
DESIGNED IN 2020
ASSEMBLY NOTES | REV 01
NEED A HAND?
844.425.8368 for assistance.
@BLUDOT
We design all our pieces in our Minneapolis studio. Follow
along on Instagram for some sneak peeks into the process.
Page 2
Parts & HardwareParts & Hardware
QTY QTY
2 2
Pt. 5013
8QTY
44 4 QTYQTY QTY
Pt. 4022Pt. 3002 Pt. 1610
QTYQTYQTY
18*8*
Pt. 9016Pt. 1039Pt. 3015
Short Rail
QTY
Long Rail
1
Sofa Frame
*Lounge Chair ships with 6 pieces of hardware.
1 | 844. 425.836 8 GUIDE COLLECTION
Page 3

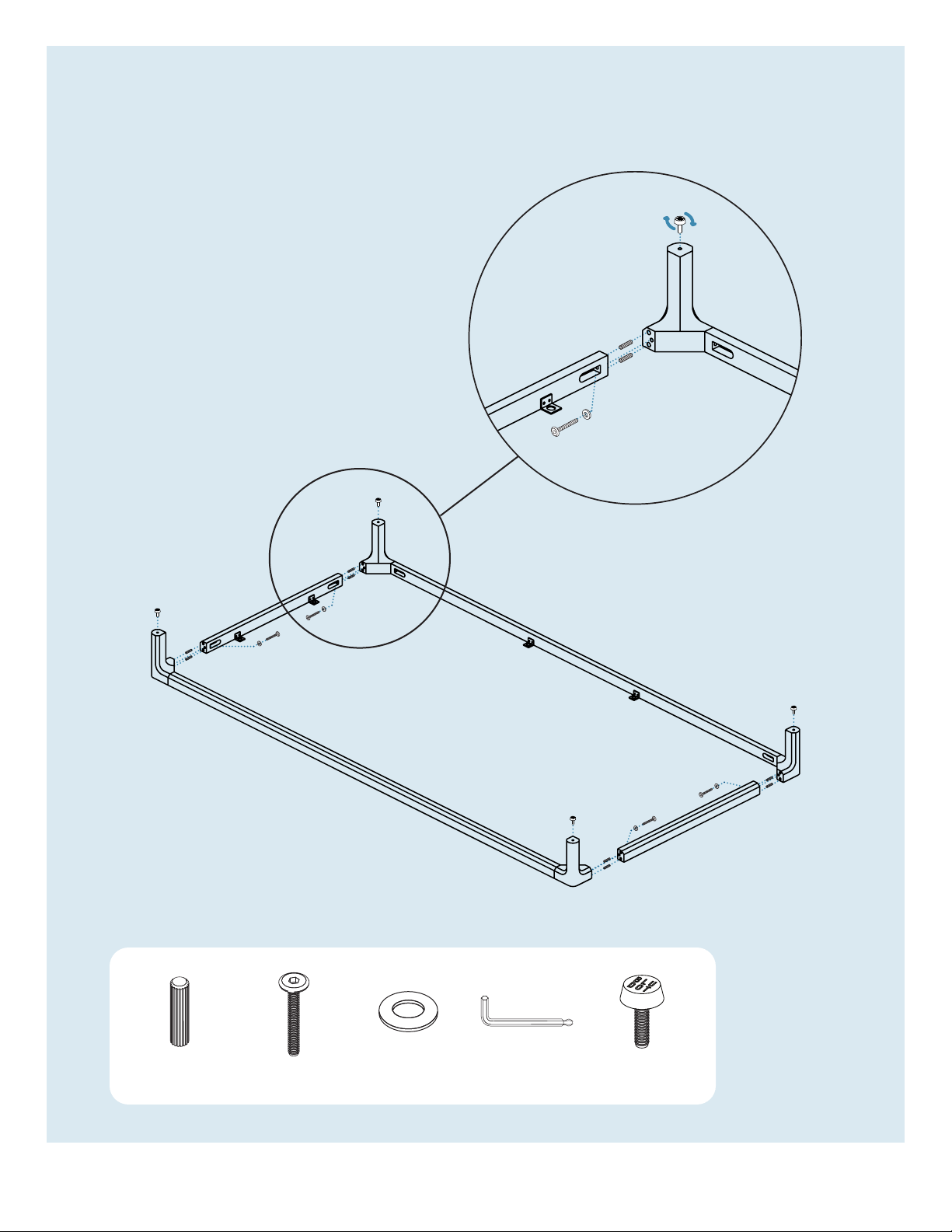

Step 01
ASSEMBLE BASE.
Assemble the base on a soft surface.
Attach the short rails to the long rails using the
provided hardware as shown.
Thread adjustable glides into place as shown.
PT. 5013 x 8 PT. 1610 x 4 PT. 3002 x 4 PT. 9016 x 1 PT. 4022 x 4
[email protected] | 2ASSEMBLY NOTES
Page 4

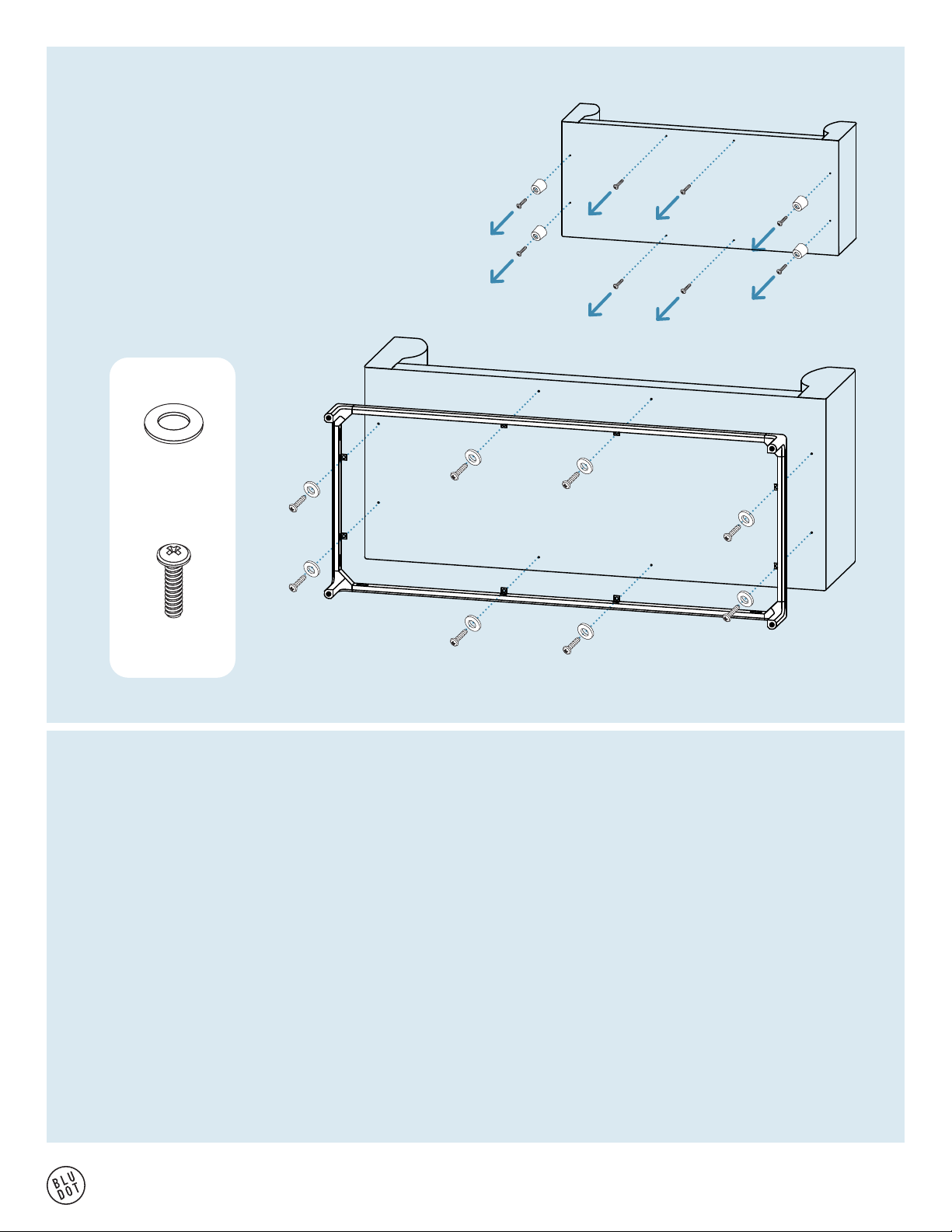

Step 02
ATTACH BASE TO FRAME.
Detach bolts and discard temporary plastic feet
from the sofa frame. Attach the wooden base
to the sofa frame using the same hardware as
shown.
Lift sofa upright with assistance to complete
assembly.
PT. 3015 x 8*
PT. 1039 x 8*
Additional Information
CLEAN
Vacuum your upholstery regularly.
SPILLS
Act quickly with spills. Absorb the spill with a clean white cloth or paper towel. Never rub the surface.
Do not use water or other liquids to clean, as they may cause stains. Consult a commercial cleaning
specialist for removal of stubborn stains.
AVOID
Keep furniture out of direct sunlight and away from heat sources; excessive exposure to sunlight may
cause color fading. Avoid placing heavy or sharp objects on the furniture surface for long periods of
time; this can cause permanent surface indentations. For snags in the fabric, tuck loose threads into
fabric or carefully push to reverse side. Never pull out or cut off loose threads.
