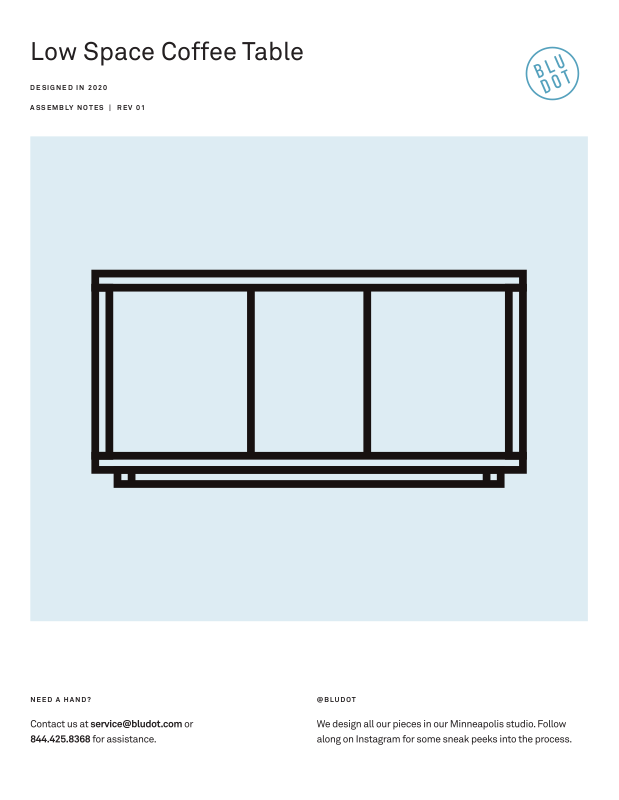

Page 1
Low Space Coffee Table
DESIGNED IN 2020
ASSEMBLY NOTES | REV 01
Page 2
Parts & Hardware
Pt. 1083
Pt. 9004
22QTY
Pt. 1610
1QTY
10QTY
QTY
Corner Panel
Pt. 3001
4QTY
32QTY32
Pt. 3002
1QTY
Center Panel
1 1QTY QTY
Table Top Base
2 | 844.425.8368 LOW SPACE COFFEE TABLE
Page 3
Step 01
ATTACH THE CENTER AND CORNER PANELS.
Assemble table top on clean, soft surface.
Attach the panels shown to the bottom of the
table top using the provided hardware.
PT. 1083 X 22
PT. 3001 X 22
PT. 3002 X 22
PT. 9004 X 1
[email protected] | 3ASSEMBLY NOTES
Page 4
Step 02
ATTACH THE BASE.
Attach the base as shown using provided
hardware. Ensure table is level prior to use.
PT. 1610 x 10 PT. 3001 x 10 PT. 3002 x 10
Adjustable
Glide x4
PT. 9004 x 1
Additional Information
CLEAN
Clean with a slightly damp, soft cloth. To remove dirt and fingerprints, use a quality cleaner formulated for
wood furniture. Wipe completely dry with a soft cloth in the direction of the wood grain.
WALNUT AND WHITE OAK CARE
The walnut and white oak version of this table are finished with a Rubio® Monocoat Finish. We suggest
treating the surface with Rubio® Monocoat every 12 to 24 months to extend the life of the finish as
instructed:
After cleaning the surface, apply Rubio® Monocoat refresh and spread with a cloth. Allow the product
to react for 5 minutes before wiping the surface dry with a cloth or paper towel. Polish until the surface
feels completely dry. Work in zones that can be fully wiped dry within 15 minutes. The surface will be
completely dry and useable after 5 hours.
Rubio® is a registered trademark of Muylle-Facon.
BLU DOT DESIGN & MANUFACTURING, INC. DESIGNED IN MINNEAPOLIS, MN
