Filter Sconce
DESIGNED IN 2021
ASSEMBLY NOTES | REV 02
NEED A HAND?
Contact us at service@bludot.com or
844.425.8368 for assistance.
@BLUDOT
We design all our pieces in our Minneapolis studio. Follow
along on Instagram for some sneak peeks into the process.

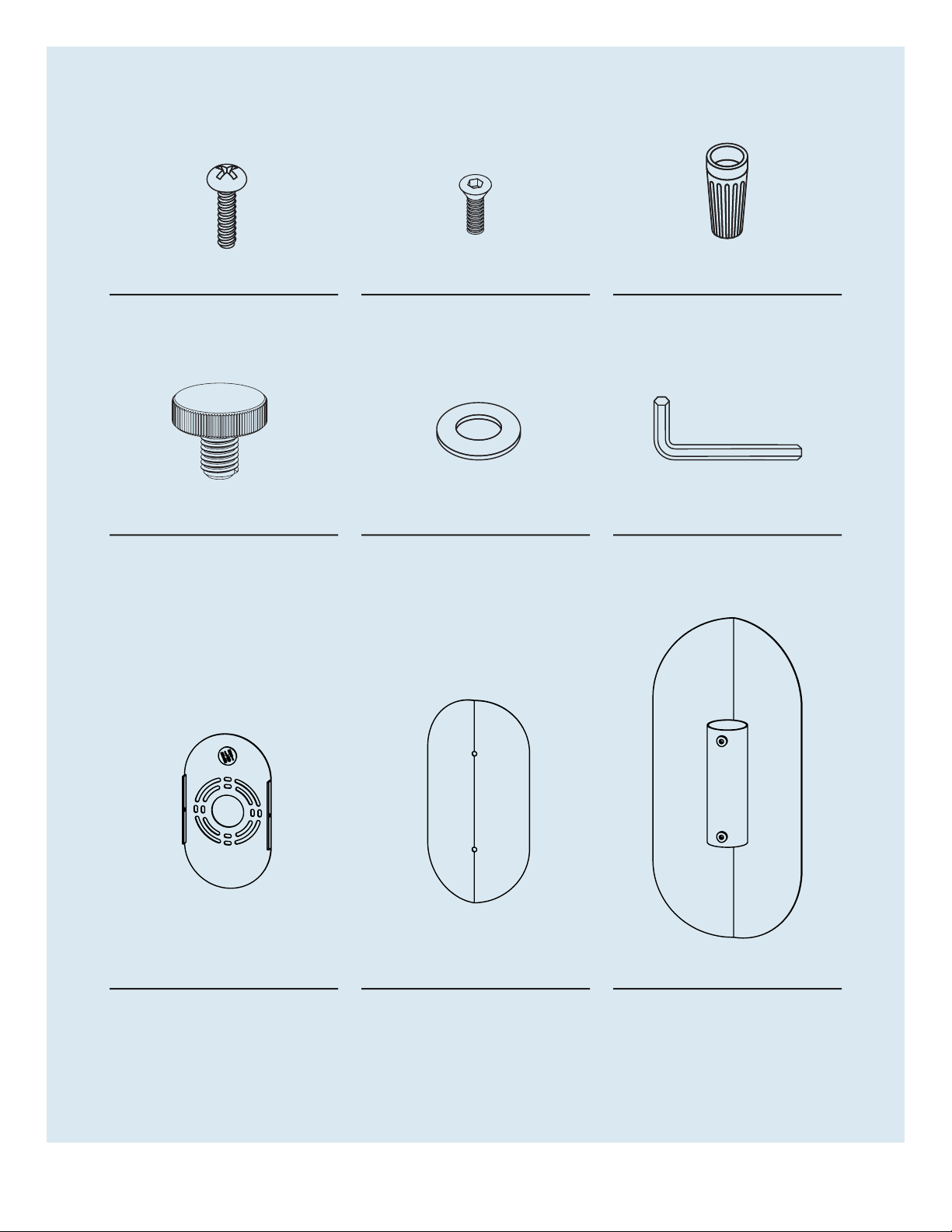

Parts & Hardware
QTY
QTY
Pt. 1060
Pt. 1093
2
QTY QTY
Pt. 1042 Pt. 8021
2
QTY
Pt. 3013
2 3
QTY
2
Pt. 9031
1
QTY
Wall Bracket
1
QTY
Screen
QTY
1
Lamp Body
1
Electricity is dangerous. It is recommended to hire a professional electrician to
install hard-wired fixtures.
1 | 844.425.8368 FILTER SCONCE
Step 01
UNASSEMBLE LAMP
The lamp ships fully assembled to protect
parts during shipping. Carefully unassemble
the lamp parts using the hardware as shown.
Set parts aside for assembly in later steps.
Pt. 9031 x 1
SERVICE@BLUDOT.COM | 2ASSEMBLY NOTES
Step 02
ATTACH WALL BRACKET TO ELECTRICAL BOX
Disconnect power before proceeding with
installation.
Attach the wall bracket to the wall electrical
box as shown using the provided hardware.
Wall
Pt. 1060 x 2
3 | 844.425.8368 FILTER SCONCE
Step 03
INSTALL BULBS
Insert GU10 bulbs (not included) into the
lamp body and twist to lock into place as
shown.
We recommend using MR16 bulbs with a
flat face for ease of installation with the
included suction tool.
SERVICE@BLUDOT.COM | 4ASSEMBLY NOTES
Step 04
JOIN ELECTRICAL WIRES
Twist grounding wires together and secure
in place using wire nut.
Then twist white wires together and secure
in place using wire nut.
Lastly, twist black wires together and
secure in place using wire nut.
Pt. 8021 x 3
5 | 844.425.8368 FILTER SCONCE
Step 05
SECURE LAMP BODY TO WALL BRACKET
Tuck the wiring into the electrical box and
gently position lamp body over wall bracket.
Use provided hardware to secure lamp body in
place as shown.
Pt. 1042 x 2 Pt. 9031 x 1
SERVICE@BLUDOT.COM | 6ASSEMBLY NOTES
Step 06
ATTACH SCREEN
Secure screen to lamp body using the provided
hardware as shown.
Pt. 1093 x 2 Pt. 3013 x 2
Additional Information
USE
This unit is meant for indoor use in dry locations only.
CLEAN
Clean with a dry, soft cloth. To remove dirt and fingerprints, use a quality cleaner formulated for metal
furniture. Wipe completely dry with a soft cloth.
BLU DOT DESIGN & MANUFACTURING, INC. DESIGNED IN MINNEAPOLIS, MN
