Page 1
Dang Collection
DESIGNED IN 2016
ASSEMBLY NOTES | REV 01
ALMOST SEEMS A SHAME TO MUCK IT UP WITH A TV.
Perforated steel door fronts allow use of remotes without
spoiling the view. Brass details and powder-coated steel base.
NEED A HAND?
844.425.8368 for assistance.
Page 2
8042
Anti-tip Strap
8041
Anti-tip Bracket

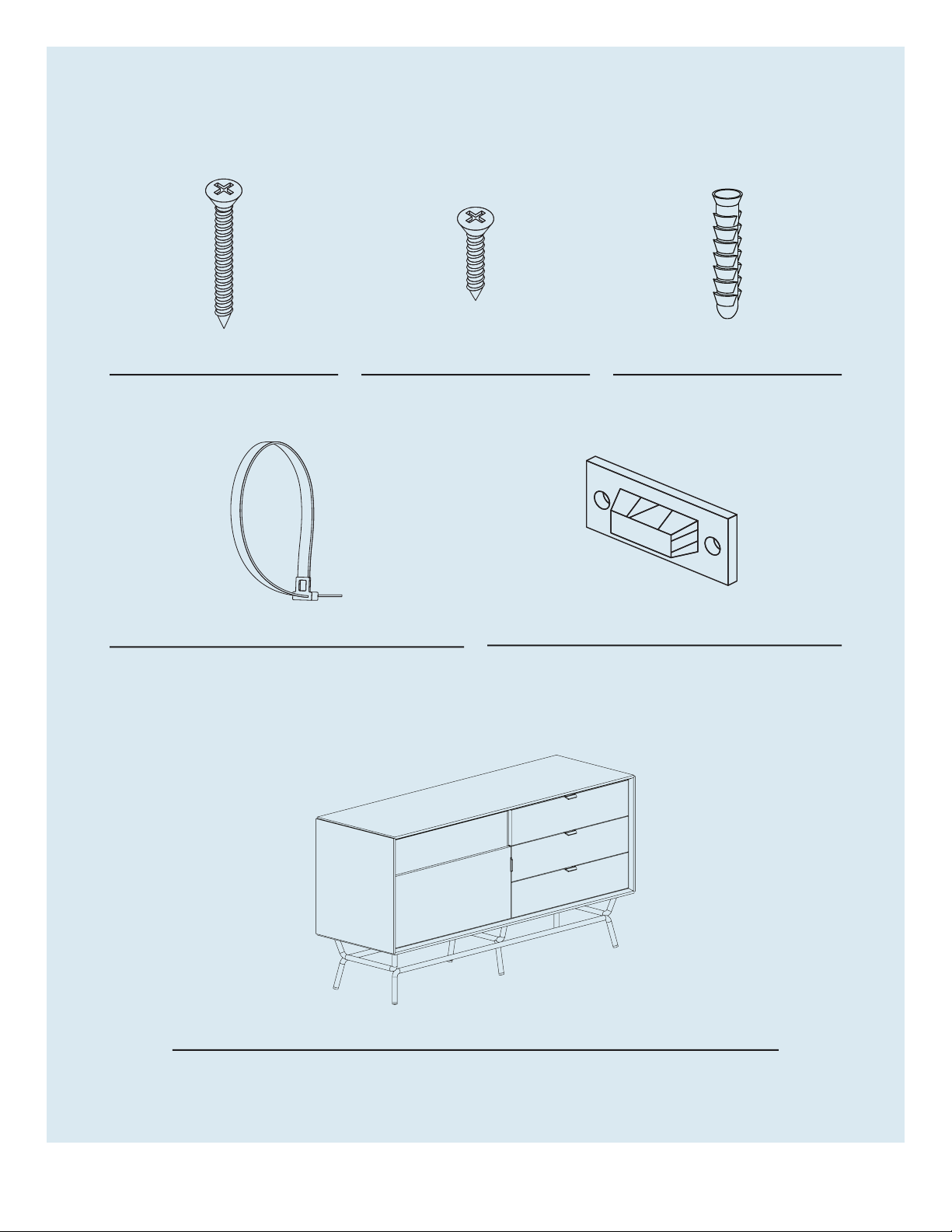

Parts & Hardware
Pt. 1218
2QTY
2QTY
Pt. 1217
1 2QTY QTY
Pt. 8042 Pt. 8041
2QTY
Pt. 8052
1 | 844. 425.8368 DANG COLLECTION
Case
1QTY
Page 3
Step 01

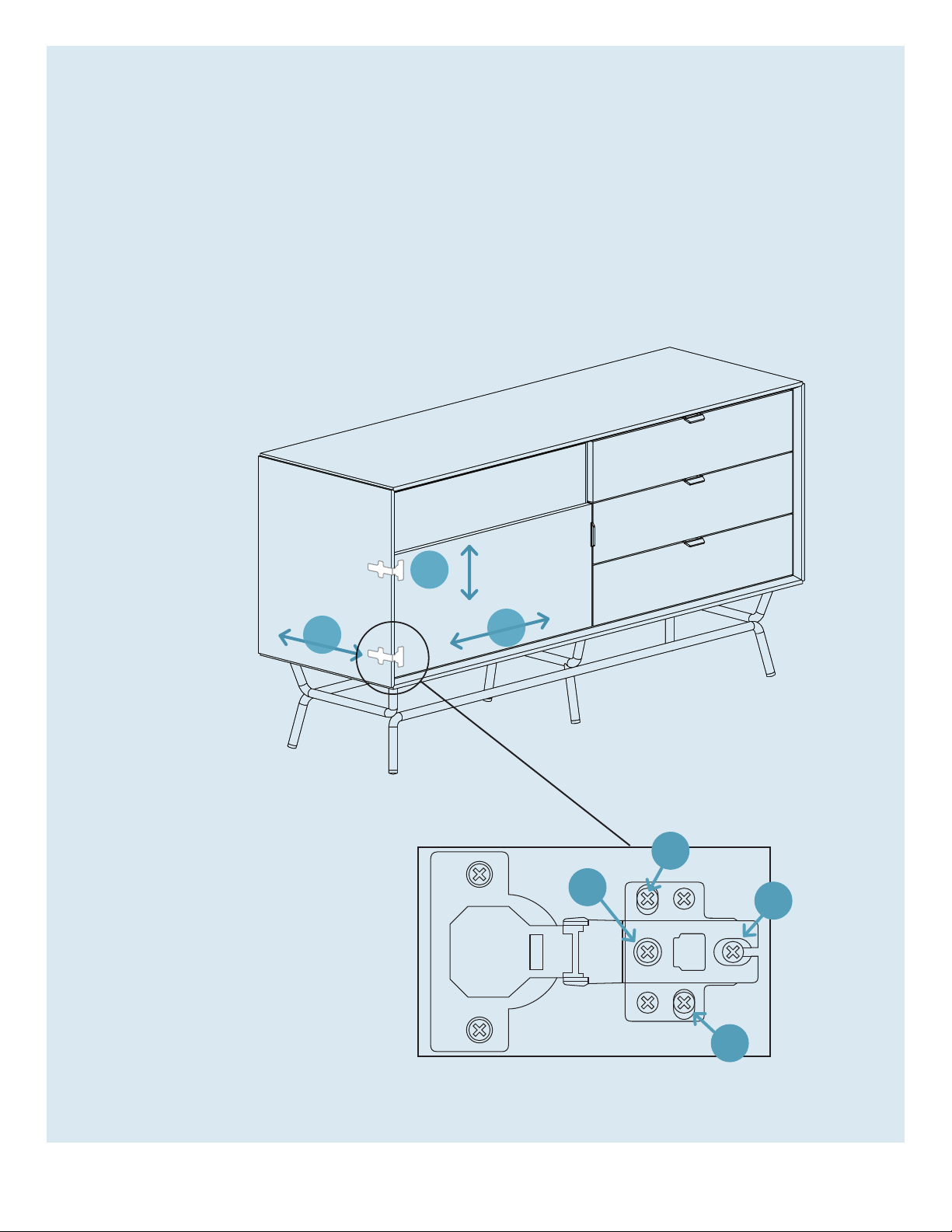

DOOR ADJUSTMENT.
Hinges work in pairs. If you adjust one
hinge, chances are you will have to adjust
all the hinges.
2
If door needs adjustment from
TOP TO BOTTOM, Use Screw #3.
If door needs adjustment from
SIDE TO SIDE, Use Screw #1.
3
1
3
1
2
If door needs adjustment from
FRONT TO BACK, Use Screw #2.
3
[email protected] | 2ASSEMBLY NOTES
Page 4

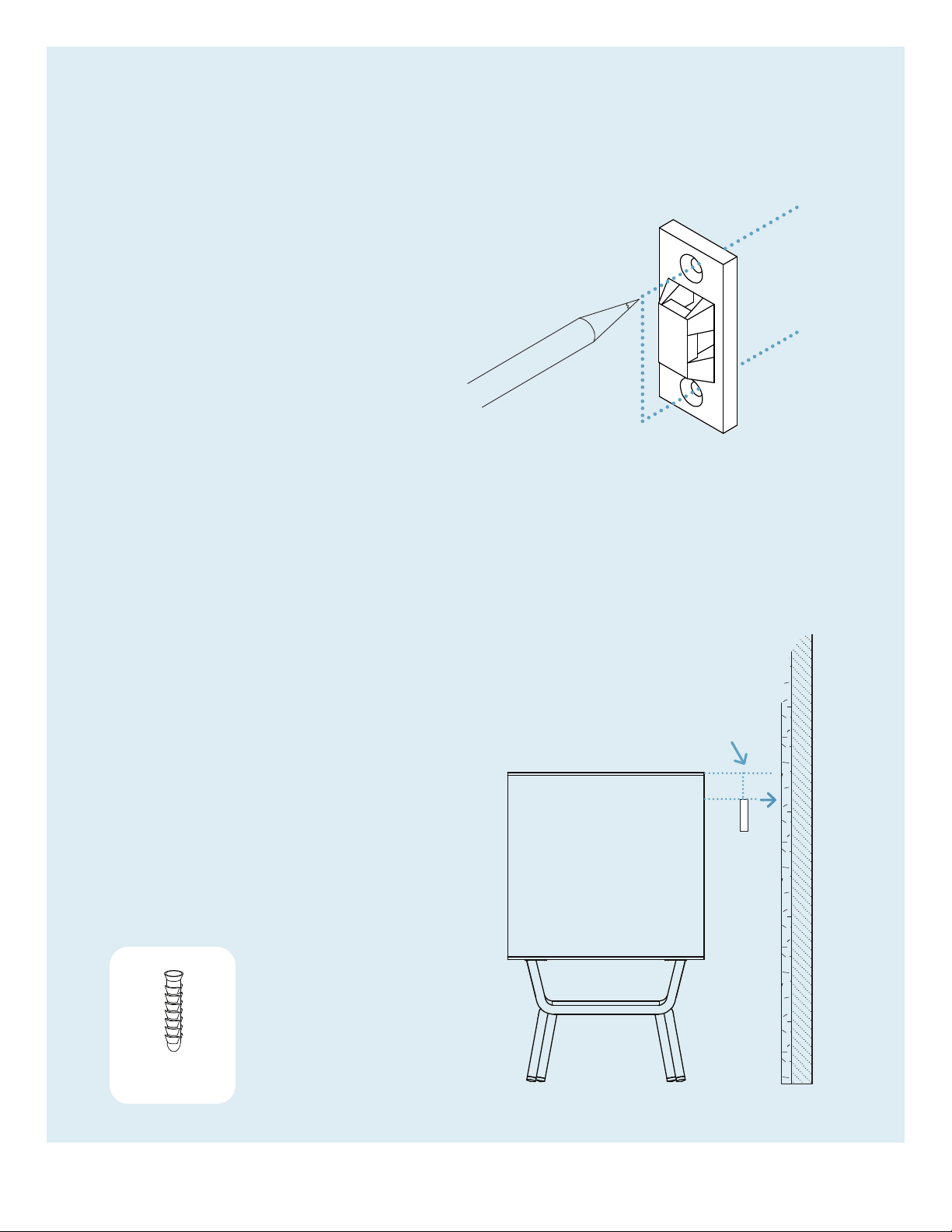

Step 02
INSTALL WALL ANCHORS.
Wall anchors and fasteners are included for
installation into drywall. Please consult your
local hardware professional to determine the
hardware best suited for your wall type.
If the mounting locations are not positioned
on a stud, drill 5/16” holes in the marked
locations. Press wall anchors into drilled holes.
If the mounting locations are positioned on a
stud, this step of installing wall anchors may
be skipped. Instead, drill 7/64” pilot holes in
the marked positions.
Wall
PT. 8052 x 2
1” lower than
case top
Side Panel
3 | 844. 425.8368 DANG COLLECTION
Page 5
8041
Anti-tip Bracket

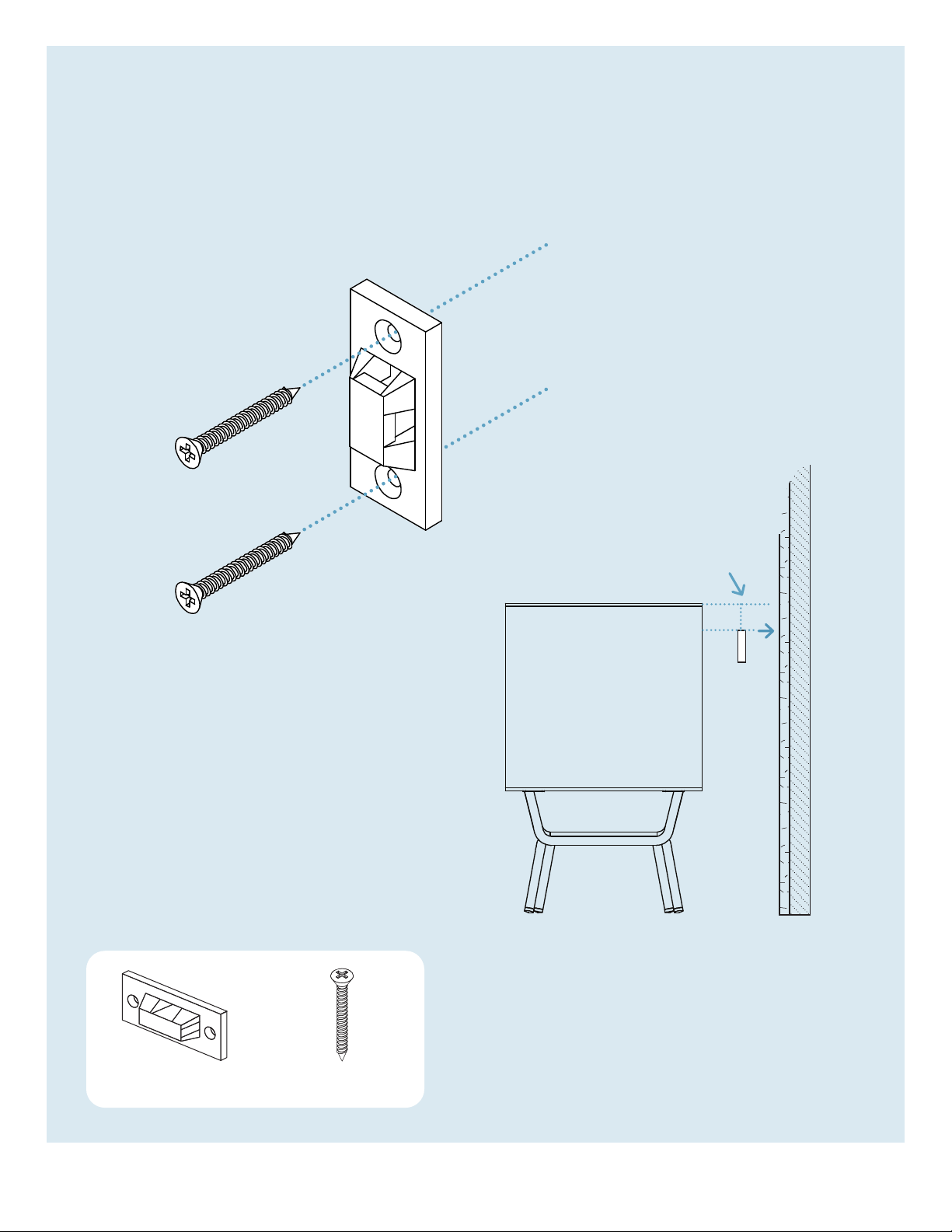

Step 03
ATTACH ANTI-TIP BRACKET TO
THE WALL.
Install anti-tip bracket to wall stud 1-inch
below case top panel height.
Wall
1” lower than
case top
Pt. 8041 x 1 Pt. 1218 x 2
Side Panel
[email protected] | 4ASSEMBLY NOTES
Page 6
8041
Anti-tip Bracket

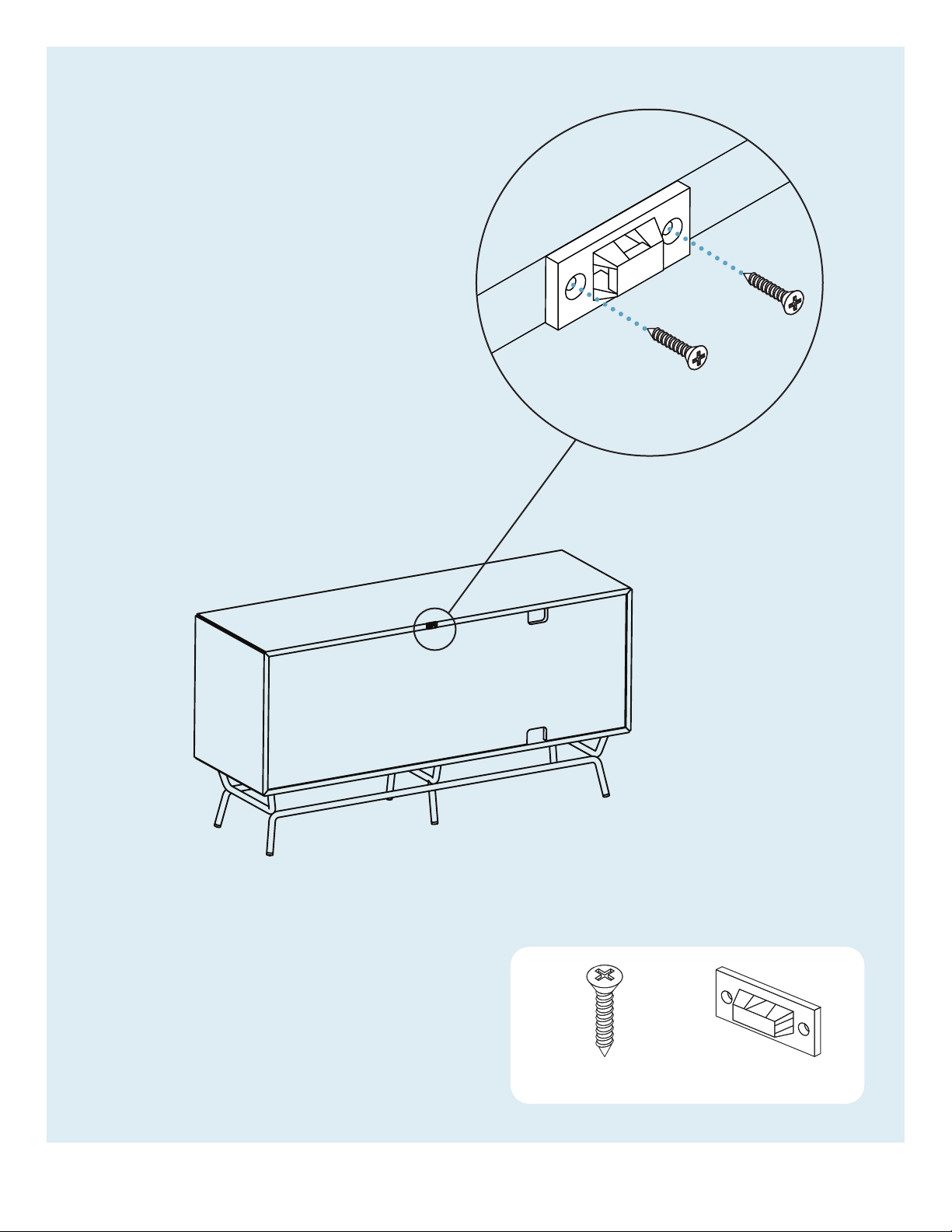

Step 04
INSTALL ANTI-TIP BRACKET
TO CASE.
Bracket must be installed to top panel
of case. In order to prevent damage, it is
recommended that 3/32” pilot holes be
drilled prior to installation.
Top
Back
Panel
Rear of Case
Pt. 1217 x 2
Pt. 8041 x 1
5 | 844. 425.8368 DANG COLLECTION
Page 7
8042
Anti-tip Strap
Step 05
SECURE THE CASE.
Install and tighten the strap
prior to using the product.
Pt. 8042 X 1
[email protected] | 6ASSEMBLY NOTES
Page 8
Additional Information
CLEAN
Clean with a slightly damp, soft cloth. To remove dirt
and fingerprints, use a quality cleaner formulated for
wood furniture. Wipe completely dry with a soft cloth
in the direction of the wood grain.
BLU DOT DESIGN & MANUFACTURING, INC. DESIGNED IN MINNEAPOLIS, MN
