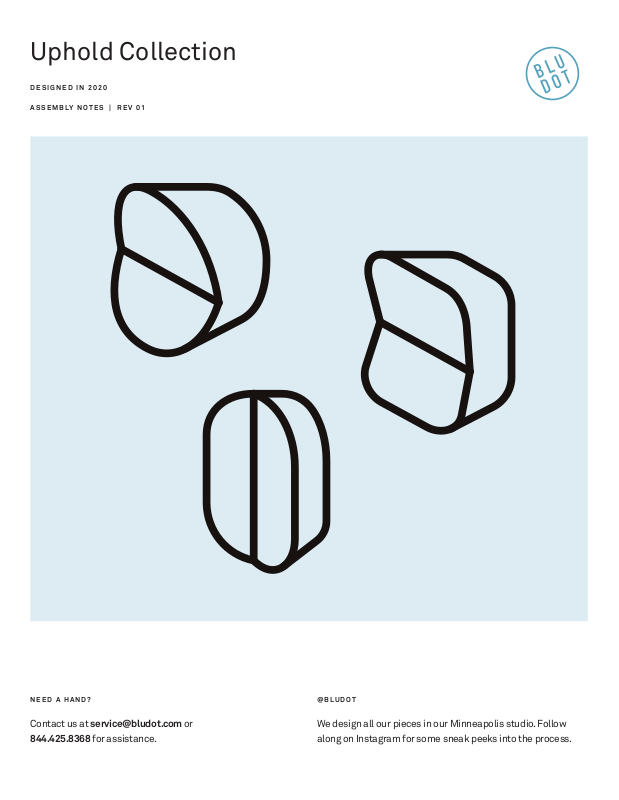

Blu Dot ABFR2029 Installation & Assembly

Uphold Collection
DESIGNED IN 2020
ASSEMBLY NOTES | REV 01
NEED A HAND?
Contact us at service@bludot.com or
@BLUDOT
We design all our pieces in our Minneapolis studio. Follow
along on Instagram for some sneak peeks into the process.
Parts & Hardware
QTY QTY QTY
2 2 1
Pt. 8036 Pt. 1404 Pt. 1698
QTYQTY
Wall BracketPt. 9004
11
QTY
1
Wall Hook*
* Shape may vary depending on the product purchased.
1 | 844. 425.836 8 UPHOLD COLLECTION
Step 01
INSTALL WALL BRACKET AND HOOK
Wall anchors and fasteners are included
for installation. Please consult your local
hardware professional to determine the
hardware best suited for your wall type.
Position the hook in the desired location and
orientation, then mark the mounting locations.
If the mounting location is not positioned on a stud, drill a 7/32” hole in the marked location
and insert wall anchor. If the mounting location
is located on a stud, this step of installing an anchor may be skipped. Instead, drill a 1/8”
pilot hole in the marked position.
Attach wall bracket and place wall hook over
wall bracket as shown.
Pt. 1404 x 2Pt. 8036 x 2*
SERVICE@BLUDOT.COM | 2ASSEMBLY NOTES
Step 02
SECURE HOOK TO WALL BRACKET
Use provided hardware to secure the
wall hook onto the wall bracket as
shown.
Pt. 9004 x 1Pt. 1698 x 1
Additional Information
CLEAN
Clean with a slightly damp, soft cloth. To remove dirt and fingerprints, use a quality cleaner formulated
for wood furniture. Wipe completely dry with a soft cloth in the direction of the wood grain.
